From: Phylogeographic analysis of mitochondrial DNA haplogroup F2 in China reveals T12338C in the initiation codon of the ND5 gene not to be pathogenic

Fig. 1

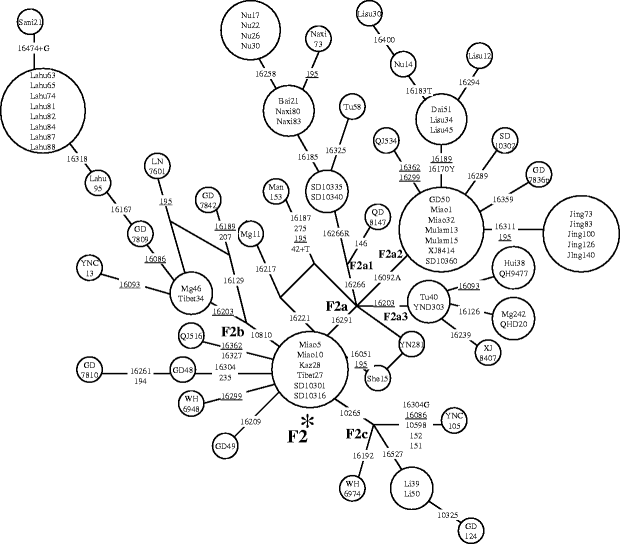

Network profile of haplogroup F2 samples observed in Chinese. The network is constructed on the basis of 76 F2 mtDNAs identified in 57 Chinese ethnic populations. As the nucleotide at site 16519 is known to be extremely hypervariable, it is disregarded in the construction. Representative sample names are indicated in the circles, and the circle size is proportional to the number of samples to be belonged among the pool. Relevant nucleotide variations compared with the revised Cambridge Reference Sequence (rCRS) indicate on the branches in the number of the position. Recurrent mutations are underlined, and the asterisk indicates the root of haplogroup F2
