Extended Data Figure 9: SLC16A13 localizes to Golgi apparatus.
From: Sequence variants in SLC16A11 are a common risk factor for type 2 diabetes in Mexico

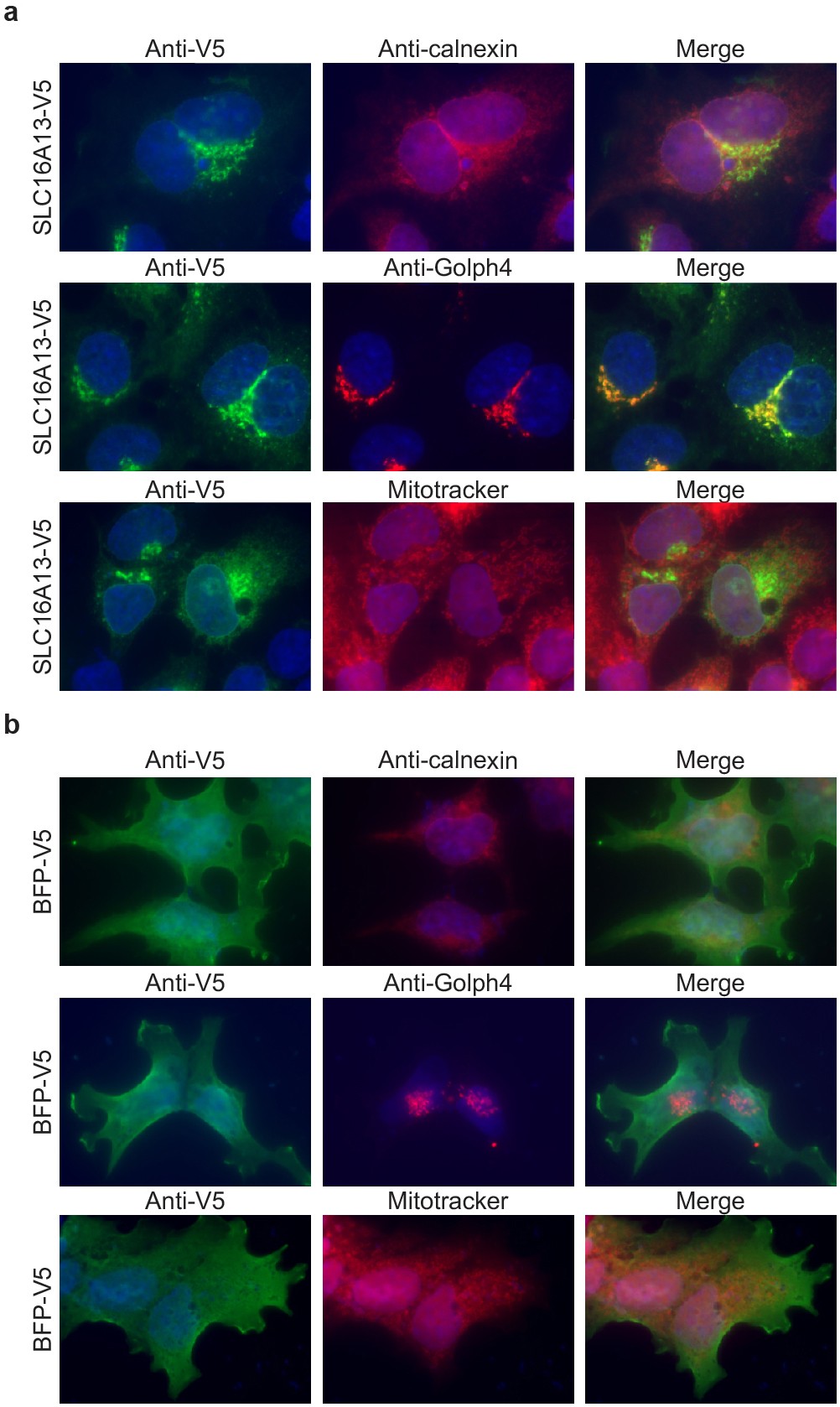

a, b, HeLa cells transiently expressing C terminus, V5-tagged SLC16A13 (a) or BFP (b) were immunostained for SLC16A13 or BFP expression (anti-V5) along with specific markers for the endoplasmic reticulum (anti-calnexin), cis-Golgi apparatus (anti-Golph4) and mitochondria (MitoTracker). Representative images from multiple independent transfections are shown. Owing to heterogeneity in expression levels of overexpressed proteins and endogenous organelle markers, imaging of each protein was optimized for clarity of localization and varied across images; therefore, images are not representative of relative expression levels of each protein as compared to the other proteins.
