Extended Data Figure 6: Scaling of the raw images.
From: Native structure of photosystem II at 1.95 Å resolution viewed by femtosecond X-ray pulses

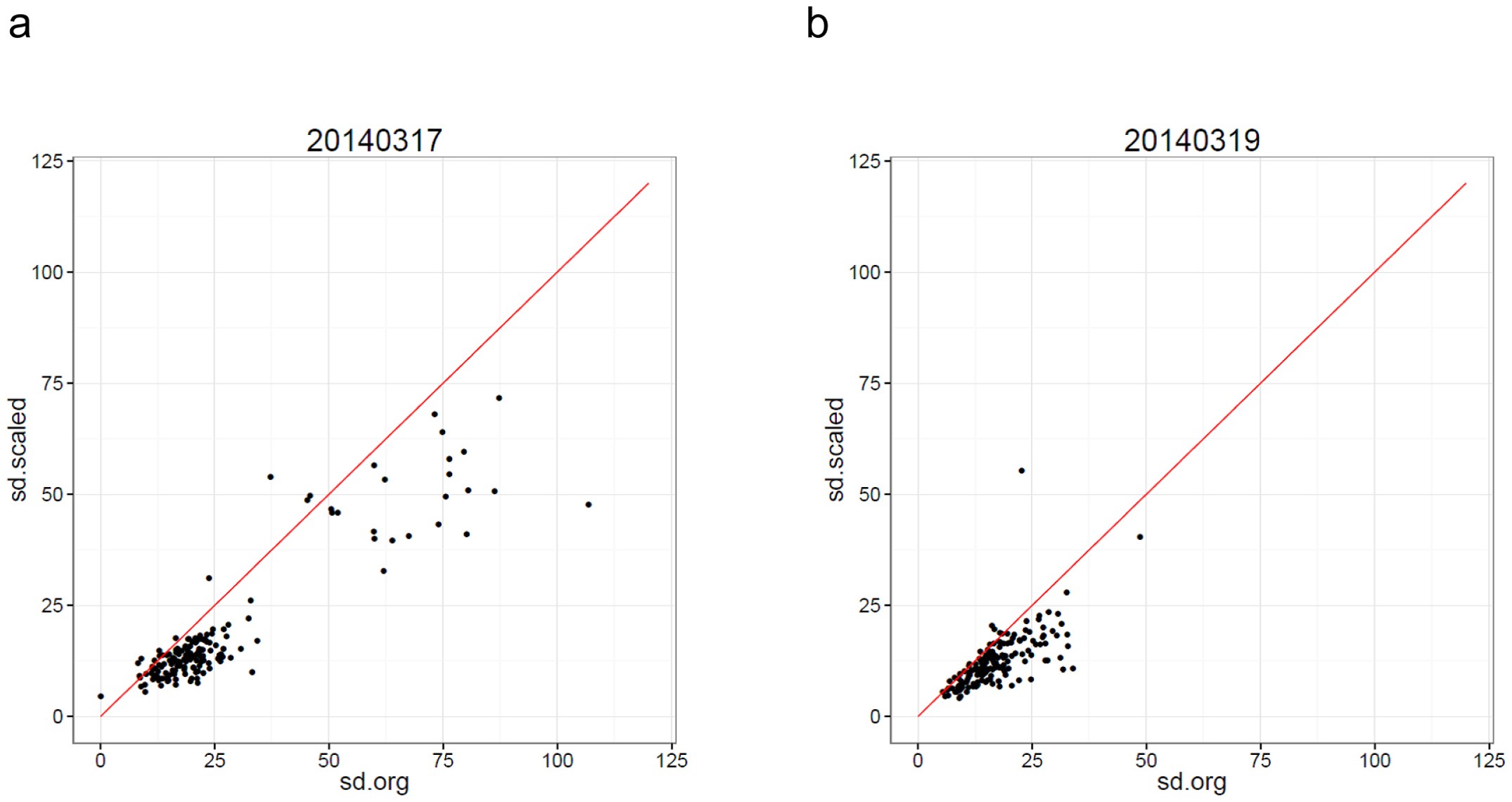

Standard deviations of the average pixel values calculated in the group belonging to the same crystal before and after scaling are plotted. X and Y axes indicate standard deviations obtained before and after scaling, respectively. Red line in the plot represents the relationship Y = X. a, Plot of the images collected during the first half of the beam time (including the first half of the images for data set 1). b, Plot of the images collected during the last half of the beam time (including the rest of the images for data set 1 and all of the images for data set 2).
