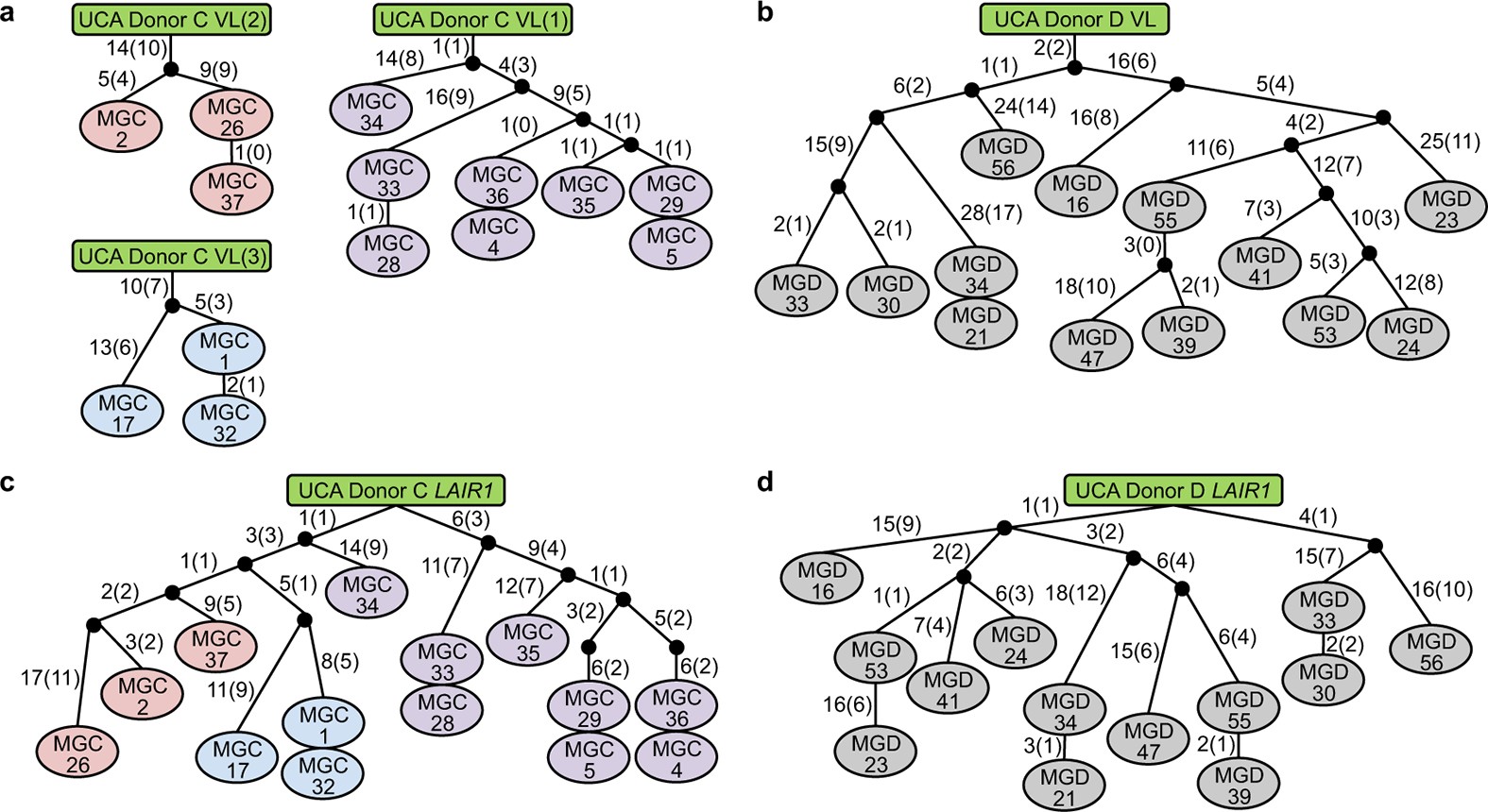

Extended Data Figure 5: Genealogy trees generated from VL and LAIR1 exon sequences.
From: A LAIR1 insertion generates broadly reactive antibodies against malaria variant antigens
a–d, The trees were drawn based on the somatic mutations in light chain variable regions (a, b) or LAIR1 exons (c, d) of the antibodies isolated from donors C and D. In the donor C VL trees, VL(1), VL(2) and VL(3) refer to VL7-43/JL3, VK1-5/JK2 and VK4-1/JK2, respectively. Shown are the nucleotide and amino acid substitutions, with the latter in parentheses.
