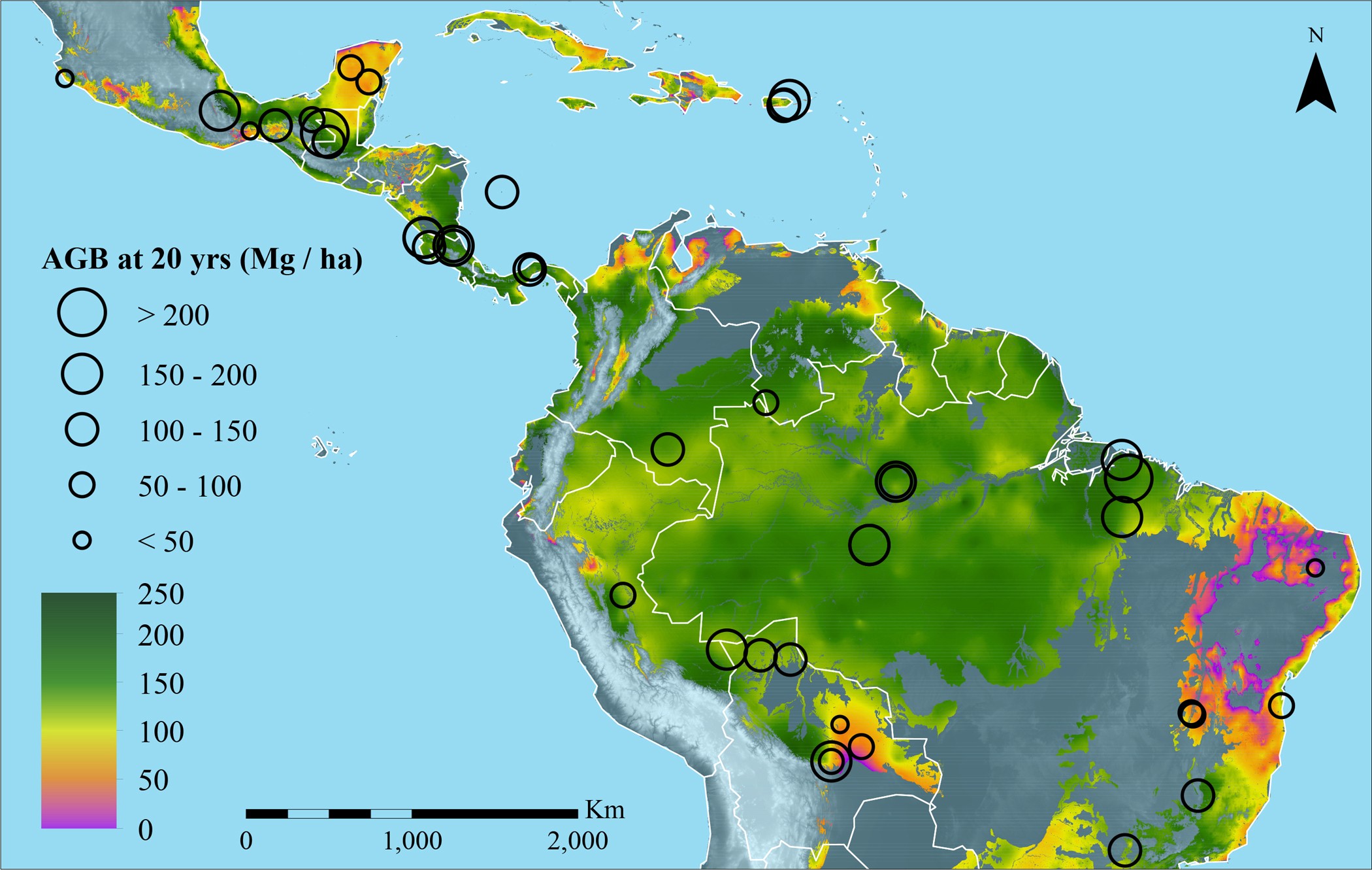

Extended Data Figure 5: Potential biomass recovery map of Neotropical secondary forests.

The same as Fig. 3 but with colour-blind-friendly colour coding. The total potential AGB accumulation over 20 years of lowland secondary forest growth was calculated on the basis of a regression equation relating AGB with annual rainfall (AGB = 135.17 − 103,950 × 1/rainfall + 1.522 × rainfall seasonality + 0.1148 × CWD; see Methods). The colour indicates the amount of forest cover recovery (purple, low recovery; green, high recovery). The 44 study sites are indicated by circles; the size of the symbols scales with the AGB attained after 20 years. The grey areas do not belong to the tropical forest biome. The map focuses on lowland tropical forest (altitude <1,000 m).
