Abstract
The IKZF1 gene encodes IKAROS – a DNA binding protein that acts as a tumor suppressor in T-cell acute lymphoblastic leukemia (T-ALL). IKAROS can act as a transcriptional repressor via recruitment of histone deacetylase 1 (HDAC1) and chromatin remodeling, however the mechanisms through which IKAROS exerts its tumor suppressor function via heterochromatin in T-ALL are largely unknown. We studied human and mouse T-ALL using a loss-of-function and IKZF1 re-expression approach, along with primary human T-ALL, and normal human and mouse thymocytes to establish the role of IKAROS and HDAC1 in global regulation of facultative heterochromatin and transcriptional repression in T-ALL. Results identified novel IKAROS and HDAC1 functions in T-ALL: Both IKAROS and HDAC1 are essential for EZH2 histone methyltransferase activity and formation of facultative heterochromatin; recruitment of HDAC1 by IKAROS is critical for establishment of H3K27me3 histone modification and repression of active enhancers; and IKAROS-HDAC1 complexes promote formation and expansion of H3K27me3 Large Organized Chromatin lysine (K) domains (LOCKs) and Broad Genic Repression Domains (BGRDs) in T-ALL. Our results establish the central role of IKAROS and HDAC1 in activation of EZH2, global regulation of the facultative heterochromatin landscape, and silencing of active enhancers that regulate oncogene expression.
Similar content being viewed by others
Introduction
IKAROS is a transcription factor which acts as a master regulator of hematopoiesis [1,2,3] and is essential for immune system development [4,5,6,7,8,9] and function [10, 11]. Loss of IKAROS function is associated with high-risk B-ALL [5, 12], T-ALL and early T-cell precursor (ETP) leukemia [13]. IKAROS can activate or repress transcription directly or via recruitment of chromatin remodeling complexes to the promoters of its target genes [14,15,16,17,18,19,20,21,22,23,24,25,26]. Several reports demonstrated that IKAROS can regulate gene expression in more complex ways – via global regulation of enhancer landscape [27], and by regulating global chromatin architecture [28].
Elucidating the mechanisms through which IKAROS regulates transcription of its target genes is essential for understanding its tumor suppressor function in leukemia. A majority of previous reports focused on the role of IKAROS in epigenetic regulation in normal lymphopoiesis and B-ALL, but studies regarding IKAROS function in the epigenomic regulation of transcription in T-ALL are limited [29,30,31,32,33,34]. IKAROS’ role in transcriptional repression of individual genes has been documented, however its function in global regulation of transcriptional repression in T-ALL has not been studied. Here we use an IKZF1 loss-of-function and re-expression approach in human and mouse T-ALL, along with primary human T-ALL, and normal human and mouse thymocytes to determine the roles of IKAROS and HDAC1 in global regulation of facultative heterochromatin and transcriptional repression in T-ALL. Results revealed novel roles of IKAROS and HDAC1 in regulation of EZH2 histone methyltransferase activity, enhancer silencing, and global regulation of formation and expansion of large heterochromatin domains. These data led to a new model of IKAROS function as a global regulator of heterochromatin landscape and gene expression in leukemia.
Materials and methods
Cell culture and viral transduction
JE131 cells (referred here as DN3) are Ikzf1-null early T-ALL cells that develop spontaneously in Ikzf1 knock-out mice [35]. DN3 cells were transduced using an MSCV-based bicistronic retroviral vector that expresses IKAROS and GFP. Wild-type cells as well as retrovirally-transduced cells were collected at 1 and 2-day timepoints for experiments.
RNA-seq
Total RNA was extracted using QIAGEN RNeasy Mini Kit (Qiagen, Hilden Germany). Libraries were generated and sequenced at the sequencing core facility at Pennsylvania State University College of Medicine (PSUCOM).
ChIP-seq
ChIP-seq assays for IKAROS, EZH2, HDAC1 and histone modifications were performed using antibodies and methods described in Supplemental Data and as previously described [36, 37]. Samples were sequenced using the Illumina HiSeq 2500 at the sequencing core facility at PSUCOM. The rest of experimental procedures and bioinformatics analysis is described in Supplemental Data.
Results
IKAROS is essential for formation of facultative heterochromatin
The role of IKAROS in regulation of heterochromatin landscape in T-ALL was studied by comparing IKAROS loss of function and re-expression of Ikzf1 into Ikzf1-null T-ALL cells as previously described (Fig. S1A) [27]. Ikzf1-null T-ALL cells show broad, weak H3K27me3 genome-wide occupancy with very few distinct peaks. Re-expression of IKAROS via retroviral transduction induces cellular growth arrest (Fig. S1B, C), along with abundant H3K27me3 enrichment throughout the genome, predominantly at gene promoters, within 1 day (Fig. 1A). A large majority of newly-enriched H3K27me3 overlaps IKAROS occupancy, suggesting that IKAROS DNA binding directly induces formation of facultative heterochromatin (Fig. 1B, C). Motif analysis shows enrichment of IKAROS’ core binding motif in the de novo-formed facultative heterochromatin (Fig. S2). Most IKAROS-induced de novo heterochromatin regions are located within promoters (Fig. 1C, D) of genes that regulate cellular metabolism, signal transduction, and oncogenic pathways (Fig. 1E, F).

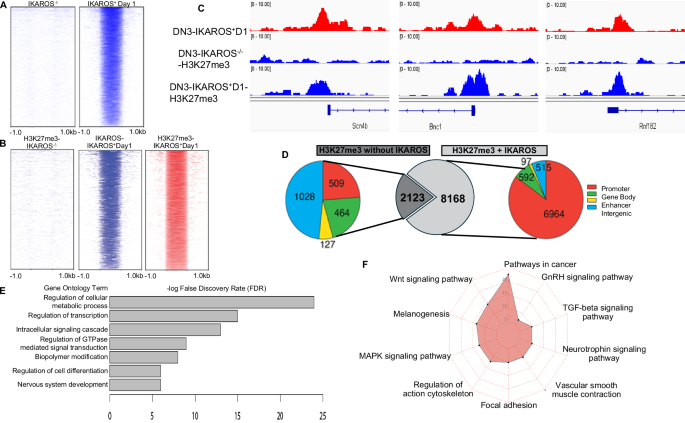

A Heatmaps of H3K27me3 ChIP-seq signals at day 1 after IKAROS expression vs. day 0. Signals are centered on H3K27me3 peaks at day 1. B Heatmaps of IKAROS and H3K27me3 ChIP-seq signals with IKAROS direct binding regions at day 0 vs. day 1. Signals are centered on IKAROS and H3K27me3 peaks at day 1. C Examples of de novo-formed H3K27me3 enrichment that are induced by IKAROS binding. D De novo H3K27me3 regions classified by function of the DNA element. E, F Gene ontology and pathway enrichment analysis of genes associated with de novo H3K27me3 regions.
Analysis of H3K27me3 enrichment following IKAROS-re-expression revealed a dual effect of IKAROS on the facultative heterochromatin landscape: 1) direct formation of facultative heterochromatin is associated with IKAROS occupancy and occurs mostly at the promoters of target genes and 2) establishment of global facultative heterochromatin landscape without IKAROS occupancy (indirect effect). Direct formation of facultative heterochromatin by IKAROS is predominant the first day following Ikzf1 re-expression. In contrast, the global increase (over 4-fold) of H3K27me3 peaks in facultative heterochromatin is mostly independent of concomitant IKAROS DNA binding on day 2 following IKAROS re-expression with similar distribution among promoters, gene body and intergenic regions (Fig. S3A–C). Dynamic changes in the H3K27me3 signature during the 2 days following Ikzf1 re-expression is consistent with establishment of the heterochromatin landscape that is found in normal thymocytes (Figs. S4A, B, S5). Data suggests that IKAROS is essential for formation of facultative heterochromatin and that IKAROS regulates H3K27me3 landscape both by direct DNA binding and indirectly, likely by influencing the activity of genes that regulate H3K27me3 formation. Genome-wide distribution of H3K27me3 following Ikzf1 re-expression suggests IKAROS-driven heterochromatin re-programming to that of a physiological thymocyte.
Interaction between EZH2 and IKAROS is required for formation of facultative heterochromatin
Enhancer of zeste homolog 2 (EZH2) is a histone methyltransferase that catalyzes the trimethylation of Histone 3 at lysine 27 resulting in H3K27me3 repressive chromatin [38, 39]. IKAROS can bind and recruit EZH2 to promoters of IKAROS target genes resulting in the formation of facultative heterochromatin [40]. We analyzed how the absence of Ikzf1 and its re-expression affect function of EZH2. ChIP-seq showed abundant EZH2 occupancy in Ikzf1-null T-ALL, mostly at promoter regions, but without enrichment of H3K27me3 (Fig. 2A, S6A). Re-expression of Ikzf1, is associated with strong recruitment of EZH2 predominantly by IKAROS, and was associated with H3K27me3 enrichment (Fig. 2B-left heat maps, S6B). DNA-bound EZH2 without IKAROS association showed poor enrichment in H3K27me3 (Fig. 2C, S6C). Interestingly, many of the sites occupied solely by EZH2 in day 0 without H3K27me3 enrichment, were occupied by IKAROS-EZH2 complexes in day #1 and resulted in H3K27me3 enrichment (Fig. S6D). The relationship between EZH2 and IKAROS peaks in Ikzf1-null T-ALL and 1 day following Ikzf1 re-expression is shown in Figure S7. Results in Fig. 2A–C suggest that EZH2 DNA occupancy without concomitant IKAROS DNA binding is not sufficient to induce H3K27me3 enrichment, and that EZH2 requires IKAROS binding for the formation of facultative heterochromatin. IKAROS-EZH2 complexes are mostly located at the promoters of their target genes (Fig. 2D), which regulate protein metabolism and signaling pathways in cancer (WNT, MAPK, etc.) (Fig. 2E, F).

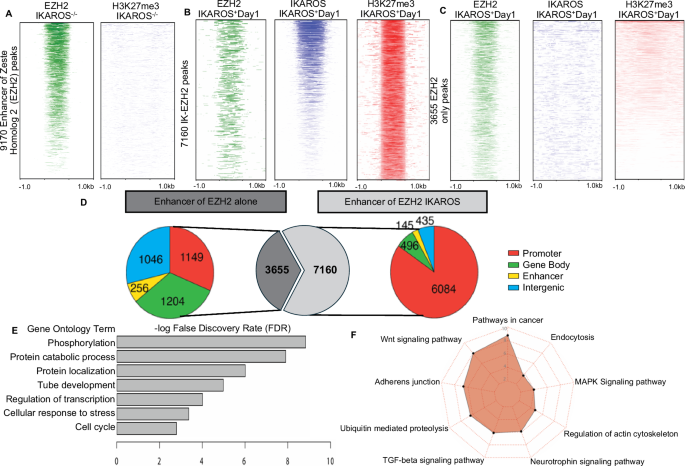

A Heatmaps of EZH2 and H3K27me3 ChIP-seq signals in IKAROS-null T-ALL. B, C Heatmaps of EZH2, IKAROS and H3K27me3 ChIP-seq signals in IKAROS-EZH2 occupied (B), and EZH2-only occupied (C) regions. D EZH2-only and EZH2-IKAROS occupied sites classified by function of the DNA element. E, F Gene ontology and pathway enrichment analysis of genes associated with EZH2-IKAROS complexes.
Analysis of EZH2 enrichment in the subsequent day showed reduced occupancy of EZH2 and IKAROS-EZH2 complexes, especially at the promoters of target genes (Fig. S8). Overall, these data suggest that formation of IKAROS-EZH2 complex is essential for H3K27me3 enrichment and formation of facultative heterochromatin the first day after Ikzf1 re-expression, and that EZH2 DNA binding in Ikzf1-null T-ALL is not associated with H3K27me3 enrichment.
IKAROS recruits HDAC1 to the promoters of the genes that regulate malignant transformation
IKAROS can recruit HDAC1 to regulate expression of its target genes via chromatin remodeling [14, 15, 22, 41, 42]. We analyzed whether the lack of Ikzf1 and its re-expression regulate HDAC1 genome-wide distribution and function. In Ikzf1-null T-ALL, HDAC1 DNA occupancy is poor and occurs mostly at intergenic regions (Fig. 3A and S9A-top panel). In day 1 following Ikzf1 re-expression, there is a strongly increased HDAC1 DNA occupancy due to 1) recruitment of HDAC1 by IKAROS primarily to promoters (Fig. 3B, C and S9B, C); and 2) due to global genomic occupancy of HDAC1 independent of IKAROS binding (Fig. 3B, S9). IKAROS-HDAC1 complexes localize to promoters and are mostly associated with repression of their target genes that regulate protein metabolism and oncogenic signaling pathways (Fig. 3D–F), similarly to the pathways regulated by EZH2 and H3K27me3.

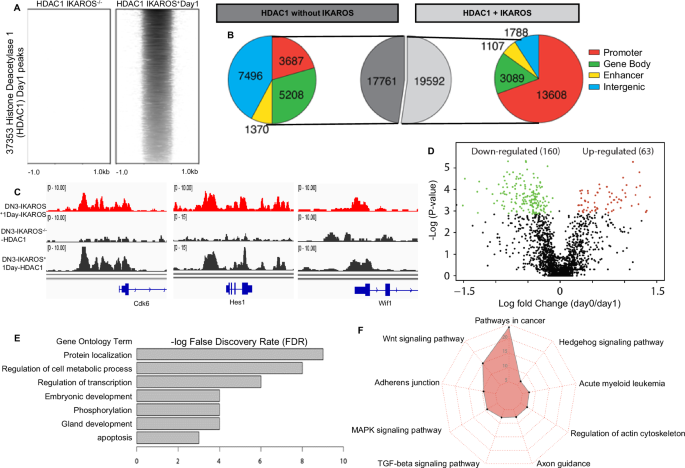

A Heatmaps of HDAC1 ChIP-seq signals in IK-null T-ALL and day 1 following IKAROS re-expression. B HDAC1-only and HDAC1-IKAROS occupied sites classified by function of the DNA element. C Examples of IKAROS recruitment of HDAC1 to the promoters of IKAROS target genes. D Analysis of the differentially expressed genes directly regulated by IKAROS-HDAC1 complexes. E, F Gene ontology and pathway enrichment analysis of genes associated with IKAROS-HDAC1 complexes.
Analysis of HDAC1 occupancy in second day following Ikzf1 re-expression showed highly increased HDAC1 genome-wide occupancy, with IKAROS-HDAC1 complexes present mostly at the promoters of IKAROS target genes. However, most HDAC1 global DNA enrichment was not associated with concomitant IKAROS binding, and is similarly distributed among promoters, gene body and intergenic regions (Fig. S9).
HDAC1 has a critical role in formation of facultative heterochromatin
We analyzed the relationship between IKAROS, EZH2 and HDAC1 with H3K27me3 enrichment and formation of facultative heterochromatin. Surprisingly, H3K27me3 enrichment has the strongest association with HDAC1 DNA occupancy, much stronger than occupancy by EZH2 and/or IKAROS (Fig. 4A, B) suggesting that HDAC1 has a prominent role in formation of H3K27me3, particularly at promoter regions (Fig. S10). Dynamic analysis of IKAROS, EZH2, and HDAC1 occupancy with H3K27me3 showed that initial formation of H3K27me3 (day 1) is associated either with IKAROS/HDAC1/EZH2 concomitant DNA binding, or with IKAROS/HDAC1 DNA binding without EZH2 occupancy (Fig. 4A–D). However, further H3K27me3 enrichment (day 2) is either associated with HDAC1 occupancy independent of IKAROS and/or EZH2 enrichment, or independent of IKAROS/HDAC1/EZH2 DNA binding altogether (Fig. 4B). HDAC1 inhibition following IKZF1 re-expression severely reduces number of H3K27me3 peaks (Fig. S10D–F). These results strongly suggest that the recruitment of HDAC1 by IKAROS is essential for induction of H3K27me3 and that HDAC1 is critical for the maintenance of H3K27me3.

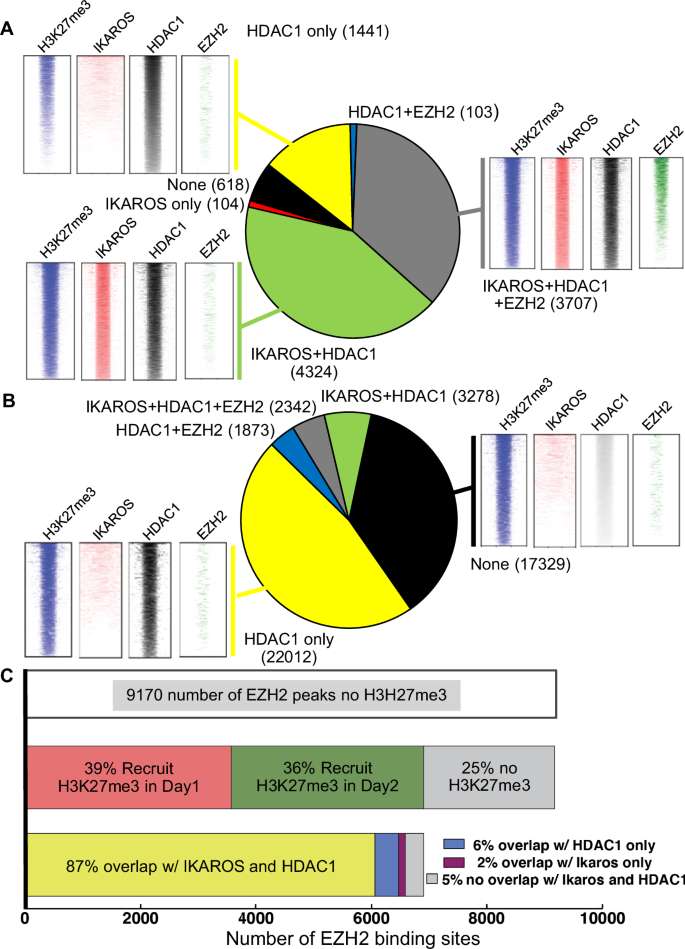

A, B IKAROS, HDAC1, and Enhancer of Zeste homologue 2(EZH2) occupancy associated with H3K27me3 formation Day 1 (A) and Day 2 (B) following Ikzf1 re-expression. C EZH2 target genes are regulated by the IKAROS and HDAC1-induced epigenetic switch. EZH2 DNA occupancy at target genes does not induce H3K27me3 in Ikzf1-null T-ALL (top). A large number (75%) of EZH2-target genes undergo epigenetic switch with de novo H3K27me3 formation following Ikzf1-re-expression (middle). Most of the EZH2 target genes that undergo epigenetic switch are regulated by IKAROS and HDAC1 binding (bottom).
The role of HDAC1 recruitment by IKAROS, as well as global genomic occupancy of HDAC1 is highly prominent following Ikzf1 re-expression and proliferation arrest of Ikzf1-null T-ALL cells. Since EZH2 DNA binding did not induce formation of H3K27me3 in Ikzf1-null cells, we analyzed whether IKAROS/HDAC1 complexes induce H3K27me3 enrichment at sites that were occupied by EZH2 in IKAROS-null T-ALL. Results showed that IKAROS re-expression induced H3K27me3 enrichment at 75% of the sites occupied by EZH2 in Ikzf1-null cells (Fig. 4C-middle). Almost all H3K27me3-enriched sites were occupied by both IKAROS and HDAC1 (Fig. 4C-bottom) and most were located at the promoters of genes that regulate oncogenic signaling pathways (Fig. S11A–D). HDAC1 directly interacts with EZH2 only when IKAROS is expressed (Fig. S11E). These results suggest that recruitment of HDAC1 by IKAROS is essential for EZH2 tumor suppressor function, including formation of facultative heterochromatin at promoters of genes that positively regulate oncogenic pathways.
IKAROS and HDAC1 modulate activity of enhancers
Next, we analyzed how recruitment of HDAC1 by IKAROS regulates enhancer activity. A large set of enhancers are occupied by either IKAROS or HDAC1 following Ikzf1 re-expression into Ikzf1-null cells (Fig. 5A). We compared gene transcription regulated by active enhancers (H3K4me1 + /H3K27ac + ) without IKAROS or HDAC1 occupancy (IKAROS-/HDAC1-) to transcription regulated by enhancers with enrichment for IKAROS (IKAROS + ), HDAC1 (HDAC1 + ) or both IKAROS and HDAC1 (IKAROS + /HDAC1 + ). IKAROS occupancy at active enhancers has a repressive effect on transcription of genes targeted by those enhancers (Fig. 5B). HDAC1 enrichment has an even more pronounced repressive effect on enhancer activity, similar to concomitant IKAROS and HDAC1 enrichment (Fig. 5B). Modulation of enhancer function by IKAROS and HDAC1, represses the transcription of genes that regulate cancer pathways (Figs. S12–14).

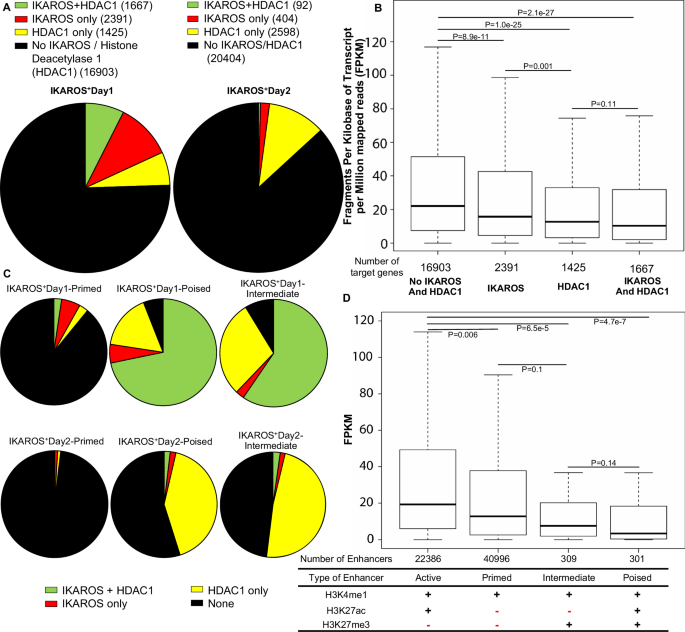

A A large number of active enhancers are occupied by IKAROS and HDAC1 after IKAROS re-expression. Pie charts showing the portions of active enhancers occupied by IKAROS, HDAC1, or both IKAROS and HDAC1 (B) Boxplot shows expression of genes regulated by the active enhancers not bound by IKAROS and/or HDAC1 (left) and occupied by IKAROS and/or HDAC1. C IKAROS and HDAC1 regulate formation of poised and intermediate enhancers. Pie charts showing the portions of primed, poised, and silenced enhancers occupied by IKAROS, HDAC1, or both IKAROS and HDAC1 in day 1 and 2 following Ikzf1 re-expression. IKAROS-HDAC1 co-occupancy is highly associated with formation of poised and intermediate enhancers in day 1, while HDAC1-only occupancy is dominant in those enhancers in day 2. D Boxplot shows expression of genes regulated by the active, primed, intermediate, and poised enhancers.
Non-active enhancers can be classified as primed (enriched in H3K4me1+ only), intermediate (H3K4me1 + /H3K27ac + /H3K27me3 + ) and poised (H3K4me1 + /H3K27me3 + ) [43, 44]. We analyzed whether IKAROS and HDAC1 can regulate formation of these enhancer types. Results show that a majority of poised and intermediate enhancers in day 1 following IKAROS re-expression are associated with both IKAROS/HDAC1 occupancy, while HDAC1 occupancy has a dominant role in formation of poised and intermediate enhancers during the second day following IKAROS re-expression into IKAROS-null T-ALL (Fig. 5C). Genes regulated by poised and intermediate enhancers have significantly reduced transcription compared to the genes regulated by active or primed enhancers (Fig. 5D). These data show that IKAROS and HDAC1 occupancy can silence enhancer activity in two ways: 1) by repressing activity of active enhancers; and 2) by inducing formation of poised and/or silenced enhancers. To study the functional significance of IKAROS and HDAC1 regulation of enhancer activity in T-ALL, we analyzed gene regulation by active enhancers in IKAROS-null T-ALL that become occupied by IKAROS and/or HDAC1 following IKAROS transduction (Fig. S15). Pathway enrichment analysis shows that these enhancers regulate genes involving pathways in cancers and cell proliferation (Fig. S15A). IKAROS re-expression and IKAROS/HDAC1 binding to those enhancers is associated with repression of many genes that promote stemness and drug resistance, e.g., adrenomedullin (Fig. S15B). These data suggest that IKAROS exerts its tumor suppressor function in T-ALL by recruiting HDAC1 and silencing activity of enhancers that regulate transcription of various oncogenes. These results identify the enhancers that are directly regulated by IKAROS in T-ALL and their corresponding pathways.
IKAROS regulates formation and expansion of large organized chromatin lysine (K) domains (LOCKs)
Global epigenetic landscape contains clusters of nucleosomes with a large number of post-transcriptionally modified lysine residues Large Organized Chromatin lysine(K) domains (LOCKs). LOCKS are associated with repression if they consist predominantly of heterochromatin marks (H3K27me3 or H3K9me3) [45]. We analyzed whether IKAROS can regulate formation and distribution of LOCKs. Ikzf1 expression strongly induces de novo formation of H3K27me3 LOCKs, which becomes even more prominent 2 days following Ikzf1 re-expression (Fig. 6A). Re-expression of Ikzf1 increases the number of H3K27me3 LOCKs but has a greater effect by increasing the genomic coverage of H3K27me3 LOCKs (Fig. 6A). This is mostly due to strong day 2 expansion of de novo formed H3K27me3 LOCKs in day 1 (Fig. 6B). Expansion of the H3K27me3 LOCKs over 2 days following Ikzf1 re-expression is associated with a large number of genes being regulated by LOCKs. (Fig. 6C). There is a dynamic shift in the function of the genes regulated by H3K27me3 LOCKs: in day #1 following IKAROS re-expression, H3K27me3 LOCKs regulate mostly pathways in cancer and cellular proliferation, while in day #2, H3K27me3 LOCKs mostly regulate genes involved in immune response (Fig. S16A, B). Expression of genes regulated by H3K27me3 LOCKs reduced compared to the expression of the random genes (Fig. 6D). These data demonstrate that IKAROS has an important role in organization of higher heterochromatin structures and gene expression via regulation of formation and expansion of H3K27me3 LOCKs.

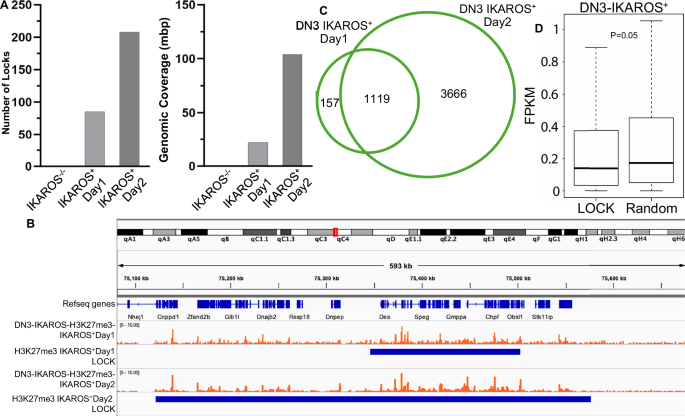

A Number (left) and genomic coverage (right) of H3K27me3 LOCKs in day 1 and 2 following Ikzf1 re-expression. B Example of the genomic expansion of the H3K27me3 LOCKs from day 1 to 2 after Ikzf1 re-expression. C Number of genes regulated by the H3K27me3 LOCKs in day 1 and 2 following Ikzf1 re-expression. D Gene expression of the genes regulated by LOCKs vs. random genes.
Regulation of heterochromatin landscape by IKAROS in T-ALL is evolutionarily conserved
IKAROS functions as a tumor suppressor in human T-ALL [13]. We tested whether IKAROS regulates heterochromatin landscape similarly in mouse and human T-ALL. The IKZF1 gene was deleted in human T-ALL cells MOLT-4 using the CRISPR-Cas system to create MOLT-4 IKZF1-null cells. We analyzed IKAROS’ role in heterochromatin regulation in human T-ALL by comparing the heterochromatin landscape of MOLT-4-IKZF1-null and MOLT-4 wild type cells. IKZF1 deletion in MOLT-4 cells resulted in reduced global H3K27me3 and HDAC1 occupancy (Fig. 7A). This was associated with the global genomic redistribution of H3K27me3 and HDAC1 due to their reduced occupancy at promoter regions (Fig. 7B, Fig. S17). IKZF1 knockout reduced the H3K27me3 and HDAC1 occupancy at promoters of genes that regulate cell cycle progression, cellular division, and nucleotide metabolism (Fig. 7C, D). Gene expression analysis showed reduced expression of genes regulated by active enhancers with IKAROS and HDAC1 occupancy compared to gene expression regulated by active enhancers not occupied by IKAROS and HDAC1 in human T-ALL (Fig. S18). IKZF1 deletion in MOLT-4 cells reduced both the number and the genomic coverage of H3K27me3 LOCKS (Fig. S19). Lack of IKAROS reduces the number of genes regulated by LOCKs, including genes involved in several oncogenic pathways (Fig. S20). We analyzed the effect of IKZF1 deletion on formation of the Broad Genic Repression Domains (BGRD) in MOLT-4 cells. BGRDs are domains enriched in H3K27me3 (Fig. S21A) that are also enriched in oncogenes [46]. Expression of genes located within BGRDs is strongly reduced compared to random genes (Fig. S21B). IKZF1 deletion reduces the number of BGRDs and its genomic coverage (Fig. S21C, D). We analyzed the H3K27me3 ChIP-seq data from mouse Ikzf1-null T-ALL on day 1 and 2 following Ikzf1 re-expression and human primary T-ALL, and compared them with the published H3K27me3 genomic occupancy in normal mouse and human thymocytes. Comparative analysis of genome wide enrichment of H3K27me3 in normal and malignant human and mouse cells showed a remarkable conservation of H3K27me3 landscape in human and mouse thymocytes, loss of H3K27me3 in T-ALL, and an important role of IKAROS in maintaining H3K27me3 landscape (Fig. S22). These data suggest that IKAROS regulates global heterochromatin landscape in a similar way for both mouse and human T-ALL, validating the mouse T-ALL model used for this study and providing insight into the tumor suppressor role of IKAROS in human T-ALL.

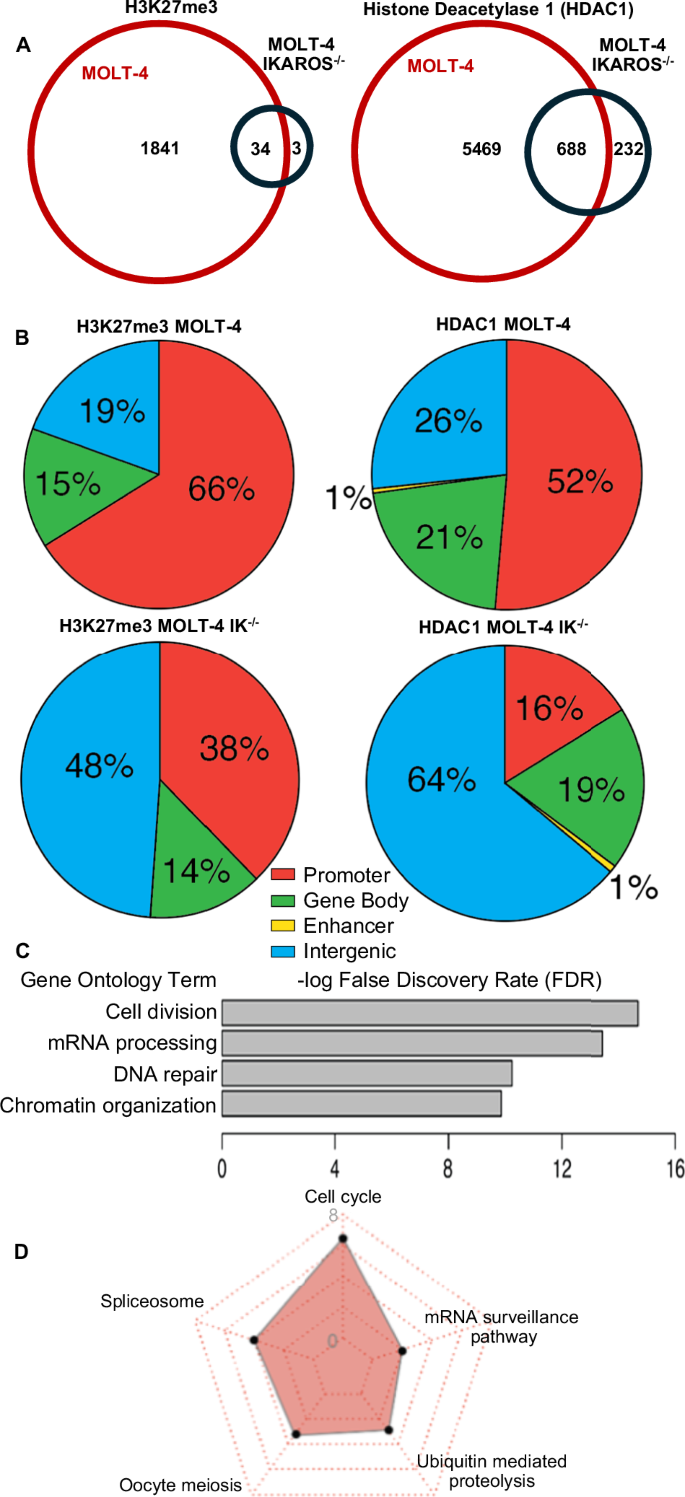

A Number of H3K27me3 (left) and HDAC1 (right) peaks in wildtype MOLT-4 and in IKZF1-knockout (MOLT-IK-KO) cells. B H3K27me3 and HDAC1 occupied sites, in wildtype MOLT-4 and in IKZF1-knockout (MOLT-IK-KO) cells, classified by function of the DNA element. C, D Gene ontology and pathway enrichment analysis of genes associated with HDAC1 occupancy in wildtype MOLT-4 cells.
Discussion
IKAROS is a tumor suppressor in T-ALL. Ikzf1 loss-of-function and re-expression experiments in human and mouse T-ALL, coupled with extensive epitranscriptomic analysis of primary T-ALL and thymocytes, identified novel mechanisms that regulate tumor suppression in T-ALL (Fig. 8):
-
a)
Critical role of IKAROS-HDAC1 complexes in regulation of global facultative heterochromatin landscape. Loss of the H3K27me3-associated heterochromatin has been associated with the development of T-ALL and other types of leukemia [13, 47,48,49,50,51,52]. Inactivating mutations of histone methyltransferase EZH2 is considered the principal mechanism responsible for the loss of H3K27me3 in T-ALL [53,54,55,56]. Presented data revealed that DNA binding of EZH2 in the absence of IKAROS and/or HDAC1 co-localization is rarely associated with H3K27me3 in both Ikzf1-null and Ikzf1-wildtype mouse and human T-ALL. Lack of IKAROS is associated with severe depletion of DNA-bound HDAC1, and loss of EZH2-associated H3K27me3. Thus, HDAC1 recruitment by IKAROS is important for both EZH2 activity and H3K27me3 formation.
-
b)
Central role of HDAC1 in EZH2 activation, H3K27me3 formation and maintenance. Results showed that the recruitment of HDAC1 by IKAROS is essential for EZH2 function and de novo H3K27me3 formation. Since IKAROS recruits both HDAC1 and EZH2, and HDAC1 can interact with EZH2 [57], it is possible that HDAC1 directly activates EZH2 while in complex with IKAROS. HDAC1 DNA occupancy does not result in loss of H3K27ac, but rather in de novo formation and genome-wide expansion of H3K27me3.
The data presented suggest that Ikaros exerts its tumor suppressor function in T-ALL by recruitment of HDAC1. This does not contradict the oncogenic role of HDAC1 in T-ALL. HDAC1 inhibitors showed strong efficacy against PTCL and ATLL. Presented results suggest that oncogenic role of HDAC1 in T-cell malignancies might predominantly involve the direct HDAC1 binding and deacetylation of non-histone HDAC1 target proteins that are critical for cellular proliferation (p53, pRB), DNA-repair proteins (Ku70, BRCA1, and RAD51), and chaperone proteins, instead of transcriptional regulation.
-
c)
IKAROS/HDAC1 complexes can repress active enhancers and promote formation of intermediary and poised enhancers. IKAROS can induce de novo formation of enhancers and activation of primed enhancers [27]. Presented data showed that IKAROS binding is associated with silencing of enhancers’ activity. This can occur via recruitment of HDAC1 without H3K27me3 formation (Fig. 5B), or via formation of intermediate or poised enhancers (Fig. 5D). These results, together with previously reported data, reveal a complex regulatory role of IKAROS in enhancer activity: IKAROS DNA binding can result in de novo formation and/or activation of enhancers, but also in repression of enhancers’ activity. IKAROS-silenced enhancers regulate oncogenic pathways in IKAROS-null T-ALL (Fig. S15), which suggests that silencing enhancers that regulate expression of oncogenes is one of the mechanisms through which IKAROS exerts a tumor suppressor function in T-ALL.
-
d)
Regulation of formation and expansion of LOCKs and BGRDs. Lack of IKAROS is associated with severe depletion of H3K27me3 LOCKs and BGRDs. These recently identified large heterochromatin domains (BGRDs) strongly repress large sets of genes, including oncogenes, and have a prominent role in global epigenomic regulation of gene expression [45, 46]. IKAROS-driven HDAC1 recruitment and H3K27me3 expansion is a likely mechanism through which IKAROS promotes formation of LOCKs and BGRDs. Results suggest that IKAROS-HDAC1 complexes could function as a tipping point at the intersection between euchromatin and heterochromatin in T-ALL. IKAROS’ prominent role in both formation of super-enhancers and large heterochromatin domains, suggest that IKAROS regulates higher chromatin organization.

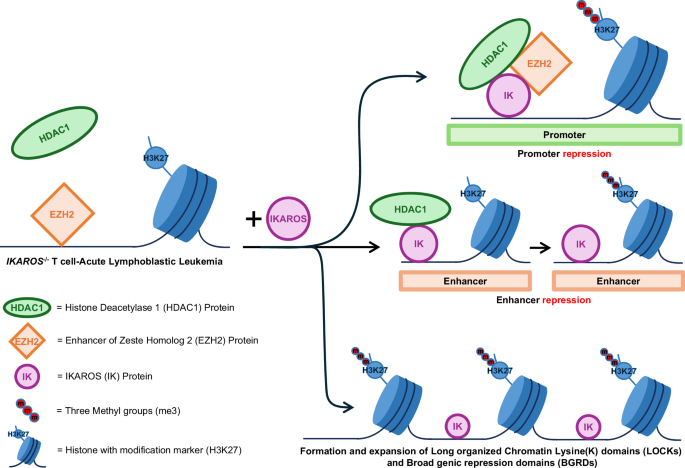

IKAROS expression regulates: de novo formation of H3K27me3 by HDAC1 recruitment and activation of EZH2; repression of active enhancers; and formation and expansion of LOCKs and BGRDs.
In conclusion, our results identify novel functions of IKAROS and HDAC1 in regulation of heterochromatin propagation and enhancer activity. The presented data demonstrate that IKAROS-HDAC1 complexes regulate the balance between euchromatin and heterochromatin in T-ALL. Results reveal the novel mechanisms that regulate interplay between active and repressive chromatin, global regulation of gene expression, and tumor suppression in leukemia.
Data availability
Sequencing data are deposited in NCBI GEO (GSE261180 and GSE261181).
References
Georgopoulos K, Moore DD, Derfler B. IKAROS, an early lymphoid-specific transcription factor and a putative mediator for T cell commitment. Science. 1992;258:808–12.
Lo K, Landau NR, Smale ST. LyF-1, a transcriptional regulator that interactswith a novel class of promoters for lymphocyte-specific genes. Mollecular Cell Biol. 1991;11:5229–43.
Georgopoulos K, Bigby M, Wang JH, Molnar A, Wu P, Winandy S, et al. The IKAROS gene is required for the development of all lymphoid lineages. Cell. 1994;79:143–56.
Mullighan CG, Goorha S, Radtke I, Miller CB, Coustan-Smith E, Dalton JD, et al. Genome-wide analysis of genetic alterations in acute lymphoblastic leukaemia. Nature. 2007;446:758–64.
Mullighan CG, Su X, Zhang J, Radtke I, Phillips LA, Miller CB, et al. Deletion of IKZF1 and prognosis in acute lymphoblastic leukemia. The. N Engl J Med. 2009;360:470–80.
Goldman FD, Gurel Z, Al-Zubeidi D, Fried AJ, Icardi M, Song C, et al. Congenital pancytopenia and absence of B lymphocytes in a neonate with a mutation in the IKAROS gene. Pediatr blood cancer. 2012;58:591–7.
Kuiper RP, Schoenmakers EF, van Reijmersdal SV, Hehir-Kwa JY, van Kessel AG, van Leeuwen FN, et al. High-resolution genomic profiling of childhood ALL reveals novel recurrent genetic lesions affecting pathways involved in lymphocyte differentiation and cell cycle progression. Leukemia. 2007;21:1258–66.
Kuiper RP, Waanders E, van der Velden VH, van Reijmersdal SV, Venkatachalam R, Scheijen B, et al. IKZF1 deletions predict relapse in uniformly treated pediatric precursor B-ALL. Leukemia. 2010;24:1258–64.
van der Veer A, Waanders E, Pieters R, Willemse ME, Van Reijmersdal SV, Russell LJ, et al. Independent prognostic value of BCR-ABL1-like signature and IKZF1 deletion, but not high CRLF2 expression, in children with B-cell precursor ALL. Blood. 2013;122:2622–9.
Kuehn HS, Nunes-Santos CJ, Rosenzweig SD. IKAROS-Associated Diseases in 2020: Genotypes, Phenotypes, and Outcomes in Primary Immune Deficiency/Inborn Errors of Immunity. J Clin Immunol. 2021;41:1–10.
Kuehn HS, Nunes-Santos CJ, Rosenzweig SD. Germline IKZF1 mutations and their impact on immunity: IKAROS-associated diseases and pathophysiology. Expert Rev Clin Immunol. 2021;17:407–16.
Raca G, Abdel-Azim H, Yue F, Broach J, Payne JL, Reeves ME, et al. Increased Incidence of IKZF1 deletions and IGH-CRLF2 translocations in B-ALL of Hispanic/Latino children-a novel health disparity. Leukemia. 2021;35:2399–402.
Zhang J, Ding L, Holmfeldt L, Wu G, Heatley SL, Payne-Turner D, et al. The genetic basis of early T-cell precursor acute lymphoblastic leukaemia. Nature. 2012;481:157–63.
Kim J, Sif S, Jones B, Jackson A, Koipally J, Heller E, et al. IKAROS DNA-binding proteins direct formation of chromatin remodeling complexes in lymphocytes. Immunity. 1999;10:345–55.
Brown KE, Guest SS, Smale ST, Hahm K, Merkenschlager M, Fisher AG. Association of transcriptionally silent genes with IKAROS complexes at centromeric heterochromatin. Cell. 1997;91:845–54.
Ge Z, Song EJ, Kawasawa YI, Li J, Dovat S, Song C. WDR5 high expression and its effect on tumorigenesis in leukemia. Oncotarget. 2016;7:37740–54.
Ge Z, Zhou X, Gu Y, Han Q, Li J, Chen B, et al. IKAROS regulation of the BCL6/BACH2 axis and its clinical relevance in acute lymphoblastic leukemia. Oncotarget. 2017;8:8022–34.
Ge Z, Gu Y, Xiao L, Han Q, Li J, Chen B, et al. Co-existence of IL7R high and SH2B3 low expression distinguishes a novel high-risk acute lymphoblastic leukemia with IKAROS dysfunction. Oncotarget. 2016;7:46014–27.
Ge Z, Gu Y, Zhao G, Li J, Chen B, Han Q, et al. High CRLF2 expression associates with IKZF1 dysfunction in adult acute lymphoblastic leukemia without CRLF2 rearrangement. Oncotarget. 2016;7:49722–32.
Ge Z, Guo X, Li J, Hartman M, Kawasawa YI, Dovat S, et al. Clinical significance of high c-MYC and low MYCBP2 expression and their association with IKAROS dysfunction in adult acute lymphoblastic leukemia. Oncotarget. 2015;6:42300–11.
Ge Z, Gu Y, Han Q, Zhao G, Li M, Li J, et al. Targeting High Dynamin-2 (DNM2) Expression by Restoring IKAROS Function in Acute Lymphoblastic Leukemia. Sci Rep. 2016;6:38004.
Koipally J, Renold A, Kim J, Georgopoulos K. Repression by IKAROS and Aiolos is mediated through histone deacetylase complexes. EMBO J. 1999;18:3090–100.
Song C, Pan X, Ge Z, Gowda C, Ding Y, Li H, et al. Epigenetic regulation of gene expression by IKAROS, HDAC1 and Casein Kinase II in leukemia. Leukemia. 2016;30:1436–40.
Ge Z, Song C, Ding Y, Tan BH, Desai D, Sharma A, et al. Dual targeting of MTOR as a novel therapeutic approach for high-risk B-cell acute lymphoblastic leukemia. Leukemia. 2021;35:1267–78.
Song C, Ge Z, Ding Y, Tan BH, Desai D, Gowda K, et al. IKAROS and CK2 regulate expression of BCL-XL and chemosensitivity inhigh-risk B-cell acute lymphoblastic leukemia. Blood. 2020;36:1520–34.
Payne JL, Song C, Ding Y, Dhanyamraju PK, Bamme Y, Schramm JW, et al. Regulation of Small GTPase Rab20 by IKAROS in B-Cell Acute Lymphoblastic Leukemia. Int J Mol Sci. 2020;21:1718.
Ding Y, Zhang B, Payne JL, Song C, Ge Z, Gowda C, et al. IKAROS tumor suppressor function includes induction of active enhancers and super-enhancers along with pioneering activity. Leukemia. 2019;33:2720–31.
Chen Q, Cui L, Hu Y, Chen Z, Gao Y, Shi Y. Short-term efficacy and safety of biologics and Janus kinase inhibitors for patients with atopic dermatitis: A systematic review and meta-analysis. Heliyon. 2023;9:e22014.
Brown KE, Baxter J, Graf D, Merkenschlager M, Fisher AG. Dynamic repositioning of genes in the nucleus of lymphocytes preparing for cell division. Mol Cell. 1999;3:207–17.
Ferreiros-Vidal I, Carroll T, Taylor B, Terry A, Liang Z, Bruno L, et al. Genome-wide identification of IKAROS targets elucidates its contribution to mouse B-cell lineage specification and pre-B-cell differentiation. Blood. 2013;121:1769–82.
Su RC, Brown KE, Saaber S, Fisher AG, Merkenschlager M, Smale ST. Dynamic assembly of silent chromatin during thymocyte maturation. Nat Genet. 2004;36:502–6.
Zhang J, Jackson AF, Naito T, Dose M, Seavitt J, Liu F, et al. Harnessing of the nucleosome-remodeling-deacetylase complex controls lymphocyte development and prevents leukemogenesis. Nat Immunol. 2012;13:86–94.
Song C, Gowda C, Pan X, Ding Y, Tong Y, Tan BH, et al. Targeting casein kinase II restores IKAROS tumor suppressor activity and demonstrates therapeutic efficacy in high-risk leukemia. Blood. 2015;126:1813–22.
Hu Y, Zhang Z, Kashiwagi M, Yoshida T, Joshi I, Jena N, et al. Superenhancer reprogramming drives a B-cell-epithelial transition and high-risk leukemia. Genes Dev. 2016;30:1971–90.
Kathrein KL, Lorenz R, Innes AM, Griffiths E, Winandy S. IKAROS induces quiescence and T-cell differentiation in a leukemia cell line. Mol Cell Biol. 2005;25:1645–54.
Wang Z, Zang C, Rosenfeld JA, Schones DE, Barski A, Cuddapah S, et al. Combinatorial patterns of histone acetylations and methylations in the human genome. Nat Genet. 2008;40:897–903.
Fujiwara T, O’Geen H, Keles S, Blahnik K, Linnemann AK, Kang YA, et al. Discovering hematopoietic mechanisms through genome-wide analysis of GATA factor chromatin occupancy. Mol Cell. 2009;36:667–81.
Kirmizis A, Bartley SM, Kuzmichev A, Margueron R, Reinberg D, Green R, et al. Silencing of human polycomb target genes is associated with methylation of histone H3 Lys 27. Genes Dev. 2004;18:1592–605.
Mochizuki-Kashio M, Mishima Y, Miyagi S, Negishi M, Saraya A, Konuma T, et al. Dependency on the polycomb gene EZH2 distinguishes fetal from adult hematopoietic stem cells. Blood. 2011;118:6553–61.
Oravecz A, Apostolov A, Polak K, Jost B, Le Gras S, Chan S, et al. IKAROS mediates gene silencing in T cells through Polycomb repressive complex 2. Nat Commun. 2015;6:8823.
Koipally J, Kim J, Jones B, Jackson A, Avitahl N, Winandy S, et al. IKAROS chromatin remodeling complexes in the control of differentiation of the hemo-lymphoid system. Cold Spring Harb Symp Quant Biol. 1999;64:79–86.
Cobb BS, Morales-Alcelay S, Kleiger G, Brown KE, Fisher AG, Smale ST. Targeting of IKAROS to pericentromeric heterochromatin by direct DNA binding. Genes Dev. 2000;14:2146–60.
Crispatzu G, Rehimi R, Pachano T, Bleckwehl T, Cruz-Molina S, Xiao C, et al. The chromatin, topological and regulatory properties of pluripotency-associated poised enhancers are conserved in vivo. Nat Commun. 2021;12:4344.
Juric I, Yu M, Abnousi A, Raviram R, Fang R, Zhao Y, et al. MAPS: Model-based analysis of long-range chromatin interactions from PLAC-seq and HiChIP experiments. PLoS Comput Biol. 2019;15:e1006982.
Madani Tonekaboni SA, Haibe-Kains B, Lupien M. Large organized chromatin lysine domains help distinguish primitive from differentiated cell populations. Nat Commun. 2021;12:499.
Zhao D, Zhang L, Zhang M, Xia B, Lv J, Gao X, et al. Broad genic repression domains signify enhanced silencing of oncogenes. Nat Commun. 2020;11:5560.
Hasegawa N, Oshima M, Sashida G, Matsui H, Koide S, Saraya A, et al. Impact of combinatorial dysfunctions of Tet2 and EZH2 on the epigenome in the pathogenesis of myelodysplastic syndrome. Leukemia. 2017;31:861–71.
Iwama A. Polycomb repressive complexes in hematological malignancies. Blood. 2017;130:23–9.
Sashida G, Harada H, Matsui H, Oshima M, Yui M, Harada Y, et al. EZH2 loss promotes development of myelodysplastic syndrome but attenuates its predisposition to leukaemic transformation. Nat Commun. 2014;5:4177.
Sashida G, Iwama A. Multifaceted role of the polycomb-group gene EZH2 in hematological malignancies. Int J Hematol. 2017;105:23–30.
Sashida G, Wang C, Tomioka T, Oshima M, Aoyama K, Kanai A, et al. The loss of EZH2 drives the pathogenesis of myelofibrosis and sensitizes tumor-initiating cells to bromodomain inhibition. J Exp Med. 2016;213:1459–77.
van Dijk AD, Hoff FW, Qiu YH, Chandra J, Jabbour E, de Bont E, et al. Loss of H3K27 methylation identifies poor outcomes in adult-onset acute leukemia. Clin Epigenetics. 2021;13:21.
Dunham I, Kundaje A, Aldred SF, Collins PJ, Davis CA, Doyle F, et al. An integrated encyclopedia of DNA elements in the human genome. Nature. 2012;489:57–74.
Wang C, Oshima M, Sato D, Matsui H, Kubota S, Aoyama K, et al. EZH2 loss propagates hypermethylation at T cell differentiation-regulating genes to promote leukemic transformation. J Clin Invest. 2018;128:3872–86.
Li B, Chng WJ. EZH2 abnormalities in lymphoid malignancies: underlying mechanisms and therapeutic implications. J Hematol Oncol. 2019;12:118.
Ntziachristos P, Tsirigos A, Van Vlierberghe P, Nedjic J, Trimarchi T, Flaherty MS, et al. Genetic inactivation of the polycomb repressive complex 2 in T cell acute lymphoblastic leukemia. Nat Med. 2012;18:298–301.
Kuzmichev A, Nishioka K, Erdjument-Bromage H, Tempst P, Reinberg D. Histone methyltransferase activity associated with a human multiprotein complex containing the Enhancer of Zeste protein. Genes Dev. 2002;16:2893–905.
Acknowledgements
This work was supported by R01CA278226, R01CA213912, and R01CA209829(SD); UM1HG012649; R35GM124820(FY); R01HG011207(FY and SD), T32CA060395(JS), Hyundai Hope on Wheels(SD and JS), and the Four Diamonds Fund of the Pennsylvania State University College of Medicine(SD and JS).
Author information
Authors and Affiliations
Contributions
SD analyzed and interpreted the data, wrote the paper and designed the research; FY performed bioinformatics analysis, interpreted the data, and wrote the paper; YD performed research and wrote the paper; BH analyzed and interpreted the data, and wrote the paper; DD, AS, VSS, SH, CTV, GD, GSS, and JB provided critical review, analyzed, and interpreted the data; and DB, JS, CS, KD, JR, DT, JH, CA, and AK performed research.
Corresponding authors
Ethics declarations
Competing interests
The authors declare no competing interests.
Ethics approval and consent to participate
All methods were performed in accordance with the relevant guidelines and regulations.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary information
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Ding, Y., He, B., Bogush, D. et al. Critical roles of IKAROS and HDAC1 in regulation of heterochromatin and tumor suppression in T-cell acute lymphoblastic leukemia. Leukemia (2025). https://doi.org/10.1038/s41375-025-02651-1
Received:
Revised:
Accepted:
Published:
DOI: https://doi.org/10.1038/s41375-025-02651-1
