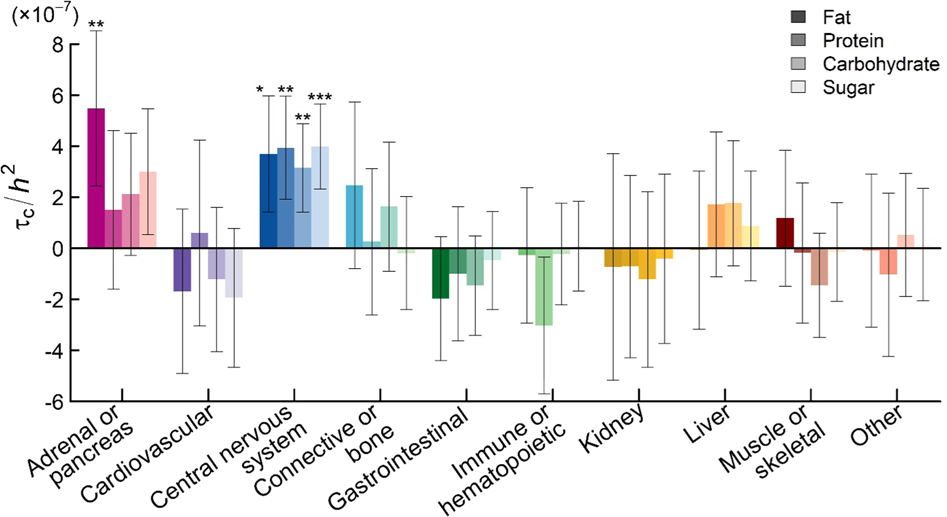

Fig. 2: LD Score partitioning of heritability.
From: Genomic analysis of diet composition finds novel loci and associations with health and lifestyle
Functional partitioning of the heritability of diet-composition phenotypes with stratified LD Score regression, where tissues were ascertained by Finucane et al. on the basis of chromatin data. The panel shows the partial regression coefficient (τC) from the stratified regression, divided by the LD Score heritability of the diet-composition phenotype (h2). Error bars depict 95% confidence intervals. The phenotypes are ordered from left to right (fat, protein, sugar, and carbohydrate), from darker to lighter shades. Asterisks (*) denote significant deviation from zero after Bonferroni correction for 10 tissues: * \(P\, < \, \frac{{0.05}}{{10}}\), **\(P \, < \, \frac{{0.01}}{{10}}\), *** \(P \, < \, \frac{{0.001}}{{10}}\).
