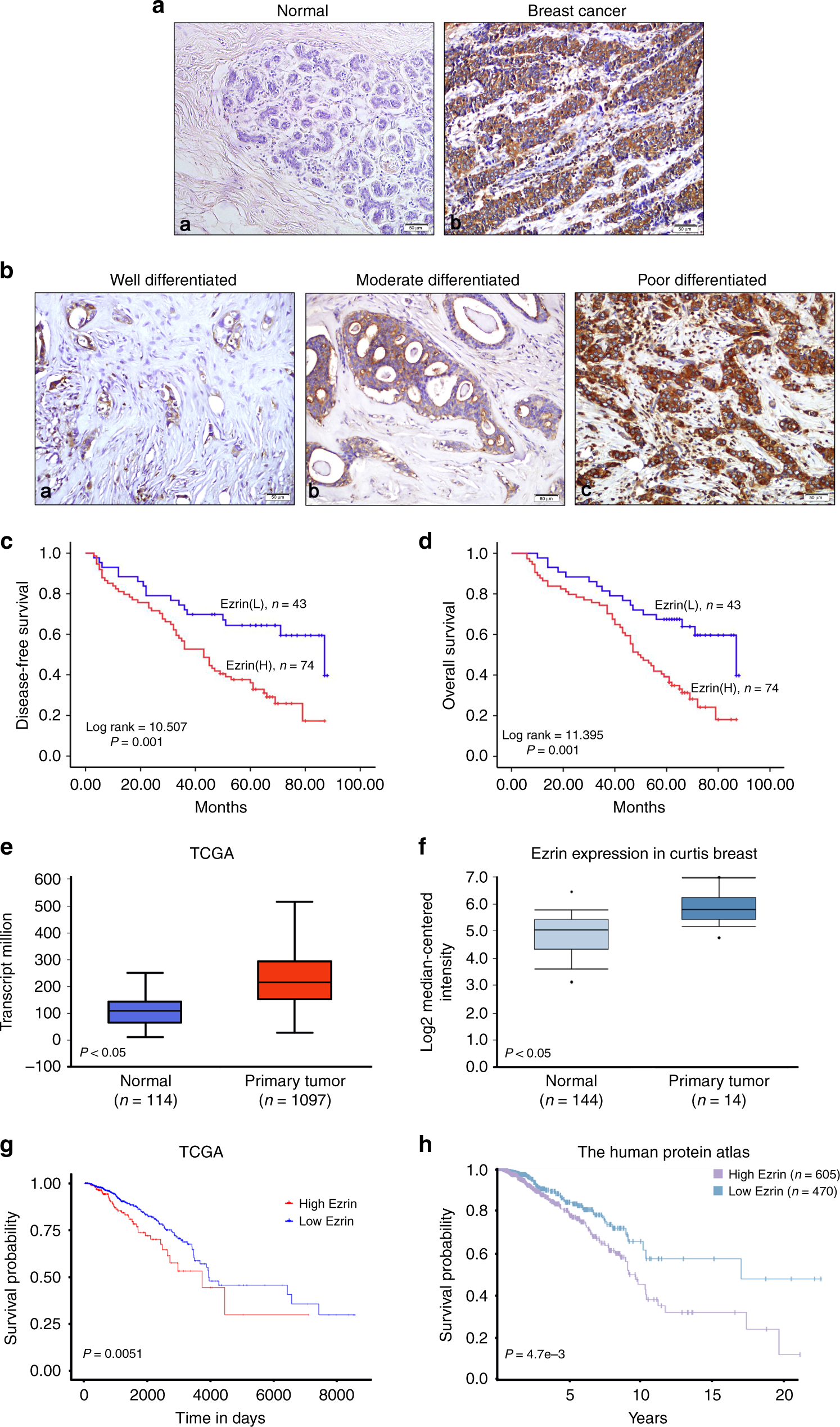

Fig. 1
From: Ezrin promotes breast cancer progression by modulating AKT signals
Ezrin expression is increased in BC and associated with poor outcome. a Ezrin expression in normal breast tissues (a) and BC tissues (b) was examined by IHC. Representative examples of Ezrin staining are shown. (b) Representative images of IHC staining for Ezrin in different grade BC tissues. c, d Kaplan–Meier survival analyses were conducted to evaluate the influence of Ezrin on patient disease-free survival (c) and overall survival (d). e, f Analysis of Ezrin expression in TCGA (e) and Oncomine (f) data set. g, h The implication of Ezrin in survival of patients with BC was determined in TCGA’s cohort (g) and HPA’s cohort (h)
