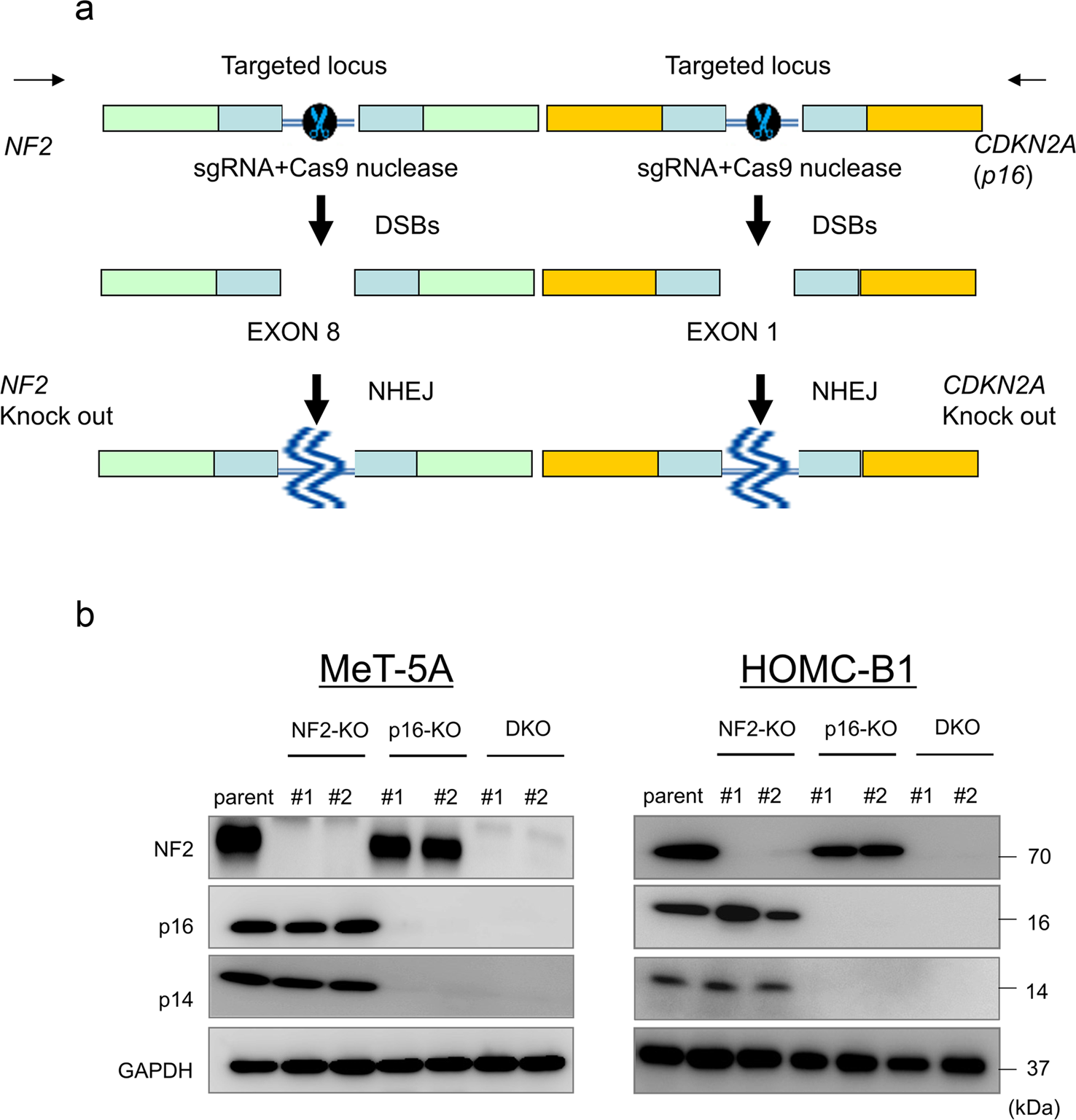

Fig. 1: Generation of NF2-knockout (NF2-KO), CDKN2A-knockout (p16-KO), and NF2/p16 double-knockout (NF2/p16-DKO) cell clones using a CRISPR/Cas9 system with the MeT-5A and HOMC-B1 human mesothelial cell lines. | Cell Death Discovery

Fig. 1: Generation of NF2-knockout (NF2-KO), CDKN2A-knockout (p16-KO), and NF2/p16 double-knockout (NF2/p16-DKO) cell clones using a CRISPR/Cas9 system with the MeT-5A and HOMC-B1 human mesothelial cell lines.

From: Identification of CD24 as a potential diagnostic and therapeutic target for malignant pleural mesothelioma

Fig. 1

a Single-guide RNA sequences were designed against exon 8 of the NF2 gene (left side) and exon 1 of the CDKN2A (p16) gene (right side). b Independent NF2-knockout clones (NF2-KO#1 and #2), p16-knockout clones (p16-KO#1 and #2), and NF2/p16-DKO clones (DKO#1 and #2) were established. NF2 and p16/14 protein expression was determined by western blot analysis. GAPDH was used as an internal standard.
