Introduction

With an increasing global energy demand and an increasing concern about environmental pollution from fossil fuels, an increasing amount of research on energy conversion from sustainable energy sources has been stimulated1. Renewable alternatives such as wind and solar energies are promising future technologies. However, they are intermittent in nature, and the storage of the generated energy is difficult. The electrochemical water splitting technique provides an ideal solution for this issue, where electricity generated from renewable energies can be stored in terms of chemical energy, i.e., in H–H and O–O bonds. The subsequent recombination of hydrogen and oxygen can provide clean and stable electrical energy in an on-demand manner; additionally, the only byproduct is water2. However, the efficiency of hydrogen fuel generation from water splitting is severely limited by the sluggish kinetics of oxygen evolution3. Therefore, an efficient electrocatalyst for the oxygen evolution reaction (OER) is needed to provide a high current density at a low overpotential and improve the energy conversion efficiency. Although iridium oxide (IrO2) and ruthenium oxide (RuO2) are widely recognized as the most active electrocatalysts for the OER4, their scarcity and high cost have limited their wide application. Therefore, it is urgent to develop cheap and efficient electrocatalysts for the OER process.

Recently, a range of low-cost metal electrocatalysts have been reported to exhibit outstanding catalytic performances for the OER. Among them, transition metal oxides, especially nickel and cobaltosic oxides, have emerged as promising alternates for IrO2 and RuO2 because of their abundance, stability and rich variability of valence states5,6,7,8,9. The performances of Co3O4 catalysts for the OER are generally affected by their morphology and composition. First, it is well known that the performance of catalysts strongly depends on structural parameters, including the particle size, surface area and morphology10,11. A series of templates, such as silica12, carbon13 and monodispersed polymer14, can be used to modify the particle structure of catalysts. However, traditional template-assisted approaches are complicated because they require further postprocessing to remove the templates. Metal organic frameworks (MOFs) can be used as sacrificial templates to overcome the shortcomings mentioned above with an increased surface area and advanced pore structure. For example, Huang’s group synthesized highly symmetric Co3O4 hollow dodecahedra by a thermal treatment with ZIF-67 as a template15. Ohet al. prepared multiball-in-ball hybrid metal oxides with spherical MOFs as sacrificial templates by taking advantage of their unique reactivity and thermal behavior16. Second, the catalytic activities of Co3O4 for the OER can be improved by doping17,18,19. For instance, a high OER performance has been achieved by using novel hierarchical ZnxCo3−xO4 nanostructures constructed with small secondary nanoneedles grown on primary rhombus-shaped pillar arrays17. Alexander Eychmüller et al. developed a class of nickel cobalt oxide hollow nanosponges that exhibited higher catalytic activity toward the OER compared with its undoped Co3O4 counterpart20. However, the improved performances of doped Co3O4 catalysts are usually ascribed to the increase in the number of active sites caused by the valence state transfer of cobalt, and there is no in-depth and comprehensive elaboration about the effect of doping.

The OER is a liquid-to-gas electrochemical conversion that requires the multiscale control of catalysts to make each involved reaction step proceed smoothly. These steps include sufficient mass transport, abundant active sites and sufficient catalytic capability. Herein, we present a novel Zn-doped Co3O4 hollow dodecahedral electrocatalyst with a high catalytic efficiency for the OER using MOFs with different Co/Zn ratios as templates. At the macroscale, its unique porous hollow structure increases catalytic activity by facilitating mass transport and exposing abundant active sites. At the nanoscale, some of the Zn in the precursor was trapped in the lattice of Co3O4, replacing both Co2+ at tetrahedral sites and Co3+ at octahedral sites. Owing to the incorporation of Zn2+, abundant oxygen vacancy defects are introduced. The oxygen vacancies are beneficial for OH− adsorption21 and electronic transfers22, thereby achieving the needed multiscale modulation to synergistically boost the OER electrochemical process.

Experimental section

Synthesis of ZnxCo-MOF

All chemicals were analytical grade, purchased from Aladdin Chemistry Corporation (Shanghai, China) and used without further purification.

In a typical synthesis15, Zn(NO3)2·6H2O and Co(NO3)2·6H2O with different molar ratios of Zn:Co (0, 1:1, 1:3, and 1:5), were mixed in 100 mL of methanol at room temperature. Then, 3.056 g of 2-methylimidazolate was dissolved in another 100 mL of methanol. The above two solutions were then mixed under vigorous stirring at room temperature for 24 h. The precipitates were collected by centrifugation and washed several times with methanol and then dried at 80 °C for 12 h.

Synthesis of the Co3O4 hollow dodecahedra

The Co-MOF powder was loaded in a quartz boat and placed in a tube furnace. Then, Co-MOF was heated to 350 °C at a rate of 5 °C min−1 and maintained for 30 min in flowing nitrogen. After that, the N2 was switched to air, and the furnace was maintained at 350 °C for another 30 min in air.

Synthesis of Zn-doped Co3O4 hollow dodecahedra

Zn-doped Co3O4 hollow dodecahedra were synthesized by the same procedure as 2.2 except that the precursor was ZnxCo-MOF (x = 1:1, 1:3, and 1:5). The Zn-doped Co3O4 hollow dodecahedra derived from ZnCo-MOF, ZnCo3-MOF and ZnCo5-MOF were denoted as Zn-doped Co3O4-1, Zn-doped Co3O4-2, and Zn-doped Co3O4-3, respectively.

Materials characterization

X-ray diffraction (XRD) patterns of the catalysts were obtained using a Rigaku-D/MAX-PC2500 X-ray diffractometer (Japan) with Cu Kα (l¼1.5405 Å) as a radiation source and operated at 40 kV and 200 mA. X-ray photoelectron spectroscopy (XPS) was recorded on a Kratos XSAM-800 spectrometer with an Al Kα monochromatic source. Scanning electron microscopy (SEM) images were taken using an FEI XL30 ESEM FEG scanning electron microscope. Transmission electron microscopy (TEM) was carried out with a JEOL2010 microscope operating at 200 kV with a nominal resolution. The porous structure of the samples was investigated using N2 adsorption at −196 °C using a Micromeritics ASAP 2020 instrument.

Electrochemical measurements

Electrochemical measurements were performed with a Versa STAT potentiostat/galvanostat controlled by Versa Studio software (Princeton Applied Research). A conventional three-electrode cell was used. A Hg/HgO electrode was used as the reference electrode, and Pt foil was used as the counter electrode. Potentials were transferred to a reversible hydrogen electrode (RHE) by adding (0.098 + 0.059 pH) V. All experiments were carried out at ambient temperature. The working electrode was prepared as follows. The catalyst ink was prepared by dispersing 5 mg of catalyst in 950 mL of ethanol with 50 μL of 5 wt% Nafion solution. Then, 5 μL of the catalyst ink was loaded on a glassy carbon electrode and dried at room temperature. The mass loading was 0.35 mg cm−2. All data are presented with 95% iR compensation.

Results and discussion

Zn-doped Co3O4 hollow dodecahedra were prepared by the thermal treatment of MOFs with different Co/Zn ratios. SEM images of the synthesized MOF samples are shown in Fig. S1, in which the formation of highly uniform Co-MOF particles can be clearly observed (Fig. S1A). To further confirm the structure of Co-MOF, a single crystal from different positions of view is shown in the inset of Fig. S1A, revealing its rhombic dodecahedral structure. Figure S1B exhibits the SEM image of ZnCo3-MOF. ZnCo3-MOF retains its dodecahedral crystal structure despite different contents of Zn doping. Figure 1A presents the SEM image of Co3O4 hollow dodecahedra derived from the thermal treatment of Co-MOF, demonstrating that the dodecahedral morphology of the Co-MOF precursor is well preserved. The rough surface of the dodecahedra indicates the polycrystalline nature of the Co-MOF, with the formation of connected nanoparticles due to the confinement of the MOF. An evident porous structure is noticed due to the removal of carbon during the thermal treatment process. Zn-doped Co3O4-2 almost preserves the dodecahedral structure except for a slight collapse, as shown in Fig. 1B. The crystal structure of Zn-doped Co3O4-2 can be further confirmed by TEM. As displayed in Fig. 1C, the inner part of the dodecahedra is brighter than the outer part, confirming the hollow nanostructure of the Co3O4-2 particles. The high-resolution TEM (HRTEM) image taken of Zn-doped Co3O4-2 (Fig. 1D) reveals clear lattice fringes with interplanar spacings of 0.24 and 0.28 nm corresponding to the (311) and (220) planes of Co3O4, respectively. The selective area electron diffraction (SAED) pattern (Fig. 1E) shows several bright rings consisting of discrete spots, which can be indexed to the (220), (311), and (400) planes of Co3O4. Figure 1F demonstrates the scanning TEM (STEM) image and the corresponding EDX elemental mapping images of Co, Zn, and O of Zn-doped Co3O4-2, revealing that Co, Zn, and O are uniformly distributed. The X-ray diffraction (XRD) patterns of different samples are presented in Fig. 2A. According to the standard JCPD card No. 43-1003, the diffraction peaks emerging at 19.0, 31.3, 36.8, 59.4, and 65.2° are related to the (111), (220), (311), (511), and (440) planes of cubic-phase Co3O4. For the doped samples, no additional diffraction peaks appear regardless of the variation in the Co/Zn ratio, which indicates the isomorphous replacement of Zn2+ in the Co3O4 lattice23. It is noted that broadening in the diffraction peaks is observed with an increased Zn content in the oxides, which is ascribable to the decrease in particle size of the Zn-doped Co3O4 samples24.

Fig. 1: Morphology characterizations of Zn-doped Co3O4.
figure 1

SEM images of A Co3O4 dodecahedra and B Zn-doped Co3O4−2, C TEM image of Zn-doped Co3O4−2, D HRTEM image of Zn-doped Co3O4−2, E SAED pattern of Zn-doped Co3O4−2, and F STEM image and the corresponding EDX elemental mapping images of Co, Zn, and O for Zn-doped Co3O4 hollow dodecahedra.

Full size image

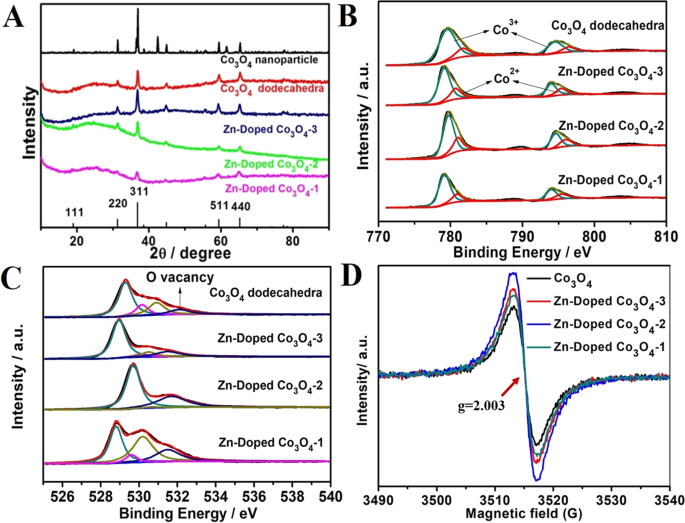

Fig. 2: Structural characterizations of Zn-doped Co3O4.
figure 2

A XRD patterns of all samples, B XPS spectra in the Co 2p region for all samples, C XPS spectra in the O 1s region for all samples, and D EPR spectra of all samples.

Full size image

X-ray photoelectron spectroscopy (XPS) was performed to quantify O, Co, and Zn in the samples, as well as to investigate their chemical states and stoichiometry. The XPS survey spectra of Zn-doped Co3O4 catalysts confirm the presence of Zn (Fig. S2). As presented in Fig. S3, two major peaks centered at 1044.2 and 1021.0 eV can be attributed to Zn 2p3/2 and 2p1/2 of Zn2+, respectively25, indicating that Zn is successfully doped into the Co3O4 hollow dodecahedra. The detailed chemical states of the Co and O of the Co3O4 dodecahedra and Zn-doped Co3O4-2 are illustrated in Fig. 2B, C. Figure 2B presents the high-resolution Co 2p spectra, in which the peaks located at 779.5 and 794.5 eV are assigned to the position of Co3+ and the rest of the peaks are assigned to Co2+. The percentage of Co3+ can be determined by integrating the peaks of Co3+ 26, which are 75.8%, 71.5%, 69.4%, and 72.3% for the Co3O4 dodecahedra, Zn-doped Co3O4-3, Zn-doped Co3O4-2 and Zn-doped Co3O4-1, respectively (Fig. 2B and Table S1). Moreover, the number of surface oxygen vacancies increases due to Zn2+ doping, which can be confirmed by the O 1 s XPS spectra (Fig. 2C). The O1s XPS spectrum can be deconvoluted into several peaks, where the peak at ~532 eV indicates the presence of surface oxygen vacancies for Co3O427,28. Remarkably, when the concentration of Zn2+ is increased, the percentage of oxygen vacancies reaches 34.3% for Zn-doped Co3O4-2 and then decreases with further increases in the doping amount of Zn (Fig. 2C and Table S2). To further verify the differences in the oxygen vacancy concentrations, the electron paramagnetic resonance (EPR) spectra of different samples were investigated. The fingerprint signal at g = 2.003 appears in the spectra of EPR, demonstrating the presence of oxygen vacancies29,30,31. As shown in Fig. 2D, the difference in the signal intensity infers the concentration variation of oxygen vacancies, which agrees with the XPS analysis. The highest EPR signal intensity further illustrates that Zn-doped Co3O4-2 has the largest oxygen vacancy concentration among the other samples.

The isomorphous replacement of zinc to cobalt occurs easily owing to the similar outermost electronic configuration and ion radius32. Specifically, when Co2+ is substituted by Zn2+, the coordination of oxygen is independent of the doped atoms. However, it has recently been shown that oxygen vacancies on the surface can be formed by the substitution of Co3+ sites by Zn2+32, due to the conservation of charge. In our case, we observed the same phenomenon, where a low proportion of Co3+ is observed with an increase in the number of oxygen vacancies33,34. On the basis of these experimental results and the reported literature, a mechanism is proposed, as shown in Fig. 3. With the proper doping amount, Zn2+ ions replace Co3+ at octahedral sites in the lattice of Co3O4, which introduces a large number of oxygen vacancies that facilitate OH− adsorption in a KOH solution during the OER process21,22. However, a decrease in the oxygen vacancy concentration is detected for the Zn-doped Co3O4-1 sample. We assume the reason for this is that when an excessive amount of the Zn(NO3)2·6H2O precursor is added, the probability for the formation of ZnCo2O4 may increase; the XRD pattern of which is quite similar to that of Co3O435,36. As a result, the proportion of Co2+ can be decreased, and the corresponding ratio of Co3+ may be increased, which can lead to a decrease in the number of oxygen vacancies.

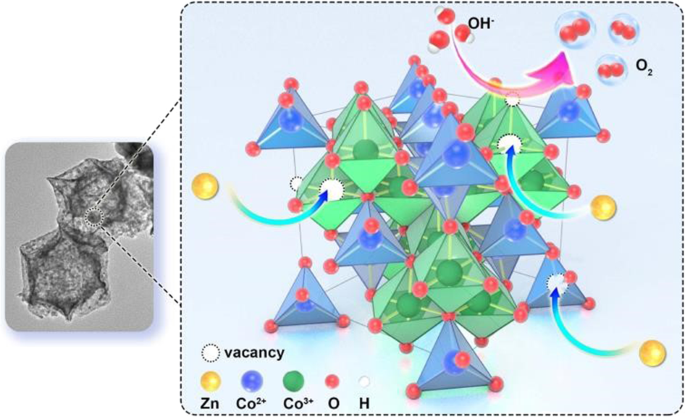

Fig. 3: Schematic illustration of Zn-doped Co3O4.
figure 3

Schematic showing the process for the formation of oxygen vacancies.

Full size image

N2 sorption isotherms are conducted to quantify the porosity and specific surface area of catalysts, and the pore size distribution curve can be obtained by the Barrett–Joyner-Halenda (BJH) method (Fig. S4). Co3O4 hollow dodecahedra present a mesoporous structure with a narrow distribution centered at 5 nm (the inset of Fig. S4A). It is notable that with an increasing doping amount of Zn, enlarged mesopores that are above 5 nm are detected (the insets of Fig. S4). Commercial Co3O4 particles are also tested for comparison (Fig. S4E). Through the Brunauer-Emmett-Teller (BET) analysis, the surface areas of all catalysts are in the sequence of Zn-doped Co3O4-1 (179 m2/g) > Zn-doped Co3O4-2 (120 m2/g) > Zn-doped Co3O4-3 (100.1 m2/g) ≈ Co3O4 hollow dodecahedra (100 m2/g) > Co3O4 nanoparticles (54 m2/g). This phenomenon can be attributed to the substitution of Zn ions for Co ions, which results in the decreased crystallinity of cobalt oxide films, as confirmed by the XRD shown in Fig. 2A. As the degree of crystallization decreases, an increase in defects, such as pores, voids, and intragrain boundaries, will emerge, thus causing an increase in the surface area.

The OER performances of all the catalysts were compared in 1 M KOH solution at a scan rate of 5 mV s−1 (Fig. 4A). Zn-doped Co3O4-2 shows an overpotential as low as 353 mV at a current density of 10 mA cm−2, which compares favorably to the Co3O4 dodecahedra (ƞ10mAcm-2 = 379 mV), Co3O4 particles (ƞ10mAcm-2 = 430 mV) and most of the Co3O4 catalysts in alkaline media (as presented in Table S3). The enhanced activity of Zn-doped Co3O4-2 is derived from its abundant oxygen vacancies. The electrochemical surface areas (ECSAs) of the catalysts can be reflected by the double-layer capacitance (CDL). As shown in Fig. S5, the double-layer charging current (j) equals the scan rate (ν), and CDL is calculated according to the equation j = νCDL37,38. As shown in Fig. 4B, the catalytic activities for the different catalysts are found to correlate well with the variations in CDL (Zn-doped Co3O4-2 > Zn-doped Co3O4-3 > Co3O4 dodecahedra > Zn-doped Co3O4-1 > Co3O4 nanoparticle). The reason for this result can be ascribed to the enlarged ECSA, which increases accessibility and promotes the reaction39. It is worth noting that although Zn-doped Co3O4-1 possesses the largest surface area through BET (179 m2/g), its ECSA is smaller than that of other Zn-doped Co3O4 samples, probably due to the excessive content of doped Zn. Zn is less catalytically active for the OER; therefore, an excessive content of doped Zn results in a decrease in the number of active sites, thereby leading to poor catalytic activity. AC impedance spectra are used to probe the charge transfer resistance. It is clear that at 1.6 V, the charge transfer resistances of Zn-doped Co3O4-2 and Co3O4 dodecahedra are much smaller than that of the Co3O4 nanoparticle (Fig. 4C), which demonstrates the facilitation of the OER reaction kinetics and leads to superior electrochemical performance for the OER. Finally, the stability of catalysts is evaluated by using controlled-current electrolysis. The electrodes were held at a constant current density of 10 mA cm−2, while the operating potential was measured as a function of time. As shown in Fig. 4D, during the 4-h electrolysis process, the decay rates for the Co3O4 dodecahedra and Zn-doped Co3O4-2 are 2.25 and 2 mV h−1, respectively, much smaller than the 6 mV h−1 for commercial Co3O4 particles. These results show that the hollow dodecahedral structure can improve the catalytic stability of Co3O4 during the electrolysis process.

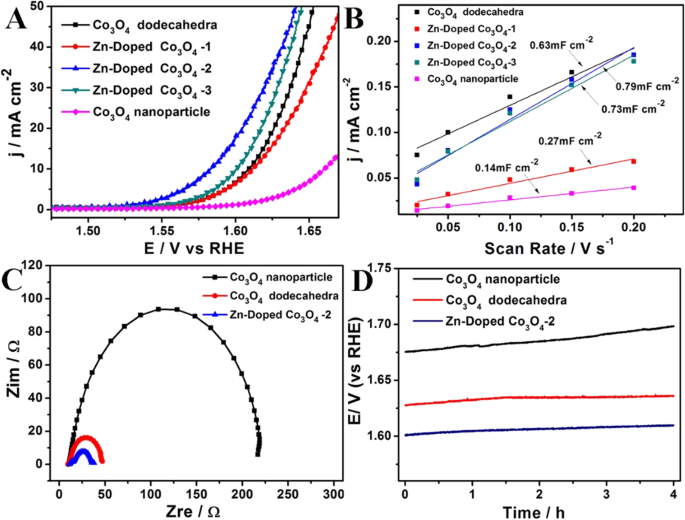

Fig. 4: Electrocatalytic OER performance of Zn-doped Co3O4.
figure 4

A LSV curves of all catalysts in 1 M KOH at a scan rate of 5 mVs−1; B linear plot of the capacitive current density vs. scan rate for all catalysts, and the double-layer capacitance (CDL) is determined by the slope of the fitting line; C AC impedance spectra of the (a) Co3O4 nanoparticles, (b) Co3O4 dodecahedra, and (c) Zn-doped Co3O4−2 at 1.6V (vs RHE); and D chronopotentiometry measurements of the (a) Co3O4 nanoparticles, (b) Co3O4 dodecahedra, and (c) Zn-doped Co3O4−2 at a current density of 10 mAcm−2 for 4 h in 1 M KOH.

Full size image

Conclusion

We prepared Zn-doped Co3O4 hollow dodecahedra with different Co/Zn ratios by the thermal treatment of an MOF, and the resulting products exhibited enhanced electrochemical activity for the OER with a small overpotential of 353 mV at a current density of 10 mA cm−2. Moreover, an improved OER stability was observed, with a decay rate of 2 mV h−1 for the Zn-doped Co3O4 hollow dodecahedra. We believe that the unique architecture (enlarged surface area, porosity) of Zn-doped Co3O4 hollow dodecahedra and the composition change caused by the doping of Zn (increased oxygen defects) are responsible for its superior electrochemical performance. These results emphasize the importance of engineering both the external morphology and internal composition of OER catalysts, where the good interplay between the two leads to greatly boosted electrocatalytic behavior.
