Fig. 3

From: The functional variant of NTN1 contributes to the risk of nonsyndromic cleft lip with or without cleft palate

Fig. 3

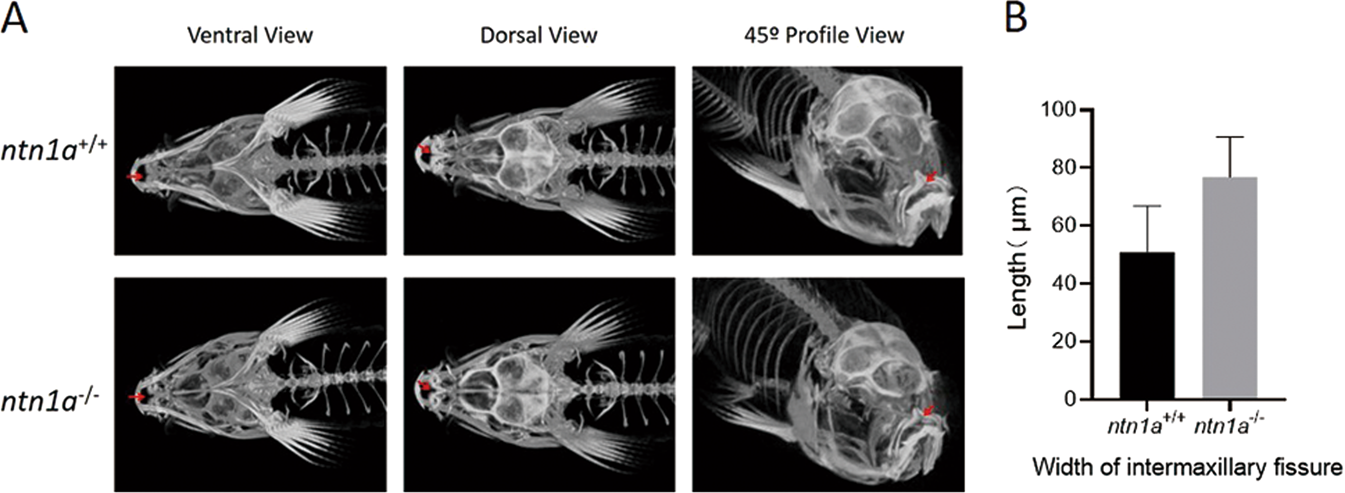

a The ventral, dorsal and 45° profile views of F2 generation zebrafish (4 months age) under Micro-CT (yellow array: mandibular width is the width between the inside border of the articulation; red array: intermaxillary fissure, the width were measured as the distance between the most anterior and inside point of the bilateral maxilla. ntn1a−/−: the homozygous knock out line, ntn1a+/+: the wild homozygous line). b The comparison of the width of mandibular and the width of intermaxillary fissure between ntn1a+/+ and ntn1a−/− group. (**P < 0.01)
