Fig. 6: Abiotic stress-related genes were enriched in Rosa rugosa. | Horticulture Research

Fig. 6: Abiotic stress-related genes were enriched in Rosa rugosa.

From: A chromosome-level genome assembly of rugged rose (Rosa rugosa) provides insights into its evolution, ecology, and floral characteristics

Fig. 6

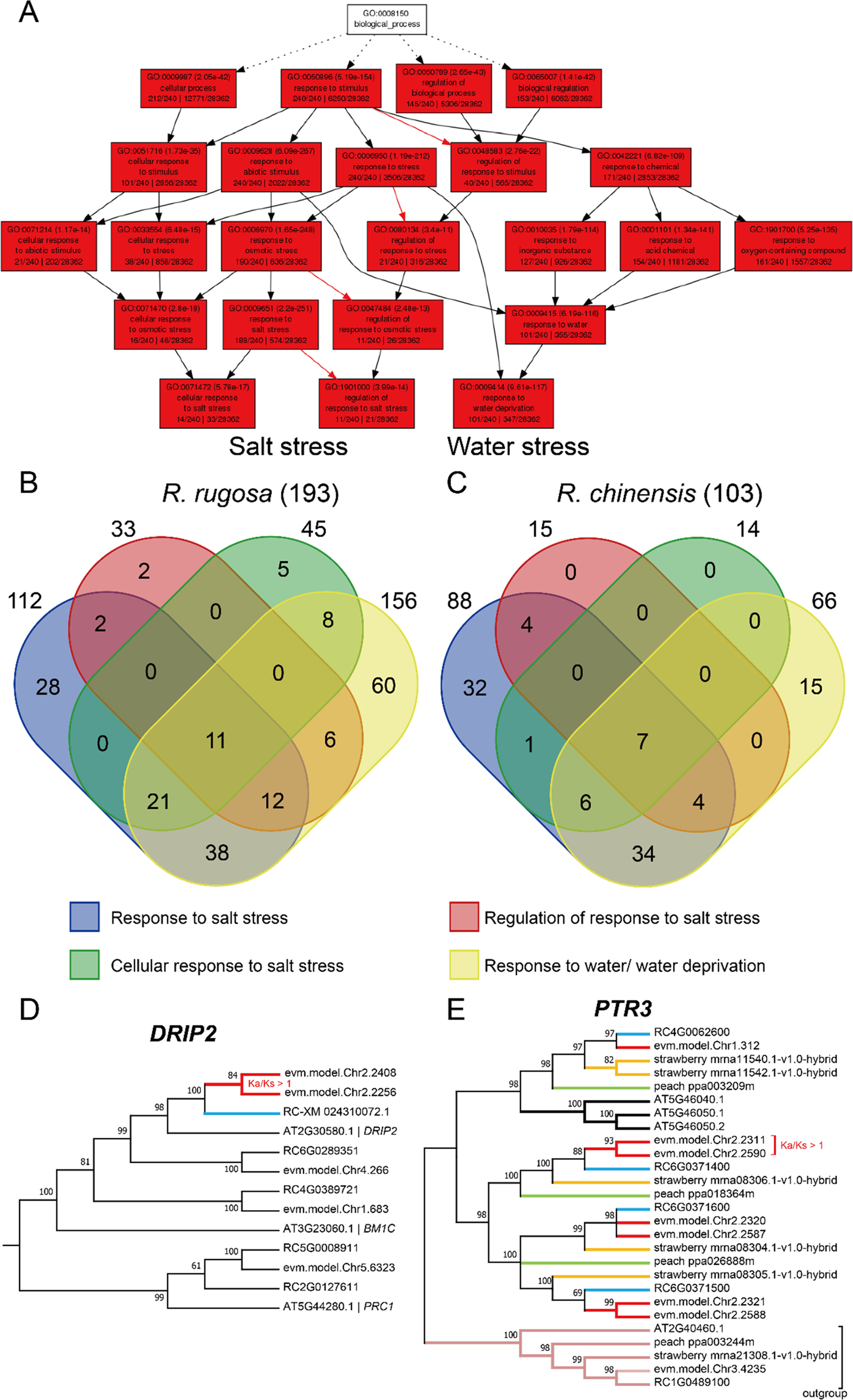

A The agriGO modules of salt stress- and water stress-related genes predicted using Arabidopsis orthologs of R. rugosa duplicated genes after WGT. B, C Venn clustering of 193 and 103 abiotic stress-related genes from R. rugosa and R. chinensis, respectively. D, E The DRIP2 genes have two paralogs in R. rugosa but one in R. chinensis and Arabidopsis. The PTR3 genes have 7 paralogs in R. rugosa but 4 in R. chinensis. The DRIP2 paralogs and two PTR3 paralogs in R. rugosa have been subjected to strong positive selection pressure
