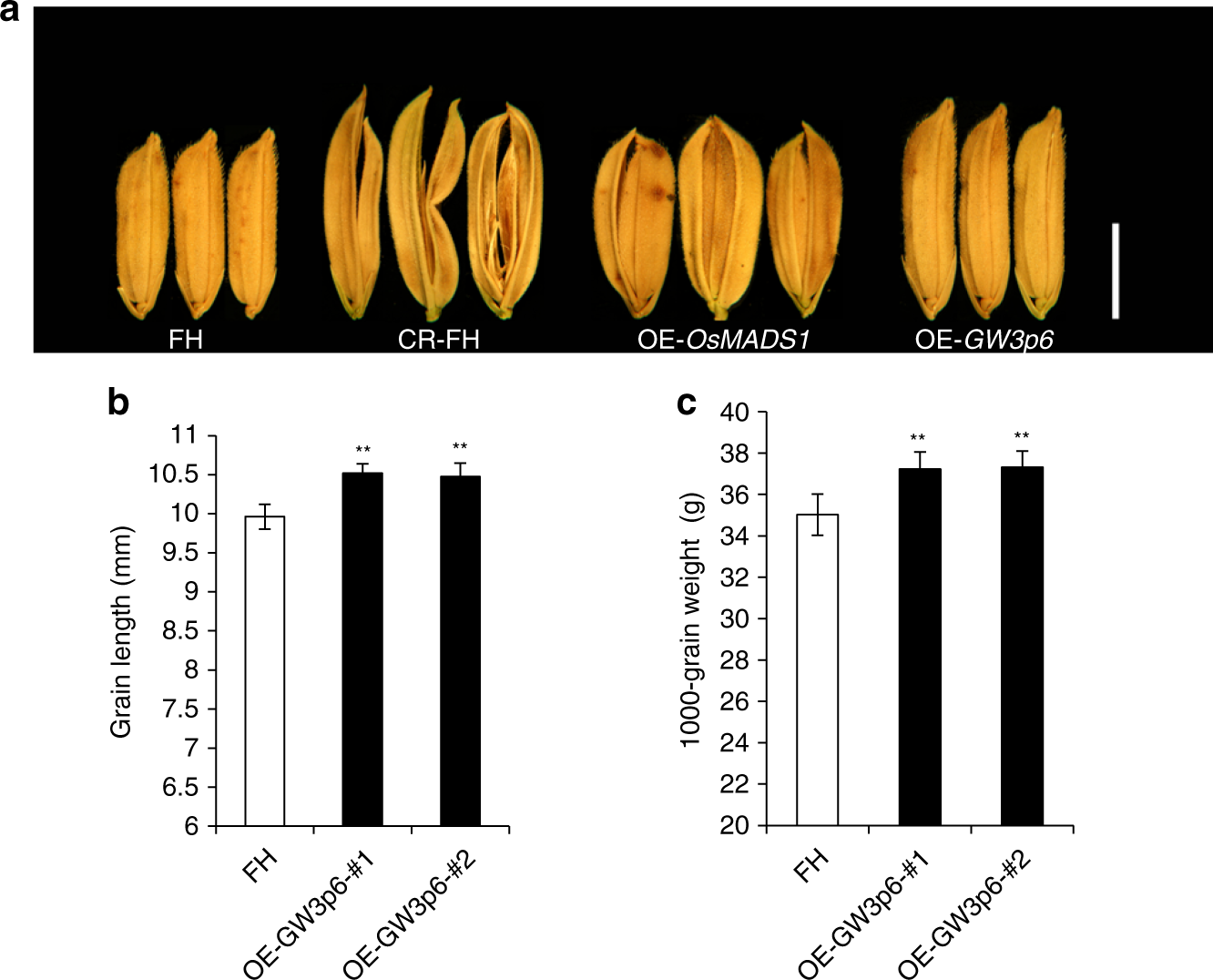

Fig. 3
From: Dissecting a heterotic gene through GradedPool-Seq mapping informs a rice-improvement strategy
The phenotype of FH transgenic plants. a The grain morphology of FH and transgenic plants. FH represents the grain morphology of non-transgenic plant FH. CR-FH represents the grain morphology of transgenic FH plants containing missense mutations in C ___domain of OsMADS1. OE-OsMADS1 represents the grain morphology of transgenic FH plants containing overexpression OsMADS1 construct. OE-GW3p6 represents the grain morphology of transgenic FH plants containing overexpression OsMADS1GW3p6 construct. Scale bar, 5 mm. b Grain length in transgenic overexpression plants and non-transgenic plants. OE-GW3p6-#1 and OE-GW3p6-#2 indicate the two transgenic lines containing overexpression OsMADS1GW3p6 construct. c 1000-grain weight in transgenic OsMADS1GW3p6 overexpression plants and non-transgenic plants. Data in (b, c) are given as means ± SD (n = 24) with the indicated significance by using a two-tailed Student’s t-test (**p < 0.01). Source data of Fig. 3b, c are provided as a Source Data file
