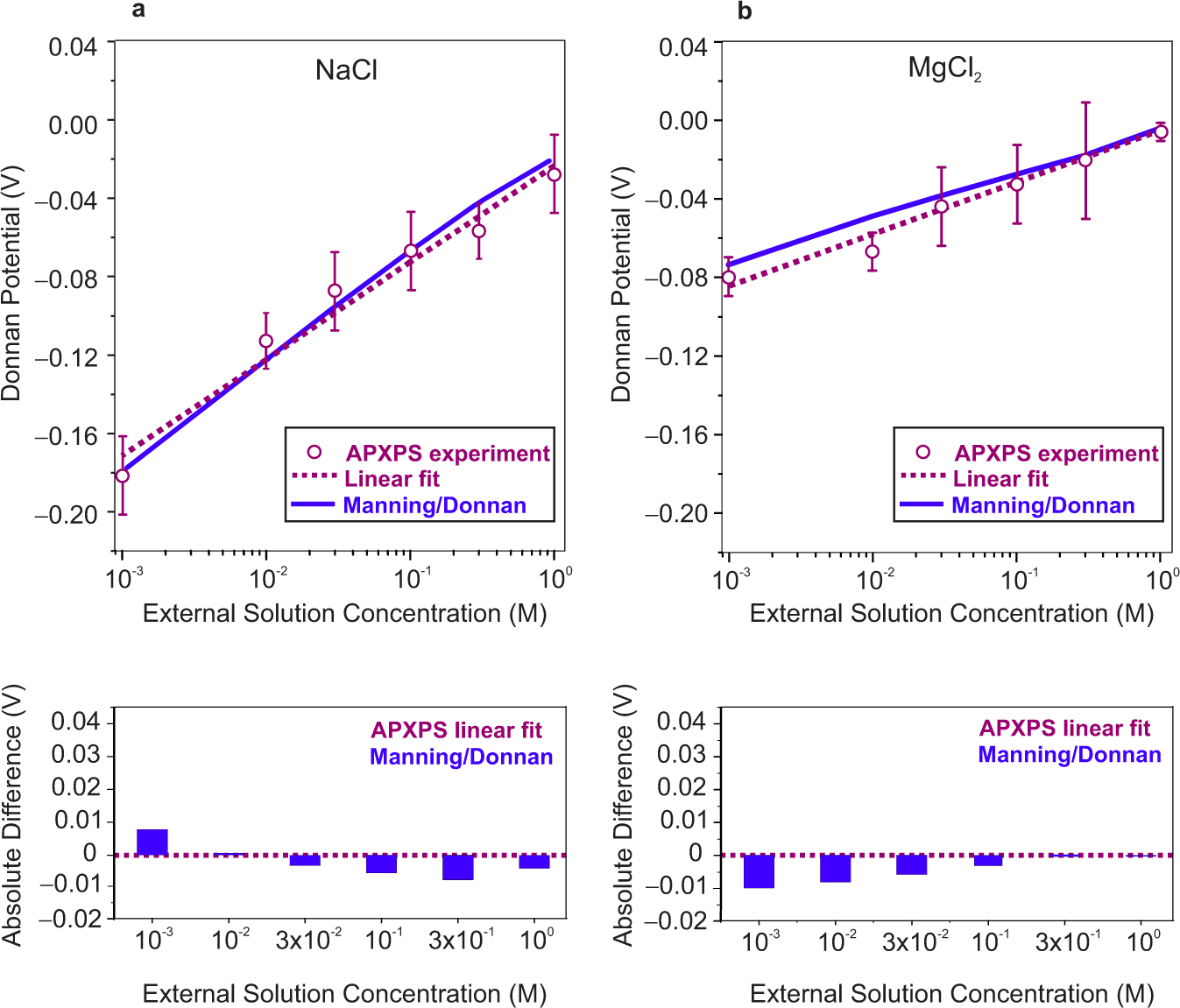

Fig. 3: Comparison between the experiment and theory.
Comparison of experimentally measured Donnan potential values obtained from binding energy shifts in membrane related core levels with the Manning/Donnan model predictions as a function of external a NaCl and b MgCl2 solution concentration. Error bars represent experimental uncertainty and are the standard deviation of repeated measurements of a minimum of four different locations in each case. Dashed lines are the linear fits of ambient pressure X-ray photoelectron spectroscopy (APXPS) experimental data for external NaCl and MgCl2 solutions with slopes of 0.049\(\pm\)0.004 and 0.026\(\pm\)0.002, respectively. (Brief discussion and further analysis of experimental uncertainties and statistical significance are provided in Supplementary Note 7). Details on Donnan potential calculations using the Manning/Donnan models are given in Supplementary Note 8. The absolute difference between the linear fit of the experimental data and predictions from the analytical model is provided to better capture the comparison between theory and experiment for each electrolyte concentration.
