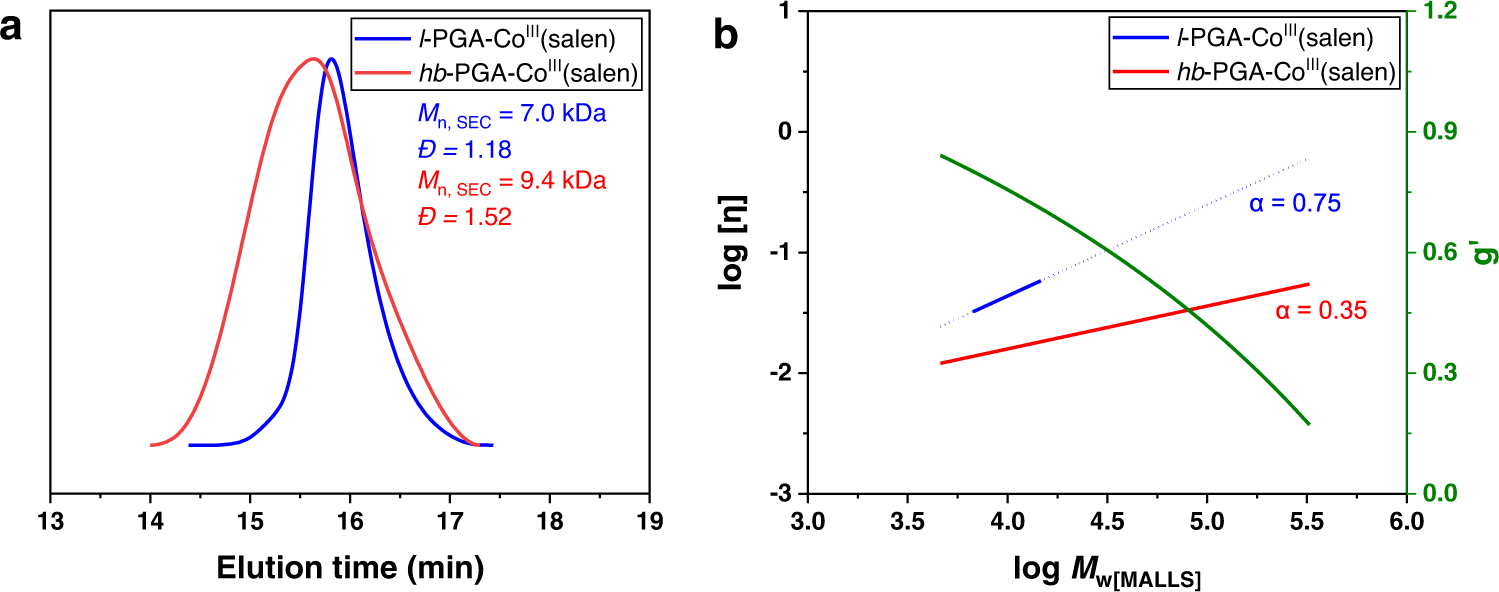

Fig. 3: The comparison between linear and hyperbranched PGA.
From: One-pot synthesis of hyperbranched polymers via visible light regulated switchable catalysis
a SEC curves of hb-PGA-CoIII(salen) (red line) and l-PGA-CoIII(salen) (blue line). b Mark−Houwink plots for hb-PGA-CoIII(salen) (red line, α = 0.35) and l-PGA-CoIII(salen) (blue line, α = 0.75). Contraction factor, g′ = [η]br/[η]lin (green line).
