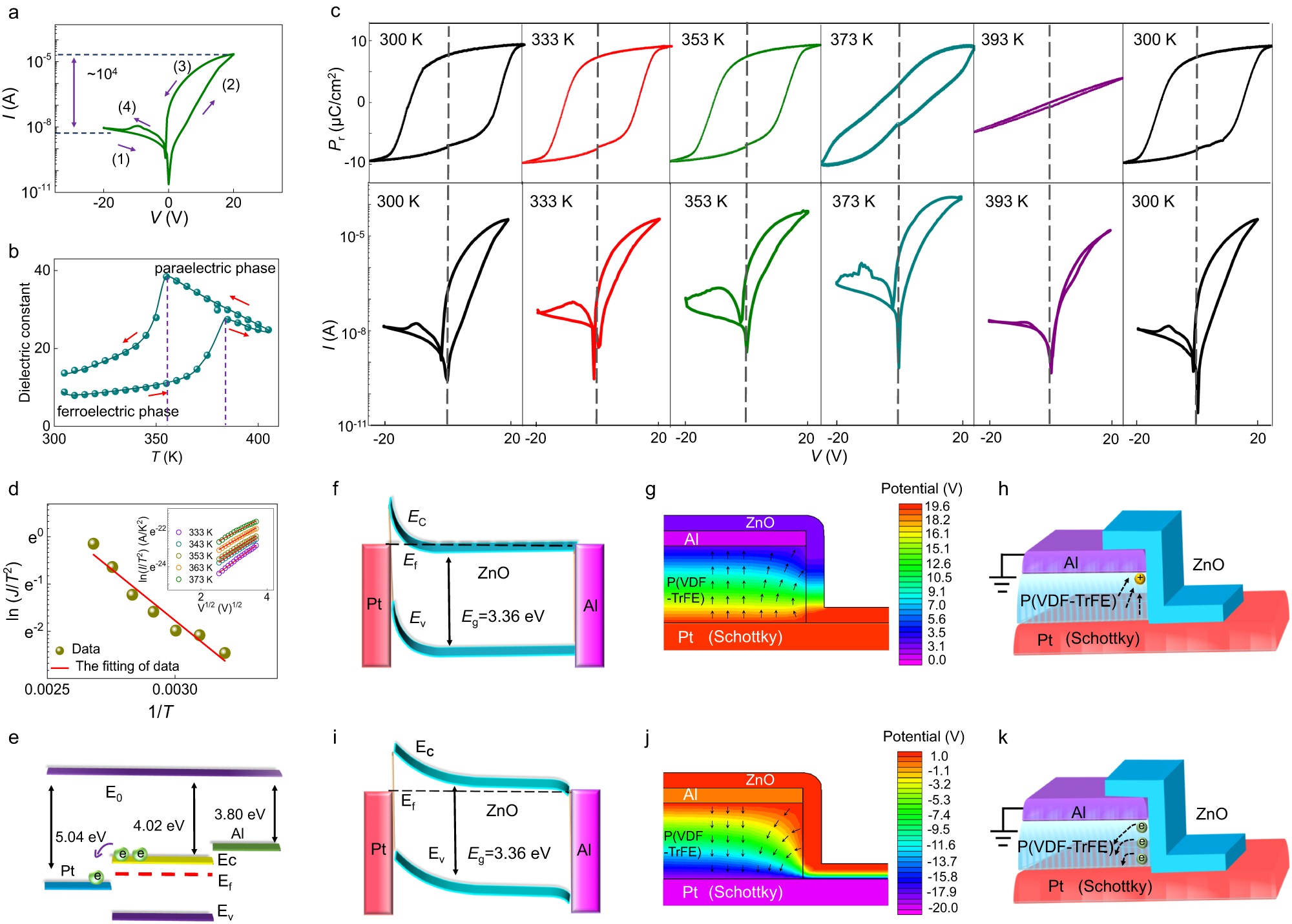

Fig. 3: Polarization-driven resistive switching.
From: A ferroelectric fin diode for robust non-volatile memory
