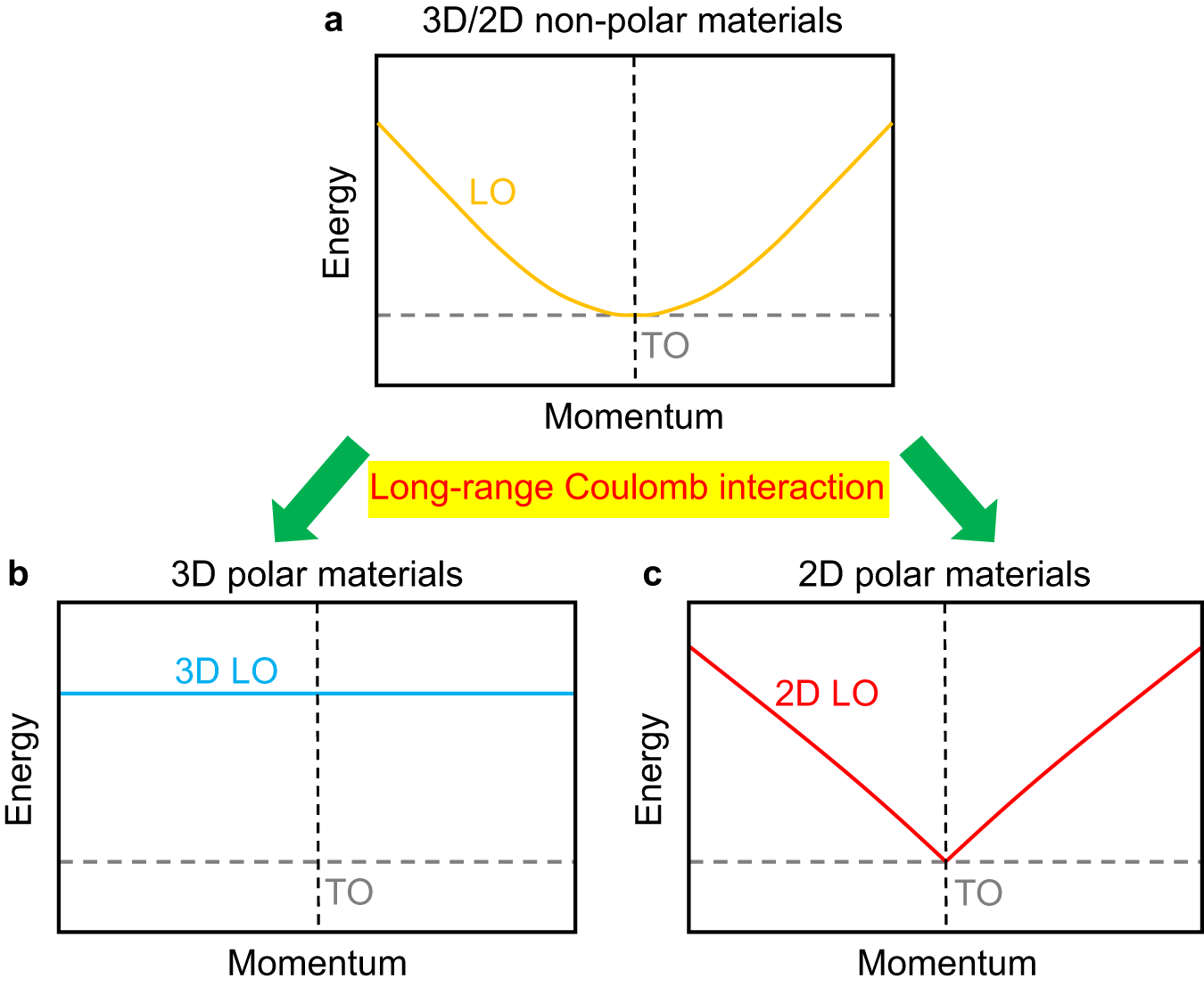

Fig. 1: Schematic of the behaviors of the LO phonons near the CBZ.
From: Observation of the nonanalytic behavior of optical phonons in monolayer hexagonal boron nitride
a–c The behaviors of the LO phonons in 3D/2D non-polar, 3D polar, and 2D polar materials, respectively. The dashed black lines represent the CBZ.
