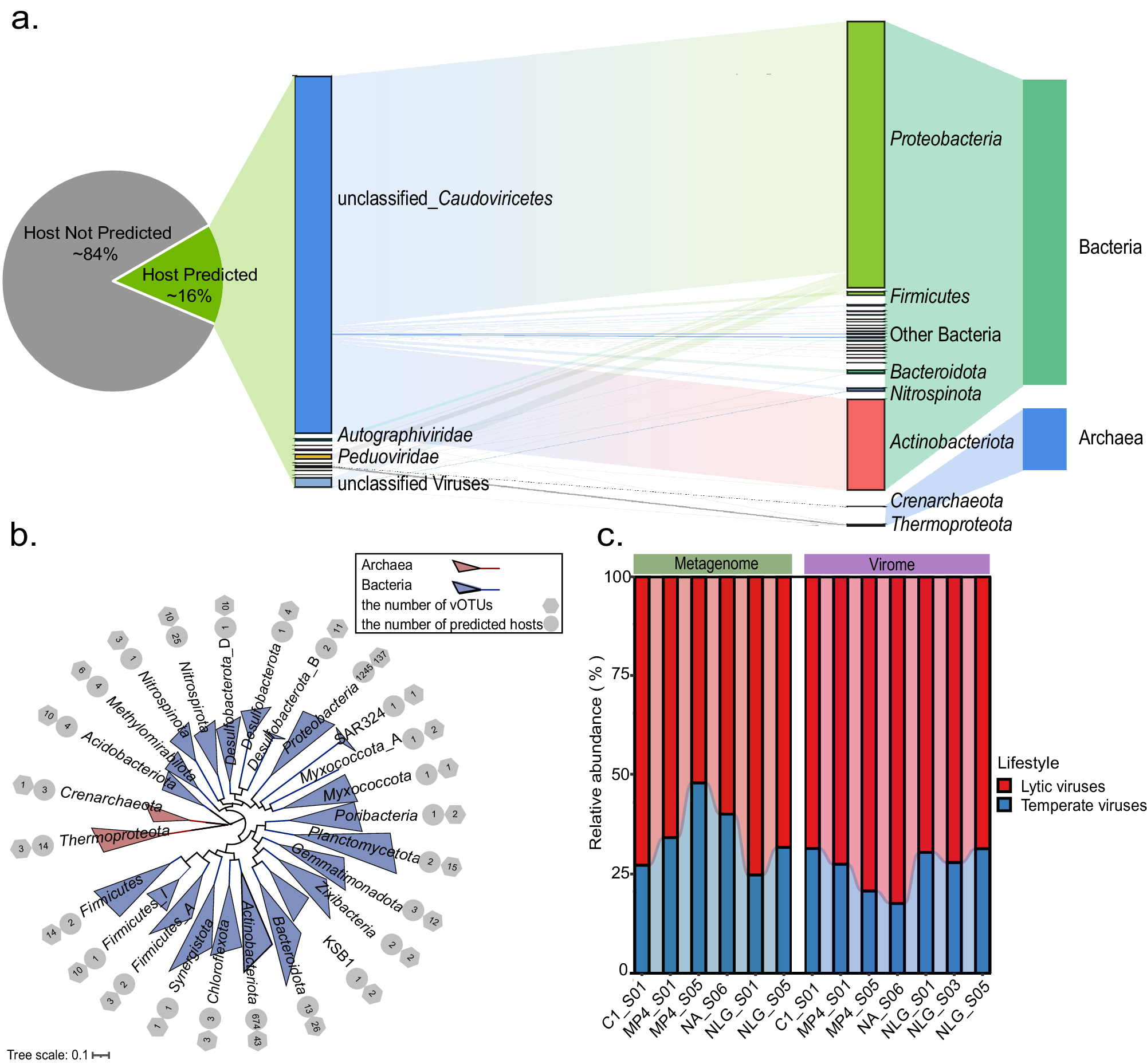

Fig. 5: Predicted host-virus interactions.
From: Diversity and potential host-interactions of viruses inhabiting deep-sea seamount sediments
a Predicted virus-host linkages. Percentage and taxonomy of viral operational taxonomic units (vOTUs) for which a host was predicted are shown on the left; the taxonomy of predicted hosts is shown on the right. b Maximum-likelihood phylogenetic tree of predicted hosts. The phylogenetic tree was inferred from the concatenated alignment of 120 bacterial or 122 archaeal single-copy marker genes. The gray hexagons indicate the number of vOTUs predicted to have a host in the clade, while the gray circles indicate the number of hosts predicted to be infected by vOTUs in the clade. c Predicted life lifestyles for vOTUs obtained from either metagenome or virome. Source data are provided as a Source Data file.
