Fig. 2: The electromagnetic distribution of the weak-coupling WPT systems.

From: Modelling of negative equivalent magnetic reluctance structure and its application in weak-coupling wireless power transmission

Fig. 2

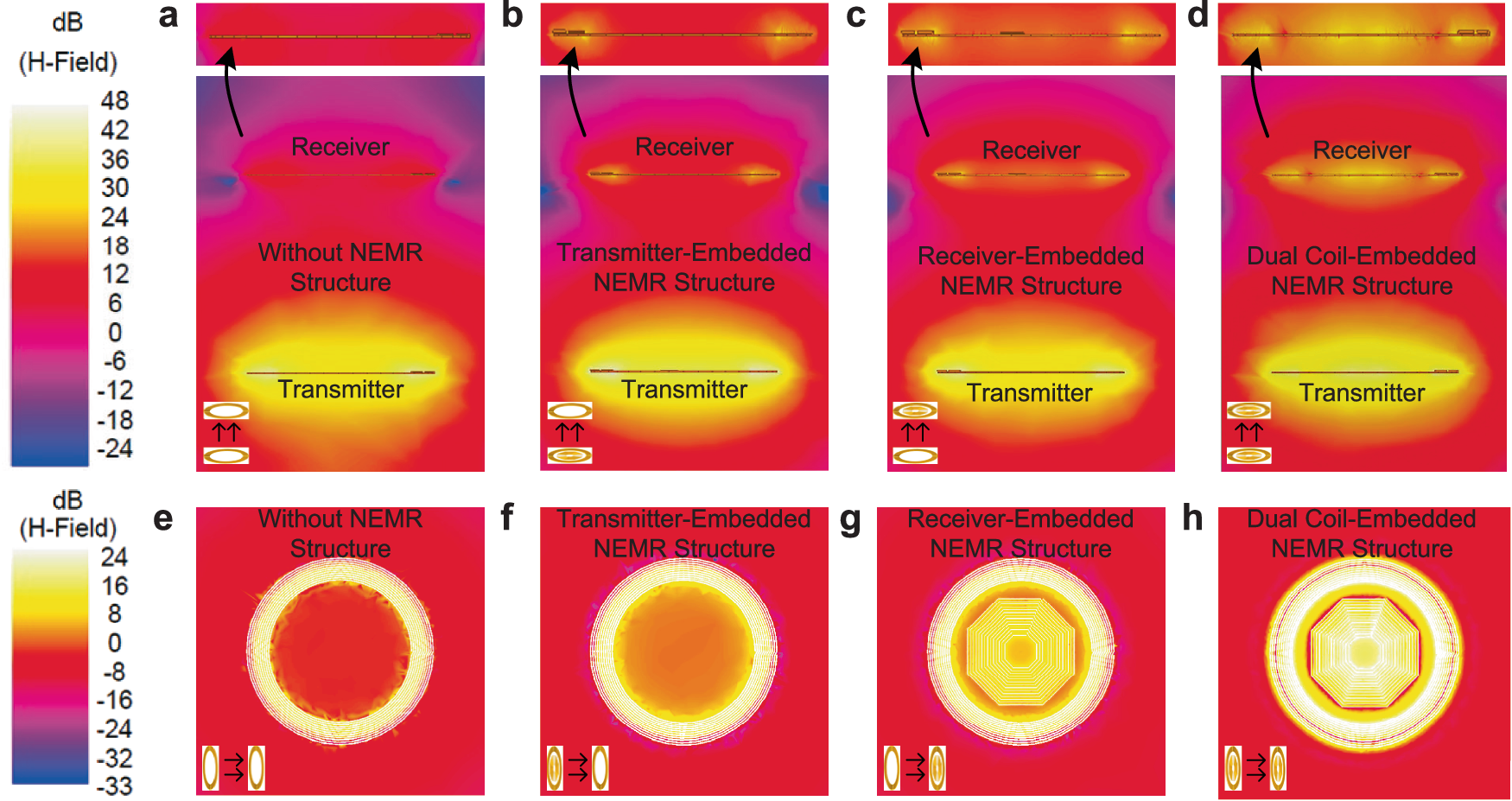

a Transmission path without NEMR structure. b Transmission path with the transmitter-embedded NEMR structure. c Transmission path with the receiver-embedded NEMR structure. d Transmission path with dual coil-embedded NEMR structure. e Receiver without NEMR structure. f Receiver with the transmitter-embedded NEMR structure. g Receiver with the receiver-embedded NEMR structure. h Receiver with dual coil-embedded NEMR structure.
