Introduction

Ammonia (NH3), a vital platform compound for agriculture and industry with a global demand exceeding 150 million tons annually1,2, accounts for 1–2% of the world’s energy supply and superabundant CO2 emission3,4. Large-scale NH3 production is currently dominated by the fossil-fuel-driven Haber-Bosch process, operating under harsh conditions (approximately 400–500 °C and 150–350 atm)5,6,7. As an alternative, the direct electrocatalytic nitrate reduction reaction (NO3RR) powered by renewable electricity, provides decentralized and sustainable NH3 production at ambient conditions8,9,10,11,12. Compared to the inert and low soluble N2 molecules (N ≡ N bond, 948 kJ/mol), nitrate promises lower dissociation energy (N = O bond, 204 kJ/mol) with improved reaction kinetics13,14. Furthermore, nitrate is widely distributed in industrial wastewater and contaminated groundwater, its conversion through the denitrification process is essential for restoring the global nitrogen cycle imbalance. Therefore, developing electrocatalytic NO3RR can enable a promising route for green NH3 production and simultaneously mitigate environmental burdens, aiming at the transition towards carbon-neutral society15,16.

Despite significant advancements in catalyst design for NO3RR, achieving ampere-level current density and nearly unit Faradaic efficiency (FE), the fundamental understanding of the intrinsic active sites and reaction process remains ambiguous17,18,19. The transition metals (such as Ni, Co, and Cu)-based electrocatalysts previously claimed promising NO3RR activity, commonly suffer dynamic phase change or surface reconstruction as exposure to electrolytes and reactants at operating potential, which makes it challenging to explore the underlying mechanism20,21. Recent studies anticipated the fluctuating reactive interface might facilitate the catalytic conversion rather than the initial well-defined static catalytic center or pristine state22. As for NO3RR involved with the multi-step proton-electron transfer, various intermediate species might be formed accompanied with the change of interface state, ultimately affecting the possible reaction pathways (NH3 or by-products like N2, NO, N2H4, etc.,) and activity of NH3 production23. Additionally, the dynamic evolution of the catalytic interface is determined by the synergistic effect of potential and microenvironment, thereby impacting the reaction performance24. The interplay between the evolved catalyst surface and interfacial electrolyte plays a crucial role in the water dissociation and subsequent protonation process for targeted NH3 synthesis or competing hydrogen evolution reaction (HER), while rare studies have been further investigated. Hence, it is essential to identify the mechanism of the dynamic interface and elucidate its correlation to the key intermediates and reaction activity, by providing a strategy to manipulate and improve nitrate conversion.

Herein, we tracked the dynamic interface and investigated the NO3RR mechanism using typical nickel hydroxide as model catalyst. In-situ characterization combined with theoretical calculation demonstrated the potential-induced change from Ni(OH)2 to Ni(OH)2 /Ni. The free diffusion of OH species was assumed to be restricted at the metastable interface along with the generation of a local-OH-enrich region, which enhanced the hydrogenation of nitrogen species while inhibiting HER. Then, the interface was further activated by constructing rich vacancies using non-thermal plasma (NTP) modification. Operando Raman-FTIR-EPR and kinetic isotopic labeling revealed that the NTP-activated interface significantly accelerated the dynamic interaction between catalyst and electrolyte, to promote the potential kinetic of the OH cycle and proton transfer. As a result, a high NH3 production activity was achievd with the FE of almost 100%, exhibiting the economic and environmental prospects of green NH3 production.

Results

Characterization of the catalyst surface reconstruction

Lamellar structure Ni(OH)2 with distinct transparent edges was facilely synthesized on Cu foam (CF) via electrodeposition to obtain Ni(OH)2@CF, where CF was employed as the substrate and skeleton to ensure sufficient conductivity (Supplementary Figs. S1, S2). The uniform distribution of Ni, Cu and O elements across the Ni(OH)2@CF catalyst was observed by Energy-dispersive X-ray Spectroscopy (EDX) mapping (Supplementary Fig. S3). X-ray diffraction (XRD) pattern of prepared Ni(OH)2@CF demonstrated the appearance of {100} and {110} crystalline planes corresponding to Ni(OH)2 (Supplementary Fig. S4), consistent with the selected area electron diffraction (SAED) and the typical lattice spacing (0.264 nm) discerned in high-resolution transmission electron microscopy (HR-TEM) (Fig. 1a, b). Besides, the prepared catalyst was stripped and characterized independently via X-ray photoelectron spectroscopy (XPS) and inductively coupled plasma optical emission spectroscopy (ICP-OES), respectively, which confirmed the absence of Cu on the catalyst surface and excluded the potential influence of Cu on enhanced reaction activity (Supplementary Table. S1, Supplementary Fig. S5). During NO3RR, the oxidized state (Ni2+) of Ni(OH)2@CF proceeded reduction together with structural reconstruction at the top layers of the catalyst surface. Under the potential at −0.8 vs RHE, a lattice stripe of 0.205 nm belonging to Ni {111} facet emerged, suggesting the potential-dependent transition from Ni(OH)2@CF to Ni(OH)2/Ni@CF (Fig. 1c), corroborated by the XRD patterns (Supplementary Fig. S6). Additionally, the presence of a Ni0 peak at a binding energy of ~853 eV in Ni 2p spectra was also observed through XPS (Fig. 1d).

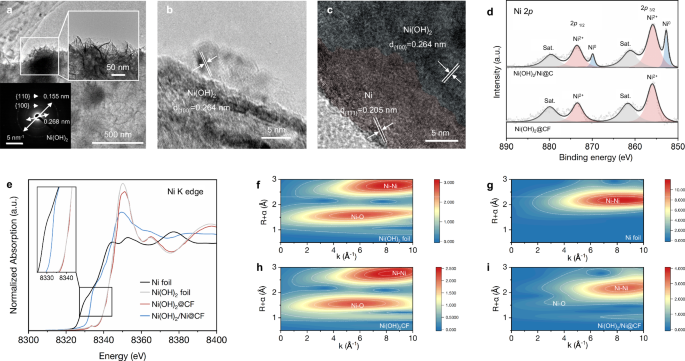

Fig. 1: Characterization of the Ni(OH)2@CF and Ni(OH)2/Ni@CF.
figure 1

a TEM image and SAED pattern of Ni(OH)2@CF (scale bar: 500 nm). HR-TEM images of (b) Ni(OH)2@CF and (c) Ni(OH)2/Ni@CF (scale bar: 5 nm). d Ni 2p XPS spectra of Ni(OH)2/Ni@CF. e Ni K-edge XANES spectra of Ni(OH)2@CF and Ni(OH)2/Ni@CF (inset: Fourier transformed Ni K-edge EXAFS spectra corresponding to the XANES spectra). Wavelet transformation of (f) Ni(OH)2 foil, (g) Ni foil (h) Ni(OH)2@CF, and (i) Ni(OH)2/Ni@CF. Source data for Fig. 1 are provided as a Source Data file.

Full size image

To obtain the precise atomic-scale understanding of the catalyst, the local structure and valence state of Ni(OH)2/Ni@CF and Ni(OH)2@CF were comparatively examined through Ni K-edge X-ray absorption spectroscopy (XAS) (Supplementary Figs. S7–8, Supplementary Table S2). Ni(OH)2@CF exhibited similar peak characteristics to the Ni(OH)2 foil in X-ray absorption near-edge structure (XANES) spectra (Fig. 1e), while Ni(OH)2/Ni@CF displayed dominant metallic Ni-Ni bond in the extended X-ray absorption fine structure (EXAFS) R-space spectra (Supplementary Fig. S9). However, it was evident in XANES that the absorption edge of Ni(OH)₂/Ni@CF located at a higher energy region compared to Ni foil (Fig. 1e: inset). Additionally, the wavelet transform (WT) of EXAFS revealed that Ni(OH)2/Ni@CF exhibited both the metallic Ni-Ni bond signal and the Ni-O signal (1 ~ 2 Å) (Fig. 1f–i). To precisely determine the Ni valence state, the average oxidation states were fitted by taking the valence of Ni (0.00) and Ni(OH)2 (2.00) at 0.4 of normalized absorption as standards from Ni K-edge XANES. The nominal valence state of Ni in Ni(OH)2/Ni@CF (+ 0.35) was located between Ni(OH)2 (+ 2.00) and Ni (0.00) (Supplementary Fig. S10). Overall, the XAS result confirmed that a significant amount of Ni0 species was generated on the surface after electroreduction, while the mixed state of Ni(OH)2/Ni was still retained.

Mechanism study of OH cycle on the dynamic interface

In-situ electrochemical Raman spectroscopy was employed to monitor the dynamic interface and evolved active sites during NO3RR. The peak at 585 cm−1 corresponding to the Ni−OH stretching modes was observed and the broad spectra peak at 3535 cm−1 was assigned to the surface O−H stretching bands25,26,27 (Fig. 2a, and Supplementary Fig. S11). As the potential negatively shifted from 0 to −0.9 V vs. RHE, Ni−OH intensity decreased, accompanied by the increase of surface O-H intensity simultaneously, which implied the intimate relationship between de-hydroxylation process and the presence of interfacial OH, occurring in the transition from initial Ni(OH)2 to Ni(OH)2 /Ni during NO3RR. In-situ differential electrochemical mass spectrometry (DEMS) measurements were further carried out using H/D isotopic labeling to understand the OH evolution process. Firstly, the catalyst was labeled by operating in the electrolyte with H2O and D2O solvent, respectively. Then, NO3RR was performed in the electrolyte with H2O solvent after thoroughly washing, and the generated volatile products were measured using DEMS (Supplementary Figs. S12–13)28. As predicted, NHxD3-x signals (m/z = 18, 19, and 20) assigned to NH2D, NHD2, and ND3 was only detected on the catalyst pretreated in D2O solvent, providing solid evidence that the lattice OH interchanged with the electrolyte OD and thus participated in hydrogenation process during reaction (Fig. 2b, c)29.

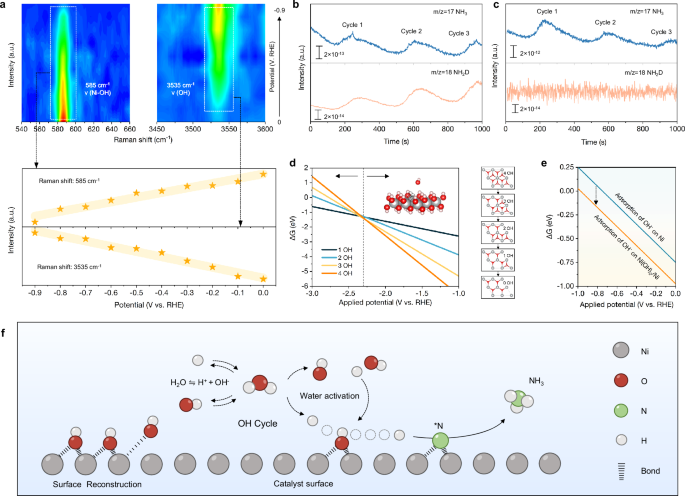

Fig. 2: Mechanism study of the OH cycle.
figure 2

a In-situ electrochemical Raman spectra of Ni(OH)2/Ni@CF from 0 to −0.9 V vs. RHE (without iR compensation) in the electrolyte with 0.1 M KNO3 + 1 M KOH. Below: The intensity of the Raman signal at 585 cm−1 and 3535 cm-1 (scatter: real Raman signal; line: polynomial fitting curve). In-situ electrochemical DEMS result of the D/H isotope labelled catalyst pre-operated in (b) D2O solvent and (c) H2O solvent, respectively. d Calculated surface Pourbaix diagrams for Ni(OH)2/Ni as the function of applied potential at pH = 14 (right: corresponding structure of different phases of Ni(OH)2/Ni; Gray, red, and pink spheres represent Ni, O, and H atoms, respectively). e Absorption ability of OH on pure Ni and Ni(OH)2 induced Ni(OH)2/Ni surface, respectively. f Schematic diagram during NO3RR process including OH cycle mechanism. Source data for Fig. 2 are provided as a Source Data file.

Full size image

To further elucidate the role of OH migration as well as the interplay between catalyst surface and electrolyte during NO3RR, serial isotopic labelling experiments were designed to trace the dynamic interface behaviour using attenuated total reflection Fourier transformed infrared (ATR-FTIR) spectroscopy (Supplementary Fig. S14). (I) Initially, the Ni(OD)2@CF catalyst prepared via D2O was employed for NO3RR with H2O-based electrolyte. The peak located at 2497.7 cm−1 and 3343.6 cm−1 was discerned, assigning to D2O and H2O species, respectively (Supplementary Fig. S15). The semi-quantitative ratio of D2O/H2O (D/H) determined by FTIR was 0.26, consistent with the result of Raman spectra (Supplementary Figs. S16–17). The appearance of D2O species implied that the interfacial OH from the catalyst participated in NO3RR with water as a medium via the equilibrium of water dissociation. (II) After 30 mins of operation, we refreshed the electrolyte and continued NO3RR, while almost no D2O was detected, implying the depletion of D-containing hydroxyl group on previous catalyst surface. (III) Subsequently, the catalyst was soaked in D2O at open circuit potential (OCP) and was tested again, with the D/H ratio of the electrolyte increased to 0.17. This phenomenon demonstrated that the Ni(OD)2/Ni interface was not static, where the metallic Ni readily regenerated into Ni(OD)2 in solvent. (V-VI) The process was repeated to ensure accuracy and reproducibility. Thus, we inferred that the joint effect of spontaneous adsorption of OH and potential-dependent de-hydroxylation caused a dynamic interface of Ni(OH)2/Ni during NO3RR, which might induce the local OH species enriched region at the electrode-electrolyte interface.

Density functional theory (DFT) calculation was performed to get insight into the mechanism theoretically. Firstly, the actual state of the catalyst surface under electrocatalysis conditions was determined by establishing Pourbaix diagrams (Fig. 2d). A Ni(OH)2 surface with a supercell size of 2× 2 was selected as the calculation model. By negatively shifting the potential to the Ni(OH)2 surface, a phase transition occurred, resulting in the de-hydroxylation of the surface and the exposure of the metallic Ni phase, which is thermodynamically favourable. Consistently, the energy barrier of the potential-determined step (PDS) on Ni(OH)2/Ni (0.48 eV) was lower than that of Ni(OH)2 (1.40 eV) (Supplementary Figs. S18–20, Supplementary Table S3), and the crystal orbital Hamilton population (COHP) proved the better adsorption capacity for NO3− on Ni(OH)2/Ni (Supplementary Fig. S21), revealing the genuine active site originated from Ni(OH)2/Ni surface. Furthermore, we compared the ability of the OH capture on Ni site between pure metal Ni (−0.75 eV) and Ni(OH)2/Ni surface (−0.97 eV), implying a better absorption of OH to form local enrichment on Ni(OH)2/Ni surface (Supplementary Fig. S22, Fig. 2e). Furthermore, the dynamic adsorbed OH on exposed Ni could efficiently activate interfacial H2O dissociation and promote proton transfer30. Overall, the experiment and calculation revealed that the dynamic process of surface OH desorption → limited OH diffusion → OH participation in the hydrogenation constituted the surface OH cycle and in-situ construction of active Ni(OH)2/Ni interface, driving the efficient nitrate-to-NH3 conversion (Fig. 2f).

Design of the activated catalyst to promote OH cycle

To further activate the dynamic interface, we employed NTP to synthesize defects-rich D-Ni(OH)2@CF with more exposed OH vacancies, aiming at enhancing surface OH cycle effect (Fig. S23). As expected, HR-TEM images of D-Ni(OH)2/Ni@CF showed the co-existence of lattice fringe of 0.267 nm and 0.203 nm, corresponding to the {100} facet of Ni(OH)2 and {111} facet of Ni after NO3RR, consistent with the XRD pattern (Fig. 3a, b, Supplementary Fig. S24). Positron annihilation lifetime spectroscopy (PALS) manifested the extension of the defect relaxation time τ1 from 114 to 128 ps, providing intuitionally evidence for the increased defect dimensions on D-Ni(OH)2/Ni@CF (Fig. 3c, and Supplementary Table S4). Compared to Ni(OH)/Ni@CF, the Ni 2p3/2 peak on D-Ni(OH)2/Ni@CF (854.8 eV) shifted ~0.3 eV to the lower binding energy level (Fig. 3d), along with a new peak emerged at 531.8 eV emerged in O 1 s XPS spectra prominently, indicating the presence of OH vacancies on the surface (Fig. 3e)31,32. The constant presence of OH vacancies signals on the catalyst surface after the reaction suggested the stable existence of the defect. Quantified by the electron paramagnetic resonance (EPR)33, the defect concentration of D-Ni(OH)2/Ni@CF was intimately related to the energy density of applied NTP, with an approximately monotonic increased peak intensity with the plasma power from 100 to 300 W (Fig. 3f). Correspondingly, the ratio of Ni0:Ni2+ increased from 0.01 to 0.06, with the monotonic shift of the Ni 2p peak position from 0.15 to 0.32 eV, indicating the reducing of surface Ni-OH species via NTP treatment (Supplementary Figs. S25–27)34,35.

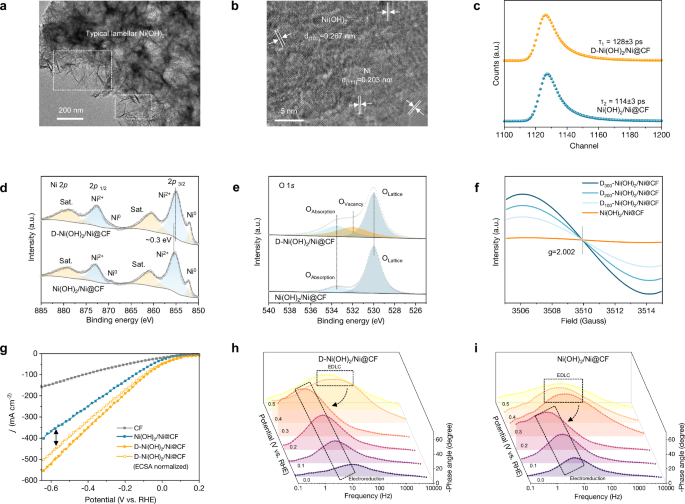

Fig. 3: Structural analysis and electrochemical diagnosis of D-Ni(OH)2/Ni@CF.
figure 3

a HR-TEM image of D-Ni(OH)/Ni@CF with scale bar of 200 nm. b HR-TEM image of D-Ni(OH)/Ni@CF with scale bar of 5 nm. c PALS spectra of Ni(OH)2/Ni@CF and D-Ni(OH)2/Ni@CF. d Ni 2p XPS spectra of Ni(OH)/Ni@CF and D-Ni(OH)/Ni@CF. e O 1 s XPS spectra of Ni(OH)/Ni@CF and D-Ni(OH)/Ni@CF. f EPR spectra of D-Ni(OH)/Ni@CF with different plasma input power (100 ~ 300 W). g Polarization curves measured by linear sweep voltammetry (LSV) from 0.2 to -0.65 V vs. RHE (without iR compensation, resistance between RE and WE: 1.6 Ω, 5 mV s−1) of CF, Ni(OH)2/Ni@CF, D-Ni(OH)2/Ni@CF, and ECSA normalized D-Ni(OH)2/Ni@CF, respectively (j ECSA normalized D-Ni(OH)2/Ni@CF = j D-Ni(OH)2/Ni@CF * ECSA Ni(OH)2/Ni@CF / ECSA D-Ni(OH)2/Ni@CF). Operando EIS plots from 0.5 to 0 V vs. RHE (without iR compensation) of (h) D-Ni(OH)2/Ni@CF and (i) Ni(OH)2/Ni@CF with a frequency range from 0.1 Hz to 10 kHz (EDLC: electrochemical double-layer capacitor). Source data for Fig. 3 are provided as a Source Data file.

Full size image

To clarify the electrochemical activity of D-Ni(OH)2/Ni@CF, a typical three-electrode system using H-type cell was applied. We initially evaluated the ESCA of the freshly prepared catalyst for comparison, revealing the comparable Cdl values for D-Ni(OH)2/Ni@CF (57.3 mF cm−2) and Ni(OH)2/Ni@CF (51.9 mF cm−2) (Supplementary Figs. S28–29). Polarization curves exhibited a substantially lower overpotential and larger current density of D-Ni(OH)2/Ni@CF (−562.6 mA cm−2) compared to CF (157.63 mA cm−2) and Ni(OH)2/Ni (400.45 mA cm−2), indicating accelerated kinetics of NO3RR electrochemical reaction on activated interface (Fig. 3g). After normalizing the current density of D-Ni(OH)2/Ni@CF to that of Ni(OH)2/Ni@CF by ECSA, the catalytic activity remained superior (503.96 mA cm−2), excluding the effect from the surface roughness modification by NTP. Additionally, D-Ni(OH)2/Ni also showed better catalytic activity in the electrolyte without nitrate, implying its capability to reduce overpotential and promote proton transfer by optimizing OH adsorption and water dissociation (Supplementary Fig. S30). Similarly, the results of electrochemical impedance spectroscopy (EIS) further supported the lowest charge transfer resistance on D-Ni(OH)2/Ni@CF of 0.97 Ω (4.22 Ω of CF and 1.24 Ω of Ni(OH)2/Ni@CF, respectively) (Supplementary Figs. S31–32). Through long-term electrosynthesis of NH3, the ECSA on D-Ni(OH)2/Ni@CF (105.05 mF cm−2) increased more significantly than that of Ni(OH)2/Ni@CF (64.20 mF cm−2), reflected the faster surface evolution on the activated dynamic interface with more active sites (Supplementary Figs. S33–34). To analyze the electrochemical dynamics of the catalyst surface, Operando EIS was performed during NO3RR (Fig. 3h–i). The peaks in the high-frequency region corresponded to the charging process of the electrochemical double-layer capacitor (EDLC), while the peaks in the low-frequency region were associated with the electroreduction process36. It was observed that a notable transition from the EDLC behavior to electroreduction behavior at +0.3 V vs. RHE over D-Ni(OH)2/Ni@CF, higher than that over Ni(OH)2/Ni@CF (+ 0.2 V vs. RHE), which implied the lower onset potential and better catalytic performance of D-Ni(OH)2/Ni@CF.

Kinetic study of the promoted OH cycle

To elucidate the impact of the activated interface of D-Ni(OH)2/Ni@CF on OH cycle, we performed the temporal-scale analysis via in-situ Raman/FTIR spectroscopy. The Ni(OH)2 signal gradually attenuated but still maintained on Ni(OH)2/Ni@CF from 0 to 30 mins in Raman spectra (Fig. 4a, Supplementary Fig. S35). In contrast, D-Ni(OH)2/Ni@CF experienced rapid deterioration and completely obliterated, implying the acceleration of de-hydroxylation effect over the catalyst surface after NTP treatment (Fig. 4c). In-situ FTIR measurements were also conducted, and the peaks at 3005 and 3220 cm⁻¹ were attributed to N species24,37, and the peaks at ~1650 cm⁻¹ were attributed to OH group38. According to FTIR spectroscopy, notable peak signals corresponding to active N species (e.g. *NH2) and interface water were observed at the onset of the reaction on D-Ni(OH)2/Ni@CF and gradually strengthened with the reaction. The rapid adsorption of N species and the surface de-hydroxylation based on in-situ FTIR/Raman imply the faster reconstruction and reaction kinetics over D-Ni(OH)2/Ni@CF to promote water dynamics and proton transfer (Fig. 4b, d).

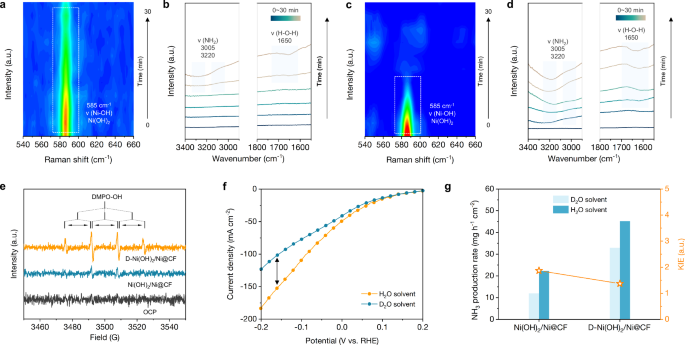

Fig. 4: Study on the origin of OH cycle-enhanced catalytic activity.
figure 4

In-situ electrochemical Raman spectra at −0.8 V vs. RHE (without iR compensation) of (a) Ni(OH)2/Ni@CF and (c) D-Ni(OH)2/Ni@CF with a time scale of 0 ~ 30 min. In-situ electrochemical FTIR spectra at −0.8 V vs. RHE (without iR compensation) of (b) Ni(OH)2/Ni@CF and (d) D-Ni(OH)2/Ni@CF with a time scale of 0 ~ 30 min. e Quasi in-situ EPR spectra of collected electrolyte from NO3RR using D-Ni(OH)2/Ni@CF and Ni(OH)2/Ni@CF as electrocatalysts at −0.8 V vs. RHE (without iR compensation) in 1 M KOH with 0.1 M KNO3. f Polarization curves (without iR compensation, 5 mV s−1) of D-Ni(OH)2/Ni@CF in H2O and D2O solutions. g H/D kinetic isotope effect during NO3RR on different catalysts in 1 M KOH + 0.1 M KNO3 using H2O and D2O as solvent at −0.8 V vs. RHE (without iR compensation). Source data for Fig. 4 are provided as a Source Data file.

Full size image

To quantitatively compare the concentration of surface-active species, quasi in-situ EPR was performed. Four signal peaks with an intensity ratio of 1:2:2:1 were detected, which indicated the formation of DMPO-OH species (Fig. 4e). The DMPO-OH formed under negative potential might be attributed to the Forrester-Hepburn mechanism39, where DMPO experienced nucleophilic addition by H2O and coupled with an electron accepter (Ni2+ → Ni0) (Supplementary Discussion 1, Supplementary Fig. S49). D-Ni(OH)2/Ni@CF exhibited a stronger signal than Ni(OH)2/Ni@CF, indicating superior surface water activation and a faster conversion rate from Ni2+ to Ni0 on D-Ni(OH)2/Ni@CF. This was consistent with the conclusions reported by in-situ Raman results. Similar phenomena were also observed in the electrolyte without NO3− (Supplementary Fig. S36). Moreover, kinetic isotopic effect (KIE) was investigated to reveal H2O dissociation rate by comparing the activities in H2O and D2O electrolytes. Although the NH3 selectivity remained stable (Supplementary Fig. S37), the current density and NH3 production rate declined significantly due to the sluggish D2O dissociation. The calculated KIE value (KIE = kH/kD) was 1.87 for Ni(OH)2/Ni@CF, while dropped to 1.37 over D-Ni(OH)2/Ni@CF (Fig. 4f, g). The smaller KIE value reflected the accelerated water dissociation kinetic during NO3RR, which validated the D-Ni(OH)2/Ni@CF interface facilitated water activation, promoting the OH cycle together with OH adsorption and hydrogenation of N species40.

Performance of NH3 synthesis via NO3RR

The NH3 yield and selectivity of D-Ni(OH)2/Ni@CF were systematically evaluated using UV spectrophotometer and nuclear magnetic resonance (NMR) (Supplementary Fig. S38). The difference in NH3 production rate between the UV method and ion chromatography was within 5%, validating the accuracy of the measurements (Supplementary Figs. S39–41). D-Ni(OH)2/Ni@CF exhibited enhanced NH3 production activity at all potentials, achieving the maximal FEmax of 98.99% (compared to 60.98% for Ni(OH)2/Ni@CF) with a NH3 production rate of 47.85 mg h−1 cm−2 (compared to 24.66 mg h−1 cm−2 for Ni(OH)2/Ni@CF) at −0.8 V vs. RHE (Fig. 5a, b, and Supplementary Fig. S42). The activity of NH3 production reflected the enhanced NO3RR activity and kinetics attributed to the engineering of the dynamic interface by NTP. Furthermore, a range of Ni(OH)2/Ni catalysts with varying proportions were synthesized to distinguish the impacts of OH cycle and electronic structure modulation (Supplementary Fig. S43, 44). The current density of the Ni(OH)2/Ni heterogeneous structure demonstrated a volcano trend with the augmentation of the metallic Ni phase. The maximum current density of Ni(OH)2/Ni5:5@CF approached −335.9 mA cm−2, while was still lower than that of D-Ni(OH)2/Ni@CF (−395.8 mA cm−2) (Supplementary Fig. S45). Furthermore, the FE of Ni(OH)2/Ni heterogeneous structure (FE = 50–70%) was notably inferior to that of D-Ni(OH)2/Ni@CF (FE = ~ 100%), corroborating that the superior catalytic performance of D-Ni(OH)2/Ni@CF, which might be also originated from the defects and the enhanced OH cycle not only the effect of catalyst structure (Supplementary Fig. S46).

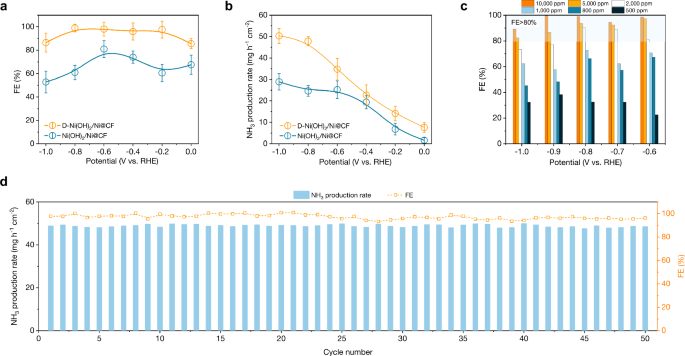

Fig. 5: Electrocatalytic NO3RR performance.
figure 5

a FE and (b) NH3 production rate on Ni(OH)2/Ni@CF and D-Ni(OH)2/Ni@CF in 1 M KOH + 0.1 M KNO3 electrolyte at the potential range from 0.0 V vs. RHE to −1.0 V vs. RHE (without iR compensation, the resistance between RE and WE: 1.6 Ω) (error bars: standard deviations of 3 independent measurements, center value: average of the 3 independent measurements). c FE from −0.6 to −1.0 V vs. RHE (without iR compensation) in 1 M KOH with different NO3- concentrations from 500 to 10,000 ppm. (d) NH3 production rate and FE at −0.8 V vs. RHE in 1 M KOH + 0.1 M KNO3 (without iR compensation) of D-Ni(OH)2/Ni@CF for 50 cycle numbers (one hour per cycle). Source data for Fig. 5 are provided as a Source Data file.

Full size image

Subsequently, we examined the electrocatalytic performance of D-Ni(OH)2/Ni@CF across a wide range of NO3− concentrations to simulate different industrial scenarios. The polarization curves displayed current density increased with NO3−concentration (Supplementary Fig. S47). As expected, D-Ni(OH)2/Ni@CF exhibited high FE ( > 99%) at 10,000 ppm, and still maintained considerable FE ( > 80%) at 2000 ppm with potential intense HER competition (Fig. 5c). Furthermore, consecutive 50 cycles of operation confirmed the stable NH3 production rate and FE (Fig. 5d, and Supplementary Fig. S50). The valence state was relatively stable after reaction (Supplementary Fig. S48). D-Ni(OH)2/Ni@CF exhibited an improvement of Ni-based catalysts for NO3RR, indicating the potential for renewable energy-driven NH3 synthesis (Table. S5). Techno-economic analysis (TEA) combined with sensitivity analysis was carried out to ascertain the economic potential (Supplementary Discussion 2). Under the current catalyst performance, the NH3 production cost by NO3RR was calculated to be 1487 $ t−1. Given its sensitivity to the electricity price (Supplementary Fig. S51), the route of NH3 synthesis through NO3RR remains appealing with further improvements on renewable energy, thereby exhibiting promising application potential.

In summary, we adopted Ni(OH)2 as model catalyst to investigate the mechanism of dynamic interface on NO3RR. In-situ characterization and theoretical calculation revealed the potential-dependent change from Ni(OH)2 to Ni(OH)2/Ni, along with a local-OH-enrich region assumed to be formed at the dynamic interface. During NO3RR, a potential interfacial OH cycle was established based on negative potential and microenvironment, related to the whole processes including de-hydroxylation, equilibrium of water dissociation and OH adsorption, etc. Furthermore, the dynamic surface was further activated to promote the OH cycle via surface vacancies pre-construction. As a result, D-Ni(OH)2/Ni@CF exhibited excellent NO3RR catalytic performance, achieving a high current density of NH3 production and FE at a broad window of nitrate concentrations. The insights of the activated dynamic interface provided guidance for the rational design and optimization of highly efficient catalysts, to promote sustainable alternatives to harvest green NH3 with renewable energy.

Methods

Electrocatalyst preparation

Commercial Cu foam (CF) (Sinero Technology, Suzhou) was utilized as the catalyst substrate. To remove surface oxides, CF was drenched with 3 M HCl (Sinopharm, AR) and then repeatedly rinsed with deionized water and ethanol (Sinopharm, AR), followed by sonication for 10 min to remove the surface HCl. Then, the substrate was dried in a vacuum environment at 50 °C for 1 h. The nanostructure Ni(OH)2 material was synthesized by a facile electrodeposition strategy using a typical three-electrode system, with Ag/AgCl (GaossUnion) as the reference electrode, carbon rod (GaossUnion) as the counter electrode, and CF as the working electrode, respectively. Within 0.05 M H2SO4 (Sinopharm, AR) and 20 mM Ni(NO3)2 (Sinopharm, AR) electrolyte, cyclic voltammetry for 6 cycles (0.1 mV s−1) in the range of −1 ~ 0.5 V vs. RHE was performed, followed by a constant potential of −1.1 V vs. Ag/AgCl for 600 s. The prepared electrocatalyst was repeatedly rinsed and dried before a typical test. Inductively coupled plasma (ICP) using Ar as carrier gas was employed to facilely construct vacancies on the nanostructure Ni(OH)2@CF surface. Different injected power of ICP source (100 W, 200 W, and 300 W) was adjusted to investigate the effect of vacancy concentration, while the treated electrocatalysts were labeled as D100-Ni(OH)2@CF, D200-Ni(OH)2@CF, and D300-Ni(OH)2@CF, respectively. In this work, D100-Ni(OH)2@CF was mainly researched.

Materials characterizations

The microscopic morphology and microregion elemental composition of the electrocatalyst was characterized by the scanning electron microscope (SEM, ZEISS Sigma 300, SmartEDX). The nanostructure and lattice arrangement of the electrocatalyst were observed by a high-resolution transmission electron microscope (HRTEM, I Talos F200S). The crystal characterization and alignment destination of the electrocatalyst were verified by X-ray diffraction (XRD, Rigaku Ultima IV 3 kW, Cu Kα1). The chemical states and components of the electrocatalysts were detected by X-ray photoelectron spectroscopy (XPS, Thermo Scientific K-Alpha). The X-ray absorption fine structure spectra (XAFS) K-edge were collected at Shanghai Synchrotron Radiation Facility (SSRF), China. The positron annihilation lifetime spectroscopy (PALS) was measured via the apparatus DPLS3000. The lifetime of the positron could be calculated as followed41,42,43:

$${{\rm{N}}}({{\rm{t}}})={\sum _{{{\rm{i}}}}}{{{\rm{I}}}}_{{{\rm{i}}}}/{{\rm{\tau }}}{{\rm{iexp}}}(-{{\rm{t}}}/{{{\rm{\tau }}}}_{{{\rm{i}}}})$$
(1)

Surface vacancy concentration was measured by electron paramagnetic resonance spectrometry (EPR, Bruker ESRA-300). The pH values of the electrolytes were measured by a pH meter (PHS-3E, Leici) (Supplementary Fig. S52). All ‘a. u.’ labels in this work referred to the arbitrary units.

In-situ experiments

In-situ Raman characterizations were performed to measure the chemical composition on a confocal Raman spectrometer (Raman, Renishaw InVia Reflex). The wavelength of the Raman excitation laser was selectively chosen as 633 nm. The silicon peak correction procedure was executed to assess the precision of the experiment. An in-situ Raman characterization was performed using a three-electrode system (Supplementary Fig. S53), wherein a Pt wire (GaossUnion) and an Ag/AgCl electrode filled with 3 M KCl served as the counter electrode and reference electrode, respectively, and the catalyst was employed as the working electrode. 1 M KOH (Sinopharm, AR) and 0.1 M KNO3 (Sinopharm, AR) were utilized as the electrolyte. The potentiostatic electrolysis was carried out over a potential range from 0 to −0.9 V vs. RHE and for a duration of 30 minutes at a fixed potential of −0.8 V vs. RHE.

In-situ EPR measurements were employed to record the reaction behavior during electrochemical reactions (EPR, Bruker ESRA-300). The NO3RR was conducted in a 10 ml H-cell with 1 M KOH + 0.1 M KNO3 electrolyte, using a membrane for separation. A Pt plate, an Ag/AgCl electrode filled with 3 M KCl, and the catalyst served as the counter electrode, reference electrode, and working electrode, respectively. After 300 s of potentiostatic operation at −0.8 V vs. RHE, 0.5 mL of diluted DMPO was introduced into the electrolyte. Sample analysis was performed after thorough stirring for 100 s.

In-situ FTIR spectrums were obtained to determine the surface absorption species on catalyst surface (Thermo Fisher, Nicolet iS50) The catalyst was stripped from the CF and processed into an ink for deposition onto a glassy carbon electrode (GaossUnion), followed by drying to form the working electrode. In the three-electrode system, Pt wire and Ag/AgCl (3 M KCl) electrodes were utilized as the counter and reference electrodes, respectively. An electrochemical cell (30 ml) was utilized (Supplementary Fig. S53). FTIR data were recorded in reflection mode. Before data acquisition, the background of the working electrode was recorded in the open circuit potential. The working electrode was maintained at −0.8 V vs. RHE during NO3RR.

In-situ DEMS measurements were conducted by using QAS100 instrument (Linglu China) to capture volatile intermediates and products. A catalyst-coated electrode, Pt wire, and Ag/AgCl electrode were employed as the working electrode, counter electrode, and reference electrode, respectively. An electrochemical cell (50 ml) was utilized (Supplementary Fig. S12). Volatile products were transported through a PTFE membrane via a vacuum pump to the mass spectrometer. The DEMS primarily targeted products with mass-to-charge ratios (m/z) of 17, 18, 19, and 20 (corresponding to NH3, NH2D, NHD2, and ND3, respectively). The DEMS test comprised two steps: firstly, the two groups of catalysts underwent NO3RR in D2O (Sinopharm, 99.8% D), and H2O solvents, respectively. Subsequently, the catalysts were tested in H2O solvent using LSV method for working cycle after thoroughly rinsed.

Electrochemical measurements

Electrochemical measurements were performed using an H-type electrolytic cell (GaossUnion, 50 ml) via the electrochemical workstation (CHI 760E), with the prepared catalyst as the working electrode (0.5 cm2), an Ag/AgCl electrode (filled with 3 M KCl) as the reference electrode, and a Pt foil (GaossUnion) as the counter electrode, respectively. 1 M KOH mixed with different KNO3 concentration was used as the cathodic electrolyte (mostly 0.1 M KNO3) and 0.5 M H2SO4 was used as the anodic electrolyte, respectively, which was separated by a bipolar membrane (Fumatech, FBM-PK, 130–150 μm)44. The electrolyte was preserved at room temperature and was deoxygenated by Ar-purging before testing. To avoid environmental interference, the cathodic chamber was first bubbled with Ar gas for 15 min at a flow rate of 30 sccm, which was controlled by a mass flow meter. Then Ar was kept purged during the electrochemical test. Linear sweep voltammetry (LSV) test was performed with the scan rate of 5 mV s−1. Electrochemical impedance was performed at the open-circuit potential with the frequency of 0.01 Hz to 100 kHz. To evaluate the electrochemical active surface area, cyclic voltammetry was performed by scanning in the non-Faraday region with the rate of 20, 40, 60, 80, and 100 mV s−1. All the potentials reported were calibrated to the reversible hydrogen electrode (RHE) reference scale using:

$${{\rm{E}}}({{\rm{V}}} \, {{\rm{vs}}}. \, {{\rm{RHE}}})={{\rm{E}}}({{\rm{V}}} \, {{\rm{vs}}}. \, {{\rm{Ag}}}/{{\rm{AgCl}}})+0.0591\times {{\rm{pH}}}+0.21$$
(2)

The equation was calibrated by hydrogen reversible reaction (Supplementary Fig. S54). All data were reported without iR compensation, the resistance between RE and WE were also reported (Supplementary Fig. S55). Constant potential experiments were performed at −0 V, −0.2 V, −0.4 V, −0.6 V, −0.8 V, and −1.0 V vs. RHE at a constant potential with a stirring speed of 500 rpm for 1 h. All the experiments were repeated to ensure accuracy.

Calculation of NH3 yield rate and FE

The concentration of synthesized NH3 was quantitatively assessed via the Indophenol blue method45. The electrolyte was first diluted to within the detectable range. 4 ml diluted electrolyte was then combined with 2.4 ml of Reagent A, 0.8 ml of Reagent B, and 0.32 ml of Reagent C. Reagent A: 100 ml solution of 6.40 g C7H5O3Na (Aladdin, AR) + 1.31 g NaOH (Macklin, AR) in deionized H2O; Reagent B: 100 ml solution of 3.08 g NaOH + 7.5 ml NaClO (Aladdin, AR) in deionized H2O; Reagent C: 100 ml solution of 1 g C5FeN6Na2O (Aladdin, AR) in 100 ml H2O. After two hours, the absorption spectrum was measured via the UV-visible spectrophotometer (UV-3100), and the NH₃ concentration was determined based on the absorbance at 655 nm. Calibration curves correlating concentration and absorbance were created with a standard NH4Cl solution. To verify the accuracy of the Indophenol blue method, ion chromatography (IC) was also employed. By determining the NH3 concentration, the production rate of NH3 was calculated as below:

$${{\rm{NH}}}_{3} \, {{\rm{Production}}} \, {{\rm{rate}}}=\frac{{c}_{N{H}_{3}} V}{{A}_{cat}t}$$
(3)

where cNH3 represented the NH3 concentration; V represented the volume of the electrolyte (50 ml); Acat represented the area of the catalyst (0.5 cm2); t represented the operating time. The Faradaic efficiency (FE) of NH3 was calculated as below:

$${{\rm{F{E}}}}_{{\rm{{NH3}}}}=\frac{n{c}_{N{H}_{3}}FV}{it}$$
(4)

where n represented the electron transfers number of 8 in NO3RR, F represented the Faraday constant of 96,485 C mol−1, and i represented the current density (mA cm−2).

Isotope tracing measurement

The electrolyte was resolved using Nuclear Magnetic Resonance (NMR, Brucke 0707166Q 600 MHz). 1H NMR spectroscopy was used to trace the nitrogen source of generated NH3. 15N labelled nitrate was electrocatalytically reduced reaction, while the electrolyte was collected and diluted to the measurement range. Hydrochloric acid was added to adjust the pH to 2.0. Next, 0.5 ml of sample solution was mixed with 0.05 D2O ml, and C4H4O4 (Sigma-Aldrich, AR) was used as an internal standard.

DFT calculations

All DFT calculations in this work were performed by using the Vienna ab initio simulation program (VASP)46. The projector-augmented plane-wave (PAW) method was employed to characterize the ion-electron interactions47. The generalized gradient approximation (GGA), as formulated by Perdew-Burke-Ernzerhof (PBE), was utilized with an energy cutoff of 450 eV48. Inverse space was sampled using the Monkhorst-Pack method, with a 3 × 3 × 1 k-point grid in the Brillouin zone. The convergence criteria were set to 10−5 eV for energy and 0.02 eV Å−1 for the Hellmann-Feynman forces on each atom. The DFT + U method was implemented with a parameter value of 6.2 eV for Ni49. To prevent interactions between adjacent layers, a vacuum layer was introduced. Additionally, the crystal orbital Hamilton population (COHP) was generated using the Lobster to illustrate the contributions of bonding and antibonding interaction50. The Gibbs free energy (∆G) was defined as:

$$\Delta {{\rm{G}}}=\Delta {{\rm{E}}}+\Delta {{\rm{ZPE}}}-{{\rm{T}}}\Delta {{\rm{S}}}$$
(5)

where ∆E represented the total energy, ∆ZPE represented the zero-point energy, T represented the temperature, and ∆S represented entropy, respectively. The NO3RR was calculated according to the following reactions51:

$$*{{{\rm{NO}}}}_{3}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{{\rm{NO}}}}_{3}{{\rm{H}}}+{{{\rm{OH}}}}^{-}$$
(6)
$$*{{{\rm{NO}}}}_{3}{{\rm{H}}}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{{\rm{NO}}}}_{2}+{{{\rm{OH}}}}^{-}$$
(7)
$$*{{{\rm{NO}}}}_{2}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{{\rm{NO}}}}_{2}{{\rm{H}}}+{{{\rm{OH}}}}^{-}$$
(8)
$$*{{{\rm{NO}}}}_{2}{{\rm{H}}}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{\rm{NO}}}+{{{\rm{OH}}}}^{-}$$
(9)
$$*{{\rm{NOH}}}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{\rm{N}}}+{{{\rm{OH}}}}^{-}$$
(10)
$$*{{\rm{N}}}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{\rm{NH}}}+{{{\rm{OH}}}}^{-}$$
(11)
$$*{{\rm{NH}}}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{{\rm{NH}}}}_{2}+{{{\rm{OH}}}}^{-}$$
(12)
$$*{{{\rm{NH}}}}_{2}+{{{\rm{H}}}}_{2}{{\rm{O}}}+{{{\rm{e}}}}^{-}\to*{{{\rm{NH}}}}_{3}+{{{\rm{OH}}}}^{-}$$
(13)

Where the * represents the adsorption site.
