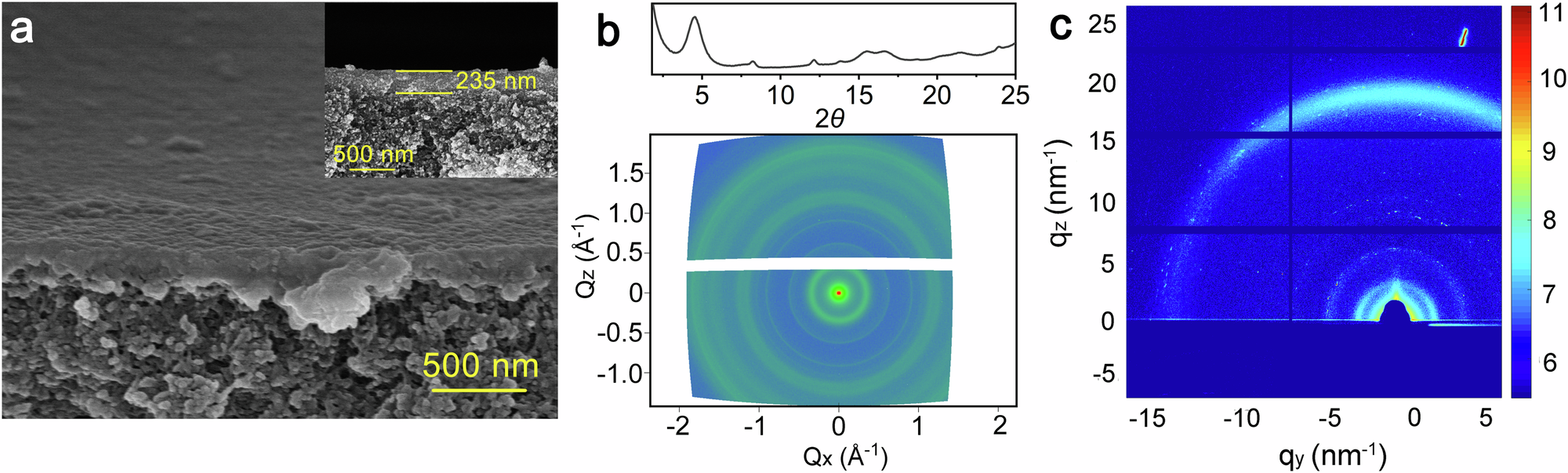

Fig. 3: Characterization of the COF-TpPa/PAN membrane.

a Cross-sectional SEM image depicting the COF-TpPa/PAN membrane, with inset showing the membrane thickness. b 2D SAXS image and the corresponding projection of the SAXS pattern. c 2D GIWAXS pattern.
