Abstract
It was once believed that only microbes and viruses inhabited the subseafloor crust beneath hydrothermal vents. Yet, on the seafloor, animals like the giant tubeworm Riftia pachyptila thrive. Their larvae are thought to disperse in the water column, despite never being observed there. We hypothesized that these larvae travel through the subseafloor via vent fluids. In our exploration, lifting lobate lava shelves revealed adult tubeworms and other vent animals in subseafloor cavities. The discovery of vent endemic animals below the visible seafloor shows that the seafloor and subseafloor faunal communities are connected. The presence of adult tubeworms suggests larval dispersal through the recharge zone of the hydrothermal circulation system. Given that many of these animals are host to dense bacterial communities that oxidize reduced chemicals and fix carbon, the extension of animal habitats into the subseafloor has implications for local and regional geochemical flux measurements. These findings underscore the need for protecting vents, as the extent of these habitats has yet to be fully ascertained.
Similar content being viewed by others
Introduction
The East Pacific Rise (EPR) is a volcanically active, fast-spreading ridge with numerous hydrothermal vent fields1. The last two eruptions of the EPR segment near 9°50’N2 in 1991–19923 and 2005–20064 revealed a sequential megafauna colonization pattern at new vent fields from siboglinid tubeworms to bathymodiolin mussels5,6,7,8 thriving at distinct vent fluid regimes, and providing habitat for low diverse but biomass-rich animal communities6,9,10. Rapid colonization by these animals suggests efficient larval dispersal, with larvae assumed to be transported through bottom, ridge and ocean currents5,6,10,11,12,13,14 before they settle at vents through downwards swimming or sinking8,12,13.
The sessile siboglinid Riftia pachyptila (Polychaeta, Siboglinidae) and its two smaller relatives Tevnia jerichonana and Oasisia alvinae thrive at the vigorous diffuse-flow vents of the EPR9. As adults, the three tubeworm species lose their mouth and gut, relying completely on their shared single gammaproteobacterial symbiont, Candidatus Endoriftia persephone, for nutrition15,16. Fertilized symbiont-free eggs are released into the environment and have been detected together with embryos in close proximity to tubeworm clumps17. Experiments, conducted both in situ and in pressure vessels, revealed that embryos develop into trochophore larvae filled with lipid storage products to survive in the water column for about one month18. Embryos are cold stenotherms and barophilic, which suggests that they may disperse over long distances in the deep sea19. Upon settlement at vents20, free-living symbionts21 colonize the larvae through infecting their skin20, while they escape back into the environment when their host dies22.
Tubeworm larval retention within a vent field was suggested23, but from where and how these larvae arrive to settle at a vent is unknown, as they have never been detected in the water column12,24. Although arrival in bottom water, as posited for other animals, seems likely, since larvae cannot swim against the currents but are moved upwards with the vent flow10, we propose that larvae may also get entrained with seawater into the ocean crust25, where they transit through the subseafloor to finally settle at vents, arriving from beneath within the vent fluid discharged through the cracks to the surface. Transit of larvae through the shallow Earth’s crust in porous volcanic rocks, channels and small subsurface cavities has been suggested (unpublished illustration commissioned by Van Dover 1997,26), but has to our knowledge never been investigated. Over the past 15 years, adult O. alvinae and unidentified tubeworm juveniles were regularly encountered below R. pachyptila clumps in tiny cracks of basalt down to 10 cm beneath the seafloor (Fig. 1), although it seems unlikely that the minute tubeworm larvae can actively swim or crawl 10 cm against the vent flow discharged at the seafloor, even when flow is variable and may be low. Further, in contrast to other tubeworms (e.g. Lamellibrachia barhami27), O. alvinae and R. pachyptila are not known to develop roots to extend their body into the subseafloor9.
Several specimens found to grow in crack of basalt upwards from ~ 10 cm beneath the seafloor surface; sampled at Tica, 9.839979° N, 104.2916175° W, ~ 2515 m depth, Alvin Dive 3849, December 7, 2002. cm = centimeter.
To test the hypothesis of larval transit through the shallow Earth’s crust we chose to drill small holes into the exposed igneous rock and lift some lava shelves. This rocky subseafloor at ridge axes is characterized by hydrothermally driven fluid circulation and predicted to restrict the subseafloor biosphere to several meters below the seafloor28,29,30. Because it has been technically impossible to drill deep holes into the crust28, subseafloor microbes and viruses have been sampled from hydrothermal fluid samples emerging the seafloor28,31,32,33. While the subseafloor microbial and viral biosphere at deep-sea vents has been described, we show that animal life also exists in this shallow rocky subseafloor province. These findings support our hypothesis that there is larval dispersal within the crustal subseafloor, but also expands the known macrofaunal biosphere.
Results and discussion
Subseafloor cavities habitat
We chose a vent site, which we named Fava Flow Suburbs, at the 9°50’N EPR at 2515 m water depth. We selected small, discrete clumps of R. pachyptila and O. alvinae tubeworms (N = 1), a mix of tubeworms and Bathymodiolus thermophilus mussels (N = 3), or mussels (N = 2) along a hydrothermal flux gradient28 growing above cracks on lobate lava (Figs. 2 and 3 and Table 1). While attempting an in situ experiment to demonstrate larval settlement from beneath the surface, we discovered animal life in hydrothermal fluid-filled cavities beneath the surface of the crust (Supplementary Movie 1).

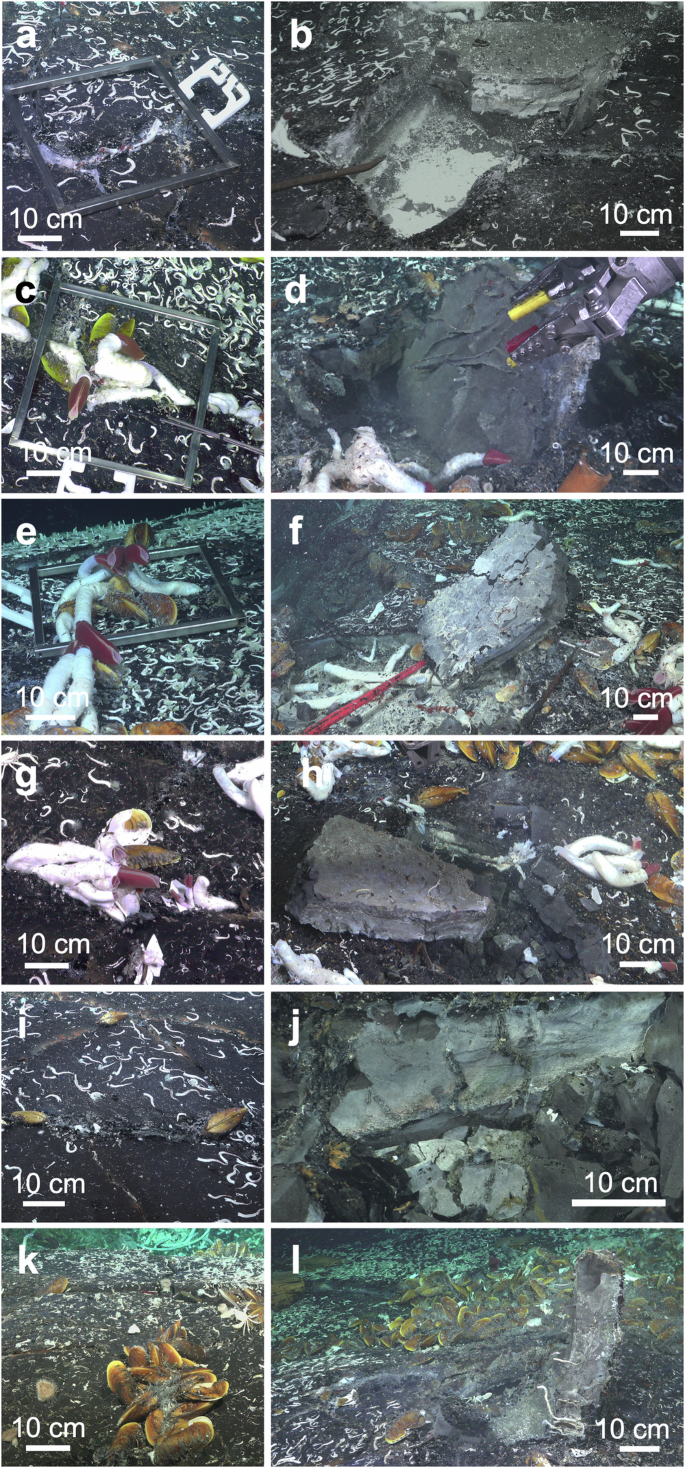

a Tubeworm clumps growing on lobate lava shelf at surface and in cracks (dive S0543). b Lobate lava with three uppermost shelves and cavities shown, lava drips (arrow) at the roof of shelves (dive S0560). c Six subsurface cavities visible after lifting of lava shelves (recovery dives 1, S0552; 2, S0554; 3, S0556; 4, S0557; 5, S0558; 6, S0560). d Opened subseafloor cavity with bottom covered by white microbial mat and live Paralvinella spp. (asterisk) and large Riftia pachyptila (arrow), roof with alive and tubes of Oasisia alvinae (double arrow) (dive S0556). e,f Recovered lava shelf shown upside-down, with O. alvinae wrapped around lava drips protruding from the ceiling of the opened crustal subseafloor cavity (dive S0552). g Upside-down lava shelf with O. alvinae mostly growing from crack downwards into cavity (dive S0560). h Upside-down lava shelf with R. pachyptila growing from crack upwards towards the seafloor (dive S0552). m = meter; cm = centimeter; mm = millimeter.

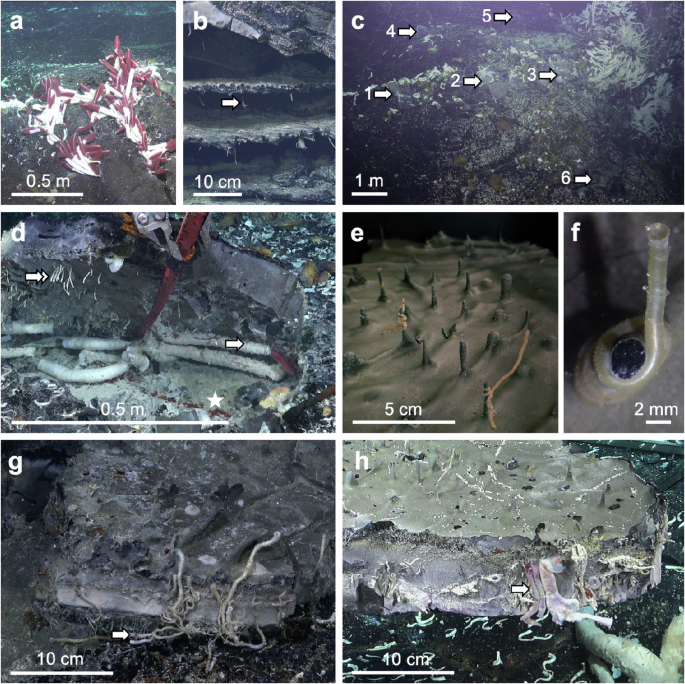

a Small Riftia pachyptila and Oasisia alvinae tubeworms growing in crack of lobate lava (dive S0543) and b lifted lava shelf seven days later (dive S0552, recovery dive #1); metal frame 40 × 40 cm. c R. pachyptila and O. alvinae tubeworms and Bathymodiolus thermophilus mussels at seafloor surface (dive S0545) and d lifted lava shelf seven days later (dive S0554, recovery dive #2). e R. pachyptila and O. alvinae tubeworms and B. thermophilus mussels (dive S0547) and f lifted lava shelf seven days later (dive S0556, recovery dive #3). g R. pachyptila and O. alvinae tubeworms and B. thermophilus mussels and h excavation (dive S0557, recovery dive #4). i B. thermophilus mussels and j excavation (dive S0558, recovery dive #5). k B. thermophilus mussels at seafloor surface and l excavation (dive S0560) (recovery dive #6). cm = centimeter.
Subseafloor cavities between several shelves of lava plates are common in near-vent lobate lavas28,34,35,36. They are suggested to develop between the upper and the lower crust of lava flow due to condensation of trapped vapor of seawater at fast and intermediate spreading centers34,35,36. At Fava Flow Suburbs, we used the ROV SuBastian to lift whole upper lobate lava shelves and discovered caves of ~10 cm height below the ~10–15 cm thick lava shelf. In situ observations at 9°50’N EPR further showed that several shelves of lava plates on top of each other can separate fluid-filled cavities in the subseafloor34 (Fig. 2b). These geological phenomena are common at fast and intermediate spreading centers34, e.g. ~10 cm thick upper shelves and up to ~40 cm high cavities were observed at the Juan de Fuca Ridge34. Subseafloor cavity systems are suggested to build a reservoir of warm fluids, which escape through cracks in the basalt, nourishing vents at the seafloor37,38. Subsurface microbes have been described from fluid samples of deep-sea hydrothermal vents31,32, including the diffuse flow vent Crab Spa33 in the vicinity of Fava Flow Suburbs. Here we report, to our knowledge for the first time, the discovery of animals excavated from fluid-filled, shallow cavities in the subseafloor of deep-sea hydrothermal vents.
To constrain the subseafloor conditions in the cavities of the lobate lava, we measured the in situ temperature and took samples of the vent fluid through a small hole drilled with a chisel prior to lifting the lava shelf (Fig. 4; Table 1). In total, six caves were studied of which five were ~10 cm high and inhabited by macroscopically visible animals (Fig. 2c). The single visually uninhabited cavity with three mussels at the surface was only 5 cm high. The five inhabited cavities exhibited maximum temperature of 18.1 ± 7.1 °C (mean ± standard deviation). Temperatures in the cavities and among tubeworms/mussels on the seafloor surface were similar (p = 0.2), but significantly different for vent surface habitat and ambient temperatures (p = 0.005), and subsurface habitat and ambient temperatures (p = 0.004). The abiotic conditions inside the cavities, including a temperature of 18.1 ± 7.1 °C, a pH 6.1 ± 0.4, a salinity 33.8 ± 0.4, a minimum concentration of 136 ± 165 μmolL−1 H2S [i.e., sum of all forms of dissolved sulfide39], and maximum 63 ± 25 μmolL−1 oxygen concentrations (Table 1), were all well in the range of the temporally variable conditions we measured at the surface among animal clumps as well as previously found in tubeworm clumps39,40,41,42. This clearly supports the shallow crustal subseafloor as a suitable habitat for vent animals26.

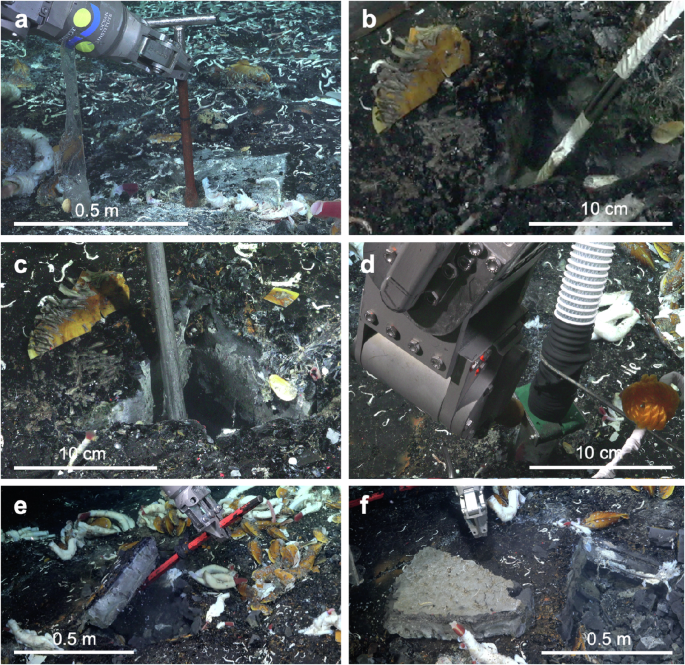

a Drilling of a small hole of ~2 cm diameter with a chisel to widen an existing crack in the lava crust. b Measurement of in situ temperature in about 20 cm depth below the seafloor surface and sampling of 75 L fluid from the subseafloor cavity. c Widening the hole to ~10 cm in diameter. d Suction sampling the crustal subseafloor community with 32 µm fine mesh. e Lifting of lava shelf. f Flipping of lava shelf. m = meter; cm = centimeter.
Tubeworms in subseafloor cavities
Sessile siboglinids were found in five cavities. We note that even when mussels were present at the seafloor surface above four of these cavities, they were not visible in the subseafloor cavities. The most abundant tubeworm species, growing from the roof of all five caves and often wrapped around lava drips (Fig. 2d–h), was O. alvinae with record sizes of 20 cm tube length, exceeding the ones described from the surface43 and indicating that these large specimens were adult. In three of these cavities, live specimens were identified alongside empty tubes (Fig. 2e). Living R. pachyptila was also found, co-occurring with O. alvinae in two cavities, one of them filled with six R. pachyptila specimens up to 50 cm tube length (Fig. 2d). Four of the recovered specimens between 30 and 41 cm body length, were clearly adult. Two males had testis with sperm and two females contained large eggs in their gonads, demonstrating that reproduction may happen in the subseafloor cavities. Further, the cracks through which vent fluid leaked, were also inhabited. O. alvinae grew either from the shelf ceiling downwards into the cavity (Fig. 2g) or upwards towards the surface (Fig. 2h). R. pachyptila was only growing upwards through the crack, most often extending with the plume above the surface (Fig. 2a, h).
The sampling site Fava Flow Suburbs was characterized by relatively flat surfaces with many visible cracks sparsely colonized by tubeworms and mussels. This allowed us to quantify the animals at the surface and below. While the density (0.16 m−2) of live R. pachyptila was higher at the surface (5.0 ± 2.8, mean ± standard deviation) and in the cracks (4.0 ± 3.2) than at the subseafloor (1.0 ± 1.5) a different trend was observed for live O. alvinae being similar in all three areas (surface 3.0 ± 2.1, cracks 4.0 ± 5.5, subsurface 2.0 ± 2.7). The high densities of O. alvinae tubes in the cracks (35.0 ± 7.1) and in the subsurface (61.0 ± 92.8), however, were unexpected, indicating a shift from environmental conditions that initially allowed larvae to settle and grow until unfavorable conditions lead to death. In close vicinity but located in the axial summit trough of the 9°50′N EPR region very high density of R. pachyptila up to 2000 per m2 were observed during this cruise and were also reported7,44. What lives below such lush animal communities remains to be studied.
Our findings indicate that for siboglinids and their obligate endosymbionts, the subseafloor can be a transient as well as a permanent habitat, depending on the settlement ___location. Larvae can disperse in cavities to potentially colonize lava cracks and the seafloor, or even settle and grow to adults and thereby proliferate as permanent fauna in the shallow crustal subseafloor vents (Fig. 5). Apparently, there is a continuous habitat for tubeworms from diffuse flow subseafloor cavities to the seafloor surface via discharge cracks in the lava shelves. We propose that tubeworm larvae are entrained in the circulation system, which flows from cold bottom seawater intruding into porous volcanic rock (the recharge zone) to the mixing of seawater with hydrothermal vent fluid and the discharge of fluid at the seafloor surface (Fig. 5). Larvae recruit wherever the conditions are suitable along this transit. The discovery of a cavity with about 80 O. alvinae specimens on <0.25 m2 with similar sizes growing next to and on top of each other (Fig. 3, Table 1, recovery dive S0557) suggests that larvae concentrate underground during this circulation. This process may also facilitate rapid colonization of vents after a volcanic eruption and influence succession6,7,22.

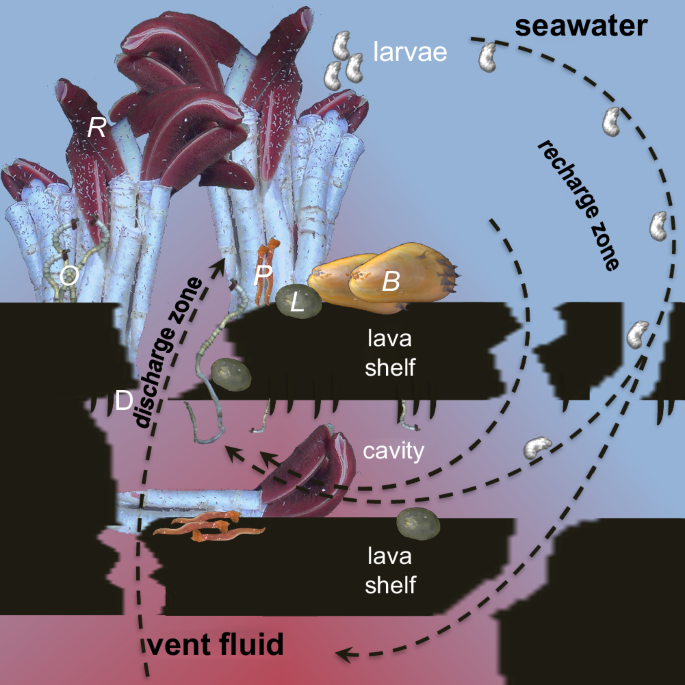

Cross-section of lobate lava that is built up by layers of lava shelves with cavities in between. The ceiling of cavities can have lava drips (D). Cracks occur in different localities in the lava shelves. In the recharge zone, cold seawater enters the shallow crustal subseafloor via cracks in the lava shelves and mixes in the subseafloor with upwelling warm hydrothermal vent fluid to be later discharged through cracks in the lava shelves. Seafloor surface vent tubeworms Riftia pachyptila (R) and Oasisia alvinae (O) release fertilized eggs to develop in the water column into trochophore larvae which get entrained into the crustal subseafloor cavity system in the recharge zone. They settle in the crustal subseafloor, in the cracks, or at the seafloor surface in the discharge zone to grow into adults. Mobile animals, e.g. Paralvinella (P) and Lepetodrilus (L) either also transit through the circulation system as larvae or migrate in and out of the cracks of the lobate lava. Some animals, e.g. Bathymodiolus thermophilus (B) mussels colonize the seafloor surface vents but have not been visually detected in the crustal subseafloor. Scale: lava shelf thickness is ~10 cm, cavities are ~5 to ~15 cm in height, with animals depicted to relative scale (larvae not to scale). The three-dimensional extent of cavities likely reaches several lava shelfs down to lower floors of subsurface.
Mobile animals in subseafloor cavities
Mobile and semi-sessile vent endemic polychaetes and gastropods45,46 were also found in four cavities (Fig. 6). Smaller animals and microbes were sampled but detailed analyzes have yet to be carried out. Many individuals of Paralvinella spp. (~30 ind. 0.25 m−2) were thriving below several large R. pachyptila at the bottom of one cave overgrown by a white microbial mat on which they are known to feed45. Other deposit feeders detected were the polychaete worm Nicomache arwidssoni and limpets, including Lepetodrilus spp. and the semi-sessile Neomphalus fretterae45,46. Further, the carnivorous and scavenging polychaetes Nereis sandersi and Archinome rosacea were observed45,46, both occurring in body sizes that are typical for adults45. Some animals were also found in the cracks of the basalt (Table 1). These first findings of a subset of vent animals from diffuse-flow vents comprising all trophic levels indicate connectivity with the communities living at the surface. To our current knowledge, all these species exhibit pelagic larval dispersal, indicating that they may have colonized the subseafloor through the recharge zone. In contrast to sessile animals, we confirm that at least some of the mobile animals migrate in and out of the subseafloor by crawling through the cracks in the lobate lava, being able to enter the cavities via the discharge zone (Fig. 5).
a Many Paralvinella spp. specimens on top of Riftia pachyptila tubes and below at the cavity bottom, green laser points mark 10 cm (dive S0556). b Nereis sandersi on roof of cavity (dive S0554). c Branchinotogluma spp. (dive S0554). d Semi-sessile Neomphalus fretterae (dive S0560). e Lepetodrilus spp. from roof of cavity (dive S0556). cm = centimeter.
Implications of animal life in subseafloor cavities
The discovery of animal life beneath the surface of the Earth’s crust raises questions concerning the extent of these ecosystems, which is larger than what can be seen on the seafloor surface. In contrast to a specialized and isolated subsurface nematode species that has been discovered kilometers deep in terrestrial aquifers47, we detected a typical surface vent community in subseafloor cavities at marine deep-sea hydrothermal vents. This connectivity of vent subseafloor and seafloor surface habitats may be essential to persist and maintain local and regional biodiversity where the habitat is patchy and transient. The proposed vent subseafloor connectivity model with larval dispersal via the crustal subseafloor adds a new dimension to the known larval dispersal of oceanic, ridge-controlled, and bottom-currents13. Further, it extends potential migration routes of mobile vent fauna into the crustal subseafloor.
In addition, given that many of these animals are host to dense bacterial communities that oxidize reduced chemicals and fix carbon, the extension of animal habitats into the subsurface has implications for local and regional geochemical flux measurements48,49,50. Whilst the three-dimensional extent of cavities filled with low temperature fluids is not quantified, the geological phenomena of hollow lobate lava are common35, and the vent crustal subseafloor habitat may range from the uppermost cavity through several lava shelves down to the lower floors of the subsurface34. Due to increase in temperature, it has been predicted that life should be restricted to several meters below the seafloor28,29,30. The current hydrothermal circulation model at the 9°50’N EPR region estimates 90% of hydrothermal vent fluids to be discharged as low temperature fluids at the seafloor51.
The study of the subseafloor biosphere for animal life has just begun. These efforts will lead to a better understanding of hydrothermal vent biogeochemistry, ecology, and evolution and its impact on global biodiversity, and connectivity, potentially leading to better management of seafloor surface and crustal subseafloor hydrothermal vents. The uniqueness of active hydrothermal vents is well recognized, and protection against potential future anthropogenic impact such as deep-sea mining has been suggested or is in place52,53,54. The discovery of animal habitats in the crustal subseafloor, the extent of which is currently unknown, increases the urgency of such protections.
Methods
We confirm that our research complies with all relevant regulations for obtaining biological material, collected in areas beyond national jurisdiction, and imported to and exported from Panama and sent to Austria and the Netherlands (Import and export permit to and from Panama, Ministerio de Desarrollo agropecuario (215390 − 215391, 215392–215398), and Ministerio de Ambiente (PA-05-ARB-114-2023; PA-05-ARB-131-2023); import permit from Panama to Austria, Federal Ministry of Social Affairs, Health, Care and Consumer Protection (2023-0.250.333); import permit from Panama to Netherlands, NVWA (NVWA-0166861)).
Collection of subseafloor fluids and lobate lava
ROV SuBastian from Schmidt Ocean Institute (SOI) was used during expedition FKt230629 with R/V Falkor (too) and dives S0543-S0560 to explore crustal subseafloor life at the hydrothermal vent site Fava Flow Suburbs at 9°50’N EPR at 2515 m depth in July 2023 (Table 1). Six patches, all of a size of ~ 50 × 50 cm, and located within an area of ~ 20 by 20 meters were studied (Figs. 2, 3). Because the rock was impossible to break into small pieces, we lifted the entire lobate lava shelf. Prior to lifting, a small ~ 2 cm wide hole was drilled with a small ~ 30 cm long chisel to gently widen an existing crack, allowing in situ temperature measurements and sampling of ~ 75 L fluid from the curstal subseafloor using an intake handle (13 mm diameter, WHOI), connected to a miniature magnetic drive gear pump (Suofu; NP060; with 40 W rotor-less brushless direct current motor) operating for 35 min and flexible water tank system (CAN-SB Marine Plastics) mounted on the ROV (Fig. 4). The WHOI intake handle had previously been proven successful to collect subseafloor fluids and microbes33. Afterwards, the ~ 2 cm wide hole was enlarged to allow the usage of a suction sampler. Finally, a large 1.5-meter-long pry bar was used to enter the hole diagonally into the cavity for ~80 cm. The lava shelf then was gently lifted and flipped up-side down, opening the view into the subseafloor cavities (Supplementary Movie 1). The whole procedure was filmed, and the bottom and the ceiling of the cavity visually inspected in situ. Short underwater video clips of cavity openings were made with Open Shot Video Editor (OpenShot Studios, LLC, Rockwall, Texas, US). After inspection during ROV dives, parts of the lava shelf were recovered by the ROV arm, placed into a sealed box on the ROV platform, and brought on board of the ship R/V Falkor(too). The lava shelf height was measured with a ruler onboard the ship. Cavity height was estimated in situ based on the distance of ROV lasers.
Measurements of abiotic water parameters
The ROV SuBastian temperature probe PT100 was used to measure in situ temperature of ambient seawater, vent fluid among animal clumps, and vent fluid in the crustal subseafloor cavities (through the ~ 2–3 cm wide hole made with the chisel and in about 20 cm below the seafloor surface). Salinity, pH, oxygen and sulfide concentrations were analyzed from ~ 75 L water samples taken into the flexible water tank system. Onboard the ship the pump was reversed and water was filled into a glass bottle to analyze pH and salinity with a Multi 340i sensor (WTW, Germany), oxygen concentration together with temperature with the dipping probe DP-PSt3 connected to a Fibox 4 trace oxygen meter (PreSenS, Germany), and ΣH2S (sum of all forms of dissolved sulfide39,) with the LaMotte sulfide test kit and measured with a HACH Lange DR 1900 photometer calibrated with the UniSense sulfide standard. A non-parametric Kruskal Wallis test was performed to test for any significant differences in temperatures between habitats.
Macrofaunal analyzes
Underwater videos and framegrabs were analyzed for the presence of vent fauna and identified following Desbruyères et al.45. Sizes of tubeworms and other animals were estimated based on ROV laser distance in situ, or measured onboard of the ship directly with a ruler, or taking pictures of animals to compare them with respective scales of an object micrometer with a Canon EOS 550D camera mounted to a BMS Stereo Trino Zoom microscope.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
All data generated or analyzed during this study are included in this published article. All SOI ROV dive videos are open access at youtube (youtube.com/@SchmidtOcean/videos).
References
Van Dover, C. L. The ecology of hydrothermal vents. (Princeton University Press, 2000).
Fornari, D. J. et al. East Pacific rise between 9°N and 10°N: twenty-five years of integrated, multidisciplinary oceanic spreading center studies. Oceanography 25, 18–43 (2012).
Haymon, R. M. et al. Volcanic eruption of the mid-ocean ridge along the East Pacific Rise crest at 9°45–52′N: Direct submersible observations of seafloor phenomena associated with an eruption event in April, 1991. Earth Planet. Sci. Lett. 119, 85–101 (1993).
Tolstoy, M. et al. A sea-floor spreading event captured by seismometers. Science 314, 1920–1922 (2006).
Gollner, S. et al. Differences in recovery between deep-sea hydrothermal vent and vent-proximate communities after a volcanic eruption. Deep-Sea Res. I 106, 167–182 (2015).
Gollner, S. et al. Animal community dynamics at senescent and active vents at the 9°N East Pacific Rise after a volcanic eruption. Front. Mar. Sci. 6, 832 (2020).
Shank, T. M., Fornari, D. J., Von Damm, K. L., Haymon, R. M. & Lutz, R. A. Temporal and spatial patterns of biological community development at nascent deep-sea hydrothermal vents (9°50´N, East Pacific Rise). Deep-Sea Res. Part II 45, 465–515 (1998).
Mullineaux, L. S., Adams, D. K., Mills, S. W. & Beaulieu, S. E. Larvae from afar colonize deep-sea hydrothermal vents after a catastrophic eruption. PNAS 107, 7829–7834 (2010).
Bright, M. & Lallier, F. The biology of vestimentiferan tubeworms. Oceanogr. Mar. Biol. 48, 213–266, (2010).
Mullineaux, L. S. et al. Exploring the ecology of deep-sea hydrothermal vents in a metacommunity Framework. Front. Mar. Sci. 5, https://doi.org/10.3389/fmars.2018.00049 (2018).
Kim, S., Mullineaux, L. & Helfrich, K. Larval dispersal via entrainment into hydrothermal plumes. J. Geophys. Res. 991, 12655–12666, (1994).
Mullineaux, L. S. et al. Vertical, lateral and temporal structure in larval distributions at hydrothermal vents. Mar. Ecol. Prog. Ser. 293, 1–16 (2005).
Adams, D., Arellano, S. & Govenar, B. Larval dispersal: vent life in the water column. Oceanography 25, 256–268 (2012).
Adams, D. et al. Surface-generated mesoscale eddies transport deep-sea products from hydrothermal vents. Science 332, 580–583 (2011).
De Oliveira, A. L., Srivastava, A., Espada-Hinojosa, S. & Bright, M. The complete and closed genome of the facultative generalist Candidatus Endoriftia persephone from deep-sea hydrothermal vents. Mol. Ecol. Resour. 22, 3106–3123 (2022).
Robidart, J. C. et al. Metabolic versatility of the Riftia pachyptila endosymbiont revealed through metagenomics. Environ. Microbiol. 10, 727–737 (2008).
Hilário, A., Young, C. M. & Tyler, P. A. Sperm storage, internal fertilization, and embryonic dispersal in vent and seep tubeworms (Polychaeta: Siboglinidae: Vestimentifera). Biol. Bull. 208, 20–28 (2005).
Marsh, A. G., Mullineaux, L. S., Young, C. M. & Manahan, D. T. Larval dispersal potential of the tubeworm Riftia pachyptila at deep-sea hydrothermal vents. Nature 411, 77–80 (2001).
Brooke, S. & Young, C. Where do the embryos of Riftia pachyptila develop? Pressure tolerances, temperature tolerances, and buoyancy during prolonged embryonic dispersal. Deep-sea Res. Part II 56, 1599–1606 (2009).
Nussbaumer, A. D., Fisher, C. R. & Bright, M. Horizontal endosymbiont transmission in hydrothermal vent tubeworms. Nature 441, 345–348 (2006).
Harmer Luke, T. et al. Free-living tube worm endosymbionts found at deep-sea vents. Appl. Environ. Microbiol. 74, 3895–3898 (2008).
Klose, J. et al. Endosymbionts escape dead hydrothermal vent tubeworms to enrich the free-living population. PNAS, 1-6, https://doi.org/10.1073/pnas.1501160112 (2015).
Shank, T. M. & Halanych, K. M. Toward a mechanistic understanding of larval dispersal: insights from genomic fingerprinting of the deep-sea hydrothermal vent tubeworm Riftia pachyptila. Mar. Ecol. 28, 25–35 (2007).
Mullineaux, L. S. & France, S. in Seafloor hydrothermal systems: physical, chemical, biological, and geological interactions. (eds S. E. Humphris, R. A. Zierenberg, L. S. Mullineaux, & R. E. Thompson) 408-424 (American Geophysical Union, 1995).
Bemis, K., Lowell, R. P. & Farough, A. Diffuse flow on and around hydrothermal vents at mid-ocean ridges. Oceanography 25, 182–191 (2012).
Childress, J. J., Fisher, C. F., Felbeck, H. & Girguis, P. On the edge of a deep biosphere: real animals in extreme environments. Geophys. Monogr. Ser. 144, 41–49 (2004).
Julian, D., Gaill, F., Wood, E., Arp, A. J. & Fisher, C. R. Roots as a site of hydrogen sulfide uptake in the hydrocarbon seep vestimentiferan Lamellibrachia sp. J. Exp. Biol. 202, 2245–2257 (1999).
Schrenk, M. O., Huber, J. A. & Edwards, K. J. Microbial provinces in the subseafloor. Annu. Rev. Mar. Sci. 2, 279–304 (2010).
Jannasch, H. W. & Mottl, M. J. Geomicrobiology of deep-sea hydrothermal vents. Science 229, 717–725 (1985).
Huber, J. A., Butterfield, D. A. & Baross, J. A. Bacterial diversity in a subseafloor habitat following a deep-sea volcanic eruption. FEMS Microbiol. Ecol. 43, 393–409 (2003).
Dick, G. J. The microbiomes of deep-sea hydrothermal vents: distributed globally, shaped locally. Nat. Rev. Microbiol. 17, 271–283 (2019).
Edwards, K. J., Wheat, C. G. & Sylvan, J. B. Under the sea: microbial life in volcanic oceanic crust. Nat. Rev. Microbiol. 9, 703–712 (2011).
McNichol, J. et al. Primary productivity below the seafloor at deep-sea hot springs. Proc. Natl Acad. Sci. 115, 6756 (2018).
Chadwick Jr., W. W. Quantitative constraints on the growth of submarine lava pillars from a monitoring instrument that was caught in a lava flow. J. Geophys. Res.: Solid Earth 108, https://doi.org/10.1029/2003JB002422 (2003).
White, J. D. L., McPhie, J. & Soule, S. A. Chapter 19 - Submarine Lavas and Hyaloclastite. (Academic Press, 2015).
Perfit, M. R. & Soule, S. A. in Encyclopedia of Marine Geosciences (eds J. Harff, M. Meschede, S. Petersen, & J. Thiede) 808-817 (Springer Netherlands, 2016).
Le Bris, N. et al. Hydrothermal energy transfer and organic carbon production at the deep seafloor. Front. Mar. Sci. 5, https://doi.org/10.3389/fmars.2018.00531 (2019).
Scheirer, D. S., Shank, T. M. & Fornari, D. J. Temperature variations at diffuse and focused flow hydrothermal vent sites along the northern East Pacific Rise. Geochem., Geophys., Geosystems 7, https://doi.org/10.1029/2005GC001094 (2006).
Le Bris, N., Govenar, B., Le Gall, C. & Fisher, C. R. Variability of physico-chemical conditions in 9°50´N EPR diffuse flow vent habitats. Mar. Chem. 98, 167–182 (2006).
Luther, G. W. et al. Chemical speciation drives hydrothermal vent ecology. Nature 410, 813–816 (2001).
Nees, H. A., Lutz, R. A., Shank, T. M. & Luther, G. W. Pre-and post-eruption diffuse flow variability among tubeworm habitats at 9°50’ North on the East Pacific Rise. Deep-Sea Res. II 56, 1607–1615 (2009).
Moore, T. S., Shank, T. M., Nuzzio, D. B. & Luther, G. W. Time-series chemical and temperature habitat characterization of diffuse flow hydrothermal sites at 9°50′N East Pacific Rise. Deep Sea Res. Part II: Topical Stud. Oceanogr. 56, 1616–1621 (2009).
Jones, M. L. On the Vestimentifera, new phylum: six new species, and other taxa, from hydrothermal vents and elsewhere. Bull. Biol. Soc. Wash. 6, 117–158 (1985).
Govenar, B. et al. Epifaunal community structure associated with Riftia pachyptila aggregations in chemically different hydrothermal vent habitats. Mar. Ecol. Prog. Ser. 305, 67–77 (2005).
Desbruyères, D., Segonzac, M. & Bright, M. Handbook of hydrothermal vent fauna. (Denisia, 2006).
Chapman, A. S. A. et al. sFDvent: A global trait database for deep-sea hydrothermal-vent fauna. Glob. Ecol. Biogeography 0, https://doi.org/10.1111/geb.12975.
Borgonie, G. et al. Nematoda from the terrestrial deep subsurface of South Africa. Nature 474, 79–82 (2011).
Middelburg, J. J. Chemoautotrophy in the ocean. Geophys. Res. Lett. 38, https://doi.org/10.1029/2011GL049725 (2011).
Bell, J. B., Woulds, C. & Oevelen, D. V. Hydrothermal activity, functional diversity and chemoautotrophy are major drivers of seafloor carbon cycling. Sci. Rep. 7, 12025 (2017).
Beinart, R. A., Gartman, A., Sanders, J. G., Luther, G. W. & Girguis, P. R. The uptake and excretion of partially oxidized sulfur expands the repertoire of energy resources metabolized by hydrothermal vent symbioses. Proc. Biol. Sci. 282, 20142811 (2015).
Lowell, R. P., Farough, A., Germanovich, L. N., Hebert, L. B. & Horne, R. A vent-field-scale model of the East Pacific Rise 9°50’N magma-hydrothermal system. Oceanography 25, 158–167 (2012).
Gollner, S. et al. Application of scientific criteria for identifying hydrothermal ecosystems in need of protection. Mar. Policy 132, 104641 (2021).
Van Dover, C. L. et al. Scientific rationale and international obligations for protection of active hydrothermal vent ecosystems from deep-sea mining. Mar. Policy 90, 20–28 (2018).
Menini, E., Calado, H., Danovaro, R., Manea, E. & Halpin, P. N. Towards a global strategy for the conservation of deep-sea active hydrothermal vents. npj Ocean Sustainability 2, 22 (2023).
