Introduction

Energy consumption associated with the separation and purification of industrial gases accounts for 10–15% of global energy use and will continue to grow to triple by 2050 with global population and economic development1. Compared with traditional thermally separation processes, membrane technology is economically attractive for gas separation, as it is more energy efficient with lower capital cost, smaller physical footprints and more environmental benignity than conventional thermally driven distillation processes2,3,4,5. Among various membrane materials, Carbon Molecular Sieve (CMS) materials have been extensively explored by thermal decomposition of polymer precursors to produce a carbon material with a dual-distribution of micropores and ultra-micropores, offering simultaneously high gas separation productivity and efficacy6,7. For instance, 6FDA-based polyimides have been used as precursors to fabricate CMS membranes demonstrating ultra-high gas permeability and selectivity which surpass the well-known Robeson upper bound8,9,10,11,12,13,14.

In recent decades, although new structures of precursor polymers have been designed to prepare CMS membranes15,16,17,18,19,20, it remains a crucial hurdle to precisely tune the pore size and distribution of CMS materials to further improve their molecular sieving properties. In the context, treating precursors by crosslinking or polymer blending has been explored to modulate the pore size of CMS membranes18,19,20,21,22,23,24,25, which, however, exhibits limited ability in controlling the pore size, as reflected by the moderate enhancement of gas selectivity. As a family of high-performing materials, 6FDA-based polyimides have been heavily explored to fabricate CMS membranes since the fluorinated -CF3 groups create a large fraction free volume, contributing the high throughputs of CMS membranes21. Nonetheless, the vast majority of researches focus on the pyrolysis parameters to manipulate the pore size and a thermal treatment temperature as high as 900 °C is often used to prepare selective membranes, tending to make membranes fragile and prone to breakage19.

In order to address the abovementioned challenges in CMS, herein, we proposed a methodology of precisely tuning CMS pore structure by using the reactive Al(CH3)3 to in situ defluorinate the 6FDA-polyimide precursor to form Al-Fx(CH3)3-x intermediate (including Al-F3) where x = 1, 2 or 3. Such an intermediate complex is coverted to atmoic-level Al2O3 and Al-F3, which finely modulate the pore formation of CMS membranes. Indeed, these atomically distributed nanoparticles in the polymer matrix retard the formation of unfavorable large pores and promotes the creation of relatively small and uniform pores, thus enhancing the gas selectivity considerably without prohibitvely sacrificing the gas permeability. Specifically, in this work, we judiciously selected a F-rich 6FDA-TFDB polyimide as an exemplified 6FDA-based polymer precursor to prepare CMS membranes. As illustrated in Fig. 1, the -CF3 moieties in the side chains of 6FDA-TFDB polyimide partially in situ react with Al(CH3)3 to form the defluorinated polymer, R-CF(3-x)(CH3)x, and Al-Fx(CH3)3-x intermediate in the polymer matrix. During the exposure of moisture, Al-Fx(CH3)3-x was instantly transformed into Al2O3 and Al-F3 in the polymer precusor. In the later pyrolysis of this hybrid precuresor, the off-gas from the decompositie of polyimide, HF, reacts with Al2O3 to further produce Al-F3 in CMS membrane. The resultant CMS membranes demonstrate unprecedented gas separation performance well above the latest trade-off lines for gas pairs including CO2/CH4, H2/CH4, H2/N2, H2/CO2, and O2/N2. Moreover, the CMS membranes display significantly reduced aging compared with untreated samples. To our best knowledge, it is the first time to report the in situ formation of Al-F3 in both the polymer precursor and CMS to precisely regulate the pore size of CMS with dramatically enhanced separation performance and aging resistance.

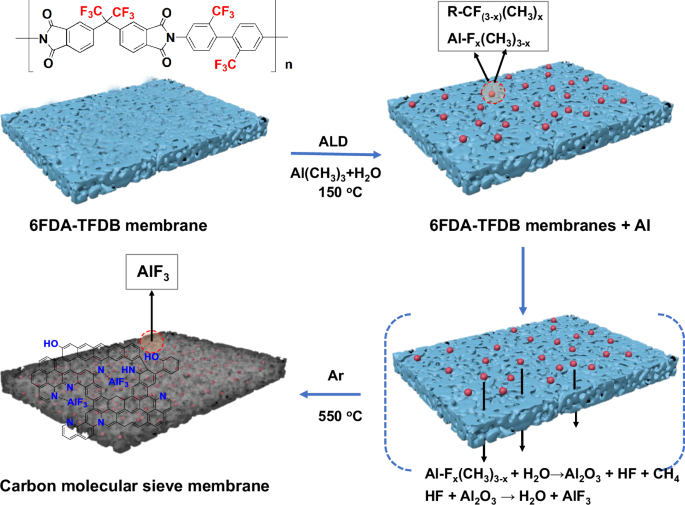

Fig. 1: Schematic of the CMS membranes fabricated byALD strategy.
figure 1

Including chemical structure of 6FDA-TFDB polymer with the proposed reaction mechanism during ALD and pyrolysis process.

Results

Preparation and characterization of 6FDA-TFDB-x precursor and CMS membranes

The synthesis of white 6FDA-TFDB polymer was shown in Supplementary Fig. S1. Loading freshly-made pristine 6FDA-TFDB membranes in the chamber (Supplementary Fig. S2), trimethyl aluminum (TMA) and water were applied on membrane samples as vapor phase precursors for Al2O3 deposition26,27, and a short exposure time of 8 s was adopted for precise control of TMA deposition on membrane surfaces and within micropores (Fig. 1). The resulting white and transparent membranes were designated as 6FDA-TFDB-x, where x refers the number of cycles of the ALD process (4–12). Afterward, the 6FDA-TFDB-x polymer membrane was pyrolyzed in a controlled environment to create CMS membranes. The pyrolysis temperature was controlled via a three-zone tube furnace at 550 °C under Ar purging. Details of the experimental method related to the fabrication of CMS membranes are described in the Supporting Information.

The physicochemical properties of membranes were first characterized. The TGA trace of 6FDA-TFDB and 6FDA-TFDB-x precursor membranes are shown in Supplementary Fig. S3. 6FDA-TFDB and 6FDA-TFDB-x precursor membranes exhibit similar trends of weight loss, suggesting the trace Al in the polymer membranes has insignificant effects in the membrane thermal stability. In addition, the surface and cross-sectional morphologies of the 6FDA-TFDB and 6FDA-TFDB-x precursor membranes were examined using SEM. As shown in Supplementary Fig. S4, the precursor membranes demonstrate rather homogeneous morphological structures. The F and Al distribution on the surface and in cross-sections of 6FDA-TFDB-x precursor and CMS membranes were analyzed by Al and F elemental SEM and EDS mapping (Supplementary Fig. S5). Apparently, the aluminum content on the surface of membrane increases with different cycles (highlighted as red spots in Supplementary Fig. S4a–d, yellow spots refer the overlap of red and green). As expected, the EDS mapping results of the cross-sectional specimen (Supplementary Fig. S4e–h) indicate that the content of aluminum increases from 4 to 7 cycles (cross-sectional specimen shown in Supplementary Fig. S6). On the other hand, the concentration of fluorine increases with the number of cycles from 7 to 12 cycles, which was due to the in situ formation of Al-F complex during the ALD and pyrolysis process28.

The elements contents of polymer precursor membrane samples were further studied by X-ray photoelectron spectrometer (XPS) (Fig. 2 and Supplementary Figs. S7 and 8). XPS results in Fig. 2a and Supplementary Fig. S6 demonstrate that the content of F-Al in 6FDA-TFDB precursor membranes gradually increases with cycles at the peak of 685.2 eV. However, the F-C content decreases from 4 to 12 cycles at the peak of 688.1 eV. It is hypothesized that the highly reactive Al(CH3)3 could defluorinate the polymer precursor, leading to the reduction of F-C content. Such an Al-induced defluorination phenomenon of F-containing polymers was also observed in literature29,30. Furthermore, as the deconvoluted F1s peaks shown in Supplementary Fig. S6, the degree of F-Al area is found to increase from 39% to 74% with the cycles increasing from 4 to 12, corroborating the formation of F-Al bonds in the ALD process. On the other hand, as shown in Fig. 2b, there is a sharp decrease of C1s signal (~293.1 eV) corresponding to the CF3 group when increasing cycles from 4 to 12, indicating that CF3 bonds reduce with more ALD cycles, consistent with the trends shown in Fig. 2a and Supplementary Fig. S6. In addition, XPS of Al2p in 6FDA-TFDB-x precursors was conducted with results shown in Supplementary Fig. S8. The binding energy of 74.9 eV is assigned to Al-O, suggesting the formation of aluminum oxide in the membranes. Moreover, the binding energy of 76.5 eV in the Al2p spectra corresponds to Al-F with intensities of signals gradually increasing with the cycles29,31. Such a trend not only agrees with the result in Fig. 2a but also provides further evidence of Al-F formation upon ALD treatment.

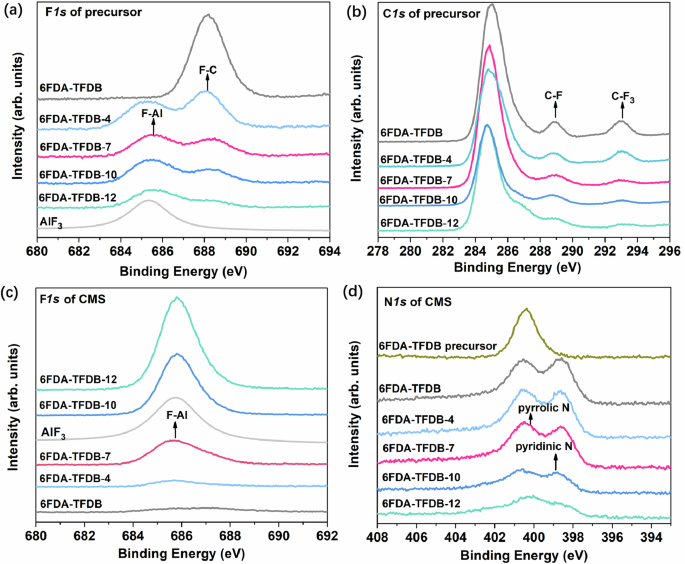

Fig. 2: XPS characterization of 6FDA-TFDB-x precursor and CMS.
figure 2

a Typical F1s XPS of 6FDA-TFDB-x precursors to compare with AlF3. b C1s XPS of 6FDA-TFDB-x precursors. c F1s of 6FDA-TFDB-x CMS membranes with AlF3. d N1s of 6FDA-TFDB-x CMS membranes with 6FDA-TFDB precursor.

CMS membrane samples were also characterized using XPS and the spectra exhibit distinct peaks resulting from the presence of F1s, N1s, Al2p, and C1s as shown in Fig. 2c, d and Supplementary Figs. S9 and 10. As expected, the F1s XPS spectrum of untreated 6FDA-TFDB CMS membranes shown F-C bonds at the peak of 688.1 eV, which, however, does not exhibit F-Al bonds since ALD treatment was not applied in the process of CMS fabrication (Fig. 2c). Interestingly, upon ALD treatment, F-C bonds disappear, consistent with our previous study that the ALD tends to defluorinate the precursor, essentially leading to the loss of F-C groups. Moreover, the content of F-Al as indicated by the peak at 688.1 eV increases with cycles to increase the content of aluminum in CMS membranes. On the other hand, the content of pyridinic N in CMS has been found to play a critical role in gas transport properties, and the decrease of pyridinic N reduces gas permeabilities32. As Fig. 2d shows, the N1s spectra clearly display the presence of both pyridinic N and pyrrolic N, corresponding to the peak at 398.0–398.8 eV and 400.3–400.8 eV, respectively. The intensities of pyridinic N and pyrrolic N peaks decrease with increased cycles. Based on the deconvoluted N1s peaks shown in Supplementary Fig. S9, the areas of pyridinic N of 6FDA-TFDB and 6FDA-TFDB-x (x = 4, 7, 10, 12) CMS membranes are estimated to be 39.4%, 39.1 %, 36.3%, 33.1% and 26.8%, respectively. The increase of cycles to reduce the contents of pyridinic N, indicating the ALD treatment affects the formation of pyridinic N during pyrolysis. In addition, Al2p XPS of 6FDA-TFDB-x CMS membranes show that Al-F content of membranes increases with the cycles (Supplementary Fig. S10), as more Al2O3 were converted into Al-F complex28. Raman was also conducted on CMS membranes with the D and G peaks shown in Raman spectra (Supplementary Fig. S11). The smaller the ID/IG ratio, the lower the defect density in the material and the higher the graphite-like regularity13,20. As the ALD increase from 4 to 12 cycles, the ratio of ID/IG gradually decreases, indicating an increased degree of graphitization and a reduced level of defects in the amorphous CMS structure.

The evolution of chemical structure of precursors upon ALD process is further probed by 19F NMR, ATR-FTIR and TGA-FTIR. As illustrated in 19F NMR spectra of 6FDA-TFDB and 6FDA-TFDB-x precursors (Fig. 3a) and CMS of 6FDA-TFDB-x, aromatic and alkane C-F3 in TFDB and 6FDA moieties are clearly detected. More importantly, an apparent new peak at ~57.2 ppm emerges, suggesting the formation of Al-F bonds. 19F NMR spectra of 6FDA-TFDB-x CMS membranes show that the chemical shifts of Al-F shift from −109.51 ppm to −126.38 ppm due to terminal F atoms are highly shielded with the ALD increasing (Fig. 3b). In addition, as shown by ATR-FTIR in Fig. 3c, the peak of 1256 cm−1 is ascribed to C-F3 stretching vibration of polymers33. Upon ALD treatment, detectable C-F3 shifts from 1256 cm−1 to 1250 cm−1 were found in 6FDA-TFDB-x precursor membranes, which ascribe to the increased interaction between F and Al with cycles since the heavy mass Al reduces the vibration frequency of C-F3 stretching and rocking. As TGA-FTTR results of 6FDA-TFDB-x membranes shown in Fig. 3d–f, major off-gases including CO2, CO and CF3H were released during the pyrolysis, consistent with the literature reported elsewhere20. Moreover, the amount of CF3H gas tends to decrease when the ALD cycles increase from 4 to 12, as indicated by the TGA-FTIR spectra data, likely due to partial -CF3 groups transformed into AlF3, consistent with the EDS mapping results in Supplementary Fig. S4. CMS membrane samples were also tested using ATR-FTIR with results shown in Supplementary Fig. S12b, which display broad shoulders of absorbance peaks at 890–1145 cm−1, corresponding to Al-F stretching vibrations34,35. The occurrence of absorbance peaks of Al-F3 in a broad range of vibrational frequencies again confirms the formation of Al-F bonds36.

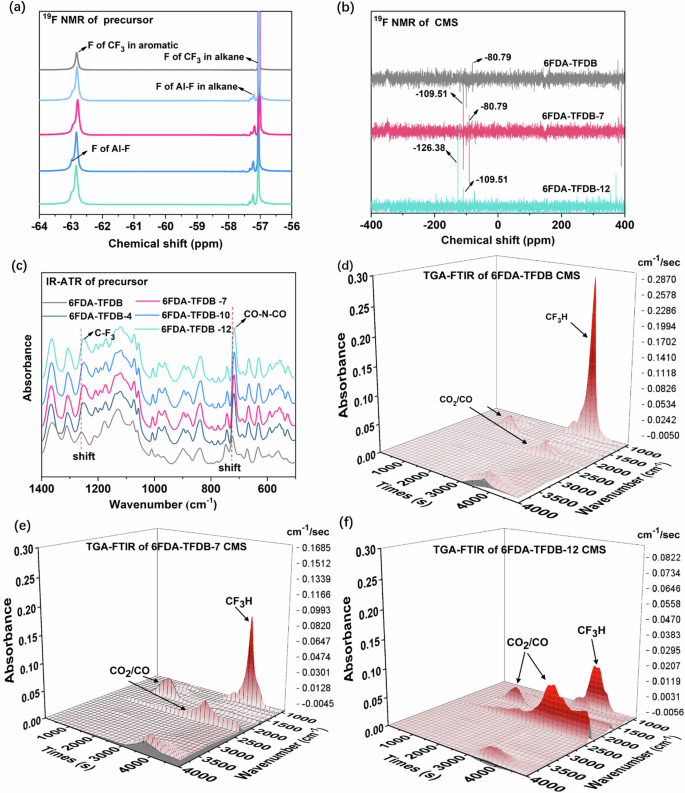

Fig. 3: Structure characterization of 6FDA-TFDB-x precursor and CMS membranes.
figure 3

a Liquid-state 19F NMR spectra of 6FDA-TFDB-x precursor. b Solid-state 19F NMR of 6FDA-TFDB-x CMS. c Solid-state ATR-FTIR spectra of 6FDA-TFDB-x precursors. d TGA-FTIR date of 6FDA-TFDB precursor. e TGA-FTIR date of 6FDA-TFDB-7 precursor. f TGA-FTIR date of 6FDA-TFDB-12 precursor.

To further illustrate the critical role of Al-F bonds formed in situ during ALD treatment, we prepared CMS membranes by mixing precursor polymers with 2% and 5% Al2O3 particles, following by pyrolysis with same conditions as ALD treated samples. XPS (Supplementary Figs. S1316) was performed on both precursors and CMS membranes. The Al2p XPS and F1s XPS results do not reveal the F-Al bond in the 6FDA-TFDB/Al2O3 precursor or CMS membranes (Supplementary Figs. S13 and 14), since the peaks of binding energy completely differ from the Al-F bond as demonstrated in samples with ALD treatment (Fig. 3a, Supplementary Figs. S7 and 8). In addition, C1s XPS results show that the C-F bond was not impacted by the addition of Al2O3 in precursors as the intensities of binding energy remain similar for polymer and Al2O3-doped polymer membranes (Supplementary Fig. S15), different from membranes with ALD cycles (Fig. 2b). In a sharp contrast to the case of ALD-treated membranes, the N1s spectra of 6FDA-TFDB/Al2O3 CMS membranes show the same ratio of pyridinic N and pyrrolic N while such ratio in 6FDA-TFDB CMS membranes changes significantly with different ALD cycles (Supplementary Figs. S9 and S16). The above characterization proves that Al-F bond cannot be established by simply mixing Al2O3 with -CF3 containing polymers, reflecting the crucial role of ALD treatment in creating Al-F bonds in membranes.

The research of gas sorption and pore sizes

The gas sorption and pore sizes of CMS membranes were analyzed with N2 adsorption experiments. As shown in Fig. 4a, the N2 adsorption capacity drops as the number of cycles increases, owing to the pore-blocking effect of ALD treatments with added cycles. As a result, the N2 derived BET surface area decreases from 949.8 to 847.6 m2 g−1 for the 6FDA-TFDB and 6FDA-TFDB-12 CMS membranes, respectively (Supplementary Table S1). The pore size distributions of CMS membranes were further examined based on non-local density functional theory with results illustrated in Fig. 4b, showing that the 6FDA-TFDB CMS membrane possesses an average pore size of 6–11 Å. In contrast, after 4–12 cycles, the average pore size decreases to the range of 5.5–8.0 Å. The 6FDA-TFDB-x CMS membranes show a clearly reduced pore size compared to the pristine 6FDA-TFDB CMS membrane, suggesting that ALD treatment is expected to enhance molecular sieving properties of CMS membranes by narrowing the pore sizes and creating ultra-micropores in CMS matrix as will be discussed later.

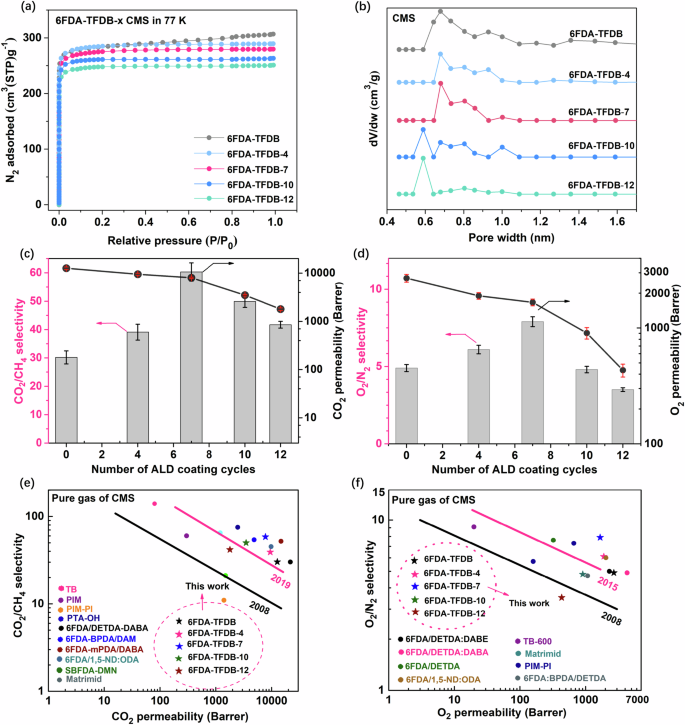

Fig. 4: The pore size characterization and gas separation performances of 6FDA-TFDB-x CMS membranes.
figure 4

a N2 adsorption isotherms of 6FDA-TFDB-x CMS membranes was obtained at 77 K. b Pore size distribution of 6FDA-TFDB-x CMS membranes from N2 adsorption. c CO2 permeability and CO2/CH4 selectivity of 6FDA-TFDB-x CMS membrane. d O2 permeability and O2/N2 selectivity of 6FDA-TFDB-x CMS membrane. e The latest 2019 upper bound of CO2/CH4, f the latest of 2015 upper bound of O2/N2. The error bars in c and d represent standard deviation.

Pure and mixed gas separation performance

To study effects of ALD on membrane separation performance, the gas permeability and selectivity of both precursors and CMS membranes derived from 6FDA-TFDB and 6FDA-TFDB-x were tested with permeation results summarized in Supplementary Table S1-2, Fig. 4 and Supplementary Fig. S17. The results of polymeric precursors in Fig. 4c, d shows that the gas permeability decreases continuously while the selectivity generally decreases with the increase of cycles. ALD deposition layer near the surface of membranes creates additional gas transport resistance, thereby reducing the gas permeabilities, which, however, does not improve molecular sieving properties of polymeric membranes. Surprisingly, 6FDA-TFDB-x CMS membranes show pronounced enhancement of gas selectivities upon ALD treatment. Similar to polymeric precursors, the more cycles and the lower gas permeabilities of CMS membranes. The drop of permeability results from the additional layer by ALD deposition and consistent with the decrease of content of pyridinic N as shown in Fig. 2d, which also agrees with the finding reported in the literature32. On the other hand, the effect of ALD on gas selectivity is relatively complicated. In the beginning, the gas selectivity of 6FDA-TFDB-x CMS membranes is amplified by introducing cycles from 4 to 7 with a drop of gas permeability. For instance, 6FDA-TFDB-7 shows a CO2/CH4 selectivity of 58.4 with a CO2 permeability of 7767 Barrer, compared with a CO2/CH4 selectivity of 30.2 and a CO2 permeability of 12653 Barrer in the case of untreated 6FDA-TFDB CMS membranes. Higher pyrolysis temperatures up to 800 °C were also investigated with gas permeation shown in Supplementary Table S2 and XPS results shown in Supplementary Fig. S20. The 6FDA-TFDB and 6FDA-TFDB-7 CMS membranes pyrolyzed at 700 °C display lower CO2 permeability but higher CO2/CH4 selectivity compared with the cases of 550 °C pyrolysis. An increase in pyrolysis temperature to 800 °C led to higher CO2/CH4 selectivity but lower CO2 permeability compared with that of 700 °C. The 6FDA-TFDB-7 CMS membrane pyrolyzed at 800 °C show attractive performance with a CO2 permeability of 1805 Barrer and a CO2/CH4 selectivity of 189.5.

By plotting with upper bounds, the overall performance of 6FDA-TFDB-4 and 6FDA-TFDB-7 CMS surpass the latest upper bounds for CO2/CH4 and O2/N2 (Fig. 4e, f). In fact, the CO2/CH4 selectivity of 6FDA-TFDB-7 CMS membranes is the highest among reported 550 oC pyrolyzed CMS membranes derived from polymers including Matrimid®, 6FDA-BPDA/DAM, 6FDA-mPDA/DABA, 6FDA/DETDA-DABA, 6FDA/1,5-ND:ODA,TB, PIM, and PIM-PI, as shown in Supplementary Table S4 and other polymers37,38. When further increasing the number of cycles to 10 and 12, the gas selectivity of CMS membranes tends to decrease but remains higher than untreated membranes. In any case, the above results suggest that ALD strategy is an effective strategy in developing CMS membranes with high permeability and selectivity and there exists an optimal cycle for preparing the most selective CMS materials. Presumably, the existence of Al-F complex plays the key role in affecting CMS membrane separation performance, generated from two possible paths: 1) defluorination of polymer precursors with Al(CH3)3 during ALD treatment in the absence of pyrolysis; 2) reaction of Al2O3 with HF released during pyrolysis starting at a temperature of ~450 °C39. Al-F complex is expected to interact strongly with strands including -C=O40, C-N41 and C-F moieties by Vander Waals force during pyrolysis, which likely promotes an efficient packing of strands and reduces the pore sizes, essentially improving the gas selectivity. However, when excessive cycles applied, the pore size reduces to a level where the fast gas permeability (i.e. H2, CO2) drops more rapidly than the slow gas (i.e. N2, CH4), leading to a decrease of gas selectivity.

In order to decouple the effect of Al-F from Al2O3 on gas separation performance, 1%, 2%, 4% and 5% Al2O3 and AlF3 were blended with 6FDA-TFDB to prepare mixed matrix membranes, followed by pyrolysis to fabricate CMS membranes. The optical images of mixed matrix membranes incorporated with Al2O3 or AlF3 are opaque, different from transparent 6FDA-TFDB-x samples with the ALD process (Supplementary Fig. S18). In addition, the mechanical properties of mixed matrix membranes CMS are relatively lower than the 6FDA-TFDB and 6FDA-TFDB-x CMS membranes (Supplementary Fig. S19). Furthermore, the gas separation performance of those membranes was tested with results shown in Supplementary Table S2. As a typical pore former, the addition of Al2O3 improves the gas permeability with a simultaneous loss of gas selectivity. However, in the case of AlF3 mixed matrix membranes, AlF3 tends to reduce gas permeability and increase gas selectivity in a strong agreement with aforementioned discussions. For instance, 5 wt% AlF3 6FDA-TFDB CMS membranes display an increase of CO2/CH4 selectivity from 30.2 to 42.6, and O2/N2 selectivity from 4.9 to 5.6, compared with untreated 6FDA-TFDB CMS, respectively. These experiments further corroborate our findings on the crucial role of the Al-F bond in determining CMS structures and molecular sieving properties, in addition, the Al element was distributed uniformly in 6FDA-TFDB-x membrane, as confirmed by SEM-EDX mapping and TEM (Supplementary Figs. S21S24).

The gas separation performance of 6FDA-TFDB and 6FDA-TFDB-7 CMS membranes under high operation pressures was explored using a binary mixture of CO2/CH4 and CO2/N2 (50/50 vol.%). As shown in Fig. 5 and Supplementary Fig. S16, the CMS membranes demonstrate excellent CO2/CH4 mixed-gas separation performance at elevated pressures. The CO2/CH4 mixed-gas selectivity reaches as high as 55.6 at a feed pressure of 400 psi. Moreover, the CO2/CH4 selectivity of 6FDA-TFDB and 6FDA-TFDB-7 CMS membranes maintain nearly unchanged comparing with the pure gas permeation results (Fig. 5a). Such mixed gas separation performance places the CMS membranes well above the mixed-gas trade-off curve for CO2/CH4 (Fig. 5b). Furthermore, the CO2/N2 selectivity of 6FDA-TFDB without ALD treatment was lower than 2019 upper bound while 6FDA-TFDB-7 CMS membranes with ALD treatment surpass the 2019 upper bound, indicative of the critical role of ALD treatment in affecting the membrane separation performance.

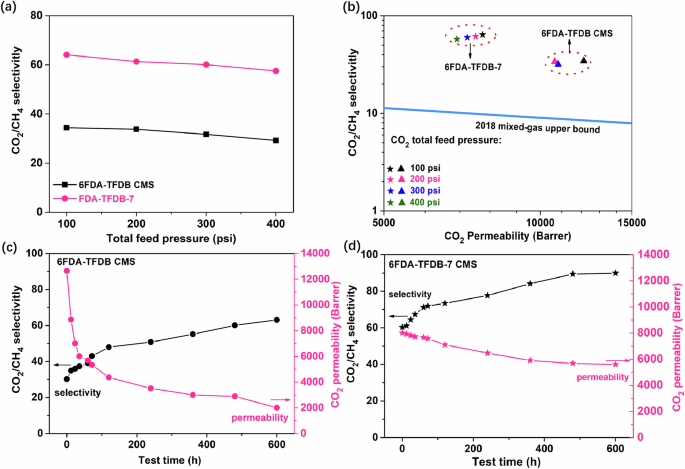

Fig. 5: Gas separation performances of mixed gas, anti-plasticization and aging performance.
figure 5

a 50%/50% CO2/CH4 mixed-gas separation performance at different CO2 upstream partial pressures ranging from 100 to 400 psi. b The upper bound of mixed-gas with 6FDA-TFDB and 6FDA-TFDB-7 CMS membranes. c Physical aging behavior of the 6FDA-TFDB CMS membrane over time. d Physical aging behavior of the 6FDA-TFDB-7 CMS membrane over time.

The aging behavior of 6FDA-TFDB and 6FDA-TFDB-7 CMS membranes

A key obstacle for most CMS membranes lies in their lack of long-term stability42,43. To investigate the durability of 6FDA-TFDB and 6FDA-TFDB-7 CMS membranes over time, we performed an aging study as long as 480 h, during which the upstream and downstream of membrane samples were pulling vacuum with results shown in Fig. 5 and Supplementary Table S3. Similar to other reported CMS, the untreated 6FDA-TFDB CMS membrane shows a typical physical aging phenomenon and the CO2 permeability drops over 70.3% from 12,653 to 3764 Barrer during the first 120 h (Fig. 5c, d). The aging tends to slow down after 120 h but there is still a drop of CO2 permeability over 30% during aging from 120 → 480 h. In a sharp contrast, the ALD treated 6FDA-TFDB-7 CMS membranes demonstrate significantly enhanced aging resistance. The CO2 permeability decreases only 13.6% from 7767 to 6709 Barrer during the first 120 h aging, much lower than the case of untreated CMS. After aging for 120 h, the CO2 permeability of 6FDA-TFDB-7 decrease 10.3%. Combing the two stages of aging, the ALD treated CMS samples only show a loss of CO2 permeability less than 13.6%, considerably lower than that in the case of untreated CMS (i.e. 70.3%). On the other hand, both CMS samples exhibit pronounced increases of gas selectivity after aging. Note that the CO2/CH4 selectivity of 6FDA-TFDB-7 CMS membrane is as high as 93.9 after aging 480 h. We hypothesize that the existence of the F-Al complex in the 6FDA-TFDB-7 CMS membranes results in rigidified CMS matrix, thereby suppressing the pore collapse of membranes and retaining high gas permeability during aging.

Discussion

In summary, we successfully exploited Al-F in situ formation at atomic-level to precisely tune the pore size and distribution of 6FDA-TFDB CMS membranes to further improve their molecular sieving properties. During the ALD treatment, Al(CH3)3 to defluorinate the 6FDA-TFDB polymer precursor in situ to form Al-Fx(CH3)3-x then to Al2O3 and Al-F3 in the polymer matrix as confirmed by characterizations including XPS, ATR-FTIR and 19F NMR, the thermally treated at 550 °C for 2 h, all Al-F3 formation on the CMS. The AlF3-tailored ultramicropore size distribution shifted from 5.5 to 8.0 Å, which fits well for discriminating H2 CO2 CH4 gases, provides an effective approach to regulate the nanopores of CMS materials and produce high-efficiency CMS with aging drastically suppressed and performance far beyond current upper bounds. With both pure- and mixed-gas permeation, the ALD treated 6FDA-TFDB-7 CMS membrane exhibits unprecedented separation performance for H2/CH4, CO2/CH4 and O2/N2, locating far above the latest trade-off lines. Moreover, the 6FDA-TFDB-7 CMS membrane shows significantly retarded physical aging with a CO2 permeability loss only 22.5% during the 480 h aging study. The ALD approach described in this work offers an efficient and facile method for tailoring membrane structure and properties with potential for gas separations such as CO2 removal and H2 purification.

Methods

Materials

The raw material 4,4’-(hexafluoroisopropylidene)diphthalic anhydride (6FDA) and 2,2’-bis(trifluoromethyl)-[1,1’-biphenyl]-4,4’-diamine (TFDB) for the synthesis polyimide were obtained from Sigma-Aldrich and purified by sublimation prior to use. The solvent N-methylpyrrolidone (NMP) was dried by standard methods before using. Acetic anhydride, 2-methylpyridine, Al2O3, AlF3 were obtained from Energy Chemical, and used without further purified.

Synthesis of 6FDA-TFDB polymer

The 2,2’-bis(trifluoromethyl)-[1,1’-biphenyl]-4,4’-diamine (TFDB 10 mmol) was dissolved in NMP (15 mL) under a nitrogen atmosphere. The system was stirred at −5 °C temperature for 30 min, 4,4’-(hexafluoroisopropylidene)diphthalic anhydride (6FDA 10 mmol) was added (divided into two times) and stirred for 24 h to form a polyamic acid solution. Acetic anhydride (100 mmol) and 2-methylpyridine (10 mmol) were added to polyamic acid solution and stirred for 24 h. The resulting polyimide were precipitated with methanol and washed with methanol three times at 60 °C, then dried at 80 °C under vacuum for 24 h for using (Supplementary Fig. S1). The molecular weight was estimated with the results of Mw = 10.8 × 104, PDI = 3.4.

6FDA-TFDB membrane preparation

Dense membranes were prepared by solution casting of filtered 6FDA-TFDB in NMP on clean glass substrate inside a vacuum drying oven evaporate the solvent at 80 °C for 12 h. After completion of the evaporation of NMP solvent, the membrane was soaked in methanol for overnight and further dried in a vacuum oven at 70 °C for 24 h. The thickness of the 6FDA-TFDB membrane was about 60 μm (±10 um).

Preparation of 6FDA-TFDB-x

6FDA-TFDB-x was obtained by depositing Al2O3 on 6FDA-TFDB by ALD method in a custom-made hot-wall closed chamber-type ALD reactor, and the Al2O3 was deposited at 125 °C using trimethylaluminium (TMA) and deionized H2O as precursors, the mechanism and detailed set-up were shown in the below Supplementary Fig. S2. The detailed Al2O3 ALD process contains the following steps: (i) The 6FDA-TFDB membranes with diameter of ~7 cm and thickness of ~60 μm involved placing (but not fixing) them in the ALD device, which was then pumped down under an oil pump to the pressure ~20 Pa. (ii) TMA vapor pulse was introduced to the system by opening the valve A (Supplementary Fig. S2a) for 0.02 s, which was then exposed to 6FDA-TFDB membrane for 8 s to accommodate the TMA on the surface or inside the micropore of 6FDA-TFDB, and thereafter, the system was purged with inert N2 for 25 s to get rid of the residual non-anchored TMA in the chamber. (iii) H2O as the second precursor was then loaded following the same procedure as that of TMA with the pulse, exposure and purge time of 0.1, 8, and 25 s, respectively. (iv) The above (ii) and (iii) procedures were repeated for different cycles to get the resulting polymer membranes. Meanwhile, membrane with 1 cm2 was cut by scissor for gas separation testing. Membrane with each ALD cycles was tested for three different samples, and the deviation of the results was less than 5%.

Preparation of 6FDA-TFDB-x CMS membranes

The 6FDA-TFDB-x CMS membranes were obtained by pyrolyzing the6FDA-TFDB-x precursor membranes using the following procedure. More specifically, the polymer films were cut into a rectangle of 1 cm × 5 cm, and placed into a tube furnace (Centurion NeytechQex). The tube furnace was blown via Ar for 2 h, while the oxygen level was kept to be below 10 ppm as detected by using an oxygen analyser (Cambridge Sensotec Ltd, Rapidox 2100 series, Cambridge, England).

  1. 1.

    Starting point at 30 °C;

  2. 2.

    From 30 °C to 250 °C at a ramp rate of 13.33 °C/min;

  3. 3.

    From 250 °C to 535 °C at a ramp rate of (3.85 °C/min);

  4. 4.

    From 535 °C to 550 °C at a ramp rate of (0.25 °C/min);

  5. 5.

    Soaked at 550 °C for 120 min;

  6. 6.

    Cooled to the temperature of 20 °C for 180 min.

Finally, the obtained 6FDA-TFDB CMS dense membranes were carefully removed from the tube furnace to be tested.

Preparation of 6FDA-TFDB-Al2O3-x and 6FDA-TFDB-AlF3-x MMMs

Specifically, Al2O3 and AlF3 were added to 6FDA-TFDB solution to form 2 wt% and 5 wt% solutions by physical blending and casting method. The casting solutions were stirred for 12 h and stood still for another 12 h for thorough dispersion and bubble removal before casting. Then, the solutions were cast on the glass support followed by being dried at 80 °C and for 24 h to obtain the 6FDA-TFDB-Al2O3-x and 6FDA-TFDB-AlF3-x MMMs.

Gas permeability testing

The pristine and Al2O3 ALD modified 6FDA-TFDB dense membranes were tested in pure gas systems. The pure gas permeation properties were evaluated by a constant-volume/variable-pressure method (constant downstream volume permeation apparatus). The downstream pressure was measured using an inficon transducer ranging from 0 to 10 torr, and the steady state pressure changing with time (dp/dt) was selected to calculate the permeability (P). Each pure gas was tested in the sequence of CH4, N2, O2, CO2 and H2, at 35 °C and 100 psi. Membranes with each ALD cycles were tested for three different samples and the deviation was less than 5%. Permeability (P) was calculated using the following Eq. (1):

$${{{\rm{P}}}}=\left(\frac{273}{T}\right)\left(\frac{{{{\rm{dp}}}}}{{{{\rm{dt}}}}}\right)\left(\frac{l}{\Delta {pA}}\right)$$
(1)

where P is the permeability (Barrer), 1 Barrer = 10–10 cm3(STP) cm cm−2 s−1 cmHg−1, l is the membrane thickness (cm), A is the effective membrane area (cm2), T is the operating temperature (K), R is the gas constant (0.278 cm3 cmHg cm−3(STP) K−1) and dp/dt is the steady-state downstream pressure increase rate (cmHgs−1).

The ideal selectivity (αx/y) for components x and y was defined as the ratio of gas permeability of the two components via Eq. (2).

$${\alpha }_{x/y}=\frac{{P}_{x}}{{P}_{y}}$$
(2)

Binary gas mixtures testing

The CO2/CH4 and CO2/N2 mixed-gas testing was performed at 35 °C use a gas mixture as feed gas with component ratio of 50/50, and the upstream pressure ranging from 50 to 400 psi. The retention flow rate was controlled by MFC to be ~100 times higher than the permeate gas to keep the constant component ratio in the upstream. The permeated gas was collected in the downstream volume till the pressure reached more than 9 torr. The component ratio of the permeate gas was tested and confirmed by GC (GC-7820A, Agilent). The permeability in the mixed-gas separation was calculated from the steady state using the following equation:

$${P}_{x}={10}^{10}\times \frac{{y}_{x}\times V\times l}{{x}_{x}\times {f}_{{upx}}\times T\times R\times A}\times \frac{{d}_{p}}{{d}_{t}}$$
(3)
$${P}_{y}={10}^{10}\times \frac{{y}_{y}\times V\times l}{{x}_{y}\times {f}_{{upy}}\times T\times R\times A}\times \frac{{d}_{p}}{{d}_{t}}$$
(4)

Where xx and xy are the feeding component ratio of CO2, CH4 or N2 yx and yy are the permeate gas concentration of CO2 and CH4 or N2, respectively. f is the fugacity of the upstream partial pressure, and the dp/dt is the steady-state downstream pressure increase rate (cmHg s−1). The selectivity of x/y can be calculated as follows:

$${\alpha }_{x/y}=\frac{{y}_{x/}\,{y}_{y}}{{x}_{x}\,/\,{x}_{y}}$$
(5)
