Reducing crystal symmetry to generate out-of-plane Dzyaloshinskii–Moriya interaction

Nature Communications volume 15, Article number: 10199 (2024) Cite this article

5306 Accesses
2 Citations
5 Altmetric
Metrics details

Subjects

Abstract

The Dzyaloshinskii-Moriya antisymmetric exchange interaction (DMI) stabilises topological spin textures with promising future spintronics applications. According to crystal symmetry, the DMI can be categorized as four different types that favour different chiral textures. Unlike the other three extensively-investigated types, out-of-plane DMI, as the last type that favours in-plane chirality, remained missing so far. Here we apply point-group-dependent DMI matrix analysis to show that out-of-plane DMI exists under reduced crystal symmetry. Through strain and structure engineering, we show how C_s symmetry is realized in ultrathin magnets and observe the out-of-plane DMI stabilised in-plane chirality using spin-polarized electron microscopy. Our results show that extremely low out-of-plane DMI strengths at µeV/atom are sufficient to stabilise topological spin textures, including merons and bimerons. We also demonstrate field-induced reversible control of the in-plane chirality and merons. Our findings open up untapped paths on topological magnetic textures and their potential applications.

Interlayer Dzyaloshinskii-Moriya interaction in spintronics

Article Open access 20 June 2025

First-principles calculations for Dzyaloshinskii–Moriya interaction

Article 03 November 2022

Realizing unipolar and bipolar intrinsic skyrmions in MXenes from high-fidelity first-principles calculations

Article Open access 25 September 2023

Introduction

Magnetic chirality, a preferred rotation sense in spin structures, enables a variety of fascinating chiral magnetic structures, including chiral spin-spirals^1,2, skyrmions^3,4,5, and chiral ___domain walls (DW)^6,7, which have promising spintronics applications with potentially reduced energy consumption in data storage, logic and neuromorphic devices^8,9,10. These spin textures give rise to intriguing topological effects such as the topological Hall effect¹¹, skyrmion Hall effect^12,13, and topological protection^14,15, as a result of the topological charge associated with their spin textures¹¹. More recently, the observation of new types of chiral spin textures, e.g., antiskyrmions^16,17, merons¹⁸, fractional skyrmions¹⁹, and hopfions²⁰, has led to fascinating physics²¹.

Typically, magnetic chirality is stabilised by an antisymmetric exchange interaction, the Dzyaloshinskii–Moriya interaction (DMI)^22,23, which arises from the inversion symmetry breaking of the system. Its energy term $-{{{{\bf{D}}}}}_{{ij}}\cdot ({{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{j})$, implies that the ___location and orientation of the DMI vector ${{{{\bf{D}}}}}_{{ij}}$ with respect to atomic spins ${{{{\bf{S}}}}}_{i}$ and ${{{{\bf{S}}}}}_{j}$ determines the chiral rotation mode. Earlier DMI studies often focused on two types of systems, one in which the ${{{{\bf{D}}}}}_{{ij}}$ vector in bulk materials that lacks centrosymmetry is parallel to the atomic distance vector ${{{{\bf{R}}}}}_{{ij}}$, thereby stabilising Bloch-type chirality^1,4; or another where the ${{{{\bf{D}}}}}_{{ij}}$ at interfaces is perpendicular to ${{{{\bf{R}}}}}_{{ij}}$²⁴, prompting Néel-type chirality^2,5,7. More recently, various new chiral modes have been observed that arise from novel DMI vectors. For instance, chiral bobbers can be stabilised in B20 systems by the ${{{{\bf{D}}}}}_{{ij}}$ being located between two vertically adjacent atoms²⁵; the observation of antiskyrmions as a result of the anisotropic ${{{{\bf{D}}}}}_{{ij}}$ in bulk materials with specific symmetries^17,26; and the in-plane/out-of-plane vertical chiral coupling in multilayers was attributed to an interlayer DMI^27,28,29 where the ${{{{\bf{D}}}}}_{{ij}}$ is parallel to the interface but located at ${{{{\bf{R}}}}}_{{ij}}$ between two vertical layers.

These various types of DMI/chiral systems, described by the ___location and the orientation of ${{{{\bf{D}}}}}_{{ij}}$ that follow the Moriya rule²³ and the Fert-Levy model^24,30, can be linked to crystal symmetries with distinct point groups^31,32, where a 3$\times$3 matrix is sufficient to describe all known DMI cases in non-centrosymmetric systems, using ${{{{\bf{D}}}}}_{{{{\rm{matrix}}}}}={({{{{\rm{D}}}}}_{{mn}})}_{1\le m\le {{\mathrm{3,1}}}\le n\le 3}$, where $m$ corresponds to the orientations of the DMI vector, e.g., the DMI vector of ${{{{\rm{D}}}}}_{{mn}}$ in rows 1,2,3 ($m={{\mathrm{1,2,3}}}$) points to $x,y,z$, respectively; $n$ stands for the ___location of the DMI vector, e.g., the DMI vector of ${{{{\rm{D}}}}}_{{mn}}$ in column 1,2,3 ($n={{\mathrm{1,2,3}}}$) located at ${{{{\bf{R}}}}}_{{ij}}$ sites aligns along $x,y,z$, respectively (Fig. 1a). In this matrix picture, interfacial-like DMI (conventional Néel-type) elements are located at ${{{{\rm{D}}}}}_{12}$ and ${{{{\rm{D}}}}}_{21}$, bulk-like DMI (Bloch-type) elements are located at ${{{{\rm{D}}}}}_{11}$, ${{{{\rm{D}}}}}_{22}$, and ${{{{\rm{D}}}}}_{33}$, anisotropic DMI (Anti-skyrmion type) elements are located at ${{{{\rm{D}}}}}_{11}$, ${{{{\rm{D}}}}}_{22}$, ${{{{\rm{D}}}}}_{12}$ and ${{{{\rm{D}}}}}_{21}$, and interlayer elements are located at ${{{{\rm{D}}}}}_{13}$ and ${{{{\rm{D}}}}}_{23}$, respectively (Fig. 1b). The last DMI type in this framework, with matrix elements located at ${{{{\rm{D}}}}}_{31}$ and ${{{{\rm{D}}}}}_{32}$, i.e. out-of-plane (OOP) ${{{{\bf{D}}}}}_{{ij}}$ located between planar ${{{{\bf{R}}}}}_{{ij}}$ sites, remains experimentally elusive. Despite theoretical discussions of the intriguing chiral structures favoured by such OOP-DMI, e.g., in-plane chiral rotation [($\uparrow$ $\to$ $\downarrow$) or in-plane skyrmions (also called bimerons)³³, in contrast to typical Bloch-type (⨀ ↑ ⊗)¹ or Néel-type (⨀ → ⊗)² rotations, the OOP-DMI is not experimentally discovered yet. This is partially due to the fact that the OOP-DMI isn’t expected in the commonly available systems with relatively high symmetry^21,24, such as C_nv, O, T point groups, etc.

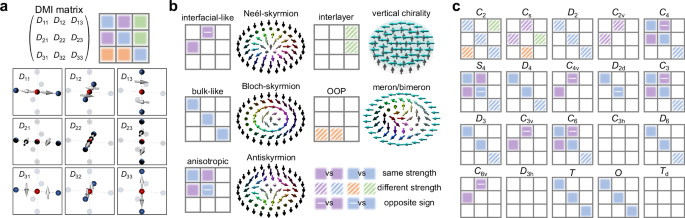

**Fig. 1: Matrix representation of DMI types.**

In this paper, we report the observation of in-plane magnetic chirality in Co/Pd ultrathin films grown on a W(110) substrate using spin-polarized low-energy electron microscopy (SPLEEM)³⁴, where the OOP-DMI is attributed to the lowered crystal symmetry, from C_3v of unstrained (111) oriented Pd layers, to C_s of strained-(111)-like Pd layers on the W(110) surface. The proposed DMI origin is supported by calculations based on the three-site Fert-Levy model³⁰, micromagnetic simulations³⁵, and DMI matrix analysis^31,32. Remarkably, the DMI strength required to stabilise in-plane chirality is found to be several orders of magnitude lower than conventional DMI cases³⁶, due to the fact that the dipole energy also favours the in-plane magnetic configuration. The OOP-DMI is found to stabilise merons/bimerons. The reversible control of in-plane chirality and magnetic meron writing/deleting are demonstrated experimentally. Micromagnetic simulations reveal a similar role of the OOP-DMI on antiferromagnetic materials.

Results

First we discuss DMI within the framework of crystal symmetry³¹. Here, the DMI energy for a given atom with six nearest cubic-neighbouring ${{{{\bf{R}}}}}_{{ij}}$ sites could be written as a 3$\times$3 matrix ${{{{\bf{D}}}}}_{{{{\rm{matrix}}}}}={({{{{\rm{D}}}}}_{{mn}})}_{1\le m\le {{\mathrm{3,1}}}\le n\le 3}$. Such a 3$\times$3 DMI matrix conveniently highlights various DMI types, where each DMI type is colourized differently, followed by the representative magnetic structures favoured by each type (Fig. 1b), including Néel-skyrmion (interfacial-like DMI)⁵, Bloch-skyrmion (bulk-like DMI)^3,4, the vertical chirality in interlayer exchange coupling systems (interlayer-DMI)^27,28 and meron/bimeron (OOP-DMI), respectively. Note that the recently observed antiskyrmion¹⁷ and chiral bobbers²⁵ are stabilised as a result of opposite signs of ${{{{\rm{D}}}}}_{11}$, ${{{{\rm{D}}}}}_{22}$, and non-zero ${{{{\rm{D}}}}}_{33}$, respectively.

Further linking the DMI matrix to all types of non-centrosymmetric point groups reveals that the distribution of the DMI elements in the matrix is restricted by the type of point groups^31,32 (Fig. 1c), e.g., the interfacial-like DMI (the matrix elements highlighted in purple) belongs to C_{nv (n=2,3,4,6)} point groups; the bulk-like DMI (highlighted in blue) belongs to T²⁵, O³⁷, or D_{n (n=2,3,4,6)} point groups; and the anisotropic DMI stabilising antiskyrmions belongs to D_2d¹⁷ or S₄²⁶ groups. Note that the C₁ point group with all non-zero ${{{{\rm{D}}}}}_{{mn}}$ is not shown, and ${{{{\rm{D}}}}}_{{mn}}$ is commonly thought to be zero in centrosymmetric systems. The point group dependent DMI matrix suggests that the elusive OOP-DMI that we are searching for here is located at ${{{{\rm{D}}}}}_{31}$ or ${{{{\rm{D}}}}}_{32}$ (highlighted in orange in Fig. 1b) and its favoured in-plane chirality may exist in the C₂ or C_s point groups (Fig. 1c), where the C₂ point group contains axial symmetry under a 180° rotation, and the C_s point group exhibits planar symmetry across a mirror plane. Comparing to the typical DMI point groups such as C_nv, O, T point groups, both C₂ and C_s point groups have less symmetry operations, which is consistent with the expectation that the OOP-DMI cannot exist in systems with relatively high symmetry^21,24. For the C_s point group discussed in this paper, the ${{{{\rm{D}}}}}_{31}$ element appears when there is only one mirror plane $\sigma$ along the $y$-direction, and ${{{{\rm{D}}}}}_{32}$ would appear with a mirror plane $\sigma$ along the $x$-direction (see Methods).

Next, this DMI matrix picture is tested experimentally in in-plane magnetized ultrathin films. We first chose Co/W(110) system, where the Co/W interface is C_2v-like²⁴, therefore only ${{{{\rm{D}}}}}_{12}$ and ${{{{\rm{D}}}}}_{21}$ are expected without the OOP-DMI elements ${{{{\rm{D}}}}}_{31}$ or ${{{{\rm{D}}}}}_{32}$ (Fig. 1c), which also agrees with the Moriya rule that the ${{{{\bf{D}}}}}_{{ij}}$ at Co/W interface must lie in the plane²³. A compound SPLEEM image of magnetic textures in a three monolayer (ML) Co film on W(110) shows two in-plane magnetized domains (highlighted by orange and blue) separated by 180° DWs (Fig. 2a), where the rotation sense of DWs appears as ($\leftarrow \uparrow \to$) in green DWs or ($\leftarrow \downarrow \to$) in magenta DWs. For clarity, a part of this data is represented as a magnetization vector array (Fig. 2b), which highlights the magnetization textures in the black box in Fig. 2a. The statistical representation of in-plane chirality is shown in the $\chi$ histogram (Fig. 2c), where the two similar peaks at −90° and +90° indicate that the planar spin rotation is not chiral. Here the role of the OOP-DMI can be derived by measuring the planar spin rotations, i.e., planar spin rotation sense within ___domain walls, because the OOP-DMI lifts the DMI energy degeneracy for different in-plane chiralities (Supplementary Fig. S1), but the conventional interfacial DMI doesn’t. Therefore, the achiral nature of DWs in Co/W(110) indicates the absence of OOP-DMI.

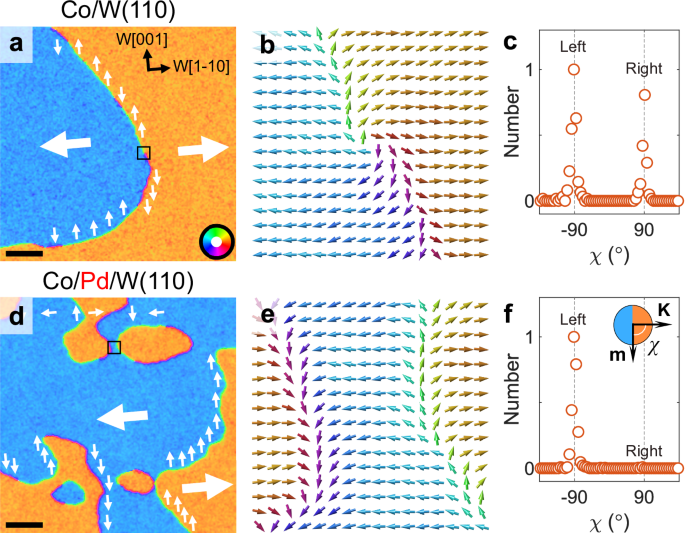

**Fig. 2: Real-space observation of the in-plane chirality.**

By contrast, when a 3 ML Pd layer is inserted in between Co and W(110), in-plane chirality emerges in the compound SPLEEM image (Fig. 2d), e.g., from left to right spins always rotate as ($\to \downarrow \leftarrow \uparrow \to$), or orange-magenta-blue-green-orange (see an example of the arrow-based vector plot in Fig. 2e). Note that the magnetic chirality observed here remains in a 2D-plane parallel to the film, this 2D-nature is similar to the Néel-type chirality in thin films^2,5,7, and differ from the 3D-chiral rotation in bulk-DMI systems^1,3,4. The smaller average size of the magnetic ___domain observed in Fig. 2d than in Fig. 2a is possibly due to the smaller in-plane uniaxial magnetic anisotropy in Co/Pd/W(110). A statistical survey of $\chi$ in Fig. 2f shows a single peak at -90°, which is defined as left-handed in-plane chirality (Supplementary Fig. S1). This robust in-plane magnetic homo-chirality can be reliably reproduced (Supplementary Fig. S2), serving as direct evidence for the existence of OOP-DMI in the Co/Pd/W(110) system.

To understand the physical origin of this OOP-DMI, the crystal structure of the layer adjacent to the Co film is monitored by low-energy electron diffraction (LEED) (Supplementary Fig. S3), showing that the 3 ML Pd film is fcc(111)-like, in contrast to the bcc(110) surface of W(110). This affects the stacking position of heavy atoms underneath the Co film when the ${{{{\bf{D}}}}}_{{ij}}$ lies entirely in-plane at the (110) interface (Supplementary Fig. S4). At the (111) interface the ${{{{\bf{D}}}}}_{{ij}}$ actually cants and contains out-of-plane components³⁸ (Fig. 3a), according to the three-site Fert-Levy model³⁰ (see Methods), although these OOP-DMI components are commonly neglected²⁴. Interestingly, observations have shown that in-plane magnetized textures for a fcc(111)-type DMI system are achiral³⁹, indicating that the OOP-DMI components at a fcc(111) interface do not stabilise chirality. This is because fcc(111)-type DMI for a given magnetic atom has six nearest-neighbour ${{{{\bf{D}}}}}_{{ij}}$, where the OOP components of three are pointing up and the other three pointing down (Fig. 3a), so the net OOP-DMI adds up to zero, just as the absence of OOP-DMI elements in the matrixized C_3v case results from the vanishing sum of the OOP ${{{{\bf{D}}}}}_{{ij}}$ components. The planar achiral magnetic rotation is reproduced with the same fcc(111)-DMI using micromagnetic simulations (see Fig. 3b and Methods).

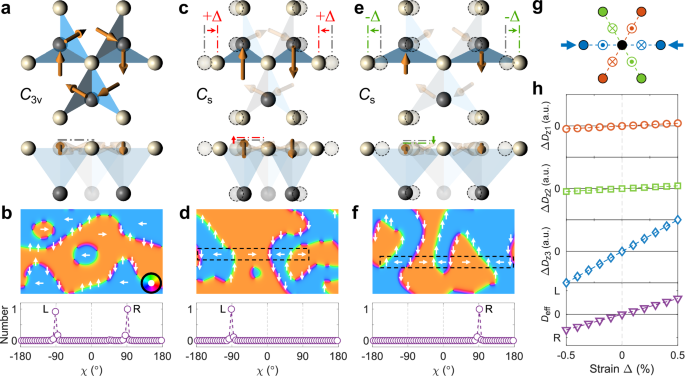

**Fig. 3: The in-plane magnetic chirality induced by strain.**

In the case of Co/Pd/W(110), however, significant uniaxial strain appears in the Pd film grown on W(110)⁴⁰ (Supplementary Fig. S3), which destroys the three-fold axial symmetry of the C_3v interface, and lowers the symmetry of the Co/Pd interface from the C_3v (a three-fold rotation axis and three mirror planes) to the C_s (only a mirror plane) point group. From the Fert-Levy model point of view, this also affects the orientation of the ${{{{\bf{D}}}}}_{{ij}}$ vectors, such that two ${{{{\bf{D}}}}}_{{ij}}$ along the strain direction vary more significantly compared to the other four ${{{{\bf{D}}}}}_{{ij}}$ (highlighted in Fig. 3c). The strain-induced non-zero effective OOP-DMI is further supported by ${{{{\bf{D}}}}}_{{ij}}$ calculations based on the Fert-Levy model (Fig. 3g, h), which is consistent with the DMI matrix picture. Micromagnetic simulations show that such non-zero OOP-DMI can indeed stabilise in-plane chiral structures (Fig. 3d), similar to the structures observed experimentally. In contrast to the conventional ${{{{\bf{D}}}}}_{{ij}}$ where the DMI sign is element-dependent, we found that the sign of the effective OOP-DMI, i.e., the sum of six OOP-DMI vectors (Fig. 3g), is additionally strain-type dependent (D_eff in Fig. 3h), e.g., the sign of the effective OOP-DMI is opposite in case of compressive strain (Fig. 3c) versus tensile strain (Fig. 3e), because the strain-induced variation of two OOP-DMI vectors ($\Delta {D}_{{{{\rm{z}}}}3}$ in Fig. 3h, appeared as blue vectors in Fig. 3g) along the strain direction is greater than the changes of the other four OOP-DMI vectors ($\Delta {D}_{{{{\rm{z}}}}1}$ and $\Delta {D}_{{{{\rm{z}}}}2}$ in Fig. 3h). The strain-dependent sign change of the effective OOP-DMI is further reproduced in micromagnetic simulations (Fig. 3c, dvs e, f). Note that this strain-dependent effective DMI sign dependence is different from the conventional strain-induced DMI⁴¹. The picture of the DMI matrix perfectly agrees with micromagnetic simulations, e.g., zero effective OOP-DMI in the C_3v point group, but finite OOP-DMI in the C_s point group. In addition, we simulated the role of D₃₃ (parallel to the vertically aligned atoms) in systems with relatively high symmetry, such as in the T point group²⁵, which favours helical spirals with propagation direction along the $z$-direction, and we found that D₃₃ doesn’t affect in-plane chirality (Supplementary Fig. S5).

Next, we discuss a few factors that determine the sign and strength of the OOP-DMI. Firstly, the OOP-DMI is the out-of-plane component of the canted interfacial DMI; therefore, the OOP-DMI scales with the sign and strength of the interfacial DMI. Secondly, the OOP-DMI is strain dependent, i.e., compressive and tensile strains induce opposite signs of the OOP-DMI, and the DMI strength is proportional to the strain (Fig. 3h). Thirdly, the nature of the in-plane chirality suggests that the chirality doesn’t remain the same upon a 180° rotation along the $z$-direction, meaning the C₂ symmetry of the magnetic structure along the $z$-direction is broken. Compared to the case of the interfacial DMI, where the magnetic C₂ symmetry along the in-plane direction is broken because of the interface, the case of the in-plane chirality also requires a morphological structure factor that breaks the C₂ symmetry along the $z$-direction, which is attributed to the asymmetric fractional area of the structural stacking ___domain (Supplementary Fig. S7). The asymmetry of the stacking ___domain, in turn, affects the sign and the strength of the OOP-DMI (See Supplementary Note S1). Now, the strength of the effective OOP-DMI could be estimated by considering all three factors,

$${{DM}}_{{{{\rm{OOP}}}}}^{{{{\rm{eff}}}}}={{DM}}_{{{{\rm{Interfacial}}}}}\times {\eta }_{{{{\rm{canting}}}}}\times {\eta }_{{{{\rm{strain}}}}}\times A$$

(1)

where ${{DM}}_{{{{\rm{Interfacial}}}}}$ is the conventional interfacial DMI strength³⁶; ${\eta }_{{{{\rm{canting}}}}}$ stands for the C_3v-like canting factor; ${\eta }_{{{{\rm{strain}}}}}$ represents the strain factor at the Pd/W(110) interface; and $A$ is the asymmetry of the two types of stacking domains (Supplementary Fig. S8). The ${{DM}}_{{{{\rm{Interfacial}}}}}$ in the 3 ML Pd/ W(110) system is $\sim$0.41 meV/atom⁴², and ${\eta }_{{{{\rm{canting}}}}}$, ${\eta }_{{{{\rm{strain}}}}}$, $A$ are $\sim$0.4, 1.25%, 16.8%, respectively, resulting in the estimate of ${{DM}}_{{{{\rm{OOP}}}}}^{{{{\rm{eff}}}}}$ in Co/Pd/W(110) as $\sim$0.35μeV/atom (see estimate details in Supplementary Note S2).

The estimated strength of the OOP-DMI is about three orders of magnitude lower than some typical cases of interfacial DMI³⁶, yet it can stabilise in-plane chirality. This differs from out-of-plane magnetized systems, where an achiral Bloch wall has lower energy with insufficient interfacial DMI⁷. This substantial difference is attributed to how the various energy contributions balance in the out-of-plane and in-plane chirality cases. In the out-of-plane case⁷, the strength of the interfacial DMI (favouring chiral Néel type, Fig. 4a) must exceed the strength of the dipole interaction (favouring achiral Bloch type, Fig. 4b) for Néel-chirality to be stabilised. In contrast, in planar magnetism such as observed here in the Co/Pd/W(110) system, both the OOP-DMI and the dipole interaction favour planar rotation (Fig. 4c). Thus the dipole energy costs for two in-plane chiralities are degenerate, which explains how ultra-small OOP-DMI is sufficient to stabilise in-plane chirality. This picture is further corroborated by micromagnetic simulations (see Methods): in the out-of-plane magnetized case, the interfacial-DMI-dominated chiral Néel-type textures (Fig. 4d) gradually evolve to dipole-dominated achiral Bloch-type (Fig. 4e) as the ratio of interfacial DMI and dipole interaction decreases (Fig. 4d), which matches perfectly with experimental observations⁷; in the OOP-DMI case, the in-plane chirality remains stable for OOP-DMI-dominated (Fig. 4g) and dipole-dominated (Fig. 4h) cases, showing its greater chiral stability with ultra-small DMI (Fig. 4i). The stability of the in-plane chirality is also supported by our experiments. Previous results in out-of-plane magnetized [Ni/Co]_n films on Pd/W(110) show a film thickness dependent chiral-to-achiral transition (Fig. 4l)⁴², which shares the same trend with the simulated chirality evolution in Fig. 4f. However, the in-plane chirality remains the same with increasing Co thickness (Fig. 4l), which is in good agreement with the micromagnetic simulations (Fig. 4i).

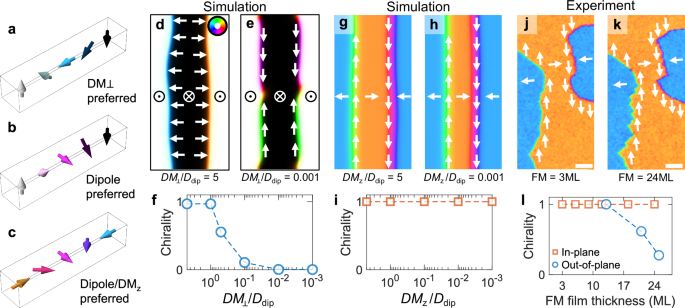

**Fig. 4: The stability of in-plane chiral Néel ___domain wall.**

The new chirality often opens up new functionalities²¹. For OOP-DMI, we demonstrate a reversible control of the in-plane chirality via a magnetic field. In-plane chirality can also be observed in a 3 ML Co/3 ML Au/W(110) structure (Fig. 5a). This chiral state can be overwritten to an achiral state (Fig. 5b) by applying an in-situ magnetic field of the order of a few Oe roughly along the +W[001] direction (green ___domain wall direction) (methods), which overcomes the DMI-like field on the ___domain wall⁴³; and the chiral state is recovered upon the removal of the magnetic field (Fig. 5c), demonstrating the magnetic-field-dependent reversible control of the in-plane chirality (Fig. 5d). In-plane chirality also enables the writing/deleting of magnetic merons, which have spin structures corresponding to half-skyrmions¹⁸. In in-plane magnetized systems, merons could form at the joint locations of two neighbouring in-plane Néel walls^33,44, i.e., where the magnetization along the ___domain wall boundary flips by 180° (see an example in Fig. 5e). We note that the detailed spin structure of a meron could be affected by variations in magnetic interactions, particularly magnetic anisotropies and the sign and strength of the DMI^36,45. Here the SPLEEM spatial resolution is insufficient to resolve the out-of-plane component of the meron core, therefore only the in-plane curling magnetization is highlighted in Fig. 5. An in-situ magnetic field can be applied to delete the meron (Fig. 5f), similarly as Fig. 5b; and the DM-driven meron reappears at the same ___location once the field is removed (Fig. 5g), which highlights the reversible writing and deleting of magnetic merons (Fig. 5h). Note the mode of meron writing through OOP-DMI is fundamentally different from that utilizing changes of magnetic anisotropy^18,44.

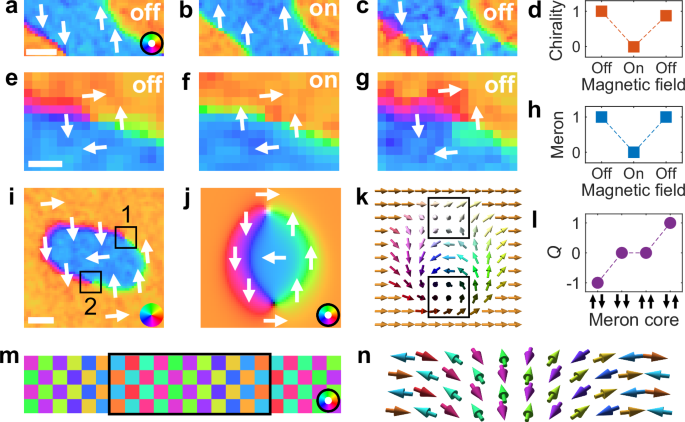

**Fig. 5: Tailoring merons through OOP-DMI and magnetic field.**

Because the in-plane chirality defines the merons’ ___location, two merons can be naturally locked between ($\downarrow$) spin and ($\uparrow$) spin along the wall boundary in an in-plane magnetized bubble-like ___domain (Fig. 5i, also see in Figs. 2g and 3d), which could potentially form a bimeron with topological charge $\pm 1$³³. Determination of the total topological charge requires the detection of the out-of-plane component around the meron centre, for this the spatial resolution of the SPLEEM used in this work is insufficient. Therefore, micromagnetic simulations are carried out to understand the polarity of the meron (Fig. 5j), which is further visualized in a colourized vector plot (Fig. 5k). Here, the polarity of two merons in the black box results in variations of the total topological charge $Q$ (Fig. 5l), and a bimeron can be realized when two merons’ polarity is opposite³³.

Discussion

The observed in-plane chirality in the novel OOP-DMI system exists in DMI systems with C_s symmetry. One approach to realize OOP-DMI is the strain-induced symmetry change as shown in the Co/Pd/W(110) (Fig. 2g) or Co/Au/W(110) (Fig. 5a) systems. OOP-DMI may exist in other strained systems with fcc(111) or bcc(111) textures. Note that OOP-DMI can also exist in systems with C₂ symmetry. Some molecules belong to the C₂ point group, e.g., hydrogen peroxide molecules and hydrazine molecules. It is also possible to apply strain or other symmetry-breaking operations in materials to reduce the crystal symmetry to C₂ or C_s point groups⁴⁶. For example, by reducing the crystal symmetry, C₄, C₆, D₂, D₃, D₄, D_6, and S₄ could be transformed into the C₂ point group; C_2v, C_3v, C_3h point groups could be converted to the C_s point group.

In addition, we expect that the OOP-DMI can stabilise in-plane chirality in antiferromagnetic systems, as shown in micromagnetic simulations (Fig. 5m, n); and the OOP-DMI could allow control of the position of antiferromagnetic merons, as well as to facilitate the formation of antiferromagnetic bimeron bubbles (Supplementary Fig. S9). The OOP-DMI could also induce some interesting chiral spin configurations in nano-structures (Details in Supplementary Note S3). The OOP-DMI elements located at D₃₁ and D₃₂ are the only ones that favour in-plane chirality propagating in the xy plane, promising to unravel intriguing aspects in three-dimensional nanomagnetics^20,47,48, as the chirality stabilised by other DMI elements involves magnetization variation in the z-direction. Lastly, the DMI matrix for all the point groups with broken inversion symmetries interestingly shares the same mathematical representation as spin-orbit torque⁴⁹, which may help the design of novel spin-orbitronic devices by jointly considering novel DMI and spin-orbit torques. The DMI in centrosymmetric materials has been commonly neglected in the past³⁶. It’s worth noting a few exceptions: one is the theoretical prediction of the hidden DMI in the spin sublattice of systems BaCoS₂ (D_2h point group) or Ni₂Sr₄Br₂O₆ (D_4h point group)⁵⁰, while the other is the Mn₃Sn compound (D_6h point group) with Kagome lattice⁵¹, where Mn₃Sn contains out-of-plane ${{{{\bf{D}}}}}_{{ij}}$ that helps to stabilise non-collinear magnetic order; however, this case is distinguished from the in-plane ferromagnetic chirality reported here.

In summary, we have observed the missing type of the DMI, the OOP-DMI that stabilises in-plane magnetic chirality in thin films. We revealed its C_s-symmetry-related physical origin through the combination of Fert-Levy model calculations, micromagnetic simulations, and DMI matrix analysis. The required OOP-DMI for stabilising chirality can be a few orders of magnitude lower than the conventional interfacial DMI due to the different energy landscapes where both OOP-DMI and dipole energy favour planar magnetic configuration with DMI lifting the chiral degeneracy. We also demonstrate the reversible control of in-plane chirality and writing/deleting magnetic merons via a magnetic field. We expect such OOP-DMI to exist in many strained systems with (111) textures, and that it will play a similar role in antiferromagnetic systems.

Methods

Sample preparation

The experiments were performed on Elmitec SPLEEM III at the National Laboratory of Solid State Microstructures and the Department of Physics at Nanjing University. The W(110) substrate was cleaned by cycles of flashing to 1850 °C in 3.0 × 10⁻⁸ Torr oxygen until the surface was free of carbon, confirmed in the low-energy electron microscopy (LEEM) and low-energy electron diffraction (LEED). Then, an additional flashing at a higher temperature removes the surface oxygen. Co, Pd, and Au layers were deposited by molecular beam epitaxy in the SPLEEM chamber under ultra-high vacuum, with a base pressure of $\sim$ 4.0 × 10⁻¹¹ Torr. The film thicknesses of the metal layers were detected via oscillations of the LEEM intensity. The spin-polarized source was obtained by photoemission from GaAs(001) activated by Cs and oxygen adsorption. The in-plane magnetic field applied to the sample surface is controlled by varying the distance between the sample and the objective lens with the field compensation coil turned off.

Magnetic imaging and chirality analysis

Real-space magnetic images were measured using the Elmitec SPLEEM III instrument. The contrast in SPLEEM images represents the asymmetry of the spin-dependent reflection between spin-polarized beams with opposite polarization (up and down), which is $A=({I}_{\uparrow }-{I}_{\downarrow })/({I}_{\uparrow }+{I}_{\downarrow })$. $A$ is proportional to ${{{\bf{P}}}}\cdot {{{\bf{M}}}}$ where ${{{\bf{P}}}}$ is the spin polarization of the incident electrons and ${{{\bf{M}}}}$ is the surface magnetization of the sample. The Cartesian components ${M}_{x}$, ${M}_{y}$, and ${M}_{z}$ of the magnetization ${{{\bf{M}}}}$ were imaged with the illumination beam spin polarization aligned along the W[1-10], W[001], and W[110] directions. All SPLEEM images were measured on the samples held at room temperature. The energy of the incident electron beam was set at 2$\sim$4 eV to optimize the magnetic contrast. The magnetization vector is represented in hue saturation lightness (HSL) colour space, where the in-plane magnetization direction is mapped on the hue and the out-of-plane component is mapped on the brightness. We defined the strength of Néel chirality ${\gamma }_{{{{\rm{IP}}}}}$ in the in-plane system as the asymmetry of the angle χ³⁹: ${\gamma }_{{{{\rm{IP}}}}}=({N}_{{{{\rm{Left}}}}}-{N}_{{{{\rm{Right}}}}})/({N}_{{{{\rm{Left}}}}}+{N}_{{{{\rm{Right}}}}})$ (${N}_{{{{\rm{Left}}}}}$ is the number of ___domain wall centre-line pixels with χ between −180° and 0° and ${N}_{{{{\rm{Right}}}}}$ is the number of ___domain wall centre-line pixels with χ between 0° and 180°). In the out-of-plane system, we defined $\alpha$ as the angle between magnetization vector and ___domain wall normal vector measured in ___domain wall centre-line pixels, so that the strength of Néel chirality ${\gamma }_{{{{\rm{OOP}}}}}$ is defined as the asymmetry of the angle $\alpha$: ${\gamma }_{{{{\rm{OOP}}}}}=\kappa \times ({N}_{{{{\rm{Left}}}}}-{N}_{{{{\rm{Right}}}}})/({N}_{{{{\rm{Left}}}}}+{N}_{{{{\rm{Right}}}}})$ (${N}_{{{{\rm{Left}}}}}$ is the number of $\alpha$ between −180° and 0° and ${N}_{{{{\rm{Right}}}}}$ is the number of $\alpha$ between 0° and 180°). Here $\kappa$ denotes the proportion of the Néel component. The out-of-plane chirality value in Fig. 4l has been normalized due to the difference of the noise levels in the experiments.

Calculating the DMI in the three-site Fert–Levy model

$${{{{\bf{D}}}}}_{{ij}}={\sum}_{n}{{{{\bf{D}}}}}_{{ijn}}$$

(2)

$${{{{\bf{D}}}}}_{{ijn}}=-{V}_{1}\frac{\sin \left[{k}_{{{{\rm{F}}}}}\left(\left|{{{{\bf{R}}}}}_{{in}}\right|+\left|{{{{\bf{R}}}}}_{{jn}}\right|+\left|{{{{\bf{R}}}}}_{{ij}}\right|\right)+\frac{\pi }{10}{Z}_{{{{\rm{d}}}}}\right]}{\left|{{{{\bf{R}}}}}_{{ij}}\right|{\left(\left|{{{{\bf{R}}}}}_{{in}}\right|\left|{{{{\bf{R}}}}}_{{jn}}\right|\right)}^{3}}\left({{{{\bf{R}}}}}_{{in}}\cdot {{{{\bf{R}}}}}_{{jn}}\right)\left({{{{\bf{R}}}}}_{{in}}\times {{{{\bf{R}}}}}_{{jn}}\right)$$

(3)

$${V}_{1}=\frac{135\pi }{32}\frac{{\lambda }_{{{{\rm{d}}}}}{\Gamma }^{2}}{{E}_{{{{\rm{F}}}}}^{2}{k}_{{{{\rm{F}}}}}^{3}}\sin \left(\frac{\pi }{10}{Z}_{{{{\rm{d}}}}}\right)$$

(4)

In the three-site Fert-Levy model³⁰, ${V}_{1}$ is a parameter defined by the specific material. ${\lambda }_{{{{\rm{d}}}}}$ is the strength of the spin-orbit coupling and $\Gamma$ is the interaction parameter between the localized spin and conduction electrons. ${E}_{{{{\rm{F}}}}}$ and ${k}_{{{{\rm{F}}}}}$ are the Fermi energy and Fermi wavevector, respectively. ${Z}_{{{{\rm{d}}}}}$ is the number of d electrons. ${{{{\bf{R}}}}}_{{in}}({{{{\bf{R}}}}}_{{jn}})$ is the vector joining the magnetic site $i(j)$ to the NM site $n$. According to the three-site Fert-Levy model, ${{{{\bf{D}}}}}_{{ijn}}$ is perpendicular to the plane of the triangle ${ijn}$ (Fig. 3a). Here we used ${\lambda }_{{{{\rm{F}}}}}=2{{{\rm{nm}}}}$ and ${Z}_{{{{\rm{d}}}}}=9.4$ for calculating the DMI under strain and only considered the nearest-neighbour (n. n.) atoms’ contributions (Fig. 3h). We set the n.n. atoms’ distance as $a=0.25{{{\rm{nm}}}}$ and set the layer spacing as $z=0.18{{{\rm{nm}}}}$. In the C_3v interface, one atom has six n. n. atoms on the surface. The FM atoms’ positions are:

$$\begin{array}{c}i=\left(0,0,0\right),{j}_{1}=\left(\frac{1}{2}a,\frac{\sqrt{3}}{2}a,0\right),{j}_{2}=\left(-\frac{1}{2}a,\frac{\sqrt{3}}{2}a,0\right),{j}_{3}=\left(-a,0,0\right),\\ {j}_{4}=\left(-\frac{1}{2}a,-\frac{\sqrt{3}}{2}a,0\right),{j}_{5}=\left(\frac{1}{2}a,-\frac{\sqrt{3}}{2}a,0\right),{j}_{6}=\left(a,0,0\right)\end{array}$$

and the heavy metal atoms’ positions are:

$${n}_{1}=\left(\frac{\sqrt{3}}{6}a,\frac{1}{2}a,-z\right),{n}_{2}=\left(\frac{\sqrt{3}}{6}a,-\frac{1}{2}a,-z\right),{n}_{3}=\left(-\frac{\sqrt{3}}{3}a,0,-z\right)$$

The heavy metal atoms’ positions in another twinned C_3v interface are:

$${n}_{1}=\left(\frac{\sqrt{3}}{3}a,0,-z\right),{n}_{2}=\left(-\frac{\sqrt{3}}{6}a,-\frac{1}{2}a,-z\right),{n}_{3}=\left(-\frac{\sqrt{3}}{6}a,\frac{1}{2}a,-z\right)$$

Micromagnetic realization (continuum model) of DMI

We will discuss in the framework of micromagnetism (continuum model), where an atom has only six nearest-neighbour atoms for cubic symmetry. The DMI energy density can then be written as

$${{{\mathcal{H}}}}= {D}_{11}\left({m}_{y}{\partial }_{x}{m}_{z}-{m}_{z}{\partial }_{x}{m}_{y}\right)+{D}_{12}\left({m}_{y}{\partial }_{y}{m}_{z}-{m}_{z}{\partial }_{y}{m}_{y}\right)+{D}_{13}\left({m}_{y}{\partial }_{z}{m}_{z}-{m}_{z}{\partial }_{z}{m}_{y}\right)\\ +{D}_{21}\left({m}_{z}{\partial }_{x}{m}_{x}-{m}_{x}{\partial }_{x}{m}_{z}\right)+{D}_{22}\left({m}_{z}{\partial }_{y}{m}_{x}-{m}_{x}{\partial }_{y}{m}_{z}\right)+{D}_{23}\left({m}_{z}{\partial }_{z}{m}_{x}-{m}_{x}{\partial }_{z}{m}_{z}\right)\\ +{D}_{31}\left({m}_{x}{\partial }_{x}{m}_{y}-{m}_{y}{\partial }_{x}{m}_{x}\right)+{D}_{32}\left({m}_{x}{\partial }_{y}{m}_{y}-{m}_{y}{\partial }_{y}{m}_{x}\right)\\ +{D}_{33}\left({m}_{x}{\partial }_{z}{m}_{y}-{m}_{y}{\partial }_{z}{m}_{x}\right)$$

(5)

Utilizing the Liftshitz invariants ${{{{\mathcal{L}}}}}_{{ij}}^{(k)}={m}_{i}{\partial }_{k}{m}_{j}-{m}_{j}{\partial }_{k}{m}_{i}$, the DMI can be simplified as

$${{{{\mathcal{H}}}}}_{{{{\rm{DMI}}}}}= {D}_{11}{{{{\mathcal{L}}}}}_{{yz}}^{\left(x\right)}+{D}_{12}{{{{\mathcal{L}}}}}_{{yz}}^{\left(y\right)}+{D}_{13}{{{{\mathcal{L}}}}}_{{yz}}^{\left(z\right)}\\ +{D}_{21}{{{{\mathcal{L}}}}}_{{zx}}^{\left(x\right)}+{D}_{22}{{{{\mathcal{L}}}}}_{{zx}}^{\left(y\right)}+{D}_{23}{{{{\mathcal{L}}}}}_{{zx}}^{\left(z\right)}\\ +{D}_{31}{{{{\mathcal{L}}}}}_{{xy}}^{\left(x\right)}+{D}_{32}{{{{\mathcal{L}}}}}_{{xy}}^{\left(y\right)}+{D}_{33}{{{{\mathcal{L}}}}}_{{xy}}^{\left(z\right)}$$

(6)

Furthermore, we can use a matrix to present the DMI:

$$D \,=\left(\begin{array}{ccc}{D}_{11} & {D}_{12} & {D}_{13}\\ {D}_{21} & {D}_{22} & {D}_{23}\\ {D}_{31} & {D}_{32} & {D}_{33}\end{array}\right)$$

(7)

Here, we discuss the reduction of the DMI matrix under the C_s point group as an example. For the axial tensor $D$, $D=\det \left(R\right){RD}{R}^{-1}$ is satisfied for all symmetry operations $R$. We chose the symmetric operator element in the C_s point group to be the mirror operation along the y-z plane, which is the same situation as Fig. 3c, e.

$$R=\sigma \left({yz}\right)=\left(\begin{array}{ccc}-1 & 0 & 0\\ 0 & 1 & 0\\ 0 & 0 & 1\end{array}\right)$$

(8)

Substituting $R$ into $D=\det \left(R\right){RD}{R}^{-1}$ we find that ${D}_{11}={D}_{22}={D}_{23}={D}_{32}={D}_{33}=0$. The DMI matrix in the C_s point group can be written as:

$$D=\left(\begin{array}{ccc}0 & {D}_{12} & {D}_{13}\\ {D}_{21} & 0 & 0\\ {D}_{31} & 0 & 0\end{array}\right)$$

(9)

Thus, the OOP-DMI is oriented along the $x$-direction (direction along the strain), which is consistent with the micromagnetic simulation results.

$${{{{\mathcal{H}}}}}_{{{{\rm{OOP}}}}-{{{\rm{DMI}}}}}={D}_{31}{{{{\mathcal{L}}}}}_{{xy}}^{\left(x\right)}={D}_{31}\left({m}_{x}{\partial }_{x}{m}_{y}-{m}_{y}{\partial }_{x}{m}_{x}\right)$$

(10)

Micromagnetic simulation

The micromagnetic simulations were carried out based on a two-dimensional model³⁵, where exchange interaction, dipolar interaction, in-plane uniaxial magnetic anisotropy, as well as OOP-DMI are considered. The Hamiltonian is written as:

$${{{\mathcal{H}}}}= - J {\sum}_{\left\langle i,j\right\rangle }{{{{\bf{S}}}}}_{i}\cdot {{{{\bf{S}}}}}_{j}-{D}_{{{{\rm{dip}}}}} {\sum}_{i,j}\frac{3{{{{\bf{S}}}}}_{i}\, \cdot \, \left({{{{\bf{r}}}}}_{i}-{{{{\bf{r}}}}}_{j}\right){{{{\bf{S}}}}}_{j}\, \cdot \, \left({{{{\bf{r}}}}}_{i}-{{{{\bf{r}}}}}_{j}\right)-{{{{\bf{S}}}}}_{i}\, \cdot \, {{{{\bf{S}}}}}_{j}{\left|{{{{\bf{r}}}}}_{i}-{{{{\bf{r}}}}}_{j}\right|}^{2}}{{\left|{{{{\bf{r}}}}}_{i}-{{{{\bf{r}}}}}_{j}\right|}^{5}}\\ -{K}_{{{{\rm{u}}}}} {\sum}_{i}{S}_{{{{\rm{u}}}},i}^{2}-{{{{\mathcal{H}}}}}_{{{{\rm{OOP}}}}-{{{\rm{DMI}}}}}$$

(11)

where ${{{{\bf{S}}}}}_{i}$ and ${{{{\bf{S}}}}}_{j}$ are spin moments located on atomic sites $i$ and $j$ in a two-dimensional plane, ${{{{\bf{r}}}}}_{i}$ and ${{{{\bf{r}}}}}_{j}$ are the position vectors of the spin blocks in sites $i$ and $j$. $J$, ${D}_{{{{\rm{dip}}}}}$ and ${K}_{{{{\rm{u}}}}}$ correspond to exchange interaction, dipole interaction and uniaxial anisotropy, respectively. In a C_3v interface, each spin is surrounded by six neighbouring spins. The Hamiltonian of the OOP-DMI can be written as:

$${{{{\mathcal{H}}}}}_{{{{\rm{OOP}}}}-{{{\rm{DMI}}}}}= {D}_{z1}\hat{z}\cdot {\sum}_{i}\left({{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{i-\frac{\sqrt{3}}{2}\hat{y}-\frac{1}{2}\hat{x}}-{{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{i+\frac{\sqrt{3}}{2}\hat{y}+\frac{1}{2}\hat{x}}\right)\\ +{D}_{z2}\hat{z}\cdot {\sum}_{i}\left({{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{i+\frac{\sqrt{3}}{2}\hat{y}-\frac{1}{2}\hat{x}}-{{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{i-\frac{\sqrt{3}}{2}\hat{y}+\frac{1}{2}\hat{x}}\right)\\ +{D}_{z3}\hat{z}\cdot {\sum}_{i}\left({{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{i+\hat{x}}-{{{{\bf{S}}}}}_{i}\times {{{{\bf{S}}}}}_{i-\hat{x}}\right)$$

(12)

The dimensionless parameters $J$, ${D}_{{{{\rm{dip}}}}}$, ${K}_{{{{\rm{u}}}}}$, ${D}_{z1}$, ${D}_{z2}$ and ${D}_{z3}$ are used for simulating ___domain wall spin structures. For the simulation results summarized in Fig. 3 and Supplementary Fig. S6f, g, the values $J=1$, ${D}_{{{{\rm{dip}}}}}=0.1$, ${K}_{{{{\rm{u}}}}}={K}_{x}=0.075$ were assumed. Domain configurations shown in Fig. 4 are simulated using 500 × 300 spin block arrays with periodic boundary conditions applied for both directions. The initial state is set to a random state, followed by annealing to an energetically stabilised state. The system temperature is represented by allowing spins to fluctuate according to Boltzmann statistics³⁵. The OOP-DMI ${D}_{z1}={D}_{z2}={D}_{z3}=0.2$ was used for simulating the un-strained situation (Fig. 3b). ${D}_{z1}={D}_{z2}=0.2,{D}_{z3}=0.3$ was used in the compressive strain situation (Figs. 3d, 5j and Supplementary Fig. S6f). ${D}_{z1}={D}_{z2}=0.2,{D}_{z3}=-0.3$ was used in another twinned situation (Supplementary Fig. S6g). ${D}_{z1}={D}_{z2}=0.2,{D}_{z3}=0.1$ was used in the tensile strain situation (Fig. 3f). In Fig. 4d, e, f, the perpendicular magnetic anisotropy was obtained by setting ${K}_{{{{\rm{u}}}}}={K}_{z}=0.8$. In the antiferromagnetic conditions, we utilized a square lattice. The values of $J=-1$, ${D}_{{{{\rm{dip}}}}}=0$, ${D}_{z3}=0.3$ were applied in Fig. 4m and the values of $J=-1$, ${D}_{{{{\rm{dip}}}}}=0$, ${K}_{{{{\rm{u}}}}}={K}_{y}=0.1$, ${D}_{z3}=0.1$ were used in Supplementary Fig. S9. Micromagnetic simulations of OOP-DMI in nano-structures in Supplementary Fig. S10 were performed using Mumax3 software⁵².

Data availability

The data that support the findings of this study are available from the corresponding authors upon reasonable request.
