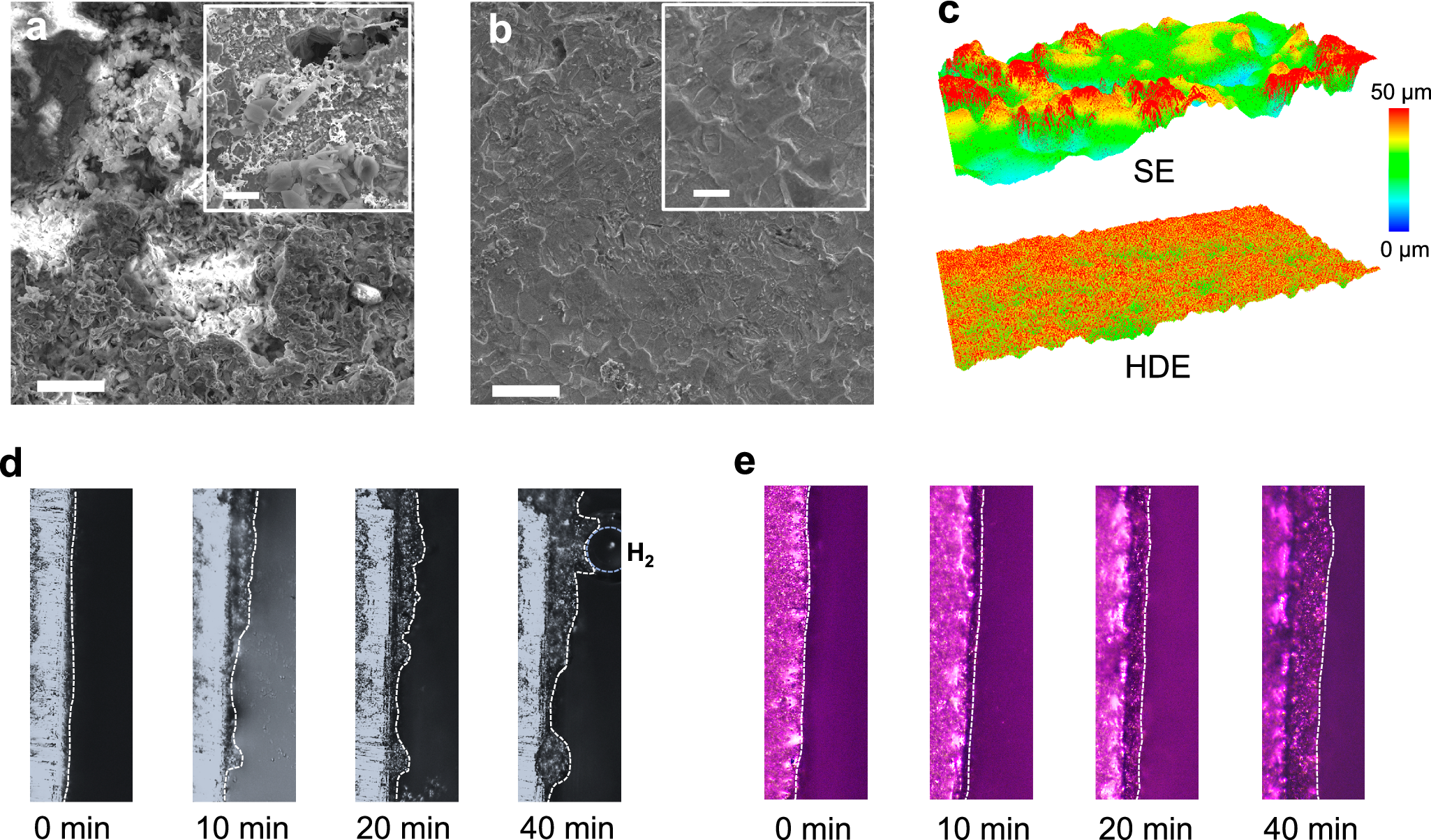

Fig. 4: The morphology of plated Zn.
From: Electrolyte design for reversible zinc metal chemistry
SEM images of Zn anode after 50 cycles at 1 mA cm−2 and 1 mAh cm−2 in (a) SE and (b) HDE. Scale bar: 30 μm in a and 2 μm in (b) (magnified view). c 3D height images of plated Zn in SE and HDE with a capacity of 5 mAh cm−2 at 5 mA cm−2. In-situ optical microscopy images of Zn plating in (d) SE and (e) HDE at a current density of 5 mA cm−2.
