Fig. 6: Maximum likelihood tree of Homo sapiens performed with 100 bootstrap replications. | Nature Communications

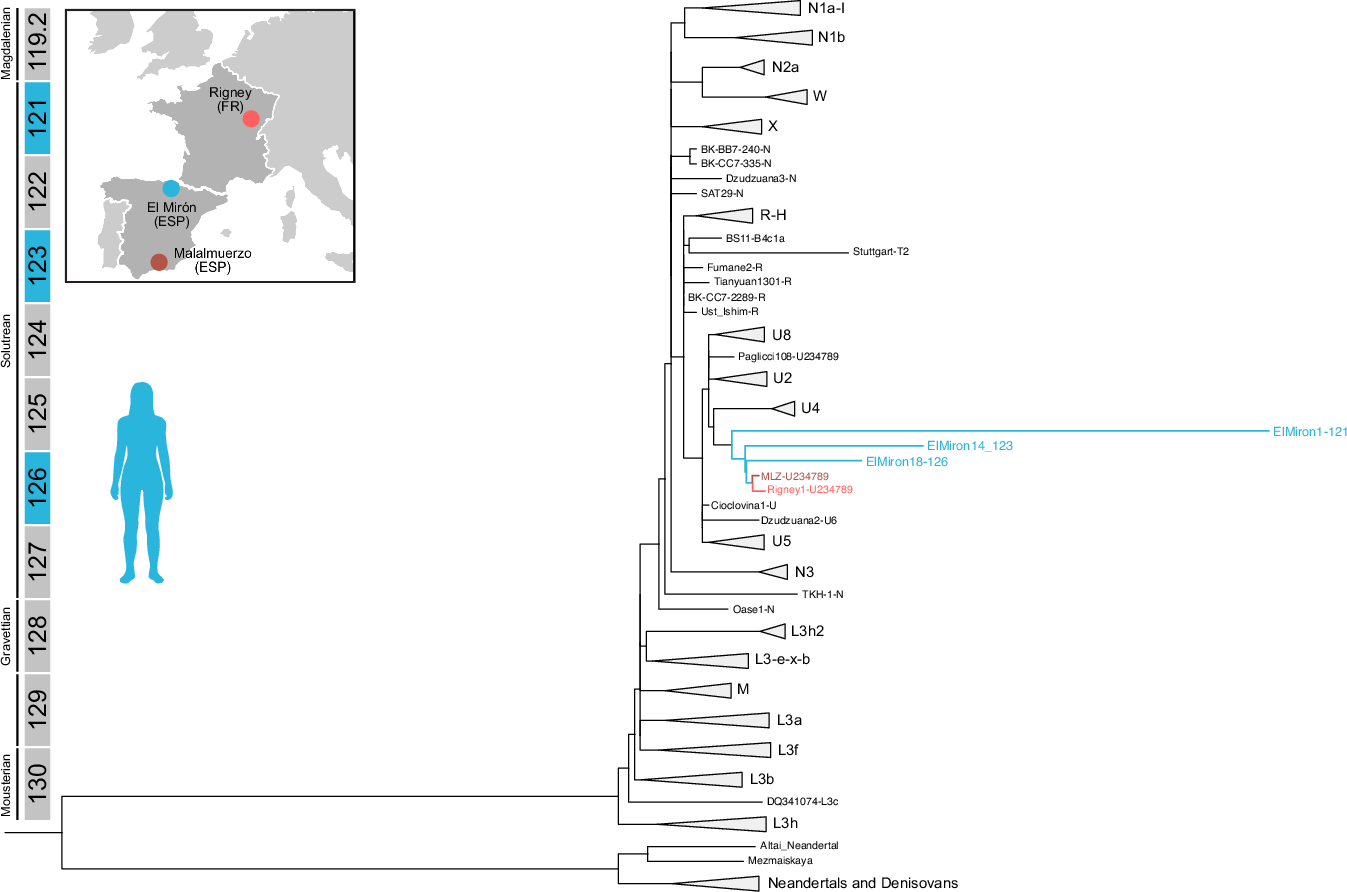

Fig. 6: Maximum likelihood tree of Homo sapiens performed with 100 bootstrap replications.

From: A sedimentary ancient DNA perspective on human and carnivore persistence through the Late Pleistocene in El Mirón Cave, Spain

Fig. 6

We observe that the three mtDNA sequences from El Mirón sediment samples from levels 121,122, and 126 (in blue) are located together and close to the individual from la Cueva de Malalmuerzo (brown)75 and another individual from Rigney (France) (pink)43. El Mirón samples have long branches, suggesting an excess of substitutions added, a product of originating from multiple individuals.
