TRIM28 is an essential regulator of three-dimensional chromatin state underpinning CD8⁺ T cell activation

Studies using chromatin conformation capture techniques have revealed that the mammalian genome is organized into high-ordered folding of chromatin in a hierarchy of structures including compartments¹ topologically associating domains (TADs)² and chromatin loops³. The mammalian genome is organized into gene-dense and transcriptionally active compartment A as well as gene-sparse and transcriptionally inactive compartment B at the mega-base scale¹. CCCTC-binding factor (CTCF) and cohesin are the master regulators of genome organization^4,5. Vast studies have proved that CTCF plays a crucial role in the formation of TAD boundaries and loop anchors^2,3. The majority of TADs are formed by a process called loop extrusion, in which the cohesin complex extrudes chromatin until it is blocked by the CTCF boundaries⁶. More importantly, cohesin deficiency eliminates all chromatin loops⁵. In the past years, three-dimensional genome (3D genome) has emerged as an important regulator of gene transcription by facilitating or impeding long-range genomic interactions among regulatory elements and gene bodies^7,8,9. 3D genome organization have been shown important in cancer^10,11,12 and embryonic development^13,14. However, the observation that the high dynamic of 3D genome among different cell types and cell status^3,15,16 has also raised questions that their role in cell- and status-specific regulatory processes. Furthermore, it has remained unclear if alterations in 3D genome can contribute to immune cell activation and differentiation.

CD8⁺ T cells play a major role in adaptive immune response by destroying infected cells and tumor cells. Naive CD8⁺ T cells are activated by their cognate antigens on antigen-presenting cells. Naive CD8⁺ T cells undergo rapid clonal expansion and develop into effector cytotoxic T cells, as a result of signaling from T cell receptor (TCR), co-stimulatory molecules, and cytokines¹⁷. Numerous studies have shown that autocrine IL-2 signals promote CD8⁺ T cell activation. Activated CD8⁺ T cells, distinct from naive and memory CD8⁺ T cells, highly express activation markers CD25, CD44, CD69, ICOS, etc., and produce effector molecules, such as Granzyme B and IFN-γ, which exert anti-microbial and anti-tumor functions¹⁸. Epigenetic mechanisms have been reported to be key in T cell activation¹⁹. Compared with naive CD8⁺ T cells, activated CD8⁺ T cells harbor different DNA and histone modifications, including increased permissive histone markers H3K4me3 and H3K27ac at loci of activation-induced genes, such as transcription factors Tbx21, Id2, Batf and Nfat1 as well as effector-associated genes, including Il2ra, Ifng, Il2 and Icos²⁰. Naive and activated CD8⁺ T cells also show distinct chromatin accessibility features²¹. However, whether and how 3D genome reorganizes during CD8⁺ T cell activation are unclear.

Tripartite motif (TRIM)-containing proteins are defined by the presence of an N-terminal RING finger, one or two B-boxes and a coiled-coil (CC) ___domain²². They function in a wide range of cellular processes including cell differentiation, antiviral activity, autophagy and immune response²³. Recent studies have shown that many TRIM proteins serve as critical regulators of innate and adaptive immunity: TRIM33 promotes the pro-inflammatory function of Th17 cells²⁴ TRIM28 regulates Th17 and Treg function^25,26 and TRIM5 restricts HIV-1 infection²⁷. Though not directly binding to DNA, TRIM proteins can regulate gene expression as co-regulators by interacting with chromatin modifiers^28,29,30. Among them, TRIM33 can act as a mediator in remodeling chromatin at distal regulatory elements and in transcription regulation³¹. TRIM28 was previously reported as a transcriptional elongation factor to regulate gene expression³². However, the function of TRIM proteins in CD8⁺ T cell activation remained unknown.

In this study, we systematically characterize the 3D genome reorganization at compartment, TAD and loop levels during CD8⁺ T cell activation. TRIM28 is required for the transcriptional program in activated CD8⁺ T cells, whose deficiency impaired their effector function in tumor and infection. Mechanistically, TRIM28 regulates the expression of target genes by cooperating with CTCF, RNA Pol II and cohesin to mediate the formation of chromatin loops. Altogether, this study unveils TRIM28-dependent 3D genome re-organization as an essential epigenetic mechanism underlying CD8⁺ T cell activation.

CD8⁺ T cell activation is accompanied by extensive spatial chromatin changes

To identify the chromatin changes during CD8⁺ T cell activation, we sorted naive CD8⁺ T cells form C57BL/6 mice and treated them with anti-CD3 and anti-CD28 for 3 days in vitro. Then, we did Assay for Transposase-Accessible Chromatin with high-throughput sequencing (ATAC-seq) and high-through chromosome conformation capture (Hi-C) experiments on activated and naive CD8⁺ T cells (Supplementary Fig. 1a, b). We found that activated CD8⁺ T cells were distinct from naive CD8⁺ T cells in the epigenome based on the ATAC-seq data (Fig. 1a). We examined 45,876 chromatin accessible regions in these two types of T cells and searched for differentially accessible regions (Fig. 1a). Overall, 4709 (10%) chromatin regions were more accessible in activated CD8⁺ T cells, whereas 2380 (5.2%) chromatin regions less accessible, than in naive CD8⁺ T cells (Fig. 1a). T cell activation signature genes, such as Il2, Ifng, Tbx21 and Gzmb showed increased accessibility in activated CD8⁺ T cells whereas naive T cell signature genes, such as Ccr7, Slamf6 and Lef1 showed decreased accessibility after T cell activation (Fig. 1a, Supplementary Fig. 1c). Binding of T cell activation-related transcription factors, such as Fos, JunB and BATF was predicted to be increased in genome of activated CD8⁺ T cells, compared with naive CD8⁺ T cells (Supplementary Fig. 1d). These results demonstrated significant alterations in chromatin accessibility during CD8⁺ T cell activation.

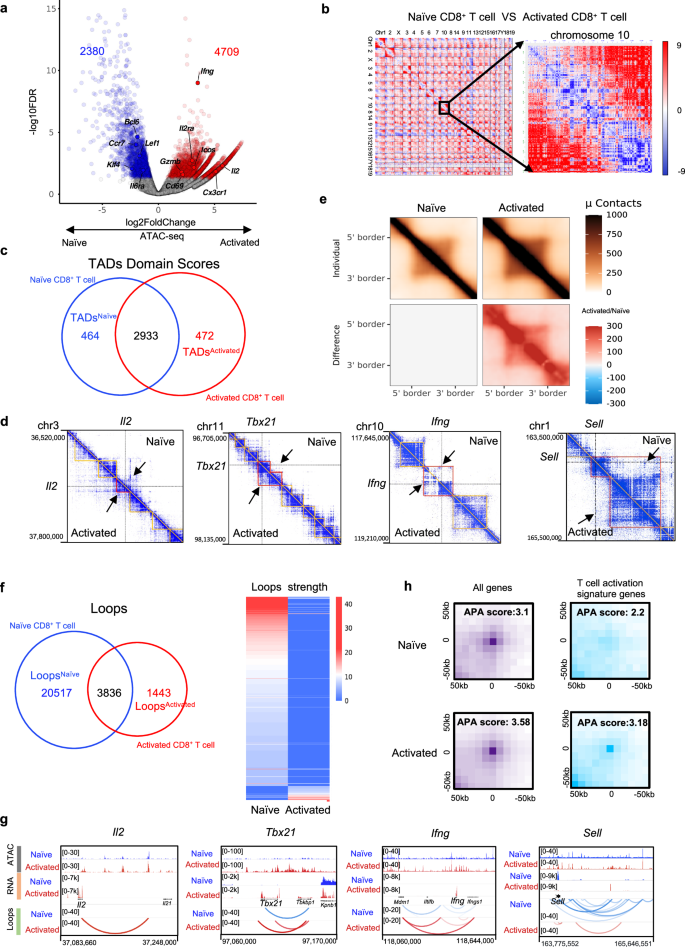

a Volcano plot of chromatin accessibilities data in activated versus naive CD8⁺ T cells. Red dots represented chromatin regions which were more accessible in activated CD8⁺ T cells (Fold change (log₂)> 0.58, p-value < 0.05). Blue dots represented chromatin regions which were more accessible in naive CD8⁺ T cells (Fold change (log₂) < -0.58, p-value < 0.05). Every sample has two replicates. b The heatmap of per-bin Fold change (log₂) in Hi-C interactions of activated and naive CD8⁺ T cells of the whole genome (left) and chromosome 10 (right). Red represents stronger interaction in naive CD8⁺ T cells, blue means stronger interaction in activated CD8⁺ T cells. Every sample has two replicates. c Venn diagram of the TADs of activated and naïve CD8+ T cells based on ___domain scores. TADs, topologically associating domains. Two replicates were analyzed separately to assess consistency, and results were then combined. Details see methods. d Hi-C interaction matrix of the regions in naive and activated CD8⁺ cells around the Il2, Tbx21 Ifng and Sell genes. e ATA plot showing the TADs where T cell activation-related genes were located in naive and activated CD8⁺ T cells. ATA, aggregate TAD analyses. f Venn diagram of the chromatin loops of activated and naive CD8⁺ T cells (left). Heatmap of loop strength (-log10fdrBL) difference (right). Two replicates were analyzed separately to assess consistency, and the results were then combined. For details see methods. g Genome browser view of chromatin accessibility, gene expression, and 3D genome interactions around the Il2 Tbx21 Ifng and Sell genes in naive and activated CD8⁺ T cells. h APA plot for the loops where T cell activation genes were located in naive and activated CD8⁺ T cells. APA, aggregate peak analysis. Statistical significance was tested by unpaired two-tailed Student’s t test (h).

Full size image

For naive and activated CD8⁺ T cells, we constructed two Hi-C libraries for each sample. For each Hi-C library, about 250 million unique mapped contacts were generated (Supplementary Table 1). The replicates were highly correlated (Supplementary Fig. 1b, SCC score R ≥ 0.95)³³ and we therefore merged the data for visualization purposes. The contact quality of the Hi-C data was validated by cis/trans interaction ratio (Supplementary Table 1). We reached a fine resolution of 5 kilobase pairs (kb) which enabled us to explore 3D genome structure at different scales, such as A/B compartments, TADs and loop structures of all the samples. Across the whole genome, naive CD8⁺ T cells had more long-range interactions (> 10 Mb), whereas activated CD8⁺ T cells had more short-range interactions (<100 kb) (Fig. 1b, Supplementary Fig. 1e). In naive CD8⁺ T cells, 49% genomic regions were identified as compartment A, and 51% genomic regions were identified as compartment B. Most genomic regions (93%) remained in the same compartments in activated CD8⁺ T cells compared with naive CD8⁺ T cells (Supplementary Fig. 1f). A total of 4.6% of genomic regions switched from compartment A to B after activation of CD8⁺ T cells, whereas 2.3% of genomic regions did the opposite switch (Supplementary Fig. 1f). In terms of interactions between compartments, activated CD8⁺ T cells had less intra compartment interaction (Supplementary Fig. 1g).

Separately examining the matrices of activated and naive CD8⁺ T cells, we identified 2191 TADs in naive CD8⁺ T cells and 2501 TADs in activated CD8⁺ T cells. Most (80%) of the boundaries of TADs were unchanged during CD8⁺ T cell activation. The ___domain score was a measure for the degree of connectivity within a TAD¹⁶. For each TAD, we calculated the ___domain score as the fraction of intradomain contacts over its total numbers of cis contacts. In activated CD8⁺ T cells, 464 TADs had decreased ___domain scores which were defined as TADs^naive and 472 TADs had increased ___domain scores which were defined as TADs^Activated (Fig. 1c, Supplementary Fig. 1h). 1717 genes located in TADs^naive included many naive T cell signature genes, such as Sell, Ccr7 and Tcf7, whose expression showed a clear downregulation after T cell activation (Fig. 1d, Supplementary Fig. 1i). On the contrary, 2548 genes located in TADs^Activated were enriched in those associated with T cell activation, such as Il2, Tbx21 and Ifng, whose expression showed a clear upregulation in activated T cells (Fig. 1d, Supplementary Fig. 1i). In naive CD8⁺ T cells, Il2 was located in a TAD with 286-kb in length. The ___domain score of this TAD was increased by 30% in activated CD8⁺ T cells (Fig. 1d). Similarly, the ___domain scores of the TADs where Tbx21 and Ifng are located were increased after T cell activation. Specially, the TAD where Tbx21 is located (484 kb) merged with the downstream TAD into one TAD (Fig. 1d). On the contrary, the ___domain score of the TAD where Sell is located was decreased after T cell activation (Fig. 1d). To further investigate the alterations in the 3D genome at CD8⁺ T cell activation-related genes, 358 genes with upregulated expression (Fold change (log2) > 1, q-value < 0.01) were identified during CD8⁺ T cell activation using the public RNA-seq data³⁴. The ___domain scores of the TADs where these genes are located were calculated, which were found to be increased in activated compared to naive CD8⁺ T cells (Fig. 1e).

Within TADs, chromatin loops facilitate long-range interactions between enhancers and promoters for gene regulation³. There were 1443 unique loops in activated CD8⁺ T cells, which were defined as Loops^Activated, and 20,517 ones in naive CD8⁺ T cells, defined as Loops^naive, with 3836 in both lists (Fig. 1f). Loops^naive and loops^Activated were validated using APA plots (Supplementary Fig. 1j). 3254 genes were located in naive CD8⁺ T cell-specific loops, such as Sell, Ccr7 and Tcf7 (Fig. 1g). 2316 genes were located in activated CD8⁺ T cell-specific loops, such as Il2, Tbx21 and Ifng. The genes located in the anchor regions of Loops^naive were enriched in mRNA processing genes, whereas those in Loops^Activated were associated with T cell activation genes (Supplementary Fig. 1k). Among the genes located on the dynamically regulated chromosomal loops during CD8⁺ T cell activation, 2228 genes were differentially expressed between naive and activated WT CD8⁺ T cells and enriched in regulation of T cell activation and mononuclear cell differentiation pathways. 3342 genes were not differentially expressed between the two cells, enriched in mRNA processing and ribonucleoprotein complex biogenesis. In naive CD8⁺ T cells, there was no loop around Il2. However, a significant loop was formed between Il2 promoter and an upstream chromatin accessible region during CD8⁺ T cell activation (Fig. 1g). Similarly, the loop strengths for Tbx21 and Ifng were increased after T cell activation (Fig. 1g). On the contrary, most of loops where Sell is located disappeared in activated CD8⁺ T cells (Fig. 1g). Then, the strengths of the loops where 358 T cell activation genes are located were calculated. We found the average strengths of these loops were increased after T cell activation, which implicates regulation of T cell activation genes by the 3D chromatin structure (Fig. 1h, Supplementary Fig. 1l).

These results indicated that CD8⁺ T cells activation is accompanied by extensive changes in the chromatin accessibility and 3D genome. Importantly, the alteration in high-ordered chromosomal structure was closely related to the regulation of T cell activation-related genes.

TRIM28 is required for CD8⁺ T cell activation and function

TRIM proteins have been reported to regulate gene expression as co-regulators in immune cells^28,29,30. However, their roles during CD8⁺ T cell activation remained unknown. We expect that TRIM proteins may regulate CD8⁺ T cell activation through epigenetic mechanisms. So, we first analyzed public RNA-seq data of mouse naive and activated CD8⁺ T cells to explore expression changes of TRIM family members during CD8⁺ T cell activation³⁴. Some TRIM family members like Trim28, Trim27, Trim37 and Trim16 expression was found to be substantially elevated in activated CD8⁺ T cells, as compared to naive CD8⁺ T cells (Fig. 2a). Interestingly, Trim28 expression was found to be highest as compared to other TRIM family members in activated CD8⁺ T cells (Supplementary Fig. 2a). Moreover, ATAC-seq data indicated the chromatin accessibility of Trim28 was increased in activated CD8⁺ T cells (Supplementary Fig. 2b). Meanwhile, a significant loop was formed around the Trim28 locus during CD8⁺ T cell activation (Supplementary Fig. 2b). To confirm these results, we measured mRNA levels of Trim28 and found that it was highly expressed in activated, as compared to naive CD8⁺ T cells in mice (Fig. 2b).

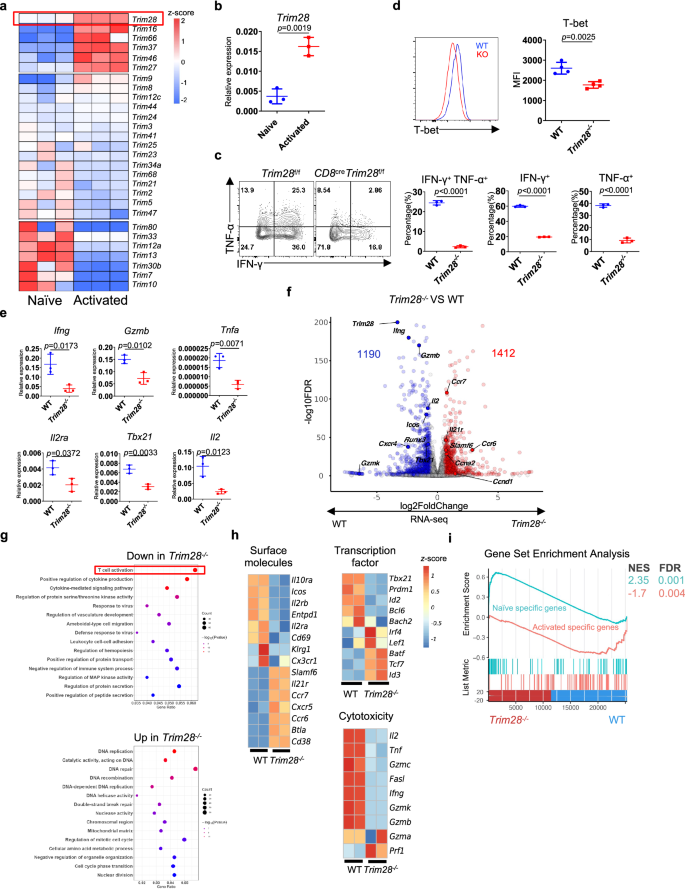

a Gene-expression heatmap for the RNA-seq data of TRIM family in murine naive and activated CD8⁺ T cells. b-e naive CD8⁺ T cells were cultured under anti-CD3/28 stimulation for 3 days. Expression of Trim28 was measured by qPCR (b). Expression of IFN-γ, TNF-α (c) and T-bet (d) was measured by flow cytometry. mRNA levels of Ifng, Gzmb, Tnfa, Il2ra, Il2 and Tbx21 were detected by qPCR (e). f Volcano plot of transcriptome differences between WT and Trim28^-/- activated CD8⁺ T cells. g Top enriched GO pathways of genes regulated by TRIM28. h Heatmap of illustrating the relative expression of signature genes in WT and Trim28^-/- activated CD8⁺ T cells. i GSEA enrichment of naive and activated CD8⁺ T cell signature genes in the transcriptome of CD8⁺ T cells from Trim28^fl/flCd8a^Cremice. Each dot represents one individual replicate (n = 3 per group in b, c and e, n = 4 per group in (d). Error bars represent the SD. Statistical significance was tested by unpaired two-sided Student’s t-test (b–e). Data are representative of three independent experiments.

Full size image

To investigate the function of TRIM28 during CD8⁺ T cell activation, we generated Trim28^fl/flCd8a^cre mice, in which Trim28 was specifically deleted in mature CD8⁺ T cells (hereafter as Trim28^-/- mice). Although it was previously reported that Trim28 deficiency in T cells resulted in reduced numbers of T cells in the peripheral³⁵, peripheral CD8⁺ T cell-specific deletion of Trim28 had no apparent effect on the development of T cells in both thymus and peripheral (Supplementary Fig. 2c). We then evaluated the impact of Trim28 deficiency on CD8⁺ T cell activation. Naive CD8⁺ T cells were isolated from Trim28^fl/fl and Trim28^-/- mice and activated with anti-CD3 plus anti-CD28 for 3 days in vitro. Trim28 ablation led to reduced IFN-γ, TNF-α and Granzyme B expression after CD8⁺ T cell activation (Fig. 2c, Supplementary Fig. 2e), which indicated that Trim28 deficiency impaired effector differentiation of CD8⁺ T cells. Transcription factor T-bet is critical in controlling the expression of genes encoding effector molecules in activated CD8⁺ T cells³⁶. Notably, T-bet expression was decreased in activated Trim28^-/- CD8⁺ T cells, compared with wild-type controls (Fig. 2d). Further studies showed that loss of Trim28 also reduced mRNA levels of the Ifng, Gzmb, Tnfa, Il2, Il2ra and Tbx21 genes (Fig. 2e).

To globally analyze the genes regulated by TRIM28, we performed RNA-seq analysis of Trim28^fl/fl vs Trim28^-/- CD8⁺ T cells activated in vitro as above (Supplementary Fig. 2f). Expression of 1190 genes was reduced, while that of 1412 genes elevated by the deficiency of Trim28 (Fig. 2f). Via GO pathway analysis, we characterized the immunological programs regulated by TRIM28. The top listed pathways of the downregulated genes included T cell activation, positive regulation of cytokine production and cytokine-mediated signaling pathway. Meanwhile, the top listed pathways of upregulated genes in Trim28-deficient T cells were DNA replication, DNA repair and catalytic activity pathways (Fig. 2g). Specifically, the mRNA expression of numerous T cell activation-related surface molecules (Icos, Entpd1, Cx3cr1 and etc.), cytotoxicity molecules (Ifng, Gzmb, Il2, Gzmk and etc.) and transcriptional factors (Tbx21, Prdm1, Id2 and etc.) were significantly downregulated, while the expression of naive CD8⁺ T cell-associated surface molecules (Ccr7, Slamf6, Btla and etc.) and transcriptional factors (Id3, Tcf7 and etc.) were increased in activated Trim28^-/- than control CD8⁺ T cells (Fig. 2h). The expression of T cell activation markers like CD25, ICOS and CD69 were decreased in activated Trim28^-/- CD8⁺ T cells at the protein level (Supplementary Fig. 2g-i). Consistent with the above flow cytometric results, GSEA analyses revealed that activated Trim28^-/- CD8⁺ T cells were more transcriptionally related to naive CD8⁺ T cells (Fig. 2i). Trim28 ablation also dramatically inhibited the proliferation of activated CD8⁺ T cells in vitro (Supplementary Fig. 2j). Meanwhile, the percentages of apoptotic cells in Trim28^-/- CD8⁺ T cells were significantly increased (Supplementary Fig. 2k), resulting in reduced numbers of live CD8⁺ T cells, as compared to activated WT CD8⁺ T cells (Supplementary Fig. 2l). Taken together, these results indicated TRIM28 is a crucial positive regulator of CD8⁺ T cell activation in vitro.

Naive CD8⁺ T cells activated in draining lymph node migrate to tumors and infected organs to exert effector functions³⁷. To further identify the roles of TRIM28 in regulating the functions of CD8⁺ T cells in vivo, we inoculated Trim28^fl/flCd8a^Cre mice and Trim28^fl/fl mice with E.G7 tumor cells. Trim28 deficiency resulted in enhanced growth of E.G7 tumors (Fig. 3a, Supplementary Fig. 3a). As a result of Trim28 deficiency, the frequencies and numbers of CD8⁺ T cells were decreased in tumors (Supplementary Fig. 3b). More importantly, the frequencies of antigen-specific CD8⁺ TILs were significantly reduced in E.G7-bearing Trim28^-/- mice (Fig. 3b). In addition, the cytotoxic function of Trim28^-/- CD8⁺ TILs, compared with wild-type counterparts, was dramatically reduced as indicated by decreased expression of IFN-γ (Fig. 3c), Granzyme B (Fig. 3d) and TNF-α (Supplementary Fig. 3c) in E.G7 tumor model. Previous studies found that transcription factors T-bet³⁸ and TOX³⁹ regulate CD8⁺ T cell function in tumors. Trim28 deficiency also inhibited the expression of T-bet (Fig. 3e) and TOX (Supplementary Fig. 3d) in CD8⁺ TILs. In the tumor-draining lymph nodes (TDLNs), IFN-γ production was also significantly defective in Trim28^-/- CD8⁺ T cells (Supplementary Fig. 3e).

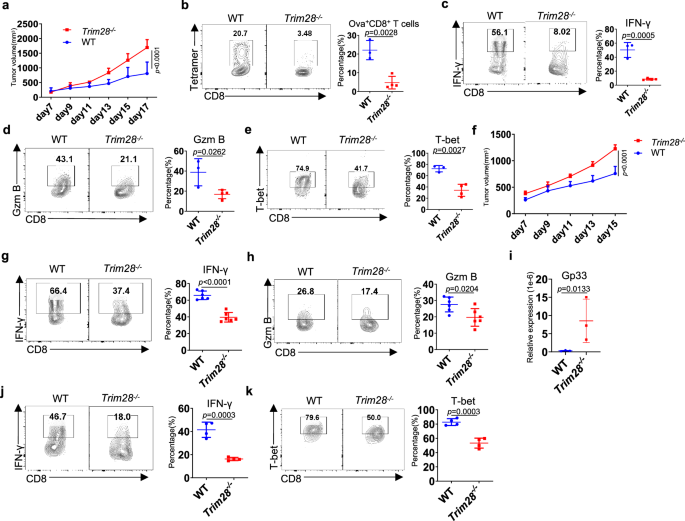

a–e Trim28^fl/flCd8a^Cre mice and control mice were inoculated with E.G7 tumor cells. Mice were ethically euthanized using carbon dioxide asphyxiation and analyzed at day 17 post inoculation. Mean tumor volume of intradermal E.G7 implants in WT versus Trim28^-/- mice (a). H-2K(b) tetramer⁺ CD8⁺ T cells among total CD8⁺ T cells (b). Flow cytometry analysis showing IFN-γ (c), Granzyme B (d) and T-bet (e) expression in CD8⁺ TILs. f–h naive Trim28^-/- and WT OT-I cells were sorted, and 1 million cells were i.v. transferred into CD45.1 mice. Recipient mice were inoculated with 1 × 10⁶ EG7 tumor cells at day 1 post transfer. Mice were ethically euthanized using carbon dioxide asphyxiation and analyzed at day 15 post inoculation. Mean tumor volume of intradermal E.G7 implants in WT OT-1 versus Trim28^-/- OT-1 group (f). Expression of IFN-γ (g) and Granzyme B (h) in CD8⁺ TILs. i–k Trim28^-/- and WT mice were infected i.v. with LCMV Armstrong (2 × 10⁵ pfu), and spleens were collected and analyze at day8 post infection. i.v., intravenous injection. i Viral loads were measured by qPCR. j Expression of IFN-γ by antigen-specific CD8⁺ T cells was measured. k Representative FACS plots showing T-bet expression in antigen-specific CD8⁺ T cells. Each dot represents one individual mouse (n  =  4 per group in a–e, j–k, n = 6 per group in (f–h). Error bars represent the SD. Statistical significance was tested by two-way ANOVA (a, f) and unpaired two-sided Student’s t-test (b–e, g–k). Data are representative of two (i-k) and three (a–h) independent experiments.

Full size image

To further confirm the roles of TRIM28 in antigen-specific CD8⁺ T cell activation in vivo, we crossed Trim28^fl/flCd8a^Cre mice with OT-I strain, and transfer equal numbers of naive OT-I cells from these and control Trim28^fl/fl OT-I mice into CD45.1 recipients inoculated with E.G7 tumors. Consistent with above results, enhanced growth of E.G7 tumors was observed in mice receiving Trim28-deficient OT-I cells (Fig. 3f). CD45.2 OT-I TIL frequencies among CD8⁺ TILs from E.G7 tumors were significantly decreased after Trim28 deficiency (Supplementary Fig. 3f). Importantly, the cytotoxic function of Trim28^-/- OT-I cells was dramatically reduced in tumors (Fig. 3g, h) These results demonstrated that TRIM28 plays a critical role in anti-tumor function of CD8⁺ T cells.

To also analyze Trim28-deficient T cells in a competitive setting, we co-transferred equal numbers of naive CD45.2 Trim28^-/- OT-I cells and CD45.1/2 Trim28^fl/fl OT-I cells into E.G7 tumor-bearing CD45.1 recipients. The frequencies of Trim28^-/- OT-I cells among total CD8⁺ TILs were dramatically reduced as compared to Trim28^fl/fl OT-I cells on day 15 post inoculation (Supplementary Fig. 3g). Consistent with above results, Trim28 deficiency resulted in impaired function of activated CD8⁺ T cells (Supplementary Fig. 3h, i). These results indicated that TRIM28 was intrinsically required for the cytotoxic function of antigen-specific CD8⁺ T cells in the context of cancer.

Activated CD8⁺ T cells are also important in clearance of viral infection besides anti-tumor function. Thus, control Trim28^fl/fl and Trim28^fl/flCd8a^Cre mice were infected with LCMV Armstrong virus. Firstly, virus clearance was reduced as a result of Trim28 deficiency (Fig. 3i). At day 8 post infection, the total numbers of CD8⁺ T cells were dramatically decreased in the infected spleens in the absence of Trim28, so did the antigen-specific activated CD8⁺ T cells (Supplementary Fig. 3j). Examining surface molecules related with T cell activation, the expression of CD44, CX3CR1 and KLRG1 was decreased in gp33-specific CD8⁺ T cells (Supplementary Fig. 3k). Meanwhile, the cytotoxic function of CD44⁺ gp33-specific Trim28^-/- CD8⁺ T cells were dramatically reduced as indicated by decreased production of IFN-γ (Fig. 3j) and Granzyme B (Supplementary Fig. 3k). Moreover, T-bet expression in CD44⁺ gp33-specific Trim28^-/- CD8⁺ T cells was significantly lower than in control CD8⁺ T cells (Fig. 3k).

Overall, these results indicated that Trim28 deficiency impaired the effector function of CD8⁺ T cells in both infection and tumor models.

TRIM28 regulates IL-2 production to promote CD8⁺ T cell activation

From above results, TRIM28 appears to have crucial roles during CD8⁺ T cell activation. We therefore investigated the underlying mechanisms. The top listed pathways of the downregulated genes in Trim28^-/- activated CD8⁺ T cells included positive regulation of cytokine production and cytokine-mediated signaling pathway. Multiple cytokines have been implicated in promoting CD8⁺ T cell activation like IL-2, IL-12, IL-15 and etc⁴⁰. However, since there were only CD8⁺ T cells in our culture system, we speculated TRIM28 may promote CD8⁺ T cell activation through regulating IL-2 production. Thus, to test this hypothesis, we first analyzed IL-2 cytokine production in the absence of Trim28. The expression of IL-2 was significantly decreased in activated Trim28^-/- CD8⁺ T cells, compared with WT cells (Fig. 4a). Then, to test if IL-2 deficiency played a critical role in Trim28^-/- CD8⁺ T cells, we cultured WT and Trim28^-/- naive CD8⁺ T cells with or without IL-2 during stimulation with anti-CD3 and anti-CD28 for 3 days in vitro. Trim28^-/- activated CD8⁺ T cells cultured with IL-2 expressed comparable cytotoxic molecules as WT CD8⁺ T cells without IL-2; adding IL-2 rescued the expression of IFN-γ (Fig. 4b), Granzyme B (Supplementary Fig. 4a) and TNF-α (Supplementary Fig. 4b) in Trim28^-/- CD8⁺ T cells. Trim28^-/- CD8⁺ T cells cultured with IL-2 expressed comparable levels of T-bet and CD25 (Supplementary Fig. 4b) molecules compared with WT CD8⁺ T cells without IL-2. Consistent with the above flow cytometric results, qPCR analysis indicated that IL-2 treatment could rescue the phenotypes of Trim28 deficiency (Supplementary Fig. 4c). To investigate whether a reduction in IL-2 expression occured in TRIM28-deficient CD8⁺ T cells in vivo, we infected Trim28^fl/flCd8a^Cre mice and their littermate Trim28^fl/fl mice with LCMV Armstrong virus. The percentages of IL-2-producing gp33-specific CD8⁺ T cells in spleens were significantly decreased by Trim28 deletion (Fig. 4c). Next, we tested whether administration of IL-2 could rescue phenotypes of Trim28 deficiency in vivo. Trim28^fl/flCd8a^Cre mice and their littermate Trim28^fl/fl mice were infected with LCMV Armstrong virus. Then, they were intraperitoneally injected with or without mIL-2 (10 μg per mouse) every two days starting from day 1. Trim28^-/- CD8⁺ T cells in IL-2 treatment group expressed comparable CD44 (Supplementary Fig. 4d) and ICOS (Supplementary Fig. 4e) as WT CD8⁺ T cells without IL-2 treatment. Administration of IL-2 rescued the expression of IFN-γ in Trim28^-/- gp33-specific CD8⁺ T cells (Fig. 4d). These results indicated that administration of IL-2 could rescue the defects of Trim28^-/- CD8⁺ T cells in LCMV Armstrong infection.

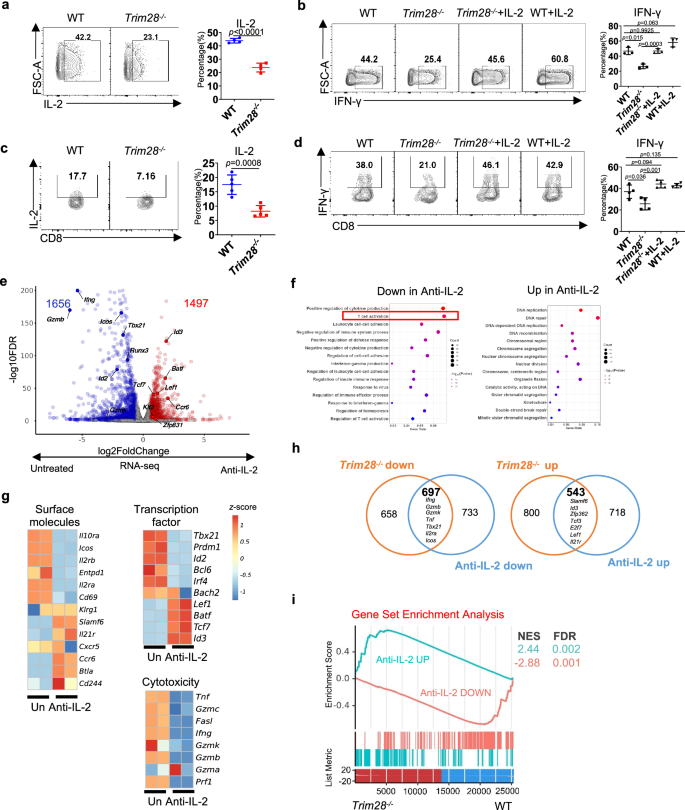

a Naive CD8⁺ T cells from WT and Trim28^-/- mice were cultured under anti-CD3/28 stimulation for 3 days. Expression of IL-2 was analyzed by flow cytometry. b Naive CD8⁺ T cells from WT and Trim28^-/- mice were cultured with or without IL-2 under anti-CD3/28 stimulation for 3 days. Representative FACS plot showing IFN-γ expression. c Trim28^fl/flCd8a^Cre mice and their littermate Trim28^fl/fl mice were infected with LCMV Armstrong virus. IL-2 production by antigen-specific CD8⁺ T cells in spleens was measured. d LCMV Armstrong infected-Trim28^fl/flCd8a^Cre mice and their littermate Trim28^fl/fl mice were intraperitoneally injected with or without mIL-2 (10 μg per mouse) every two days starting from day 1. Expression of IFN-γ by antigen-specific CD8⁺ T cells in different groups was measured. e–i Naive CD8⁺ T cells from WT and Trim28^-/- mice were cultured with or without anti-IL-2 under anti-CD3/28 stimulation for 3 days. RNA-seq was conducted after a 3-day culture. e Volcano plot shows transcriptome differences between untreated and anti-IL-2 treated activated CD8⁺ T cells. f Genes regulated by anti-IL-2 treatment were extracted followed by analysis of and top enriched pathways. g Heatmaps illustrating the relative expression of T cell activation signature genes in untreated and anti-IL-2 treated activated CD8⁺ T cells. h Venn plot of overlapped genes which were upregulated and downregulated by Trim28^-/- activated CD8⁺ T cells and anti-IL-2 treated activated CD8⁺ T cells. i GSEA enrichment of signature genes regulated by anti-IL-2 treatment in the transcriptome of CD8⁺ T cells from Trim28^fl/flCd8a^Cre mice. Each dot represents one individual replicate (n = 3 per group in (a, b). Each dot represents one individual mouse (n = 5 per group in c, n = 4 per group in (d). Statistical significance was tested by unpaired two-sided Student’s t-test (a–d). Data are representative of two (c, d) and three (a, b) independent experiments.

Full size image

To further confirm that Trim28 deficiency impaired CD8⁺ T cell activation through downregulating IL-2 production, we isolated naive CD8⁺ T cells from WT and Trim28^-/- mice and conducted T-cell activation with or without anti-IL-2 for 3 days in vitro. Anti-IL-2 treatment impaired WT CD8⁺ T cell activation as indicated by reduced expression of IFN-γ (Supplementary Fig. 4f), Granzyme B, TNF-α and T-bet (Supplementary Fig. 4g), similar as Trim28-deficient T cells.

To globally analyze the genes regulated by IL-2 we performed RNA-seq analysis of untreated vs anti-IL-2-treated CD8⁺ T cells in the presence of anti-CD3 and anti-CD28 for 3 days in vitro (Supplementary Fig. 4h). Expression of 1656 genes was reduced in anti-IL-2-treated CD8⁺ T cells, while that of 1497 genes elevated (Fig. 4e). GO pathway analysis revealed that the gene expression programs following anti-IL-2 treatment were similar to those of Trim28 deficiency (Figs. 4f, 2g). More importantly, mRNA expression of numerous CD8⁺ T cell activation-related surface molecules (Icos, Entpd1, Cd69 and etc.), cytotoxicity molecules (Ifng, Gzmb, Gzmk and etc.) and transcriptional factors (Tbx21, Prdm1, Id2 and etc.) was significantly downregulated (Fig. 4g). The above results indicated that anti-IL-2 treatment mimicked Trim28 deficiency, so we overlapped genes downregulated due to Trim28 deficiency together with those in anti-IL-2-treated activated CD8⁺ T cells and extracted a list of 697 genes, including many well-known CD8⁺ T cell activation signature genes, such as Ifng, Gzmb, Tbx21, Il2ra and Icos (Fig. 4h). The overlapped upregulated genes included naive CD8⁺ T cell signature genes like Tcf3, Slamf6 and Id3 (Fig. 4h). Consistent with the above results, GSEA analyses revealed that the transcriptome of anti-IL-2-treated CD8⁺ T cells were relatively more similar with activated Trim28^-/- CD8⁺ T cells, which further indicated Trim28 deficiency impaired CD8⁺ T cell activation via limiting IL-2 expression (Fig. 4i).

The interaction of IL-2 and IL-2 receptor activates STAT5 transcription factor, and then STAT5 can regulate expression of genes associated with T cell activation⁴¹. To confirm that IL-2 signaling is required for CD8⁺ T cell function, we isolated naive CD8⁺ T cells from WT, Trim28^-/- and Il2ra^-/- mice and conducted T-cell activation in vitro. We found that Trim28 or Il2ra deficiency both impaired the expression of IFN-γ (Supplementary Fig. 4i), Granzyme B and TNF-α (Supplementary Fig. 4j). In addition, phosphorylation of STAT5 was also found to be inhibited in Trim28^-/- CD8⁺ T cells (Supplementary Fig. 4k). Similarly, treatment with a STAT5 inhibitor reduced the expression of IFN-γ, similar to Trim28 deficiency (Supplementary Fig. 4l).

Overall, the above results indicated that TRIM28 regulates CD8⁺ T cell activation via IL-2 production.

TRIM28 regulates the chromatin accessibility and spatial structure during CD8⁺ T cell activation

TRIM28 was previously identified as a co-regulator to recruit chromatin modifiers to regulate gene expression^29,30. We further explored whether TRIM28 regulates the chromatin accessibility during CD8⁺ T cell activation, using ATAC-seq (Supplementary Fig. 5a). In naive CD8⁺ T cells, Trim28 deficiency did not significantly alter chromatin accessibility, consistent with its low expression in naive T cells. Only 39 chromatin regions (0.18%) were altered in naive Trim28^-/- CD8⁺ T cell (Fig. 5a). No obvious change in chromatin accessibility was observed in the promoter regions of Il2, Tbx21, Ifng and Gzmb in naive Trim28^-/- CD8⁺ T cells compared with naive WT cells. In activated CD8⁺ T cells, however, ablation of Trim28 significantly altered the chromatin accessibility. We examined 46,788 chromatin accessible regions across all conditions and searched for chromatin accessible regions that were differentially accessible (Fig. 5b). Overall, in activated Trim28^-/- CD8⁺ T cells, 1065 (2.3%) chromatin regions exhibited reduced accessibility than in activated WT CD8⁺ T cells, whereas 132 (0.28%) chromatin regions were more accessible (Fig. 5b). 6.2% of differentially accessible chromatin regions between naive WT and activated WT CD8⁺ T cells were differentially accessible after TRIM28 deficiency. Il2, Ifng and Gzmb gene loci showed decreased accessibility in activated Trim28^-/- CD8⁺ T cells (Fig. 5b, c). naive CD8⁺ T cell signature genes, such as Icosl, Cxcr5, Ccr7 and Tcf7, showed increased accessibility by Trim28 deficiency (Fig. 5b, Supplementary Fig. 5b). Genome-wide AP-1, JunB and BATF binding was predicted to be impaired in the absence of Trim28 (Supplementary Fig. 5c). Importantly, peak set enrichment analysis (PSEA) revealed that the epigenetic signatures of naive CD8⁺ T cells were strongly associated with activated Trim28^-/- CD8⁺ T cells (Fig. 5d). Thus, these results indicated that TRIM28 is crucial in shaping the chromatin accessibility associated with CD8⁺ T cell activation.

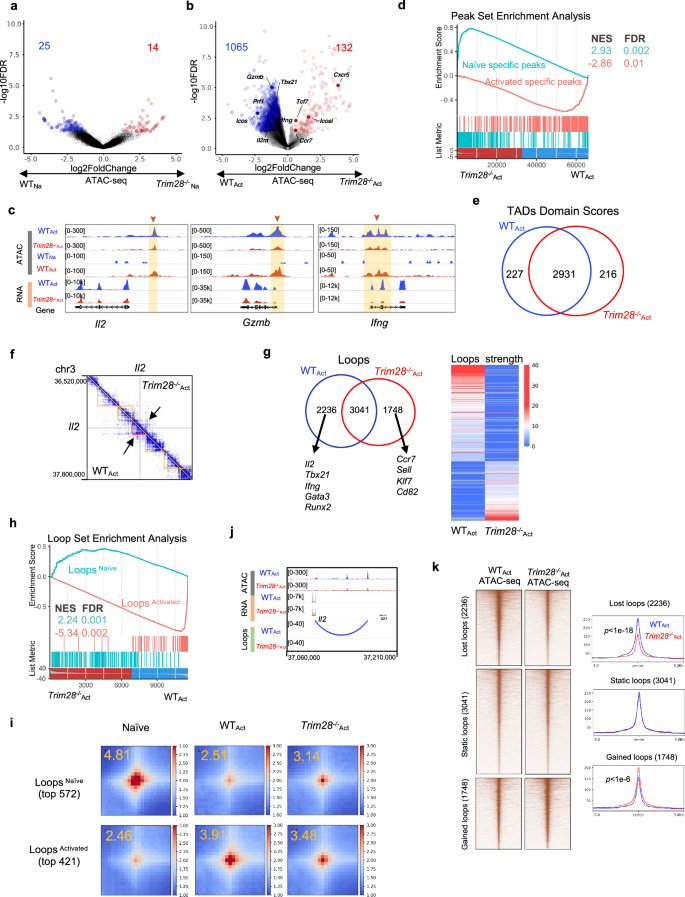

a Volcano plot comparing chromatin accessibility of naive Trim28^-/- CD8⁺ T cells (Trim28^-/- _Na) VS naive WT CD8⁺ T cells (WT_Na). The X-axis was the Fold change (log₂) of Trim28^-/- versus WT. Every sample has two replicates. b Volcano plot comparing chromatin accessibility of activated Trim28^-/- CD8⁺ T cells (Trim28^-/- _Act) VS activated WT CD8⁺ T cells (WT_Act). The X-axis was the Fold change (log₂) of Trim28^-/- versus WT. Every sample has two replicates. c Mean ATAC-seq coverage at the Il2, Gzmb and Ifng genes. d Chromatin regions specifically accessibility in naive WT CD8⁺ T cells (blue) and activated WT CD8⁺ T cells (red) were analyzed for enrichment in the activated Trim28^-/- CD8⁺ T cells versus activated WT CD8⁺ T cells by peak set enrichment analysis (PSEA). e Venn diagram of TADs of activated WT and activated Trim28^-/- CD8⁺ T cells based on ___domain scores. TADs, topologically associating domains. Two replicates were analyzed separately to assess consistency, and results were then combined. Details see methods. f Hi-C interaction matrix of the regions in activated WT and activated Trim28^-/- CD8⁺ T cells around the Il2 gene. g Venn diagram of chromatin loops of activated WT and activated Trim28^-/- CD8⁺ T cells (left). Heatmap of loop strength difference (right). Two replicates were analyzed separately to assess consistency, and the results were then combined. For details see methods. h Chromatin specifically loops in naive WT (blue) and activated WT CD8⁺ T cells (red) were analyzed for enrichment in the activated Trim28^-/- CD8⁺ T cells VS activated WT CD8⁺ T cells by loop set enrichment analysis (LSEA). i APA (aggregate peak analysis) plot for the selected Loops^naive and selected Loops^Activated (loop strength > 30) in naive, activated WT and activated Trim28^-/- CD8⁺ T cells. j Genome browser view of chromatin accessibility, gene expression and 3D genome interactions around the Il2 gene in activated WT and activated Trim28^-/- CD8⁺ T cells. k Heatmaps displaying chromatin accessibility of loop anchors of three types of loops in activated WT and activated Trim28^-/- CD8⁺ T cells. Statistical significance was tested by unpaired two-tailed Student’s t test (i) and Chi-squared test (k).

Full size image

To examine whether Trim28 deficiency influences the 3D genome structure in addition to chromatin accessibility during CD8⁺ T cell activation, we sorted naive CD8⁺ T cells from Trim28^fl/fl and Trim28^-/- mice and treated them with anti-CD3 and anti-CD28 for 3 days in vitro. Then Hi-C assay of naive and activated CD8⁺ T cell was performed. High quality interaction maps of activated WT and Trim28^-/- CD8⁺ T cells were obtained and investigated (Supplementary Fig. 5d). In activated WT CD8⁺ T cells, 46% genomic regions were identified as compartment A, and 54% genomic regions were identified as compartment B. Most genomic regions (97%) remained in the same compartments in activated Trim28^-/- CD8⁺ T cells compared with those in activated WT cells (Supplementary Fig. 5e). A total of 1.7% of genomic regions switched from compartment A in activated WT CD8⁺ T cells to compartment B in Trim28^-/- cells. 1.3% of genomic regions exhibited the opposite switch from compartment B in activated WT CD8⁺ T cells to compartment A in activated Trim28^-/- CD8⁺ T cells (Supplementary Fig. 5e). During CD8⁺ T cell activation, 11% of the compartment switching from A to B and 15% of compartment switching from B to A were dependent on TRIM28 (Supplementary Fig. 5e). In terms of interactions between compartments, activated Trim28^-/- CD8⁺ T cells possessed more intra-B compartment and inter-compartment enrichment compared with activated WT CD8⁺ T cells (Supplementary Fig. 5f).

Next, we identified 2501 TADs in activated WT CD8⁺ T cells and 2753 TADs in Trim28^-/- cells. Most (75%) of the boundaries of TADs were unchanged in activated WT and Trim28^-/- CD8⁺ T cells (Supplementary Fig. 5g). In activated Trim28^-/- CD8⁺ T cells, TADs^naive had increased ___domain scores and TADs^Activated had decreased ___domain scores (Supplementary Fig. 5h). Comparing activated Trim28^-/- with activated WT CD8⁺ T cells, there were 1060 genes located in 227 TADs with increased ___domain scores, such as Sell, Ccr7 and Tcf7, and 597 genes located in 216 TADs with decreased ___domain scores, such as Il2, Tbx21 and Ifng (Fig. 5e, f, Supplementary Fig. 5h). The ___domain score of the TAD where Il2 is located was decreased by 38% in activated Trim28^-/- compared with activated WT CD8⁺ T cells (Fig. 5f). Similarly, the ___domain scores of the TADs where Tbx21 and Ifng are located were decreased after Trim28 deficiency (Supplementary Fig. 5i). On the contrary, the ___domain score of the TAD where Ccr7 is located was increased in Trim28^-/- activated CD8⁺ T cells (Supplementary Fig. 5i).

We identified 2236 unique chromosomal loops, defined as lost loops, in activated WT CD8⁺ T cells and 1748 in Trim28^-/- T cells, defined as gained loops, with 3041 in both lists which were defined as static loops (Fig. 5g). Globally, loop set enrichment analysis (LSEA) revealed that the epigenetic signatures (572 loops) of naive CD8⁺ T cells were strongly enriched in activated Trim28^-/- CD8⁺ T cells, based on the Hi-C data (Fig. 5h). During CD8⁺ T cell activation, 47% of Loops^Activated and 5% of Loops^naive were dependent on TRIM28. The APA enrichment score of Loops^naive in activated Trim28^-/- CD8⁺ T cells was higher than that in activated WT cells, whereas the APA enrichment score of Loops^Activated in activated Trim28^-/- CD8⁺ T cells was lower than that in activated WT cells (Fig. 5i), which indicated that Trim28 may mediate the chromatin loops associated with T cell activation. 536 genes located in the lost loop anchor regions in activated Trim28^-/- CD8⁺ T cells, such as Ifng, Tbx21, Fli1, Slamf7, Ccnd2 and Cdc6, were enriched in the pathways in regulation of T cell activation and cell cycles by GO terms. 317 genes located in the gained loop anchor regions in activated Trim28^-/- CD8⁺ T cells, such as Myc, Rif1, Cbx7, Msl3 and Suz12 were enriched in pathways of chromatin organization and chromatin modifying enzymes (Supplementary Fig. 6a).

The above results have indicated that TRIM28 was necessary for the chromosomal looping associated with T cell activation and function in CD8⁺ T cells. Specifically, in activated WT CD8⁺ T cells, there was a significant loop (78 kb) between the Il2 promoter and an upstream chromatin accessible region (442 bp, Fig. 5j). However, this loop disappeared in activated Trim28^-/- CD8⁺ T cells (Fig. 5k). The 3C experiments showed that the interaction strength of this loop was decreased significantly after Trim28 deficiency in activated CD8⁺ T cells, suggesting our Hi-C results were reliable (Supplementary Fig. 6b–d). Similarly, the loop strengths of the loops where Tbx21 and Ifng are located were decreased in the absence of Trim28 (Supplementary Fig. 6e). On the contrary, the loop strength of the loops where Ccr7 is located was increased in activated Trim28^-/- CD8⁺ T cells (Supplementary Fig. 6e). Moreover, the loops strengths where the 358 T-cell activation genes³⁴ are located were decreased in activated Trim28^-/- CD8⁺ T cells (Supplementary Fig. 6f). These results indicated a key role for TRIM28 in 3D genome re-organization associated with CD8⁺ T cell activation. At the same time, these changes in the 3D structure of chromatin were also accompanied by changes in chromatin accessibility. We also examined the accessibility of loop anchors. The chromatin accessibilities of lost loop anchors were decreased while the chromatin accessibilities of gained loop anchors increased in activated Trim28^-/- CD8⁺ T cells (Fig. 5k).

Taken together, these results indicate that TRIM28 is required for reconfiguration of the chromatin accessibility and spatial structure during CD8⁺ T cell activation.

TRIM28 and CTCF are co-localized at the signature genes of T cell activation

To investigate the mechanism by which TRIM28 regulates the target genes, we performed chromatin immunoprecipitation-coupled with high-throughput sequencing (ChIP-seq) analysis using in vitro activated CD8⁺ T cells to determine the genome-wide occupancy of TRIM28. Results showed that TRIM28 binding was mainly enriched in the promoter (19% of TRIM28 binding peaks vs. 2% of the mouse whole genome, 3 kb upstream and downstream of the transcription start site) and intron regions (31% vs. 20% of the mouse whole genome) (Fig. 6a). Comparison of TRIM28-bound with TRIM28-regulated genes revealed that 2158 out of 8262 TRIM28-bound genes were transcriptionally regulated by TRIM28, including Ifng, Icos, Tbx21, Tcf7, Lef1 and Il2 (Supplementary Fig. 7a). 1197 peaks were differentially accessible between activated WT and activated Trim28^-/- CD8⁺ T cells (Fig. 5b). 34.5% of differentially accessible chromatin regions were bound by TRIM28, such as Ifng, Tbx21 and Il2 (Supplementary Fig. 7b). Specifically, TRIM28 binding was identified in the promoter and/or intron regions of the Ifng, Tbx21 and Il2 genes (Supplementary Fig. 7c).

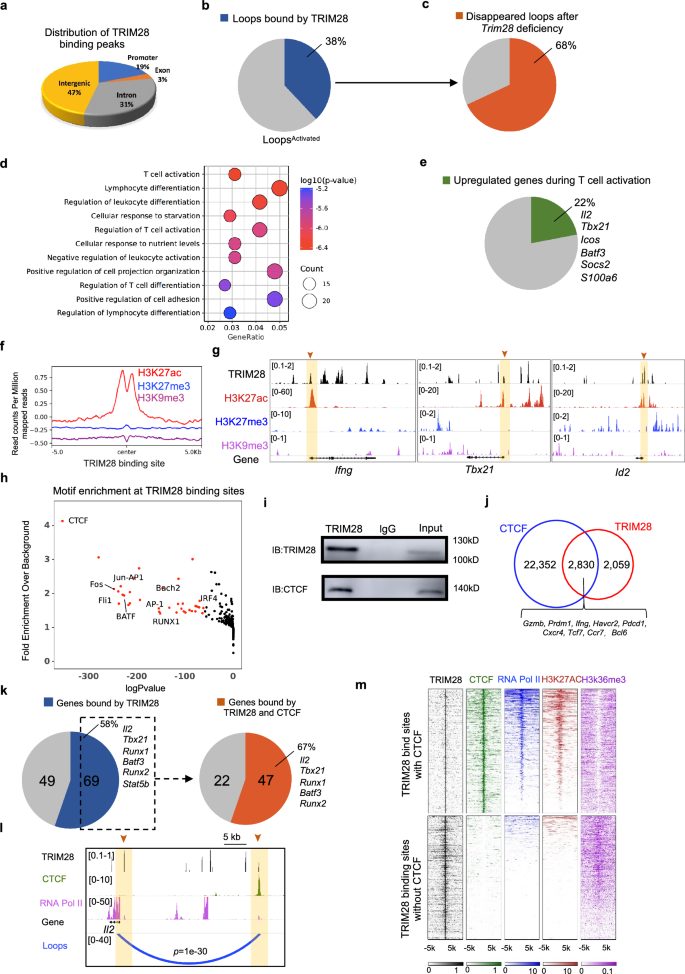

a Distribution of TRIM28 binding peaks in activated WT CD8⁺ T cells. b Proportions of loops^Activated occupied by TRIM28 in activated CD8⁺ T cell. c Proportions of loops disappeared after Trim28 deficiency in the loops^Activated bound by TRIM28. d Gene ontology enrichment analysis for the 530 genes located in the anchor regions of the loops in (c). e Proportions of upregulated genes during CD8⁺ T cell activation in the 530 genes located in the anchor regions of the loops in (c). f Aggregate plot of H3K27ac, H3K27me3 and H3K9me3 modification at ± 5.0 Kb in CD8⁺ T cells of the TRIM28 binding sites in activated WT CD8⁺ T cells. g Genome browser views showing TRIM28 binding sites and histone modifications around Ifng, Tbx21 and Id2 in activated WT CD8⁺ T cells determined using ChIP-seq data. h Motif enrichment analysis in the TRIM28 binding sites. i Co-immunoprecipitation (IP) of CTCF by an anti-TRIM28 antibody in the activated WT CD8⁺ T cells. j Venn diagram showing the overlap between CTCF peaks (blue) and TRIM28 peaks (red) in activated WT CD8⁺ T cells. k Proportions of WT_Na. vs. WT_Act specific genes occupied by TRIM28 in activated state (left). Proportions of WT_Na. vs. WT_Act specific genes both occupied by TRIM28 and CTCF in activated state (right). l Genome browser view of TRIM28, CTCF, RNA PII binging signals and 3D genome interactions around the Il2 gene in activated WT CD8⁺ T cells. m Heatmap displaying TRIM28, CTCF, H3K27ac and RNA PII at TRIM28 binding sites in activated WT CD8⁺ T cells using ChIP-seq and CUT&Tag data. The upper panel showed the TRIM28 binding sites with CTCF in activated WT CD8⁺ T cells. The lower panel showed the TRIM28 binding sites without CTCF in activated WT CD8⁺ T cells. Statistical significance was tested by Chi-squared test (b), unpaired two-tailed Student’s t test (c) and hypergeometric test (j). Data are representative of two (i) independent experiments.

Full size image

The accessibilities of most TRIM28 binding sites were decreased in activated Trim28^-/- CD8⁺ T cells compared to WT cells (Supplementary Fig. 7d). 38% (543) of Loops^Activated were bound by TRIM28, 68 % (371) of which disappeared after Trim28 deficiency in activated state (Fig. 6b, c). 530 genes located in the 371 TRIM28 dependent loops, were enriched in GO terms related to T cell activation and regulation of T cell activation (Fig. 6d). Moreover, the expression of 115 genes in the 530 genes were significantly upregulated (fold change > 2, p-value < 1e-3) during CD8⁺ T cell activation, such as Il2, Tbx21, Icos, Batf3 (Fig. 6e).

TRIM28 was widely regarded as a co-repressor through associating with the H3K9me3-writer SETDB1/ESET and histone deacetylation complex NuRD to form heterochromatin^42,43. However, TRIM28 was also previously reported as a positive regulator in Th17 cells²⁵. Then we performed H3K27ac ChIP-seq in activated WT and activated Trim28^-/- CD8⁺ T cells. There were 7013 H3K27ac-associated sites in activated Trim28^-/- CD8⁺ T cells but 4598 in WT cells (Supplementary Fig. 7e). Trim28 deficiency resulted in reduction of H3K27ac signals in many T cell activation-related genes, such as Ifng, Gzmb and Id2 implicating that TRIM28 promotes CD8⁺ T cell activation (Supplementary Fig. 7e). Specifically, H3K27ac ChIP-qPCR results showed that the presence of H3K27ac at the Ifng, Gzmb and Id2 genes was significantly reduced after Trim28 deficiency (Supplementary Fig.7f). TRIM28 binding peaks were largely co-localized with H3K27ac marks, but not with repressive H3K27me3⁴⁴ and H3K9me3⁴⁵ marks in CD8⁺ T cells (Fig. 6f). Specifically, TRIM28 binding was identified in the promoter and/or intron regions of the Ifng, Tbx21 and Id2 genes, which were largely co-localized with active histone modifications in effector CD8⁺ T cells⁴⁴ (Fig. 6g). We also found that the accessibility and active histone modifications at these locations were reduced in the absence of Trim28 (Supplementary Fig. 7g). These results suggest that TRIM28 may positively regulate gene transcription via binding to enhancers. Moreover, we found that the H3K27ac modification at lost loop anchors were decreased while the H3K27ac modification of gained loop anchors increased in activated Trim28^-/- CD8⁺ T cells, compared with WT cells (Supplementary Fig. 7h and i). This indicates that the changes in the 3D structure of chromatin also corelated with the changes in H3K27ac modification. Furthermore, a significant decrease in H3K27ac modification at CD8⁺ T cell-specific enhancers was observed in the absence of TRIM28, especially those occupied by TRIM28 (Supplementary Fig. 7j and k). This suggests that CD8⁺ T cell-specific enhancers may be positively regulated by TRIM28.

T cell activation-related TFs, such as Fos, Fli1 and BATF exhibited increased binding to TRIM28-occupied sites in activated CD8⁺ T cells (Fig. 6h). However, CTCF showed the highest correlation. This result suggested that TRIM28 may be directly involved in the regulation of chromatin spatial structure, as CTCF is the master regulator of 3D genome organization⁴. Co-IP experiment further validated the interaction of TRIM28 and CTCF in activated CD8⁺ T cells (Fig. 6i). To investigate whether TRIM28 cooperates with CTCF to regulate target genes through 3D genome, we performed CTCF CUT&Tag experiment to evaluate the co-localization of TRIM28 and CTCF. There was a significant overlap between the CTCF and TRIM28 occupancy in the genome of activated CD8⁺ T cells, as shown by Venn diagram (Fig. 6j). We analyzed the proportions of T cell activation genes in differentially regulated loops after TRIM28 deficiency in activated T cells. 33% T cell activation signature genes were located in lost loops after TRIM28 deficiency, among which 58% had TRIM28 binding sites (Fig. 6k), indicative of direct regulation by TRIM28. Moreover, 67% TRIM28 bound-T cell activation signature genes were also occupied by CTCF (Fig. 6k). For example, the binding of TRIM28 and CTCF was co-localized in the Il2 gene (Fig. 6l). We then divided genome-wide TRIM28-bound regions into two categories: co-localized with CTCF (cluster 1) and not (cluster 2). There were 2145 genes in cluster 1 such as Il2 Tcf7, Icos, Foxo3, Tbx21, Havcr2 and Tigit, which are related to T cell activation and IL-2 signaling pathways. 1834 genes were in cluster 2 such as Atf1, Creb1, Map2k4, Map3k8, Tab2, Gata3, Il4 and Card11 enriched in MAP kinase activation and T cell selection pathways (Supplementary Fig. 7l). Previous studies reported that TRIM28 could interact with RNA polymerase (Pol) II to regulate gene expression³². RNA Pol II could cooperate with CTCF to arrange the spatial organization for coordinated transcription⁴⁶. We found TRIM28-associated sites in Cluster 1 genes correlated with RNA Pol II binding⁴⁷ and H3K27ac modification. In contrast, cluster 2 genes were correlative with H3K36me3 modification⁴⁸, but not binding of RNA Pol II or H3K27ac marks (Fig. 6m, Supplementary Fig. 7m). This strongly indicates that TRIM28 binding in the Cluster 1 genes was involved in the transcriptional activation of genes and the regulation of chromatin spatial conformation. On the other hand, its binding in the Cluster 2 genes was mainly in the gene body regions and may be mainly involved in the transcriptional elongation regulation, consistent with a previous study³². At the same time, CTCF and TRIM28 co-localized sites had increased histone modification of H3K27ac and accessibilities, suggesting that TRIM28 and CTCF cooperate in positive regulation of gene transcription, possibly via 3D genome organization (Supplementary Fig. 7n).

TRIM28, CTCF, RNA Pol II and cohesin cooperate to shape chromosomal interactions during CD8⁺ T cell activation

The above results indicate that TRIM28 may positively regulate the transcription of T cell activation genes together with CTCF. To explore how TRIM28 regulates the expression of target genes by affecting the spatial structure of chromatin, we divided all chromatin loops into four categories according to the protein binding in the loop anchors region: CTCF_TRIM28_Loops, RNA Pol II_TRIM28_Loops, TRIM28_only_Loops and without_ TRIM28_Loops. The first three types of loops had significant reductions in loop strengths in activated Trim28^-/- CD8⁺ T cells compared with WT cells (Fig. 7a). This indicated that Trim28 deficiency significantly affected the formation of chromosomal loops, especially those mediated by CTCF and RNA Pol II. In Fig. 5h, we defined the loops that were lost, gained or static in activated CD8⁺ T cells after Trim28 deficiency. To explore whether TRIM28 was directly involved in chromatin looping, we investigated the binding signal of TRIM28 in the anchor regions of these three types of loops. The ChIP-seq data indicated that TRIM28 binding was more significant (p < 0.01, Chi-squared test) in the anchor regions of the lost loops than in the gained loops and static loops (Fig. 7b). 56% (1252) of lost loops had direct binding of TRIM28 in the anchor regions. (Fig. 7c).

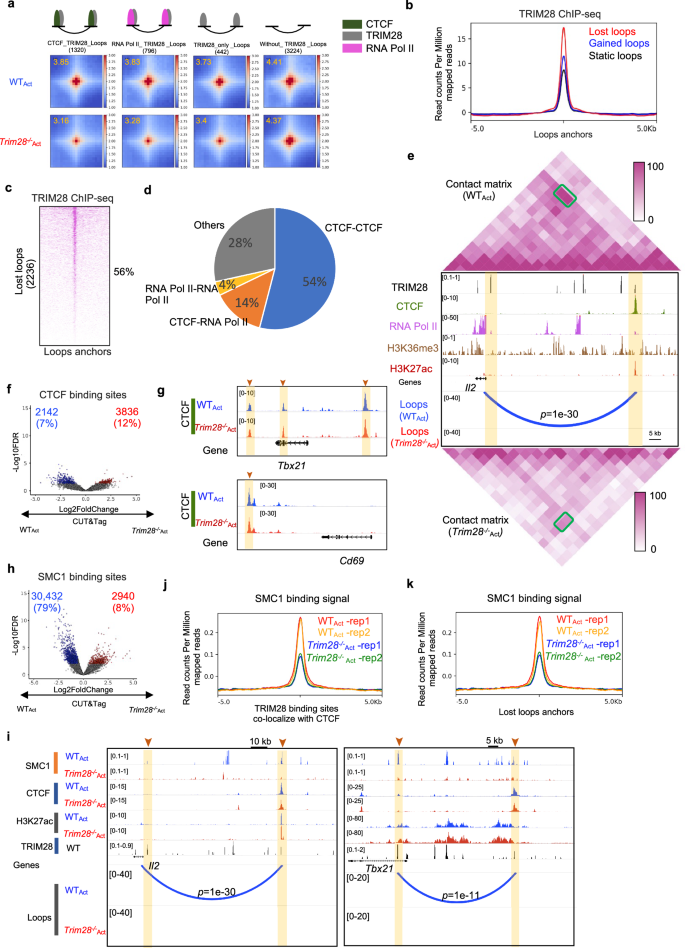

a APA plot showing the CTCF_TRIM28_Loops, RNA PII_TRIM28_Loops, TRIM28_only_Loops and without_TRIM28_Loops in activated WT and activated Trim28^-/- CD8⁺ T cells. b Aggregate plot showing TRIM28 binding signal at the loop anchors of lost, gain and static loops. c Heatmap displaying TRIM28 binding signal at the loop anchors of lost loops. d The percentage of different loop types in all lost loops in activated Trim28^-/- CD8⁺ T cells compared to activated WT cells. e Genome browser views showing TRIM28, CTCF, RNA PII binding sites, H3K27ac, H3K36me3 modification and 3D genome interactions around Il2 in activated WT and activated Trim28^-/- CD8⁺ T cells. f Volcano plot comparing binding signal of CTCF between activated Trim28^-/- CD8⁺ T cells VS WT CD8⁺ T cells. The X-axis was the Fold change (log₂) of activated Trim28^-/- versus activated WT. FDR ≤ 0.01 and FC ≥ 1.5. g Genome browser views showing CTCF binding signal around Tbx21 and Cd69 in activated WT and activated Trim28^-/- CD8⁺ T cells. h Volcano plot comparing binding signal of SMC1 between activated Trim28^-/- CD8⁺ T cells VS WT CD8⁺ T cells. The X-axis was the Fold change (log₂) of activated Trim28^-/- versus activated WT. FDR ≤ 0.01 and FC ≥ 1.5. i Genome browser views showing SMC1 CTCF, TRIM28 binding sites, H3K27ac, modification and 3D genome interactions around Il2 and Tbx21 in activated WT and activated Trim28^-/- CD8⁺ T cells. j Aggregate plot displaying SMC1 binding signal at the TRIM28 binding sites co-localize with CTCF in activated WT and activated Trim28^-/- CD8⁺ T cells. The binding of SMC1 at the binding sites of TRIM28 were significantly higher in activated WT CD8⁺ T cells than in Trim28^-/- cells (p < 1e-16). k Aggregate plot of SMC1 binding signal at the lost loops anchors in activated WT and activated Trim28^-/- CD8⁺ T cells. The binding of SMC1 at the lost loop anchor regions were significantly higher in activated WT CD8⁺ T cells than in Trim28^-/- cells (p < 1e-16). Statistical significance was tested by unpaired two-tailed Student’s t test (a) and Chi-squared test (b, j and k).

Full size image

Next, we divided these lost loops (2236) into four categories according to whether CTCF and RNA Pol II bound to the loop anchor regions (Fig. 7d). Among them, the loop where Il2 was located belonged to the CTCF-RNA Pol II group, whose length was about 78 kb (Fig. 7e). The loop anchor on the upstream side of this loop was the promoter of Il2 with significant occupancy by TRIM28 and RNA Pol II, while the downstream loop anchor was an enhancer, bound by both TRIM28 and CTCF and with H3K27ac marks (Fig. 7e). Pathway enrichment analysis showed that 583 genes located in CTCF-RNA Pol II loops were related to T cell activation, such as Tbx21 and Runx2 (Supplementary Fig. 8a, b). 1134 genes located in CTCF-CTCF loops were involved in T cell proliferation, such as Cxcr4, Socs3 and Ccl3 (Supplementary Fig. 8a, c). 175 genes located in RNA Pol II -RNA Pol II loops were involved in signaling by interleukins, such as Il7r and Ripk2 (Supplementary Fig. 8a, d).

However, a small subset of TRIM28-associated loops, which lacked CTCF and/or RNA Pol II binding (442 TRIM28_only loops in Fig. 7a), exhibited significant enrichment in the Trim28^-/-_Act contact map. This suggested that other proteins might be involved in regulating these loops. The anchor regions of TRIM28_only _Loops exhibited strong enrichment of T cell activation-related TFs, such as BATF, Fos and AP-1 (Supplementary Fig. 8e). BATF was reported to regulate the expression of genes associated with effector programs, such as Fos, Ctla4, Maf, Il12rb2 Hif1a, and Itga4 by facilitating the formation of chromatin loops around these genes in CD8⁺ T cells during acute infection⁴⁹. Genes associated with effector function including Icos, Ctla2b, Maf, Il12rb2 Hif1a, and Itga4 were located in the TRIM28_only _Loops. Further analysis showed that BATF was enriched in the chromatin accessibility regions within the loop anchor of TRIM28_only _Loops (Supplementary Fig. 8f). At the same time, there was a significant overlap between the BATF and TRIM28 occupancy at the TRIM28 binding sites within the loop anchor of TRIM28_only _Loops in activated WT CD8⁺ T cells, as shown by heatmap (Supplementary Fig. 8g). This suggests TRIM28 may cooperate with BATF to mediate loops formation to regulate the expression of genes associated with effector programs, but not those associated with T cell activation, since Batf deficiency did not affect these genes, IL-2 included, in their expression⁴⁹.

Previous studies reported CTCF and cohesin cooperate to mediate loops formation^3,4,6. Considering the close association of TRIM28 and CTCF, we firstly explored their recruitment mechanisms. Trim28 deficiency did not significantly affect the binding of CTCF in the whole genome (Fig. 7f, Supplementary Fig. 8h), such as at the Tbx21, Pdcd1 and Cd69 enhancer (Fig. 7g, Supplementary Fig. 8i). Next, we investigated whether CTCF recruit TRIM28. CTCF was knocked out in activated CD8⁺ T cells using CRISPR-Cas9 (Supplementary Fig. 8j). TRIM28 CUT&Tag experiment were performed in WT and CTCF-deficient CD8⁺ T cells. A significant decrease in TRIM28 binding signal at TRIM28 binding sites, especially those co-localized with CTCF (Supplementary Fig. 8k), such as in the promoter regions of Il2, Ifng, Tbx21 and Cd69 was observed in CTCF-deficient CD8⁺ T cells (Supplementary Fig. 8l). These results suggest that CTCF recruit TRIM28.

Previous studies reported that cohesin mediates the loops formation and promotes the loop strength^5,50,51,52. A decrease in cohesin binding results in the disappearance of the loops and the reduction in loop strength^5,50,51,52. Then, we explored the association between TRIM28 and cohesin. Co-IP experiments demonstrated that TRIM28 could form a complex with SMC1 a cohesin subunit, in activated CD8⁺ T cells (Supplementary Fig. 8m). Next, we performed CUT&Tag analysis with antibodies for SMC1 in activated WT and activated Trim28^-/- CD8⁺ T cells (Supplementary Fig. 8n). The binding of SMC1 was significantly reduced in the whole genome by Trim28 deficiency (Fig. 7h). Specifically, we found that SMC1 binding was significantly decreased at the Il2 and Tbx21 loci in the absence of Trim28 (Fig. 7i), which were identified by ChIP-qPCR (Supplementary Fig. 8o). Meanwhile, the chromatin loops where Il2 and Tbx21 are located disappeared after Trim28 deficiency (Fig. 7i). Therefore, the reduction in SMC1 binding resulting from Trim28 deletion has an impact on the loop strength. Moreover, we found cohesin and TRIM28 co-localized with CTCF (Fig. 7j, Supplementary Fig. 8p). Especially, the binding of SMC1 at the binding sites of TRIM28 and the lost loop anchor regions were significantly higher in activated WT CD8⁺ T cells than in activated Trim28^-/- cells (Fig. 7j, k), suggesting that TRIM28 may recruit cohesin and facilitate the binding of cohesin at the CTCF binding sites.

Taken together, TRIM28 acts as a mediator that together with CTCF, cohesin and RNA Pol II regulates chromosomal loop formation at genes related to T cell activation (Supplementary Fig. 9a).

In the current work, we described the 3D genome changes during CD8⁺ T cell activation and identified a crucial role of TRIM28 in regulating CD8⁺ T cell activation by mediating the accessibility and spatial structure of chromatin. Trim28 deficiency impaired CD8⁺ T cell activation in vitro and in vivo, which was mainly due to its regulation of IL-2 production. Mechanistically, TRIM28 regulated the transcription of target genes by cooperating with CTCF, RNA Pol II and cohesin to mediate the formation of chromatin loops.

Several transcription factors were reported to facilitate enhancer-promoter loop formation to regulate gene transcription in CD8⁺ T cells. Tcf1 and CTCF cooperatively shape genomic architecture to promote CD8⁺ T cell homeostasis⁵³. BATF-mediated epigenetic control of effector CD8⁺ T cell differentiation⁴⁹. However, these studies mainly investigated the chromatin interactions mediated by specific transcription factors, whereas 3D chromatin conformation at the genome levels during CD8⁺ T cell activation has not been systematically illustrated. In this study, we found that activated CD8⁺ T cells had significant changes in the 3D genome and chromatin accessibility. During CD8⁺ T cell activation, 6.9% A/B compartments, 24% TADs, and 85% loops were reorganized. These changes in the 3D genome were closely related to the transcription of T cell activation genes, such as Il2, Ifng and Tbx21. Furthermore, our analysis of Trim28-deficient mice has revealed the importance of 3D genome in T cell activation and function. To our knowledge, this work systematically characterized the 3D genome reorganization at compartment, TAD and loop levels during CD8⁺ T cell activation.

Multiple studies have reported that TRIM family proteins can act as epigenetic modifiers to regulate gene expression^28,29,30. A member in this family, TRIM28, was found to be highly expressed in activated CD8⁺ T cell compared with naive CD8⁺ T cell. Previous reports have suggested that TRIM28 plays a critical role in Th17 and Treg cell differentiation^25,54. In the current study, we first found TRIM28 is required for CD8⁺ T cell activation. Trim28 deficiency led to deficits in Ifng, Gzmb, Tbx21 and Cd69 expression and greatly increased Id3 and Tcf7 expression during CD8⁺ T cell activation, closely phenocopying naive CD8⁺ T cells. Genetic ablation of Trim28 impaired the anti-tumor and anti-infection functions of activated CD8⁺ T cells in vivo. The expression of immune checkpoints PD-1, TIM-3, TIGIT and CTLA-4 was not affected after Trim28 deficiency (Supplementary Fig. 9b–e), which indicates that the anti-tumor function of TRIM28 is not associated with immune checkpoint regulation. In cancer and chronic infection, persistent antigenic stimulation drives CD8⁺ T cells into an exhaustion state. Exhausted CD8⁺ T cells are heterogenous and have been mainly classified into two populations, named progenitors (Tex^pro) and terminally exhausted CD8⁺ T cells (Tex^ter)^55,56. Tex^ter cells, with characteristics of potent cytotoxicity and high-level apoptosis, highly express Havcr2, Entpd1, Ifng, Gzmb and Tbx21^55,56. In contrast, Tex^pro cells are stem-like and highly express Tcf7, Lef1, Id3 and Slamf6, which can proliferate and differentiate into Tex^ter cells^55,56. In tumor, the expression of Tex^ter characteristic molecules were decreased in CD8⁺ TILs after Trim28 deficiency, suggesting that Trim28^-/- CD8⁺ TILs were similar to Tex^pro cells. Further studies are needed to explore the role of TRIM28 in exhausted CD8⁺ T cell.

Some TRIM family members like Trim16, Trim37, Trim46 and Trim27 expression was also found to be substantially elevated in activated CD8⁺ T cells, as compared to naive CD8⁺ T cells. TRIM27 was reported to negatively regulate CD4⁺ T cell activation⁵⁷. TRIM37 mutations was associated with a selective impairment in the numbers and function of CD4⁺ T cells⁵⁸. As for TRIM16 and 46, there has been no study reporting their roles in T cells. The roles of these genes in the activation of CD8⁺ T cells need to be further identified.

Previous studies reported that TRIM28 functions as a transcriptional co-repressor by recruiting repressive epigenetic complexes to induce chromatin condensation^43,59. However, our analysis of ChIP-seq data in CD8⁺ T cells revealed that genome-wide binding of TRIM28 highly correlated with active epigenetic marker H3K27ac, but not with repressive H3K9me3 and H3K27me3 marks in CD8⁺ T cells. Genetic ablation of Trim28 resulted in a global reduction of H3K27ac levels. In total, Trim28 deficiency affected the expression of total 2602 genes in CD8⁺ T cells: expression of 1190 (45.7%) was reduced in Trim28-deficient CD8⁺ T cells, among which 44% contain TRIM28 binding sites, whereas 1412 (54.3%) genes had increased expression with less than 34% of them having TRIM28 binding. These data together suggest that TRIM28 largely functions as an epigenetic co-activator in CD8⁺ T cell activation, consistent to our previous analysis on TRIM28 function in Th17 cells²⁵. TRIM28 was largely identified as a transcriptional cofactor, by recruiting epigenetic complexes and interacting with transcription factors, or through ubiquitin E3 activity⁶⁰.Further studies are needed to explore whether TRIM28 regulate CD8⁺ T cell activation depending on its enzyme activity.

TRIM28 also acts as a transcriptional elongation factor to regulate gene expression³². Our analysis of ChIP-seq data demonstrated that although TRIM28 binding sites were largely co-localized with those of CTCF in activated CD8⁺ T cells, TRIM28 occupancy that do not co-localize with CTCF may function in transcriptional elongation, evidenced by their co-localization with H3K36me3 an epigenetic marker for transcriptional elongation^61,62. Previous studies found TRIM28 was critical for release of RNA Pol II from its paused state. TRIM28 knockdown significantly decreased H3K36me3 modification⁶³. TRIM28 co-occupancy with H3K36me3 likely regulates gene expression by transcriptional elongation during CD8⁺ T cell activation.

TRIM28 co-occupancy with CTCF likely regulates gene expression by forming TADs and chromatin loops with CTCF. Indeed, in the absence of Trim28, 3% of A/B compartments, 15% of TADs and 41% of loops had significant changes. Trim28 deficiency had a greater impact on the level of loop structure than TADs and A/B compartments. 38% (543) of Loops^Activated were bound by TRIM28, 68 % (371) of which disappeared after Trim28 deficiency in activated state. This low number of affected loops bound by TRIM28 might indicate indirect effects of Trim28 deficiency in chromatin looping. Importantly, Co-IP experiments demonstrated that TRIM28 formed a complex with CTCF in activated CD8⁺ T cells. Meanwhile, a significant decrease in TRIM28 binding signal at TRIM28 binding sites was observed in CTCF-deficient CD8⁺ T cell. These results suggest that TRIM28 might be recruited by CTCF since TRIM28 cannot directly bind to DNA.

TADs and loops are partitioned into self-interacting blocks by cohesin and CTCF^2,3,64. The binding of CTCF in the whole genome were mostly unchanged between activated WT and activated Trim28^-/- CD8⁺ T cells. Cohesin was thought to form TADs and loops by extruding chromatin loops until blocked by CTCF boundaries, thereby bringing distant loci into frequent spatial interaction^65,66. Of note, Trim28 deficiency greatly affected the binding of cohesin (SMC1) to chromatin. The binding of SMC1 in the anchor regions of these lost loops were significantly decreased. This suggests that TRIM28 may affect the extrusion function of cohesin and thus the formation of loops. The promoters of T cell activation genes with TRIM28 binding could interact with distal sites (> 100 kb), which were mediated by TRIM28, SMC, CTCF, and RNA Pol II. The observation of reduced SMC1 binding in the absence of Trim28 suggests a general regulatory mechanism that controls the activity of SMC1. TRIM28 may facilitate the binding of cohesin at the CTCF binding sites. However, how TRIM28 affects the extrusion function of cohesin needs to be further explored.

TRIM28 plays a pivotal role in the activation of CD8⁺ T cells, primarily by regulating the expression of IL-2. Compared with naive cells, Il2 was activated by TRIM28, which mediated the formation of a new chromatin loop between the Il2 promoter and its upstream enhancer in activated CD8⁺ T cells. In the absence of Trim28, the chromatin loop also disappeared. Moreover, the enhancer sequence, which is conserved between humans and mice, has been reported to regulate the expression of the Il2 gene in T cells⁶¹. Additionally, the accessibility of the Il2 enhancer is conserved across different immune cells (Supplementary Fig. 9f), including mature B cells, ILC2 Th2 Tfh, and NK cells⁶². Our research provides evidence for a new function of this enhancer in gene regulation. A previous study reported defective signaling of CD28 in TRIM28-deficient CD4⁺ T cells⁶⁷. However, CD8⁺ T cell activation defect associated with Trim28 deficiency could not be rescued by increasing concentrations of αCD28 (Supplementary Fig. 9g). Western blot analysis of proximal TcR and CD28 signaling molecules revealed that no significant difference in the phosphorylation of Akt, PI3K, and ERK2 in Trim28^−/− compared to WT CD8⁺ T cells (Supplementary Fig. 9h). Quantitative analysis also showed that the total and phosphorylated levels of Akt, PI3K, and ERK2 were comparable between Trim28^−/− and WT CD8⁺ T cells (Supplementary Fig. 9i), suggesting that TRIM28 deficiency did not affect the CD28 co-stimulatory signaling in our system.

In summary, we identified TRIM28 as a critical positive regulator of CD8⁺ T cell activation, in which TRIM28 serves as an epigenetic activator and directs CD8⁺ T cell activation by regulating epigenetic activation and 3D chromatin looping at key activation-associated genes. Our results implicate epigenetic intervention as possible therapeutics in treatment of tumor and infection.

Mice

C57BL/6, CD45.1, and OT-I (TCR specific for E.G7) mice were maintained in-house. Il2ra^-/- mice were kindly provided by Dr. Yan Shi. Trim28^fl/fl mice reported previously^25,68 were crossed with Cd8a^Cre mice⁶⁹, then were bred onto OT-I mice. 6- to 8-week-old, male and female, age and sex-matched mice were used for all experiments. The mice were maintained under specific pathogen-free (SPF) conditions at Tsinghua University. All studies were approved by the Animal Care and Use Committee of Tsinghua University.

Naive CD8⁺ T cell isolation and in vitro culture

naive CD8⁺ T cells were purified from spleens and lymph nodes using Dynabeads™ FlowComp™ Mouse CD8 Kit (Invitrogen). CD8⁺CD25^-CD44^lowCD62^hi T cells (naive) were sorted from purified CD8⁺ T cells on a FACS Aria (BD) flow cytometer. Then FACS sorted naive CD8⁺ T cells with purity greater than 99% were activated with the plate-bound anti-CD3 and anti-CD28 for three days with or without IL-2 and anti-IL2. The information of cytokines and antibodies can be found in Supplementary Tables 2 and 4.

Flow cytometry

For surface staining, FcR was first blocked by anti-CD16/32 (Biolegend). Then cells were suspended in antibody cocktail together with fixable live/dead cell dye (eBioscience) and incubated in dark at 4°C for 30 minutes. For transcription factor staining, the cells were fixed and stained by Transcription Factor Staining Buffer Set (eBioscience) following the manufacturer’s instructions. For cytokine staining, the cells were stimulated with PMA (50 ng/mL, Sigma-Aldrich, MO) and ionomycin (500 ng/mL, Sigma-Aldrich, MO) in the presence of Brefeldin A (Golgstop, BD Bioscience) for 5 h prior to staining with antibodies against surface proteins followed by fixation and permeabilization and staining with antibodies against intracellular antigens. After staining, the cells were acquired on an LSRFortessa (BD) flow cytometer, and data analyzed using FlowJo 10.4.

For detection of phosphorylated STAT5, cells were re-suspended in cold PBS and stained with antibodies against surface molecules. Then the cells were fixed with Phosflow Lyse/Fix buffer (BD Bioscience), followed by 90% methanol permeabilization. The cells were stained with antibodies against phosphorylated STAT5 in PBS. For analysis, the cells were acquired on an LSRFortessa (BD) flow cytometer and data were analyzed using FlowJo 10.4.

Antibody information can be found in Supplementary Table 2.

Tumor inoculation and LCMV virus infection

E.G7 cells expressing OVA257-264 were cultured in RPMI 1640 medium with 10% FBS, penicillin and streptomycin. 1×10⁶ E.G7 cells were re-suspended in 100 μL PBS and injected subcutaneously (s.c.) into 6 ~ 8-week-old mice. Tumor growth was monitored every 2 or 3 days. Tumor volume was calculated by the following formula: tumor volume = 0.5 x length x width². Mice were ethically euthanized using carbon dioxide asphyxiation after 2 or 3 weeks for phenotypic analyses. Mice were infected intraperitoneal (i.p.) with 2 × 10⁵ pfu of LCMV Armstrong expressing GP33-41. Mice were ethically euthanized using carbon dioxide asphyxiation after 1 weeks for phenotypic analyses.

Isolation of TILs

E.G7 tumors were digested with 1 mg/mL collagenase D supplemented with 10 U/mL DNase I for 30 min at 37 °C prior to centrifugation on a discontinuous Percoll gradient (GE Healthcare). The maximal tumor burden permitted by the ethics committee is no more than 2000 mm³. Tumors were harvested for imaging and tumor weight were measured.

Adoptive transfer

One million FACS-sorted naive WT and Trim28^-/- OT-I cells were separately transferred (i.v.) into CD45.1 recipients one day prior to EG7 tumor inoculation.0.5 million FACS-sorted naive CD45.1/2 WT and CD45.2 Trim28^-/- OT-I cells were mixed at 1:1 ratio and transferred (i.v.) into CD45.1 recipients one day prior to E.G7 tumor inoculation.

In vivo IL-2 treatment

IL-2 (575406; BioLegend) was dissolved in PBS at a final concentration of 100 μg/ml. LCMV Armstrong virus infected-Trim28^fl/flCd8a^Cre mice and Trim28^fl/fl mice were intraperitoneally injected with or without mIL-2 (10 μg per mouse) every two days starting from day 1.

Co-immunoprecipitation and immunoblot analysis

CD8⁺ T cells (2×10⁷) cultured under anti-CD3/28 for 3 days were resuspended in 1 ml lysis buffer (25 mM Τris, pH 7.4 150 mM NaCl, 1 mM EDTA, 1% NP-40, 5% glycerol plus proteinase inhibitors) and incubated on ice for 30 min. Cells were sonicated for 5 cycles, pelleted by centrifugation, and 10 μl anti-TRIM28 antibody (CST, catalog 4123) or control IgG antibody (CST, catalog 2729) was added to and incubated with the supernatant at 4 °C overnight. The next day, the immune complex was captured by Dynabeads protein G, washed thoroughly by lysis buffer for four times and eluted by 1× SDS sample loading buffer at 95 °C for SDS-PAGE fractionation and immunoblot analysis. The following antibodies were used for immunoblotting: anti-TRIM28 antibody (CST, catalog 4124), anti-CTCF (CST, catalog 3418), Anti-SMC1 (Bethyl Laboratories, A300-055A).

Retrovirus packaging and infection

Plasmid transfection was performed when 293 T cells were 60%∼70% confluent in dish. Chloroquine was added to the dish to 100 μM 5 minutes before transfection. For each 10 cm dish, 12 μg retrovirus vector, 5 μg pCL-eco and 93 μL 2 M CaCl2 were mixed in sterile water to reach final volume of 750 μL. 750 μL 2x HBS was added drop by drop while bubbling vigorously with automatic pipette, and then the mixture was added to dish. Medium was changed 6-8 hours post transfection. The supernatant was harvested, which contained virus particle, 2 days post transfection. After 24-hour activation of T cell, some medium was removed from the wells and around 200 μL medium was left. 200-300 μL virus supernatant was added to each well, then we supplied polybrene to 8 μg/mL in the medium and centrifuged the plate at 1800 rpm, 32 °C for 90 minutes. Medium was refreshed immediately after infection. gRNA silencing efficiency was analyzed 24 hours post infection.

Plasmids

All the primers used for constructing plasmid were listed in the Supplementary Table 3. gRNA for Ctcf were synthetize and inserted into pWKO-sgRNA(BbsI)- GFP retroviral vector to construct gRNA silencing plasmid.

Real-time qPCR and RNA-seq experiments

Total RNA from CD8⁺ T cells was extracted by TRIzol (Invitrogen) according to manufacturer’s instruction. For real-time qPCR, the cDNA was synthesized by reverse transcription using M-MLV Reverse Transcriptase (Promega) according to the manufacturer’s instructions. Target genes were amplified by 1x Hieff qPCR SYBR Green Master Mix (Yeasen). The mRNA expression of indicated genes were normalized to Actb. For RNA-seq, total RNA was sent to BGI Genomics for cDNA library preparation and sequencing. Every sample has two replicates. Primers for RT-qPCR can be found in Supplementary Table 3.

RNA-seq data analysis

1) Raw data processing. Raw sequencing reads were first adapter-trimmed by Trim Galore v0.4.4 with the “–paired” option, and aligned to mm10 reference genome with HISAT2⁷⁰ (version 2.2.1) with “-X 600 –rg-id –rg –known-splicesite-infile –novel-splicesite-outfile -p 25 –reorder” options. StringTie⁷¹ (v2.1.4) was used for transcript quantification with GENCODE vM12 annotation and “-e -B -p 10 -G -o” options. “prepDE.py” script was used to extract the read count information directly from the gtf files generated by StringTie with “-i -g -t” options. The reads count per gene was regarded as the gene expression. 2) Differential Genes Analysis. The gene expression matrix was normalized and analyzed by DESeq2⁷² as the software recommended. In detail, P-adj ≤ 0.05 and FC ≥ 2 were used to differential genes analysis. 3) Gene enrichment analysis. We used the DAVID Bioinformatics Resources 6.7 for pathway enrichment analysis⁷³. All mouse genes were used as the background gene list.

ChIP experiments

ChIP assay was performed using Active Motif’s ChIP assay kit (53035) according to manufacturer’s instructions with slight modifications⁷⁴. Briefly, a total of 1 × 10⁷ cells were harvested and cross-linked with paraformaldehyde. Then cells were lysed and digested with shearing enzyme followed by sonication. Anti-TRIM28 antibody (Active Motif, 61173), Anti-SMC1 (Bethyl Laboratories, A300-055A), and Anti-H3k27ac (Active motif, 39133) was added to supernatant followed by Dynabeads Protein A (LifeTechnologies) pulling down target fragment. The precipitated DNA was then washed, eluted, de-crosslinked and purified for realtime qPCR analysis or sent to BGI Genomics for cDNA library preparation and sequencing. Every sample has two replicates. Primers for ChIP-qPCR can be found in Supplementary Table 3.

CUT&Tag experiments

The CUT&Tag experiments were performed as previously described⁷⁵ (Vazyme TD903 kit) to generate DNA libraries derived from cells. Antibodies against SMC1 (Bethyl Laboratories, A300-055A) and CTCF (Cell Signaling Technology, catalog #3418) were used to target specific chromatin regions. Every sample has two replicates.

ChIP-seq and CUT&Tag data analysis

1) ChIP-seq and CUT&Tag Peak Calling. The ChIP-seq and CUT&Tag reads were mapped to reference genome by using bowtie2 with the “-p 5 -t -q -N 1 -L 25 -X 2000 –no-mixed –no-discordant” options, followed by removing low mapped quality reads, mitochondrial reads, duplications. PCR duplicates were removed using picard MarkDuplicates. Macs2⁷⁶ was used for peak calling with the setting of “-f BAM -B –nomodel –keep-dup all”. 2) ChIP-seq and CUT&Tag Differential Peak Analysis. The differential peak was analyzed by R package DiffBind⁷⁷ with the FDR ≤ 0.01 and FC ≥ 1.5. ChIP seeker was used for peak annotation. Deeptools was used to generate coverage track file (bigWig) which can be visualized in IGV. 3) To generate a profile plot with deeptools (3.5.6), first use computeMatrix with parameters “–referencePoint center –missingDataAsZero -p 60 -R input.bed -S input.bw -b 5000 -a 5000 –skipZeros -o heatmap.gz” to calculate average signal values across regions. Signal normalization (CPM) is typically applied during input file creation (using bamCoverage). Next, visualize with plotProfile using “-m (matrix file), –perGroup” to plot each group separately, and “–legendLocation” to position the legend. The Y-axis reflects the average signal intensity, depending on the chosen normalization method.

ATAC-seq experiments

ATAC-seq DNA library was constructed using TruePrep DNA Library Prep Kit V2 for Illumina and TruePrep Index Kit V2 for Illumina. Briefly, 15,000 ~ 50,000 sorted cells were resuspended in 35 μL lysis buffer (10 mM Tris-HCl, 10 mM NaCl, 3 mM MgCl2 0.1% IGEPAL CA-630) and incubated on ice for 10 min with 3 times vortex. DNA fragmentation was conducted by adding 10 μL 5 X TTBL, 5 μL TTE Mix and shaking at 37°C for 30 min. Fragmented DNA was purified using 1.8 X AMPure beads, barcoded with dual indexes and PCR amplified. Size selection and purification of DNA fragments were done using AMPure beads. Size distribution and molarity of the sequencing library were determined by Qubit (Thermo Fisher Scientific). Sequencing was performed using Illumina X-ten by Novogene. Every sample has two replicates.

ATAC-seq data analysis

1) ATAC-seq Peak Calling.The ATAC-seq reads were mapped to reference genome by using bowtie2 with the “-p 5 -t -q -N 1 -L 25 -X 2000 –no-mixed –no-discordant” options, followed by removing low mapped quality reads, mitochondrial reads, duplications. Macs2⁷⁶ was used for peak calling with the setting of “-f BAM -B –nomodel –keep-dup all”. 2) ATAC-seq Differential Peak Analysis. The differential peak was analyzed by R package DiffBind⁷⁷ with the FDR ≤ 0.01 and FC ≥ 1.5. 3) Motif Enrichment for ATAC-seq Peaks. Homer⁷⁸ script findMotifsGenome was used to enrich motifs for ATAC-seq peaks with the “mm10 -p 30 -preparse -size -300,100 -len 8,10,12” options. Q-value ≤ 0.1 and p-value ≤ 0.01 were used as cutoff for significant enrichment.

3 C assay

The 3 C assay is conducted by initially resuspending five million cross-linked cells in lysis buffer and incubating them on ice for 15 minutes. Afterward, the cells are centrifuged at 2500 g for 5 minutes at 4 °C to remove the lysis buffer and supernatant. The pellet is then resuspended in 342 μL of 1x NEBuffer 2 and incubated with 38 μL of 10% SDS at 65 °C for 10 minutes to facilitate cell lysis. To quench the SDS, 43 μL of 10% Triton X-100 is added and the mixture is incubated at 37 °C for 15 minutes. Subsequently, 12 μL of 10x NEBuffer 2 and 400 units of MboI enzyme are introduced to digest the chromatin overnight at 37 °C on a rocking platform. On the subsequent day, the MboI enzyme is inactivated by heating at 65 °C for 25 minutes. The DNA is then religated using T4 DNA ligase, incubated at 24°C for 4 hours, and manually agitated intermittently. The chromatin is de-crosslinked by the addition of 30 μL of proteinase K and incubated overnight at 65 °C. DNA extraction is performed using a phenol/chloroform mixture. Finally, PCR and Sanger sequencing are utilized to validate the long-range chromatin interactions, with the specific PCR primers detailed in Supplementary Table 3.

Hi-C experiments

The Hi-C experiment was performed following the in situ Hi-C protocol³. Briefly, a total of 1 × 10⁶ cells were isolated and crosslinked with 1% formaldehyde for 10 min at room temperature, and next, 2.5 M glycine solution was added at a final concentration of 0.2 M. Then, the cells were collected, flash-frozen in liquid nitrogen and stored at -80 °C. The fixed cells were then lysed on ice-cold Hi-C lysis buffer for 30 minutes on ice, followed by Mbo I (NEB, R0147) digestion overnight. The next day, treat sample at 62 °C for 10 min to inactivate Mbo I, and then biotin-14-dATP (Life Technologies, 19524-016) was added to label the digested ends. Then, add ligation master mix (NEB, B0202 & M0202) and connect overnight. On the third day, use Covaris LE220 (Covaris) to break the end-ligated DNA fragments to a suitable length, followed by size selection with AMPure XP beads (Beckman Coulter, A63881). Dynabeads MyOne Streptavidin T1 beads (Life Technologies, 65602) pull down the biotin-labeled fragments, and these fragments are the fragments that truly represent chromatin interactions. Finally, the pull down fragment was purified, and the library was constructed using Illumina primers and protocols (Illumina, 2007). Twelve cycles were amplified by PCR. DNA was purified and the library concentration was measured using Qubit® 3.0 fluorometer (Invitrogen). The Agilent Bioanalyzer 2100 (Agilent Technologies) analyzed the library fragment distribution and sequenced on the Illumina HiSeq X Ten platform (Illumina Inc.) if both concentration and length distribution are qualified. Every sample has two replicates.

Hi-C analysis

We performed read mapping and filtering of the Hi-C data following previous methods. All Hi-C sequencing reads were mapped to the mouse reference genome (mm10) using HiC-Pro (v2.11.4)⁷⁹. We used the iterative correction and eigenvector decomposition (ICE) method to normalize raw interaction matrices.

A/B compartment analysis

We used ICE-normalized interaction matrices at 40 kb resolution to detect chromatin compartment types by R-package HiTC⁸⁰. Principal Component Analysis (PCA) was performed on the contact matrix to calculate the first eigenvector (PC1), which distinguishes A and B compartments. For differential compartments analysis, each replicate was analyzed individually. Only compartment stats (A or B) consistent across the two replicates were considered reliable and used for subsequent differential analysis. A genomic region is considered to have a significant shift in compartment status if its compartmentalization changes between two conditions (shifting from Compartment A to B or from B to A).

TAD analysis

We used ICE-normalized interaction matrices at 40 kb resolution to call TADs by a Perl script matrix2insulation.pl (https://github.com/blajoie/crane-nature-2015). Then we converted adjacent TAD boundaries to corresponding TADs, which were filtered through following steps. First, only TADs with a length larger than 200 kb were kept. Second, TADs located in telomeres or centromeres were removed. For differential TAD analysis, each replicate was analyzed individually. Only TAD coordinates consistent across both replicates were considered reliable and used for subsequent differential analysis. We used BEDtools (intersectBed -f 0.80 - r) to identify conserved TADs that have more than 80% overlapping regions between two samples.

Domain score

We employ ___domain scores¹⁶ for the analysis of differential TADs. Given the TADs identified in the ___domain segmentation, we calculate an intradomain contact score (simplified to ___domain score). The domains score is the ratio of the number of contacts that occur between regions within the same TAD (intraTAD contacts) over the total number of intrachromosomal contacts for a TAD (intraTAD + interTAD). When comparing ___domain scores, we calculated the union of TADs from both cell states. To identify TADs that have a differential ___domain score we used the bioconductor package limma. We perform quantile normalization (using the normalizeQuantiles function in the limma package) on the ___domain scores. For each TAD an empirical Bayes moderated t-statistic test is performed. Nominal p-values are corrected using the FDR method. TADs with an FDR value < 0.05 and is present in one state is defined as a specific TAD.

Loop analysis

We detected significantly enriched contact interactions using Hi-C computational Unbiased Peak Search (HiCCUPS) (V1.11.04)⁸¹ with default settings (–ignore_sparsity -m 1024 -r 5000) as described in the previous study³. In brief, fold change values quantifying enrichment of contact frequency compared to local background were calculated. To maximize the count of reads for loop analysis, replicates were merged for each sample. Therefore, differential analysis for loops was performed on merged data. Then we tested if the number of the observed contacts is significantly enriched using the Poisson test. P value was Benjamini-Hochberg adjusted to correct for multiple tests. Pixels with enrichment in all local neighbor- hoods (donut, horizontal, vertical and lower right) were kept. Then cluster of nearby enriched pixels were analyzed using a greedy algorithm. We detected loops at 5 kb resolution. We perform APA on 5 kb resolution contact matrices. To measure the aggregate enrichment of a set of putative peaks in a contact matrix, we plotted the average of a series of submatrices derived from that contact matrix. Each of these submatrices was a 100 kb x 100 kb square centered at a single putative peak in the upper triangle of the contact matrix. The resulting APA plot displayed the total number of contacts that lied within the entire putative peak set at the center of the matrix. Loop set enrichment analysis (LSEA) was modified from PSEA³⁹ using log10 (fdrBL) as loop interaction strength. We substitute the interaction strength of loops for the intensity of peaks, while keeping the rest of the analysis pipeline the same.

MDS analysis

Multidimensional Scaling (MDS) was employed to analyze the consistency of sample repetitions. MDS is a graphical technique for representing the similarities or differences among items in a low-dimensional space. We utilized the “isoMDS” function from the “MASS” package in R, setting the parameter “metric = TRUE” to ensure the analysis was based on Euclidean distances and used the “stress” measure to assess the fit of the configuration. Additionally, we employed the “ggplot2” package to visualize the MDS results.

Statistics & reproducibility

Sample sizes were chosen based on previous studies and experimental considerations, without the use of statistical methods to predetermine sample size. No data were excluded from the analyses. Statistical analysis was performed with Graph Prism 8.2.0 (GraphPad software) and presented as mean ± SD unless specifically indicated. For two group comparisons, statistical analysis was performed with unpaired or paired two-tailed Student’s t tests. p values less than 0.05 were considered statistically significant.

Proportions’ test: the proportion of TRIM28 binding sites in Loops^Activated (or Loops^naive) and the proportion of TRIM28 binding sites in all chromatin loops (union of naive and activated CD8⁺ T cells) were compared to generate this P-value.

Statistical details for each experiment can be found in the figures and the legends.
