Fig. 6: DREEM-deconvoluted DMS profiles and structure predictions of hTR CR4/5.
From: Telomerase RNA structural heterogeneity in living human cells detected by DMS-MaPseq

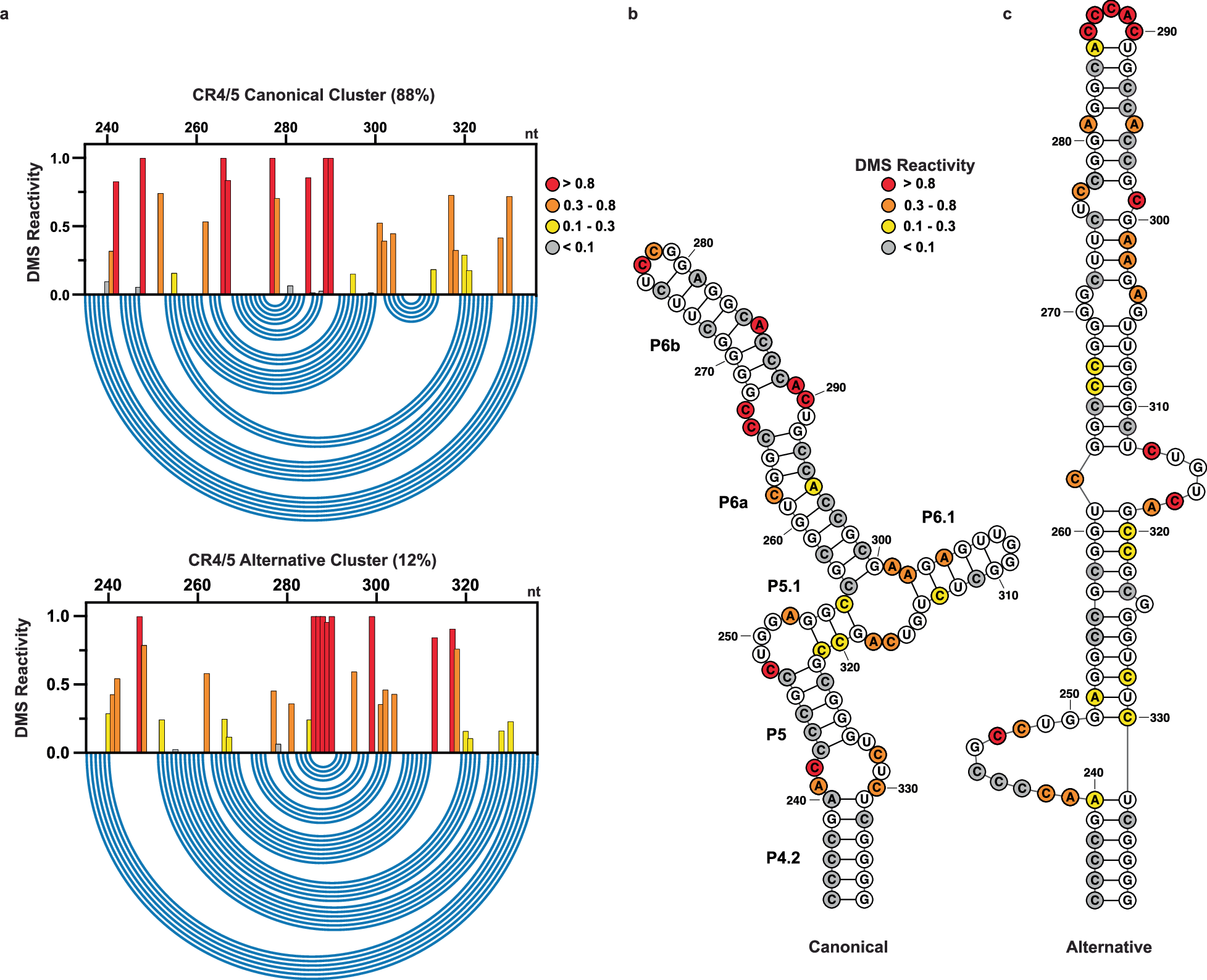

a Normalized DMS reactivity profiles of the two clusters predicted by DREEM. Intensity of DMS reactivity colored according to the provided legend. Blue arcs designate the base pairing pattern of the data-guided predicted CR4/5 secondary structure. b Data-guided secondary structure prediction of the CR4/5 ___domain from the canonical cluster of DMS reactivities. c Data-guided secondary structure prediction of the CR4/5 ___domain from the alternative cluster of DMS reactivities. Source data are provided as a Source Data file.
