Introduction

Chiral materials featuring circularly polarized luminescence (CPL) are currently garnering significant attention for their potential applications in 3D displays, quantum computing, spintronic devices, and information storage1,2,3,4. The luminescence dissymmetry factor, glum, is a key metric to evaluate CPL performance, which is obtained from Eq. (1):

$${g}_{{\mbox{lum}}}=\frac{2({I}_{{\mbox{L}}}-{I}_{{\mbox{R}}})}{{I}_{{\mbox{L}}}+{I}_{{\mbox{R}}}}=\frac{4{{{\bf{m}}}}{{{\boldsymbol{\mu }}}}\cos (\theta )}{{{{{\bf{m}}}}}^{2}+{{{{\boldsymbol{\mu }}}}}^{2}}$$
(1)

where IL and IR represent the emission intensities of left- and right-handed circularly polarized light, μ and m are the electric and magnetic transition dipole moment vectors, respectively, and θ is the angle between these two vectors5,6. Generally, |μ| is much larger than |m| , leading to a mismatch between electric and magnetic transition dipole moment, which results the glum value around 10−4 to 10−3. An ideal CPL emitter should have both large glum and high photoluminescence quantum yield (PLQY), the former represents the polarization purity of the emitted light, while the latter evaluates the effectiveness of energy conversion. In this case, the figure of merit (FOM) has been proposed to quantify CPL performance and estimate the potential of materials for practical applications, which can be calculated by the product of glum and PLQY (FOM = glum × PLQY)7,8. The design challenges lie in balancing the glum and PLQY via modulating both the value and orientation of μ and m. Numerous researches in this field have already been carried out and a series of excellent CPL-active materials have emerged including chiral organic small molecules9,10, inorganic nanomaterials11,12, and metal complexes13,14,15. However, most of them are barely promising for brilliant CPL emitters due to their high cost, poor thermal stability and luminescence intensity. For example, the synthesis of chiral organic molecules or chiral metal complexes is tedious and costly, and they often suffer from poor thermal stability and low luminescence intensity. Inorganic nanomaterials, on the other hand, require coating prefabricated nanomaterials with chiral passivating ligands to achieve CPL, and their properties are challenging to precisely control.

Recently, lead-free metal halide hybrids have become a research hotspot due to their low cost and facile synthesis16,17, diverse topological structures18,19, and high PLQY20,21. The use of chirality-induced spin selectivity (CISS) effect further endows such materials more stable intrinsic chirality with excellent CPL behavior, positioning them as promising candidates for high-performance CPL emitters22,23. The principle involves directly incorporating chiral organic cations into the metal halide lattice, imparting them inherent chirality. The asymmetric hydrogen bonds between chiral organic cations and halide ions often exacerbate lattice distortion, leading to the deformation of excited state. This deformed excited state further induces the generation of self-trapped excitons (STEs), thereby initiating efficient STEs emission and exhibiting chiral luminescent properties. Several significant achievements have been realized in chiral lead-free metal halides24,25,26,27,28,29,30,31,32,33,34. For instance, Quan et al. reported a pair of 0D indium-antimony chlorides with near-unity STEs emission and glum of ±1.0 × 10−235. Mao and colleagues realized a glum of ±2.3 × 10−2 in the 1D chiral Mn-based halides (R/S-3-quinuclidinol)MnBr3 with PLQY of 50.2%36. Additionally, Xu et al. reported two CPL-active metal halide enantiomers: 0D (R/S-C6H15ClNO)2•SbCl5 (C6H15ClNO+ = (3-chloro-2-hydroxypropyl)trimethylammonium cation) and 1D (D/L)-(tert-butylprolinate)MnCl3 with the PLQY higher than 70%37,38. The glum for 0D (R/S-C6H15ClNO)2•SbCl5 is ± 3.0 × 10−4, while for 1D (D/L)-(tert-butylprolinate)MnCl3 is ±6.0 × 10−3. Recently, Zhang’s team reported the best-brightness CPL-active metal halides to date using the cascade cationic insertion strategy with FOM value reaching 2.26 × 10−2 25. Despite the progress, the CPL performance implemented above is still not governed by any specific rules and is typically obtained through a trial-and-error approach. Therefore, it is highly needed to clarify the relationship between structures and chiroptical properties in chiral metal halide hybrids and provide effective guidance for designing efficient circularly polarized light sources.

In this work, we develope an efficient strategy to achieve both high PLQY and large glum in chiral metal halide hybrids by regulating their structural dimensions (Fig. 1). Specifically, the 0D, 1D, and 3D In-based hybrids are rationally designed and constructed by tuning the size and polarization of chiral organic cations with strong hydrogen-bonding-acceptors (oxygen heteroatom), which can coordinate with K+ ions and enhance the chirality transfer. Bright emission with the near-unity PLQY is obtained in these hybrids. Furthermore, the contradiction between PLQY and glum is overcame by regulating the structural dimensions which enhances the chiral induction effect and balances the values of electric and magnetic transition dipole moment. As a result, the glum of these hybrids show an exponential growth from 10−3 to nearly 10−1 orders of magnitude as the structural dimension increases from 0D to 3D. Both the |glum | (0.89 × 10−1) and FOM (0.79 × 10−1) are the highest values among the reported chiral metal halides to date. Our work elucidates the relationship between structural dimension and glum in chiral metal halides, and provides a simple pathway for the rational design of efficient CPL-active metal halide hybrids with both high PLQY and large glum.

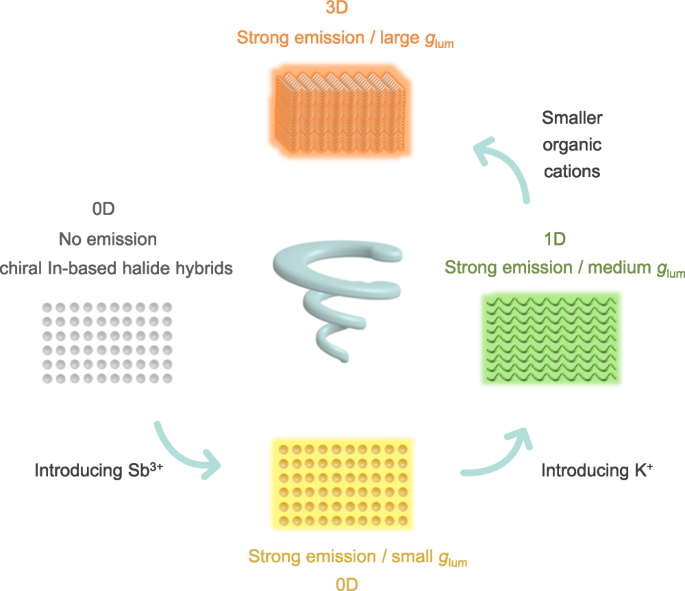

Fig. 1: CPL performance optimization strategy.
figure 1

Schematic diagram for constructing the chiral metal halide hybrids with different structural dimensions by manipulating chiral organic cations and introducing K+ and Sb3+ ions. The gray represents the hybrid is nonluminous, and yellow, green, and orange-red shadows represent the luminescent colors of corresponding hybrids, respectively.

Full size image

Results

Characterizations of R/S-0DIn

We construct a pair of chiral 0D In-based metal halide hybrids, R/S-(MeML)2InCl5·2H2O (R/S-0DIn), by self-assembling chiral amine R/S-MeML and In2O3 in hydrochloric acid solution (R/S-MeML = R/S-3-methylmorpholine). Single-crystal X-ray diffraction (SCXRD) analyses reveal that R-0DIn and S-0DIn display a mirrored geometric configuration, and both of them crystallize in the chiral monoclinic space group P21. In this structure, the In3+ ion is coordinated with five Cl- ions and one water molecule, forming a [InCl5(H2O)] octahedron. The bulky ammonium cations (R/S-MeML+) and free water molecules separate adjacent [InCl5(H2O)] octahedron, resulting in a typical 0D structure at the molecular level (Fig. 2a, Supplementary Fig. 1 and Supplementary Table 1). Their phase purity is confirmed by powder X-ray diffraction (PXRD) patterns (Fig. 2b and Supplementary Fig. 2). The Fourier transform infrared (FT-IR) spectra confirm the introduction of chiral organic cations, as evidenced by distinct characteristic peaks for O-H, N-H, C-H, C-O, and C-N (Supplementary Fig. 3a, b). Additionally, elemental analysis of C, H, and N content in R/S-0DIn closely aligns with the theoretical content (Supplementary Table 2). The elemental mapping image collected by energy dispersive X-ray spectroscopy (EDS) confirms a homogeneous distribution of In and Cl elements (Supplementary Fig. 4a, b). Subsequently, the photophysical properties are further investigated, revealing a strong absorption peak at 200 nm attributed to the organic ligand, and a weak absorption band in the range of 300–400 nm resulting from the parity-forbidden transition of In3+ (Supplementary Fig. 5). Unfortunately, although R-0DIn and S-0DIn exhibit opposite polarization absorption in the range of 300–700 nm, the negligible photoluminescence (PL) is observed in them, akin to most reported chiral In-based halide hybrids (Fig. 2c)27.

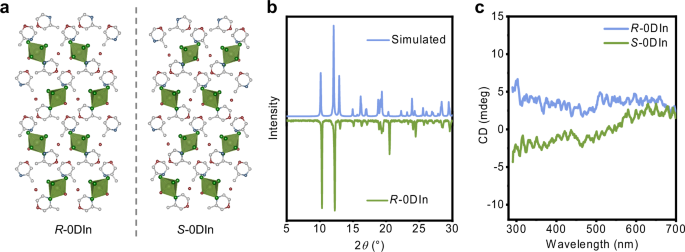

Fig. 2: Structural analysis and photophysical properties of R/S-0DIn.
figure 2

a The crystal structures of R/S-0DIn (In: light green, Cl: dark green, O: red, N: blue, C: grey, and hydrogen atoms are omitted for clarity). b The PXRD pattern of R-0DIn (green) and the corresponding simulated result (blue) from crystal structure. c The circular dichroism (CD) spectra of R-0DIn (blue) and S-0DIn (green).

Full size image

Characterizations of R/S-0D

It is well-known that Sb3+ doping can greatly enhance the luminous efficiency of In-based hybrids. Then the Sb3+-doped R/S-(MeML)3InCl6 (R/S-(MeML)3InCl6: Sb3+) have been prepared using a synthesis method similar to that of 0D R/S-0DIn. The resulting R/S-(MeML)3InCl6: Sb3+ also crystallize in the chiral space group P21, albeit with slight differences in their coordination modes (Fig. 3a, Supplementary Figs. 6, 7 and Supplementary Table 3). The In3+ (or Sb3+) ion is coordinated with six Cl- ions, forming [In(Sb)Cl6] octahedron. These octahedrons are effectively separated by the bulky organic cations to form a typical 0D structure. The inductively coupled plasma optical emission spectroscopy (ICP-OES) measurements confirm the incorporation of Sb3+, with the actual concentration slightly higher than the feed ratio (Supplementary Table 4). The FT-IR spectra and elemental analysis demonstrate the existence of chiral organic cations (Supplementary Fig. 3c, d and Supplementary Table 2), and the EDS elemental mapping identifies the elements of In, Sb and Cl are uniformly distributed in the crystal (Supplementary Fig. 4c, d).

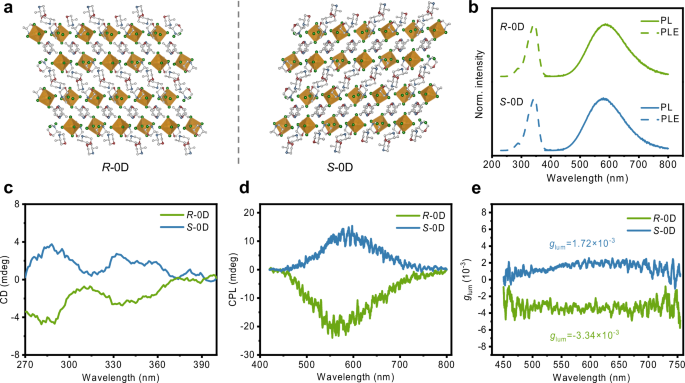

Fig. 3: Structural analysis and photophysical properties of R/S-0D.
figure 3

a The crystal structures of R/S-0D (In or Sb: brown, Cl: dark green, O: red, N: blue, C: grey, and hydrogen atoms are omitted for clarity). b The PL (solid line) and PLE (dot line) spectra of R-0D (green) and S-0D (blue). c The CD spectra of R-0D (green) and S-0D (blue). d The CPL spectra of R-0D (green) and S-0D (blue). e The glum values of R-0D (green) and S-0D (blue).

Full size image

The photophysical properties are further investigated on the R configuration of these metal halides with the Sb3+ doping concentration of 0.10 (R-0D). This concentration represents the molar ratio Sb/(Sb+In), with 0.10 selected for its optimal luminescence efficiency (Supplementary Fig. 8). As depicted in Supplementary Fig. 9, the metal halide R-0D exhibits significant absorption in the range of 280 to 400 nm, corresponding to its photoluminescence excitation (PLE) spectrum. Besides, it exhibits bright yellow emission peaked at 585 nm with PLQY of 83.44% (Fig. 3b, Supplementary Fig. 10). The time-resolved PL decay curve of R-0D shows a luminescence lifetime of 5.89 μs with the character of triplet decay, similar to previously reported 0D Sb-based hybrids (Supplementary Fig. 11)39,40. Additionally, a large Stokes shift of 242 nm and a full width at half maximum (FWHM) of 147 nm can also be observed. Excitation wavelength-dependent PL spectra demonstrate that R-0D keeps the same emission characteristics under different excitations from 260 to 380 nm, confirming the emission originates from the same excited state (Supplementary Fig. 12). The PL and PLE spectra on both powder and bulk crystals are carried out to further understand the luminescence mechanism of these chiral halides. As depicted in the Supplementary Fig. 13a, b, the PL and PLE spectra of R/S-0D in crystalline and powder states show similar profiles, ruling out the defect induced emission. The broadband emission, large Stokes shift, and greater luminescence decay lifetime are typical features of STEs emission, implying the bright yellow emission of R/S-0D originates from STEs. More favorable evidence has been obtained through analyzing the relationship between emission intensity and excitation power density. As depicted in Supplementary Fig. 14a, b, the linear relationship between them proves that these emissions are irrelevant to the permanent defects. Otherwise, the PL will be saturated when the traps are filled. Analysis is performed by fitting these data by Eq. (2)41,42:

$$I=n{L}^{k}$$
(2)

where I is the emission peak intensity, L is the excitation power density and n is the fitting parameter. The power exponent k is widely used to determine the luminescence mechanism of semiconductors. Normally, k = 2 typically indicates photoluminescence from free carrier recombination; 1 <k < 2 suggests exciton recombination; and k < 1 indicates free-to-bound and donor-acceptor transitions. The k of R/S-0D are estimated to be 1.02 with intrinsic feature of exciton recombination (Supplementary Fig. 14a, b). Moreover, the temperature-dependent photoluminescence is also recorded to validate the STEs emission. As shown in Supplementary Fig. 15, the emission intensity decreases roughly with temperature increasing from 83 to 363 K due to the enhanced non-radiative recombination. However, it rebounds slightly within the temperature range of 203–263 K. This is reasonable because there is competition between STEs emission and non-radiative recombination induced by exciton-phonon coupling. The intensity of exciton-phonon coupling can be evaluated by the Huang-Rhys factor (S) and phonon frequency ħωphonon using Eq. (3):

$${{{\rm{FWHM}}}}=2.36\sqrt{S}\hbar {\omega }_{{{{\rm{phonon}}}}}\sqrt{\coth \frac{\hbar {\omega }_{{{{\rm{phonon}}}}}}{2{{{{\rm{k}}}}}_{{{{\rm{B}}}}}T}}$$
(3)

where ħ is the Planck constant, kB is the Boltzmann constant, and the values of S and ħωphonon are estimated to be 29.87 and 33.66 meV, respectively (Supplementary Fig. 16). These high values of S and ħωphonon indicate a strong electron-phonon coupling effect in R-0D, which facilitates the formation of STEs.

The CD and CPL spectra are conducted on R/S-0D to understand their chiral characteristics. As shown in Fig. 3c, the CD spectrum of R-0D exhibits distinct Cotton effects in the wavelength range of 270 to 400 nm, consistent with its corresponding UV-vis absorption spectrum, indicating the chirality transfer from organic cations to inorganic frameworks since chiral organic cations have almost no CD absorption within the range of 300–400 nm (Supplementary Fig. 17a). When the absolute configuration of the chiral organic cation changes from R to S, the CD signal reverses. Besides, the CPL spectra based on R-0D and S-0D polycrystalline powders display mirror-image distributions in the range of 420 to 800 nm, with peak centred at around 585 nm (Fig. 3d), matching with the corresponding PL spectra. This alignment confirms that both CPL and PL originate from the same emission state, namely, the STEs. The glum at the peak positions for R/S-0D are −3.34 × 10−3 and 1.72 × 10−3, respectively (Fig. 3e, Table 1), with their corresponding FOM values of −2.79 × 10−3 and 1.36 × 10−3 (Table 1). The low glum is reasonable considering the weak chirality induction from organic cations to the inorganic framework in 0D structure (Supplementary Fig. 18). Higher structural dimension may benefit the chirality induction due to dense and more orderly packing of chiral cations.

Table 1 The summary of photoluminescence efficiency and CPL performance of chiral hybrids
Full size table

Characterizations of R/S-1D and R/S-3D

Based on the aforementioned assumptions, we endeavored to synthesize higher-dimensional In-based hybrids. Fortunately, 1D R/S-(MeML)2KInCl6: 0.10 Sb3+ (R/S-1D) have been synthesized by introducing K+ ions during the synthesis procedure of R/S-0D. Moreover, 3D R/S-(BLOH)2KInCl6: 0.10 Sb3+ (R/S-3D) is also achieved by replacing the R/S-MeML+ cation with the smaller cation R/S-BLOH+ (R/S-BLOH+ = R/S-3-hydroxypyrrolidine cation, Supplementary Fig. 19 and Supplementary Table 5). As depicted in Fig. 4a, R/S-1D crystallize in the chiral orthorhombic P21212 space group and display 1D chain structure. Each K+ ion is coordinated with four Cl- ions and two organic ligands to form a [KCl4O2] octahedral geometry. The In3+ (or Sb3+) ion is bonded to six Cl- ions, forming a [In(Sb)Cl6] octahedron. These two octahedrons are arranged alternately, forming a 1D edge-sharing chain (Supplementary Fig. 20 and Supplementary Table 6). While R/S-3D crystallize in the chiral triclinic space group P1 and exhibit 3D cage-like structure (Fig. 4b). The K+ ion is coordinated with five Cl- ions and two organic ligands, forming a [KCl5O2] decahedron. Each [KCl5O2] unit bonds with the adjacent [In(Sb)Cl6] octahedron via face-sharing connection to form an asymmetric dimer unit. These dimer units further assemble into a 3D cage-like structure through corner-sharing interaction (Supplementary Fig. 21 and Supplementary Table 7). R/S-3D differ from traditional 3D chiral perovskites that are typically stacked through electrostatic interactions or rely on surface passivation with chiral ligands. The inclusion of K+ ions and organic ligands in coordination may enhance chiral induction and transfer. ICP-OES analyses and EDS elemental mapping demonstrate the insertion and uniformly distributed of Sb3+ and K+ in these In-based halide hybrids, and the actual ratios from ICP-OES of Sb3+ are lower than the stoichiometric ratio (Supplementary Table 4 and Supplementary Fig. 4e–h). The presence of organic cations is further demonstrated by FT-IR spectra and elemental analysis (Supplementary Fig. 3e–h and Supplementary Table 2). Additionally, the PXRD patterns of these hybrids closely match with the simulated results from SCXRD, confirming their high crystallinity and phase purity (Supplementary Figs. 22, 23). Moreover, thermal stability of these hybrids is revealed by thermogravimetric analysis (TGA), which shows that the thermal stability is significantly enhanced with the increase of structural dimensions. Specifically, the decomposition of R/S-0DIn starts from before 100 °C, while the thermal decomposition temperatures for R/S-1D and R/S-3D are improved to ≈220 and 250 °C, respectively (Supplementary Fig. 24).

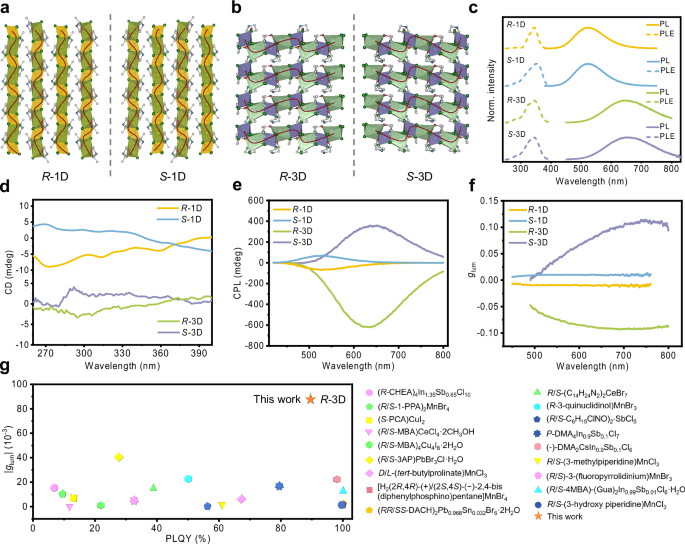

Fig. 4: Structural analysis and photophysical properties of R/S-1D and R/S-3D.
figure 4

a The crystal structures of R/S-1D (In or Sb: yellow, K: light green, Cl: dark green, O: red, N: blue, C: grey, and hydrogen atoms are omitted for clarity). b The crystal structures of R/S-3D (In or Sb: purple, K: light green, Cl: dark green, O: red, N: blue, C: grey, and hydrogen atoms are omitted for clarity). c The PL (solid line) and PLE (dot line) spectra of R-1D (yellow), S-1D (blue), R-3D (green) and S-3D (purple). d, e, f The CD, CPL spectra and glum values of R-1D (yellow), S-1D (blue), R-3D (green) and S-3D (purple). g The comparison of the PLQY and glum between this work and previously reported results.

Full size image

Under UV light illumination, R-1D exhibits bright green emission peaking at 525 nm, with a PL lifetime of 2.36 μs and a Stokes shift of 180 nm (Fig. 4c and Supplementary Fig. 25). Moreover, R-1D exhibits stronger emission than R-0D with a PLQY of 97.07% (Supplementary Fig. 26). This near-unity emission may be attributed to the reduction of non-radiative thermal vibrations in [In(Sb)Cl6] octahedron with the assistance of K+ coordination. R-3D exhibits bright broad orange-red emission centered at 647 nm with a PLQY of 84.83% and lifetime of 6.56 μs (Fig. 4c and Supplementary Figs. 27, 28). The PLQY trend for R-0D, R-1D and R-3D positively correlates with the Sb···Sb distances, consistent with the concentration-quenching effect (Supplementary Fig. 29)43. Additionally, the strength of exciton-phonon coupling plays a crucial role, as its enhancement can promote STEs formation and improve PLQY within a certain degree (Supplementary Figs. 16, 30, 31). The emission mechanisms of R/S-1D and R/S-3D are likely to derive from STEs, as inferred from the evaluation of the PL and PLE spectra on crystalline and powder states, the excitation wavelength-dependent and temperature-dependent PL spectra, the relationship between the FWHM and temperature, as well as the power-law dependence of the integrated PL intensity of R/S-1D and R/S-3D (Supplementary Figs. 13, 14, 30–35). Furthermore, femtosecond transient absorption (TA) measurements reveal a broad photo-induced absorption (PIA) band in the probe region for R-1D and R-3D (Supplementary Fig. 36), indicating the rapid formation of new electronic states post-photoexcitation, which provides direct evidence for the presence of STEs44.

Subsequently, the CD and CPL spectra on these 1D and 3D hybrids are also collected to explore the relationship between structural dimension and glum. As shown in Fig. 4d, both R/S-1D and R/S-3D exhibit prominent CD absorption in the range of 260 to 400 nm, aligning well with their UV-vis absorption spectra (Supplementary Figs. 37, 38). Considering chiral organic cations have almost no CD absorption in the range of 300–400 nm, the chirality transfer is proved from organic cations to inorganic framework (Supplementary Fig. 17). In the CPL spectra, R-1D and S-1D show mirror-image distributions in the range of 420 to 800 nm, with peak centers around 525 nm, consistent with their PL spectra, suggesting that CPL originates from the STEs emission of R/S-1D (Fig. 4e). The glum values at the peak positions of R-1D and S-1D are determined to be −9.95 × 10−3 and 1.03 × 10−2, respectively, representing a sixfold increase compared to S-0D (Fig. 4f, Table 1). And their FOM values are −9.66 × 10−3 and 9.63 × 10−3, sevenfold than S-0D. For R-3D and S-3D, they also display nearly symmetric CPL signals in the range of 420 to 800 nm, with peak centers around 640 nm (Fig. 4e). Encouragingly, the glum values measured at the peak positions reach to −0.89 × 10−1 and 0.88 × 10−1 for R-3D and S-3D, and their FOM are −0.75 × 10−1 and 0.79 × 10−1, respectively, representing an increase of nearly an order of magnitude compared to R/S-1D (Fig. 4f, Table 1). We also investigate the PL and CPL performance of metal halide K3InCl6: Sb3+ without chiral cations. Although it exhibits bright yellow emission, no CPL signal is detected, confirming that the chirality in our materials arises from the chirality-induced effect of the chiral organic cations (Supplementary Figs. 39, 40). To comprehensively demonstrate the influence of structural dimensions on CPL performance, we prepared 0D hybrids (R/S-BLOH)3InCl6: Sb3+ with P1 space group using the same precursors of R/S-3D without K⁺ ions (Supplementary Fig. 41a). Both hybrids exhibit orange-red emission peaked at around 610 nm, with a PLQY of ≈50% and a PL lifetime of nearly 5.40 μs (Supplementary Fig. 41b–g). Their CPL spectra display mirror-image distributions in the range of 420 to 800 nm, with peak centers around 610 nm, aligning with the corresponding PL spectra (Supplementary Fig. 41h). The glum values at the peak positions are −2.36 × 10−3 for (R-BLOH)3InCl6: Sb3+ and 2.40 × 10−3 for (S-BLOH)3InCl6: Sb3+, with their FOM values of −1.25 × 10−3 and 1.18 × 10−3, respectively (Supplementary Fig. 41i). Clearly, the CPL performance of R/S-3D with a 3D structure has improved significantly compared to (R/S-BLOH)3InCl6: Sb3+ with a 0D structure. In fact, R-3D and S-3D present the best circularly polarized luminescence performance in chiral metal halide hybrids to date. Both the FOM (3.5 times higher than the current highest value) and glum (more than twice the current highest value) are the highest among metal halides with various dimensions (Fig. 4g and Supplementary Table 8)22,25. The trend of |glum| values follow R/S-3D > R/S-1D > R/S-0D, consistent with their structural dimension. Therefore, we speculate that as the structural dimension of metal halide hybrids increases, the interactions between chiral organic ligands and inorganic metal polyhedra become more intimate, favoring the enhancement of chiral induction efficiency and leading to the amplification of glum.

Analysis of the stepwise amplificated CPL

To support the above speculation, the Hirshfeld surfaces (HS) and fingerprint plots of the organic fractions in R-0D, R-1D, and R-3D are generated using CrystalExplorer to quantify the relative contributions of intermolecular or intramolecular contacts45. As shown in Supplementary Fig. 42, the dark red and large circular depressions on the surfaces in R-0D, R-1D and R-3D are assigned to the hydrogen bonds or O···K coordination bonds. In addition, the Hirshfeld 2D-fingerprint plots reveal more detail on interactions. The H···Cl hydrogen bonds are dominant in R-0D (34.10%), R-1D (41.60%) and R-3D (43.70%), which enhance with the increase of structural dimensions. The chiral organic cations with strong hydrogen-bonding-acceptor (oxygen heteroatom) are employed here, which can coordinate with K+ ions instead of only relying on the electrostatic interactions in most perovskites, resulting in a more stronger chirality transfer. After replacing R-MeML+ with the smaller R-BLOH+, the contribution of O···K interaction increases from 2.50% to 3.30%. Besides the relative contributions to the Hirshfeld surface area for the contacts between chiral organic fractions and inorganic skeletons (the sum of O···Cl, H···Cl, O···K and H···K) in R-0D, R-1D and R-3D are 34.20%, 46.60% and 49.00%, respectively, demonstrating a more intimate interaction as the structural dimension increases, which favors the enhancement of chirality transfer from chiral organic cations to the inorganic skeletons.

On the other hand, the structural evolution plays an important role in improving the CPL performance as the optoelectronic properties of metal halides are closely tied to their crystal structures. As illustrated in Fig. 4a and Supplementary Fig. 20, the larger |glum| of R-1D compared to R-0D can be attributed to the direct connection between chiral ligands and the inorganic skeleton through coordination bonds, whereas R-0D only exhibits weak hydrogen bond interactions (Supplementary Fig. 18). R-1D achieves intrinsic chirality after self-assembling into helical chiral inorganic chains, where K+ and In3+ (or Sb3+) ions coordinate with Cl1- and Cl3- to form a right-handed helix [-KIn(Sb)Cl1,3-]∞, and with Cl2- and Cl4- to produce a left-handed helix [-KIn(Sb)Cl2,4-]∞ (Fig. 5a). Moreover, R-3D, with its 3D structure, can be viewed as multiple interconnected 1D chiral chains (Fig. 5b), which will amplify its chiral intensity. Comparing the inorganic chains in R-1D and R-3D, it is found that In3+ (or Sb3+) ions in R-3D exhibit slight displacement (Fig. 5c), whereas in R-1D, these ions are completely overlapping (Fig. 5d). Consequently, the |glum| of R-3D is higher than that of R-1D. Furthermore, R/S-3D demonstrate superior CPL performance compared to previously reported 3D chiral metal halides34, which can be attributed to the presence of a compact helical inorganic framework.

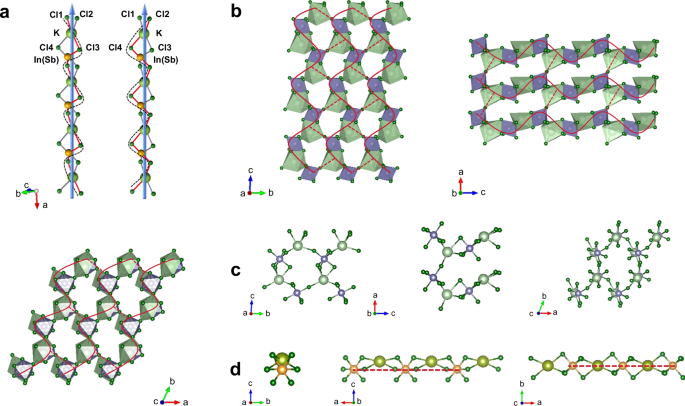

Fig. 5: Mechanism analysis of the enhanced CPL performance from R/S-0D to R/S-1D and R/S-3D.
figure 5

a The inorganic chain structures of right-handed helix [-KIn(Sb)Cl1,3-]∞ and left-handed helix [-KIn(Sb)Cl2,4-]∞ in R-1D (omitting the non-bridging Cl- ions and organic ligands for clarity). b The inorganic skeleton structure of R-3D (In or Sb: purple, K: light green, Cl: dark green, and omitting the organic ligands for clarity). The comparison of partial inorganic chain structures in R-3D (c) and R-1D (d) from different viewing directions (In or Sb: yellow, K: light green, Cl: dark green for R-1D and In or Sb: purple, K: light green, Cl: dark green for R-3D, and omitting the organic ligands for clarity).

Full size image

To quantitatively understand the origin of this stepwise amplified glum, both the μ and m of these chiral metal halides are estimated based on Eqs. (1), (4).

$${k}_{{{{\rm{r}}}}}=\frac{{\omega }^{3}{n}^{3}{|{{{\boldsymbol{\mu }}}}|}^{2}}{3\pi {\varepsilon }_{0}\hbar {{{{\rm{c}}}}}^{3}}$$
(4)

Where kr is the radiative recombination rate, ω is the frequency of the measured photoluminescence, n is the refractive index of the medium at the monitored frequency, which is set to be 2.29 based on refs. 46,47 ε0 is the vacuum permittivity and c is the speed of light under vacuum condition. The radiative recombination rate (kr) and the nonradiative decay rate (knr) of the monitored PL can be extracted from its PLQY and lifetime (τ), as described by Eqs. (5), (6).

$${{{\rm{PLQY}}}}=\frac{{k}_{{{{\rm{r}}}}}}{{k}_{{{{\rm{r}}}}}+{k}_{{{{\rm{nr}}}}}}$$
(5)
$${{{\rm{\tau }}}}=\frac{1}{{k}_{{{{\rm{r}}}}}+{k}_{{{{\rm{nr}}}}}}$$
(6)

The electric and magnetic transition dipole moments (μ and m) of these metal halides are estimated by using the above equations (Eqs. (1), (4)–(6)) and the results are summarized in Supplementary Table 9. Based on Eq. (1), enlarging |m| while contracting |µ| is critical to achieve a higher glum (θ is set to be 0 degree in Eq. (1) for convenience)48. In our case, The calculated |µ| changes slightly, while |m| increases significantly from 0.008 µB of R-0D to 0.035 µB of R-1D and 0.242 µB of R-3D, respectively. Therefore, the enlarged |m| caused by tuning the structural dimension in chiral metal halides is responsible for this stepwise amplified glum.

Discussion

In summary, through tuning the size and polarization of A-site cation by employing the cascade cationic insertion strategy, a series of chiral In-based metal halide hybrids with structural dimension ranging from 0D to 1D and 3D are designed and constructed. These hybrids overcome the contradiction between high PLQY and large glum, and present the best circularly polarized luminescent performance to date. Their |glum| values show an exponential increase from 1.72 × 10−3 to 0.89 × 10−1 as the structural dimension progresses from 0D to 3D. Structural analysis and theoretical calculation indicate that the formation of chiral helical structure and the enlargement of magnetic transition dipole moment are responsible for this stepwise amplified CPL performance. The implementation of this approach enriches the designing principles of chiral metal halide hybrids, and provides a strategy to construct circularly polarized light sources with both high PLQY and large glum.

Methods

Materials

Indium oxide (In2O3, 99%), antimony trichloride (SbCl3, 99%), (R/S)-3-methylmorpholine (R/S-MeML, 97%), (R/S)-3-hydroxypyrrolidine (R/S-BLOH, 98%) were purchased from Adamas Reagent Co., Ltd. Potassium chloride (KCl, 99%) and hydrochloric acid (HCl, 38% in water) were purchased from Sinopharm Chemical Reagent Co., Ltd. All reagents and solvents were used without further purification.

Synthesis of R/S-0DIn

For R/S-0DIn single crystals, In2O3 (0.072 g, 0.26 mmol) and R/S-MeML (0.158 g, 1.56 mmol) were dissolved in 3 mL of HCl and heated at 100 °C for 1 h until the mixture was completely dissolved. The colorless single crystals were obtained after evaporating for one week at 40 °C.

Synthesis of R/S-0D

For R/S-0D, In2O3 (0.065 g, 0.23 mmol), SbCl3 (0.012 g, 0.05 mmol) and R/S-MeML (0.155 g, 1.53 mmol) were dissolved in 3 mL of HCl and heated at 100 °C for 1 h until the mixture was completely dissolved. The colorless single crystals were obtained after evaporating for one week at 40 °C.

Synthesis of R/S-1D

For R/S-1D single crystals, In2O3 (0.065 g, 0.23 mmol), SbCl3 (0.012 g, 0.05 mmol), KCl (0.038 g, 0.51 mmol) and R/S-MeML (0.103 g, 1.02 mmol) were put into a 25 mL glass bottle. Subsequently, the mixture was dissolved in HCl completely after heating at 100 °C for 1 h. The colorless crystals were precipitated after volatilization at 40 °C for one week.

Synthesis of R/S-3D

For R/S-3D single crystals, In2O3 (0.065 g, 0.23 mmol), SbCl3 (0.012 g, 0.05 mmol), KCl (0.038 g, 0.51 mmol) and R/S-BLOH (0.089 g, 1.02 mmol) were put into a 25 mL glass bottle. Subsequently, the mixture was dissolved in HCl completely after heating at 100 °C for 1 h. The colorless crystals were precipitated after volatilization at 40 °C for one week.

Characterization

SCXRD data were recorded on the Bruker D8 ADVANCE diffractometer with Mo-Kα radiation (λ = 0.71073 Å) and Cu-Kα radiation (λ = 1.54184 Å). The data collection and reduction were carried out using the Bruker APEX3 program for all compounds. All the structures were solved and refined using the SHELXL-97 software package. All non-H atoms were refined anisotropically, and all H atoms placed in idealized positions. PXRD patterns were recorded using Rigaku MiniFlex 600 X-ray diffractometer equipped with a Cu-Kα (λ = 1.54184 Å) radiation in the range of 5−30° at a scan rate of 2.5° min−1. The PL spectra at different temperatures from 83 to 363 K, time-resolved emission data and PLQY were measured on an FLS1000 Edinburgh fluorescence spectrometer equipped with a 450 W xenon lamp or a 150 W microsecond flash lamp as the excitation source. The UV-vis absorption spectra were recorded at room temperature on the PerkinElmer LAMBDA 950 UV-vis spectrophotometer with BaSO4 as the reflectance reference. The ICP-OES measurements were carried out on a HORIBA Jobin Yvon ULTIMA2 instrument. The elemental analysis measurements were conducted on the Vario EL Cube instrument. The scanning electron microscopy and corresponding EDS mapping were performed on a Nova NanoSEM450 equipment, running at 30 kV and a resolution of 128.9 eV. The CD spectra were acquired using the A Bio-Logic MOS450 CD spectrometer with the scanning rate of 100 nm min–1, and the data interval was 1 nm. The CPL spectra were recorded by the Jasco CPL spectrophotometer (CPL-300). The TGA was measured on a Netzsch STA449F3 from 30 to 800 °C at a ramp rate of 5.00 °C min−1 under a nitrogen flux of 100 mL min−1. FT-IR spectra were recorded on Bruker VERTEX 70 FT-IR spectrophotometer with KBr pellets in the range of 4000–400 cm−1. Femtosecond pump-probe TA measurements were performed on a HELIOS (Ultrafast systems) spectrometer using a regeneratively amplified femtosecond CaF2 crystal laser system (Spitfire Pro-F1KXP, Spectra-Physics; frequency, 1 kHz; max pulse energy, ≈4 mJ; pulse width, 120 fs).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
