Fig. 2: Structural analysis and photophysical properties of R/S-0DIn. | Nature Communications

Fig. 2: Structural analysis and photophysical properties of R/S-0DIn.

From: Stepwise amplification of circularly polarized luminescence in indium-based metal halides by regulating their structural dimension

Fig. 2

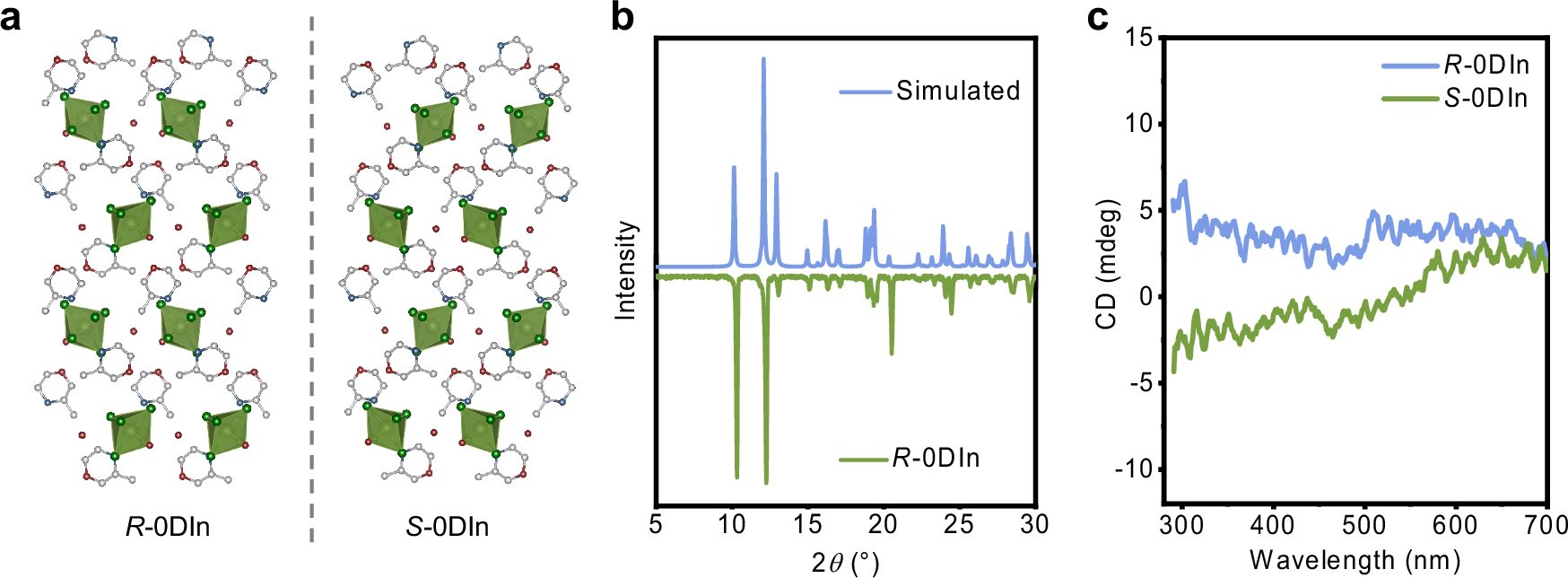

a The crystal structures of R/S-0DIn (In: light green, Cl: dark green, O: red, N: blue, C: grey, and hydrogen atoms are omitted for clarity). b The PXRD pattern of R-0DIn (green) and the corresponding simulated result (blue) from crystal structure. c The circular dichroism (CD) spectra of R-0DIn (blue) and S-0DIn (green).
