Introduction

In recent decades, the pursuit of integrating advantages from both ceramics and alloys has been achieved in a unique nanolamellar material, namely, the MAX phase ceramic1,2,3. Structurally, the lattice of the MAX phase can be regarded as an alternative staking of the metal carbide/nitride slab (Mn+1Xn) extracted from the {111} plane of an fcc lattice, and the atomic layer of main group elements (A)4,5. Owning to the distinct chemical composition of the Mn+1Xn slab and A layer, covalent bonds dominate the Mn+1Xn slabs, whereas much weaker bonds consisting of covalent, metallic, and/or ionic interactions exist between the Mn+1Xn and A layers6,7. Given the heterodesmic bonding characteristic, the MAX phase ceramics not only function as the structural material revealing excellent chemical inertness outdistancing alloys and machinability superior to most ceramics8,9,10,11,12, but also act as precursors towards novel two-dimensional MXene materials in recent years13,14,15. More importantly, the diversified chemical composition endows the MAX tunable physicochemical properties, in which the effects can be extended to the MXene-derivates16,17. On the other hand, due to the highly anisotropic structure with distinct atomic distribution tendency, the composition-structure dependency is more complex in the MAX phase than that in alloys or simple ceramic systems18,19. Therefore, although tremendous research efforts have been devoted to synthesizing new MAXs with different elemental combinations20,21, predicting and controlling the structure of multicomponent MAXs is still challenging.

Recently, a secondary chemical ordering, namely, the out-of-plane ordering of the M metals, has been experimentally and theoretically verified in high-level multicomponent MAX phases (n = 2 or 3)21,22. In brief, the thickened Mn+1Xn slabs result in two kinds of layers (Wyckoff sites) for M atoms to reside, one is adjacent to the A layer, while the other one is solely surrounded by X atoms (Fig. 1a). Due to the different coordination environments of the two layers, preferential occupation of different M atoms (M’ and M”) occurs, thus leading to an ordered arrangement of every M”-layer sandwiched in between two M’-layers in the sub-lattice scale while maintaining the lattice symmetry (Fig. 1a)23. Given the distinct atomic arrangement, the MAXs with such out-of-plane ordering are defined as “o-MAX”. Benefiting from the out-of-plane ordering, the M-A and M-X bonding can be regulated individually, which opens a new space for the performance-oriented designing of the MAXs and their derivates24,25,26. For example, by varying the composition of Ti3AlC2 to the Mo2TiAlC2 o-MAX, the compressive strength nearly doubled while the fracture toughness remained unharmed27. Whereas by further thickening the Mn+1Xn slabs, the Mo2Ti2AlC3 presented a higher strength of 1145 MPa accompanying by an enhanced toughness28. As plotted in an Ashby map showing the toughness-strength relationship of reported MAX phases (Supplementary Fig. 1 and Supplementary Table 1)27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44, the out-of-plane ordering has revealed distinct potential in improving the mechanical properties. However, due to the complex chemical composition and competition between multiple intermediates, the discovery of o-MAXs is rather sluggish and only limited o-MAXs have been experimentally synthesized heretofore23. Meanwhile, different from the solid solution of simple isomorphic lattice, e.g., fcc carbides (Fig. 1b)45, the blend of two o-MAXs usually leads to the destruction of their secondary chemical ordering. For example, Cr2TiAlC2 and Mo2TiAlC2 are two o-MAXs with strictly out-of-plane ordering38,39, while when blending their lattice, only an off-stoichiometric product with Mo intermixing has been obtained (Fig. 1c)46. On account of the increasing complexity within the resulting multi-elemental system, the succession of chemical ordering from both parental o-MAXs is still hard to achieve, let alone establish the performance-oriented designing of this MAX subfamily.

Fig. 1: Lattice structure and properties of o-MAXs compared to conventional MAXs.
figure 1

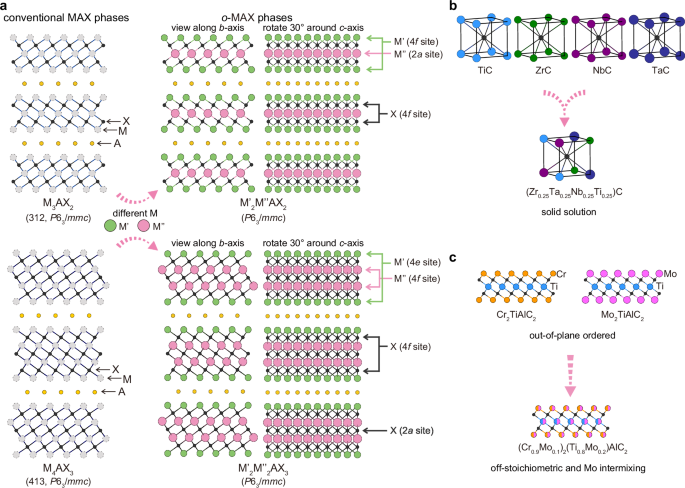

a Schematic illustration of the out-of-plane ordering in M3AX2 (312) and M4AX3 (413) MAX with two different metal planes. The orange and black spheres represent A and X atoms in the MAXs’ lattice, respectively, whereas gray spheres represent homogeneous M atoms in the lattice. Green and pink spheres indicate M’ and M” atoms in the o-MAXs’ lattice, respectively. b Illustration of the solid solution of isomorphic fcc carbide lattice. c Illustration of the formation of an off-stoichiometric (Cr0.9Mo0.1)2(Ti0.8Mo0.2)AlC2 product from two 312 o-MAXs.

Full size image

In this work, three quinary o-MAXs are prepared by forming solid solutions from two o-MAX (Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3) with three stoichiometric ratios (1:2, 1:1, and 2:1), namely, the (Cr0.78Mo0.22)2(Ti0.87Mo0.13)2AlC3 (denoted as Mo1Cr2), (Cr0.65Mo0.35)2(Ti0.88Mo0.12)2AlC3 (denoted as Mo1Cr1), and (Cr0.52Mo0.48)2(Ti0.88Mo0.12)2AlC3 (denoted as Mo2Cr1), respectively. Unexpectedly, the out-of-plane ordering of both parental o-MAXs is inherited in the three quinary o-MAXs. Density functional theory (DFT) calculations are performed to illuminate the electronic structure and chemical bonding characters of the new quinary o-MAX, which reveals an anisotropic and improved mechanical property. In agreement with the theoretical predictions, a high compressive strength (i.e., 1456.7 ± 64.3 MPa) as well as tunable capacity of energy dissipation is achieved in the quinary o-MAXs. Given the interesting structure and the tunable properties, the present work proves a promising way for synthesizing o-MAXs with complex chemical composition and specific chemical ordering.

Results and discussions

Atomic resolution of out-of-plane ordering in the quinary o-MAXs

The high-purity bulks were obtained through a two-step stratagem, which includes a spark plasma sintering (SPS) followed by high-temperature annealing. Since a typical MAX phase is generated after the SPS step (Supplementary Fig. 2)47, the element distribution with atomic resolution in the three MAXs was confirmed under a double-spherical aberration-corrected transmission electron microscope (ACTEM) via high-angle annular dark-field (HAADF) scanning transmission electron microscopy (STEM) mode. As shown in Fig. 2a, along the [11\(\bar{2}\)0] zone axis of Mo1Cr2, stacking of four-atomic-thick slabs is observed. Meanwhile, distinct enrichment of Al, Ti, and Cr atoms in different layers is confirmed by EDS mapping, which demonstrates the characteristic out-of-plane chemical ordering similar to that of Mo2Ti2AlC3 and Cr2.5Ti1.5AlC347,48. Accordingly, EDS line profiles were acquired perpendicularly spanning multiple slabs (in yellow). As plotted in Fig. 2a, Al layers are alternatively arranged in the interlaminar region of M4C3 slabs. Meanwhile, the distribution of Ti and Cr are clearly separated, corresponding to the 4 f and 4e Wyckoff sites in the lattice, respectively. For the Mo atoms, a distribution in both 4 f and 4e Wyckoff sites is shown. Figures 2b and 2c present the HAADF-STEM images and corresponding EDS results of Mo1Cr1 and Mo2Cr1, respectively. A similar distinct difference in the ___location of Ti and Cr in 4 f and 4e Wyckoff sites can be confirmed, while the Mo atoms still distribute at both sites irrespective of their increased content. Moreover, it should be pointed out that in the two parental o-MAXs, a small amount of metal intermixing between 4 f and 4e sites was suspected as well21,47,48. However, due to the potential irradiation-induced atomic displacements49,50, as well as the limitation of state-of-the-art apparatus, solid proof for such an intermixing is lacking so far. Therefore, pinpointing the atomic ___location in the three quinary o-MAXs might be left in the future.

Fig. 2: Atomic resolution of out-of-plane ordering in the quinary o-MAXs.
figure 2

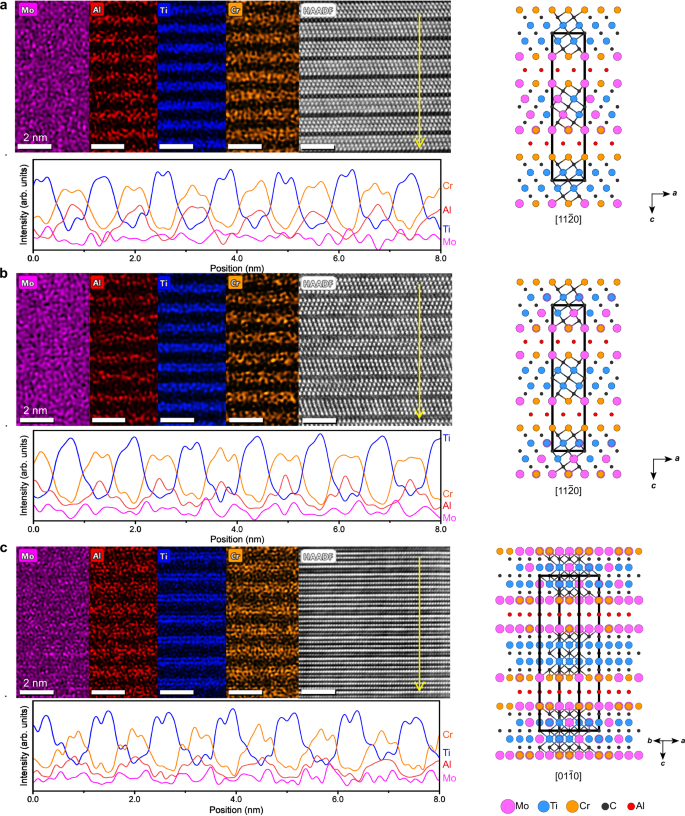

Double Cs correction HAADF-STEM images, EDS mapping, corresponding line profile, and the crystal model showing the projection direction. a Mo1Cr2, b Mo1Cr1, and c Mo2Cr1. Line profiles are acquired along the respective yellow arrow and the HAADF signal of the lattice is shown as gray background. The orange, blue, pink, and red lines are corresponded to Cr, Ti, Mo, and Al, respectively. Source data are provided as a Source Data file.

Full size image

Phase and structure of the quinary o-MAXs

Based on the X-ray diffraction (XRD) Rietveld refinements, the purity of the MAX phase is only around 75% just after SPS sintering. The crystallized impurities are mainly metal carbides for Mo1Cr2 (25.1 wt.%) and Mo1Cr1 (30.0 wt.%). Whereas metal carbides (19.0 wt%) accompanied by Al2O3 (4.3 wt.%) are detected in Mo2Cr1 (Supplementary Table 2). The elemental distribution in the as-sintered specimens was then acquired under a scanning electron microscope (SEM) with an energy-dispersive X-ray spectroscope (EDS). Through EDS mapping (Supplementary Fig. 3), an inhomogeneous distribution of Ti, Cr, and Al is detected in three specimens, which coincides with the possible impurities from XRD refinement. Further, EDS point analysis was performed based on backscattered-electron (BSE) analysis. As shown in Supplementary Fig. 4, bright lamellar grains on the as-sintered samples possess atomic compositions close to the chemical formula of the corresponding MAX phase (Supplementary Table 3). Meanwhile, the gray granular regions can be identified as metal carbides. Given the complex composition of Ti, Mo, and Cr in the region, the carbides should be a solid solution as well. The distinct black particles can be ascribed to the alloy or Al2O3 species. The impurities in the as-sintered specimens can be ascribed to the competitive formation of multiple intermedia during SPS sintering. Therefore, further high-temperature annealing was applied to facilitate the transformation of these intermedia to the MAX phase.

The XRD Rietveld refinement results of the three annealed o-MAXs are shown in Fig. 3a and Supplementary Fig. 5, which demonstrate a high MAX phase purity of 96.9, 94.8, and 93.0 wt.% for Mo1Cr2, Mo1Cr1, and Mo2Cr1, respectively. The Mo1Cr2 (Rwp = 4.374%) and Mo1Cr1 (Rwp = 4.455%) present impurities of metal carbides, whereas metal carbides (5.0 wt.%) and Al2O3 (2.0 wt.%) are detected from Mo2Cr1 (Rwp = 4.217%). The lattice parameters obtained from the refinement are summarized in Table 1 and plotted in Fig. 3b. For comparison, the reported lattice parameters of Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3 are also included47,48. With an increasing Mo/Cr ratio, the length of the a-axis rises from 2.944 Å of Cr2.5Ti1.5AlC3 to 2.975, 2.987, and 2.999 Å of Mo1Cr2, Mo1Cr1, and Mo2Cr1, respectively. Similarly, the length of the c-axis for the three o-MAXs reveals the same trend between the values of Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3. The c/a ratio of the three quinary o-MAXs is in a range of 7.713–7.758, which is comparable to the conventional MAXs (Supplementary Table 4). Along with the increasing Mo/Cr ratio, expansion of the unit cell occurs, which demonstrates the formation of solid solutions of Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3.

Fig. 3: Phase structure of the quinary o-MAXs and schematic of the ordering inherits.
figure 3

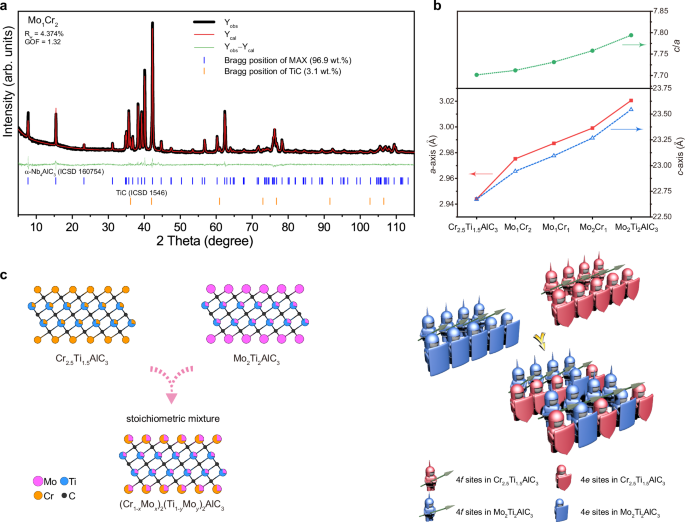

a Rietveld refinement of XRD pattern for annealed Mo1Cr2 MAX. The diffraction patterns of MAX and TiC phase are derived from the standard crystallographic data of α-V4AlC3 (ICSD 160754) and TiC (ICSD 1546). b The change in lattice parameters of the three quinary o-MAXs compared to Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3. The red and blue plots correspond to the parameters of a-axis and c-axis, respectively, whereas the green plot shows the c/a ratio. c Schematic illustration of the stoichiometric solid solution of Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3 to form the quinary o-MAX and the succession of the out-of-plane ordering. The red and blue knight phalanxes refer to the lattice of Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3, respectively, whereas the equipped shield and spear, respectively, represent the 4e and 4f metal sites in each o-MAX. Source data are provided as a Source Data file.

Full size image
Table 1 XRD refinement results of the three o-MAXs
Full size table

Additionally, given the distinct out-of-plane ordering of Ti, Cr, and Mo atoms observed from the atomic resolution HAADF-STEM images, Rietveld refinement was applied to confirm the occupation of Ti, Cr, and Mo in the 4e and 4 f Wyckoff sites, as well as further estimating their proportion. As shown in Table 1, Cr andd Mo at the 4e sites while Ti and Mo co-occupying at the 4 f sites in the quinary o-MAXs are physically feasible. Meanwhile, appending either Cr at the 4 f site or Ti at the 4e site leads to a negative occupation of elements, which reflects physically impossible occupations. The experimental formulas from the XRD refinements match well with the starting elemental ratio of the three quinary o-MAXs, which demonstrates a stoichiometrically solid solution of Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3 (Supplementary Table 5). Moreover, the increased Mo content mainly affects the atomic composition of the 4e site, whereas the Ti/Mo ratio in the 4 f site is nearly constant. Given the similar intermixing phenomenon in the parental o-MAXs and nearly the same occupancy of the 4 f site in Mo2Ti2AlC3 (Ti0.86Mo0.14) as obtained in the three quinary o-MAXs47,48, inheriting the out-of-plane ordering in the quinary o-MAXs by forming a solid solution of the two parental o-MAXs with a certain ratio of formula is reasonable (Fig. 3c).

The homogeneity of obtained specimens was confirmed by SEM. As acquired under low-magnification EDS mapping (Supplementary Fig. 6), all the annealed MAXs present a homogeneous distribution of Mo, Ti, Cr, Al, and C. Proved by the BSE image, the stacking of bright lamellar MAX grains gets denser after annealing, while the metal carbides nearly disappear (Supplementary Fig. 7). Meanwhile, from the corresponding EDS point analysis, the Ti content in the MAX grains increases after annealing (Supplementary Table 6), which also evidences the slow solid reaction of metal carbides with alloys to form the MAX phase. Moreover, the grain size of the three MAXs before and after annealing is measured according to the BSE images. The average lateral size of Mo1Cr2 is nearly constant after annealing (7.57 vs 7.69 μm). Whereas the grains of Mo1Cr1 and Mo2Cr1 slightly increase after annealing, which is 8.65 vs. 7.86 μm and 7.72 vs. 6.20 μm, respectively (Supplementary Fig. 8).

Bonding analyses of the out-of-plane ordered solid solution structure

To get an in-depth insight into the electronic structure of the quinary o-MAXs, the total density of states (TDOS) of the two parental o-MAXs and Mo1Cr1 are plotted together with their projected density of states (PDOS) of Mo, Cr, Ti, Al, and C near the Fermi level (Ef, Supplementary Figs. 9, 10)51,52. As shown in Fig. 4a–c, the Ef of the three compounds is dominated by the contribution from the d-d interaction of 4e metal atoms, whereas the states at lower energy levels around −8.5 to −0.5 eV are ascribed to the d-p hybridizations between the transition metal and Al or C atoms52. Accordingly, the crystal orbital Hamilton population (COHP) analysis of the typical M-C and M-Al bonds was performed53,54,55. As shown by the −COHP plots, the Cr-C and Mo-C interactions below Ef are contributed by a majority of bonding orbitals with a small antibonding portion lying at −2.5 eV to Ef. While for the Ti-C interactions, the contribution from −8.5 eV to Ef is dominated by the bonding state.

Fig. 4: Electronic structure and bonding analysis.
figure 4

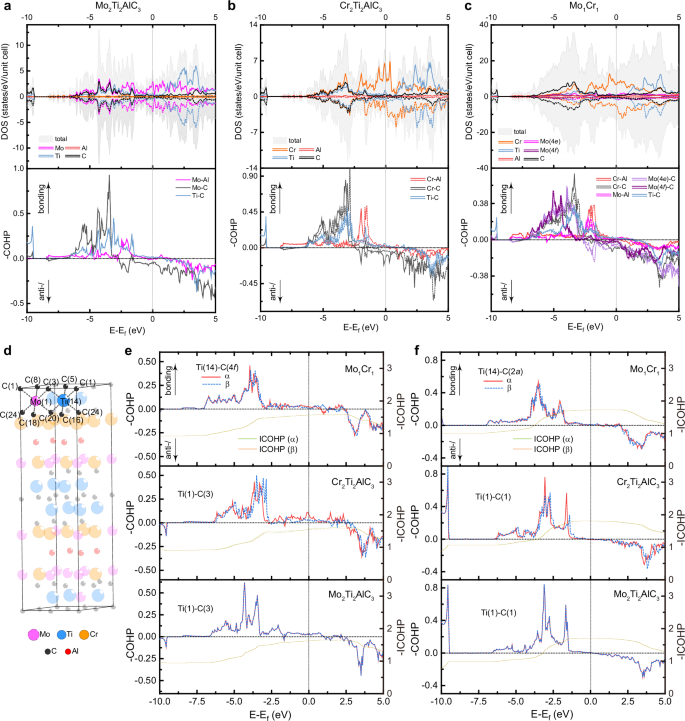

a–c Total density of states (TDOS) and corresponding negative average crystal orbital Hamilton population (−COHP) of Mo2Ti2AlC2 (a), Cr2Ti2AlC3 (b), and Mo1Cr1 (c), respectively. d Schematic illustration of the coordination environments of Ti(14) atom at 4 f site with an adjacent Mo(1) atom in Mo1Cr1. e, f Average −COHP and integrated −COHP curves (−ICOHP) of (e) Ti-C(4 f) bonds in Mo1Cr1 and the two parental o-MAXs, (f) Ti-C(2a) bonds in Mo1Cr1 and the two parental o-MAXs. The −COHP curves of each bond are colored in red and blue, whereas the −ICOHP curves are colored in green and orange. Solid and dash lines represent the α and β spin, respectively. Source data are provided as a Source Data file.

Full size image

For a more detailed understanding of the impacts of the solid solution of the two parental o-MAXs on bonding states in Mo1Cr1, −COHP and the integrated (−ICOHP) curves are examined. Figure 4d illustrates the coordination environments of the 4 f Ti(14) atom with a neighboring Mo(1) atom. The Ti(14) atom connects to three 4 f C atoms (C(16), C(20), and C(24)) and three 2a C atoms (C(1), C(3), and C(5)). As shown in Fig. 4e, f and Supplementary Figs. 11, the introduction of hetero Mo atom results in differentiated Ti-C bonds in Mo1Cr1 when compared to that of Mo2Ti2AlC3 and Cr2Ti2AlC3. Meanwhile, the Ti-C(4 f) bonds in the three o-MAXs present mainly bonding states at and close to Ef, while the Ti-C(2a) bonds show crossover points of bonding and antibonding regions near Ef. Similar bonding states also have been reported in the 312 system22. As the 4 f Ti and 2a C layers possess a more bulk-phase-like coordination environment within the thickened Mn+1Cn layer, the near-zero COHP value close and at the Ef demonstrates limited energetic contribution from the Ti-C(2a) bonds54. Such −COHP curves also indicate higher covalency of the Ti-C(2a) bonds than the corresponding Ti-C(4 f) bonds, which is in accordance with the higher −ICOHP values56. Bader charge analysis (Supplementary Tables 7, 8) was then performed to evaluate the overall charge transfer onto the adjacent C atoms57. A reduced charge gain on 2a C atoms in Mo1Cr1 is revealed when compared to that of Mo2Ti2AlC3 and Cr2Ti2AlC3, whereas the charge transfer onto 4 f C atoms is relatively constant. As a result, the −ICOHP values of both Ti-C(2a) and Ti-C(4 f) show an intermediate Ti-C bond strength in Mo1Cr1 in between the parental o-MAXs (Supplementary Table 9).

Meanwhile, populated antibonding states of the M(4e)-C(4 f) bonds are detected at and close to Ef. However, based on the −ICOHP values, the solid solution of Cr and Mo atoms at the 4e sites in Mo1Cr1 weakens the Cr(4e)-C(4 f) interactions while enhancing the Mo(4e)-C(4 f) interactions when respectively compared to that of Cr2Ti2AlC3 and Mo2Ti2AlC3 (Fig. 5a–c, Supplementary Figs. 12a, b, and Supplementary Table 9). As demonstrated by the Bader charge analysis (Supplementary Tables 7, 8), the adjacent arrangement of Cr and Mo atoms at the 4e sites facilitates the charge donation of Cr while reducing the charge donation of Mo. Thus, the altered covalency of both M(4e)-C(4 f) interactions in Mo1Cr1 leads to an evolution of bond strengths after forming a solid solution. Similarly, for the M(4e)-Al interactions in Mo1Cr1, enhanced Mo(4e)-Al interactions and weakened Cr(4e)-Al interactions are observed, which is consistent with the change in charge donation from the respective M(4e) and Al atoms comparing to that of the respective parental o-MAX (Fig. 5d, e and Supplementary Figs. 12c, d). Based on the Bader charge analysis (Supplementary Table 9), the 4e metal and Al atoms are all positively charged, which indicates a hybridization of valence electron or covalent bonding characters58. After forming a solid solution, the reduced charge donation might enhance the electron hybridization, and vice versa. Further, the average −ICOHP values of the corresponding bonds in the three o-MAXs and the normalized −ICOHP values based on their respective M(4e)-Al bond are plotted (Supplementary Figs. 13). As shown, although the M(4e)-Al bond is the weakest bond in the three o-MAXs, the strength of M-C bonds varies. The strongest bond is the Mo(4e)-C(4 f) bond in Mo2Ti2AlC3 while Ti(4 f)-C(2a) bond in Cr2Ti2AlC3. Moreover, the M(4 f)-C(4 f) bond is relatively weak in the two parental o-MAXs when compared to their strongest bond. On the contrary, after solid solution, the relative strength of M(4e)-C(4 f), M(4 f)-C(4 f), and M(4 f)-C(2a) bonds in Mo1Cr1 gets more even. Based on the heterodesmic bond nature of the MAX phase, not only the bond strength ratio of M-Al and M-C bonds but also the ratio among different M-C bonds is critical for the sequence of bond breaking59,60. Eventually, benefiting from the relatively large bond strength ratio of M-C over the M-Al bond, as well as a more even bond strength distribution in the M4C3 layer of Mo1Cr1, tunable and enhanced mechanical properties can be expected.

Fig. 5: Bonding analysis of the 4e metal.
figure 5

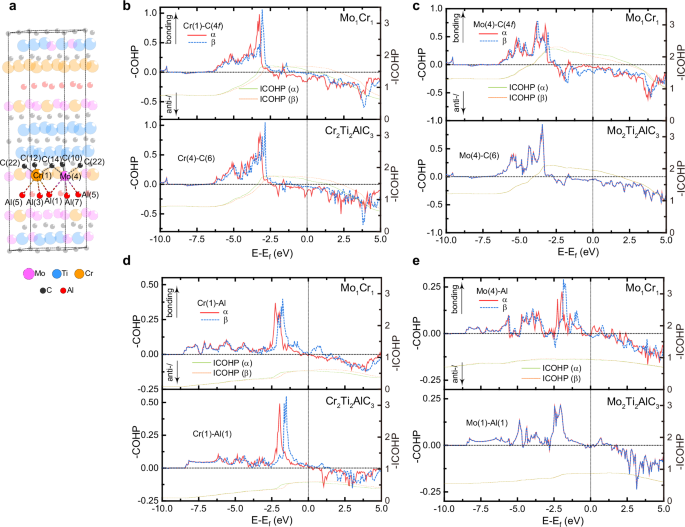

a Schematic illustration of the coordination environments of Cr(1) atom at 4e site with an adjacent Mo(4) atom. b–e Negative average crystal orbital Hamilton population (−COHP) and integrated −COHP curves (−ICOHP) of (b) Cr-C(4 f) bonds in Mo1Cr1 and Cr2Ti2AlC3, (c) Mo-C(4 f) bonds in Mo1Cr1 and Mo2Ti2AlC3, (d) Cr-Al bonds in Mo1Cr1 and Cr2Ti2AlC3, (e) Mo-Al bonds in Mo1Cr1 and Mo2Ti2AlC3. The −COHP curves of each bond are colored in red and blue, whereas the −ICOHP curves are colored in green and orange. Solid and dash lines represent the α and β spin, respectively. Source data are provided as a Source Data file.

Full size image

Therefore, the anisotropic elastic properties of Mo2Ti2AlC3, Cr2Ti2AlC3, and Mo1Cr1 were compared by calculating the second order elastic constants cij (Supplementary Table 10). As summarized, the Mo1Cr1 presents c11 and c12 in between those of the Mo2Ti2AlC3 and Cr2Ti2AlC3, while the c13, c33, and c44 are higher than both o-MAXs. A stronger bonding along the c-axis than a-axis (c33 > c11) is observed in Mo1Cr1 as well61,62, which is in agreement with the change in bond strength and strength distribution predicted by −ICOHP values (Supplementary Fig. 13). By calculating the linear compressibility coefficients (kc/ka) based on the elastic constants58, M1Cr1 presents the largest deviation of kc/ka from 1 (0.69 for Mo1Cr1, 0.82 for Cr2Ti2AlC3, and 1.13 for Mo2Ti2AlC3), which implies the highest anisotropic compressibility. Accordingly, based on Hill’s average63, elastic-dependent properties including bulk modulus (BH), Young’s modulus (EH), shear modulus (GH), and Poisson’s ratio (vH) were calculated as well (Supplementary Table 11). As shown, an increased EH and GH, are predicted in the solid solution structure of Mo1Cr1, which implies an improved mechanical property.

Mechanical properties of the quinary o-MAXs

Under the guidance of theoretical predictions, room-temperature stress-strain curves of the three as-synthesized o-MAXs (Mo1Cr2, Mo1Cr1, and Mo2Cr1) up to failure were recorded and depicted in Fig. 6a and Supplementary Fig. 14. As shown, Mo1Cr2 delivers a compressive strength of 1192.5 ± 35.0 at 6.9% strain. Whereas with increasing Mo content, Mo1Cr1 and Mo2Cr1 present a high compressive strength of 1456.7 ± 64.3 at 7.7% strain and 1392.5 ± 45.7 MPa at 7.7% strain, respectively. In consideration of the similar grain size of the three o-MAXs, the evolution of mechanical properties can be dominated by chemical composition and secondary ordering. Meanwhile, although the corresponding metal carbides and oxides are typical impurities in the synthesized o-MAXs31,35,64, the impacts of TiC and Al2O3 on the mechanical properties of the new MAXs should be excluded. Thus, nanoindentation was applied to the three o-MAXs. The load-displacement curves of annealed samples are plotted in Supplementary Fig. 15. The elastic modulus (E) and nanoindentation hardness (H) of the three MAXs are calculated based on the Oliver-Pharr model65,66. As plotted in Fig. 6b, the Mo1Cr1 delivers the highest E and H among the three o-MAXs as well. Meanwhile, the respective ratio of E2/H that represents the capacity of energy dissipation of each quinary o-MAX is calculated (Fig. 6b)67,68. As shown, the E2/H of Mo1Cr1 and Mo2Cr1 is nearly 1.5 times higher than that of the Mo1Cr2. Figure 6c compares the compressive strength of the three MAXs together with their E. As shown, a coincident trend in both the strength from macroscopic compression and the E from nanoindentation is revealed. Given the consistent performance from both macro and microscopic scales, the obtained compressive strength of the three quinary o-MAXs might not have been affected by the minor amount of impurities and thus is credible and intrinsically comparable. Notably, the compressive strength achieved by Mo1Cr1 is not only the highest among the three quinary o-MAXs but also higher than that of the Mo2Ti2AlC3 MAX28, which is in agreement with the theoretical predictions. Meanwhile, such value excels previously reported MAXs27,28,30,31,33,34,35,36,37,38,39,40,43,44,64,69,70, and is comparable to some common engineering ceramics like alumina as well (Supplementary Table 1)71,72,73,74.

Fig. 6: Mechanical properties of the quinary o-MAXs.
figure 6

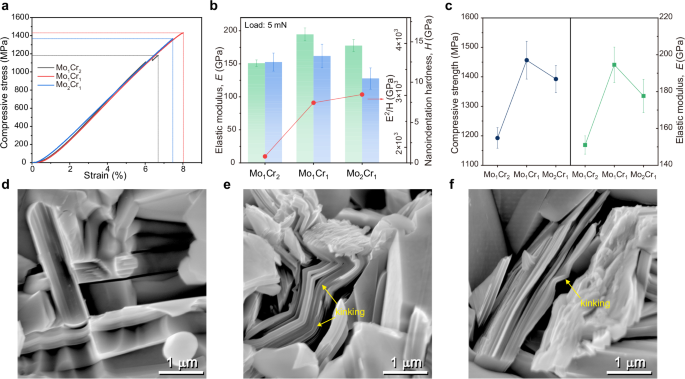

a Typical stress-strain curves of the three o-MAXs under a compressive rate of 10−3 s−1. b The elastic modulus E (in green), nanoindentation hardness H (in blue), and the calculated E2/H (in red) of the three MAXs with a peak load of 5 mN. c Change on the compressive strength (in dark blue) and E (in green) of the three MAXs upon their chemical composition. d–f High-magnification SEM images show the typical surface morphology after compression tests: Mo1Cr2 (d), Mo1Cr1 (e), and Mo2Cr1 (f), respectively. The yellow arrows indicate the kinking within the grains. The error bars in (b) represent the standard deviations from ten parallel measurements, while the error bars of compressive strength in (c) represent the standard deviations from five parallel measurements. Source data are provided as a Source Data file.

Full size image

The morphology of surfaces after compression tests from three MAXs was observed under high-magnification SEM (Fig. 6d–f). As shown, the Mo1Cr2 delivers distinct undeformed grains on a cracked surface after compression, whereas typical kinking structures are observed in the grain of Mo1Cr1 and Mo2Cr1. Given the dramatically extended path of crack propagation and enlarged cracking surface by forming kinking in the nanolamellas, a higher capacity of energy dissipation of Mo1Cr1 and Mo2Cr1 is concluded, which is in accordance with their higher E2/H value.

In summary, a strategy toward new o-MAX is demonstrated by forming solid solutions of two existing o-MAXs (Cr2.5Ti1.5AlC3 and Mo2Ti2AlC3), and a miscible chemical ordering is demonstrated. Three quinary o-MAXs that inherit the out-of-plane ordering from the parental o-MAXs have been obtained. DFT calculations are performed to illuminate the electronic structure and chemical bonding characters of the quinary o-MAX, which reveals anisotropic and improved mechanical properties. Accordingly, the theoretically predicted mechanical properties have been verified by both macroscopic compression and nanoindentation tests, where high compressive strength, as well as the tunable capacity of energy dissipation after forming solid solution, is observed in quinary o-MAXs. Given the tunability in chemical composition, structural ordering, as well as mechanical properties, the quinary Ti-Cr-Mo o-MAXs prove a way towards constructing the chemical complex o-MAXs and would enjoy a bright prospect in multiple applications.

Methods

Synthesis of the Ti-Cr-Mo solid solution o-MAX

The quinary MAX was synthesized by spark plasma sintering (SPS) the powder mixture at 1500 °C. Briefly, elemental powders of Ti, Cr, and Mo with stoichiometric ratio were ball milled with Al and flake graphite powders. The molar ratio of metal:Al:C was 4:1.2:3, for which an excessed amount of Al was adopted. For the three o-MAXs, the typical mass of Ti, Cr, Mo, Al, and C was 2.69 g, 2.92 g, 2.16 g, 1.10 g, 1.22 g for (Cr0.78Mo0.22)2(Ti0.87Mo0.13)2AlC3 (Mo1Cr2); 3.04 g, 2.38 g, 3.06 g, 1.18 g, 1.32 g (Cr0.65Mo0.35)2(Ti0.88Mo0.12)2AlC3 (Mo1Cr1); and 2.96 g, 1.46 g, 4.32 g, 1.10 g, 1.22 g for (Cr0.52Mo0.48)2(Ti0.88Mo0.12)2AlC3 (Mo2Cr1), respectively. A SPEX 8000 M high-energy ball mill with a clamp speed of 875 cycles per minute was utilized for the ball milling. The weighting and milling processes were carried out in an Ar atmosphere. The homogeneous powder mixture was cold pressed in a h-BN coated graphite dies (ϕ30 mm) under 30 MPa for 10 min, and then sintered at 1500 °C for 15 min under a uniaxial pressure of 30 MPa in vacuum. The heating and cooling rates were 100 °C min−1.

To achieve a high phase purity, the as-sintered specimens were annealed in a tube furnace at 1500 °C for 2 h under an Ar atmosphere, the heating and cooling rates were no more than 10 °C min−1.

First-principle calculations

Density functional theory (DFT) calculations were performed on Vienna ab initio Simulation Package (VASP) by using the projector augmented-wave (PAW) method75,76. The exchange-correlation functional energy was described by generalized gradient approximation (GGA) with Perdew-Burke-Ernzerhof (PBE) scheme77. For modeling the structure of two parental o-MAXs, a plane-wave cutoff of 600 eV and the 15 × 15 × 1 k-points of the Brillouin zone were used. To simplify the model, the Cr, Mo, and Ti in the Cr-Ti and Mo-Ti binary o-MAXs were set to solely occupy the 4e and 4 f Wyckoff sites, i.e., Cr2Ti2AlC3 and Mo2Ti2AlC3. Whereas to simulate the Mo1Cr1, an atomic occupancy with the formula (Cr0.625Mo0.375)2(Ti0.875Mo0.125)2AlC3 was taken (Supplementary Data 1). The solid solution of Cr, Mo, and Ti atoms in the structure of Mo1Cr1 was processed by creating random structures using the special quasi-random structure (SQS) method78. Accordingly, a 2 × 2 × 1 supercell with a 9 × 9 × 1 k-point mesh was utilized for Mo1Cr1. Spin polarization was adopted in the three models to fulfill the requirement of magnetic configuration in two Cr-contained o-MAXs and keep consistency in Mo2Ti2AlC3. The relaxation of atomic geometries was achieved using the conjugate-gradient method. The maximum force tolerance of 0.02 eV Å−1 and a convergence precision of 1.0 × 10−5 eV atom−1 was taken as the criteria for geometry optimization. Chemical bonding analyses of plane-wave data were performed based on a variant of the crystal orbital Hamilton population (−COHP) technique by using the Local-Orbital Basis Suite Towards Electronic-Structure Reconstruction software package (LOBSTER-5.1.153,54,79,80).

The elastic constants of the three structures were determined based on an energy-strain method, during which the structures after applying strain were generated by VASPKIT in batches81. For calculating the elastic constants, 21 × 21 × 2 k-points for the two parental o-MAXs and 12 × 12 × 2 k-points for Mo1Cr1 were adopted. Seven distorted structures were used to calculate the elastic constant, in which the lattice deformations δ ranged from −0.015 to 0.015 with a step size of 0.005. After calculating the energy of each deformed structure, the elastic constant of the material is calculated by binomial fitting.

Mechanical properties

All sintered disks were polished by SiC paper sequentially to 2000-grit, and then cleaned with ethanol before the following tests.

Nanoindentation test was executed at a peak load of 5 mN (Hysitron, Bruker), the loading and unloading time were 5 s, whereas the dwell time was 2 s. At least 10 indentations were performed for each sample to determine the elastic modulus (E) and nanoindentation hardness (H).

Compressive tests were performed using cylindrical-shaped specimens (ϕ5.0 mm and 8 mm in height). Samples were machined by electro-discharging and polished by SiC paper before test. Compressive tests were performed in the air using an electromechanical universal testing machine (MTS 5105, China) with a maximum load of 100-kN, supplied with a controller that allowed tests to be run either in displacement or load control mode. In all tests, a preload of 1–2 MPa that corresponded to stress, s, was applied to keep the samples aligned. The obtained the mean and standard deviation (SD) of the samples, at least 5 specimens were tested for each MAXs.

Materials characterizations

All the X-ray diffraction (XRD) patterns were collected on a Bruker D8 ADVANCE diffractometer, with a 2θ range of 5–120° and a scan step of 0.02°. The lattice parameter and phase purity of the specimens were analyzed via Rietveld refinements using GSAS II software.82 For refining the atomic occupation of Ti, Mo, and Cr in the 4 f and 4e Wyckoff sites, atoms that potentially co-occupation were assigned at the same coordinate position, and constrained by the same atomic parameters to be the equivalent atoms. During the following refinement, unstable combinations (abnormal in position and atomic fraction) were removed to obtain the most possible one. High-angle annular dark-field (HAADF) scanning transmission electron microscopy (STEM) with atomic resolution was utilized to verify the distribution of Ti, Cr, Mo, and Al atoms in the lattice. The HAADF-STEM images were collected on an FEI Themis Z (double Cs correction) transmission electron microscope (TEM). A thin-foil sample for HAADF-STEM was prepared on an FEI Helios G4 CX dual-beam focused ion beam/scanning electron microscope (FIB/SEM). Based on the HAADF-STEM characterizations, energy-dispersive X-ray spectroscopy (EDS) mapping and line profiling were performed as well. The worn and unworn surfaces of the specimens were studied by the SEM, whereas the elemental distribution of the surface was characterized by EDS mapping as well. The density of the sintered specimens was evaluated through Archimedes’ method.
