Abstract
Microbial rhodopsins form a diverse family of light-sensitive seven-transmembrane helix retinal proteins that function as active proton or ion pumps, passive light-gated ion channels, and photosensors. To understand how light-sensing in archaea is initiated by sensory rhodopsins, we perform serial synchrotron X-ray crystallography (SSX) studies of light induced conformational changes in sensory rhodopsin II (NpSRII) from the archaea Natronomonas pharaonis, both collecting time-resolved SSX data and collecting SSX data during continuous illumination. Comparing light-induced electron density changes in NpSRII with those reported for bacteriorhodopsin (bR) reveals several common light-induced structural perturbations. Unlike bR, however, helix G of NpSRII does not unwind near the conserved lysine residue to which retinal is covalently bound and therefore transient water molecule binding sites do not arise immediately to the cytoplasmic side of retinal. These structural differences prolong the duration of the NpSRII photocycle relative to bR, allowing time for the light-initiated sensory signal to be amplified.
Similar content being viewed by others
Introduction
Proteins that are closely related structurally often perform very different functions. Understanding how subtle differences in protein structure and dynamics lead to diversity in protein function is one of the goals underpinning the field of structural biology. Rhodopsins are a family of retinal-binding seven-transmembrane (TM) helix proteins that perform diverse biological functions including proton pumping (bacteriorhodopsin, proteorhodopsin, leptosphaeria rhodopsin, xanthorhodopsin and schizorhodopsin), ion pumping (halorhodopsin, the Na+ pump NaR, and the Cl− pump ClR), membrane depolarization (channel rhodopsin), hyperpolarization (anion channelrhodopsin), and sensory reception (sensory rhodopsin) in bacteria, archaea and algae1,2. Visual rhodopsin, another seven TM helix retinal-binding protein, is a G protein-coupled receptor which serves as the primary light-receptor in animal vision. This evolutionary diversity highlights how proteins utilize similar scaffolds for various functions3.
Bacteriorhodopsin (bR) from Halobacterium salinarum (Fig. 1a) and sensory rhodopsin II from Natronomonas pharaonis (NpSRII) (Fig. 1b) are intensively studied model systems which provide insight into how light is utilized for energy transduction or phototaxis, respectively. As with all microbial rhodopsins, both contain a buried retinal molecule that is covalently bound through a protonated Schiff base (SB) to a conserved lysine residue of helix G (Lys205 for NpSRII and Lys216 for bR)4,5,6. In bR, light activation causes an ultrafast all-trans to 13-cis retinal isomerization7,8 which induces a sequence of protein conformational changes9,10 that ultimately return the protein to its starting conformation at the end of the photocycle. Isomerized retinal is deprotonated and Asp85 is protonated during the L-to-M spectral transition11. The sequence of structural changes in bR that are required to transport protons against a membrane potential gradient are highly choreographed in space and time12.

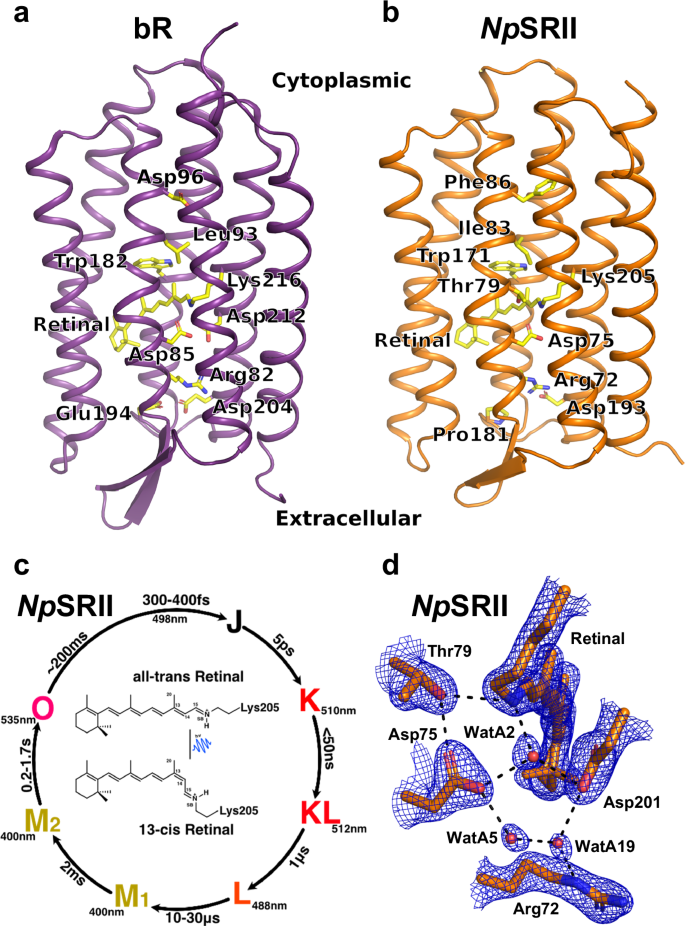

a Structure of bR indicating several of the conserved residues involved in proton pumping. b Structure of NpSRII with the corresponding residues indicated. c Summary of the photocycle of NpSRII. Spectral intermediates J to O are labelled, with the wavelength of their absorption maximum and an approximate rise-time indicated (modified from reference14). d Water mediated hydrogen bond interactions in NpSRII connecting the retinal SB to the extracellular side of the protein in the resting conformation. The 2Fobs-Fcalc electron density map (blue) is contoured at 1.2 σ, where σ is the root mean square electron density of the map.
As with bR, SB deprotonation in NpSRII occurs during the L-to-M transition13 (Fig. 1c) with Asp75 on helix C (Fig. 1d, which corresponds to Asp85 of bR) serving as the primary proton acceptor. The M-state of NpSRII also forms within a few tens of microseconds, which is similar to bR. By contrast, the M to O transition (~200 ms to 1.7 s14) and the decay of the O intermediate back to the resting state (~200 ms) in NpSRII (Fig. 1c) is much slower than for bR13,15, which in the bR photocycle is completed more than an order of magnitude faster16. These differences are easily understood from an evolutionary perspective since bR is a proton pump that harnesses light to produce a proton gradient for ATP production, whereas NpSRII is a blue light photophobic sensor that helps protect the cell from harmful near UV-light17. A sensory protein requires a prolonged period in the activated state to allow time for the signal to be transduced to downstream receptors and thereby be amplified18,19. However, since bR and NpSRII are structurally very similar, it is unclear exactly how the second half of the photo-cycle of NpSRII is slowed so dramatically5.
Time-resolved crystallography allows structural changes within proteins to be followed with time20. Serial crystallography21 was first developed at X-ray Free Electron Lasers (XFELs) in order to address the challenge that crystals are rapidly destroyed by a highly brilliant XFEL beam22. This motivated the development of new sample delivery methods to continuously feed microcrystals into the X-ray beam path23 and new approaches to data processing to merge thousands of diffraction patterns containing partial intensities from randomly oriented microcrystals24. Serial methods were rapidly adapted for time-resolved diffraction studies25 and sparked a period of growth in the number of reported time-resolved diffraction studies26,27. Serial crystallography has since been utilized at storage ring facilities28 with the extension to time-resolved diffraction studies proving an effective way to collect data on slower (milliseconds to seconds) time scales10.
Here we utilize time-resolved serial synchrotron X-ray crystallography (TR-SSX), and SSX during continuous illumination, to study light-induced structural changes in the archetypical sensory receptor NpSRII. We adapt LCP crystallization procedures for NpSRII5,6 to facilitate TR-SSX experiments using blue-light illumination and compare structural changes observed after illumination for both NpSRII and bR. These comparisons highlight divergent structural changes underpinning the striking differences in the rate of turnover of their respective photo-cycles. More specifically, our TR-SSX data reveal how the structural rearrangements in helix G near the retinal binding site are considerably smaller for NpSRII than those observed in bR. We suggest that these differences hinder the SB reprotonation step and thereby extend the lifetime of the signalling state of NpSRII. This result provides a structural explanation for how a common protein scaffold can be adapted for varied functionality and highlights the nature of structural insights that may emerge as time-resolved crystallography become increasingly widespread.
Results and discussion
Room temperature SSX resting state structure of NpSRII
NpSRII was crystallized using a crystallization precipitant solution modified relative to what has been previously published5,6. Notably, we avoided the use of a purple membrane (PM) lipid reconstitution, which allowed large volumes of microcrystals to be produced (a prerequisite for TR-SSX studies) without a corresponding effort to prepare purified PM lipids. Optimization of initial conditions enabled thousands of small NpSRII crystals to be grown in LCP using the well based crystallization approach29 (Methods). Microcrystals grew as needles with the longest dimension typically up to 60 μm in length, and the smallest dimension <10 μm (Supplementary Fig. 1a, b). However, the longer needles tended to break during handling when LCP microcrystal slurries were transferred into Hamilton syringes for adjusting the sample consistency prior to sample injection, and subsequently loading into the injector reservoir for sample delivery. Thus, prior to injection, microcrystals were typically up to 20 µm in their largest dimension. Serial crystallography data were collected at the Swiss Light Source (SLS) PX1 beamline following the methodology demonstrated using microcrystals of bR10. NpSRII microcrystals diffracted to 2.1 Å resolution for the resting (dark) data-collection. When illuminated, these microcrystals diffracted to 2.5 Å resolution (Supplementary Table 1) and this loss in resolution may be due to light-induced movements weakening crystal contacts. The space-group of these microcrystals was C2221, which had previously been observed for single-crystal structures of NpSRII solved at cryogenic temperature, and both microcrystals and larger crystals have very similar unit cell dimensions: room-temperature microcrystals have a = 89.75 Å, b = 131.7 Å, c = 51.0 Å; cryogenic temperature macrocrystals5 have a = 89.9 Å, b = 132.6 Å, c = 51.4 Å.
A room temperature SSX structure of NpSRII was solved by molecular replacement using an earlier NpSRII structure5 for initial phases (PDB entry 1H68). The refined room temperature structure of NpSRII agrees well with the previously published cryo-crystallography structure and differs by only 0.32 Å RMSD on Cα atoms relative to pdb entry 1H68. Whereas high multiplicity serial crystallography data can sometimes reveal unresolved electron density in the loops of integral membrane proteins30,31, this was not observed for NpSRII since the N-terminal end lacked electron density for the first 20 residues. These findings are in agreement with NMR structures of NpSRII for which the NpSRII tail is intrinsically disordered32. Previous cryogenic-temperature structures of NpSRII also highlight that the protein is surrounded by lipid molecules33. In our SSX structure we modelled several n-Octyl-β-D-glucopyranoside (BOG) and Monoolein (MPG) molecules in similar positions to those previously observed (Supplementary Fig. 2).
Spectral evolution of NpSRII within LCP crystallization conditions
Time-dependent spectra within the UV/Vis ___domain were measured from NpSRII in LCP crystallization conditions using a modified microspectrophotometer34. In this approach, LCP crystallization setups after a few days of equilibration (ie. where the sample still appeared homogeneous) were loaded into an X-ray capillary. A blue continuous laser diode (λ = 473 nm) was aligned onto this capillary and a millisecond shutter was used to create pump-laser pulses of 5 ms in duration for time-resolved recordings. Pump-laser pulses of 120 ms in duration were also used to observe a difference spectrum that could be correlated with a photostationary state, since we observed that it takes ~120 ms for the LCP jet to transit through the focused laser spot and into the X-ray beam position. Basis spectra for the photo-intermediates of NpSRII were extracted from the time-dependent sequence of difference absorption spectra (Fig. 2a) and the relative populations of the M and O intermediates were quantified (Fig. 2b) using a linear decomposition script which assumes an exponential decay of the first component into the second component, and of the second component back to the resting state. In this routine, two basis-spectra (for the M and O spectral intermediates, respectively) were optimized as a linear sum of the first two singular value decomposition (svd) components extracted from the set of difference spectra, as has been described in other contexts (section 1.3.3 of supplementary material of reference35 provides details). The time-dependence of these data show that the relative populations of the M and O intermediates cross-over at Δt = 63 ± 5 ms and that the combined occupancy of M and O has fallen to 50 % of the initial photoexcited population by Δt = 240 ± 10 ms. Each spectroscopy measurement was repeated 45 times on the same sample and there were no signs of light-induced damage until a total laser exposure of several of seconds had accumulated. As such, we are confident that a single 5 ms exposure or during continuous illumination (Fig. 2c) does not generate a detectable fraction of off path reaction species.

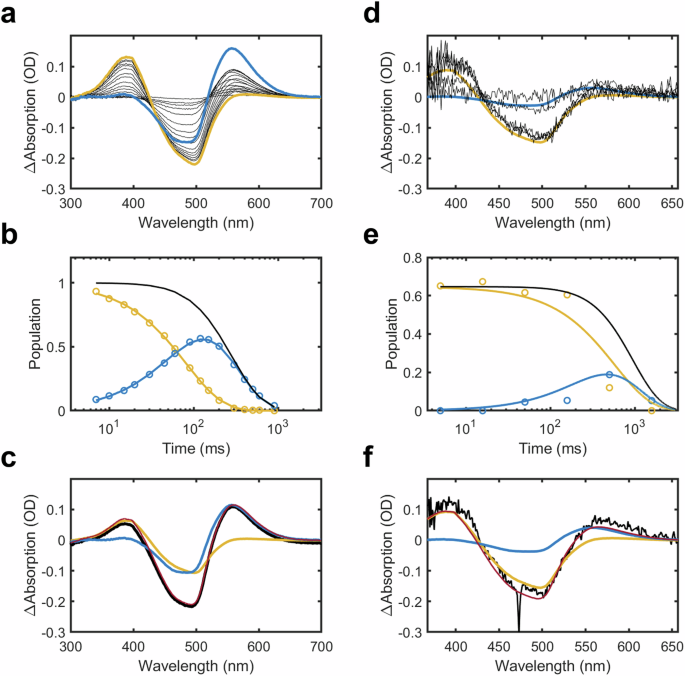

a Sequence of difference spectra (black lines) recorded from NpSRII samples incorporated into LCP crystallization setups. The bold mustard line represents the basis spectrum extracted from these data characteristic of the M-state whereas the bold blue line represents that associated with the O-state. b Time-dependence of the components associated with the M-state (mustard line), the O-state (blue line) and the total population of all photoactivated species (black line). These data are normalized to a total photoexcited population of 1 when projected back to Δt = 0 ms. c Difference spectrum associated with the photostationary state after 120 ms of illumination (black line) and the breakdown of this difference spectrum into M (mustard) and O (blue) states. d Sequence of difference spectra (black lines) recorded from LCP microcrystals of NpSRII plotted on the same scale as in panel (a). Basis spectra (mustard, M-state; blue, O-state) are the same as those derived in (a). e Time-dependence of the components associated with the M-state (mustard line), the O-state (blue line) and the total population of all photoactivated species (black line) in microcrystals. f Difference spectrum associated with the photostationary state in microcrystals after 120 ms of illumination (black line) and the breakdown of this difference spectrum into M (mustard) and O (blue) states. Quantified occupancy values used for structural refinement extracted from this analysis are provided in Supplementary Table 2. Source data are provided as a Source Data file.
Similar measurements were made from slurries of LCP microcrystals (Fig. 2d to f) after the microcrystals had grown (Supplementary Fig. 2a, b), but in this case using ten repeats and with the microcrystals mounted between two glass plates. The quality of these measurements was inferior to that recorded from LCP setups due to the inhomogeneous nature of the sample once microcrystals had formed. Decomposition of these data using the basis-spectra for the M and O intermediates extracted above, showed that the relative populations of the M and O intermediates cross-over at Δt = 820 ± 100 ms and that the combined occupancy of M and O had fallen to 50 % of the initial photoexcited population by Δt = 850 ± 100 ms (Fig. 2e). Thus, once crystals have grown, the SRII photocycle is somewhat slowed, possibly due to the presence of crystal contacts. Irrespectively, these values are within the spread of values experimentally measured for SRII in the scientific literature13,14,18,36 (Fig. 1c). These occupancies were incorporated into the crystallographic analysis of the TR-SSX data after correcting for the translation of the photoactivated microcrystals in an LCP microjet out of the X-ray beam (Supplementary Table 2).
Photoactivation of NpSRII microcrystals within an LCP microjet
Light-induced conformational changes in microcrystals of NpSRII were recorded both during continuous illumination (which equates to an approximate exposure of 120 ms due to the time required for the LCP jet to transit into the centre of the laser focus) and after microcrystals were exposed to blue-light flashes 5 ms in duration at a repetition rate of 4 Hz. An LCP flow-rate of 0.2 µl/min and using a 75 µm diameter LCP microjet, allowed the sample to be translated ~190 µm between each 5 ms flash (the average downwards velocity is calculated to be 760 μm/sec) and the same region of the LCP microjet was never exposed to blue light more than once. A 5 ms exposure using a continuous 2.6 mW laser focused into a 75 μm FWHM (full width half maximum) diameter spot yields the dimensionless product \(F{\cdot }\sigma /h\nu\) ~ 49 when incident upon the microjet surface and assuming no experimental losses due to scatter, and this value is ~37 when averaged throughout the volume of a representative microcrystal, where \(F\) is the laser pulse fluence averaged across the FWHM focal spot, \(\sigma\) is the absorption cross section of the resting state of NpSRII, and \(h\nu\) is the product of Planck’s constant with the frequency of the light. Under these conditions, we observe the evolution of structural changes from a photo-stationary equilibrium rather than structural changes induced by a single-photon absorption event. Although microcrystals will be heated to some extent by the energy of the absorbed light, during continuous illumination these crystals continued to diffract. Some heating induced disordering might be implied by the observation that the average B-factor is 54.0 Å2 for the dark data-set and 60.0 Å2 during continuous illumination (Supplementary Table 1). However, the average B-factor for the time-resolved data sets from 0 –150 ms vary from 45.0 Å2 – 47.0 Å2 (Supplementary Table 1). Since these values are lower than the dark data-set, sample to sample variation in crystals may also explain this observation.
Following each laser exposure, 24 sequential bins of 10 ms in duration were recorded using an Eiger X-ray detector37 with an experimental setup similar to that previously reported10 (Methods, Supplementary Fig. 1c, d). X-ray diffraction data were then combined into sets corresponding to eight 30 ms time-windows, of which five (from 0 to 150 ms) were judged to have sufficiently high population of the photoactive state for further structural analysis (Supplementary Table 1). Long distance overviews of the difference Fourier electron density changes induced by light in NpSRII are provided for two representative time-delays Δt = 0 –30 ms (Fig. 3a) and Δt = 120 –150 ms (Fig. 3b), and during continuous illumination (Fig. 3c). This representation makes apparent that all NpSRII difference Fourier electron density maps are very similar and there are recurring themes when compared with light-induced conformational changes in bR (Fig. 3d)10. By representing difference Fourier electron density throughout a three-dimensional structure as a one-dimensional mapping onto the protein sequence38, (Fig. 4a) we observed that structural changes from 0 ms to 120 ms are highly-correlated and have internal Pearson correlation coefficients from 51% –71% and that this correlation drops to as low as 13% as the signal-to-noise falls on longer time-scale (Supplementary Fig. 3). The time-scale of this loss of correlation implies that photoactivated NpSRII microcrystals were swept out of the X-ray beam ~120 ms after photoactivation. Consequently, the portion of the LCP microjet above the X-ray beam that is photoactivated by the laser flash is ~90 µm high (120 ms × 760 μm/sec), which is significantly larger than the nominal focal radius of 38 µm (FWHM/2) should the laser beam and X-ray beam be perfectly overlapped. As such, there must be sufficient light to photoactivate microcrystals across a larger radius than defined by the FWHM and internal scattering within the microjet may have broaden the focal spot to some extent.

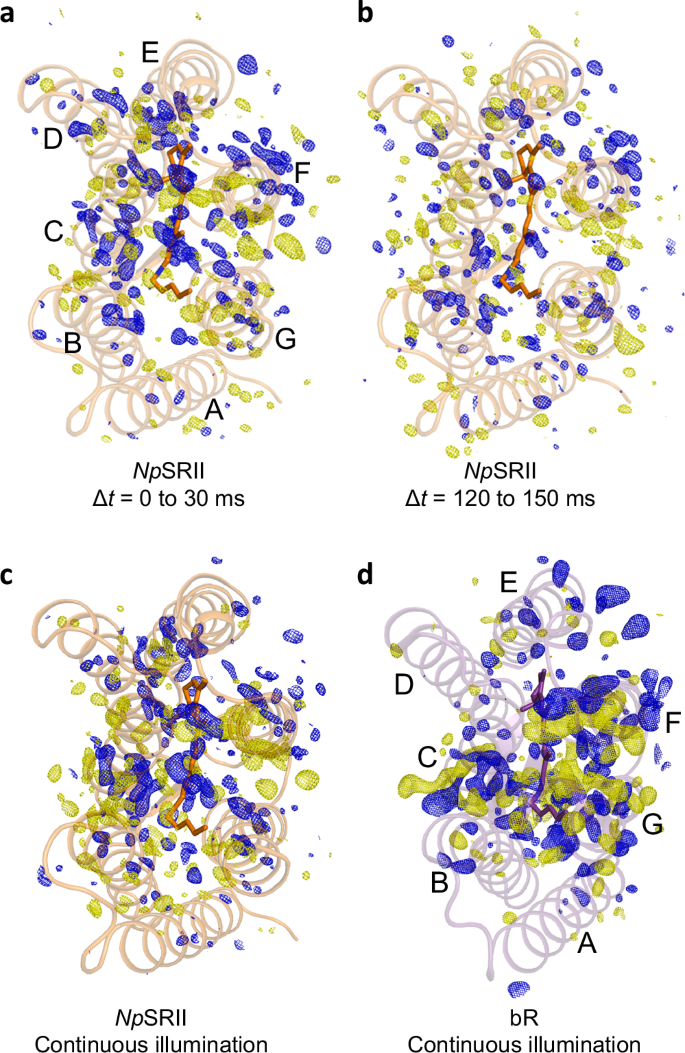

a Difference electron density map calculated from TR-SSX data collected for Δt = 0–30 ms. b Difference electron density map calculated from TR-SSX data collected for Δt = 120 –150 ms. c Difference electron density map calculated from SSX data collected during continuous illumination of NpSRII microcrystals. d Difference electron density map calculated from SSX data collected during continuous illumination of bR microcrystals10. All Fo(light) − Fo(dark) difference Fourier electron density maps (blue, positive difference electron density; yellow, negative difference electron density) are contoured a ± 3.0 σ, where σ is the root mean square electron density of the difference Fourier map.
a Difference electron density (blue positive density, mustard negative density, arbitrary units) is represented as a function of sequence according to the procedure described by Wickstrand et al.38 Similar difference electron density features are observed for bR and NpSRII during continuous illumination, and within the time-resolved data following a 5 ms laser-flash. Transmembrane helices of bR are indicated in transparent purple and those of SRII in transparent pink. Helix boundaries for bR are helix A, residues 6 –32; B, 37 –58; C, 80 –100; D, 105 –127; E, 131 –160; F, 165 –191; G, 201 –224. Helix boundaries for SRII are helix A, residues 3 –26; B, 33 –56; C, 70 –92; D, 94 –118; E, 122 –150; F, 153 –181; G, 189 –219. b Root mean square deviations (rmsd) of Cα atomic displacements after partial occupancy refinement are shown averaged over the time-delays Δt = 0 ms to 90 ms (blue line) and for the photostationary state (red line). Coordinate error bars are estimated from procedures developed in reference 64: 100 sets of refined coordinates are generated from 100 sets of bootstrap resampled data, and the standard-deviations (error bar estimates) of the mean separations between coordinates from light and dark data are calculated. c Quantification of difference electron density features averaged over the time-delays Δt = 0 ms to 90 ms (blue line) and for the photostationary state (red line). Error bars associated with difference electron density observations are estimated from procedures developed in references 64 and 38: difference electron density maps are calculated from 100 sets of bootstrap resampled light and dark data, and the standard deviations (error bar estimates) of difference electron density features are quantify. d Time-dependence of the mean amplitude of difference electron density changes associated with the extracellular portions of helix C (Pro71 to Pro81, blue data), the extracellular portions of helices D and E (Val118 to Tyr124, red data), the cytoplasmic portions of helix F and the F/G loop (Gly143 to Pro171, mustard data), and the mid-portions of helix G (Ile197 to Leu213, purple data). Error bars associated with difference electron density observations are estimated using the same procedures as in panel c. Source data are provided as a Source Data file.

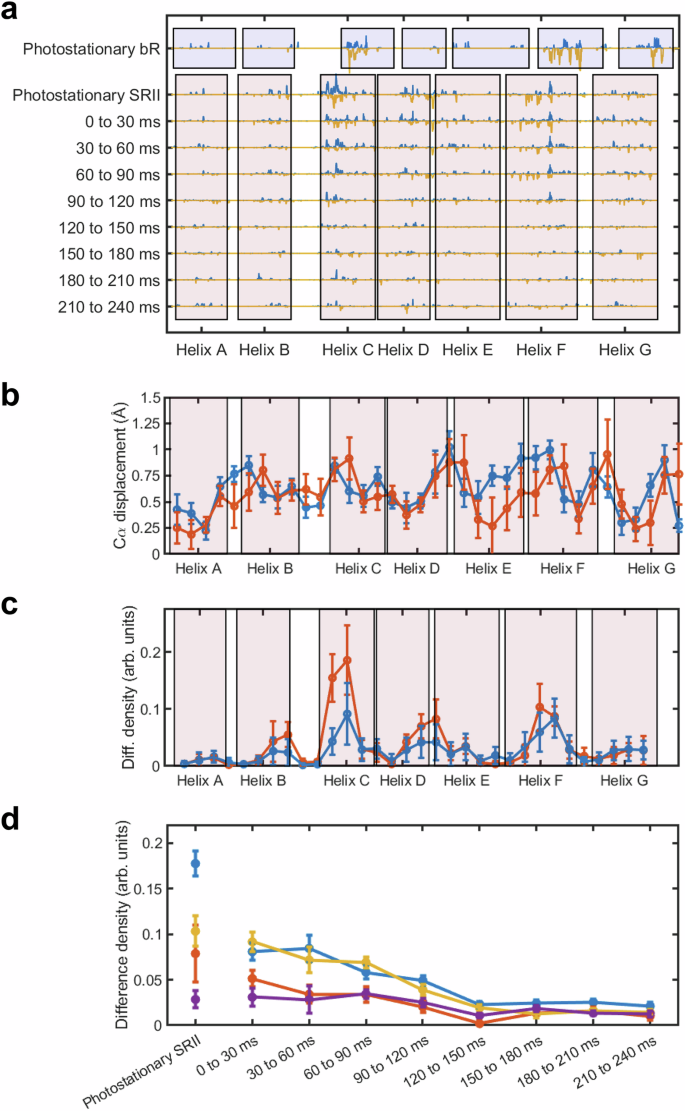

Time-evolution of electron density changes in NpSRII
From this one-dimensional mapping, it is apparent that all major structural changes are present for the time-points 0 ms ≤ ∆t ≤ 120 ms (Fig. 4a). Partial occupancy structural refinement succeeds in capturing the nature of these motions (Fig. 4b). For NpSRII, the strongest electron density changes are associated with helices C, F, and weaker difference density features are associated with the extracellular loop linking helices D and E. From the time-evolution of these changes, we observe a steady decay of difference electron density features associated with both helices C and F from 0–120 ms (Fig. 4c). By contrast, difference density features associated with helix G are weaker, yet are relatively constant until ∆t ≥ 120 ms, which is the time-scale when the photoactivated sample is swept from the X-ray beam position. Observations from the photostationary state (Fig. 4a, c) show that the difference electron density features associated with helix C are more pronounced that those associated with helix F during continuous illumination (Fig. 3a–c). From a functional perspective, the thermally driven re-isomerization of retinal from 13-cis to all-trans configuration, which occurs after the Schiff-base reprotonation associated the M to O transition but before the structural relaxation39 of helix F, would allow WatA2, WatA5 and WatA19 (Fig. 1d) to reorder and thereby return helix C to its resting conformation. During continuous illumination, retinal will be undergoing both forward and backward photoisomerization. This would cause this extracellular water structure to remain disordered and thereby exaggerate the extent to which the extracellular portions of helix C are able to flex towards helix G, hence the relatively strong difference electron density associated with helix C during continuous illumination.
Light-induced rearrangements of extracellular water networks and helix C
Examining the difference Fourier electron density maps for NpSRII calculated from data collected during continuous illumination minus data collected without illumination (Figs. 3c, 5b, 6b) reveals both similarities and differences for light-induced changes in electron density in NpSRII when compared to data collected from bR during continuous illumination9,10 (Figs. 3d, 5a, 6a). Time-resolved serial femtosecond X-ray crystallography (TR-SFX) studies show that Wat402 in bR is slightly displaced by retinal isomerization on a sub-picosecond time-scale7,8 and becomes disordered on a nanosecond time-scale9. Wat402 serves as a structural keystone in bR since its disordering initiates a cascade of structural changes40 that evolve with time throughout the protein. Evidence for this structural cascade is captured during continuous illumination of bR crystals10 as strong negative electron density on Wat402 (-6.8 σ, where σ is the root mean square electron density of the unit cell), Wat401 (-6.1 σ) and Wat400 (-3.6 σ) and a positive feature between these water molecules (4.6 σ, Fig. 5a) corresponding to the ordering of Wat451 (Fig. 5d).
a Difference electron density observed for bR during continuous illumination indicates the light-induced disordering of active-site water molecules and movements of the side-chain of Lys216, Arg82, Asp85 and Thr89. b Difference electron density observed for NpSRII during continuous illumination indicates the light-induced disordering of active-site water molecules and movements of the side-chain of Lys205, Arg72, Asp75 and Thr79. c Difference electron density observed for NpSRII for Δt = 60–90 ms indicates similar changes in electron density as observed in panel (b). Whereas paired positive and negative difference electron density features indicate similar structural rearrangements for these conserved water molecules and residues, there are notable differences associated with the Asp75 and Thr79 side-chains in NpSRII relative to Asp85 and Thr89 in bR. All Fo(light) − Fo(dark) isomorphous difference Fourier electron density maps are contoured at ± 3.0 σ, blue, positive difference electron density; yellow, negative difference electron density. d Light-induced conformational changes in bR resulting from structural refinement against dark (white) and continuous illumination (purple) data. e Light-induced conformational changes in NpSRII resulting from structural refinement against dark (white) and continuous illumination (orange) data. f Light-induced conformational changes in NpSRII resulting from structural refinement against dark (white) and data recorded for Δt = 60 to 90 ms (orange).

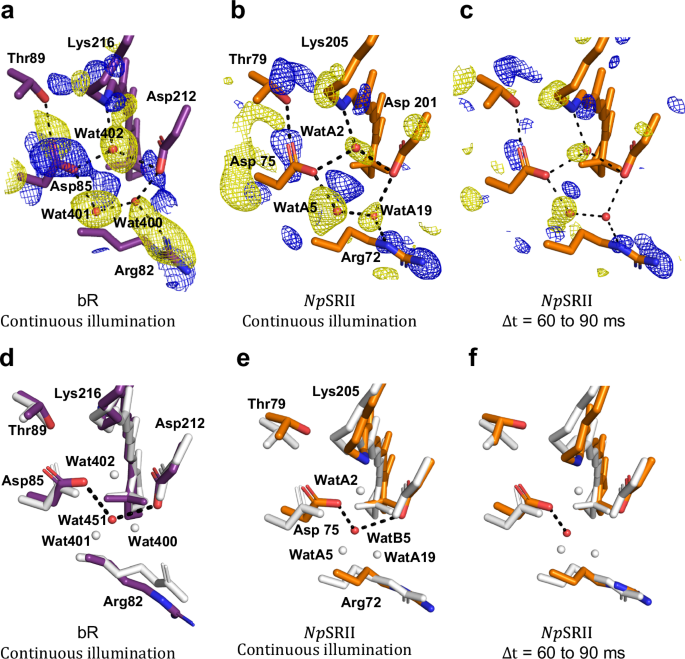

a Paired positive and negative difference electron density features observed for bR during continuous illumination indicate a light-induced movement of Trp182 and Ala215. b Paired positive and negative difference electron density features observed for NpSRII during continuous illumination indicate the light-induced movement of Trp171, but there is no corresponding motion associated with Thr204. c Paired positive and negative difference electron density features observed for NpSRII for Δt = 60 to 90 ms indicate similar changes in electron density as observed in panel (b). Both Fo(light) − Fo(dark) difference Fourier electron density maps are contoured at ±3.0 σ, blue, positive difference electron density; yellow, negative difference electron density. d Light-induced conformational changes in bR resulting from structural refinement against dark (white) and continuous illumination (purple) data. e Light-induced conformational changes in NpSRII resulting from structural refinement against dark (white) and continuous illumination (orange) data. f Light-induced conformational changes in NpSRII resulting from structural refinement against dark (white) and data recorded for Δt = 60–90 ms (orange). These representations indicate that movements in helix G following retinal isomerization are much reduced in NpSRII relative to bR.
As with bR, a negative difference electron density feature can be seen in the difference Fourier electron density map calculated from continuous illumination of NpSRII microcrystals which indicates that the corresponding keystone water molecule (WatA2, -4.1 σ) is disordered (Fig. 5b, Supplementary Fig. 4). Negative electron density features are also observed on neighbouring water molecules (WatA5 and WatA19, -5.2 σ and -3.2 σ respectively) and a positive electron density feature arises indicating the transient ordering of a new water molecule (WatB5, 5.1 σ) in NpSRII. These same features are visible for NpSRII in the time-resolved sequence of difference Fourier electron density maps for the time-delays 0 ms to 150 ms, but with the relative intensities varying due to experimental noise associated with these data (Supplementary Fig. 5). For example, the time-delay \(\varDelta t\) = 60–90 ms shows negative difference electron density features on WatA2 (-3.6 σ) and WatA5 (-3.7 σ) and a positive density feature arises (Fig. 5c) which was modelled as WatB5 (3.1 σ, Fig. 5e). Moreover, both bR and NpSRII show that these water rearrangements disrupt the conserved arginine residue (Arg82 in bR; Arg72 in NpSRII) indicating that this side-chain reorients towards the extracellular space during photocycle-turnover. This, in turn, displaces a chloride ion that interacts with Arg72 and Tyr 73 in the resting SRII conformation5. These specific disruptions of the extracellular H-bond network in NpSRII at room-temperature were also observed in low-temperature intermediate trapping studies41,42,43,44.
It has long been known that the rearrangement of these water molecules along the extracellular proton-translocation channel are a prerequisite for helix C to move towards helix G in bR9,45,46 and similar motions of helix C towards helix G are apparent in the difference electron density recorded for NpSRII (Figs. 3a–c, 4). TR-SFX studies of bR show that this movement arises on the same-time scale as the SB deprotonation9 and consequently the flexing of transmembrane helix C was argued to be the rate-limiting step that governs the primary proton transfer event9,45,46. As such, we conclude that the inward flexing of helix C is also an essential part of the structural mechanism governing proton-exchanges in NpSRII47. Despite these similarities, it is noteworthy that the difference electron density associated with Asp85 of bR and Asp75 of NpSRII are distinct. For bR, there is a strong positive difference density feature that indicates a rotation of the side chain of Asp85 away from Thr89 and this motion breaks their mutual hydrogen bond (Fig. 5a, d). Moreover, in TR-SFX studies of bR, transient negative difference electron density was observed between Asp85 and Thr89, which illustrates how the Asp85-Thr89 H-bond is broken, arose as the SB became deprotonated9. By breaking this connection once Asp85 was protonated, the pathway for reverse proton-exchange from Asp85 to the SB via Thr89 is disrupted and hence this futile back-reaction is prevented. Difference electron density features associated with the Asp75 and Thr79 side-chains of NpSRII are consistent with these residues moving in unison (Fig. 5b, c), which is captured to some extent by structural refinement but this also involves to a rotation of the Asp75 side-chain as WatB5 orders and the Asp75-Thr79 H-bond is broken (Fig. 5e, f). Proton-transfer steps have been identified in the photocycle of NpSRII and this light receptor has been shown to translocate protons but cannot pump against a strong membrane potential48,49. Other studies have suggested that proton uptake and release steps may also occur from the extracellular side of the protein and therefore there is no net transfer of protons47. Differences in the evolution of structural changes associated with the conserved aspartate proton acceptor, and in particular the nature of correlated motions of Asp75 and Thr79 (Asp 85 and Thr89 in bR), may help understand why bR is an effective proton pump whereas NpSRII is not.
Light-induced movements of the extracellular regions of helices D and E
Inspection of the difference electron density maps (Fig. 3) and their representation in 1D (Fig. 4) shows that NpSRII has relatively weak but recurring electron density changes associated with the extracellular regions of helix D and E and these features are more extensive than what is observed in bR. These motions may be due the packing of helix D against helix C, and consequently these regions move as the extracellular ___domain of helix C moves. In this context it is noteworthy that helix E is slightly displaced in NpSRII relative to its position in the bR resting state structure5,6. Photosensory proteins must control the chromophore’s photo-absorption maximum in order to ensure the appropriate response to light of different wavelengths and chimeric studies have indicated that helices D and E influence the spectral tuning in NpSRII50. For these reasons, tighter interactions between helices C, D and E are required for spectral tuning and these may induce more correlated motions of these helices during the NpSRII photocycle.
Light-induced movements of helix F
Both bR and NpSRII show paired positive and negative difference electron density features on helix F during continuous illumination or after a 5 ms laser pulse (Figs. 3, 4, 6, Supplementary Fig. 5). These features indicate an outward movement of the cytoplasmic portion of helix F for both proteins. The corresponding difference electron density features are considerably stronger in bR than in NpSRII and this is borne out by structural refinement (Supplementary Fig. 6), for which the magnitude of Cα-displacements for helix F are 0.71 Å in NpSRII (averaged from Pro144 to Pro175) and 3.78 Å in bR10 (averaged from Gly155 to Pro186; pdb entries 6RQP, dark conformation; 6RPH, open conformation). Retinal geometry governs these movements since the 13-cis configuration causes the retinal’s C20 methyl group to come into steric conflict with a conserved tryptophan residue (Trp182 in bR and Trp171 in NpSRII), displacing it towards the cytoplasm and thereby driving an outward movement of transmembrane helix F, as has been observed by TR-SSX10, TR-SFX9, time-resolved X-ray solution scattering35 and spin labelled EPR spectroscopy51. Whether or not the difference in the amplitude of these motions observed for bR and NpSRII is physiological, or due to differences in crystal packing, cannot be determined from the TR-SSX data alone.

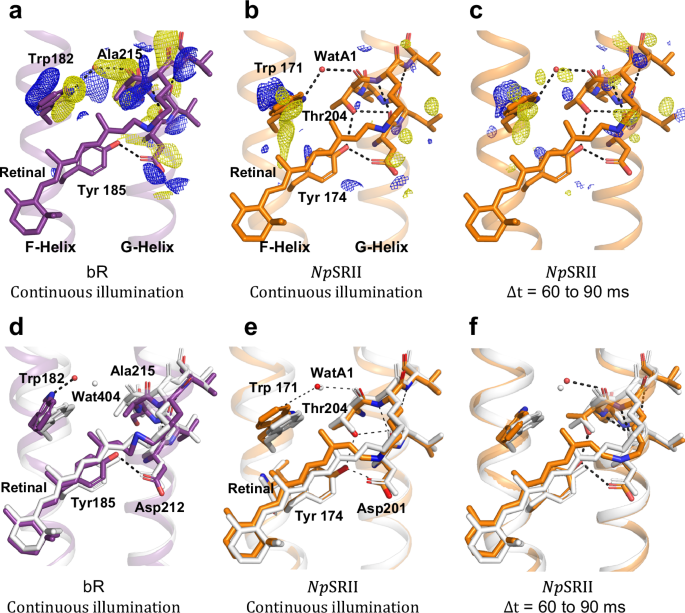

Light-induced rearrangements within helix G
A striking difference between the bR and NpSRII photo-activated states is visible in helix G. In both NpSRII and bR resting conformations, a conserved tryptophan side-chain coordinates a water molecule positioned between helices F and G (Fig. 6). This water molecule interacts with Nε of Trp171 (SRII) and the backbone carbonyl oxygen of Thr204 in NpSRII, and Nε of Trp182 (bR) and the backbone carbonyl oxygen of Ala215 in bR. In bR, strong paired positive and negative difference electron density features (Fig. 6a) stretch from Trp182 (paired positive and negative density features on this sidechain of 5.8 σ and -5.2 σ), through Wat404 to Ala215 in a correlated motion that involves the partial unwinding of helix G (Fig. 6d). These motions arise from a steric conflict between the C20 methyl and Trp182 as retinal isomerizes, and the physical pulling of Lys216 on helix G. Thus, helices F and G move in opposite directions and the H-bond water bridge between these two helices breaks, which partially opens up the cytoplasmic portion of the proton transport channel and thereby aids reprotonation of the SB from Asp96. Moreover, the unwinding of helix G in bR frees the carbonyl oxygen of Lys216 (paired positive and negative density features on this carbonyl oxygen of 7.6 σ and -6.0 σ) from its H-bond interaction to the amide nitrogen of Gly220 and provides a site for water a molecule (Wat453) to transiently bind10. Along with Wat404 and Wat454 (numbered according to pdb entry 6RPH), this transiently ordered water molecule participates in a water-mediated H-bond pathway from the SB to the proton uptake group (Asp96) on the cytoplasmic side of the proton transport channel9,10,52, further aiding SB reprotonation in bR.
By contrast, difference electron density recovered from photo-activated microcrystals of NpSRII show weak negative density between Trp171 and Thr204 that does not overlap with near WatA1, both during continuous illumination (Fig. 6b) and for the sequence of time-points following the 5 ms laser pulse (Fig. 6c, Supplementary Fig. 5). Moreover, there are no paired difference electron density features to indicate that helix G moves away from helix F (Fig. 6 b, c), and the difference features associated with the carbonyl oxygen of Lys205 during continuous illumination are weak (3.1 σ and -3.4 σ respectively) when compared with features on Trp171 (4.4 σ and -4.5 σ respectively). Partial occupancy refinement confirms that WatA1 of NpSRII maintains H-bonds to both Trp171 and Thr204 during continuous illumination (Fig. 6e). Structural refinement suggests that the Trp171-WatA1 H-bond is lost for Δt = 60 to 90 ms (Fig. 6f) but this may be due to the limitations of partial occupancy refinement when trying to place two overlapping water-molecules with complementary occupancy at 2.4 Å resolution. Furthermore, it is observed that helix G of NpSRII does not unwind, possibly due to the H-bond pattern of the Thr204 side-chain providing additional stability for helix G in this region, with Oγ of Thr204 forming hydrogen bonds to the side chain oxygen of Tyr174 of helix F and to the carbonyl oxygen atoms of Leu200 and Asp201 of helix G (Fig. 6). Fourier Transform Infrared (FTIR) spectroscopy indicates that the Tyr174-Thr204 hydrogen bond is stretched early in the NpSRII photocycle, but is restored in the M-state53. Consequently, the carbonyl oxygen of Thr204 does not create a transient water-binding motif to facilitate proton transfer from the cytoplasm, and the interface between helices F and G cannot open up to the same extent as observed for bR. Consistent with these observations, EPR and FTIR data also indicate that helix F of NpSRII moves whereas helix G does not18,39. SB reprotonation from the cytoplasm in NpSRII is therefore delayed relative to bR, and these observations can explain the very extended lifetime of the M-intermediate in the photoreceptor. Furthermore, the Thr204Ala mutation in combination with other site-specific mutations can accelerate the NpSRII photocycle by more than two orders of magnitude54 and Thr204 has been shown to be essential for light signalling in the NpSRII:HtrII complex55. These observations also assign a functional significance to the π-bulge observed in helix G of bR in this region56, for which Ala215 does not partake in the usual n + 4 H-bond pattern of an α-helix. This π-bulge weakens this transmembrane helix in order to assist its transient unwinding. Although a similar π-bulge is observed for Thr204 in the resting conformation of NpSRII, the additional H-bond interactions of the tyrosine side-chain stabilize helix G in this region.
Functional implications
Comparative time-resolved diffraction studies yield a structural perspective on how subtle differences in protein structure influence protein function. Since many protein catalysed reactions occur on time-scales from microseconds to seconds, TR-SSX studies at synchrotron radiation facilities should allow time-resolved diffraction to be applied to a much broader set of biochemical questions than what was traditionally accessible using time-resolved Laue diffraction20,27. Serial crystallography data collected during continuous illumination of NpSRII and bR highlight the potential of this approach, since these structural observations emphasize how the relative flexibility of helix G controls the duration of the photocycle. Efficient proton pumping requires rapid turnover whereas light-signalling requires an extended lifetime of the signalling state. As such, the relative flexibility near the centre of helix G strongly influences these functionalities and highlights the importance of Thr204 in extending the duration of signalling states of NpSRII. These findings illustrate how light-induced electron density changes observed by TR-SSX reveal both common and diverging structural themes governing the dynamics of these two retinal proteins with distinct functions. Such advances may usher in a new perspective for time-resolved diffraction, which has the potential to become a widely used biophysical method for describing a broad sphere of protein catalysed reactions27.
Methods
Protein production
NpSRII was purified as previously reported42. In brief, His-tagged NpSRII was expressed in BL21star E-coli cells in pET27a expression vectors for 2.5 hr after induction with 10 mM IPTG. Cells were then pelleted, resuspended in T-buffer (50 mM Tris, 5 mM MgCl2, 2 mM EDTA, lysozyme, EDTA-free Protease Inhibitor Cocktail, Roche, pH8) and cells lysed by sonication. Lysate was bound to a Ni-NTA column. For every gram of cells, we used 1/2 ml of resin, which establishes the column volume, and washed twice (with 50 mM MES, 300 mM NaCl, 1% β-OG, pH 7.5 and 40 mM imidazole on the second step). A final elution step used 50 mM Tris, 300 mM NaCl, 160 mM imidazole. NpSRII containing fractions were determined as those having a specific absorption peak at 498 nm. These were pooled, concentrated and run on a size exclusion column, HiLoad 16/600 Superdex 200 pg column. High purity was determined by a 280:498 ratio of 1:1.2 and these fractions were collected for crystallization.
Crystallization
SRII was concentrated to 1.6 mM and reconstituted into LCP with monoolein (9.9 MAG) using coupled syringes. The precipitant solution used was CaCl2 150 mM, Glycine 100 mM, 38% (v/v) PEG 400, pH 7.5. Crystals were grown in ~200 µl LCP in glass deep-well plates29 with 10 µl protein containing LCP and 400 µl precipitant solution over ~1–2 months. These setups yielded crystals 40-60 µm in their largest dimension, which were suitable for SSX. The crystal-containing LCP was harvested and packed into a 1 ml Hamilton syringe for transport.
Spectroscopic characterization
Time-resolved spectra from NpSRII were recorded using a modified single crystal microspectrophotometer34 from crystallization setups held in a 300 μM glass capillary. A 20 mW continuous blue-light laser (λ = 473 nm) was focused to a FWHM spot ~200 μm × 400 μm and a millisecond shutter was used to control the pulse duration. The time-delay between the millisecond exposure and when a microsecond flash-lamp was triggered was controlled using a pulse generator. Each pump-probe measurement was repeated 45 times when recording from LCP setups, and repeated 10 times when recording from LCP microcrystals. Outliers were rejected, and the remaining data were averaged to improve signal to noise (Fig. 2). Indications of light induced-damage began to be observed as a stable species absorbing near 400 nm after an accumulated laser exposure time in excess of 10 s. Since this laser intensity was similar (approximately a factor of 2 lower intensity) to that used during time-resolved serial crystallography measurements, and since each microcrystal was exposed at most to a single 5 ms (time-resolved) or ~125 ms (continuous illumination) laser pulse, the population of light damaged NpSRII molecules within microcrystal is considered far below levels detectable using X-ray crystallography.
Data collection
We used an experimental setup that was similar to that used for earlier studies of bR10. The sample’s viscosity was optimized to achieve a stable LCP extrusion by the addition of 20%–25% monoolein to the harvested microcrystal batches. Microcrystals were injected at ~0.2 µl/min from a 20 µl reservoir using a 75 µm nozzle by an LCP extruder designed by Arizona State University57. X-ray diffraction data were collected on an Eiger 16 M hybrid pixel detector. Samples were photo-excited using a 488 nm Class3R laser diode with a measured power of 2.6 mW at the sample position, which was focused into a FWHM spot of 75 µm × 75 µm. The X-ray beam position was located and aligned using a YAG screen (which is fluorescent when exposed to X-rays) and a high-magnification camera. The focal spot size of the laser diode was determined offline using a knife-edge scan. The laser diode was aligned on the extruding jet using an attenuated beam that allowed centring of the laser spot vertically by centring the maximal intensity on the X-ray beam. Horizontal alignment was aided by laser scattering from the LCP jet, being aligned to produce a symmetric speckle pattern behind the jet. The X-ray energy was 12.4 keV focused to a spot size 20 µm horizontal and 5 µm vertical. For photo-stationary measurements, the laser illumination at the X-ray position was continuous and 30 min of ‘light’ data were collection followed by 30 min of ‘dark’ data collection with a 20 ms frame-rate. For time-resolved studies, the laser diode and detector where trigger via a TTL pulse giving a 5 ms laser pulse. Twenty-four frames of 10 ms in duration were collected sequentially and the cycle was repeated. Under these conditions, applying an extinction coefficient σ for NpSRII of 48 000 cm-1Mol-1 suggests that the dimensionless product27 σ·F/hν ~ 49 when incident upon the microjet surface and ~37 when averaged over a 20 um long microcrystal (O.D. = 0.26) since the laser fluence F = 147 mJ/cm2 when averaged across the FWHM for each 5 ms exposure, where h is Planck’s constant and ν = 488 nm. NpSRII should thus be considered as having evolved from a photo-stationary state for the time-resolved studies, or be captured in a photo-stationary state during continuous illumination.
Data processing
Diffraction peaks were identified using indexamajig from CrystFEL0.8.024 using peakfinder8 and indexed using the xgandalf algorithm58. X-ray diffraction data contained two crystal forms, with the majority of images diffracting to only very low resolution. When the unit cell axes a ≈ 89.8 Å, b ≈ 131.7 Å, c ≈ 51.0 Å were imposed, this sub-set of data diffracted to much higher resolution, and this crystal form was selected throughout (Supplementary Table 1). Integrated data were merged using the programme partialator using custom-split-list to improve scaling. Time-resolved diffraction data were divided into 24 bins of 10 ms each, which were in turn pooled into the following time-bins: 0–30 ms; 30–60 ms; 60–90 ms; 90 - 120 ms; 120–150 ms; 150–180 ms; 180–210 ms; and 210–240 ms, with each bin containing ~7500 indexed images. Datasets were scaled and measured X-ray diffraction intensities were converted to structure factor amplitudes with appropriate errors using CCP4 TRUNCATE59,60. Molecular replacement using pdb entry 1H685 for phases was used to recover the room temperature SSX structure. The structural model was improved using multiple rounds of refinement in Phenix and manual manipulations in COOT61. Resting state phases from the refined model were used for difference Fourier electron density map calculations (FT[(Fo(light) − Fo(dark)) × exp(iΦdark)]), FT = Fourier Transform and Φdark represent experimental phases calculated from the dark-state model, using the Phenix isomorphous Fo(light) − Fo(dark) calculator62. Difference Fourier electron density maps were interpreted directly, and the sensitivity of features on WatA2 to the resolution cut-off was examined (Supplementary Fig. 4). Observed light induced changes in electron density were analysed using a correlation script38 (Fig. 4, Supplementary Fig. 3). Light illuminated structures were refined using partial occupancy refinement with an occupancy specified in Supplementary Table 2 and the complementary resting conformation restrained about the dark conformation. During refinement, the population of the M-state was given a 13-cis retinal, whereas the resting and O-state populations were refined with an all-trans retinal (Supplementary Table 2). Intermediate state structures were refined with PHENIX62. Atomic coordinates (x, y, z) and individual B-factors were refined for all atoms, and their occupancies were fixed based upon information from spectral characterization (Supplementary Table 2). Water molecules that were associated with negative peaks in isomorphous difference Fourier electron density maps were removed from the B conformer of the protein. Refinement statistics can be found in Supplementary Table 1.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
Coordinates and structure factors for the SSX NpSRII dark and continuously illuminated structures have been deposited in the RCSB Protein Data Bank under accession codes 9H20(dark conformation) and 9H1X(continuous illumination), 8PWP (0–30 ms), 8PWJ (30–60 ms), 8PWI (60–90 ms), 8PWG (90–120 ms), 8PWQ (120–150 ms), and 9H1Wfor the grouped dark time-points (150–240 ms). Source data are provided with this paper.
Code availability
In-house code written in Matlab used to generate Fig. 2 has been placed on Github (https://github.com/Neutze-lab/TR_SSX_SRII) and at Zenodo repository, entry 1491602363: Resampling scripts for serial crystallography were described in reference64 and have been placed on Github (https://github.com/Neutze-lab/resampling) and at Zenodo repository, entry 1492179965.
