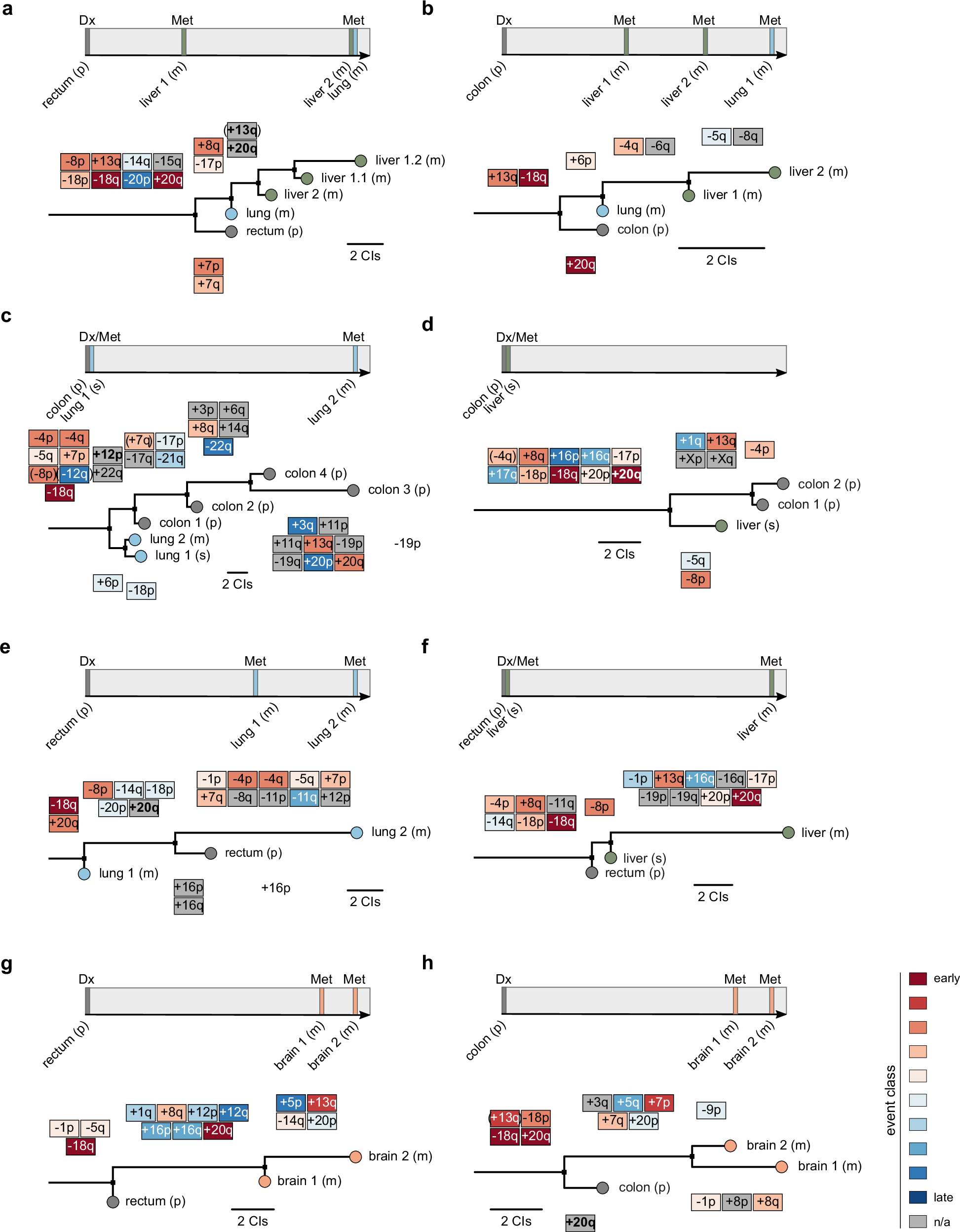

Fig. 7: Reconstruction of phylogenetic trees using multi-sample cytogenetic data from individual CRC patients of the CRCTropism cohort.
From: Cytogenetic signatures favoring metastatic organotropism in colorectal cancer
a–h The clinical course (top) and the reconstructed phylogenetic tree (bottom) are shown, with the tree scaled according to the number of CIs. Maximum parsimony was used for tree inference. CI events are colored based on the classification introduced in Fig. 6. If a particular event could not be uniquely linked (indicated by brackets), it is displayed at the earliest suggested occurrence. High-level amplifications are indicated in bold. The site of the primary tumor (p) and metastases (m, metachronous metastasis; s, synchronous metastasis) is also listed. Dx, diagnosis of primary cancer; Met, metastasis. Source data are provided as a Source Data file.
