Introduction

The combination of lead halide perovskites (LHPs) and upconversion lanthanide-doped nanoparticles (LnNPs) has attracted great interest in recent years due to their complementary absorption spectra and shown huge potential in broadband light detection, multichannel anticounterfeiting and enhancement of photovoltaic efficiency, etc.1,2,3,4,5,6,7,8. LHPs possess broad absorption in the ultraviolet (UV) and entire visible (Vis) range but has limited absorption in the near infrared (NIR) range, while LnNPs can absorb NIR light at different wavelengths by doping different Ln ions but have weak UV and Vis absorption8,9,10,11,12. Therefore, the combination of LHPs and LnNPs for heterostructure is highly favorable, promising multiple energy transfer pathways arising from the different combinations.

The fabrication of heterostructures is desirable as this method combines two or more distinct materials to largely enhance the performance of the heterostructures or remedy the limitations of individual components13. The core-shell heterostructures allows direct contact for efficient energy transfer and requires exquisite lattice match14,15,16,17,18. Thus, lattice mismatch stands as a significant hurdle for the synthesis of heterostructures. This challenge still exists for the fabrication of core-shell LnNP@LHP heterostructures and explains why LnNP@LHP heterostructures have been rarely reported. Compared with Ln3+ ion doped systems, heterostructures can provide two-way energy transfer to realize upconversion process with good alignment of energy levels between two components. Moreover, heterostructures can overcome the maximum doping ratio of Ln3+ ions into LHP NCs (normally <10%)19,20. LHP is well-known for their high defect tolerance property21, thus can be a good passivation shell to enhance the upconversion performance of small (<10 nm) LnNPs.

Up to date, many approaches have been attempted to combine LHPs and LnNPs. The first approach is physical mixing. This method is simple but the distance between LHPs and LnNPs is not fixed, and thus their energy transfer is based on emission reabsorption with low efficiency. Guo et al. synthesized LnNPs which were then mixed into a TiO2 mesoporous layer22. The second approach is the usage of an intermediate ‘glue’ to combine LnNPs and LHPs. Francés-Soriano et al. used cucurbit[7]uril to anchor CH3NH3PbBr3 LHPs onto LnNPs and reported energy transfer under NIR excitation between the LnNP donors and LHP acceptors via the lanthanide resonance energy transfer (LRET) pathway due to the 1 nm distance between the components23. Additionally, block copolymers24 and mesoporous silica25 were also applied to mediate the co-assembly of LHPs and LnNPs. This approach can achieve higher energy transfer efficiencies but need specific and expensive linker groups. The third approach is by forming superlattices. Kovalenko’s group reported perovskite-type superlattices by combining LHPs and LnNPs using shorter tail ligands26, which requires ligand exchange and only applicable to thin films. The fourth method is forming core-shell heterostructures. This method enables direct contact of two components with more efficient energy transfer. These recently reported heterostructures still require lattice matching between LHPs and LnNPs, with both components being in the same cubic (α) phase16. Zhang’s group achieved watermelon-like mix-phase heterostructures, with α-phase LHPs as watermelon seeds and hexagonal (β)-phase upconversion LnNPs as watermelon pulp and skin. This heterostructures grew from α-phase upconversion LnNPs and then underwent phase transition to β-phase due to heat treatment15.

Thus far, the synthesis of LHP-LnNP heterostructures has been limited to phase and lattice matches. In this work, we provide a strategy to achieve direct growth of LnNP@LHP heterostructures by seeding small LnNPs in the growth of CsPbBr3 LHPs, regardless of crystal phase of LnNP cores. Furthermore, we proved that size, rather than the crystal phase of LnNPs plays a more important role in the fabrication of LnNP@LHP heterostructures. By embedding LnNPs into LHPs, we can achieve a higher defect tolerance by using LHPs to passivate the surface defects of LnNPs. Two-way energy transfer is demonstrated for the α/β-LnNP@CsPbBr3 heterostructures, as a 980 nm CsPbBr3-sensitized Yb3+ emission was obtained using 365 nm excitation, while under 980 nm excitation, a green lanthanide-sensitized CsPbBr3 emission was observed. As a result, this heterostructure involving LnNP as core and LHP as shell has strong application potential in optoelectronics, anticounterfeiting and X-ray/NIR light detection. Our method of seeding small LnNPs as cores will also contribute to the development of different heterostructures with enhanced optical performance.

Results and discussion

Core-shell heterostructures using α-phase LnNPs and LHPs

Optically inert α-phase NaYF4 LnNPs were synthesized using a modified co-precipitation technique (Supplementary Figs. 1, 2)27,28,29. The reduced amount of NaF precursor and shortened reaction time result in uniform α-NaYF4 LnNPs with an average size of 4.9 ± 0.4 nm. The as-prepared LnNPs were used to seed the growth of CsPbX3 (X=Cl, Br, I) nanocrystals (NCs). The cubic phase LHPs have the same lattice angles α = β = γ = 90°, with different lattice lengths a = b = c = 5.68 Å for CsPbCl3, 5.95 Å for CsPbBr3, and 6.28 Å for CsPbI3, respectively. α-NaYF4 NCs also have the same angle constants with a length parameter of 5.52 Å. This provides the possibility to form α-NaYF4@CsPbX3 heterostructures. We found that we could only form α-NaYF4@CsPbCl3/Br3 heterostructures, the combination of α-NaYF4 + CsPbI3 formed nanowire superstructures (NWSSs) (Supplementary Fig. 1). We attributed the formation of NWSSs using CsPbI3 instead of heterostructures to the larger ionic radius of I- compared with the ionic radii of Br- and Cl-. The tolerance factor of CsPbI3 is 0.81, which approaches the lower limit of tolerance factor to remain stable (the range of 0.8–1.11)30,31. Thus, CsPbI3 cannot coat on the surface of LnNPs.

The transmission electron microscopy (TEM) images of α-NaYF4@CsPbCl3/Br3, high-resolution TEM (HRTEM) lattice distances and XRD patterns show characteristic cubic phase features (Supplementary Figs. 1, 2), similar to that obtained by pristine CsPbX3 NCs synthesized via hot injection (Supplementary Fig. 3)32,33. XRD patterns of these heterostructures show a combination of diffraction peaks of both cubic-phase NaYF4 and CsPbCl3/Br3 (Supplementary Fig. 2)34,35.

Subsequently, we measured the emission spectra of the α-NaYF4@CsPbCl3/Br3 heterostructures to study the fluorescence change of LHP shells. Perovskite NCs are known to interact with one another, leading to concentration dependent red shifted emission due to either the interdot effect or reabsorption at high concentrations36,37,38,39,40,41. When perovskite samples are continually diluted, the emission peaks continuously blue shift until a terminal point which reflects the emission of individual NC is reached, which we term the emission convergence point (ECP)40,42. The ECP therefore, allows comparison for different samples. The formation of α-NaYF4@CsPbCl3/Br3 core-shell structures leads to a smaller effective CsPbCl3/Br3 shell size compared to that of pure CsPbCl3/Br3 NCs and this may affect the ECP values of the heterostructures depending on the exciton Bohr radius of CsPbCl3/Br3. The ECP values of α-NaYF4@CsPbCl3 and CsPbCl3 are both at 403 nm with no observed quantum confinement effect due to the small exciton Bohr radius of CsPbCl3 of ≈3 nm (Supplementary Fig. 4)43. The ECP of α-NaYF4@CsPbBr3 is blue-shifted by 4 nm compared to pure CsPbBr3, due to the 4.9 nm LnNPs embedded within α-NaYF4@CsPbBr3 heterostructures with an average size of 10.4 ± 1.5 nm, giving rise to an effective CsPbBr3 size smaller than that of the CsPbBr3 exciton Bohr radius of 7 nm (Supplementary Fig. 4)44. We have grown CsPbCl3/Br3 onto sub-5 nm α-NaYF4, forming α-LnNP@α-LHP heterostructures using the two components with the same phase as expected. In the case of CsPbI3, α-NaYF4 + CsPbI3 NWSSs were formed, implying that the halide group influences crystal growth and that LnNPs can mediate the assembly or structure of LHPs.

Combining optically inert β-LnNPs with LHPs

The key barrier in fabricating heterostructures is lattice mismatch, which can be overcome by always requiring a close lattice parameter or at least a similar phase. The as-synthesized α-phase LnNPs have a small lattice mismatch compared to α-phase CsPbCl3/Br3, and could be surmounted15. We now try to overcome the barrier of lattice mismatch using small β-phase LnNPs to seed the growth of α-LHPs, which have bigger lattice mismatch and even different phases. This will give us deeper insights into the growth mechanism of LHP onto LnNPs. The lattice constants of β-NaGdF4 are a = 6.02 Å, c = 3.60 Å, α = β = 90°, γ = 120°45. β-NaGdF4 LnNPs have lowest energy levels of ≈4 eV, so can be deemed as optically inert. The as-synthesized optically inert β-LnNP core will provide key structural evidence for the formation of mixed phase heterostructures, allowing us to focus on the energy transfer using optically active LnNP cores.

We started by synthesizing small β-NaGdF4 using a modified method and studied the morphology using TEM. TEM images reveal nanoparticles with an average size of 3.7 ± 0.3 nm (Fig. 1a and Supplementary Fig. 5), while XRD patterns (PDF #27-0699) match that of hexagonal phase NaGdF4 with a broadened diffraction peak indicating weak crystallinity (Supplementary Fig. 6). The small β-NaGdF4 LnNPs are then used to seed the growth of CsPbBr3, and the resulting sample is denoted as β-NaGdF4@CsPbBr3 heterostructures. High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) images showed clear and uniform core-shell heterostructures with an average size of 9.5 ± 0.1 nm (Fig. 1b and Supplementary Fig. 5). Some heterostructures have multiple LnNP cores, and a small portion of LnNPs is not coated. This could be solved by tuning the mass ratio of core LnNPs and perovskite precursors. HAADF-STEM image contrast is related to the elastic scattering of electrons in the sample46, thus different types of nanomaterials could be identified by measuring the intensities of HAADF-STEM images (see Supplementary Note 1). According to the corrected line scanning profile (white line in Fig. 1b) of five heterostructures, we could conclude that more than one LnNP could be seeded in the heterostructures, confirming the fabrication of core-shell heterostructures (Fig. 1c, see Supplementary Note 1). We further used HAADF-STEM to analyze a single heterostructure (Fig. 1d). The energy-dispersive X-ray spectroscopy (EDS) elemental mapping of a single heterostructure clearly showed 2 β-NaGdF4 cores embedded within the CsPbBr3 shell.

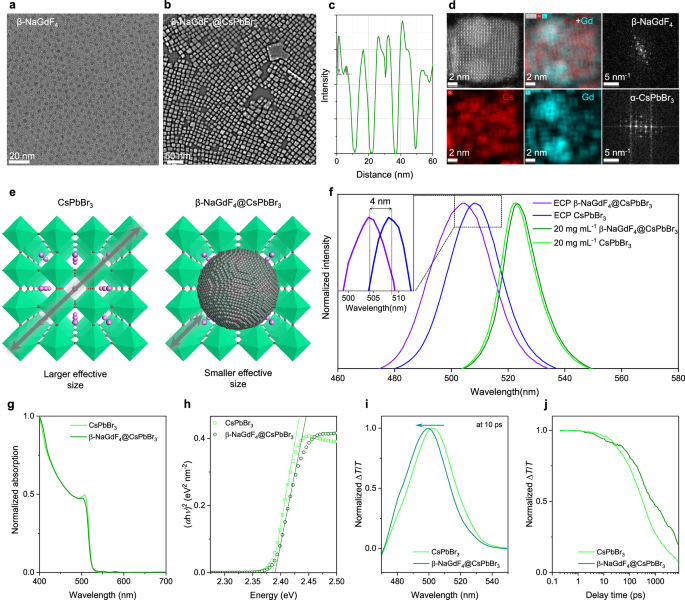

Fig. 1: Fabrication of optically inert β-NaGdF4@CsPbBr3 heterostructures.
figure 1

a TEM image of β-NaGdF4 LnNPs. b HAADF-STEM image of β-NaGdF4@CsPbBr3 heterostructures. c Corrected HAADF line profile to show the intensity variations along the white line. d EDS elemental mapping of a single β-NaGdF4@CsPbBr3 heterostructure along with the diffraction pattern of β-phase NaGdF4 and α-phase CsPbBr3. e Schematic illustration of CsPbBr3 NC and β-NaGdF4@CsPbBr3 heterostructure and their effective sizes. f Emission spectra of β-NaGdF4@CsPbBr3 heterostructures with inset emphasizing blue shift in β-NaGdF4@CsPbBr3 heterostructure emission compared to pure CsPbBr3. Samples were excited using 365 nm lamp and dispersed in hexane. g Absorption spectra and h Tauc plot of CsPbBr3 and β-NaGdF4@CsPbBr3. i Transient absorption spectra at 10 ps, and j GSB kinetics at a fluence of 6.1 µJ cm−2 of CsPbBr3 NCs and β-NaGdF4@CsPbBr3 heterostructures under 400 nm pump. Source data are provided as a Source Data file.

Full size image

XRD patterns of β-NaGdF4@CsPbBr3 heterostructures showed a combination of cubic phase CsPbBr3 peaks and hexagonal phase β-NaGdF4, identified by the characteristic (100) peak of β-NaGdF4 (Supplementary Fig. 6)35. We next studied the emission spectra of β-NaGdF4@CsPbBr3 under 365 nm excitation to observe any changes compared to pure CsPbBr3 by comparing the ECPs of the samples. The ECP of β-NaGdF4@CsPbBr3 (504 nm) was once again blue shifted by 4 nm compared to pure CsPbBr3 (508 nm) and consistent with that of α-NaYF4@CsPbBr3, supporting our explanation of quantum confined emission (Fig. 1e, f). Figure 1g shows the absorption spectra of pure CsPbBr3 NCs and β-NaGdF4@CsPbBr3 heterostructures. The Tauc plot showed a blue shift of 5 meV of the bandgap of CsPbBr3 after forming the heterostructures (Fig. 1h). The transient absorption spectra at 10 ps of β-NaGdF4@CsPbBr3 heterostructures showed a blue shift of 2 nm (Fig. 1i). The kinetics of CsPbBr3 at its ground state bleach (GSB) (Fig. 1j), which corresponds to the band-filling effect at the band edge, proved that β-NaGdF4@CsPbBr3 heterostructures would lead to a longer lifetime of 4.1 ns compared to that of CsPbBr3 (1.2 ns) at a low fluence of 6.1 µJ cm-2. This suggests that the CsPbBr3 shell in heterostructures have fewer defects due to the high reaction temperature. At higher fluences, the lifetimes of both decrease due to Auger recombination. They are almost identical when fluence is larger than 12.2 µJ cm-2 (Supplementary Fig. 7). These data proved that the presence of optically inert β-NaGdF4 would not significantly quench the fluorescence of CsPbBr3.

Small LnNPs could accommodate thicker LHP shells without the formation of strain-relaxing crystalline defects, as the interfacial stress which arises from growing a lattice-mismatched shell could be distributed on the structurally flexible LHP shell17,47,48,49,50. Apart from this, small LnNPs tend to have poorer crystallinity which reduces the interfacial strain associated with lattice mismatch, compared to larger LnNPs (>10 nm) with improved crystallinity17,51. To summarize, the formation of β-NaGdF4@CsPbBr3 heterostructures has been achieved despite the significant lattice mismatch of the individual components.

Two-way energy transfer in heterostructures

α-phase LnNPs are known for their weaker emission compared to β-phase LnNPs52,53,54,55. Thus, β-phase LnNP cores could result in higher upconversion intensities compared to α-phase cores even with the same surface passivation. We now extend our investigation into optically active, cubic/hexagonal phase LnNPs to study the possibility of energy transfer and surface defect passivation within LnNP@LHP core-shell heterostructures. The performances of the two-way energy transfer between α/β-LnNPs and CsPbBr3 were measured and compared. α-NaY0.69F4:Yb0.3,Tm0.01 (α-LnNP) and β-NaGd0.69F4:Yb0.3,Tm0.01 (β-LnNP) were synthesized using the same modified co-precipitation technique and characterized. TEM images show the α-LnNPs with an average size of 7.2 ± 0.7 nm, and β-LnNPs with an average size of 7.1 ± 0.4 nm (Supplementary Fig. 8). XRD patterns further confirm that α-phase and β-phase of these LnNPs (Supplementary Fig. 9). Both optically active α/β-LnNPs absorb light in the NIR region and generate blue emissions under 980 nm excitation (Supplementary Fig. 10). These small LnNPs show relatively poor upconversion performance due to a huge portion of surface defects, which is a key bottleneck to the advancement of LnNP field27.

We then use α-LnNPs and β-LnNPs as seeds for the growth of CsPbBr3 via hot injection to form heterostructures which we now denote as α-LnNP@CsPbBr3 and β-LnNP@CsPbBr3. The synthesized samples were characterized using HAADF-STEM, which revealed heterostructures of sizes 14.3 ± 2.0 and 16.7 ± 2.0 nm respectively (Fig. 2a, Supplementary Fig. 8). Furthermore, we can directly observe the coating process of CsPbBr3 wrapping on a β-LnNP core in the HAADF-STEM measurement (Fig. 2a) and the corresponding EDS elemental mapping and phase analysis of β-LnNP core and α-CsPbBr3 shell (Fig. 2b). The HAADF-STEM image and corresponding EDS elemental mapping of a single heterostructure further proves the existence and ___location of β-LnNP cores (Supplementary Fig. 11). XRD patterns of α-LnNP@CsPbBr3 and β-LnNP@CsPbBr3 heterostructures show combinations of diffraction peaks from α/β-LnNPs and CsPbBr3 (Supplementary Fig. 9). The (110) and (200) peaks of LHP in β-LnNP@CsPbBr3 heterostructures shift to higher angles, indicating a reduction in the lattice spacing (d-spacing) of LHP shell following Bragg’s law nλ=2dsinθ. Thus, seeding the β-LnNP cores with lattice mismatch will compress the CsPbBr3 shell lattice. CsPbBr3 has the structural flexibility to tolerate compressed strain.

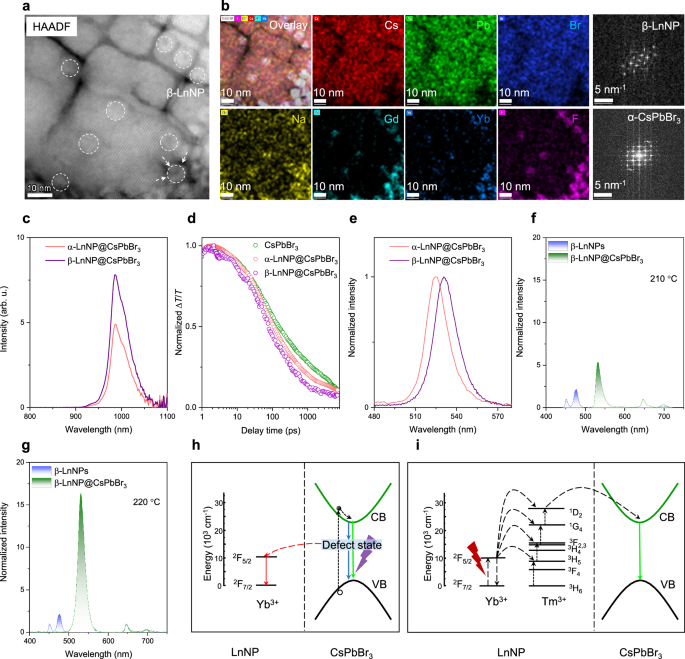

Fig. 2: Two way energy transfer in optically active LnNP@CsPbBr3 heterostructures.
figure 2

a HAADF-STEM image of β-LnNP@CsPbBr3 heterostructures. b Corresponding EDS elemental mapping of these heterostructures and FFT images to show the phases. c NIR downconversion emission spectra of α/β-LnNP@CsPbBr3 heterostructures under 365 nm laser excitation under the same measurement conditions (concentration of 50 mg mL−1). d GSB kinetics of CsPbBr3 NCs and α/β-LnNP@CsPbBr3 heterostructures under 400 nm pump at a fluence of 23.1 µJ cm−2. e Normalized upconversion emission spectra of α/β-LnNP@CsPbBr3 heterostructures under 980 nm laser excitation. Comparison of upconversion emission spectra of β-LnNPs and β-LnNP@CsPbBr3 heterostructures under 980 nm laser excitation (at a power density of 2 W cm−2) with reaction temperature at f 210 and g 220 °C. Simplified two-way energy transfer pathways under h 365 and i 980 nm excitation. Source data are provided as a Source Data file.

Full size image

The optical properties of α/β-LnNP@CsPbBr3 are now investigated under 365 and 980 nm excitation. Using 365 nm excitation, we found two main peaks, in which the first corresponds to the emission of CsPbBr3. The second peak under 365 nm excitation matches that of Yb3+ ions at 980 nm (Fig. 2c), with the emission of the β-LnNP@CsPbBr3 heterostructures being 1.6-fold higher than the α-LnNP@CsPbBr3 heterostructures at the same weight mass. The NIR photoluminescence quantum efficiency (PLQE) of Yb3+ in β-LnNP@CsPbBr3 heterostructures is measured to be 2-fold higher than that of α-LnNP@CsPbBr3 heterostructures (Supplementary Table 1). Given that α/β-LnNPs cannot be activated by 365 nm light and the absorption of α/β-LnNP@CsPbBr3 heterostructures is dominated by CsPbBr3, we hereby propose that CsPbBr3 absorbs UV light and transfers energy to Yb3+ ions to emit at 980 nm via the defect states (Fig. 2h), which is also reported in the Ln-doped LHP systems for quantum cutting7. The RETU mechanism from CsPbBr3 to Yb3+ is not possible as the emission of CsPbBr3 is at around 520-530 nm and cannot be absorbed by Tm3+ or Yb3+ ions. Figure 2d shows the TA kinetics of CsPbBr3 at its GSB before and after shelling. The lifetimes have been shortened from 2.9 to 1.5 to 1.3 ns for CsPbBr3, α-LnNP@CsPbBr3, and β-LnNP@CsPbBr3, respectively, at relatively high fluence of 23.1 µJ cm−2. The shortening of lifetime of CsPbBr3 in the heterostructures can be used to evaluate the energy transfer efficiency (η)56. This proves that β-LnNP@CsPbBr3 heterostructures have a higher η to obtain NIR downconversion than α-LnNP@CsPbBr3 heterostructures, further supporting the proposed defect state mediated energy transfer within these heterostructures.

In the case of 980 nm excitation, we found that both α- and β-LnNP@CsPbBr3 heterostructures could generate green emission from CsPbBr3 (Fig. 2e). The β-LnNP@CsPbBr3 heterostructures showed a more efficient upconversion efficiency as the PLQE of β-LnNP@CsPbBr3 heterostructures is 6-fold higher than α-LnNP@CsPbBr3 heterostructures (Supplementary Table 1). Since only Yb3+ ions absorb 980 nm light, Yb3+ions act as the sensitizers, and energy is then transferred to Tm3+ ions via the energy transfer upconversion (ETU) mechanism. These Tm3+ ions then transfer energy to CsPbBr3 by the non-radiative LRET pathway (Fig. 2i), resulting in the green CsPbBr3 emission24.

Compared to the direct physical mixing of β-LnNPs and CsPbBr3 NCs, the fabrication of heterostructures significantly improve the upconversion performance and energy transfer efficiency under 980 nm excitation. We normalized the emission of the β-LnNPs and the corresponding mixtures or heterostructures by the 646 nm emission (1G4 → 3F4) from Tm3+ ions, which is not influenced by the emission reabsorption of CsPbBr3. We find the formation of heterostructures reacted at 220 °C will lead to a more than 10-fold enhancement of the upconversion intensity and main emission color from blue to green, compared to a 1.9-fold enhancement reacted at 210 °C and a 0.4-fold decrease when physically mixed (Fig. 2f, g and Supplementary Fig. 12). This also proves that a high reaction temperature is crucial to help to overcome the lattice mismatch between different components, meanwhile maintaining the α phase of CsPbBr3. We have therefore demonstrated that two-way energy transfer occurs within α/β-LnNP@CsPbBr3 heterostructures, and that CsPbBr3 shelling is proven to enhance the optical performance of LnNPs in upconversion.

The size limit of LnNPs to form heterostructures

It is evident that β-phase LnNPs could be coated by α-phase CsPbBr3 shell. Given the fact that these LnNPs are <10 nm maintaining the β phase, the size of LnNPs clearly plays an important role in the formation of core-shell heterostructures. To further study the effect of core size on the heterostructure growth, we now synthesized optically active β-phase LnNPs in the form of NaGd0.79F4:Yb0.2,Tm0.01 with larger sizes. LnNP40 and LnNP60 were synthesized by increasing the reaction time to 40 and 60 min, leading to larger average sizes to 7.6 ± 0.8 and 9.2 ± 0.7 nm (Fig. 3a, d, h), respectively. Larger multilayer core-shell-shell (CSS) LnNPs with a configuration of NaGd0.79F4:Yb0.2Tm0.01@NaGd0.3F4:Yb0.7@NaGdF4 with an average size of 16.7 ± 0.8 nm were also synthesized via epitaxial growth (Supplementary Fig. 13). These larger LnNPs were utilized to seed the growth of CsPbBr3 and explore the size limit to break the lattice mismatch.

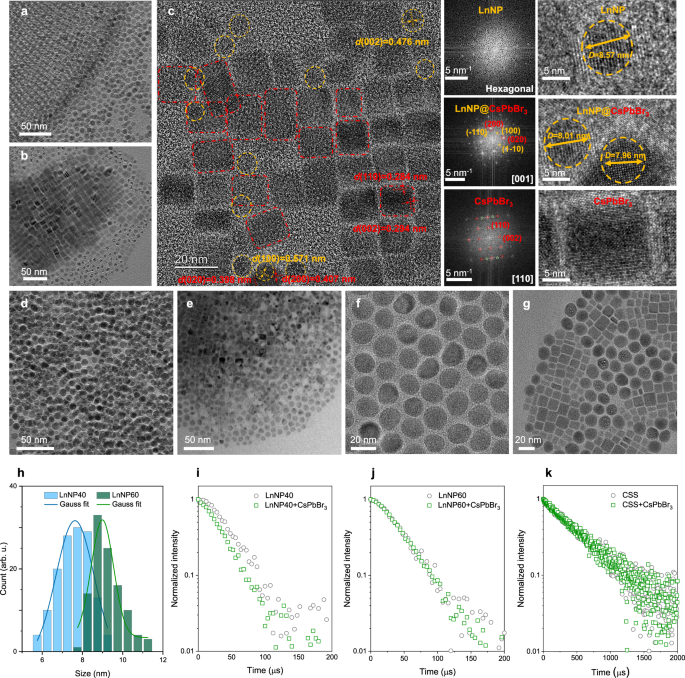

Fig. 3: The size limit to form LnNP@CsPbBr3 core-shell heterostructures.
figure 3

TEM images of a LnNP40, and b LnNP40 + CsPbBr3. c TEM image of LnNP40 + CsPbBr3 at higher magnification, corresponding selected area diffraction and HRTEM images of LnNP, LnNP@CsPbBr3 heterostructure and CsPbBr3 NC. TEM images of d LnNP60, e LnNP60 + CsPbBr3, f CSS, and g CSS+CsPbBr3. h Size distribution of LnNP40 and LnNP60. TCSPC measurements at 980 nm under 930 nm pump light excitation of i LnNP40 and LnNP40 + CsPbBr3, j LnNP60 and LnNP60 + CsPbBr3, k CSS and CSS+CsPbBr3. Source data are provided as a Source Data file.

Full size image

Figure 3b shows that only some of the smaller LnNP40 NPs could be seeded in CsPbBr3 NCs, while the larger LnNP40 NPs could be observed to be surrounded by uncoated CsPbBr3 NCs. TEM images with a higher magnification proved that the β-phase LnNP40 NPs with a size below 8 nm could be seeded to form heterostructure (Fig. 3c). The LnNPs with sizes above 8 nm had a close contact with the surface of CsPbBr3 NCs or were partially coated without forming a core-shell structure (Fig. 3c). The selected area diffraction (SAD) pattern of LnNPs showed a hexagonal diffraction pattern of the 8.57 nm LnNP. The SAD pattern of the selected LnNP@CsPbBr3 heterostructure showed a clear combination pattern of hexagonal LnNP and cubic phase CsPbBr3 NC. The TEM images also showed the change of preferable orientation from pure CsPbBr3 NC with (110) and (002) to CsPbBr3 shell in heterostructure with (020) and (200) (Fig. 3c). This also confirmed that seeding LnNP into CsPbBr3 would change the crystal structure of CsPbBr3 around core LnNP.

Larger LnNP60 and CSS NPs could not perform as a core to form heterostructure as only mixtures of LnNPs and CsPbBr3 NCs could be observed in TEM images (Fig. 3e, g). To check the difference of energy transfer between heterostructure and mixture, we now check about the PL lifetimes of Yb3+ ions at 980 nm under the excitation of pulsed 930 nm flash lamp light (Fig. 3i). For mixtures of LnNP60 + CsPbBr3 and CSS+CsPbBr3, the lifetimes of Yb3+ ions obtained from time-correlated single-photon counting (TCSPC) measurements did not show a significant change by mixing LnNPs with CsPbBr3 NCs, even shelled CSS showed a much longer lifetime of 553 µs than LnNP60 with a lifetime of 43 µs (Fig. 3i). However, LnNP@CsPbBr3 heterostructures seeded by LnNP40 showed a decreased lifetime from 43 to 34 µs, indicating the direct LRET only happened within core-shell heterostructures, even only part of LnNP40 NPs could be seeded to form heterostructures. This is another strong evidence to prove that only smaller LnNPs could seed into CsPbBr3 to form core-shell heterostructures and the size of core LnNPs is a crucial factor in the heterostructure formation. Due to the relative larger sizes and better crystallinity of LnNP40 and LnNP60 NPs, we can see a much clearer characteristic (100) peak from β-NaLnF4 in LnNP40 + CsPbBr3 and LnNP60 + CsPbBr3 mixtures (Supplementary Fig. 14).

Through these experiments, we found that the seeding with larger LnNPs did not result in core-shell heterostructure formation, with the LHP NCs growing separately from the larger LnNP60 or CSS LnNPs. This proves our hypothesis that size is a key factor in LnNP@LHP core-shell heterostructure formation when LnNPs were used as seeds. We now can conclude that the size limit of LnNP cores to be encapsulated in CsPbBr3 is 8 nm.

In conclusion, we have overcome a major bottleneck in the synthesis of heterostructures by resolving the critical issue of lattice mismatch using sub-8 nm LnNPs as seeds, leading to the fabrication of core-shell LnNP@LHP heterostructures. We further prove that core sizes below 8 nm along with a high reaction temperature is the determining factor rather than crystal phase mismatch between LHP and LnNP when forming LnNP@LHP core-shell heterostructures. CsPbBr3 was grown onto both α and β-phase LnNPs, and β-LnNPs showed enhanced two-way energy transfer involving downconversion under 365 nm and upconversion 980 nm excitation. The direct coating of CsPbBr3 onto LnNPs utilizes the advantage of LHP for high surface defect tolerance and demonstrates improved optical performance. The formation of LnNP@LHP heterostructures is rarely reported despite its potential in improving the performance and functionality of optoelectronic devices. We hope that this work has enabled a better understanding of how heterostructures can be more effectively synthesized, and will inspire further development of LnNP@LHP heterostructures as scintillators in X-ray detection, as well as light absorbers in highly efficient photovoltaic and anticounterfeiting applications.

Methods

Materials

Yttrium (III) acetate hydrate (Y(CH3COO)3 ∙ xH2O, 99.9%), gadolinium acetate hydrate (Gd(CH3COO)3 ∙ xH2O, 99.9%), ytterbium acetate hydrate (Yb(CH3COO)3 ∙ xH2O, 99.9%), thulium acetate hydrate (Tm(CH3COO)3 ∙ xH2O, 99.9%), cesium carbonate (Cs2CO3, 99.9%), lead chloride (PbCl2, 99.999%), lead bromide (PbBr2, 99.99%), lead iodide (PbI2, 99.999%), 1-octadecene (ODE, 90%), oleic acid (OA, 90%), oleylamine (OAm, 70%) and n-hexane (HPLC grade) were purchased from Sigma-Aldrich and used directly without any further purification.

Synthesis of α-NaYF4/α-NaY0.69F4:Yb0.3Tm0.01 LnNPs

All the LnNPs have been produced using a method from ref. 28 with modifications. Y(CH3COO)3 ∙ xH2O, Yb(CH3COO)3 ∙ xH2O and Tm(CH3COO)3 ∙ xH2O with a total lanthanide amount of 1 mmol were added to a 50 mL flask containing oleic acid (3 mL) and 1-octadecene (7 mL). The resulting mixture is heated at 140 °C under argon flow for 1 h and cooled down to room temperature. Subsequently, a methanol solution (3 mL) containing NH4F (0.48 mmol) and NaOH (0.3 mmol) was added and stirred at 70 °C for 45 min to remove the residual methanol from the reaction mixture. Upon removal of methanol, the solution was heated to 300 °C under a nitrogen flow and maintained at this temperature for 20 min. The solution was then cooled naturally to room temperature. The resulting LnNPs were precipitated out with an addition of ethanol, collected by 11617 × g centrifugation, and finally dispersed in 7 mL of hexane.

Synthesis of β-NaGdF4/β-NaGd0.69F4:Yb0.3Tm0.01 LnNPs

Gd(CH3COO)3 ∙ xH2O, Yb(CH3COO)3 ∙ xH2O and Tm(CH3COO)3 ∙ xH2O with a total lanthanide amount of 0.5 mmol were added to a 50 mL flask containing oleic acid (3 mL) and 1-octadecene (7 mL). The resulting mixture is heated at 140 °C under argon flow for 1 h and cooled down to room temperature. Subsequently, a methanol solution (6 mL) containing NH4F (0.96 mmol) and NaOH (0.6 mmol) was added and stirred at 70 °C for 45 min to remove the residual methanol from the reaction mixture. Upon removal of methanol, the solution was heated to 300 °C under a nitrogen flow and maintained at this temperature for 20 min. The solution was then cooled naturally to room temperature. The resulting LnNPs were precipitated out with an addition of ethanol, collected by 11,617 × g centrifugation, and finally dispersed in 7 mL of hexane. LnNP40 and LnNP60 were synthesized using a similar method with prolonged reaction time to 40 and 60 min.

Synthesis of core LnNPs

Gd(CH3COO)3 ∙ xH2O, Yb(CH3COO)3 ∙ xH2O and Tm(CH3COO)3 ∙ xH2O with a total lanthanide amount of 1 mmol were added to a 100 mL flask containing oleic acid (6 mL) and 1-octadecene (14 mL). The resulting mixture is heated at 140 °C under argon flow for 1 h and cooled down to room temperature. Subsequently, a methanol solution (6 mL) containing NH4F (0.96 mmol) and NaOH (0.6 mmol) was added and stirred at 70 °C for 45 min under nitrogen flow to remove the residual methanol from the reaction mixture. Upon removal of methanol, the solution was heated to 300 °C under a nitrogen flow and maintained at this temperature for 60 min. The solution was then cooled naturally to room temperature. The resulting LnNPs were precipitated out with an addition of ethanol, collected by 7435 × g centrifugation, and finally dispersed in 7 mL of hexane.

Synthesis of core-shell LnNPs

Gd(CH3COO)3 ∙ xH2O and Yb(CH3COO)3 ∙ xH2O with a total lanthanide amount of 1 mmol were added to a 100 mL flask containing oleic acid (6 mL) and 1-octadecene (14 mL). The resulting mixture is heated at 140 °C under argon flow for 1 h and cooled down to room temperature. 3 mL of the as-synthesized NaGd0.79F4:Yb0.2,Tm0.01 core LnNPs were then added into the reaction flask. Subsequently, a methanol solution (5 mL) containing NH4F (0.8 mmol) and NaOH (0.5 mmol) was added and stirred at 70 °C for 45 min under nitrogen flow to remove the residual methanol from the reaction mixture. Upon removal of methanol, the solution was heated to 300 °C under a nitrogen flow and maintained at this temperature for 45 min. The solution was then cooled naturally to room temperature. The resulting core-shell LnNPs were precipitated out with an addition of ethanol, collected by 7435 × g centrifugation, and finally dispersed in 7 mL of hexane.

Synthesis of CSS LnNPs

Gd(CH3COO)3 ∙ xH2O with a total lanthanide amount of 1 mmol were added to a 100 mL flask containing oleic acid (6 mL) and 1-octadecene (14 mL). The resulting mixture is heated at 140 °C under argon flow for 1 h and cooled down to room temperature. 3 mL of the as-synthesized NaGd0.79F4:Yb0.2,Tm0.01@NaGd0.3F4:Yb0.7 core-shell LnNPs were then added into the reaction flask. Subsequently, a methanol solution (5 mL) containing NH4F (0.8 mmol) and NaOH (0.5 mmol) was added and stirred at 70 °C for 45 min under nitrogen flow to remove the residual methanol from the reaction mixture. Upon removal of methanol, the solution was heated to 300 °C under a nitrogen flow and maintained at this temperature for 45 min. The solution was then cooled naturally to room temperature. The resulting CSS LnNPs were precipitated out with an addition of ethanol, collected by 7435 × g centrifugation, and finally dispersed in 7 mL of hexane.

Synthesis of Cs-oleate

Cs2CO3 (0.4 g), OA (1.25 mL) and ODE (15 mL) were added into a 50 mL three neck round-bottom flask. The reactants were stirred and heated to 150 °C under argon (Ar) flow for 1 h until fully dissolved. The flask is cooled down to 130 °C and maintained under Ar flow throughout the experiment.

Synthesis of CsPbX3 NCs

For a typical reaction (0.5 mmol PbX2), PbCl2 (0.1391 g)/PbBr2 (0.1835 g)/PbI2 (0.2305 g), ODE (15 mL), OA (1.5 mL) and OAm (1.5 mL) were added into a 50 mL three neck round-bottom flask. The reactants were stirred and heated to 120 °C under nitrogen flow for 1 h until fully dissolved. The flask is then heated up to 180 °C. 1 mL of Cs-oleate is then injected into the reaction mixture. After 10 s, the flask is either placed in an ice-water bath, water bath or air cooled by lifting, with the heating mantle switched off. After cooling down to room temperature, the resulting NCs are precipitated out by centrifuge at 11,617 × g for 10 min. The precipitate is then dispersed in 7 mL of hexane, centrifuged to get rid of large NCs, and stored in a glass vial for future usage.

Synthesis of heterostructures

For LnNP seeded growth of heterostructures, the method is similar to the synthesis of CsPbX3 NCs. Core LnNPs were washed for twice using ethanol before seeding the growth of LHP shell and filtered to ger rid of large LnNPs. 0.15 g of purified LnNPs in 1.5 mL hexane and 0.1835 g of PbBr2 (0.5 mmol), along with ODE (15 mL), OA (1.5 mL) and OAm (1.5 mL) were added into the reaction flask before the stirring and heating step. The ratio of LnNP cores and PbBr2 precursor can be tuned to manipulate the numbers of cores in heterostructures. The reactants were stirred and heated to 160 °C to get rid of hexane under nitrogen flow until fully dissolved. The flask is then heated up to 220 °C. We also note that the reaction temperature can be tuned, but maintaining a transparent precursor solution. The high reaction temperature at 220 °C will aid the growth of perovskite shells onto both α-LnNP and β-LnNP cores, even though β-LnNP cores have larger lattice constants, which will not lead to significant homogenous nucleation for both α- and β-LnNP cores. 1 mL of Cs-oleate is then swiftly injected into the reaction mixture. After 60 s, the flask is placed in water bath to cool down, with the heating mantle switched off. After cooling down to room temperature, the resulting heterostructures are precipitated out by centrifuge at 11,617 × g for 10 min. The precipitate is then dispersed in 7 mL of hexane, centrifuged to get rid of large aggregates, and stored in a glass vial for future usage.

Characterization

TEM, HRTEM, dark field-scanning TEM (DF-STEM), and EDS images were captured using a JEOL TEM-2100F transmission electron microscope operating at 200 kV. HAADF-STEM images were obtained on a FEI Tecnai Osiris 80-200 (S)TEM operated at 200 kV. The length of the NCs for all the samples were measured using ImageJ software. XRD was conducted with a D8 Advance Bruker X-ray diffractometer with Cu Kα radiation (λ = 1.5406 Å) from 10° to 80° with various counting time per step. UV-Vis absorption spectra were obtained using a Shimadzu UV2450/UV3600 spectrometer, by dispersing the samples in hexane at various concentrations in a standard quartz cuvette at room temperature. PL spectra in visible range were obtained using a Fluoromax-4, Horiba Jobin Yvon spectrofluorometer by dispersing the samples in hexane at various concentrations in a standard quartz cuvette at room temperature. PLQE measurements were carried out using a Spectralon coated integrating sphere. Measurements were taken at room temperature using CW laser diodes as the excitation source. Light from the experiment was collected using an optical fiber connected to an Andor Kymera 328i spectrometer housing a DU420A Silicon CCD detector. Setup calibration was performed using a Bentham 610 QTH calibration source. NIR emission spectra and TCSPC measurements were obtained on FLS1000 photoluminescence spectrometer from Edinburgh Instruments. The fitting of lifetime is based on Eqs. (1) and (2).

$${{\rm{y}}}={{{\rm{y}}}}_{0}+{{{\rm{A}}}}_{1}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{1}}+{{{\rm{A}}}_{2}}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{2}}$$
(1)
$${\tau }_{{{\rm{average}}}}=({{{\rm{A}}}}_{1}*{{{{\rm{t}}}}_{1}}^{2}+{{{\rm{A}}}}_{2}*{{{{\rm{t}}}}_{2}}^{2})/({{{\rm{A}}}}_{1}*{{{\rm{t}}}}_{1}+{{{\rm{A}}}}_{2}*{{{\rm{t}}}}_{2})$$
(2)

Intensity calculation in HAADF image

The heterostructure samples were observed using a FEI Tecnai Osiris 80-200 (S)TEM operated at 200 kV. To minimize beam damage, HAADF-STEM images were acquired using a beam current of around 140 pA, 30 ms per pixel dwell time, camera length of 115 mm. HAADF image contrast is related to the elastic scattering of electrons in the sample. The detailed calculation has been listed in Supplementary Information.

Transient absorption spectroscopy

Transient absorption measurements are performed using HARPIA transient absorption system (Light Conversion) at room temperature. The fundamental laser (PHAROS, Light Conversion, 1030 nm, 10 kHz) was divided into two beams for the generation of pump and probe beam respectively. The pump beam was generated by collinear optical parametric amplifier (ORPHEUS, Light Conversion). The probe beam was obtained by focusing 1030 nm laser on a sapphire crystal. The pump beam overlapped with the probe beam at the sample. The polarization of pump beam was set to magic angle (54.7°) relative to probe beam. The average lifetime obtained by TA is calculated based on Eqs. (3)–(6).

$${{\rm{y}}}={{{\rm{y}}}}_{0}+{{{\rm{A}}}_{1}}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{1}}+{{{\rm{A}}}}_{2}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{2}}$$
(3)
$${\tau }_{{{\rm{average}}}}=({{{\rm{A}}}_{1}}*{{{{\rm{t}}}}_{1}}^{2}+{{{\rm{A}}}}_{2}*{{{{\rm{t}}}}_{2}}^{2})/({{{\rm{A}}}}_{1}*{{{\rm{t}}}}_{1}+{{{\rm{A}}}}_{2}*{{{\rm{t}}}}_{2})$$
(4)

or

$${{\rm{y}}}={{{\rm{y}}}}_{0}+{{{\rm{A}}}}_{1}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{1}}+{{{\rm{A}}}}_{2}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{2}}+{{{\rm{A}}}_{3}}*{{{\rm{e}}}}^{-({{\rm{x}}}-{{{\rm{x}}}}_{0})/{{{\rm{t}}}}_{3}}$$
(5)
$${\tau }_{{{\rm{average}}}}=({{{\rm{A}}}}_{1}*{{{{\rm{t}}}}_{1}}^{2}+{{{\rm{A}}}_{2}}*{{{{\rm{t}}}}_{2}}^{2}+{{{\rm{A}}}}_{3}*{{{{\rm{t}}}}_{3}}^{2})/({{{\rm{A}}}}_{1}*{{{\rm{t}}}}_{1}+{{{\rm{A}}}}_{2}*{{{\rm{t}}}}_{2}+{{{\rm{A}}}}_{3}*{{{\rm{t}}}}_{3})$$
(6)
