Introduction

Symmetry plays a ubiquitous role in dictating the electronic properties of solids, enriched by the introduction of topology into the field of condensed matter1. In particular, recent developments have recognized the presence of topological degeneracies in the electronic band structure originating from crystalline symmetries, such as non-symmorphic2,3, chiral4,5, and achiral6 operations, which could be further intertwined with magnetic7,8,9 and charge order10. In the scenario of non-symmorphic symmetry, Dirac- and Weyl-type band crossings11, unconventional multi-fold fermions12,13,14, and hourglass fermions15,16,17 could arise from the glide-mirror or screw-axis symmetries. Meanwhile, chiral and noncentrosymmetric achiral little group symmetries emphasize the absence of inversion, albeit bearing overlapping space groups with the non-symmorphic ones. Crucially, mirror or roto-inversion symmetries must be present (absent) in the achiral (chiral) structure. This difference is the key in determining the distinction between Kramers-Weyl fermions pinned at time-reversal invariant momenta (TRIM) in chiral crystals4 and the type-I Kramers nodal lines (KNLs) connecting TRIM in noncentrosymmetric achiral crystals6. These symmetries, if bearing topological quasiparticles located near the Fermi level and isolated from trivial bands, could generate distinct transport, thermal, and optical phenomena such as Berry curvature-related anomalous Hall18 and Nernst effects19, chiral anomaly20, dissipationless edge current21, and circular photogalvanic effect22. Recently, chiral crystals have garnered renewed interest owing to their monopole-like orbital angular momentum texture23, leading to promising aspects on orbital magnetotransport, while noncentrosymmetric achiral crystals hosting KNLs, a type of Dirac solenoid concentrating quantized Berry flux of π, still require identification of ideal material candidates and unequivocal experimental demonstration.

Since the theoretical prediction of KNLs6, experimental work has suggested a few material platforms. These include time reversal symmetry breaking superconductors of the TRuSi (T = Ti, Ta, Nb, and Hf)24 and the LaPtSi25 family, the paramagnetic state of SmAlSi26,27, and charge density wave (CDW)-driven KNLs in rare-earth tritellurides28,29. However, in the case of rare-earth tritellurides, the approximated polar supercell derived from the x-ray diffraction (XRD) resolved incommensurate CDW superspace group28,30 directly contradicts the observation of preserved inversion symmetry in the combined studies of Raman spectroscopy, rotational-anisotropy second harmonic generation, and other experimental techniques31, hence casting doubt on the existence of KNLs driven by the CDWs in the series of systems. Moreover, these materials are all either multi-band systems near the Fermi level, EF, or have the KNLs located far away from EF.

Here, through comprehensive physical and thermodynamic properties characterization, angle-resolved photoemission spectroscopy (ARPES), and spin-resolved ARPES measurements, ab-initio calculations, and quantum oscillation measurements, we introduce a material class that exhibits an ideal KNL metallic phase, in the form of a noncentrosymmetric achiral intercalated transition metal dichalcogenide (TMD) family in the space group of \(P\bar{6}m2\)32,33. These are exemplified by InxTaS2 (x = 1/2 and 1) (Fig. 1), both of which also feature superconducting ground states34,35,36. In addition, similar physics of the KNLs in the isostructural intercalated TMD superconductors, In2/3TaS2 and PbTaSe2, is discussed in the Supplementary Information (notes 2 and 6). Due to the environment of the inversion symmetry broken TMD layers37 (Fig. 1a, b), the KNL band topology is also coupled with spin-valley degrees of freedom (Fig. 1c, d). Such spin texture of KNLs in the intercalated TMD system under the D3h point group can be clearly visualized by the low-energy band structure only considering spin-orbit coupling (SOC) terms (Fig. 1d), of which the momentum-dependent relativistic pseudospin splitting pattern is reminiscent of the recently generalized concept of nonrelativistic altermagnetism38,39 but achieved without time reversal symmetry breaking. Meanwhile, the fact that the directional relativistic splitting is locked with the crystal structure symmetry, unlike the nonrelativistic altermagnetic splitting associated with the ligand-environment-enriched antiferromagnetism, enables experimental investigation without complications of ___domain alignment. Furthermore, our theoretical analysis on the generic ideal KNL model at the Fermi level reveals several potential magnetic field-induced effects, including anomalous Hall effect (AHE) and chiral Majorana modes that are theoretically possible in the s-wave superconducting phase. Additionally, the noncentrosymmetric achiral \(P\bar{6}m2\) InxTaS2 associates the symmetries of the KNL material family with recent experimental reports of giant anomalous nonlinear transport40 and strain-induced superconducting diode effect41 in the isostructural PbTaSe2.

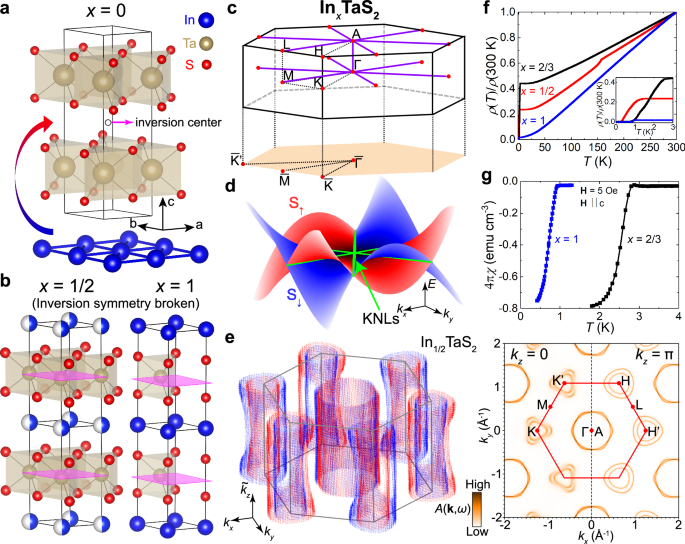

Fig. 1: Design of ideal Kramers nodal lines in intercalated transition metal dichalcogenides and their material properties.
figure 1

a Illustration of the indium intercalation into the inversion symmetric 2H-TaS2 (with one inversion center denoted by the empty circle). b Crystal structures of InxTaS2 (left: x = 1/2, right: x = 1). Both exhibit broken inversion symmetry. The transparent magenta horizontal planes denote the Mz mirror symmetry that is crucial to the formation of the Kramers nodal lines (KNLs). c Three-dimensional (3D) and two-dimensional (2D) projected surface Brillouin zone of the crystal structure in (b), where the purple lines indicate the KNL directions (MΓAL). d Low-energy dispersions of the spin-orbit coupling splitting (red and blue) and Kramers nodal lines (green tubes) of the point group of the intercalated transition metal dichalcogenide family, D3h (\({{{{\rm{G}}}}}_{24}^{11}\): R7, R8)6. S and S represent pseudospin up and down. The Hamiltonian takes the form of \(i{\alpha }_{1}({k}_{+}^{2}-{k}_{-}^{2}){k}_{z}{\sigma }_{x}-{\alpha }_{1}({k}_{+}^{2}+{k}_{-}^{2}){k}_{z}{\sigma }_{y}+i{\alpha }_{2}({k}_{+}^{3}-{k}_{-}^{3}){\sigma }_{z}\), where α1 = −0.5, α2 = 0.2, kz = 0, and k± = kx ± iky. e Ab initio 3D voxel-style Fermi surface of In1/2TaS2 (left) and 2D Bloch spectral function (BSF) calculated at the kz = 0 and π slices at the Fermi level (right). The 3D red and blue voxels denote high-intensity values of the BSF, which has turned into a Lorentzian-like continuum due to the random occupation of the indium lattice site marked in blue/white in panel (b). The \({\tilde{k}}_{z}\) indicates that the kz direction is elongated for visualization. f Resistivity as a function of temperature for InxTaS2 (blue: x = 1, black: x = 2/3, red: x = 1/2). The inset is a zoom-in view of the low temperature data, showing the superconducting transitions for all three compounds. g The susceptibility as a function of InxTaS2 (blue: x = 1, black: x = 2/3). 4πχ approaches the value of −1 at the lowest temperatures, indicating bulk superconductivity in both compounds.

Results

Design of Kramers nodal line metals and characterization of the InxTaS2 family

The first step in constructing a noncentrosymmetric achiral crystal structure is to break the inversion symmetry. 2H-TaS2 and other TMDs of the 2H phase have been long known to have a centrosymmetric structure42 (see Fig. 1(a) for one exemplary inversion center). However, due to the local broken inversion symmetry constrained within a single layer, layer-resolved hidden spin polarization has been reported by surface-sensitive ARPES techniques43,44. In addition, extensive efforts focused on the monolayer and few-layer regime have shown evidence for unconventional Ising superconductivity that allows both spin-singlet and spin-triplet pairings45,46,47,48,49,50,51. To achieve inversion symmetry breaking in the bulk, we have intercalated 2H-TaS2 with trigonal indium layers, as shown in Fig. 1a, b. The indium intercalation changes the 2H stacking to 1H stacking, and consequently, leads to broken inversion symmetry in the bulk of the InxTaS2 crystal structure. We also note that, as illustrated in Fig. 1b, there is a structural difference between x = 1/2, 2/3 and x = 1: the In atoms are located above the Ta atoms for x = 1/2 and 2/3 (left, Fig. 1b), while for x = 1, the In atoms are above the S atoms (right, Fig. 1b). Such structural difference is supported by Rietveld refinements on the powder crystal XRD (see Supplementary Note 1). As a result, the Weyl nodal rings predicted in InTaS2 near H point35 (see Fig. 1c for the Brillouin zone (BZ) definition) based on a structure of In on top of Ta would instead become predicted Weyl points near H36. Nonetheless, the KNL from the noncentrosymmetric achiral little group symmetry in InxTaS2 is fundamentally different from all the topological crossings predicted previously for similar compounds35,36,52,53. In Fig. 1b, we highlight the most important symmetry operation for the formation of the KNLs in the InxTaS2 family as magenta planes, the Mz mirror. Under the point group symmetry of InxTaS2, the electronic band structure from a minimal two-band low-energy Hamiltonian at kz = 06 only considering SOC terms shows an alternating pattern of pseudospin splitting, as shown in Fig. 1d, while the green tubes represent the topologically nontrivial KNLs. The complete distribution of the KNLs is indicated by the purple lines in the first Brillouin zone (BZ) in Fig. 1c. Furthermore, we visualize the realistic Fermi surface (FS) Bloch spectral function (BSF) of In1/2TaS2 calculated from first-principles at kz = 0 and kz = π in Fig. 1e (right) showing the Kramers degeneracy along ΓM and AL whenever the two hexagonal-like FS sheets centered around kx = ky = 0 intersect. The three-dimensional (3D) FSs extracted from high intensities of the BSF cast in voxel-style plot in Fig. 1e (left) reflect the quasi-two-dimensional (2D) nature of In1/2TaS2 at the Fermi level.

In addition to the broken inversion symmetry and the KNLs, indium intercalation also changes the superconducting properties of the TaS2 layers. The bulk 2H-TaS2 becomes superconducting below 0.5 K46. As shown in Fig. 1f, the resistivity curves of InxTaS2 (x = 1/2, 2/3, 1) indicate a superconducting ground state, with TC (defined as R(TC) = 0.9R0) varying with x from 1.1 K for x = 1/2, 2.3 K for x = 2/3, to 0.9 K for x = 1. In addition, the bulk superconductivity of InxTaS2 (x = 2/3, 1) is confirmed by magnetization measurements, as shown in Fig. 1g. Insights into the TC enhancement of In2/3TaS2 when compared to those of In1/2TaS2 and InTaS2 can be gained from a calculation of the momentum-resolved BSF and site-resolved density of states, which shows an increased proximity of In electronic states to EF for x = 2/3 (see discussion in Supplementary Note 2). The resistivity curve of In1/2TaS2 also reveals a transition around 150 K in Fig. 1f, previously suggested to be a charge density wave (CDW)-like transition35, while absent in In2/3TaS2 and InTaS2. However, as we elaborate in the following, the measured high-quality ARPES band dispersions of In1/2TaS2 at 15 K do not resolve any evidence for band folding or gap features within the experimental resolution that affect the nodal line structure. This implies negligible effects of the potential CDW transition on the electronic band structure, which, therefore, does not modify the KNL symmetry requirements and observables, consistent with previous bulk structural symmetry characterizations on a refined occupation of In0.49TaS2 down to 12 K33.

Ideal Kramers nodal line metal In1/2TaS2 with spin-valley polarization

To demonstrate the physics of KNL and its spin-orbital texture, a candidate material of ideal KNL metals is highly desired. Here, “ideal KNL” is defined as an isolated KNL band that crosses EF, with a large SOC that results in a band splitting away from the KNL momentum directions. Among the noncentrosymmetric achiral intercalated TMD material family, we identify In1/2TaS2 to exhibit such ideal properties. First, to demonstrate the KNL properties, we carried out ab-initio calculations on the bulk BSF of In1/2TaS2, where the coherent potential approximation was used on the In sites accounting for the random vacancy without extending to a CDW supercell. As outlined by the red box in Fig. 2a, the calculation shows a single set of isolated bulk KNL bands along MΓAL crossing the Fermi level. Away from this momentum path, the KNL band splits into two spin-orbital branches, as shown along ΓKM and AHL, where the kz = π dispersions show the most prominent splitting. Projecting Green’s function with the σz operator in Fig. 2b, it is unambiguously shown that the spin is strictly degenerate along the KNLs and highly polarized in sz along the off-KNL directions due to the Ising SOC. The splitting is most clearly demonstrated along AHL, but hybridized with In orbitals along KM. To directly observe the ideal KNL band topology and provide the smoking-gun evidence for the spin splitting, we performed spin-integrated ARPES (Fig. 2) and spin-resolved ARPES (Fig. 3) measurements on In1/2TaS2, of which the same sample was exfoliated and examined by scanning electron microscopy with energy dispersive x-ray spectroscopy to confirm spatial homogeneity and the In concentration (see Supplementary Note 3). As shown in Fig. 2c, the In1/2TaS2 FSs consist of two concentric pockets around \(\bar{K}\) and \(\bar{{K}^{{\prime} }}\) and two hexagonal pockets centered around \(\bar{\Gamma }\), with no clear evidence of CDW folding or gaps. The ARPES band dispersions along \(\bar{\Gamma }-\bar{M}-\bar{K}-\bar{\Gamma }\) presented in Fig. 2f directly demonstrate the doubly-degenerate KNL crossing at EF along \(\bar{\Gamma }-\bar{M}\) and its clear splitting along \(\bar{M}-\bar{K}-\bar{\Gamma }\). The chosen 75 eV of photons here is justified to be close to the kz = 0 plane through a photon-energy-dependent scan focusing on certain kz sensitive features at deeper binding energies, as presented in Supplementary Fig. 4 of the Supplementary Note 4. To theoretically capture the observed ARPES spectra with high accuracy, state-of-the-art one-step photoemission calculations for the FS and band dispersions along \(\bar{\Gamma }-\bar{M}-\bar{K}-\bar{\Gamma }\) are carried out with the In termination (see Fig. 2d, g), showing an excellent agreement with ARPES data, confirming the validity of the random vacancy modeling on the In sites. An in-depth discussion for the termination-dependent band structure of In1/2TaS2 is presented in Supplementary Fig. 7 of the Supplementary Note 5, supporting the adopted In termination. Furthermore, the spin-projected one-step calculation indicates a spin-polarized FS encoding spin-valley degree of freedom at \(\bar{K}\) and \(\bar{{K}^{{\prime} }}\) (Fig. 2e).

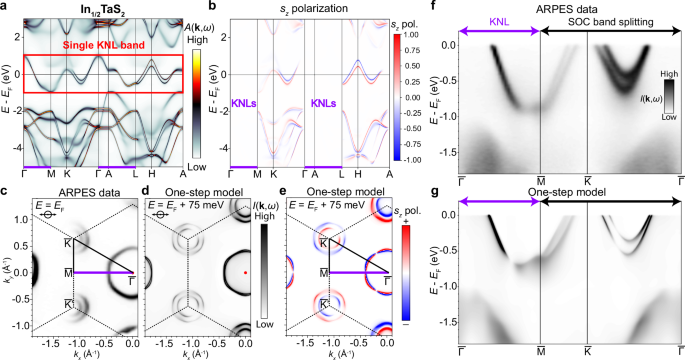

Fig. 2: Demonstration of an ideal Kramers nodal line (KNL) metal, In1/2TaS2.
figure 2

a Bulk Bloch spectral function of In1/2TaS2 calculated from the full-potential fully-relativistic Korringa–Kohn–Rostoker (KKR) method, highlighting the single KNL band crossing the Fermi level. b Spin projection along z for the bulk band dispersion in (a). c Fermi surface of In1/2TaS2 measured by angle-resolved photoemission spectroscopy (ARPES). The KNL direction \(\bar{\Gamma }-\bar{M}\) is denoted by the purple line. All experimental data in the figure were taken with 75 eV photons of p polarization as indicated at 15 K. d One-step calculation of the Fermi surface using the same experimental conditions, where the theoretical Fermi level has been shifted up by 75 meV to achieve the best match with the data. e Spin polarization along z extracted from the same one-step calculation in (d). f, g Electronic band structure along \(\bar{\Gamma }-\bar{M}-\bar{K}-\bar{\Gamma }\) showing the KNL dispersions measured in ARPES and predicted by one-step calculations. sz pol.: sz polarization. SOC: spin-orbit coupling.

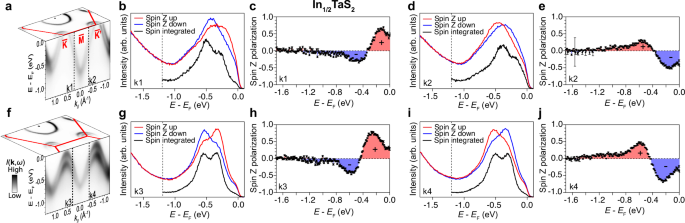

Fig. 3: Spin-resolved angle-resolved photoemission spectroscopy on In1/2TaS2.
figure 3

a Three-dimensional view of the band dispersions (kx-ky and E-k//) indicating the momenta where the spin-resolved energy distribution curves (EDCs) were taken (vertical dashed lines in the E-k// plot) near the high symmetry direction \(\bar{K}-\bar{M}-\bar{{K}^{{\prime} }}\). b, d Spin-resolved EDCs taken at k1 and k2 on both sides of the ΓM Kramers nodal lines displaying reversed spin-polarized peak positions. Raw spin-integrated EDCs taken in the normal mode are attached as black curves at the bottom. c, e Converted spin polarization from (b) and (d), respectively. fj Same as (a)-(e), but at k3 and k4 slightly away from the Brillouin zone boundary \(\bar{K}-\bar{M}-\bar{{K}^{{\prime} }}\). Error bars of the spin polarization are explained in the Methods. See also Methods for clarification of (f).

In the In1/2TaS2 family, the spin-valley polarization arises from the inversion symmetry breaking37 which is satisfied as a prerequisite of the KNL little group symmetries. Meanwhile, the mirror symmetries such as the magenta ones denoted in Fig. 1b in the noncentrosymmetric achiral little group generate KNLs concentrating Berry curvature and forcing spin degeneracy robust against SOC. Further, heavy elements such as Ta provide strong strength of the SOC, exhibiting an Ising-type splitting at valleys such as K and \({K}^{{\prime} }\) mainly due to the broken ΓKHA mirror54. Experimentally, the investigation of the spin-valley locking behavior associated with the KNLs using spin-resolved ARPES is presented in Fig. 3. As the spin polarization of the split bands should reverse in the two opposite directions away from the KNL, we can directly measure the spin polarization across a KNL. We carried out spin-resolved measurement of two pairs of momentum points on opposite sides of the ΓM KNL. k1 and k2 are along \(\bar{K}-\bar{M}-\bar{{K}^{{\prime} }}\) (Fig. 3a). The spin up and down energy distribution curves (EDCs) selectively show the spin texture along the out-of-plane direction (sz), and we plot them in direct comparison to the EDCs measured in spin-integrated mode in Fig. 3b. Even though for both k1 and k2, the band closer to EF exhibits weaker intensity as shown in the spin-integrated EDCs, the spin-resolved EDCs still show clear distinction for the split bands, namely for k1 the lower binding energy band is dominantly spin up while the higher binding energy band is dominantly spin down. Furthermore, we can plot the sz polarization defined as \({P}_{z}=\frac{1}{S}\frac{{I}_{\uparrow }-{I}_{\downarrow }}{{I}_{\uparrow }+{I}_{\downarrow }}\) (Fig. 3c, S being the Sherman function, I and I the spectral intensity measured in the spin up and spin down channels, respectively), which clearly shows the opposite spin polarization for the two bands split from the KNL. k2, on the opposite side of the ΓM KNL, shows reversed spin polarization of the two split bands (Fig. 3d, e). To demonstrate this spin polarization reversal even more clearly, we show similar measurements for a pair of momentum points slightly away from the \(\bar{K}-\bar{M}-\bar{{K}^{{\prime} }}\) high symmetry direction where the photoemission matrix elements allow comparable intensity of the two split bands as observed on each spin-integrated EDC (k3 and k4) (Fig. 3f–j). The spin-resolved ARPES data (sz) measured here show an even better-defined peak structure and showcase consistent spin texture with spin polarization reaching as high as nearly 80%. Therefore, the combined experimental and theoretical results definitively demonstrate the coupled spin-valley polarization in In1/2TaS2, associated with the KNL band topology and the underlying Ising-type SOC shown previously only for monolayer TMD materials, which could potentially be relevant to applications in spintronics and valleytronics.

Kramers nodal lines in the 3D electronic band structure of InTaS2

As the noncentrosymmetric achiral symmetry is common across the family of intercalated TaS2, the KNL should be a universal property of all members of this family. In this section, we present the evidence for KNLs for the stoichiometric InTaS2 in the \(P\bar{6}m2\) space group. In addition, we also present the ARPES experimental measurement of the KNL band structure of the isostructural PbTaSe2 in the Supplementary Note 6. With full In intercalation, InTaS2 is more three-dimensional and exhibits stronger kz band dispersions when compared to In1/2TaS2 (Fig. 1e). Due to the kz broadening effect of the photoemission process, the measured FS of InTaS2 (Fig. 4a) is more complex than the one of In1/2TaS2. Meanwhile, stronger kz integration in the photoemission process of InTaS2 gives out weaker photon-energy-dependence for the band dispersions, as evidenced by the hν-scan along \(\bar{\Gamma }-\bar{M}\) shown in Supplementary Fig. 5. To account for potential surface states and the strong kz broadening effect in the vacuum ultraviolet ARPES spectra, we undertook ab-initio calculations projected to both In and S surface terminations. We find that the measured electronic structure in Fig. 4a can be best described by the summation of the calculations for both terminations. This is likely due to the fact that the In and S terminations have equal probabilities during the cleaving process. Therefore, the ARPES beam spot would probe the superposition of band structures under both terminations, while the separate contributions from each termination are elaborated in Supplementary Fig. 6 of Supplementary Note 5. The direct comparison of the measured and calculated FSs is shown in Fig. 4a, b, where features such as the trefoil-like pattern centered at \(\bar{K}\), the elliptical pockets centered at \(\bar{M}\), and the kz broadened hexagonal pockets centered at \(\bar{\Gamma }\) can be well reproduced. Importantly, we note that pairs of FSs are enforced to be degenerate whenever intersecting the ΓM direction, reflecting the properties of the KNL band topology. This can be further confirmed by the measured band dispersions along \(\bar{\Gamma }-\bar{M}-\bar{K}-\bar{\Gamma }\) (Fig. 4c), where we also overlay the bulk band calculations for kz = 0 and π. Clearly, both the bulk calculations and the ARPES data demonstrate that the bands along ΓM are doubly degenerate KNLs and split into two spin-orbital branches along MKΓ. To better capture the band dispersions observed in Fig. 4c beyond bulk contributions, we also display the surface calculations projected onto the In surface in Fig. 4d, which show an excellent match with the ARPES data.

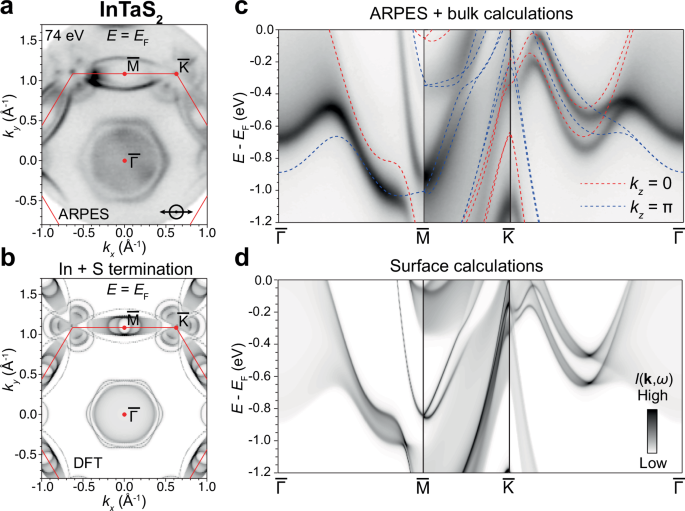

Fig. 4: Kramers nodal lines and electronic band structure in InTaS2.
figure 4

a Fermi surface (FS) of InTaS2 measured by 74 eV p polarized photons (indicated at the bottom right of the panel) at 23.5 K. b FS calculated from first-principles using a superposition of both In and S terminations, where a surface onsite energy correction of −0.7 eV is applied to the In s orbitals and a +0.2 eV onto the Ta d orbitals. c Band dispersions along \(\bar{\Gamma }-\bar{M}-\bar{K}-\bar{\Gamma }\) measured by 74 eV photons, overlaid with bulk density functional theory (DFT) calculations at the kz = 0 and π planes showing the Kramers nodal line behavior. d Surface calculation for the \(\bar{\Gamma }-\bar{M}-\bar{K}-\bar{\Gamma }\) projected onto the In termination is displayed for comparison, as the surface states from S termination have degraded for the angle-resolved photoemission spectroscopy (ARPES) data in (c). More details of the termination-dependent electronic band structure are elaborated in Supplementary Note 5. DFT calculations in comparison with ARPES data have no EF adjustment.

Since the FS of InTaS2 contains more 3D dispersions, as delineated in Fig. 5a, and ARPES has significant spectral intensity contributions from kz broadening and surfaces, we use quantum oscillation (QO) measurements to provide a more complete investigation of the 3D bulk FS topology. The assignment of the Fermi pockets discussed in QO measurements and density functional theory (DFT) calculations is illustrated in Fig. 5b for a cross section of the FS at kz = 0. Next in Fig. 5c–h, the resistivity is measured as a function of the external magnetic field at different temperatures and field orientations, revealing Shubnikov de-Haas (SdH) oscillations. Strong SdH oscillations can be observed up to 20 K and 14 T after a smooth background subtraction, as can be seen in Fig. 5c. The subsequent fast Fourier transform (FFT) on the SdH oscillations reveals that they consist of two frequencies Fα = 104 T and Fβ = 212 T (Fig. 5d). Despite the fact that Fβ is close to 2  × Fα, the effective mass fitting (inset of Fig. 5d) shows that the two frequencies originate from distinct Fermi surface cross-sectional areas, since the effective mass mβ is not twice that of mα. The small effective masses also imply that the underlying band dispersion is linear or close to linear.

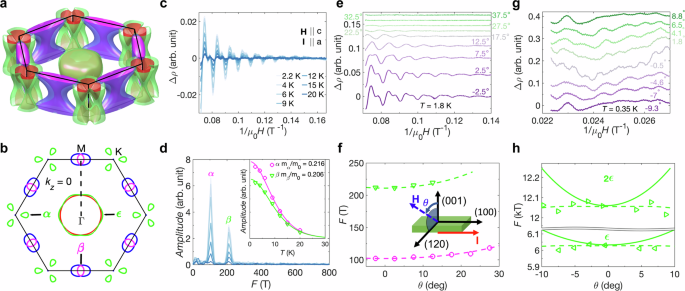

Fig. 5: Bulk Fermi surfaces and quantum oscillations of InTaS2.
figure 5

a Three-dimensional Fermi pockets of InTaS2 calculated from first-principles. b The kz = 0 slice of the Fermi pockets in panel (a), indicating the assignment of quantum oscillation frequencies α, β, and ϵ. c Temperature-dependent Shubnikov de-Haas (SdH) oscillations up to 14 T. d The fast Fourier transform of (c), illustrating the existence of two distinct frequencies. The inset is the fit to the Lifshitz–Kosevich thermal damping term to extract the effective masses fitting of the α and β frequencies. e Angle-dependent SdH oscillations up to 14 T at 1.8 K. (f) α and β frequencies as functions of the magnetic field orientations (symbols) along with their values according to density functional theory (DFT) calculations (dashed lines). Inset: Sketch of the configuration used for the measurements. g Angle-dependent SdH oscillations from 40 T to 44.8 T at 0.35 K, illustrating the existence of higher frequencies. h Frequency of the ϵ cross-sectional area and its second harmonic as a function of the magnetic field orientations (symbols) including values from DFT calculations (dashed lines) and values from a cylinder (lines). The adjustment of the Fermi level of the DFT results to match the quantum oscillation data is elaborated in the Supplementary Note 7.

To build a correspondence between QOs and the FS, we further measured SdH oscillations for InTaS2 at different field orientations (Fig. 5e, f). The measurement configuration is shown in the inset of Fig. 5f. The SdH oscillations become significantly weaker when the field orientation is moved away from the c axis (Fig. 5e), consistent with the expectation for van der Waals materials. We further compare the frequencies from the SdH oscillations (symbols) to the expected values from DFT calculations (dashed line) through the Onsager relationship: \(F=\frac{\hslash {A}_{{{{\rm{ext}}}}}}{2\pi e}\), where is the reduced Planck constant, Aext is the extremal cross section of a Fermi pocket, and e is the electron charge. A great match between theory and experiment can be established (Fig. 5f). Furthermore, Fβ is related to the Fermi pocket from the KNLs along ΓM, as indicated by the arrow in Fig. 5b.

The complex Fermi surface of InTaS2, as illustrated in Fig. 5a, b and 4a–d, should lead to QOs of various frequencies, while the SdH oscillations up to 14 T in Fig. 5c–f only consist of two frequencies. To further incorporate larger Fermi pockets, we measured the SdH oscillations up to 44.8 T at different magnetic field orientations (Fig. 5g, h, Supplementary Information Figs. 10, 11). The SdH oscillations (Supplementary Information Fig. 10a, b) show a much more complex spectrum with more frequencies, consistent with the complex Fermi surface of InTaS2. Most interestingly, we discovered QOs of frequencies 6 kT and 12 kT (Fig. 5g). By comparing the experimental results (symbols) to DFT calculations (dashed lines) in Fig. 5h, we found that these frequencies are related to the oscillations from the Fermi pocket ϵ (see Fig. 5b) and its second harmonic. Such ϵ pockets encode pinched points enforced by both the ΓM and ΓA KNLs. Moreover, the frequency of the Fermi pocket ϵ (symbols) is significantly lower than the expected value for a cylindrical Fermi pocket (solid curve in Fig. 5h), which indicates that it must be a closed pocket as in the DFT calculation. We notice that at θ ~ 9–10, the fundamental oscillations from the Fermi pocket ϵ vanish while the second harmonic oscillations persist. This implies that at this field orientation, the quantum oscillations from the Fermi pocket ϵ are close to the spin-zero effect55. Overall, through ARPES and quantum oscillation measurements, we directly observe the Fermi pockets related to the KNLs in InTaS2. The underlying quasiparticles could contribute to the properties of InTaS2, for instance, the superconductivity.

Discussion

The KNLs in noncentrosymmetric achiral little group have been clearly demonstrated in the exemplary case of the \(P\bar{6}m2\) intercalated TMD superconductors consisting of InxTaS2 (x = 1/2, 1) and PbTaSe2 (Supplementary Note 6), where In1/2TaS2 showcases the cleanest FS with a single KNL crossing the Fermi level, termed as the “ideal Kramers nodal line metal”. The spin-orbital texture in In1/2TaS2 directly observed via spin-resolved ARPES offers a natural explanation for the spin-valley polarization engendered by the underlying broken inversion symmetry of the KNL little group, with a large SOC spin splitting up to around 250 meV. Furthermore, in InTaS2, combined ARPES and angle-dependent QO studies point to the existence of the pinch points enforced by the KNLs, especially for the experimentally-probed closed ϵ pockets intersecting both the ΓM and ΓA KNLs. These pinch points are reminiscent of the 2D massless Dirac fermions on the surface of a 3D topological insulator, but reside on the intersection of the 3D FSs of an ideal KNL metal. Therefore, when the pinch points that harbor nπ (\(n\in {\mathbb{Z}}\) and is an odd number) Berry phase are gapped by superconductivity, they produce nontrivial vortex spectra hosting chiral Majorana zero modes, which we elaborate in Supplementary Note 8 based on the model analysis of an ideal KNL. And in this work, both the KNLs with their associated pinch points and superconductivity are demonstrated in the InxTaS2 family. More importantly, our work establishes an entire large family of quantum materials as a platform for realizing and tuning KNLs – intercalated TMD compounds. Specifically, the In site can be populated with different concentrations of Tl, Pb, Bi, and Sn, the Ta site with Nb, and the S site with Se32. The intercalation not only produces the broken inversion symmetry – a central requirement for realizing KNLs, but can also be utilized to introduce correlated physics and electronic orders in the presence of KNLs, such as magnetic orders, charge-density waves, or superconductivity, a regime that has not been previously explored. Therefore, this material family offers promising ingredients for spin and valley transport, axionic quasiparticles, and topological superconductivity.

Going beyond material selection, two other directions would deserve further exploration. The first one is the interplay between dimensionality and unconventional superconductivity. Recently, unconventional nodal superconductivity has been reported in monolayer 1H-TaS251. In the exfoliable intercalated \(P\bar{6}m2\) TMD family represented by indium intercalated 1H-TaS2 single crystals, the nature of the superconductivity deserves further investigation, especially upon approaching the few-layer limit. The second direction is strong electronic correlations. As analyzed in Supplementary Note 8, due to the Dirac physics of the KNL model, the AHE can be driven by Zeeman or exchange fields along the KNLs. However, the strength of the anomalous Hall conductivity is inversely proportional to the velocity of the KNL band. In the case of InxTaS2, the dispersive KNLs would give rise to an AHE that is overwhelmed by the ordinary Hall contributions. One way to increase the anomalous Hall signal is to induce flat KNLs at the Fermi level, which can be achieved in localized f-orbital electronic systems with one example in \(P\bar{6}m2\) being UAuSi56. Such scenario may open an alternative avenue for topological phases and observables driven by strong correlations.

Methods

Crystal growth

Single crystals of InxTaS2 (x = 1/2, 2/3, 1) were grown by the chemical vapor transport (CVT) method. The polycrystalline precursor of InTaS2 was first prepared by a solid-state reaction. Indium powder, tantalum powder, and sulfur powder were mixed homogeneously with a mortar and pestle and sealed in quartz tubes under vacuum. The powder was heated up to 850C in 17 hours and kept at this temperature for 24 h before cooling down to room temperature. Approximately 3g of InTaS2 and the transport agent InCl3 (1mg/cm3 for InTaS2, 4mg/cm3 for In1/2TaS2 and In2/3TaS2) were put together in a quartz tube (200 mm length, inner diameter 16 mm). All treatments were carried out in an argon box, with an oxygen and water content of less than 0.5 p.p.m. The quartz tubes were sealed and put into a two-zone furnace. The hot end with the starting materials was kept at 1050C, and the cold end was kept at 1000C. Single crystals of InxTaS2 (x = 1/2, 2/3, 1) can be found in the middle of the quartz tube after a growth of 7 days. The single crystals of different compositions can be further distinguished by XRDs due to the differences in the lattice constant c.

Transport and thermodynamic measurements

The magnetization measurements were performed in a Quantum Design Magnetic Property Measurement System-3 (MPMS-3) magnetometer with a He-3 option. The magnetotransport measurements up to 14 T were measured in a Quantum Design Physical Property Measurement System (PPMS) dynacool system equipped with a dilution refrigerator option. The resistance was measured through the ETO option. The magnetotransport measurements on the same sample were measured at the National High Magnetic Field Laboratory (NHMFL) in Tallahassee in Cell-15, i.e, hybrid magnet, under magnetic field up to 44.8 T and temperature down to 0.35 K. The resistance was measured through a Lakeshore 370 AC resistance bridge.

ARPES measurements

Angle-resolved photoemission spectroscopy (ARPES) and spin-ARPES measurements on In1/2TaS2 were collected at the Advanced Light Source, beamline 10.0.1.2 under p polarized photons, equipped with a Scienta Omicron DA30L spectrometer. The In1/2TaS2 samples were cleaved in situ with a base pressure better than 4 × 10−11 Torr and at a maintained temperature of 15 K. During spin-ARPES measurements, VLEED (very low-energy electron diffraction) detectors were used with the spin quantization axis fixed along the out-of-plane (sz) direction in Fig. 3 and the spin polarization is calculated from

$$P=\frac{1}{S}\frac{{I}_{\uparrow }-{I}_{\downarrow }}{{I}_{\uparrow }+{I}_{\downarrow }},$$
(1)

where S is the Sherman function. During the time of the experiment, the Sherman function took the value of 0.2. The corresponding spin-up and spin-down EDCs were measured up to the same acquisition time and normalized by the area using the background counts between 1.2 and 1.7 eV binding energies. The error bars of the spin polarization are calculated using the error propagation formula:

$$\delta P=P\cdot \sqrt{\frac{{(\sqrt{{I}_{\uparrow }})}^{2}+{(\sqrt{{I}_{\downarrow }})}^{2}}{{({I}_{\uparrow }+{I}_{\downarrow })}^{2}}+\frac{{(\sqrt{{I}_{\uparrow }})}^{2}+{(\sqrt{{I}_{\downarrow }})}^{2}}{{({I}_{\uparrow }-{I}_{\downarrow })}^{2}}},$$
(2)

where the uncertainty of the spin-resolved photoelectron counts takes the form of \(\sqrt{{I}_{\uparrow }}\) and \(\sqrt{{I}_{\downarrow }}\) assuming the Poisson statistics of I and I. In this calculation, the uncertainty from the Sherman function is not taken into consideration. The large error bar on one data point in Fig. 3e comes from the close values of spin up and spin down counts in the raw data. By definition, identical spin up and down counts give rise to a divergent uncertainty of the spin polarization. Additionally, the positions of k3 and k4 in Fig. 3f were actually taken on the opposite sides of the \(\bar{K}-\bar{M}-\bar{{K}^{{\prime} }}\), closer to the \(\bar{\Gamma }\) hexagonal pocket than the cut in Fig. 3a. We instead showed the cut to be outside of the BZ just for illustration purpose of a complete FS image. The curvature of the momentum cut on the FS in Fig. 3a, f is omitted to avoid curved and distorted band dispersions in the 3D plot.

ARPES data on InTaS2 and PbTaSe2 were taken at the Stanford Synchrotron Radiation Lightsource, Beamline 5-2 and the Brookhaven National Lab, National Synchrotron Light Source II, Beamline 21-ID, respectively. Both are equipped with a DA30 electron analyzer with vertical slit and have linear horizontal, linear vertical, and circularly polarized photons available. Only the data measured by linear horizontal light were included in the main text and the Supplementary Information. Samples of both kinds were cleaved in situ under a based pressure better than 3 × 10−11 Torr and temperatures below 30 K. All ARPES measurements in the standard mode maintain an energy and angular resolution superior to 20 meV and 0.1, while spin-ARPES on In1/2TaS2 has the energy and angular resolution better than 50 meV and 1.

Ab initio calculations

The Bloch spectral function and the one-step model ARPES calculations were carried out using the spin-polarized relativistic Korringa-Kohn-Rostoker (SPR-KKR) package57, under the full-potential fully-relativistic four component Dirac formalism. Exchange-correlation potential within the local spin density approximation by Vosko, Wilk, and Nusair58 was used. To model the random vacancy on the indium site in InxTaS2 (x = 1/2, 2/3), single-site coherent potential approximation was employed to obtain an auxiliary effective medium that reproduces the concentration-averaged scattering properties57,59. The KKR equations were solved with an angular momentum cutoff of \({l}_{\max }\) = 4 to account for the occupied 4f orbitals of Ta and the needs for spectroscopy calculations. The ARPES calculations considered a semi-infinite surface model terminated by the In atoms under the experimental geometry and used the layer-KKR multiple scattering theory, together with coherent potential approximation60,61. Therefore, such theory takes into account all factors such as light polarization, matrix element, final-state, surface, disorder, relativistic, and multiple scattering effects. Experimental crystal structures of In1/2TaS2 and In2/3TaS2 were utilized in the calculations32,33.

For the calculations on InTaS2, we used the Vienna Ab initio Simulation Package (VASP)62 with the Perdew–Berke–Ernzerhof (PBE) exchange-correlation functional in the generalized-gradient approximation63,64 to perform the density functional theory (DFT) calculations65. The crystallographic data were obtained from the topological material database66,67,68. SOC is included in the first-principles calculations. The Wannier tight binding model was further obtained through the Wannier90 package69, which accurately fits the DFT bands with the inclusion of SOC. From this Wannier model, we studied in detail the topological crossings in InTaS2. To better match with the ARPES data, we used a surface potential of −0.7 eV on the In s orbitals for the In termination and +0.2 eV on the Ta d orbitals for the S termination.
