Introduction

Water electrolysis is pivotal to achieving global net-zero targets by 2050, yet the increasing hydrogen demand strains already scarce freshwater supplies1,2,3,4,5,6,7. As Earth’s most abundant water source, seawater offers a promising alternative8,9,10,11. Alkaline seawater electrolysis bypasses energy-intensive desalination and extensive pretreatment, improving process efficiency12,13,14. When coupled with coastal or offshore renewable energy, it further reduces operational costs and facilitates scalable green hydrogen production15,16. Nonetheless, the high Cl⁻ concentration (~0.5 M) promotes electrode corrosion through metal chloride–hydroxide pathways (Supplementary Note 1), accelerating anode degradation17,18,19,20. Moreover, while the oxygen evolution reaction (OER) is thermodynamically preferred in alkaline media, it is a four-electron process with sluggish kinetics. In contrast, the competing chlorine evolution reaction (ClER) proceeds via a two-electron pathway with lower kinetic barriers, generating toxic chlorine gas21,22. Although seawater alkalinization shifts the OER potential below that of ClER by 480 mV23,24,25,26, achieving stable ampere-level current densities (j) remains a challenge due to increased resistance and persistent corrosion.

Despite incorporating precious metals, current anodes remain constrained by resource limitations, hindering the integration of catalytic activity, selectivity, and Cl⁻ tolerance27,28,29,30,31. Recently, researches on transition-metal sulfides32, phosphides33, nitrides34, or Ni(Co)Fe layered double hydroxides (LDHs)35,36,37,38,39,40, have shown that in situ formation of oxyanion-rich layers (e.g., SO₄²⁻, PO₄³⁻, NO3⁻) or fabricating chloride-repellent coatings37,38 can repel Cl⁻, enabling efficient and long-lasting seawater oxidation. LDHs are particularly attractive due to their layered structures, compositional tunability, and strong OER activity in alkaline media41,42,43,44, but their resistance to Cl⁻-induced degradation remains inadequate36,37. Strategies include creating physical shielding layers35,45, adding oxyanion species (SO₄²⁻, PO₄³⁻) that can adsorb onto the anode surface46,47, or forming surface chloride-immobilizing layers (AgCl, IrCl)48,49 have been proposed to exclude Cl− via Coulombic repulsion or the common ion effect. The layered and positively charged nature of LDHs also supports anion intercalation, and numerous studies confirm that intercalated oxyanions can block chloride penetration50,51,52,53. Extending this concept, some studies have combined surface and interlayer engineering with dual species54,55. The Zou group54 intercalated CO₃²⁻ into CoFe LDH and attached graphene quantum dots on the surface, achieving 2800 h of long-term durability at ~1.25 A cm−2 in simulated seawater. Our group55 further introduced OH⁻-enriching Cr₂O₃ onto NiFe LDH surfaces and Cl⁻-repelling CrO₄²⁻ into the interlayers, enabling 1000 h at 1 A cm−2 followed by 1500 h at 2 A cm−2. Despite these advancements indicating considerable progress, developing simple and effective strategies to sustain prolonged electrolysis (>5000 h) under high j for anode materials is still a major challenge.

In this work, a NiFe LDH anode, operated with hexafluorophosphate (PF₆⁻) as an electrolyte additive, delivers stable operation for over 5000 h at 1 A cm−2 and 2300 h at 2 A cm−2. Ex situ/in situ evidences show that PF₆⁻, driven by the electric field, can facilely intercalate into the LDH layers and adsorb onto the surface, facilitating a single-ion-driven surface-interlayer synergy that excludes Cl⁻. This additive also improves the durability of CoFe LDH, enabling continuous operation at 2 A cm−2 for 1200 h, thereby rendering CoFe LDH/NiFe LDH as top contenders for industrial-level seawater electrolysis. Constant-potential molecular dynamics simulations further verify that surface-accumulated PF₆⁻ efficiently excludes Cl⁻. Beyond its durability, the NiFe LDH anode coupled with a Pt/C cathode also delivers notable performance in an alkaline seawater electrolyzer.

Results

Enhanced alkaline seawater oxidation (ASO) performance with PF₆⁻ additive

The NiFe LDH nanosheet array, consisting of two-dimensional (2D) layers, was fabricated on nickel foam (NiFe LDH/NF) through a one-step hydrothermal approach56. Extensive characterizations via X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), high-resolution TEM (HRTEM), and high-angle annular dark field scanning TEM (HAADF-STEM) verify the successful synthesis of NiFe LDH/NF with a Ni:Fe atomic ratio of ~3:1 (Supplementary Figs. 1–5, Supplementary Table 1).

A standard three-electrode configuration was employed to evaluate the OER performance of NiFe LDH/NF in alkaline seawater, either containing 20 mM PF₆⁻ or without any additive. As shown in the polarization curves (Fig. 1a, Supplementary Fig. 6), the presence of PF₆⁻ reduces the overpotentials required to obtain the j of 200, 500, and 1000 mA cm−2 (209, 247, 282 mV) compared to the corresponding values of 282, 315, and 343 mV in PF₆⁻-free seawater. NiFe LDH/NF in PF₆⁻-containing seawater also outperforms bare NF, benchmark RuO₂ and IrO₂ catalysts, ranking among the top-tier catalysts reported to date (Supplementary Table 2). Turnover frequency (TOF) analysis (inset of Fig. 1a, Supplementary Fig. 7) further shows enhanced intrinsic activity in the presence of PF₆⁻. Electrochemical double-layer capacitance (Cdl) measurements (Supplementary Fig. 8) indicate a higher electrochemically active surface area (ECSA) with PF₆⁻, in line with its enhanced OER activity. Even after normalizing j to ECSA (Supplementary Fig. 9), NiFe LDH/NF in PF₆⁻-containing seawater maintains higher activity than in the PF₆⁻-free counterpart. Tafel slope analysis based on polarization curves obtained at a slow scan rate of 1 mV s−1 (Supplementary Fig. 10, Fig. 1b) confirms that PF₆⁻ addition improves the reaction kinetics for NiFe LDH/NF, outperforming RuO₂ and IrO₂. Electrochemical impedance spectroscopy over the potential range of 1.405–1.485 V (Supplementary Fig. 11) further reveals that NiFe LDH/NF in PF₆⁻-containing seawater exhibits lower charge-transfer resistance than in PF₆⁻-free seawater, supporting accelerated interfacial electron transfer. To assess corrosion resistance, Tafel scanning was performed (Fig. 1c), showing that the corrosion potential of NiFe LDH/NF shifts positively in PF₆⁻-containing seawater, indicative of improved corrosion stability. Moreover, Faradaic efficiency for oxygen evolution at 1 A cm−2 reaches nearly 100% with NiFe LDH/NF in PF₆⁻-containing seawater (Supplementary Fig. 12), confirming selective four-electron O₂ evolution. At an industrial-level j of 1.0 A cm−2, NiFe LDH/NF in PF₆⁻-containing seawater operates stably for over 5000 h (Fig. 1d), a 41.6-fold improvement in stark contrast to its rapid failure within 120 hours in PF₆⁻-free seawater (inset of Fig. 1d). Ultraviolet–visible spectroscopy (Supplementary Fig. 13) verifies minimal active chlorine generation with PF₆⁻ present, in stark contrast to high chlorine levels in the PF₆⁻-free seawater electrolyte. Even under a higher j of 2.0 A cm−2, NiFe LDH/NF demonstrates stable operation in PF₆⁻-containing seawater for over 2300 h (Fig. 1e). In light of these results, using NiFe LDH/NF anode with PF₆⁻ as an electrolyte additive facilitates a notable advance for seawater electrolysis at high j, beyond that of currently explored anionic species (Supplementary Table 3), and showing promise for industrial applications.

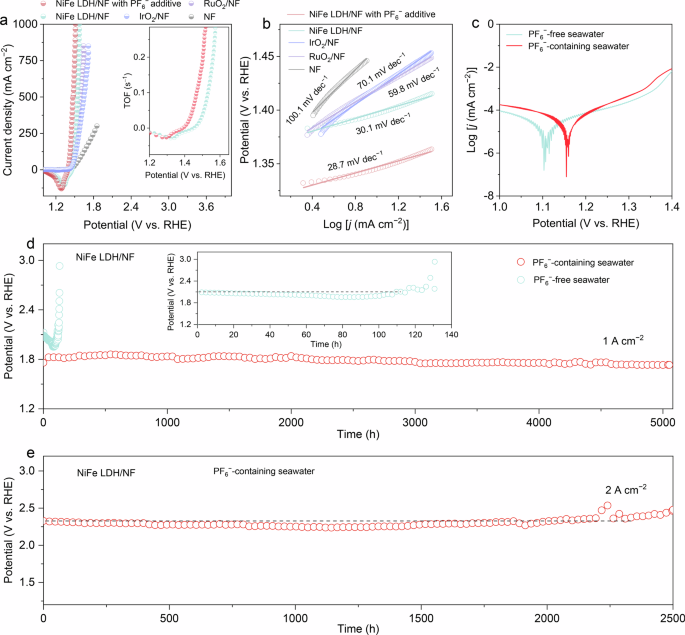

Fig. 1: ASO performance.
figure 1

a Polarization curves at a scan rate of 10 mV s⁻1 and b corresponding Tafel slopes of NiFe LDH/NF in PF6−-free and PF6−-containing seawater, alongside RuO2/NF, IrO2/NF and NF in PF6−-free seawater with 100% iR correction. c Corrosion behavior curves for NiFe LDH/NF in PF6−-free and PF6−-containing seawater. d Chronopotentiometry curves at a j of 1 A cm−2 for NiFe LDH/NF in PF6−-free and PF6−-containing seawater without iR correction. The inset magnifies a section of the chronopotentiometry curve for NiFe LDH/NF in PF₆⁻-free seawater. e Chronopotentiometry curve at a j of 2 A cm−2 for NiFe LDH/NF in PF6−-containing seawater without iR correction. Source data are provided as a Source Data file.

Full size image

Investigation of activity enhancement and corrosion resistance

Operando Raman spectroscopy was performed using a custom-designed electrochemical cell (Supplementary Fig. 14a) to monitor structural changes for NiFe LDH from open-circuit potential (OCP) to 1.75 V vs. the reversible hydrogen electrode (RHE). In PF₆⁻-free seawater, Raman spectra collected at potentials below 1.35 V show peaks at 454 and 527 cm−1, assigned to the A1g stretching modes of Ni–OH and Ni–O, respectively (Fig. 2a). Upon increasing the applied potential, two additional peaks emerge at 475 and 556 cm−1, corresponding to the Eg bending and A1g stretching vibrations of Ni–O for NiOOH44,57,58,59. Concurrently, the disappearance of the Ni–OH lattice vibration (~300 cm−1) and attenuation of signals associated with CO₃²⁻/NO₃⁻ species (~727 cm−1) further support the occurrence of dehydration and oxidation processes during OER60,61,62. In PF₆⁻-containing seawater, apart from the progressive blue shifts of Ni–O bands (454/527 to 475/556 cm−1), an additional Eg vibration of PF₆⁻ is observed at increasing potentials, potentially due to its intercalation into LDH layers. As the applied potential continues to rise, the intensification of the A1g vibration indicates extensive PF₆⁻ accumulation on the electrode surface driven by a stronger applied electric field (Fig. 2b, Supplementary Fig. 14b). To verify electric-field-driven intercalation, NiFe LDH/NF electrode was held at 1.15 V for 10 min in PF₆⁻-containing seawater. Structural analyses, including XRD, SEM, TEM, HRTEM, and HAADF-STEM (Supplementary Figs. 15–19), collectively confirm the successful incorporation of PF₆⁻ into the NiFe LDH interlayers. Given its large ionic radius, PF₆⁻ displaces native interlayer anions, expanding the interlayer spacing, exposing more active sites, thus promoting OER activity. Raman spectroscopy after intercalation (Supplementary Fig. 20) further confirms this process, as evidenced by the disappearance of characteristic CO₃²⁻/NO₃⁻ peaks and the emergence of a pronounced Eg vibration mode of PF₆⁻. Additionally, we observed a slight blue shift for NiFe LDH Raman peaks following PF₆⁻ intercalation (Supplementary Fig. 21), contrary to the usual red shifts induced by cation-driven Ni–O bond elongation58,63,64. Operando Raman spectroscopy of PF₆⁻-intercalated NiFe LDH in PF₆⁻-free seawater (Fig. 2c) shows delayed γ-NiOOH formation, consistent with the observations in PF₆⁻-containing seawater. With increasing potential, partial deintercalation of PF₆⁻ occurs, accompanied by interlayer contraction due to shortening of Ni–O bonds. A subsequent chronopotentiometry test at 2 A cm−2 shows that PF₆⁻-intercalated NiFe LDH/NF maintains stable operation for about 520 h in PF₆⁻-free seawater (Supplementary Fig. 22), substantially less than the 2300 h achieved in PF₆⁻-containing seawater. These observations underscore the crucial role of surface-accumulated PF₆⁻ in enhancing resistance to chloride-induced corrosion under prolonged high j conditions.

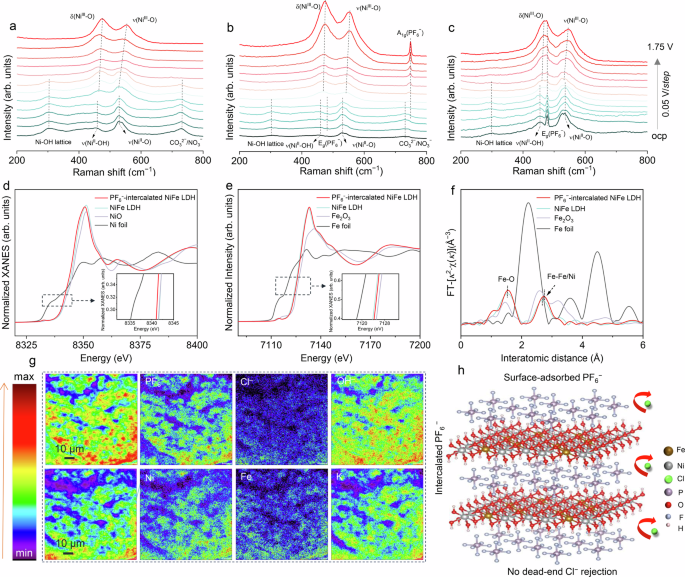

Fig. 2: Exploring the role of PF₆⁻.
figure 2

Operando Raman spectra collected from OCP to 1.75 V vs. RHE for NiFe LDH/NF in a PF₆⁻-free and b PF₆⁻-containing seawater. c Operando Raman spectra under the same potential range for PF₆⁻-intercalated NiFe LDH/NF in PF₆⁻-free seawater. d Normalized Ni K-edge XANES spectra for PF₆⁻-intercalated NiFe LDH/NF, NiFe LDH, NiO, and Ni foil. e Normalized Fe K-edge XANES spectra for PF₆⁻-intercalated NiFe LDH, NiFe LDH, Fe₂O₃, and Fe foil. f First-derivative Fe K-edge spectra of PF₆⁻-intercalated NiFe LDH, NiFe LDH, Fe₂O₃, and Fe foil. g TOF-SIMS mapping of PF₆⁻, Cl⁻, OH⁻, Ni, Fe, and K fragments on PF₆⁻-intercalated NiFe LDH/NF following a 120-h test. h Schematic of the proposed PF₆⁻ intercalation and surface adsorption mechanisms for Cl⁻ rejection. Source data are provided as a Source Data file.

Full size image

X-ray photoelectron spectroscopy analyses also confirm the successful incorporation of PF₆⁻, quantified at 5.93 wt.% by inductively coupled plasma mass spectrometry (ICP-MS; Supplementary Table 4), with distinct P 2p and F 1s peaks (Supplementary Fig. 23a, b), alongside shifts toward lower and higher binding energies for Ni 2p and Fe 2p, respectively (Supplementary Fig. 23c, d). X-ray absorption near-edge structure (XANES) analyses further reinforce these findings, revealing a reduced oxidation state for Ni and elevated oxidation state for Fe after PF₆⁻ intercalation (Fig. 2d, e). First-derivative Fe K-edge spectra of the PF₆⁻-intercalated NiFe LDH reveal enhanced Fe–M (M = Fe or Ni) coordination (Fig. 2f), supporting the idea that Fe experiences stronger bonding and electron withdrawal. Conversely, Ni–O coordination weakens (Supplementary Fig. 24), and Ni becomes more reduced, suggesting that PF₆⁻ does not directly remove electrons from Ni but instead facilitates electron transfer from Fe to Ni, which potentially account for the delayed γ-NiOOH formation observed for PF₆⁻-intercalated NiFe LDH and NiFe LDH in PF₆⁻-containing seawater. Furthermore, the slight contraction of the Ni–O bond upon PF₆⁻ intercalation accounts for the blue shift observed in Raman spectra (Supplementary Fig. 21).

We quantified Fe segregation after 120-hour chronoamperometry test at 1 A cm−2. The Fe concentration leached from NiFe LDH/NF in PF₆⁻-containing seawater is notably lower (0.291 µg mL−1) compared to PF₆⁻-free seawater (1.5 µg mL−1). Correspondingly, the Fe retained in PF₆⁻-containing conditions is markedly higher (263.5 µg cm−2 vs. 14.5 µg cm−2; Supplementary Fig. 25). Time-of-flight secondary ion mass spectrometry (TOF-SIMS) further confirms the retention of Fe, abundant PF₆⁻, and minimal Cl⁻, verifying the effective Cl⁻ exclusion by PF₆⁻ (Fig. 2g). Morphological characterizations reveal that NiFe LDH/NF in PF₆⁻-containing seawater preserves its NF skeleton and 2D nanosheet arrays, while the PF₆⁻-free electrode suffers severe structural failure after 120 hours (Supplementary Figs. 26, 27), affirming the efficacy of PF₆⁻ in enhancing mechanical durability and mitigating chloride-induced corrosion. Furthermore, EDS mapping and XPS analyses (Supplementary Figs. 28, 29) conducted after the long-term test confirm the presence of P, F, Ni, Fe, and O throughout the nanosheets, alongside extensive NiOOH formation at the surface, also supporting that PF₆⁻ incorporation stabilizes Fe and suppresses its leaching. Raman spectroscopy further verifies the surface phase transformation and the retention of PF₆⁻ within the interlayers (Supplementary Fig. 30).

Through combined ex situ and in situ analyses, we verify that PF₆⁻ can intercalate into the NiFe LDH interlayers and accumulate on the electrode surface under applied electric field (Fig. 2h). This dual regulation of interlayer species and surface adsorption by a single non-oxygen anion contributes to Fe stabilization by suppressing segregation, and efficiently excludes Cl⁻, enabling durable ampere-level seawater oxidation.

Catalytic durability with PF₆⁻ additive: insights from experiment and molecular dynamics

Our strategy is also applicable to other LDHs for ASO catalysis, as demonstrated using CoFe LDH as a model. Operando Raman spectra collected from OCP to 1.70 V also validate the intercalation and surface adsorption behavior of PF₆⁻ (Supplementary Fig. 31), with additional evidence from XPS P 2p and F 1 s spectra supporting PF₆⁻ incorporation (Supplementary Fig. 32). Electrochemical tests show that CoFe LDH/NF in PF₆⁻-containing seawater exhibits lower overpotentials than in PF₆⁻-free seawater (Supplementary Fig. 33), achieving 1 A cm−2 at only 373 mV, outperforming many reported CoFe-based ASO anodes (Supplementary Table 5). Stability tests at 2.0 A cm−2 show over 1200 h of stable operation in the presence of PF₆⁻, compared to failure after 65 h without it (Fig. 3a), representing an 18.5-fold improvement. The long-term durability achieved under high current density also enders CoFe LDH/NF as the most robust CoFe-based ASO anode currently known (Supplementary Table 6). Notably, the PF₆⁻ additive enables synchronous interlayer and surface engineering of benchmark CoFe LDH/NiFe LDH catalysts under an applied electric field, offering a simple and more effective Cl⁻ exclusion strategy compared to physical shielding, surface chloride immobilization, oxyanion-based electrostatic repulsion, or dual-species interlayer/surface modifications (Supplementary Table 7, Fig. 3b).

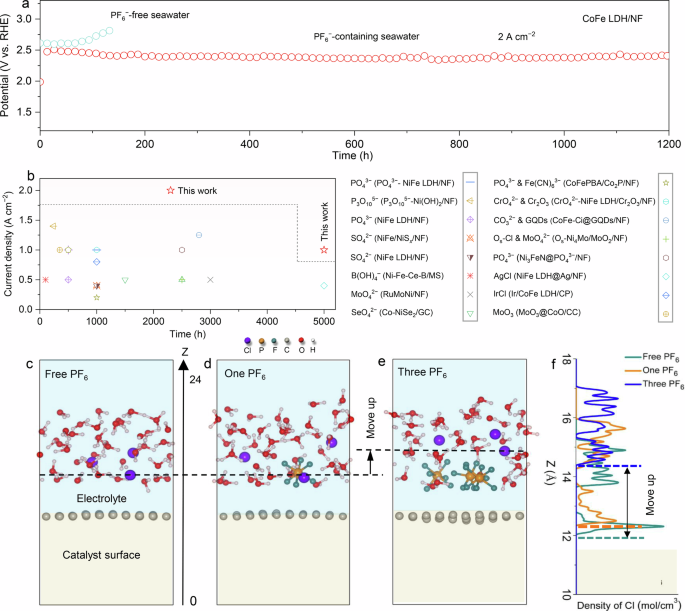

Fig. 3: Electrochemical and theoretical insights into PF₆⁻ enhancing ASO stability.
figure 3

a Chronopotentiometry curves at a j of 2 A cm−2 for CoFe LDH/NF in PF6−-free and PF6−-containing seawater without iR correction. b Comparison of various state-of-the-art electrodes and Cl− repelling strategies for ASO. c–e Theoretical calculations for the interactions between PF6− and Cl− at the electrolyte/electrode interface at a positive potential of 1.5 V. f The density distribution of Cl− at the electrolyte/electrode interface. Source data are provided as a Source Data file.

Full size image

To further elucidate the mechanism by which PF₆⁻ enhances corrosion resistance, we employed advanced constant-potential molecular dynamics (CPMD) simulations to investigate the interactions between PF₆⁻ and Cl⁻ at the electrolyte-electrode interface under a positive potential of U = 1.5 V65. This approach provides an accurate simulation of atomic-scale dynamics at the electrocatalyst/electrolyte interface under operational conditions65. The calculation results indicate that the introduction of a single PF₆⁻ into the electrolyte has no marked effect on Cl⁻ at the electrode surface (Fig. 3c, d), because the density distribution of Cl⁻ on the electrode surface does not change considerably. Further increasing the number of PF6− to three generates a higher concentration of PF6− on the electrode surface, and we observe that the density of Cl⁻ moves substantially away from the electrode surface by about 2 Å (Fig. 3e, f). These results support the operando Raman spectroscopy and electrochemical durability results, where the accumulation of PF6− at the catalyst/electrolyte interface under high j correlates with enhanced long-term stability.

Practical electrolysis applications

To evaluate the practical application, we constructed a membrane electrode assembly (MEA) electrolyzer with an anion exchange membrane (AEM, PiperION-A60) (Fig. 4a). In this configuration, anions and water migrate through the AEM, facilitating electron transfer at the NiFe LDH/NF anode and the Pt/C/NF cathode. Concurrently, H₂, O₂, and discharged seawater, are expelled from the electrolyzer chamber. For comparison, a RuO₂/NF||Pt/C/NF configuration was also tested. The NiFe LDH/NF||Pt/C/NF electrolyzer employes a dual-feed approach with 6 M KOH+ seawater served as the catholyte and the anolyte consisted of 6 M KOH+ seawater with the addition of PF₆⁻. In contrast, the RuO₂/NF||Pt/C/NF electrolyzer uses 6 M KOH+ seawater as both the anolyte and catholyte. All experiments were meticulously conducted at a high temperature of 60 °C to simulate industrial operational conditions. The performance metrics of the MEA with NiFe LDH/NF||Pt/C/NF exhibits notable electrocatalytic activity, outperforming that of the RuO₂/NF||Pt/C/NF counterpart (Fig. 4b). Specifically, the NiFe LDH/NF||Pt/C/NF electrolyzer requires only 2.02 V to achieve a j of 1.0 A cm−2. Furthermore, the energy consumption at the j of 0.2 and 0.5 A cm−2 is calculated to be 3.60 and 4.04 kWh m⁻³ H₂, respectively, outperforming conventional electrolyzer that demand 4.47 kWh m⁻³ at 0.2 A cm−2. Stability tests were carried out to evaluate the long-term robustness of the electrocatalytic system. The NiFe LDH/NF‖Pt/C/NF electrolyzer operating in 6 M KOH + seawater with PF₆⁻ additives maintain stable performance for over 1000 h at a j of 1.0 A cm−2 (Fig. 4c). In contrast, the same MEA electrolyzer in PF₆⁻-free seawater experiences rapid degradation after only 31 hours (Supplementary Fig. 34), further underscoring the critical role of PF₆⁻ in sustaining electrode stability. A preliminary economic analysis (Supplementary Note 2) indicates that, under a typical electricity rate of US$0.02 kWh−1, the hydrogen production cost is approximately US$1.07 kg−1 H₂ at 1.0 A cm−2 and 2.02 V. Additionally, Supplementary Table 8 and Fig. 4d illustrates that the incorporation of PF₆⁻ additives into the NiFe LDH/NF anode not only provides a competitive cell voltage at high j but also ensures prolonged electrolysis stability. Specifically, the MEA electrolyzer with NiFe LDH/NF anode and PF₆⁻ additives exhibit outstanding activity and durability, paving an important step toward practical deployment of seawater electrolysis for hydrogen production.

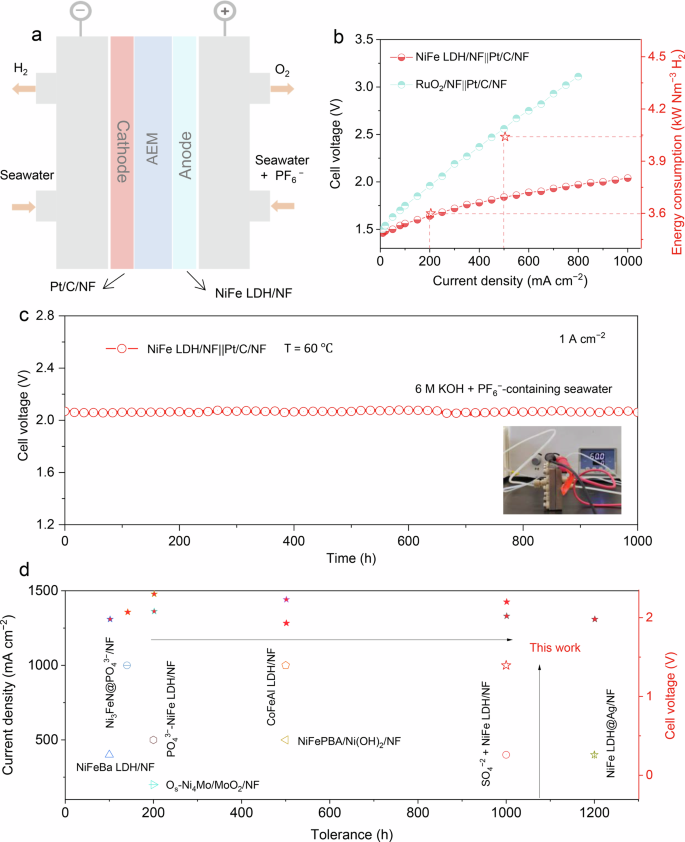

Fig. 4: Flow-cell assessment of NiFe LDH/NF with PF₆⁻ additives.
figure 4

a Schematic of the flow electrolytic cell with asymmetric seawater feed. b Polarization curves of NiFe LDH/NF‖Pt/C/NF and RuO₂/NF‖Pt/C/NF without iR correction, with energy consumption values indicated for NiFe LDH/NF‖Pt/C/NF. c Chronopotentiometry curve at a j of 1.0 A cm−2 for NiFe LDH/NF‖Pt/C/NF. Inset shows a photograph of two electrode electrolyzer. d Comparison of cell voltages and long-term electrolysis tolerance for NiFe LDH/NF with PF₆⁻ additives against recently reported ASO catalysts. Source data are provided as a Source Data file.

Full size image

Discussion

Our study identifies PF₆⁻ as a crucial electrolyte additive that markedly enhances the durability of NiFe LDH anode, achieving over 5000 h of stable operation at 1 A cm−2 and 2300 h at 2 A cm−2. Comprehensive ex situ/in situ studies and CPMD simulations reveal the mechanisms behind this improvement. Firstly, under a low applied electric field, PF₆⁻ intercalates into the LDH layers, expanding interlayer spacing and exposing more active sites, thereby boosting ASO activity. Concurrently, PF₆⁻ weakly coordinates with Fe sites, preventing segregation and preserving electrode integrity. Secondly, PF₆⁻ also adsorbs and accumulates on the electrode surfaces under a high applied electric field, effectively blocking Cl⁻. In a two-electrode MEA electrolyzer, this configuration requires ~19.46% less electrical energy than conventional electrolyzer and maintains electrolysis durability for over 1000 h. This study pioneers the efficacy of single-anion engineering in enabling interlayer/surface modifications, providing LDH structures with structural integrity and Cl⁻-repelling capabilities, thereby paving the way for sustainable and large-scale hydrogen production.

Methods

Materials

All chemicals used in this study are listed below with their respective purity and sources. Nickel nitrate hexahydrate (Ni(NO₃)₂·6H₂O, AR), cobalt nitrate hexahydrate (Co(NO₃)₂·6H₂O, AR), potassium hydroxide (KOH, 96 wt.%), ammonium fluoride (NH₄F, AR), urea (CO(NH₂)₂, AR), potassium hexafluorophosphate (KPF₆, AR), ruthenium oxide (RuO₂, AR), iridium oxide (IrO₂, AR), platinum on carbon (Pt/C, 20 wt.%), Nafion (5 wt.%), sodium hypochlorite (NaClO, AR), and iron nitrate nonahydrate (Fe(NO₃)₃·9H₂O, AR) were obtained from Aladdin Industrial Co. Hydrochloric acid (HCl, 98 wt.%) and anhydrous ethanol were sourced from Beijing Chemical Corp. Nickel foam (NF, 0.2 mm thick) was purchased from Qingyuan Metal Materials Co., Ltd. in Xingtai. Seawater samples were collected from Huangdao District, Qingdao City. All aqueous solutions were prepared using deionized water with a resistivity of 18.3 MΩ·cm.

Synthesis of NiFe LDH/NF

NiFe LDH was grown on NF (2 cm × 3 cm) via a hydrothermal process. An aqueous solution containing 0.7 mmol Fe(NO₃)₃·9H₂O, 2.1 mmol Ni(NO₃)₂·6H₂O, 4 mmol NH₄F, and 10 mmol urea was transferred to a Teflon-lined autoclave along with NF and heated at 120 °C for 6 h. After cooling to room temperature, the NiFe LDH/NF was rinsed with deionized water, dried at 60 °C. The loading mass of NiFe LDH is ~1.93 mg cm−2.

Synthesis of PF₆⁻-intercalated NiFe LDH/NF

NiFe LDH/NF electrode was held at 1.15 V for 10 min in PF₆⁻-containing seawater to obtain PF₆⁻-intercalated NiFe LDH/NF, with Hg/HgO and graphite serving as reference and counter electrodes, respectively. The sample was then removed, rinsed with deionized water, dried at 60 °C. The resulting material has a loading mass of ~2.02 mg cm−2.

Synthesis of CoFe LDH/NF

CoFe LDH was prepared on NF (2 cm × 3 cm) by dissolving 3 mmol Co(NO₃)₂·6H₂O, 1 mmol Fe(NO₃)₃·9H₂O, and 3 mmol urea in 30 mL deionized water. This mixture and the nickel foam substrate were placed in a Teflon-lined autoclave and heated at 120 °C for 6 h. After cooling, the CoFe LDH/NF was thoroughly rinsed, dried at 60 °C. The loading mass of CoFe LDH is ~1.59 mg cm−2.

Preparation of IrO2/NF and RuO2/NF

The IrO₂/NF and RuO₂/NF electrodes were prepared following the procedures reported in our previous work without modification21. Commercial RuO₂ and IrO₂ powders were loaded onto NF with the same mass loading as that of NiFe LDH/NF.

Characterizations

The crystal phases of the synthesized materials were identified using X-ray diffraction (XRD) with a Bruker D8 Advance instrument. Surface and structural morphologies were examined via scanning electron microscopy (SEM) on a Gemini SEM 300 (ZEISS) and transmission electron microscopy (TEM) alongside high-resolution TEM (HRTEM) using a JEM-F200 (JEOL). Elemental and chemical state analyses were carried out using X-ray photoelectron spectroscopy (XPS) on an ESCALABMK II spectrometer equipped with an Mg source. X-ray absorption fine structure (XAFS) data were collected at room temperature at the Shanghai Synchrotron Radiation Facility (beamline BL11B). The metal content of the catalysts and the extent of Fe leaching in alkaline seawater were measured using inductively coupled plasma mass spectrometry (ICP-MS, Agilent 5110). Optical absorbance was assessed with a SHIMADZU UV-1800 spectrophotometer, and detailed surface composition was analyzed using time-of-flight secondary ion mass spectrometry (TOF-SIMS) on a PHI TRIFT V nano TOF system.

Electrochemical tests

ASO evaluations were performed at room temperature using a CHI 660E electrochemical workstation, and electrode stability was tested with a LANHE battery tester (Wuhan, China) under steady current conditions. A typical three-electrode arrangement was implemented, using NiFe LDH/NF, CoFe LDH/NF, RuO₂/NF, IrO₂/NF, or NF as the working electrodes. The reference electrode was Hg/HgO, and a graphite rod served as the counter electrode. The electrolytes used were either 1 M KOH + seawater or seawater containing 20 mM PF₆⁻, with a total volume of 50 mL. To reduce magnesium and calcium ion concentrations, natural seawater was treated with sodium carbonate (Na₂CO₃, AR) prior to use21. To prepare 1 M KOH + 20 mM PF₆⁻ seawater electrolytes, 56.11 g of KOH and 3.69 g of KPF₆ were dissolved in 1 L of treated seawater, stirred, and sonicated. The electrolytes were used within 1 h of preparation, kept at room temperature. The pH was measured to be 13.97 ± 0.11. Electrode potentials were recalibrated against the RHE using the equation: ERHE = EHg/HgO + 0.098 + 0.059 × pH. The Hg/HgO electrode was calibrated in H₂ using a Pt wire as the working electrode. The iR-compensated potential (Ecorr) was determined using the relation Ecorr = E − iR, where E is the measured potential, i is the applied current, and R is the solution resistance determined at OCP, measured to be 1.544 ± 0.01 Ω. Electrochemical impedance spectroscopy measurements were performed over a frequency range of 10 kHz to 0.01 Hz with a perturbation amplitude of 5 mV. Prior to long-term durability evaluation, the electrode was subjected to chronopotentiometric activation to facilitate PF₆⁻ intercalation. Throughout the test, alkaline seawater was continuously replenished to counteract electrolyte loss.

TOF calculation

TOF was determined using the formula TOF = Aj/(4Fm), where A represents the geometric area of the electrode, j is the current density, 4 corresponds to the number of electrons per mole of O₂ produced, and F is the Faradaic constant (96,485 C mol−1). The parameter m denotes the active site concentration in moles. To calculate m, the slope of the oxidation peak current versus scan rate was analyzed using the equation Slope = n²F²m/4RT, with n = 1 assumed for a single-electron process.

ECSA and ECSA-normalized j

The specific activity was determined by normalizing the j to ECSA. The ECSA was calculated based on the Cdl, measured through CV curves from 1.09 to 1.19 V vs. RHE without iR correction, where no Faradaic current occurs. Cdl was plotted as Δj/2 at 1.14 V vs. RHE against scan rates to obtain the slope. ECSA was then derived using the formula ECSA = ACdl/Cs, where Cs is the specific capacitance (0.04 mF·cm−2)55.

Operando Raman tests

Raman spectra were recorded using a LabRAM HR Evolution confocal Raman spectrometer with a 532 nm laser and a 50× objective lens. Operando experiments were conducted using a custom-designed Raman cell, where NiFe LDH, PF₆⁻-intercalated NiFe LDH or CoFe LDH served as the working electrode. A platinum wire was utilized as the counter electrode, and Hg/HgO acted as the reference electrode. The electrolyte solution comprised 1 M KOH + seawater or PF6−-containing seawater. Voltage-time tests were executed on a CHI 660E electrochemical workstation at OCP–1.75 V vs. RHE (step: 0.05 V).

Constant potential molecular dynamics calculations

Constant potential molecular dynamics (CPMD) is an effective methodology for examining the dynamics of electrochemical interfaces in explicit solvent environments under fixed potential conditions. This approach is well-suited for systems of moderate size, allowing comprehensive investigation of interfacial properties and electrochemical interactions65. The simulation procedure began by arranging 40 explicit water molecules to create a density of 1 g cm⁻3. Following this, three Cl⁻ were placed randomly in the aqueous phase to ensure uniform distribution. Finally, we achieved the variation of different concentrations by introducing different numbers of PF6⁻ on the surface of the catalyst. In our CPMD simulations, Langevin dynamics with a friction coefficient of 0.2 was utilized to regulate the system temperature at 300 K66. A simulation timestep of 1 femtosecond (fs) was adopted, with hydrogen atoms assigned a mass of 2 atomic mass units (u). The simulation trajectories were conducted with eigenstate settings of 1.0e−4, density settings of 1.0e−5, and energy settings of 1e−6, ensuring accurate representation of the electrochemical processes.

Fabrication of MEA

The MEA was constructed using NiFe LDH/NF as the anode and Pt/C/NF with a geometric area of 1 cm² as the cathode. An anion exchange membrane (60 μm thickness, 1.2 cm × 1.2 cm in size) was pre-treated in 1 M KOH for over 12 h to convert it into the hydroxide form, followed by thorough rinsing with deionized water. During operation, alkaline seawater electrolyte was continuously circulated through the cell at a constant flow rate of 50 mL min−1, and full-cell performance was evaluated at 60 °C using a GW Instek PSW 80-13.5.
