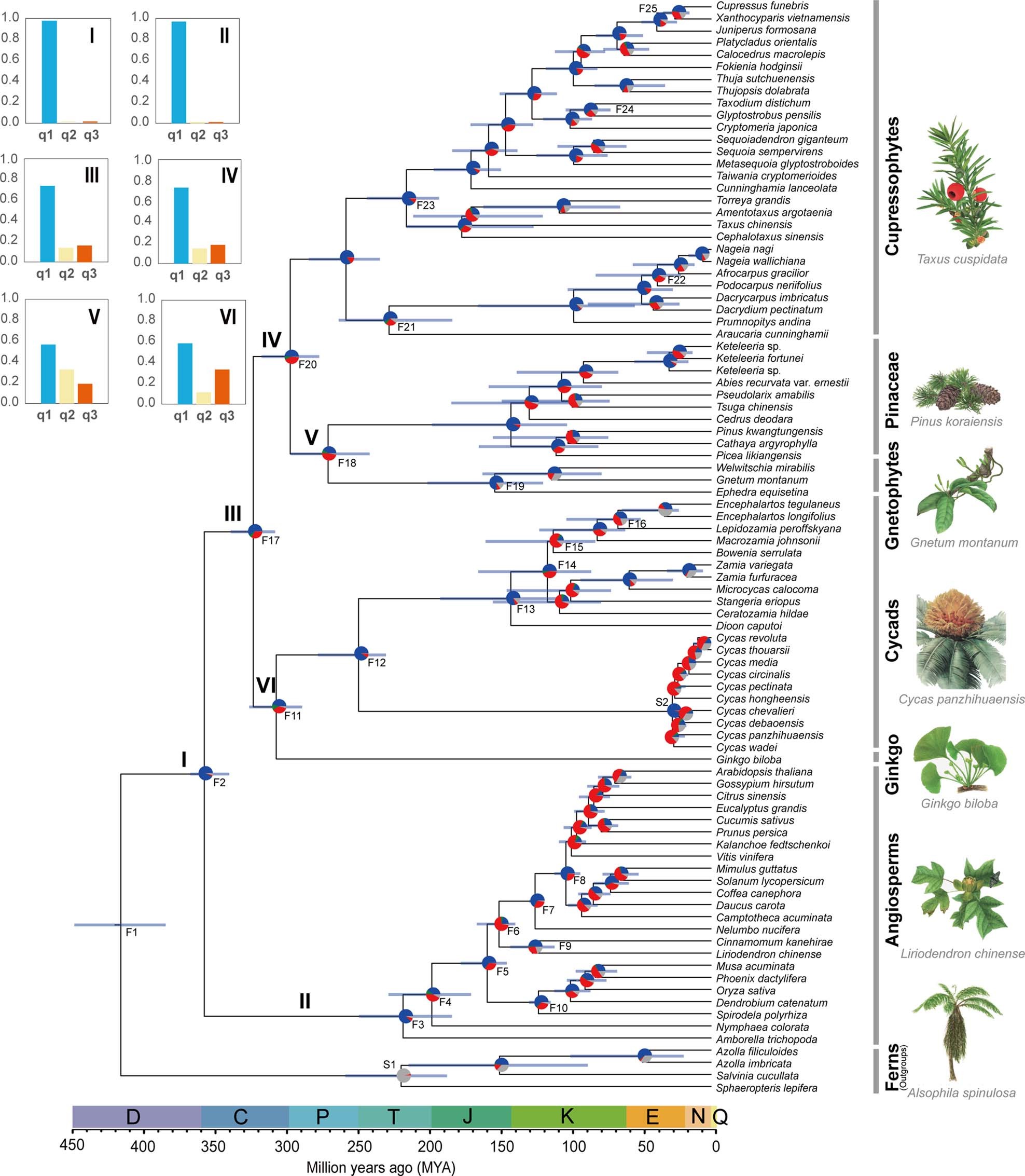

Extended Data Fig. 3: The chronogram of 90 vascular plant species inferred with MCMCTree based on 100. nuclear single copy genes with concordant evolutionary histories.
From: The Cycas genome and the early evolution of seed plants
25 fossil calibrations and 2 secondary calibrations were used. Individual gene trees (1,569 NT tree) were mapped on the nuclear coalescent tree with Phyparts. The pie charts at each node show the proportion of genes in concordance (blue), conflict (green = a single dominant alternative; red = all other conflicting trees), and without enough information (gray). Quartet support for six internal branches I, II, III, IV, V, VI were indicated on the left panel as barcharts. Image courtesy of Zanqian Li and Xiaolian Zeng.
