Extended Data Fig. 1: Holliday junction resolvase RuvC was identified in the R. solanacearum biofilm proteomics.

From: Holliday junction resolvase RuvC targets biofilm eDNA and confers plant resistance to vascular pathogens

Extended Data Fig. 1

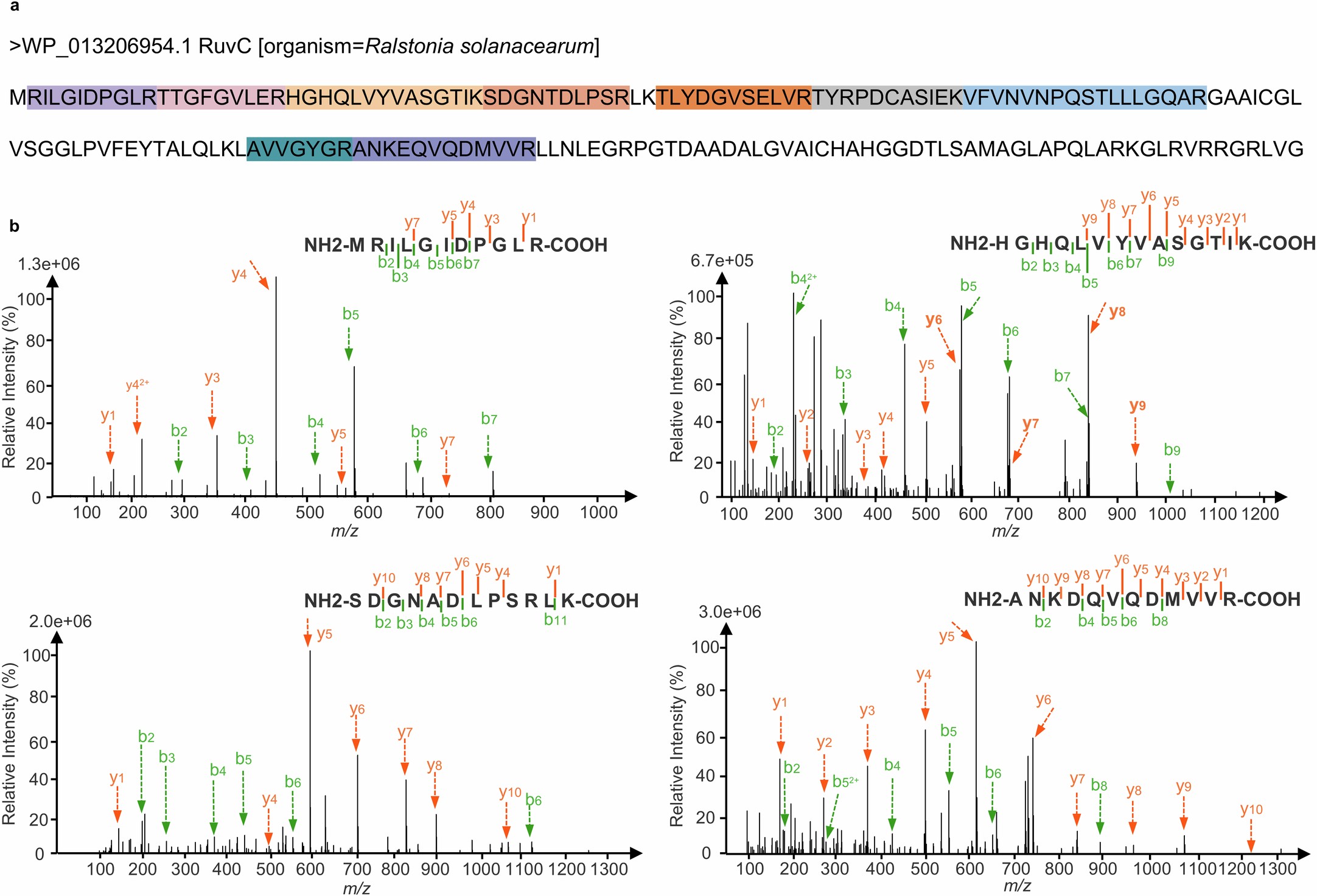

a, Peptide coverage profile on RuvC protein sequence from LC-MS/MS analysis. Different colors highlight the peptides identified from the proteomic data. R. solanacearum GMI1000 was grown in cell culture plates for 48 h at 28°C and the biofilm was collected in PBS buffer. The suspension was sonicated and filtrated through a bacterial filter followed by biofilm protein extraction for LC-MS/MS analysis. b, The spectrum of four peptides that match RuvC by LC-MS/MS. The spectrum was generated using pLabel software.
