From: Electrochemically driven conversion reaction in fluoride electrodes for energy storage devices

Fig. 2

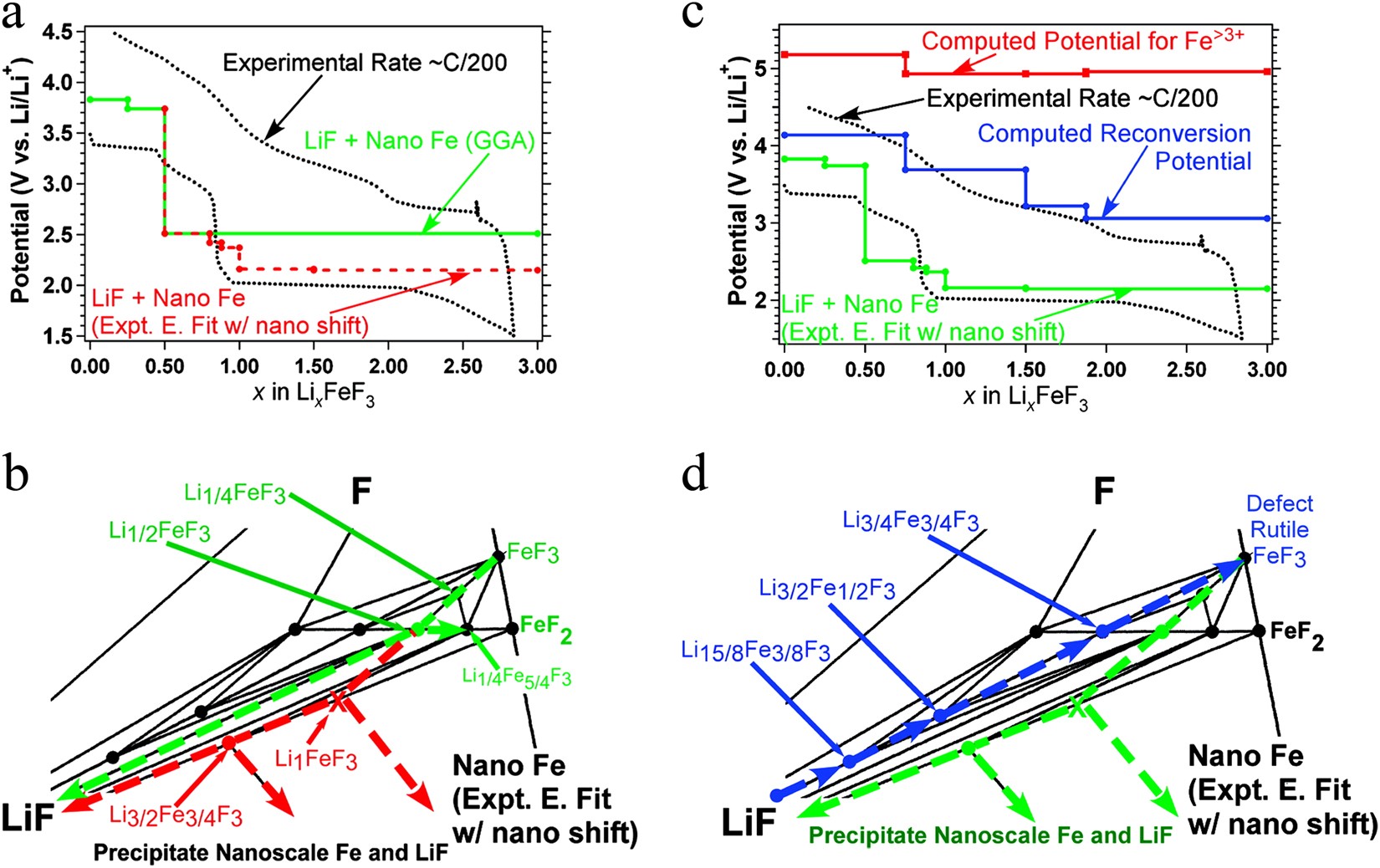

a Calculated discharge voltage profile of FeF3 considering the formation of nanoscale Fe during conversion reaction (red dashed line). c Calculated charge voltage profile of FeF3 during reconversion reaction (blue solid line). The experimental profiles are displayed in black dotted lines. Corresponding reaction paths of FeF3 during (b) conversion (red dashed arrows) and (d) reconversion (blue dashed arrows) processes (reproduced with permission from ref. 21, copyright American Chemical Society 2008)
