Fig. 4: Influence of plastic slip rate on transformation-induced residual stresses.

From: The interplay between the martensitic transformation rate and the rate of plastic relaxation during martensitic transformation in low-carbon steel, a phase-field study

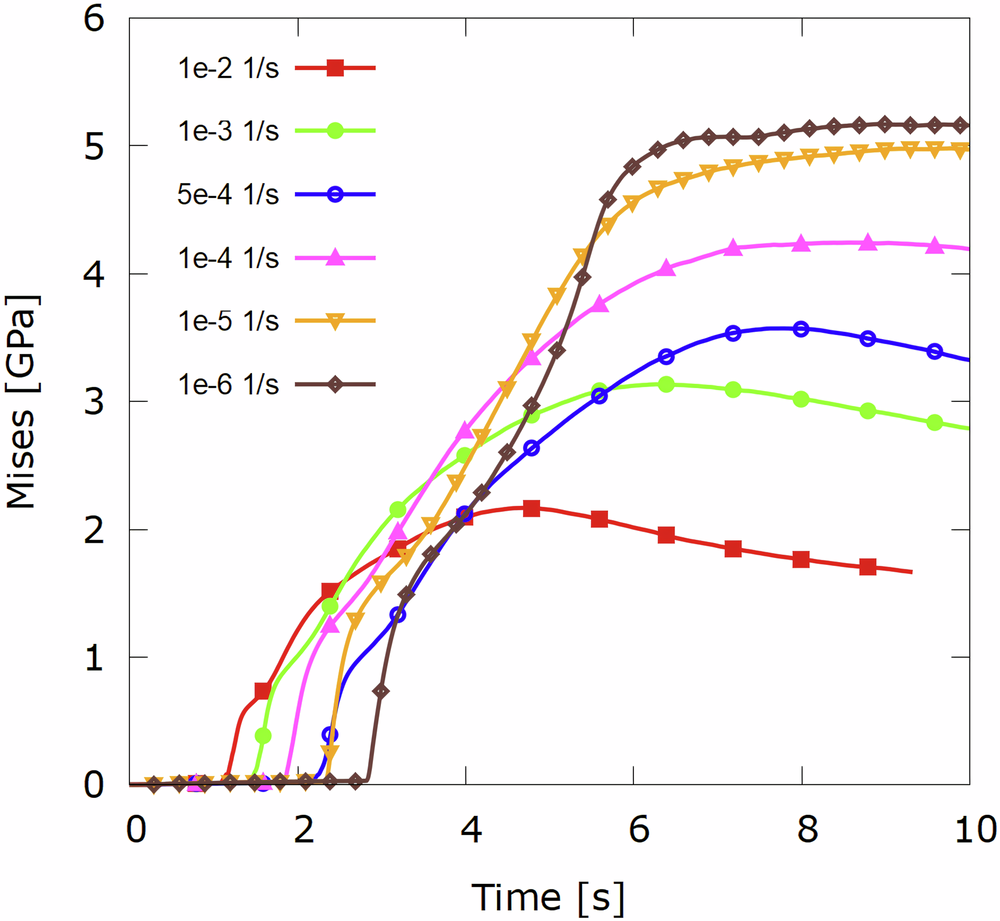

Fig. 4

Evolution of average von Mises stress over time during martensitic transformation at different plastic slip rates (1×10⁻² to 1×10⁻⁶ s⁻¹). Lower slip rates result in higher residual stresses, with peak values ranging from 1.8 GPa to 5.2 GPa.
