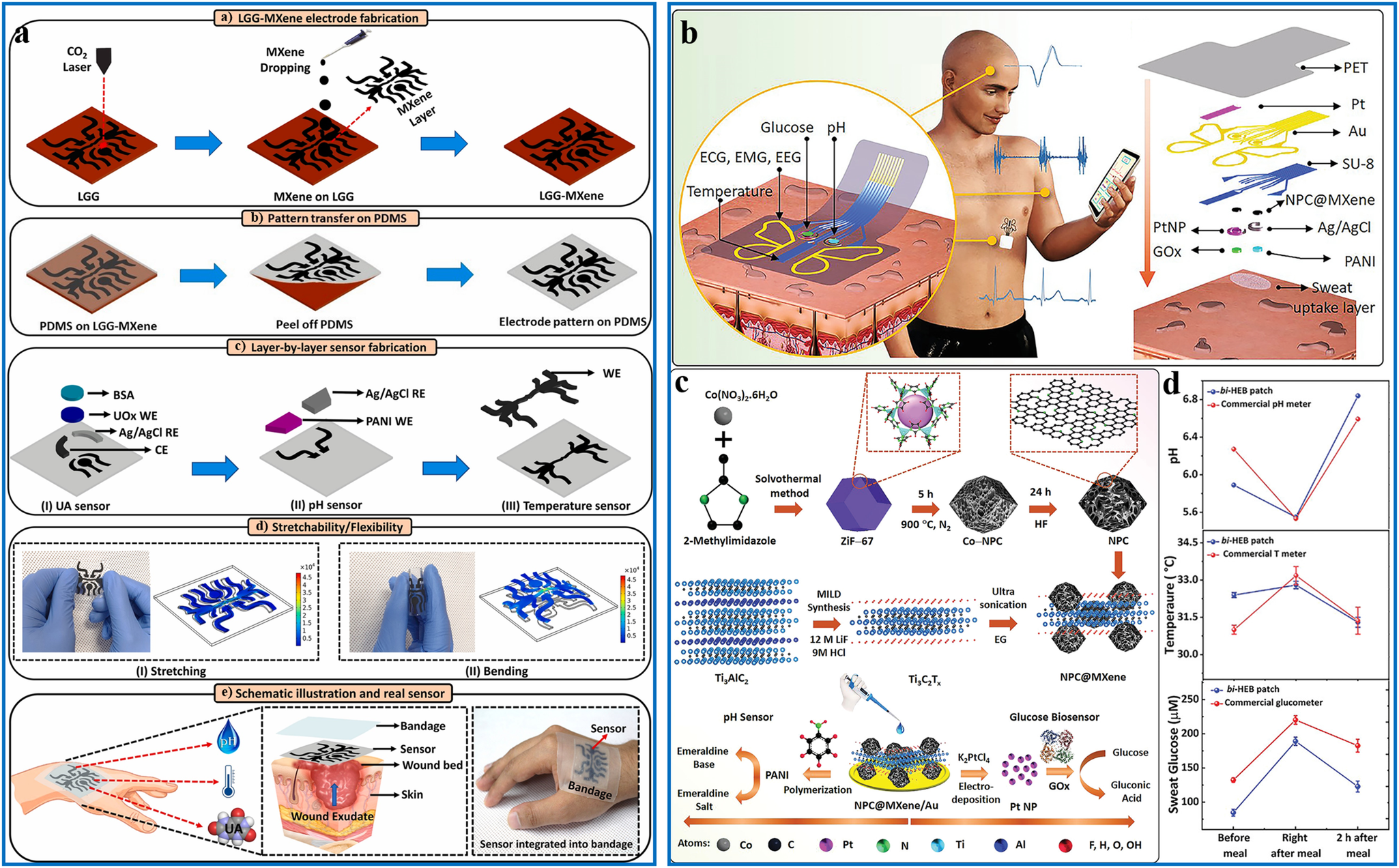

Fig. 6: Flexible material for simultaneous detection of multiple parameters.
From: MXene-based flexible electronic materials for wound infection detection and treatment
a The specific preparation process of stretchable and flexible smart bandage. Reprinted with permission from ref. 80. Copyright 2023 Elsevier. b bi-HEB patch was affixed to the chest for the detection of temperature, sweat glucose, sweat pH, and electrocardiogram (ECG). Anatomical view of flexible bi-HEB patch. Among these accessories, Butterfly-shaped wing was served as dry electrode for the detection of ECG/electroencephalogram (EEG)/electromyogram (EMG). The right picture shows the manufacture process of bi-HEB patch. Pt-based temperature sensor was sealed with SU-8 photoresist. And all sensors were encapsulated in Nafion-based membrane. c The fabrication processes of pH and glucose sensors. Specifically, PANI-functionalized NPC@MXene/Au electrode was acted as pH sensor. PtNPs-modified NPC@MXene/Au electrode was served as electrocatalysts for glucose detection. d Sweat pH, human temperature, sweat glucose was monitored before and after meals by using bi-HEB patch and commercial sensors. Reprinted with permission from ref. 81. Copyright 2022 Wiley-VCH GmbH.
