Fig. 4: The recording of neutrophil trafficking in a mouse brain after craniotomy.

From: Multifocal fluorescence video-rate imaging of centimetre-wide arbitrarily shaped brain surfaces at micrometric resolution

Fig. 4

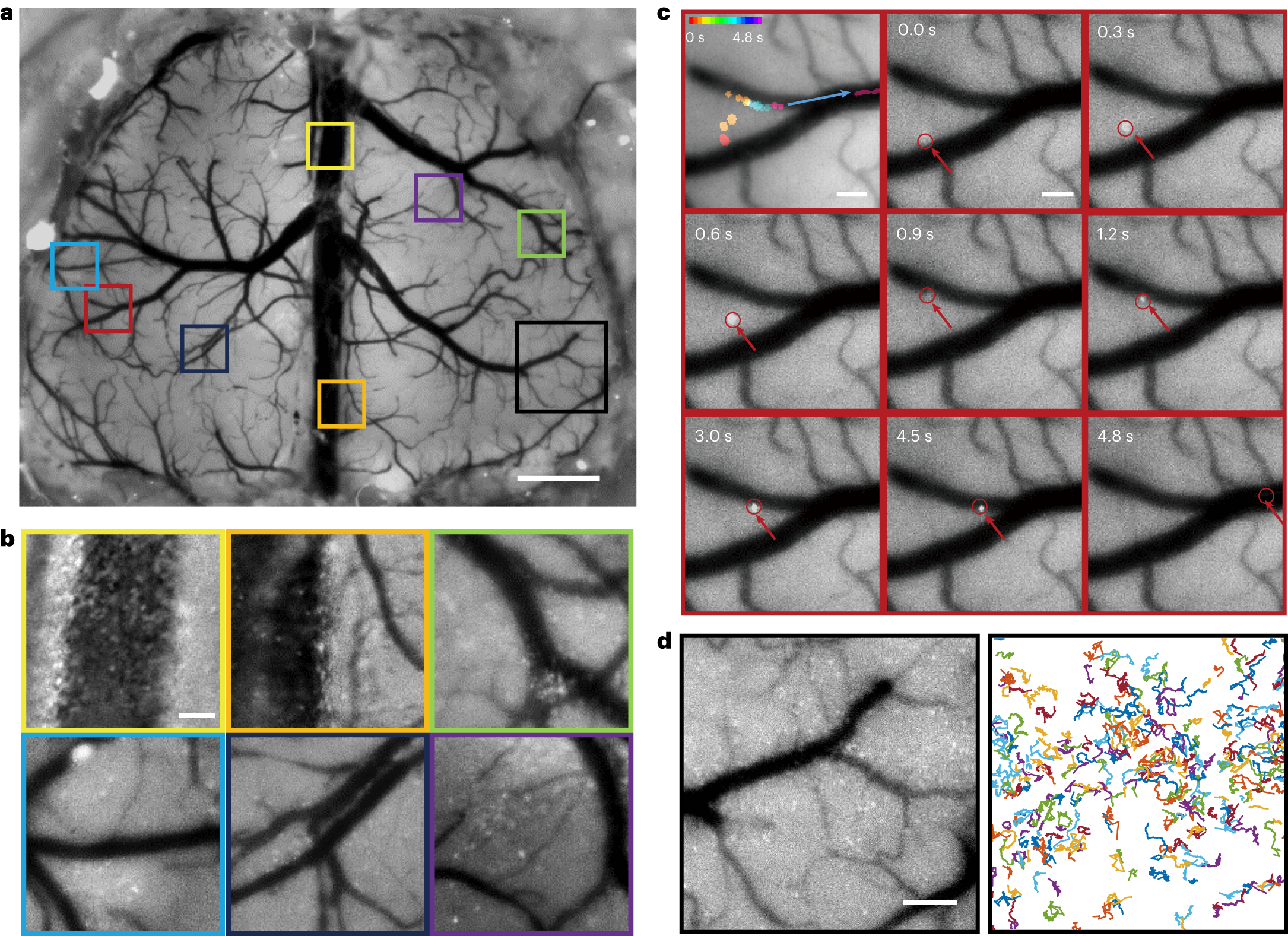

a, MFIAS enables snapshot imaging of neutrophils across the dorsal cortex (sample size n = 4 mice). Scale bar, 1 mm. b, Zoomed-in views of the areas in a. Scale bar, 100 μm. c, A time-lapse sequence of a zoomed-in view in a showing an immune cell migrating from a capillary to a branch vessel. Scale bar, 100 μm. d, A zoomed-in view of an area in a showing the tracks of neutrophils. Scale bar, 200 μm.
