Extended Data Fig. 8: CLEM analyses of Tsg101- or Vps4a/b-depleted cells.

From: STING signalling is terminated through ESCRT-dependent microautophagy of vesicles originating from recycling endosomes

Extended Data Fig. 8

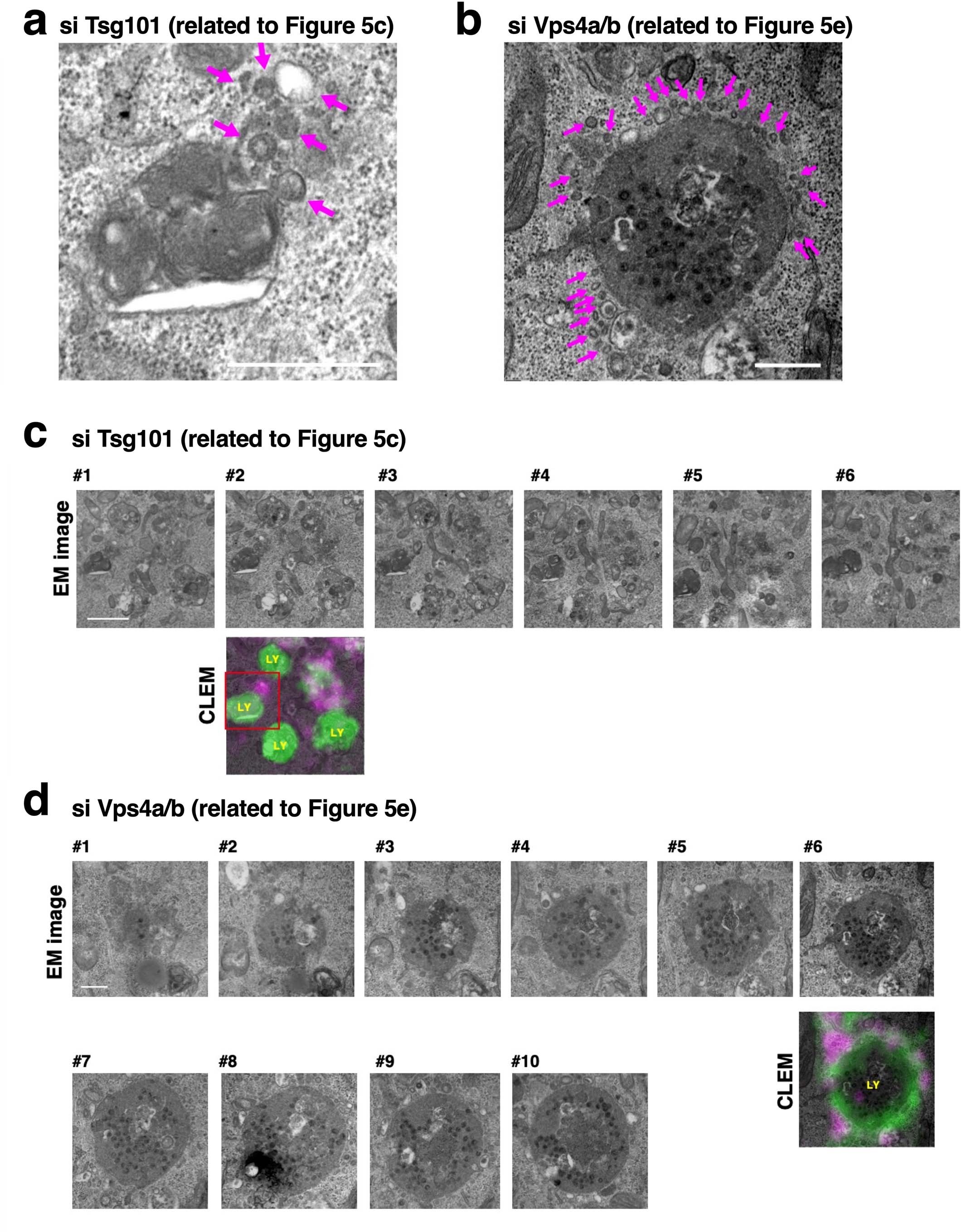

a, The magnified EM picture of Fig. 5c. b, The magnified EM picture of Fig. 5e. c and d, Serial EM pictures and a selected CLEM image are shown. Panels (c) and (d) correspond to Fig. 5c, e, respectively. The number (#) indicates the order in the serial section. LY, Lysosomes; Scale bars, 500 nm.
