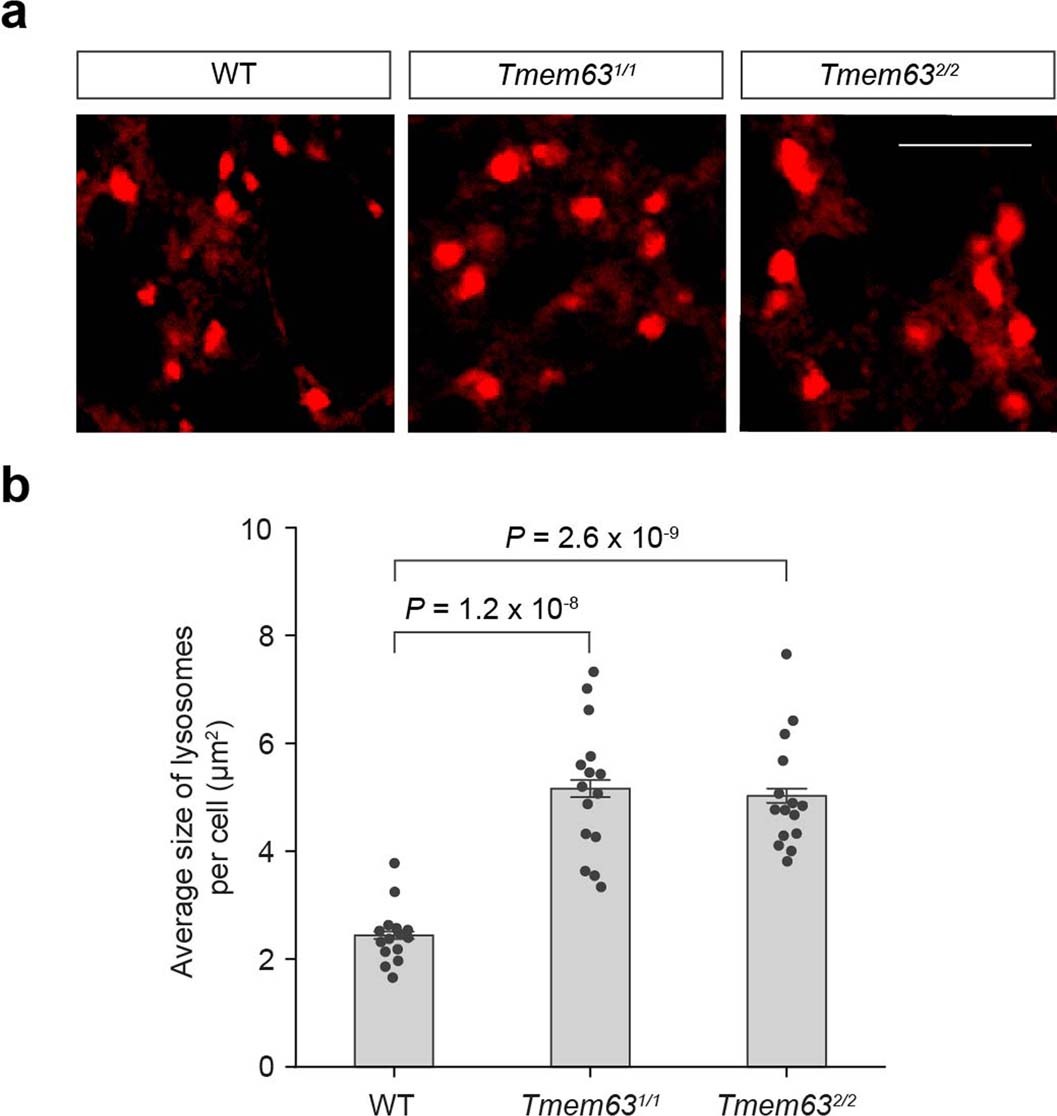

Extended Data Fig. 7: Increased lysosomal size in Tmem63 mutants.
From: Drosophila TMEM63 and mouse TMEM63A are lysosomal mechanosensory ion channels
Representative images (a) and quantifications (b) of lysosomes (labelled by LysoTracker-red dye) in the fat bodies of the mid-L3 wild-type (WT) or Tmem63 mutant larvae under 4 h starved conditions. Scale bars, 10 µm. n = 15 cells per group; data shown are mean ± s.e.m. Statistical significance was determined by two-sided Student’s t-test. Numerical data is available as source data.
