Extraembryonic gut endoderm cells undergo programmed cell death during development

Batki, Julia; Hetzel, Sara; Schifferl, Dennis; Bolondi, Adriano; Walther, Maria; Wittler, Lars; Grosswendt, Stefanie; Herrmann, Bernhard G.; Meissner, Alexander

doi:10.1038/s41556-024-01431-w

Download PDF

Article
Open access
Published: 07 June 2024

Extraembryonic gut endoderm cells undergo programmed cell death during development

Nature Cell Biology volume 26, pages 868–877 (2024)Cite this article

9964 Accesses
4 Citations
16 Altmetric
Metrics details

Subjects

Abstract

Despite a distinct developmental origin, extraembryonic cells in mice contribute to gut endoderm and converge to transcriptionally resemble their embryonic counterparts. Notably, all extraembryonic progenitors share a non-canonical epigenome, raising several pertinent questions, including whether this landscape is reset to match the embryonic regulation and if extraembryonic cells persist into later development. Here we developed a two-colour lineage-tracing strategy to track and isolate extraembryonic cells over time. We find that extraembryonic gut cells display substantial memory of their developmental origin including retention of the original DNA methylation landscape and resulting transcriptional signatures. Furthermore, we show that extraembryonic gut cells undergo programmed cell death and neighbouring embryonic cells clear their remnants via non-professional phagocytosis. By midgestation, we no longer detect extraembryonic cells in the wild-type gut, whereas they persist and differentiate further in p53-mutant embryos. Our study provides key insights into the molecular and developmental fate of extraembryonic cells inside the embryo.

Identification of the central intermediate in the extra-embryonic to embryonic endoderm transition through single-cell transcriptomics

Article 09 June 2022

Integration of spatial and single-cell transcriptomic data elucidates mouse organogenesis

Article Open access 06 September 2021

Systematic reconstruction of cellular trajectories across mouse embryogenesis

Article Open access 14 March 2022

Main

During mouse gastrulation the three germ layers arise and then further differentiate to form the major tissues of the body¹. Although ectodermal and mesodermal cells in the developing embryo originate exclusively from the pluripotent epiblast, both embryonic and extraembryonic cells contribute to the emerging gut endoderm². Specifically, a subset of extraembryonic endoderm cells, the majority of which will give rise to the yolk sac, intercalate with epiblast-derived definitive endoderm cells³. Previous studies have shown that embryonic and extraembryonic cells of the gut approach transcriptional identities that correspond to organ progenitors along the anterior–posterior axis at embryonic day (E) 8.75 (refs. ^4,5,6). The unexpected transcriptional similarity between gut cells of distinct origins is even more noteworthy given the substantial epigenetic differences in their progenitors^7,8. At E6.5 approximately 80% of the extraembryonic genome is differentially methylated compared with the epiblast, including hypermethylation at hundreds of CpG islands that remain free of DNA methylation in somatic cells. It remains unknown whether the gut cells of extraembryonic origin are epigenetically reprogrammed to the canonical somatic landscape and if they can persist to differentiate into more specialized endodermal tissues.

Reliably tracking and characterizing extraembryonic cells in the gut (exGut) beyond early organogenesis is not trivial and previously used fluorescent reporters rely on genes that are also expressed in embryonic gut cells (emGut); as such, they are only suitable for tracking the extraembryonic cells until late-stage gastrulation^3,9. More recently, single-cell RNA sequencing (scRNA-seq)-based approaches—which can infer the lineage origins—were used to explore the plasticity of endoderm cells^4,5,10. Integration of genetic lineage tracing has definitively confirmed the dual origin of the gut endoderm but only retrospectively and with limited transcriptional resolution⁶. Another approach to distinguish between embryonic and extraembryonic lineages is the tetraploid embryo complementation assay, which generates completely embryonic stem cell (ESC)-derived animals¹¹. Using this assay with two different fluorescent labels, cells of extraembryonic origin were detected in the presumptive gut tube; however, these experiments are limited by the non-physiological tetraploid status of intercalating extraembryonic cells¹².

To overcome these limitations and investigate the epigenome as well as the subsequent fate of exGut cells, we developed a diploid two-colour fluorescent lineage-tracing strategy that can reliably distinguish cells with embryonic or extraembryonic origin through organogenesis and beyond. We confirm the presence of extraembryonic cells in the gut endoderm and identify hundreds of differentially expressed genes. Moreover, we show that the DNA methylation landscape of these cells remains extraembryonic despite their overall transition to an embryonic transcriptome. This genome-wide epigenetic memory explains many of the latent transcriptional differences. We also find that exGut cells are selectively eliminated by E13.5 and their remnants are taken up by neighbouring embryonic cells through non-professional phagocytosis. The programmed cell death is prevented in p53-mutant embryos and the persisting exGut cells can further differentiate despite the continued maintenance of the non-canonical epigenome.

Results

Two-colour labelling of embryonic and extraembryonic cells

To investigate the molecular state and long-term developmental fate of exGut endoderm cells, we designed a lineage-tracing strategy where two constitutively expressed fluorescent proteins distinctly and permanently label the embryonic and extraembryonic lineages before gut endoderm formation. Specifically, we aggregated diploid mCherry-labelled (mCherry⁺) pre-compaction morula and diploid GFP-labelled (GFP⁺) mouse ESCs cultured with serum and leukaemia inhibitory factor (LIF; Fig. 1a). We established that this combination can create a developmental bias that yields ESC-derived diploid embryos—along with morula-derived diploid extraembryonic tissues—rather than chimaeric offspring^12,13 (Fig. 1b and Extended Data Fig. 1a,b). The selective post-aggregation lineage segregation can already be seen in the distinct localization of labelled cells at the blastocyst stage (Extended Data Fig. 1c). The outcome and overall efficiency of this approach are comparable to tetraploid complementation by morula aggregation but without the disadvantage of generating tetraploid extraembryonic cells (Extended Data Fig. 2a–c)^11,14. In contrast, diploid complementation via blastocyst injection resulted in the expected chimaeric mCherry–GFP embryos (Extended Data Fig. 2d–f)^15,16. Collectively, our assessment of aggregation and injection methods showed that the distinct developmental timing of the aggregated cells allows us to avoid the contribution of morula cells to the embryonic lineage, which makes it ideal to selectively investigate the fate of both embryonic and extraembryonic cells.

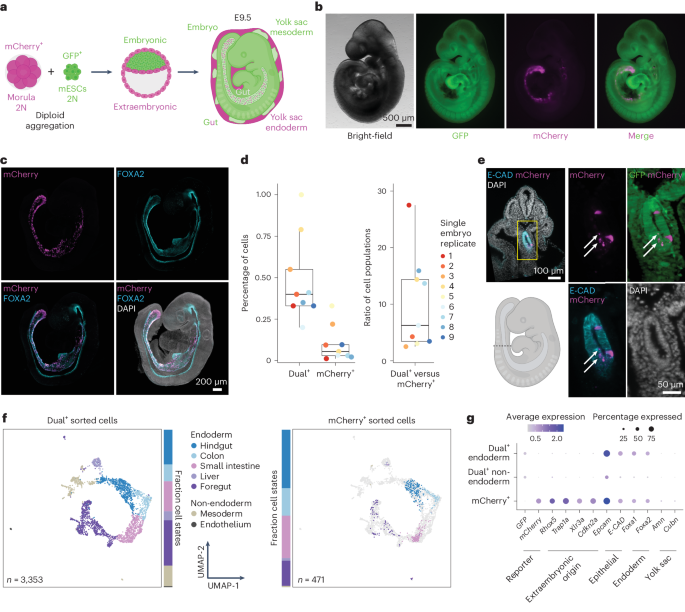

**Fig. 1: Two-colour lineage tracing identifies dual-labelled embryonic cells.**

We further validated the developmental contribution to the embryo and yolk sac in four independent experiments that were collected at E9.5. Using fluorescence microscopy, we confirmed that embryos were either GFP⁺ (ESC-derived, n = 54) or mCherry⁺ (morula-derived, n = 2). The two mCherry⁺ embryos seemed to reflect a failed aggregation and were excluded from further analyses (Extended Data Fig. 1d,e). The yolk sac tissue contains both mCherry⁺ and GFP⁺ cells, which would be consistent with yolk sac endoderm (YsEndo) of primitive endoderm origin and embryonic mesodermal cells, including primitive blood (Extended Data Fig. 1b)¹. The only mCherry signal in the GFP⁺ embryos was consistently located in the presumptive gut tube (Fig. 1b). We confirmed the gut localization of these diploid mCherry⁺ extraembryonic cells inside GFP⁺ embryos by immunofluorescence staining for FOXA2 (a transcription factor expressed in the gut endoderm) and E-CADHERIN (E-CAD; an epithelial marker; Fig. 1c and Extended Data Fig. 1f).

Together, using our selective diploid aggregation approach, we confirmed previous work showing extraembryonic cell contribution to the gut and could now track them beyond gastrulation.

Dual⁺ cells are embryonic in origin

To investigate exGut cells in more detail, E9.5 lineage-traced embryos were subjected to fluorescence-activated cell sorting (FACS) where we detected 0.01–0.33% mCherry⁺ cells of extraembryonic origin (n = 9 embryos), which coexisted among the substantially more abundant GFP⁺ cells of embryonic origin (>98%; Fig. 1d and Extended Data Fig. 3a,b). Surprisingly, we also observed a population of dual-labelled cells (dual⁺; 0.2–1%) that were clearly GFP⁺ but had varying levels of mCherry signal. We independently confirmed the presence of the single-labelled and dual⁺ cells in the embryo using light-sheet microscopy, and closer inspection of the dual⁺ cells showed GFP⁺ cells with mCherry⁺ foci (Fig. 1e, white arrowheads, and Extended Data Fig. 3c).

To determine the identity and origin of the dual⁺ cells, we isolated both dual⁺ and mCherry⁺ cells from 15 pooled embryos (Extended Data Fig. 3d) and performed multiplexed scRNA-seq¹⁷. We captured a total of 3,353 dual⁺ and 471 mCherry⁺ cells after pre-processing (average of 4,761 genes and 24,984 captured molecules per cell; Supplementary Table 1). Using de novo clustering of the dual⁺ cells, we detected seven cell states and annotated these based on published markers from single-cell atlases^4,5,18,19—five clusters, containing the majority of dual⁺ cells, correspond to gut endoderm organ progenitors and the remaining two clusters appear to be mesodermal cell types (Fig. 1f and Extended Data Fig. 3e,f). Next, we took advantage of the single-cell map of dual⁺ cells and showed that mCherry⁺ cells distributed across the different gut endoderm cell states when projected onto the dual⁺ cell reference (Fig. 1f and Extended Data Fig. 3e–g). This is in line with our above-described localization of mCherry⁺ cells throughout the gut tube and their overlap with FOXA2 and E-CAD (Fig. 1c and Extended Data Fig. 1f). Expression of previously identified extraembryonic marker genes—such as Rhox5 and Trap1a—is limited to mCherry⁺ cells and further confirms their extraembryonic origin^4,5,6. In contrast, these genes are not expressed in dual⁺ cells, which provides support for their embryonic origin (Fig. 1g).

Together, our analysis showed that mCherry⁺ cells in the embryo correspond to exGut endoderm and assigned dual⁺ cells as embryonic endoderm and mesoderm.

Extraembryonic cells die and are cleared by phagocytosis

To explore how the dual⁺ cells arise, we performed live imaging of ex utero-cultured embryos using confocal microscopy starting at E7.5 (Supplementary Videos 1 and 2). We found that the mCherry⁺ cells in the embryo proper have a spatially dispersed distribution, as previously shown for AFP-labelled exGut cells³. Interestingly, in addition to intact mCherry⁺ cells, mCherry⁺ foci are present at this early developmental stage (Fig. 2a, yellow asterisks). By tracking mCherry⁺ cells, we detected events where they die and fragment over a 2 h time window, followed by the emergence of mCherry foci in nearby GFP⁺ cells (Fig. 2b and Extended Data Fig. 4a). These mCherry foci became positive for LysoTracker, a dye that labels acidic compartments such as phagolysosomes (Extended Data Fig. 4b,c and Supplementary Video 3). In addition, we found that mCherry⁺ cells stain positive for cleaved CASPASE3 (Fig. 2c)²⁰. Although both the imaging and expression analyses argue against cell fusion as the source of the dual⁺ cells, this possibility cannot be fully excluded.

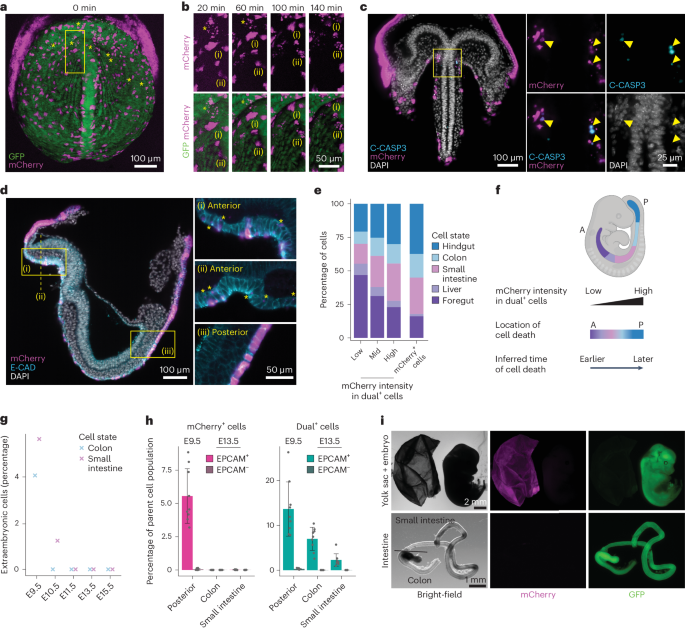

**Fig. 2: Elimination of exGut cells by midgestation.**

We observed that mCherry⁺ foci are more prominent at the anterior part of the gut endoderm at E7.5 (Fig. 2d). We thus compared the E9.5 scRNA-seq endoderm cell cluster compositions of intact exGut cells (mCherry⁺ only) with emGut cells containing extraembryonic remnants (dual⁺), which we had sorted into three populations—that is, low, medium and high mCherry intensity (Extended Data Figs. 3d and 4d). Remaining intact mCherry⁺ cells have a clear bias towards posterior endoderm progenitors, which is in agreement with exGut cells being enriched in the hindgut/midgut (Fig. 2e,f)^3,4. In contrast, dual⁺ cells have a tendency towards anterior endoderm types, with a clear correlation between mCherry intensity and anterior–posterior positioning: dual⁺ cells with lower mCherry fluorescence are more frequently found with anterior cell states, whereas those with high mCherry intensities are enriched for posterior cell states. This implies that mCherry intensity reflects the time of the elimination, where lower levels of mCherry in GFP⁺ cells would correspond to earlier events.

Combined, our data point to programmed cell death of exGut cells and their remnants being cleared via non-professional efferocytosis (a form of phagocytosis) by neighbouring emGut cells²¹, which results in dual⁺ cells with a distinct spatiotemporal pattern.

Extraembryonic cells are eliminated by midgestation

Next, we analysed an available scRNA-seq atlas of the mouse gastrointestinal tract between E9.5 and E15.5 (ref. ¹⁹), and detected exGut cells via Rhox5 and Trap1a expression at E9.5 but not at later stages (Fig. 2g and Extended Data Fig. 4e). This points to their complete elimination, although it is also possible that the extraembryonic cell population is too rare to be captured by scRNA-seq or the selected genes are no longer expressed.

In line with the single-cell data, at E9.5, the posterior half of the gut, which will develop into colon and small intestine, still contains a substantial fraction of mCherry⁺ cells (Fig. 2h). To determine the ultimate fate of these exGut cells, we isolated lineage-traced embryos at E13.5, dissected the colon and small intestine, and used flow cytometry to quantify their endoderm (EPCAM⁺) and non-endoderm (EPCAM⁻) cell populations (Fig. 2h,i and Extended Data Fig. 4f–h). No mCherry⁺ cells were detected in the colon of nine embryos, including both endoderm and non-endoderm. Analysis of the small intestine confirmed this observation: four of the nine embryos lacked any mCherry⁺ cells, whereas the remaining five showed only minor traces of mCherry⁺ cells (less than 0.04%). We also isolated cells from E12.5 embryos and observed elimination in endoderm populations already at this stage, with only a small number of mCherry⁺ cells remaining in the non-endoderm fraction of the small intestine (Extended Data Fig. 4i). Note that the small intestine protrudes from the body cavity during these developmental stages²² and thus the few detected mCherry⁺ cells may also reflect contamination from mCherry⁺ extraembryonic tissues. As controls, we confirmed that mCherry⁺ cells have the potential to contribute to both organs by generating chimaeric GFP–mCherry embryos as well as that the mCherry reporter remains expressed by generating complete mCherry⁺ embryos (Extended Data Fig. 5).

Together, our data demonstrate the elimination of extraembryonic cells from endodermal organs by midgestation.

Origin-specific transcriptional signatures in the gut

For a more comprehensive transcriptome analysis of lineage-traced embryos, we adapted the Smart-Seq2-based protocol to low-input bulk samples²³. We isolated E6.5 epiblast as well as distal and proximal extraembryonic endoderm (exEndo 1 and 2, respectively), the progenitor populations that differentiate into embryonic and exGut cells as well as extraembryonic yolk sac, respectively (Fig. 3a). At E9.5, we sorted YsEndo and gut cells from the posterior half of embryos (midgut and hindgut), where the majority of the remaining mCherry⁺ exGut cells are found at this developmental stage (Extended Data Fig. 6a,b and Supplementary Table 2). This gut-cell isolation approach should minimize transcriptional differences due to spatial localization along the anterior–posterior axis. For differential gene expression analysis, we selected dual⁺ emGut cells (EPCAM⁺) as a closely matched (stage and position) embryonic control (Extended Data Fig. 6b).

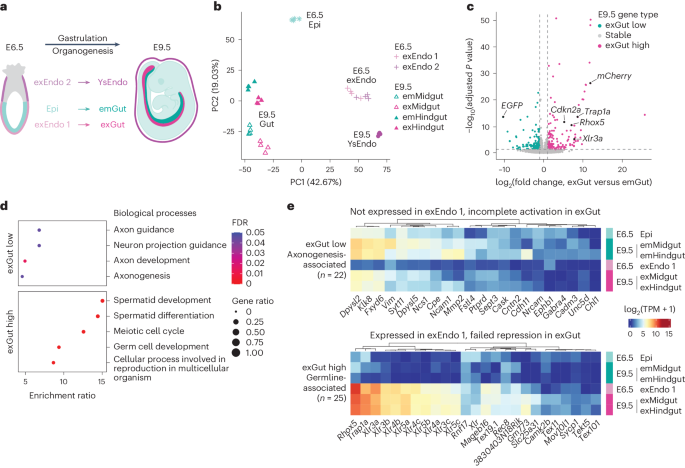

**Fig. 3: Transcriptional signatures of gut cells reflect their lineage origins.**

Although the exEndo 1 and 2 cell populations are transcriptionally highly similar to each other and different from the epiblast at E6.5, they give rise to exGut and YsEndo cells with strikingly diverged transcriptomes at E9.5. In contrast, the E9.5 exGut cells are transcriptionally similar to emGut cells (Fig. 3b and Extended Data Fig. 6c). Next, we compared E9.5 exGut and emGut cells and identified 302 differentially expressed genes (156 up- and 146 downregulated genes, which we termed ‘exGut high’ and ‘exGut low’, respectively; Fig. 3c, Extended Data Fig. 6d and Supplementary Tables 3,4). As expected, both mCherry and GFP were detected as differentially expressed in addition to the reported extraembryonic marker genes^4,5,6, which are specifically expressed in the mCherry⁺ cells (Fig. 3c and Extended Data Fig. 6c). Intriguingly, gene ontology analysis showed that exGut low genes are associated with axon guidance and components of the synaptic membrane (Fig. 3d and Extended Data Fig. 6e). These genes are mostly not expressed in the E6.5 extraembryonic cells and fail to reach the embryonic expression levels once activated in the E9.5 exGut cells (Fig. 3e). Genes related to these terms are generally involved in cell–cell communication and have well-described function in both neural and non-neural contexts²⁴. These differences raise the possibility that exGut and emGut cells may use distinct cell–cell interaction modes. In contrast, the exGut high genes were enriched for known germline genes that also show high expression levels in the early extraembryonic lineage and apparently cannot be repressed to match the expression status in the emGut cells (Fig. 3d,e and Extended Data Fig. 6e). The germline signature is supported by a strong enrichment of exGut high genes on the X chromosome, a known hotspot for germline and placental genes²⁵ (Extended Data Fig. 6f,g). Independent of our lineage tracing, we found indications of the above-described transcriptional signatures by analysing published scRNA-seq data of E8.75 and E9.5 gut (Extended Data Fig. 6h).

In summary, our in-depth gene expression analysis identified gene sets that clearly distinguish gut cells based on their lineage origin.

Global epigenetic memory in exGut cells

The known role of DNA methylation in silencing germline genes^26,27 suggested that their continued expression may be linked to the non-canonical distribution of DNA methylation in the extraembryonic cells^7,8. Previous studies showed upregulation of a set of genes, including germline genes, in embryos lacking the de novo DNA methyltransferases DNMT3B and DNMT3A^28,29 (Extended Data Fig. 7a and Supplementary Table 5). Interestingly, we found that this gene set also displays overall higher expression in exGut cells (Fig. 4a).

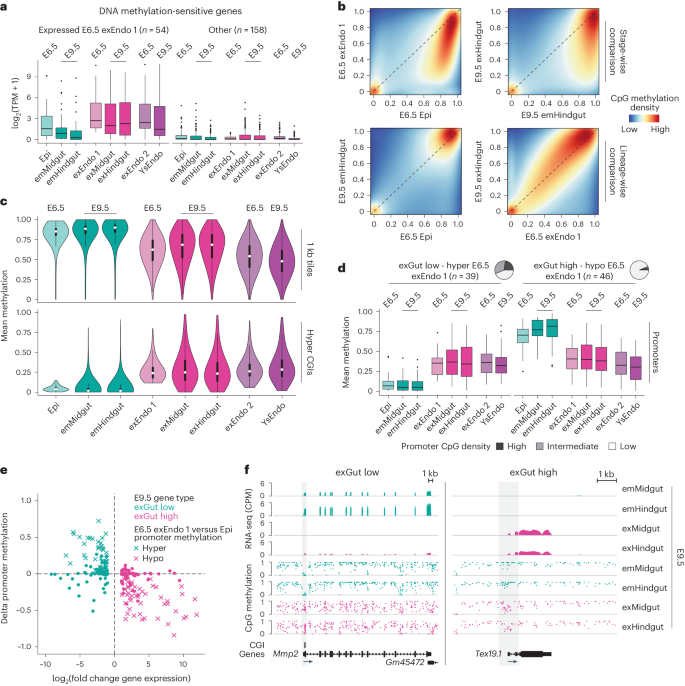

**Fig. 4: Preserved epigenetic memory of lineage origins.**

To explore their DNA methylation landscape at the global level, we generated whole-genome bisulfite sequencing (WGBS) datasets matching the tissues of our RNA-seq cohort (Supplementary Table 6). Strikingly, and in contrast to the converging transcriptome, the exGut cells preserve their original hypomethylated genome and do not convert to the globally high levels present in the emGut cells (Fig. 4b,c and Extended Data Fig. 7b). The same epigenetic memory holds true for over a thousand CpG islands (CGIs) that are hypermethylated in the exEndo compared with the epiblast and remain unchanged in exGut cells (Fig. 4c and Supplementary Table 7). Next, we focused on gene promoters that have differential expression in E9.5 gut cells and found that select promoters of exGut low genes exhibit higher DNA methylation in exGut cells compared with emGut cells, whereas the opposite was true for a fraction of exGut high genes (Fig. 4d–f and Extended Data Fig. 7c). Interestingly, for many promoters with strong differences in DNA methylation, we could already observe a difference in methylation between the precursor cell types at E6.5 (Fig. 4e and Extended Data Fig. 7d,e). We detected exGut low genes that were partially methylated in the extraembryonic progenitor and could subsequently only be expressed at low levels in the exGut cells as well as exGut high genes—including DNA methylation-sensitive germline genes—that were already expressed in the extraembryonic progenitor at E6.5 and could not be silenced by E9.5 (Fig. 4e,f and Extended Data Fig. 7d–f).

These results demonstrate that exGut cells preserve the characteristic extraembryonic epigenome, which also explains many of the differentially expressed genes and highlights a striking molecular disparity to their neighbouring cells with embryonic origin.

p53 disruption allows extraembryonic cells to persist

Our differential gene expression analysis at E9.5 identified genes that are expressed at higher levels in exGut cells and were shown to act downstream of p53 (a known effector in programmed cell death, encoded by the Trp53 gene, hereafter referred to as p53), a signature that we could also recapitulate in published scRNA-seq datasets (Fig. 5a and Extended Data Fig. 8a)^4,19,30. To investigate whether p53 is directly involved in the lineage-specific cell elimination, we generated four p53-mutant E13.5 embryos by electroporating zygotes with Cas9 and three guide RNAs (gRNAs) targeting p53 exons (Fig. 5b and Extended Data Fig. 8b). As controls we used four stage-matched wild-type embryos. We dissected the gastrointestinal tract, sorted EPCAM⁺ endoderm cells and performed multiplexed scRNA-seq, which recovered 9,278 and 9,710 single-cell profiles from wild-type and p53-mutant embryos, respectively (average of 3,849 genes and 14,774 captured molecules per cell; Supplementary Table 8). De novo clustering of the wild-type cells resulted in nine cell states, which we annotated based on known marker genes^19,31 as endoderm-derived epithelial cells of distinct parts of the colon, small intestine, stomach and pancreas (Fig. 5b,c and Extended Data Fig. 8c–e). Next, we showed that the p53-mutant cells distribute similarly across the different organ clusters when projected onto the reference map of wild-type cells (Fig. 5b,c and Extended Data Fig. 8c–g). Using Rhox5 and Trap1a, consistent with our data above, we found virtually no sign of extraembryonic cells in the wild-type E13.5 embryos, whereas in the p53 knockouts (KOs), we readily detected extraembryonic cells, even up to 6% in the proximal colon (Fig. 5d and Extended Data Fig. 8h).

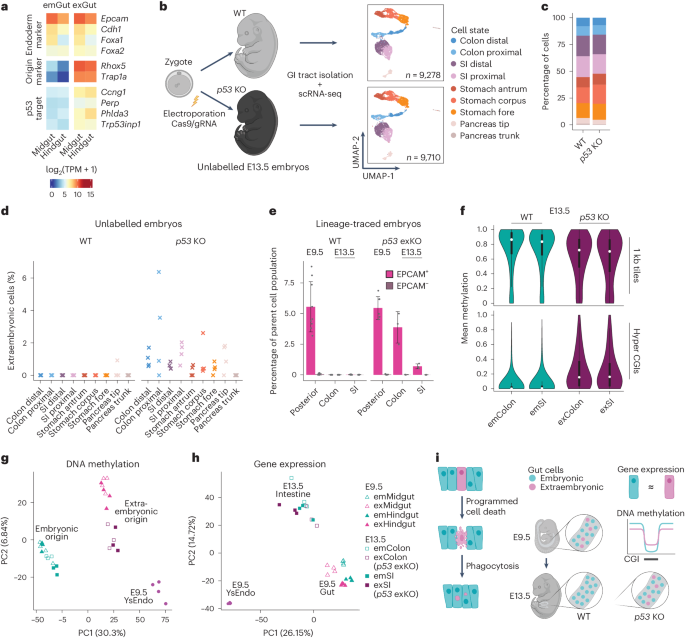

**Fig. 5: p53 disruption allows the survival of exGut cells with origin-specific signatures.**

To investigate whether additional time may lead to epigenetic resetting, we utilized our two-colour lineage-tracing strategy with a modification that allows for the generation of extraembryonic-specific KOs (Extended Data Fig. 9a). We collected embryos at E9.5 and isolated the small intestine and colon at E13.5. Using fluorescence microscopy and flow cytometry analysis, we found that mCherry⁺ extraembryonic cells persisted in the organs when p53 was mutated (Fig. 5e and Extended Data Fig. 9b–f). Moreover, we recapitulated the p53-KO-dependent survival and proliferation of exGut cells in vitro (Extended Data Fig. 10a–c). Next, we profiled DNA methylation (Supplementary Table 9) and found that surviving p53-mutant extraembryonic cells at E13.5 still preserve the characteristic extraembryonic epigenome (Fig. 5f). A comparison with E9.5 samples showed that the surviving p53-mutant extraembryonic cells were most similar to cells with the same lineage origin based on the DNA methylome, regardless of the developmental stage and tissue (Fig. 5g). In contrast, when we compared their transcriptional profiles (Supplementary Tables 2 and 3), extraembryonic cells at E13.5 were more similar to embryonic cells of the same developmental stage and tissue than to the YsEndo and E9.5 gut cells with extraembryonic origin, which suggests a differentiation trajectory similar to their embryonic counterparts (Fig. 5h). Notably, latent origin-specific gene expression signatures are still largely retained in line with the epigenetic memory (Extended Data Fig. 10d,e).

In summary, p53-mutant extraembryonic cells can survive despite maintaining their extraembryonic epigenome, which remarkably also allows for continued development and contribution to organs at later stages.

Discussion

Embryonic development holds many unresolved mysteries, including the fate and role of extraembryonic cells that contribute to the embryonic gut. Here we showed that these exGut cells retain a global epigenetic memory, which also explains some of the remaining transcriptional differences. By midgestation, programmed cell death and clearance via non-professional phagocytosis results in their elimination, which can be overcome by loss of p53 and leads to the survival of molecularly distinct extraembryonic cells in the gut (Fig. 5i).

To support normal development and maintain homeostasis in adult tissues, dying cells and their remnants have to be cleared³², which is particularly relevant in epithelial tissues to keep their overall integrity³³. Within these contexts, dying cells are often extruded, whereas we observed that extraembryonic gut remnants are taken up, raising the possibility that they may serve an additional role as shown for zebrafish embryos³⁴. Clearance of these extraembryonic remnants precedes the emergence of macrophages (immune cells with professional phagocytic activity)³⁵. We found evidence that they are mainly taken up by neighbouring epithelial gut cells, thereby providing an argument for non-professional phagocytosis as the clearance mechanism³². This result also supports the immune-like function of epithelia, which was reported for pre-implantation vertebrate embryos³⁶. Epithelial cells were also shown to play a prominent role in adult immune surveillance, where oncogenic neighbours are eliminated by cell competition in a process termed epithelial defence against cancer³⁷. The nature of exGut cell elimination resembles instances of cell competition, including those described for the epiblast and surface ectoderm of mouse embryos³⁸. Further work is needed to test whether exGut cells are similar to the so-called ‘loser’ cells. Molecular recognition of distinct, potentially harmful cells depends on cell–cell communication and cell surface proteins have recently been shown to mediate aberrant cell removal in an epithelial tissue³⁹. Along these lines, we found differentially expressed genes encoding membrane proteins, suggesting that a cell surface code may ensure the selective elimination of extraembryonic cells in the embryonic context.

Our detailed transcriptional analysis demonstrated, in agreement with previous studies, that extraembryonic cells are capable of acquiring distinct transcriptional states that correspond to multiple endodermal organ progenitors. However, our work also expands the limited set of previous marker genes that distinguish gut cells with the two lineage origins. Many of these genes, including germline genes, are expressed in the extraembryonic progenitors at the onset of gastrulation, pointing to transcriptional memory. Among them is Trap1a, which shows little to no expression in normal somatic cells and was the first tumour rejection antigen identified in mice⁴⁰. More generally, cancer/testis antigens are typically restricted to the germline and extraembryonic tissues, and are aberrantly expressed in various cancers⁴¹. A large fraction of these genes is located in clusters on the X chromosome and sensitive to loss of DNA methylation, which are characteristics shared with many of the exGut marker genes. Furthermore, our DNA methylome analysis demonstrates the relationship between some transcriptional differences and a more globally distinct epigenome, where exGut cells retain their original epigenetic status, including intermediate genome-wide levels and hypermethylation at select CGIs. It is unclear how this distinct non-embryonic form of genome regulation can support the range of transcriptional states that emerge along the gut axis. The disruption of p53 in exGut cells demonstrated that the window and ability of these cells to differentiate can be extended—although how long remains to be determined in future studies.

In summary, our data settle key questions about the molecular state and fate of extraembryonic cells in mouse post-implantation development while adding to the ongoing investigations of reprogramming cellular identities as well as epithelial immune-like function.

Methods

Laboratory animals

All animal work performed in this study was approved by the local authorities (LAGeSo Berlin, license numbers G0243/18 and G0098/23). Mice were kept in individually ventilated cages under specific pathogen-free conditions in animal rooms with a light cycle of 12 h/12 h, temperatures of 20–24 °C and humidity of 45–65%. The mice received autoclaved water and a standard rodent diet ad libidum. Hsd:ICR (CD-1) and C57BL/6J mice were obtained from Envigo/Inotiv.

Culture of mESCs

The mouse ESCs (mESCs) used in this study originate from the F1G4 background⁴²; the parental male cell line was obtained from the laboratory of A. Nagy (Toronto, Canada). The mESCs were cultured on gelatinized plates coated with mitotically inactive primary CD-1 mouse embryo fibroblasts (MEFs) in the presence of serum and LIF in mESC medium (KnockOut DMEM (Thermo Fisher Scientific, 10829018), 15% fetal bovine serum (FBS; Thermo Fisher Scientific, 16140071), 1×GlutaMAX supplement (Thermo Fisher Scientific, 35050038), 1×non-essential amino acids (Thermo Fisher Scientific, 11140035), 1:1,000 2-mercaptoethanol (Thermo Fisher Scientific, 21985023), 1×penicillin–streptomycin (Thermo Fisher Scientific, 15140122) and laboratory-purified recombinant LIF). The cells were passaged every 2–3 d by first rinsing the cells twice with Dulbecco’s phosphate-buffered saline (DPBS; Thermo Fisher Scientific, 4190144), detaching them using 1×TrypLE express enzyme (Thermo Fisher Scientific, 12604021) and then plating on MEFs; the medium was changed every day.

Generation of GFP⁺ reporter mESCs

Wild-type F1G4 cells were used to generate the GFP⁺ reporter mESCs. The targeting vector contained the CAG promoter, EGFP coding sequence and SV40 polyadenylation signal, flanked by sequences homologous to the Rosa26 locus (the genomic coordinates are listed in Supplementary Table 10). This was co-transfected with a plasmid encoding Cas9 (PX459; Addgene, 62988) and containing a gRNA targeting the Rosa26 locus (the gRNA sequence is listed in Supplementary Table 10) using FuGENE HD transfection reagent (Promega, E2311) as per the manufacturer’s instructions. Briefly, 400,000 mESCs were plated the day before transfection. For the transfection, 8 µg of each plasmid DNA was diluted in 125 µl Opti-MEM (Thermo Fisher Scientific, 31985062); 25 µl of FuGENE reagent (room temperature) was diluted with 100 µl Opti-MEM. The diluted FuGENE was added to the diluted DNA, incubated at room temperature for 15 min and added dropwise to the cells. The medium was changed the next day. GFP-expressing mESCs were isolated by FACS 48 h after transfection and single-cell-derived clones stably expressing GFP were picked and expanded (GFP⁺ mESCs).

Generation of mCherry⁺ reporter mice

To generate mCherry⁺ reporter mESCs, the PiggyBac EF1a–mCherry transposon plasmid from the previously published construct in Chan et al.⁶ was used with the following modifications. The triple gRNA cassette was removed and the plasmid was re-ligated to ensure stable expression of mCherry driven by a full-length intron-containing EF1a promoter. Ubiquitous chromatic opening element and insulators were maintained to preserve a high level of mCherry expression in every cell. Wild-type F1G4 cells were transfected with this EF1a–mCherry plasmid and the improved super piggyBac transposase using Xfect mESC transfection reagent (Takara, 631320) according to the manufacturer’s instructions. After 48 h, mCherry-expressing cells were isolated by FACS and single-cell-derived clones stably expressing mCherry were picked and expanded. Next, G₀ mice were generated via tetraploid complementation assay⁴³ and G₀ male mice were crossed with C57BL/6J females (age, ≥8 weeks) to generate F₁ animals. For the establishment and maintenance of the mCherry⁺ colony, C57BL/6J females (age, ≥8 weeks) were regularly mated with mCherry⁺ males (age, ≥8 weeks); mCherry expression was verified for the different generations using DFP-1 Dual Fluorescent Protein Flashlight with Royal Blue and Green excitation (NIGHTSEA).

Embryo complementation assays

For all complementation assay types described below, mCherry⁺ males (age, ≥8 weeks) were mated with Hsd:ICR (CD-1) females (age, 6–20 weeks) for embryo isolation at the specified stages. The embryos are cultured in potassium simplex optimized medium (KSOM; Cosmo Bio, R-B074) under mineral oil at 37 °C and 5% CO₂. Embryos developing to expanded blastocysts were re-transferred into the uterine horns (maximum 15 embryos on each side) of a pseudopregnant CD-1 female (age, 6–20 weeks) at 2.5 d post coitus (generated by mating with vasectomized CD-1 males; age, ≥12 weeks). Post-implantation embryos were isolated according to the indicated embryonic day, with a 24 h developmental delay accommodated due to the re-transfer procedure.

Diploid complementation assay by morula aggregation—two-colour lineage tracing

Pre-compaction morula-stage (4–8 cell stage) embryos were isolated at 2.5 d post coitus, treated with Acidic Tyrode’s solution (Sigma-Aldrich, T1788) to remove the zona pellucida and placed in handmade depressions of the aggregation plate (Falcon, 353001). GFP⁺ mESCs were thawed and cultured on MEFs, in serum and LIF conditions, for 2 d and colonies were detached from the plate by a brief (approximately 30 s) trypsinization step (Thermo Fisher Scientific, 25300054). A small colony of 8–15 cells was then picked and added to each depression containing a single mCherry⁺ pre-compaction morula. The aggregates were incubated for 48 h, and those that successfully formed expanded blastocysts were re-transferred. We refer to this strategy as the two-colour lineage tracing, and GFP⁺ embryos with gut-specific mCherry signal were used for downstream experiments. GFP⁺ cells are male as they were derived from the parental F1G4 mESC line, whereas mCherry⁺ cells can be either female or male, as pre-implantation embryos were generated via natural mating. Note that low mESC quality, incorrect morula-staging or aggregate preparation can result in technical failures that lead to chimaeric embryos. Previously, chimaeric offspring were obtained via diploid complementation assay by morula aggregation but using a different mESC line (R1)^12,43.

Tetraploid complementation assay by morula aggregation

Embryos at the two-cell stage were isolated at 1.5 d post coitus and electrofused in a CF.150/B cell fusion device (BLS) using the following settings: 2 V HF sinus to align the embryos along the electrodes, 30 V pulse, 35 μs pulse length and one repeat pulse. The embryos were then monitored for fusion. The following day, mCherry⁺ pre-compaction tetraploid morulae (4–8 cell stage) were treated with Acidic Tyrode’s solution to remove the zona pellucida and placed in handmade depressions of the aggregation plate. GFP⁺ mESCs were thawed and cultured on MEFs, in serum and LIF conditions, for 2 d and colonies were detached from the plate by a brief (approximately 30 s) trypsinization step. A small colony of 8–15 cells was then picked and added to each depression containing a single mCherry⁺ tetraploid morula, followed by the addition of another zona pellucida-free mCherry⁺ tetraploid morula. The aggregates were incubated for 48 h and those that successfully formed expanded blastocysts were re-transferred.

Diploid complementation assay by blastocyst injection

Pre-compaction morula-stage embryos were isolated at 2.5 d post coitus. These were cultured overnight in KSOM medium at 37 °C and 5% CO₂ until they reached the expanded blastocyst stage. GFP⁺ mESCs were thawed and cultured on MEFs, in serum and LIF conditions, for 2 d and then 8–12 single cells were injected into the blastocyst using an Eppendorf CellTram 4r oil microinjector. Embryos were cultured for at least 2 h before re-transfer.

Generation of p53-KO embryos

Zygote electroporation was used to generate KO embryos as described previously¹⁸. Briefly, pronuclear stage 3 zygotes were isolated 0.5 d post coitus from CD-1 females (age, 6–20 weeks) mated with CD-1 males (age, ≥8 weeks). Electroporation reactions were set up according to the manufacturer’s guidelines (Integrated DNA Technologies, Alt-R CRISPR–Cas9 ribonucleoprotein (RNP) complex protocol) just before the electroporation. Briefly, 4.5 μl of 200 μM Alt-R CRISPR–Cas9 tracrRNA (Integrated DNA Technologies, 1072533) and 3 μl of each 100 μM Alt-R CRISPR–Cas9 crRNA XT targeting p53 (the gRNA sequences are listed Supplementary Table 10) were mixed, heated to 95 °C for 5 min and allowed to anneal at room temperature for 5 min. This crRNA–tracrRNA mix and 3 μl of 61 μM Alt-R S.p. HiFi Cas9 nuclease V3 (Integrated DNA Technologies, 1081059) was diluted in 133.5 μl Opti-MEM and incubated at room temperature for 20 min. We used a NEPA21 electroporator with a 5 mm gap electrode chamber and the following settings: for the poring pulse, 225 V, 2 ms pulse length, 50 ms pulse interval, four pulses, 10% decay rate and + polarity; for the transfer pulse, 20 V, 50 s pulse length, 50 ms pulse interval, five pulses, 40% decay rate and alternating +/− polarity. Electroporated zygotes were washed and cultured in KSOM medium at 37 °C and 5% CO₂ until they reached the expanded blastocyst stage. They were then re-transferred into the uterine horns (maximum 15 embryos on each side) of a pseudopregnant CD-1 female at 2.5 d post coitus (generated by mating with vasectomized CD-1 males). Post-implantation embryos were isolated according to the indicated embryonic day, with a 24 h developmental delay accommodated due to the re-transfer procedure. As a control, stage-matched embryos were used from natural mating of wild-type CD-1 females (age, 6–20 weeks) and males (age, ≥8 weeks), with midday of vaginal plug considered to be E0.5. As the embryos were generated via natural mating, they can be either female or male (wild-type, three females and one male; p53-KO, one female and three males).

Generation of extraembryonic lineage-specific p53-KO embryos combined with the two-colour lineage-tracing strategy

We generated p53-KO zygotes as described in the section ‘Generation of p53-KO embryos’, except that zygotes were isolated from CD-1 females mated with mCherry⁺ males. When the p53-KO mCherry⁺ embryos reached the pre-compaction morula stage at 2.5 d post coitus, they were treated with Acidic Tyrode’s solution to remove the zona pellucida and placed in handmade depressions of the aggregation plate. GFP⁺ mESCs were thawed and cultured on MEFs, in serum and LIF conditions, for 2 d and colonies were detached from the plate by a brief (approximately 30 s) trypsinization step. A small colony of 8–15 cells was then picked and added to each depression containing a single p53-KO mCherry⁺ pre-compaction morula. The aggregates were incubated for 65–70 h and those that successfully formed expanded blastocysts were re-transferred. Post-implantation embryos were isolated according to the indicated embryonic day, with a 24 h developmental delay accommodated due to the re-transfer procedure.

E6.5 post-implantation embryo collection and preparation for downstream experiments

Deciduae were collected into ice-cold HBSS (Gibco, 14175095), E6.5 embryos were collected into ice-cold M2 medium (Merck, MR-015-D) and tissues were isolated as described previously⁸. Briefly, the embryos were bisected at the embryonic–extraembryonic border, washed in three drops of HBSS and incubated for 15 min at 4 °C in 0,5% trypsin (Thermo Fischer Scientific, 15400054) with 2,5% pancreatin (Sigma-Aldrich, P3292-25G) dissolved in DPBS. The distal exEndo was manually separated from the epiblast by drawing the distal half through a narrow glass capillary. Similarly, the proximal exEndo was manually separated from the extraembryonic ectoderm. The epiblast and the exEndo tissues from individual embryos (generated via two-colour lineage tracing) were collected into RLT Plus Buffer (Qiagen, 1053393) for RNA-seq (see below); pooled proximal or distal exEndo tissues were collected from wild-type CD-1 embryos for WGBS (see below) in Lysis buffer (10 mM Tris–HCl pH 8.0 (Thermo Fisher Scientific, 15568025), 10 mM NaCl (Sigma-Aldrich, S5150-1L), 10 mM EDTA (Thermo Fisher Scientific, 15575020), 0.5% SDS (Thermo Fisher Scientific, AM9822) and 300 µg ml⁻¹ proteinase K (New England Biolabs, P8107S)).

E9.5 post-implantation embryo collection and preparation for downstream experiments

Deciduae were collected into ice-cold HBSS, E9.5 embryos (somite number, 18–28) were dissected in ice-cold M2 medium, the extraembryonic tissues were completely removed and the yolk sac was kept. For the scRNA-seq analysis (see below), whole lineage-traced embryos were used to determine the cell-type identities of mCherry⁺ and dual⁺ cells. For assessing extraembryonic cell content in lineage-traced embryos (comparing wild-type and p53 extraembryonic-specific KO), the embryos were cut in half with a micro knife along the anterior–posterior axis and the posterior half was used for further experiments. For RNA-seq, RRBS and WGBS experiments (see below), wild-type lineage-traced E9.5 embryos were cut in half with a micro knife along the anterior–posterior axis. The midgut was manually isolated from the posterior half using tungsten needles (Fine Science Tools, 10130-10) and the most posterior part, containing the hindgut, was also kept. For each midgut and hindgut replicate, corresponding tissues from four embryos were pooled.

The embryos, isolated tissues and yolk sac were washed in ice-cold HBSS and dissociated with 0.25% trypsin–EDTA (Gibco, 25200056) for 10 min at 37 °C to obtain single cells. This was quenched with KnockOut DMEM (Thermo Fisher Scientific, 10829018) containing 10% FBS (PAN-Biotech, P30-2602) and 0,05 mg ml⁻¹ DNase I (Merck, 11284932001) to dissociate the cells via pipetting, and the cells were also washed once with this buffer. After blocking with normal mouse serum (Invitrogen, 31881) for 5 min on ice, the cells were stained for EPCAM (Alexa Fluor 647 anti-EPCAM; BioLegend, 118212) in FACS buffer (HBSS with 2% FBS and 0,5 mM EDTA (Thermo Fischer Scientific, 15575020)) for 10 min on ice. Specifically for the pooled midgut and hindgut samples, enrichment of EPCAM⁺ cells was performed by magnetic separation (MACS) using anti-Cy5/anti-Alexa Fluor 647 MicroBeads (Miltenyi Biotec, 130-091-395), as per the manufacturer’s instructions, with the MS columns (Miltenyi Biotec, 130-042-201) and an OctoMACS Separator (Miltenyi Biotec, 130-042-109). Finally, the cells were stained with 0.02% DAPI (Roche Diagnostics, 102362760019) in FACS buffer for 8 min on ice, washed once, resuspended in FACS buffer and kept on ice until flow cytometry analyses or sorting.

E13.5 post-implantation embryo collection and preparation for downstream experiments

E13.5 embryos were dissected in DMEM/F-12 medium (Thermo Fischer Scientific, 21041025) containing 10% FBS. For scRNA-seq analysis of the wild-type and p53-KO embryos (see below), the gastrointestinal tract was isolated, after which dissociation, staining for EPCAM, enrichment by MACS and preparation for FACS was performed as described earlier for E9.5 midgut and hindgut samples. For RNA-seq and RRBS (see below), E13.5 lineage-traced embryos were collected, from which the intestine was isolated and split into the small intestine and colon parts with a micro knife. Dissociation, staining for EPCAM and sample preparation for FACS were then performed as described earlier for E9.5 embryos.

FACS

A FACS Aria Fusion (BD Biosciences) flow cytometer with an 85 µm nozzle and a BD FACS Diva software were used for all sorting experiments. Dead cells were excluded based on DAPI staining and cells were analysed or sorted based on the signal intensity of EPCAM (Alexa Fluor 647 anti-EPCAM), GFP and mCherry. For the scRNA-seq analysis (see below) to determine the cell-type identities of mCherry⁺ and dual⁺ cells, wild-type lineage-traced whole E9.5 embryos were used and the dual⁺ cells were sorted into three populations based on the mCherry signal intensities. For the low-input bulk RNA-seq, RRBS and WGBS analysis (see below), gut cells from manually isolated tissues were used from E9.5 wild-type lineage-traced embryos, EPCAM⁺ dual⁺ cells were sorted with low mCherry⁺ signal intensity as embryonic gut control for the mCherry⁺ extraembryonic gut. (Note that at E9.5, the EPCAM⁺ GFP-only cell population contains surface ectoderm and primordial germ cells in addition to embryonic gut endoderm cells, thus the GFP-only population is not suitable as an embryonic gut endoderm control^44,45. As established by our scRNA-seq, dual⁺ cells are of embryonic origin and EPCAM⁺ dual⁺ cells correspond to gut endoderm.) For RNA-seq, RRBS and WGBS analysis of E9.5 YsEndo, cells positive for both EPCAM and mCherry were isolated. For the low-input bulk RNA-seq and RRBS of organs from E13.5 lineage-traced embryos with extraembryonic p53-KO, EPCAM⁺GFP⁺ cells were sorted as the embryonic control for mCherry⁺ extraembryonic cells because at this stage there is no contamination by non-endoderm cell types unlike at E9.5. For the scRNA-seq analysis of wild-type and p53-KO gastrointestinal tract, EPCAM⁺ endodermal cells were sorted. The sorted cells were collected into ice-cold RLT Plus buffer for bulk RNA-seq and RRBS or into Lysis buffer for WGBS, whereas the cells were sorted into ice-cold DPBS for single-cell RNA-seq analysis with MULTI-seq labelling. Flow cytometry data analyses were done using FlowJo (BD, version 10.8.1). Representative gating strategies are provided in Supplementary Information 1.

Low-input bulk RNA-seq

The protocol for RNA-seq library preparation was adopted from the Smart-RRBS protocol²³ for low-input bulk samples with a few modifications. Briefly, instead of using single cells, 40–50 cells were sorted from the pooled posterior parts (midgut and hindgut) of lineage-traced E9.5 embryos or the corresponding yolk sac tissues into 20 μl RLT Plus buffer. Similarly, 40–50 cells were sorted from individual organs (colon and small intestine) isolated from lineage-traced E13.5 embryos. Individual progenitor tissues (Epi, exEndo 1 and 2) were isolated from E6.5 lineage-traced embryos and each was collected into 20 μl RLT Plus buffer. Poly(A)+ messenger RNA was separated from genomic DNA using beads with Oligo(dT) and reverse transcribed in the presence of a template-switching oligonucleotide; for complementary DNA amplification, the cycle number was reduced to 15–16 cycles. The PCR products were purified using AMPure XP beads (Beckman Coulter, A63881) and normalized to 0.1 ng/μl concentration. Then, the Nextera XT DNA Library Preparation Kit (Illumina #FC-131-1024) was used to obtain the RNA-seq libraries. The quality and concentration of the obtained libraries were measured using High Sensitivity D1000 ScreenTape and reagents (Agilent, 5067-5584 and 5067-5585) on an Agilent 4150 TapeStation. The libraries were then sequenced using 100-base-pair paired-end sequencing on a NovaSeq 6000 platform.

Low-input bulk RRBS

The protocol for RRBS library preparation was adopted from the Smart-RRBS protocol²³ for low-input bulk samples with a few modifications. Briefly, instead of using single cells, 40–50 cells were sorted from the pooled posterior parts (midgut, hindgut) of lineage-traced E9.5 embryos and the corresponding yolk sac tissues into 20 μl RLT Plus buffer. Similarly, 40–50 cells were sorted from individual organs (colon and small intestine) isolated from lineage-traced E13.5 embryos. The poly(A)+ mRNA-depleted fraction containing genomic DNA was purified using AMPure XP beads. Genomic DNA was digested with both MspI and HaeIII, followed by end repair, A-tailing and ligation of indexed methylated adaptors. After pooling, bisulfate conversion was performed using an EpiTect fast DNA bisulfite kit (Qiagen, 59824). The cycle number to amplify the bisulfite-converted DNA was reduced to 14–15 and no size fractionation was performed. The quality and concentration of the obtained libraries were measured using High Sensitivity D1000 ScreenTape and reagents on an Agilent 4150 TapeStation. The libraries were then sequenced using 100-base-pair single-end sequencing on a NovaSeq 6000 platform.

WGBS

Genomic DNA was isolated by phenol–chloroform extraction from wild-type E6.5 exEndo tissues and from cells sorted from the pooled posterior parts (midgut and hindgut) of lineage-traced E9.5 embryos as well as the corresponding yolk sac tissues in Lysis buffer. The genomic DNA was then sheared in micro TUBE AFA Fiber Pre-Slit Snap-Cap tubes (Covaris, 520045), followed by phenol–chloroform extraction. The purified DNA was bisulfite-converted using an EZ DNA methylation-gold kit (Zymo, D5005) and WGBS libraries were processed using an Accel-NGS Methyl-seq DNA library kit (Swift Biosciences, 30096) as per the manufacturer’s recommendations. Libraries were prepared with nine (for E6.5 samples) or 12–13 (for E9.5 samples) final PCR cycles and cleaned using AMPure XP beads. The quality and concentration of the obtained libraries were measured using High Sensitivity D5000 ScreenTape and reagents (Agilent, 5067-5592 and 5067-5593) on an Agilent 4150 TapeStation. The libraries were then sequenced using 150 base pair paired-end sequencing on a NovaSeq 6000 platform.

MULTI-seq labelling

MULTI-seq labelling was performed as previously described¹⁷ with few modifications. Briefly, the FACS-isolated single-cell suspension of each sample in DPBS was incubated with a unique Barcode-Lipid modified oligonucleotide ‘anchor’ mix (200 nM final concentration each) for 5 min on ice. Next, a 200 nM ‘co-anchor’ mix was added to each sample and the cells were incubated for an additional 5 min on ice. The reaction was quenched by adding 200 µl of 1% BSA (Sigma-Aldrich, A4503) in PBS and the cell suspensions were then washed twice with 0.4% BSA in PBS. Next, the four samples were pooled in 0.4% BSA in PBS and subjected to the 10x scRNA-seq procedure (described in the following section). The sequences of the MULTI-seq oligonucleotides are listed in Supplementary Table 11.

ScRNA-seq

The scRNA-seq experiment was performed as previously described¹⁸. Briefly, the cell suspension after MULTI-seq labelling was filtered using Scienceware Flowmi cell strainers (40 µm), the cell concentration was determined using a haemocytometer and the cells were subjected to scRNA-seq (10x Genomics, Chromium Single Cell 3′ v3.1). Single-cell libraries were generated according to the manual, with one modification: fewer PCR cycles were run than recommended during cDNA amplification (n = 11) or library generation/sample indexing (n = 10) to increase the library complexity. The quality and concentration of the obtained libraries were measured using High Sensitivity D5000 ScreenTape and reagents on an Agilent 4150 TapeStation. The libraries were sequenced with paired-end fragments according to the parameters described in the manual.

ScRNA-seq and MULTI-seq barcode recovery

The steps described in the previous section were applied to generate the scRNA-seq library of the MULTI-seq sample, with two modifications: (1) during the cDNA amplification step, 1 µl of an oligonucleotide to enrich for the MULTI-seq barcodes was added to the reaction (see Supplementary Table 11 for the oligonucleotide sequence) and (2) after cDNA amplification and incubation with SPRIselect beads, the MULTI-seq barcode-containing supernatant was collected and subjected to further incubation with SPRIselect beads to recover the MULTI-seq barcode as previously described¹⁷. MULTI-seq barcode recovery and integrity were measured using High Sensitivity D5000 ScreenTape and reagents on an Agilent 4150 TapeStation. The obtained material was then used as input for MULTI-seq barcode library preparation (described in the following section).

MULTI-seq barcode library preparation

MULTI-seq barcode libraries were prepared as previously described¹⁷. Briefly, 15 ng input material obtained from the 10x cDNA purification (described in the previous section) was used to perform library PCR using KAPA HiFi HotStart ReadyMix (Roche, KK2601) in a 50 µl reaction with the following steps: 95 °C for 5 min; ten cycles of 98 °C for 15 s, 60 °C for 30 s and 72 °C for 30 s; 72 °C for 1 min and hold at 4 °C. Next, AMPure XP beads cleanup (1.6×) was performed to purify the MULTI-seq barcode libraries. The quality and concentration of the obtained libraries were measured using High Sensitivity D5000 ScreenTape and reagents on an Agilent 4150 TapeStation. The libraries were then sequenced using asymmetric end sequencing on a NovaSeq 6000 platform.

Microscopy

Embryos were imaged using a Zeiss Axio Zoom V16 stereo microscope for bright-field and fluorescence microscopy to acquire whole embryo overviews. A weak background signal, presumably autofluorescence, can be seen, which is often noted and due to the limitations of this technique to eliminate out-of-focus light when thick biological specimens are imaged. Embryos were imaged using a Zeiss LSM880 laser scanning microscope with an Airyscan detector or a Zeiss light-sheet LS Z1 microscope to acquire high-resolution images and optical sections. Appropriate filters for GFP, mCherry, DAPI, Alexa Fluor 546, Alexa Fluor 568 and Alexa Fluor 647 were used. To image blastocysts, the fixed embryos were mounted in a DAPI-containing mounting medium (Biozol, VEC-H-1200). For light-sheet microscopy, the specimens were cleared and embedded in 1.5% low-melting agarose (Sigma-Aldrich, A9414) in PBS. Agarose columns containing the samples were inserted into the RIMS-filled acquisition chamber and cleared for an additional 5 h to overnight, depending on the tissue volume. Post-acquisition processing was performed using the ZEN Blue/Black (Zeiss) and ImageJ software packages.

Whole-mount immunofluorescence and tissue clearing

If not specified otherwise, incubation in buffers was performed at room temperature on a roller. Embryos selected for immunofluorescence were collected in 4 ml glass vials (Wheaton 224882), fixed in 4% paraformaldehyde for 1 h and then washed with PBS (3 × 10 min) and PBST (PBS containing 0.5% Triton X-100; Merck, 9002-93-1) at room temperature (3 × 10 min). For blocking, the embryos were incubated in PBSTB (PBST containing 10% FBS) at 4 °C for a minimum of 24 h. Primary antibody incubation was performed in PBSTB at 4 °C for 48–96 h (the antibodies are listed in Supplementary Table 12). After incubation, the remaining antibody solution was diluted by rinsing the samples 3× with PBSTB, followed by washing with PBSTB (3 × 10 min) and PBST (3 × 10 min). After washing, the specimens were incubated overnight in PBSTB at 4 °C. Secondary antibody incubation was performed in PBSTB at 4 °C for 24–48 h. The embryos were rinsed 3× with PBSTB and washed with PBSTB + 0.02% DAPI (2 × 20 min), followed by PBST + 0.02% DAPI (3 × 20 min) and transferred to eight-well glass-bottomed slides (Ibidi, 80827). After additional washing steps in PBS (3 × 10 min), the embryos were either imaged or processed for tissue clearing. For tissue clearing, stained embryos on eight-well glass slides were incubated in 0.02 M phosphate buffer (0.005 M NaH₂PO₄ and 0.015 M Na₂HPO₄, pH 7.4; 3 × 5 min). Before clearing, fresh refractive index matching solution (RIMS, 133% w/v Histodenz; Sigma-Aldrich, D2158) in 0.02 M phosphate buffer was prepared and applied to the samples after careful removal of the phosphate buffer. The clearing was performed at 4 °C on a shaking incubator for at least 24 h.

Ex utero culture of embryos and live-cell imaging

E7.5 embryos were dissected in equilibrated (5% CO₂) and pre-warmed (37 °C) M2 medium and then transferred to eight-well glass-bottomed slides with a 10 µl drop of Matrigel (Corning, 356231) to position the embryo. Next, equilibrated and pre-warmed culture medium was added (50% rat serum (Janvier labs, Sprague Dawley rat serum) and 50% DMEM-F-12 medium). The embryos were cultured and imaged at 37 °C with 5% CO₂ using a Zeiss LSM880 confocal laser scanning microscope. LysoTracker deep red (Invitrogen, L12492) was used at a concentration of 1 μM in the embryo culture media.

In vitro culture of sorted gut cells

Wild-type lineage-traced embryos or lineage-traced embryos with extraembryonic p53 KO were isolated at E9.5. The embryos were cut in half along the anterior–posterior axis with a micro knife and the posterior half, including the midgut and hindgut region, was used further. A single-cell suspension was prepared for FACS as described earlier. EPCAM⁺ exGut (mCherry⁺) and EPCAM⁺ emGut (utilizing the dual⁺ cells) cells were sorted into gut culture medium: 75% IMDM medium (Invitrogen, 21056-023), 25% F-12 (Invitrogen, 11765-054), 0.5×B27 (Invitrogen, 12587-010), 0.5×N2 (Invitrogen, 17502-048), 0.5 mM ascorbic acid (Sigma-Aldrich, A4403), 0.05% BSA, 2 mM GlutaMAX (Thermo Fischer Scientific, 35050038), 1×penicillin–streptomycin (Thermo Fisher Scientific, 15140122) and 55 μM 2-mercaptoethanol (Thermo Fisher Scientific, 21985023) supplemented with 20 μg μl⁻¹ FGF-2 (PeproTech, 100-18C), 2 μM CHIR99021 (Merck, 361571) and 10 μM Rho kinase inhibitor (Abcam, ab120129). Based on FACS cell counts, 300 cells were transferred into single wells of an ultra-low-attachment 96-well plate (Costar, 7007). The cells formed aggregates on the first day after plating and the medium was changed every day, until day 5, with gut culture medium supplemented with 2% Matrigel.

Morphometric analysis of gut-cell assemblies

The processing and analysis for gut-cell assembly morphometries were carried out in ImageJ/Fiji. Briefly, with a semi-automated routine, the outlines of the assemblies were manually drawn from maximum-intensity-projection bright-field images and the subsequent area was calculated by the macro. The obtained values were subsequently used for plotting.

ScRNA-seq processing

Raw reads (FASTQ) were generated using 10x Genomics Cell Ranger mkfastq (version 6.0.1; default parameters)⁴⁶. The FASTQ files were aligned to the mouse reference genome (mm10 including GFP and mCherry transgenes), filtered and the unique molecular identifiers were counted using 10x Genomics Cell Ranger count (version 6.0.1; default parameters). The resulting cell–barcode matrix was loaded into R and converted to a Seurat object (R package Seurat version 4.1.0)⁴⁷. Cells with ≥15% reads mapping to the mitochondrial genome and <2,000 genes detected were removed. Demultiplexing based on MULTI-Seq barcodes was performed using the R package deMULTIplex according to the tutorial (version 1.0.2; https://github.com/chris-mcginnis-ucsf/MULTI-seq; two to four rounds of quantile sweeps for sample classification were performed)¹⁷. All cells with a valid MULTI-Seq barcode and classified as singlets after the sample classification were considered for downstream analyses.

For the re-processing of E8.75 gut endoderm samples from Nowotschin et al.⁴, raw FASTQ files were obtained from GSE123046 (E8.75 GFP⁺ and GFP⁻), processed with 10x Genomics Cell Ranger mkfastq and counted as described above. For the E9.5–E15.5 gastrointestinal tract cohort from Zhao et al.¹⁹, processed data and metadata were obtained from GSE186525.

RNA-seq processing

Raw reads were subjected to adaptor and quality trimming with cutadapt (version 4.1; parameters: --quality-cutoff 20 --overlap 5 --minimum-length 25 --interleaved --adaptor AGATCGGAAGAGC -A AGATCGGAAGAGC), followed by poly-A trimming with cutadapt (parameters: --interleaved --overlap 20 --minimum-length --adaptor ‘A[100]’ --adaptor ‘T[100]’)⁴⁸. The reads were aligned to the mouse reference genome (mm10 including GFP and mCherry transgenes) using STAR (version 2.7.9a; parameters: --runMode alignReads --chimSegmentMin 20 --outSAMstrandField intronMotif --quantMode GeneCounts)⁴⁹ and transcripts were quantified using stringtie (version 2.0.6; parameters: -e)⁵⁰ with the GENCODE annotation (release VM23). To generate RNA-seq coverage tracks (CPM) per tissue and time point, single replicate BAM files were merged using the samtools (version 1.18) ‘merge’ command⁵¹. Coverage tracks were subsequently generated using the deepTools (version 3.5.2) ‘bamCoverage’ command⁵².

RRBS processing

Raw reads were subjected to adaptor and quality trimming using cutadapt (version 4.1; parameters: --quality-cutoff 20 --overlap 5 --minimum-length 25; Illumina TruSeq adaptor). The trimmed reads were aligned to the mouse genome (mm10 including GFP and mCherry transgenes) using BSMAP (version 2.90; parameters: -v 0.1 -s 12 -q 20 -w 100 -S 1 -u -R -D C-CGG)⁵³. Methylation rates were called using mcall from the MOABS package (version 1.3.2; default parameters)⁵⁴. Due to the overall low coverage of low-input RRBS replicates, here the replicates were combined at the raw count level of methylated and unmethylated CpGs and merged methylation rates were calculated subsequently to increase the coverage. Only CpGs covered by at least five (single RRBS replicates) or ten (merged RRBS replicates) and at maximum 150 reads were considered for downstream analyses.

WGBS processing

Raw reads were subjected to adaptor and quality trimming using cutadapt (version 4.1; parameters: --quality-cutoff 20 --overlap 5 --minimum-length 25; Illumina TruSeq adaptor clipped from both reads), followed by trimming of ten and five nucleotides from the 5′ and 3′ ends, respectively, of the first read and 15 and five nucleotides from the 5′ and 3′ ends, respectively, of the second read. The trimmed reads were aligned to the mouse genome (mm10 including GFP and mCherry transgenes) using BSMAP (version 2.90; parameters: -v 0.1 -s 16 -q 20 -w 100 -S 1 -u -R). Duplicates were removed using the ‘MarkDuplicates’ command from GATK (version 4.3.0.0; parameters: --VALIDATION_STRINGENCY = LENIENT --REMOVE_DUPLICATES = true)⁵⁵. Methylation rates were called using mcall from the MOABS package (version 1.3.2; default parameters). Only CpGs covered by at least ten and at most 150 reads were considered for downstream analyses, with the exception of genome browser tracks where a minimum of five reads per CpG was used.

Bioinformatic analysis

All analyses were carried out using R 4.1.0 unless stated otherwise.

Cell-state annotation

E9.5

Cell states present in E9.5 dual⁺ cell populations were defined using the R package Seurat (version 4.1.0). Due to the sex bias present in our complete scRNA-seq dataset (dual⁺ cells are always male due to the ESC line used for the aggregation; mCherry⁺ cells can be male or female and were later integrated with the dual⁺ cells), genes located on the Y chromosome were excluded. Across the dual⁺ cells, the 2,000 most variable genes were detected across all cells and sort populations (dual⁺ low, intermediate and high). Gene counts were log₂-normalized (‘NormalizeData’) and scaled using the function ‘ScaleData’ accounting for cell-cycle and mitochondrial expression effects (parameters: vars.to.regress = c(‘percent.mt’, ‘S.Score’, ‘G2M.Score’)). A UMAP was used to represent the cells in two dimensions using the function ‘RunUMAP’ (parameters: reduction = ‘pca’, dims = 1:21) based on the PCA (‘RunPCA’, number of principal components used as input for the UMAP determined by manually inspecting the corresponding elbow plot). Seven clusters of cells were identified using the functions ‘FindNeighbors’ (parameters: reduction = ‘pca’, dims = 1:10) and ‘FindClusters’ (parameters: resolution = 0.2). Marker genes per cluster were identified with the ‘FindAllMarkers’ function (parameters: only.pos = TRUE, min.pct = 0.1, logfc.threshold = 0.1). Based on the detected marker genes per cluster and literature-based markers of cell states we assigned clusters to the following cell states: hindgut⁵, colon¹⁹, small intestine¹⁹, liver⁴, foregut⁴, mesoderm¹⁸ and endothelium¹⁸. The mCherry⁺ cells were then integrated with the dual⁺ reference dataset and assigned to the nearest cell state (‘FindTransferAnchors’ and ‘MapQuery’).

E13.5

Cell states present in the E13.5 wild-type gastrointestinal tract were defined similar to our E9.5 annotation with minor deviations. After manual inspection of the elbow plot, 20 principal components were used as input for the ‘RunUMAP’ function. Nine clusters were identified and annotated based on the detected marker genes as colon distal¹⁹, colon proximal¹⁹, small intestine distal¹⁹, small intestine proximal¹⁹, stomach antrum¹⁹, stomach corpus¹⁹ and stomach fore¹⁹ as well as pancreas tip³¹ and trunk³¹. p53-KO cells were then integrated with the wild-type reference dataset and assigned to the nearest state as described earlier. As this experiment is not based on the lineage-traced embryos, cells were split by lineage origin based on the expression of Rhox5 and Trap1a, two known marker genes for gut endoderm cells with extraembryonic origin. Cells with detected expression of both genes were considered as exGut, whereas cells with no detected expression of both genes were considered emGut. Cells with expression of only one of the two genes were discarded for downstream analysis.

Public data

Cell-state annotations for the E8.75 gut endoderm samples from Nowotschin et al.⁴ as well as the E9.5 to E15.5 gastrointestinal tract samples from Zhao et al.¹⁹ were obtained from the respective provided metadata. For the E8.75 dataset, only cells assigned to endodermal cell states (colon, liver, lung, pancreas, small intestine, thymus and thyroid) were considered. For the E9.5–E15.5 dataset, only the cell states associated with the large and small intestinal epithelium were considered for Fig. 2g; all cells except those assigned to ‘Unknown of E9.5’ were considered for Extended Data Fig. 4e. Cells were split by lineage origin as described earlier for the E13.5 data.

Differential gene expression

Genes that were differentially expressed in E9.5 exGut (test) compared with emGut (control) cells were determined using DESeq2 (version 1.32.0, parameters: minReplicatesForReplace = 10)⁵⁶. As explained in the ‘FACS’ section, dual⁺ cells were used as the emGut control due to the contamination of E9.5 GFP⁺EPCAM⁺ cells with surface ectoderm and primordial germ cells^44,45, which would have a strong effect on gene expression analysis. Dual⁺ cells have been shown by the scRNA-seq analysis to be of embryonic, mostly endoderm, origin with extraembryonic remnants. To reduce the contamination of extraembryonic fragments, only dual⁺ cells with low mCherry signal were sorted (‘FACS’ section). Although the dual⁺ cells can contain some extraembryonic transcript remnants, this will only weaken the actual differential signal between exGut and emGut cells and not introduce unrelated, cell-type-specific signatures such as present in the single GFP⁺EPCAM⁺ population.

Only genes with TPM > 1 in at least four of 16 samples (four biological replicates for exMidgut, exHindgut, emMidgut and emHindgut each) were used as input for the analysis. Genes located on the Y chromosome were removed and the analysis was restricted to protein-coding genes. Genes with log₂(fold change) > 1 and an adjusted P < 0.05 were termed E9.5 exGut high, whereas genes with log₂(fold change) < −1 and an adjusted P < 0.05 were termed E9.5 exGut low. Overrepresentation analysis of differentially expressed genes in the Gene Ontology term database for biological processes and cellular components was carried out using the R package (and function) WebGestaltR (version 0.4.4; parameters: minNum = 10, maxNum = 500, sigMethod = ‘top’ and topThr = 5)⁵⁷. Genes that were classified as E9.5 exGut low and associated with the axon-related biological processes or the cellular components related to synaptic membranes detected by the overrepresentation analyses were termed ‘axonogenesis-associated’. Genes that were classified as E9.5 exGut high and associated with the germ cell-related biological processes or the synaptonemal complex and condensed chromosome-related cellular components were termed ‘germline-associated’. This list was complemented by exGut high genes that have been reported to be specifically expressed in the germline (Rhox5, ref. ⁵⁸; Trap1a⁵⁹; Mageb16, ref. ⁶⁰; Tekt5, ref. ⁶¹; Tex101, ref. ⁶²; Xlr3c⁶³ and Slc25a31, ref. ⁶⁴). Heatmaps of log₂-transformed TPMs averaged across replicates per tissue were generated using the R package ComplexHeatmap (version 2.7.11)⁶⁵. Genes known to escape X chromosome inactivation were obtained from Marks et al. and overlapped with the exGut high genes to exclude a potential effect of the sex bias between emGut and exGut cells on our differential expression analysis due to incomplete X chromosome inactivation in females⁶⁶. Z-score-transformed differentially expressed genes were clustered using all E9.5 gut and E13.5 intestine samples (averaged per cell type and time point) using k-means (parameters: iter.max = 1,000, nstart = 100).

Definition of DNA methylation-sensitive genes

DNA methylation-sensitive genes were defined based on previous work that studied the effects of the KO of the DNA methyltransferase Dnmt3b²⁸ and both de novo methyltransferases together (Dnmt3b and Dnmt3a)²⁹ in E8.5 embryos. These studies reported upregulation of different gene groups following the KOs: (1) genes that were methylated in wild-type embryos and lost methylation after DNA methyltransferase(s) KO accompanied by an increase in expression (germline genes were reported to be associated with this gene group) and (2) genes that were upregulated with no direct link to DNA methylation, which were mostly considered to represent secondary effects^28,29. DNA methylation-sensitive genes for each study were therefore determined based on gene expression and DNA methylation analyses from the respective studies as follows.

For Dnmt3b KO, genes that were upregulated with log₂(fold change) > 1, an adjusted P < 0.05 and contained an exon that overlapped with a hypomethylated differentially methylated region as defined by Auclair et al. were selected²⁸.

For double KO, genes that were upregulated with a log₂(fold change) > 1, an adjusted P < 0.05 and a highly methylated CpG-rich promoter in wild-type embryos (‘group 3’ according to the classification by Dahlet et al.) were selected²⁹.

The overall set of DNA methylation-sensitive genes was defined by the union of Dnmt3b- and double KO-specific DNA methylation-sensitive genes.

Genomic feature annotation

We generated 1 kb genomic tiles by segmenting the genome using bedtools makewindows (version 2.30.0; parameters: -w 1000 -s 1000)⁶⁷. Promoters were defined as 500 bp upstream and 500 bp downstream of the transcription start site. Genes were defined to have a promoter CGI if 20% of a CGI or 20% of the promoter overlapped (bedtools intersect; version 2.30.0; parameters: -f 0.2, -F 0.2, -e).

Hyper CGIs were defined using the methylation difference of mouse epiblast and exEndo 1 (WGBS data). The CGIs were termed hyper CGIs if the difference of the average methylation of a CGI was more than 0.1 when comparing averaged exEndo 1 replicates to averaged epiblast replicates. In addition, either more than half of the CpGs within a CGI were required to have a minimum difference of 0.1 or the CGI was required to contain a differentially methylated region with higher methylation in exEndo 1. Differentially methylated regions were called based on CpGs located in CGIs using metilene (version 0.2–8; parameters: -m 10 -d 0.1 -c 2 -f 1 -M 80 -v 0.7) and filtered for Q-value < 0.05 (ref. ⁶⁸). CGIs methylated in the epiblast (≥0.15) were excluded from the set.

Genome-wide DNA methylation analysis

E6.5 WGBS replicates were averaged per CpG for each tissue (two replicates of each E6.5 epiblast, exEndo 1 and exEndo 2). For both WGBS and RRBS samples, methylation rates were averaged per genomic tile and CGI. Only features located on autosomes and with at least three covered CpGs were considered for violin plots displaying 1 kb tiles and hyper CGIs. Genome browser tracks displaying CpG methylation rates were generated using IGV (version 2.15.2)⁶⁹.

Promoter DNA methylation analysis

The promoter methylation level of differentially expressed genes was determined as follows. If the promoter of a gene overlapped with a CGI (or multiple) covered by WGBS or RRBS samples, the average methylation value of the CGI(s) was used as the promoter methylation level. If no CGI overlapped the transcription start site, the average methylation in the promoter region was considered as the promoter methylation level (‘Genomic feature annotation’ section). Promoters were subdivided into low, intermediate and high CpG density promoters (LCP, ICP and HCP, respectively) using the following criteria. Every promoter that did not overlap with a CGI (covered by WGBS or RRBS) and for which the complete promoter region was used to determine the methylation level was considered a low CpG density promoter. If one or more CGIs overlapped the promoter region and were used to determine the promoter methylation level, the promoter was classified as ICP or HCP depending on the observed-to-expected (O/E) CpG ratio as obtained from the UCSC Genome Browser (that is, HCP, O/E ratio > 0.8; ICP, otherwise). In addition, promoters were divided into E6.5 exEndo 1 hyper- and hypomethylated based on the difference to the epiblast (hypermethylated, delta methylation exEndo 1 versus epiblast > 0.1; hypomethylated, delta methylation exEndo 1 versus epiblast < −0.1).

Many genes classified as E9.5 exGut high are located on the X chromosome (29/156 genes). This affects the methylation level of X chromosome-specific regions in females due to the inactivation and full methylation of one of the two X chromosome copies⁷⁰. Due to our aggregation method, the E9.5 emGut cells are always male (dependent on the ESC line used for aggregation), whereas the E9.5 exGut and YsEndo with extraembryonic origin can be male or female. In addition, our E6.5 WGBS samples were obtained from pooled naturally mated embryos, which also can be male or female. Therefore, the promoter methylation levels of E6.5 epiblast, exEndo 1 and exEndo 2 as well as E9.5 exGut and YsEndo samples can be biased towards higher methylation levels by sequencing reads that stem from inactivated X chromosomes in female embryos. However, the promoter DNA methylation levels of DNA methylation-sensitive E9.5 exGut high genes (Fig. 4d) are drastically different between E9.5 emGut and exGut even given this potential bias: emGut (male) cells are almost completely methylated, whereas exGut (male and/or female) cells display low-to-intermediate methylation levels (on average half of the methylation level observed in emGut cells).

Statistics and reproducibility

No statistical methods were used to pre-determine sample sizes but our sample sizes are similar to those reported in previous publications^4,10,18,28. The sample sizes are indicated in the figure panels or legends. Before downstream analysis and experiments, resorping embryos were excluded. For the downstream experiments with the two-colour lineage tracing, only embryos with gut-specific mCherry signal were used, mCherry⁺-only embryos were excluded. No other data were excluded. For the RNA-seq and RRBS experiments, three or four replicates were generated. Embryos were pooled for E9.5, whereas individual embryo replicates were generated for E6.5 and E13.5. For the WGBS experiments, two replicates were generated for each E6.5 tissue (exEndo 1 and 2) and one replicate was generated for each E9.5 tissue. For the E9.5 scRNA-seq analysis, one experiment using cells of different sort groups (dual⁺ low, intermediate and high populations, mCherry⁺ population) from 15 pooled embryos was performed. For the E13.5 scRNA-seq analysis, four wild-type embryos and four p53-KO embryos were included in the experimental set-up labelled by MULTI-seq barcodes, which allowed comparison of cell-state distributions across individual embryo replicates. For imaging experiments and FACS analysis, 3–10 embryos were analysed (the exact number is indicated in the respective figure or legend). All attempts at replication were successful. For assessing the outcome of the complementation assays, embryos were collected without a preconceived selection strategy or prioritization by morphology. Our genomic analyses were independent of human intervention and each sample was analysed equally in an unbiased fashion. The investigators were not blinded to the conditions of the experiments during data collection and analysis. All statistical tests were two-sided and were chosen as appropriate for data distribution.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Sequencing data that support the findings of this study have been deposited in the Gene Expression Omnibus (GEO) under the accession code GSE250084. Previously published scRNA-seq datasets of E8.75 gut endoderm and E9.5–E15.5 gastrointestinal tract that were re-analysed here were obtained from GSE123046 and GSE186525, respectively. The WGBS datasets of wild-type E6.5 epiblast were obtained from GSE137337. The mouse reference genome mm10 was obtained from UCSC (https://hgdownload.soe.ucsc.edu/goldenPath/mm10/bigZips/). Annotations of CpG islands for mm10 were downloaded from UCSC (https://genome.ucsc.edu/cgi-bin/hgTables). The mm10 gene annotation was downloaded from GENCODE (VM23, https://www.gencodegenes.org/mouse/release_M23.html). Source data are provided at https://doi.org/10.5281/zenodo.10926934 (ref. ⁷¹). All other data supporting the findings of this study are available from the corresponding author on reasonable request.

Code availability

Custom code is available at https://doi.org/10.5281/zenodo.10926934 (ref. ⁷¹).
