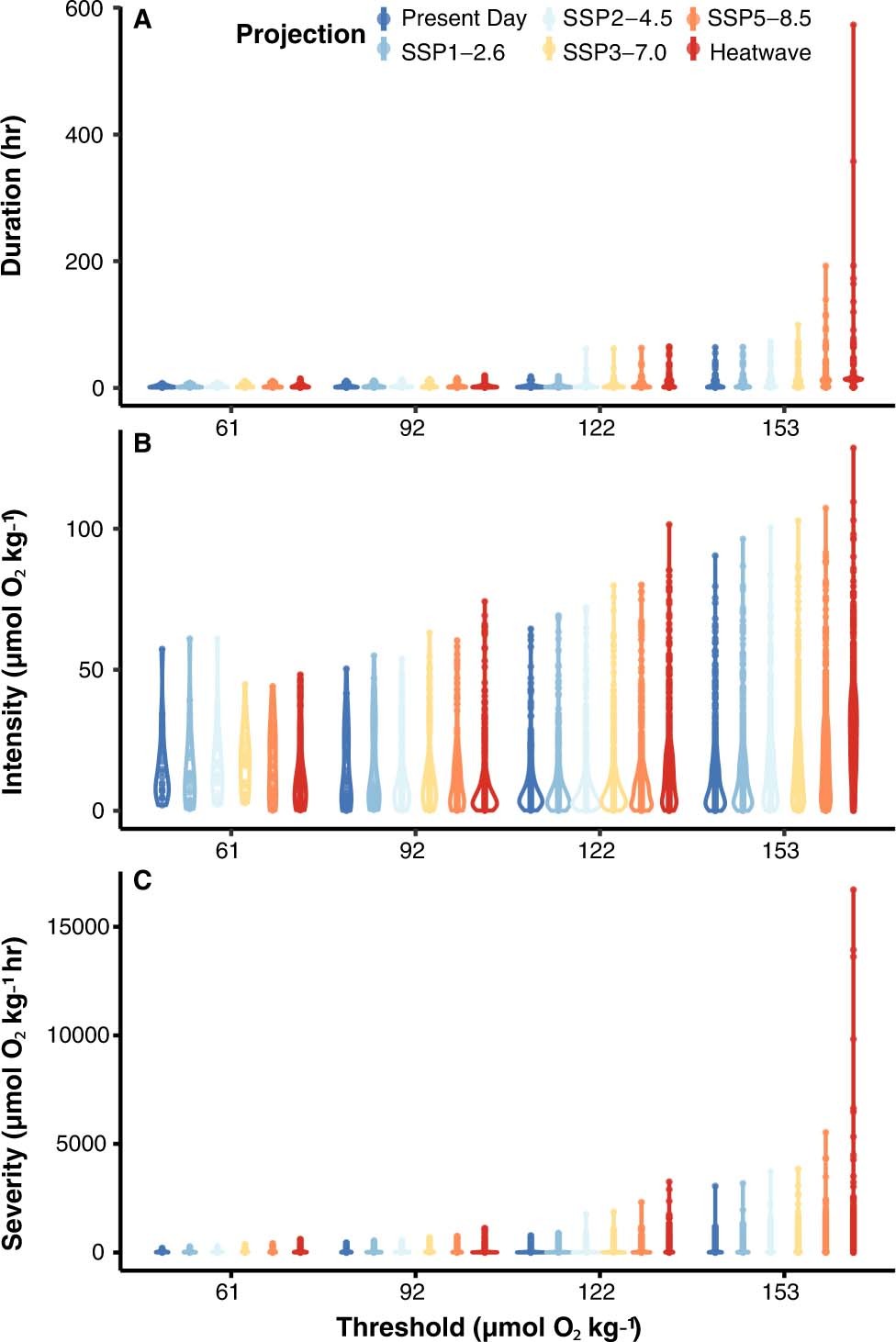

Extended Data Fig. 7: Changes in the duration, intensity, and severity of hypoxic events under warming for global coral reef sites.
From: Increasing hypoxia on global coral reefs under ocean warming
Distributions of the (a) duration (hours), (b) intensity (µmol O2 kg−1), and (c) severity (µmol O2 kg−1 hr) of hypoxic events below different oxygen thresholds (≤153 µmol O2 kg−1, ≤122 µmol O2 kg−1, ≤92 µmol O2 kg−1, or ≤61 µmol O2 kg−1) under present-day conditions and 5 different warming projections (including 4 Shared Socioeconomic Pathways (SSPs); blue to red) across global coral reef sites.
