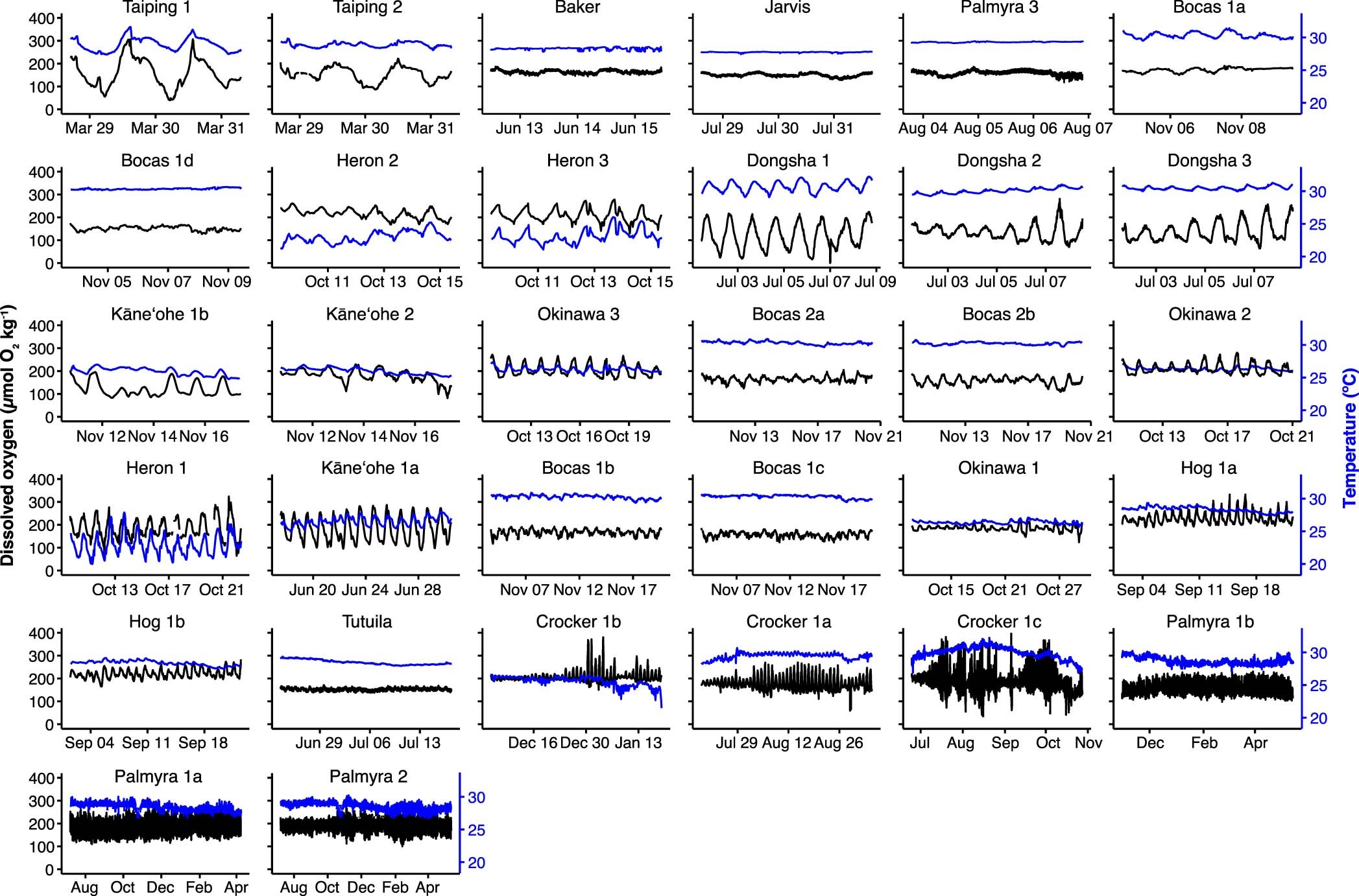

Extended Data Fig. 1: Dissolved oxygen and temperature time series for global coral reef sites.
From: Increasing hypoxia on global coral reefs under ocean warming
Dissolved oxygen (µmol O2 kg−1; black, left y-axis) and temperature (°C; blue, right y-axis) as a function of time in order of sites with increasing deployment length, ranging from 3 to 309 days (Supplementary Table 1). For each ___location, different instrument deployment sites are represented by numbers (for example, Dongsha 1 and Dongsha 2), or a combination of letters and numbers where letters represent either different depths at the same site (for example, Bocas 1a and 1b) or different deployments at the same site over time (for example, Crocker 1a, 1b, and 1c) (see Supplementary Table 1 for specific site information).
