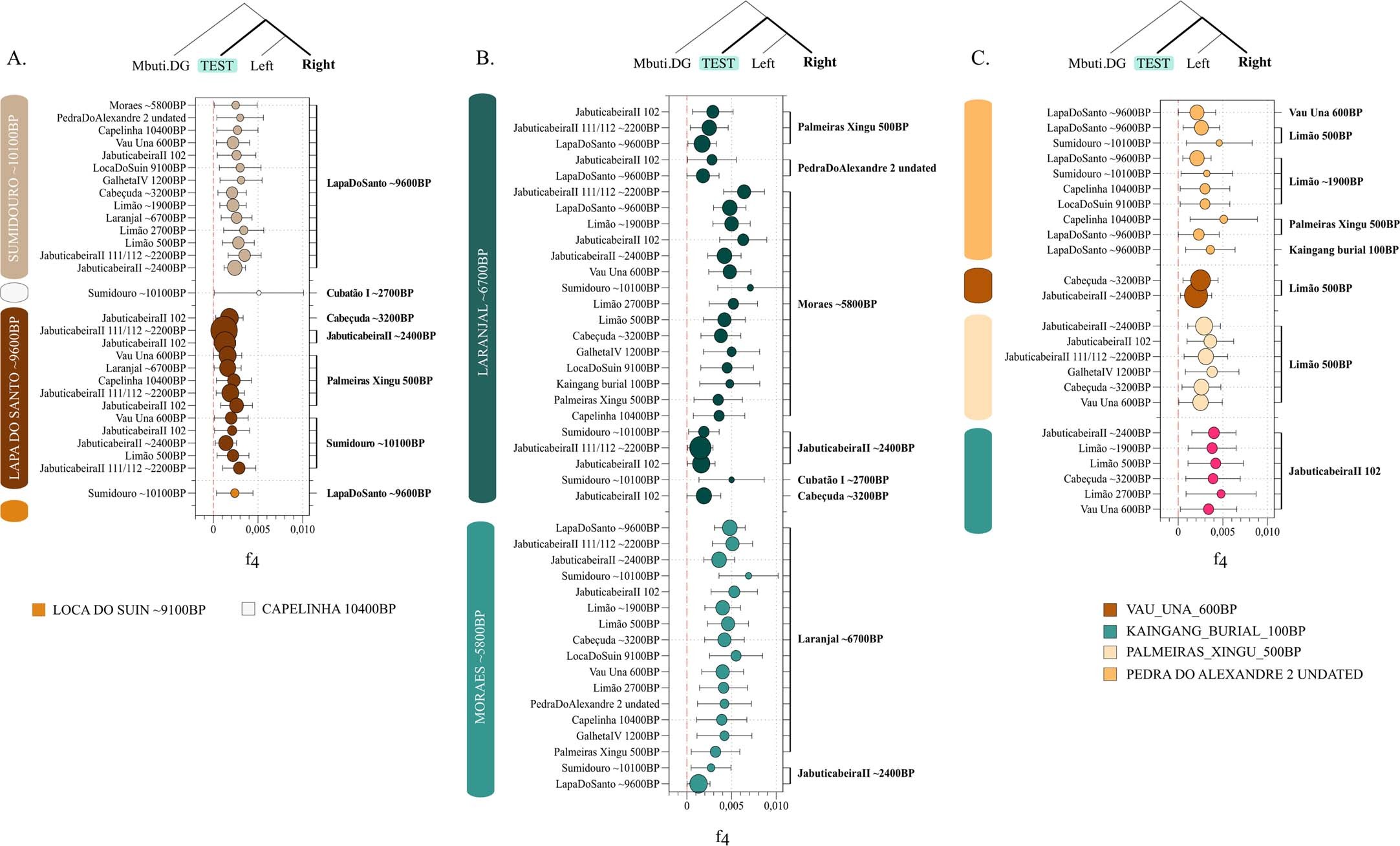

Extended Data Fig. 3: f4-statistics among ancient Brazilian groups/individuals from 10,000 BP to 100 BP.
From: Genomic history of coastal societies from eastern South America
Graphical representation of the significant f4-statistics (Z-score >3) polarized to positive values performed on ancient Brazilian genome-wide data in the form f4 (Mbuti; TEST; Ancient Brazilian - left; Ancient Brazilian - right) to test allele sharing among the different groups using the 1240k dataset. In the sub-panels TEST refers to A) early Holocene individuals; B) middle Holocene riverine Sambaqui individuals; C) post-1,000 BP or undated individuals. The point sizes refer to the number of SNPs used to compute the f4 tests (at least 20,000 SNPs) and colors correspond to the TEST ancient group/individual. Bars represent f4-statistics +/− 3 standard errors for all tests. Figure related to Supplementary Data 2.
