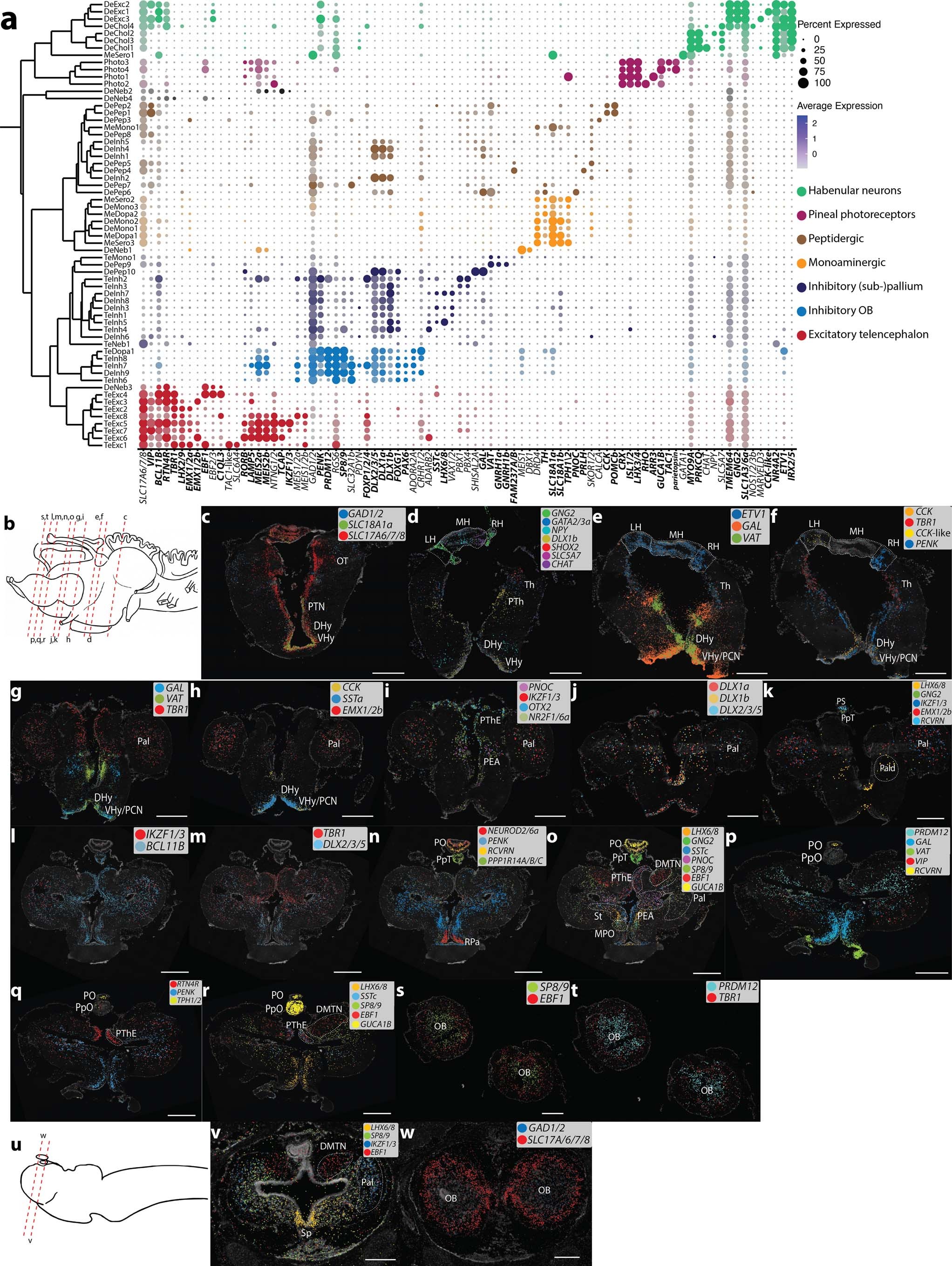

Extended Data Fig. 10: Anterior forebrain and epithalamic neurons.
From: A lamprey neural cell type atlas illuminates the origins of the vertebrate brain
a, Subtree from the dendrogram of Fig. 1c displaying the expression of marker genes for each cell type (gene names mentioned in main text are highlighted in bold). b, Section scheme of the adult brain. c-t, ISS maps of selected neuronal marker genes across various adult brain coronal sections (shown in b). u, Section scheme of the larval brain. v-w, ISS maps of selected neuronal marker genes across various larval brain coronal sections (shown in u). DHy, dorsal hypothalamus; DMTN, dorsomedial telencephalic nucleus; LH, left habenula; MH, medial habenula; MPO, medial preoptic nucleus; OB, olfactory bulb; OT, optic tectum; Pal, pallium; Pald, pallidum; PEA, pallial extended amygdala; PCN, postoptic commissure nucleus; PO, pineal organ; PpO, parapineal organ; PpT, parapineal tract; PS, pineal stalk; PTh, pre-thalamus; PThE, pre-thalamic eminence; PTN, posterior tubercle nucleus; RH, right habenula; RPa, rostral paraventricular area; Sp, septum; St, striatum; Th, thalamus; VHy, ventral hypothalamus. Scale bars, 500 μm.
