Fig. 2: Comparisons between lamprey and mouse brain atlases.
From: A lamprey neural cell type atlas illuminates the origins of the vertebrate brain

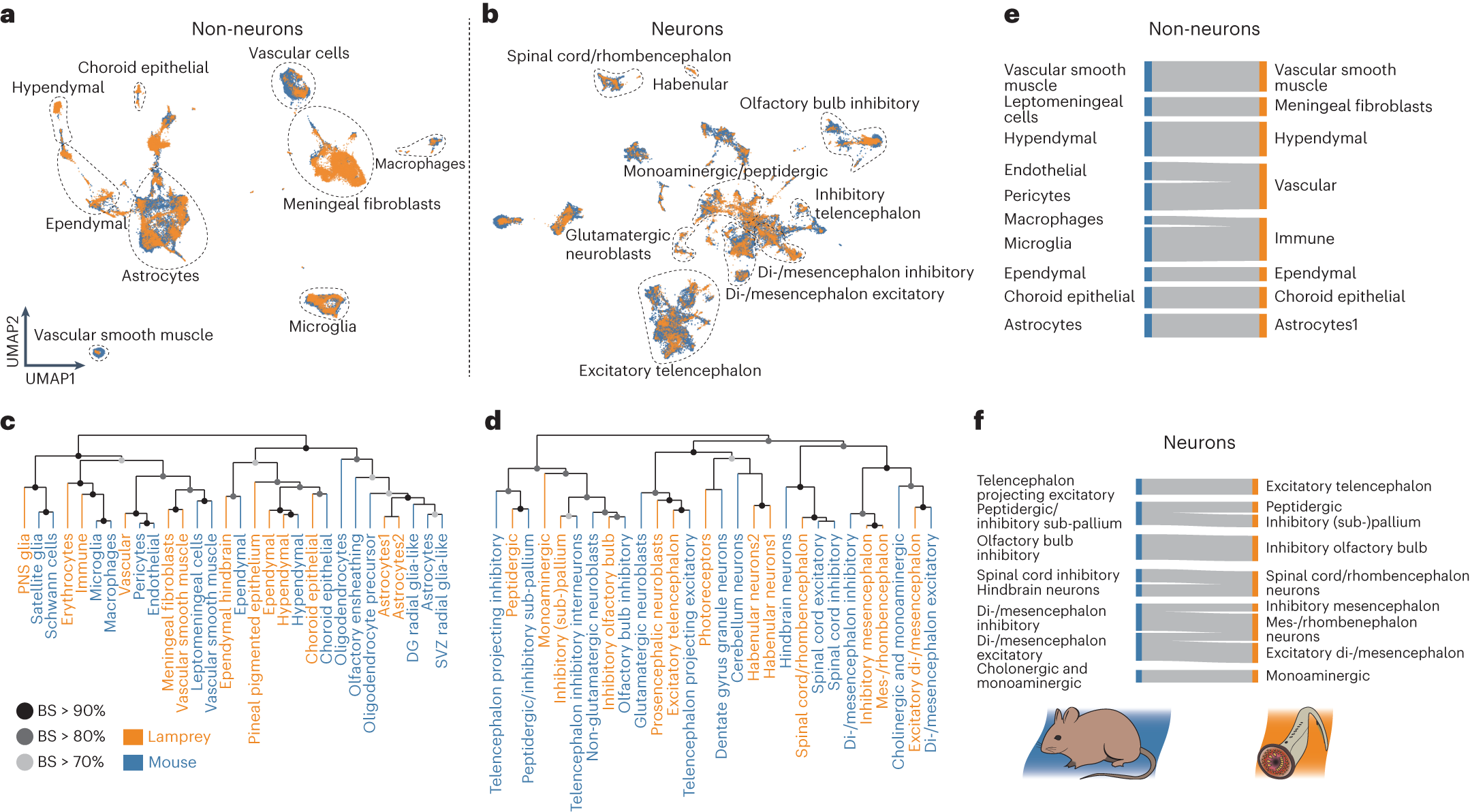

a,b, SAMap results displaying UMAPs of non-neuronal (a) and neuronal (b) cells from both species. Erythrocytes and oligodendrocytes were removed from the lamprey and mouse datasets, respectively. c,d, Dendrograms reporting gene expression distance (Pearson’s r) of TF genes of non-neuronal (c) and neuronal (d) cell type groups from the two species. BS, bootstrap support (n = 1,000). e,f, Sankey diagrams relating non-neuronal (e) and neuronal (f) cell type groups between the two species based on SAMap mapping scores (min = 0.1; max = 0.65). The link width is proportional to the mapping score. DG, dentate gyrus; SVZ, sub-ventricular zone.
